The HS-600 is a compact, integrated mobile video studio that combines an 8-input switcher with a 17-inch multi-view screen and talkback system. It allows seamless switching between 6 composite video inputs, 2 DVI inputs, and integrated audio. The system is powered through a single connection and can be setup and live within seconds for applications like worship services, education, or live broadcasts.

1. HS-600
Mobile Video Studio
www.datavideo.info

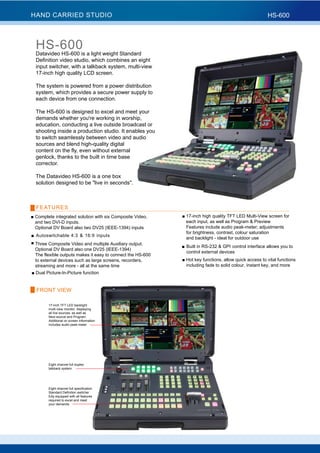

2. HAND CARRIED STUDIO HS-600
HS-600is a light weight Standard
Datavideo HS-600
Definition video studio, which combines an eight
input switcher, with a talkback system, multi-view
17-inch high quality LCD screen.
The system is powered from a power distribution
system, which provides a secure power supply to
each device from one connection.
The HS-600 is designed to excel and meet your
demands whether you're working in worship,
education, conducting a live outside broadcast or
shooting inside a production studio. It enables you
to switch seamlessly between video and audio
sources and blend high-quality digital
content on the fly, even without external
genlock, thanks to the built in time base
corrector.
The Datavideo HS-600 is a one box
solution designed to be "live in seconds".
FEATURES
■ Complete integrated solution with six Composite Video, ■ 17-inch high quality TFT LED Multi-View screen for
and two DVI-D inputs. each input, as well as Program & Preview
Optional DV Board also two DV25 (IEEE-1394) inputs Features include audio peak-meter; adjustments
for brightness, contrast, colour saturation
■ Autoswitchable 4:3 & 16:9 inputs
and backlight - ideal for outdoor use
■ Three Composite Video and multiple Auxiliary output.
■ Built in RS-232 & GPI control interface allows you to
Optional DV Board also one DV25 (IEEE-1394)
control external devices
The flexible outputs makes it easy to connect the HS-600
to external devices such as large screens, recorders, ■ Hot key functions, allow quick access to vital functions
streaming and more - all at the same time including fade to solid colour, instant key, and more
■ Dual Picture-In-Picture function
FRONT VIEW
17-inch TFT LED backlight
multi-view monitor, displaying
all live sources, as well as
Next source and Program.
Additional on screen information
includes audio peak-meter
Eight channel full duplex
talkback system
Eight channel full specification
Standard Definition switcher
fully equipped with all features
required to excel and meet
your demands

3. HAND CARRIED STUDIO HS-600
REAR VIEW
DIAGRAM
CV
1
CV
CV
PROJECTOR
2
CV
X50
3 DV TCP/IP
CV
4 datavideo NVS-100
DVI-D
CV DVI-D
5
CV
CV datavideo HS-600 XLR
DIGITAL VIDEO STUDIO
AUDIO
6 IN
CAMERA
INTERCOM datavideo HRS-10
+TALLY HDV RECORDER
1 WITH MONITOR
HDMI
2
7 3
CV CV
datavideo CG-10 RCA
4
datavideo DN-200
datavideo TLM-700
EXT.MIC AUDIO MIXER RECORDER
7’ LCD MONITOR
HDMI
CV
Auxiliary Output
8
PPT
DIMENSIONS
Size: 355 x 455 x134mm
134
Power: 100-240V AC
357.44
60Hz / 50Hz - 3A
355.59
36W Max
Weight: 9Kg
454.99
