The Datavideo HS-2000L is a portable 5-channel HD video studio that is lightweight and compact for travel. It functions as a video switcher with a 17-inch monitor to switch between 5 video and audio sources. It has features like built-in clocks, logos, and a talkback system. The integrated power supply allows it to run from a single socket, making it a portable solution for productions on location.

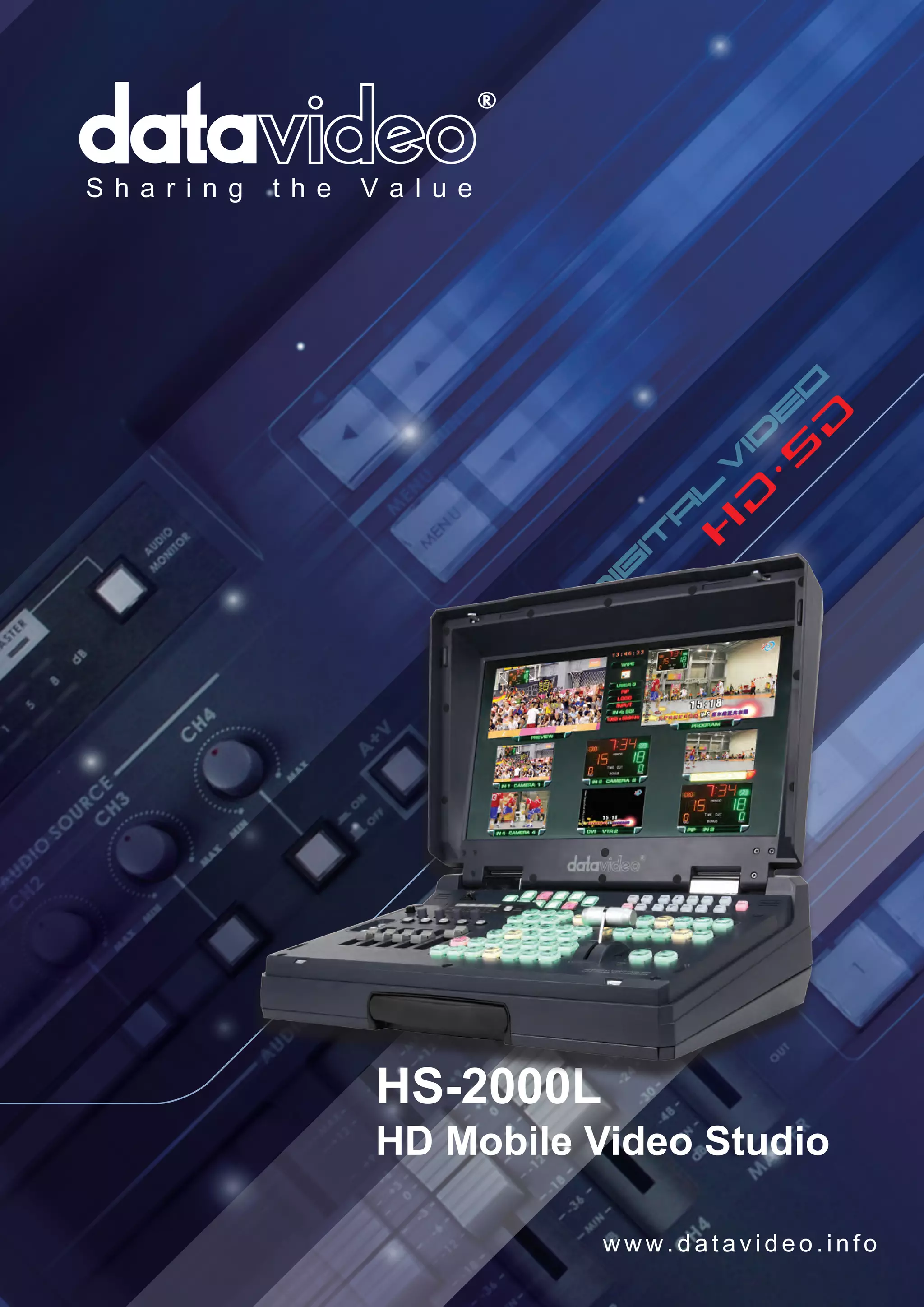

1. S h a r i n g t h e V a l u e
HS-2000L
HD Mobile Video Studio
www.datavideo.info

2. PORTABLE STUDIO HS-2000L
HS-2000
Lightweight 5-Channel HD Portable Studio DVI
HS-2000L SDI 5
The Datavideo HS-2000L is a broadcast HD-SDI mobile
video studio designed with improved portability in mind.
The HS-2000L is ideal as hand luggage when travelling
(fits into airline overhead luggage bays and weighs only
9kg).
The HS-2000L is a five channel 10-bit 1920x1080i or
1280x720p HD-SDI and DVI-D video & studio switcher,
with advanced features such as a 17.3-inch multi-
image video monitor displaying each source, together
with preview and program, a complete 8 way talkback
system supplied with four belt packs, 14 pre-stored
logos, digital clock display, five user set up, title overlay
and DVI-D connection ideal for use with presentation
software.
The integrated audio mixer with balanced XLR
connectors allows up to four channels microphone or
line audio inputs.
To avoid the mess and inconvenience of individual
power supplies, Datavideo HS-2000L comes with
an integrated power distribution centre, providing a simple and secure solution for connecting all the integrated
equipment from a single socket.
Whether you are working in worship, education, conducting a live outside broadcast or shooting inside a production
studio, the Datavideo HS-2000L HD portable studio enables you to switch seamlessly between video and audio
sources and blend high-quality digital content on the fly, even without external genlock, thanks to the built in time
base corrector.
FEATURES
■ HD 1920x1080i and 1280x720p.
■ Input configuration: 4 x HD-SDI & 1 x DVI-D or
3 x HD-SDI & 2 x DVI-D.
■ 2 x HD-SDI video output.
■ 17.3-inch multi-image video monitor displaying each
source, preview and program.
■ Built in digital clock and 14 logo store.
■ Lumakey function for text overlay.
■ Four XLR microphone or line audio input.
■ Picture in Picture function.
■ Integrated eight channel dual talkback system with four
cameraman belt packs each with dual colour tally light
indicator.
■ Seamlessly switching between all sources, thanks to
the built in TBC & frame synchroniser that synchronizes
all inputs without the need for external genlock of the
cameras.
■ Integrated power distribution centre. Providing a simple
and secure solution for connecting all the integrated
equipment from a single socket.
6

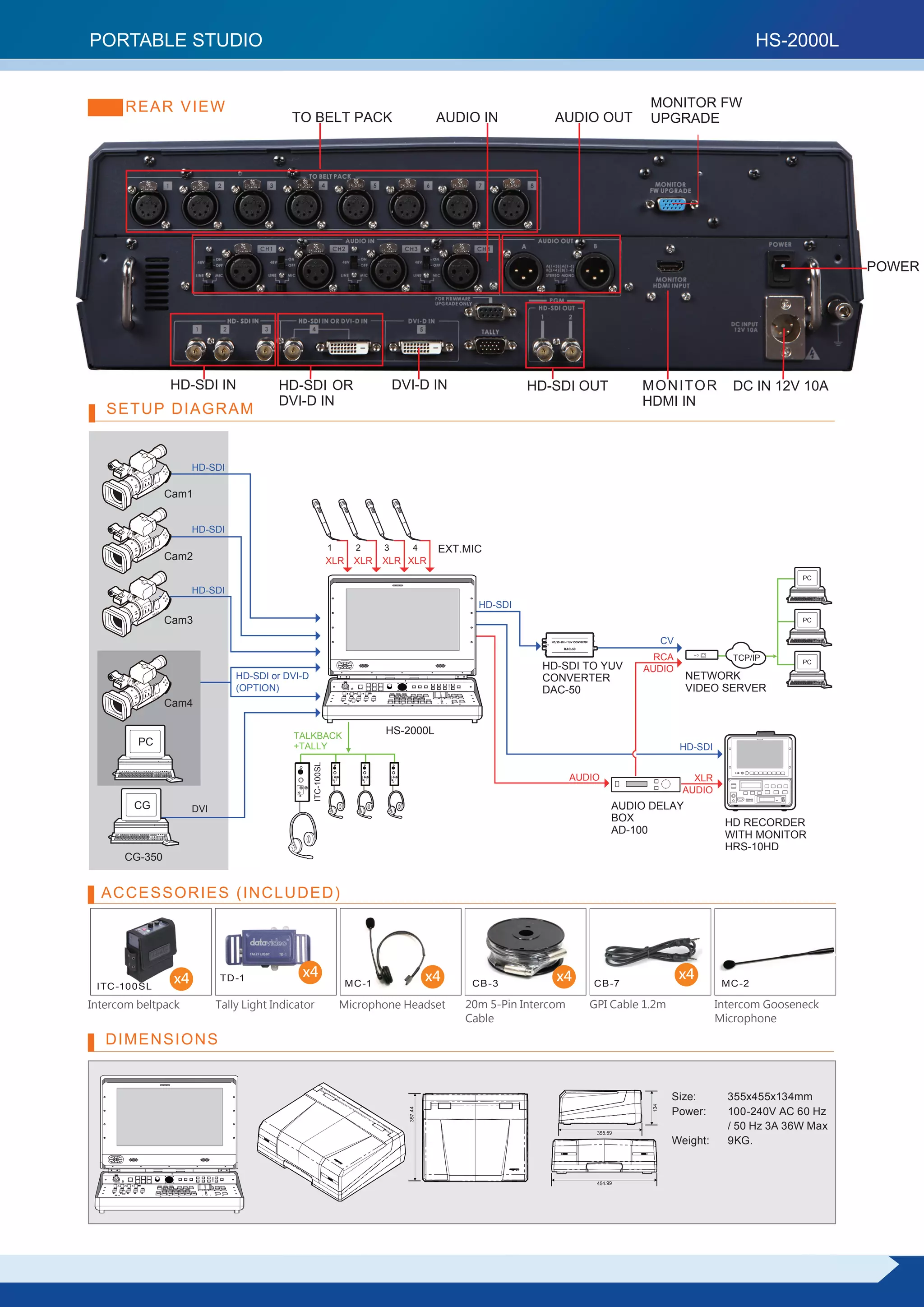

3. PORTABLE STUDIO HS-2000L
HD/SD MOBILE VIDEO STUDIO HS-2000
REAR VIEW MONITOR FW
TO BELT PACK AUDIO IN AUDIO OUT UPGRADE
POWER
HD-SDI IN HD-SDI OR DVI-D IN HD-SDI OUT MONITOR DC IN 12V 10A
DVI-D IN HDMI IN
SETUP DIAGRAM
HD-SDI
Cam1
HD-SDI
1 2 3 4 EXT.MIC
Cam2 XLR XLR XLR XLR
PC
HD-SDI
HD-SDI
Cam3 PC
HD/SD-SDI YUV CONVERTER CV
DAC-50
RCA TCP/IP PC
HD-SDI TO YUV AUDIO
HD-SDI or DVI-D CONVERTER NETWORK
(OPTION) DAC-50 VIDEO SERVER
Cam4
TALKBACK
HS-2000L
PC +TALLY HD-SDI
ITC-100SL
AUDIO XLR
AUDIO
CG DVI AUDIO DELAY
BOX HD RECORDER
AD-100 WITH MONITOR
HRS-10HD
CG-350
ACCESSORIES (INCLUDED)
x4 TD -1 x4 x4 x4 x4
ITC -10 0SL MC -1 CB -3 CB -7 MC -2
Intercom beltpack Tally Light Indicator Microphone Headset 20m 5-Pin Intercom GPI Cable 1.2m Intercom Gooseneck
Cable Microphone
DIMENSIONS
Size: 355x455x134mm
134
Power: 100-240V AC 60 Hz
357.44
355.59
/ 50 Hz 3A 36W Max
Weight: 9KG.
454.99
7

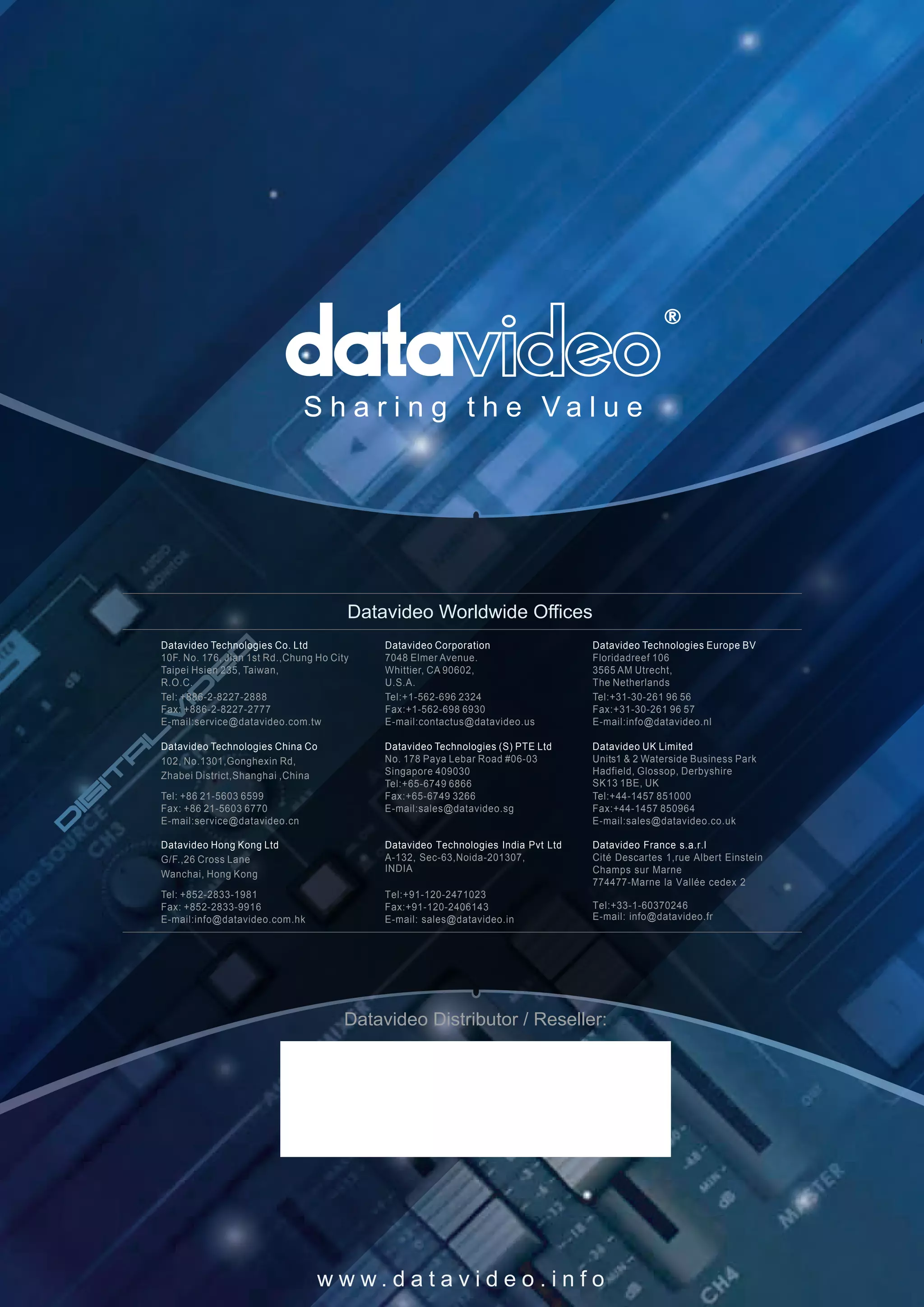

4. S h a r i n g t h e Va l u e
