The SE-600 is an 8-input standard definition video switcher with a built-in dual channel audio mixer. It features multi-view output displaying each input as well as program and preview on one monitor. The SE-600 can switch seamlessly between video and audio sources without an external genlock thanks to its built-in time base corrector. It is designed for applications such as worship, education, live broadcasts, and in-studio production.

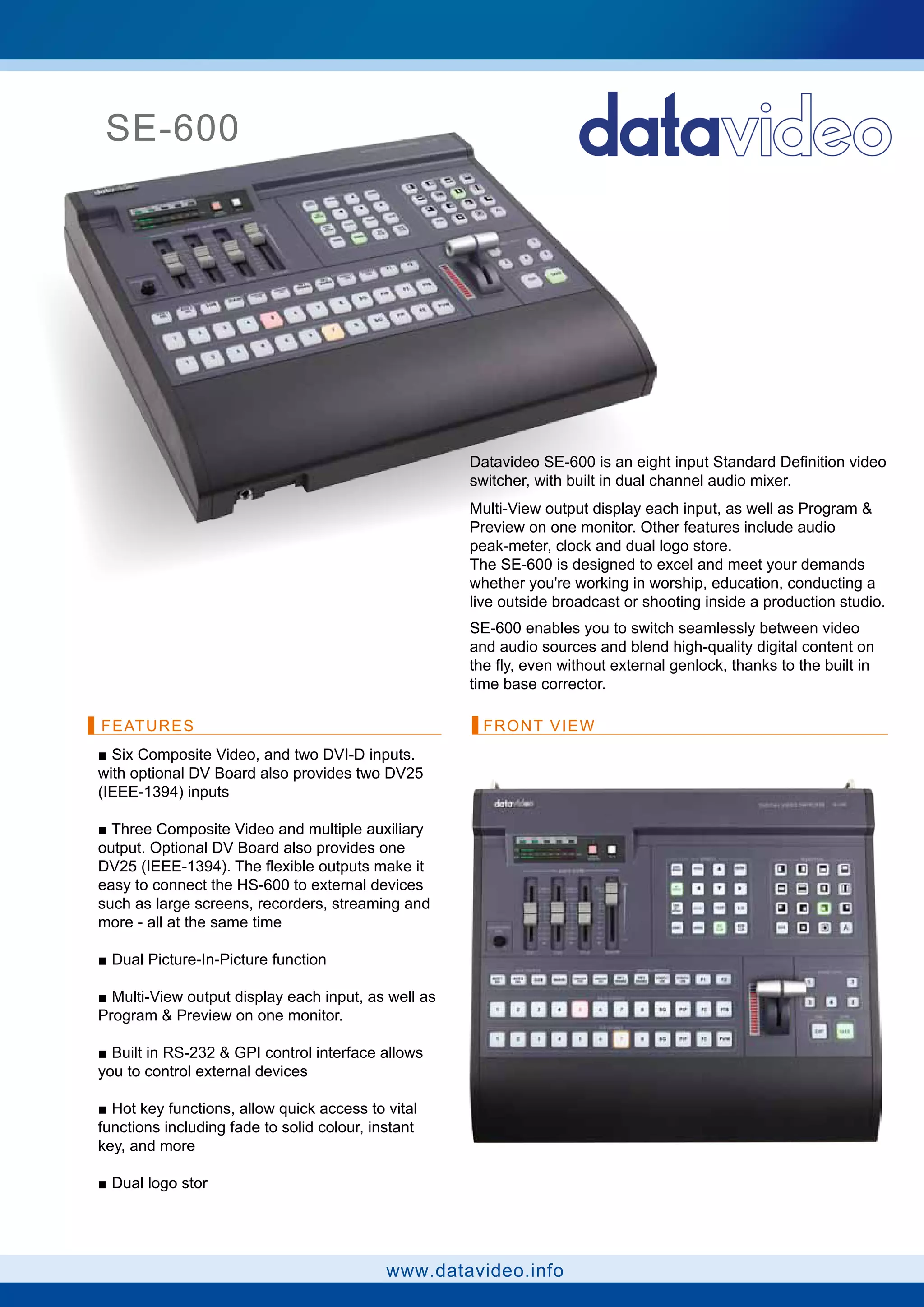

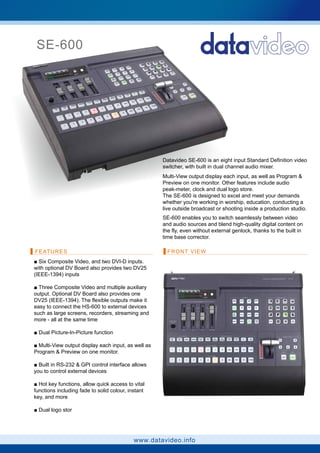

1. SE-600
Datavideo SE-600 is an eight input Standard Definition video
switcher, with built in dual channel audio mixer.
Multi-View output display each input, as well as Program &
Preview on one monitor. Other features include audio
peak-meter, clock and dual logo store.
The SE-600 is designed to excel and meet your demands
whether you're working in worship, education, conducting a
live outside broadcast or shooting inside a production studio.
SE-600 enables you to switch seamlessly between video
and audio sources and blend high-quality digital content on
the fly, even without external genlock, thanks to the built in
time base corrector.
FEATURES FRO NT VIEW
■ Six Composite Video, and two DVI-D inputs.
with optional DV Board also provides two DV25
(IEEE-1394) inputs
■ Three Composite Video and multiple auxiliary
output. Optional DV Board also provides one
DV25 (IEEE-1394). The flexible outputs make it
easy to connect the HS-600 to external devices
such as large screens, recorders, streaming and
more - all at the same time
■ Dual Picture-In-Picture function
■ Multi-View output display each input, as well as
Program & Preview on one monitor.
■ Built in RS-232 & GPI control interface allows
you to control external devices
■ Hot key functions, allow quick access to vital
functions including fade to solid colour, instant
key, and more
■ Dual logo stor
www.datavideo.info

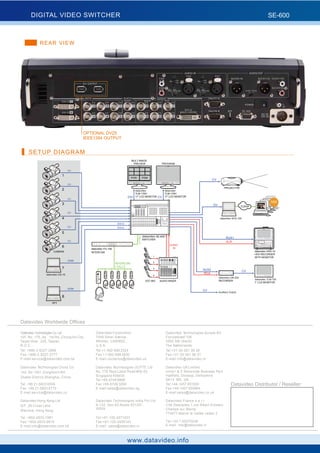

2. DIGITAL VIDEO SWITCHER SE-600
REAR VIEW
OPTIONAL DV25
IEEE1394 OUTPUT
SETUP DIAGRAM
MULT-IMAGE
PREVIEW PROGRAM
CV
1
PVW PGM
CV
CV
PROJECTOR
2 datavideo datavideo
TLM-170H TLM-170H
DVI 17’ LCD MONITOR CV 17’ LCD MONITOR
CV
X50
3 DV TCP/IP
CV
4 datavideo NVS-100
DVI-D
CV DVI-D
5
datavideo SE-600
TALLY
AUX1
SWITCHER
CV XLR
AUDIO
6 IN
datavideo ITC-100
CAMERA INTERCOM datavideo HRS-10
HDV RECORDER
1 WITH MONITOR
HDMI
2
INTERCOM
7 +TALLY
3
AUX2 CV
datavideo CG-10 RCA
4
datavideo DN-200
datavideo TLM-700
EXT.MIC AUDIO MIXER RECORDER
7’ LCD MONITOR
HDMI
CV
Auxiliary Output
8
PPT
