The Datavideo HS-2000 is a compact, broadcast quality 5-channel HD-SDI mobile video studio ideal for fly away use. It features a 17-inch multi-image monitor for displaying each video source along with preview and program. It also includes a 5-channel intercom system, 14 pre-stored logos, digital clock display, and DVI input. The integrated audio mixer allows up to 4 microphone or line inputs. The HS-2000 comes with integrated power distribution to easily power all equipment from a single socket.

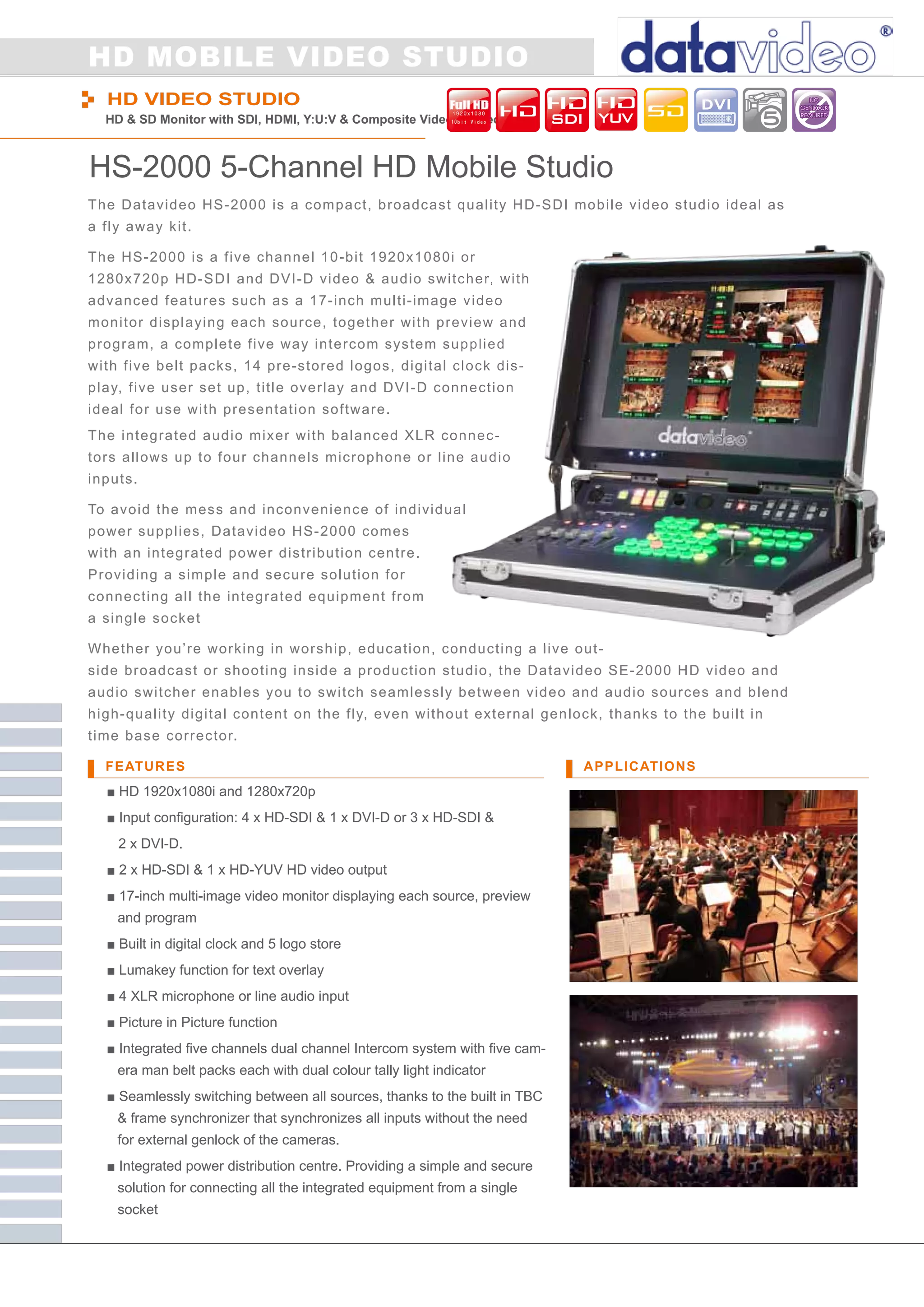

1. HD MOBILE VIDEO STUDIO
HD VIDEO STUDIO DVI
HD & SD Monitor with SDI, HDMI, Y:U:V & Composite Video1 0connection
bit Video
1920x1080
SDI YUV 5
HS-2000 5-Channel HD Mobile Studio
Th e D a t a v i d e o H S - 2 0 0 0 i s a c o m p a c t , b r oadcast quality HD-SDI mobile video studio ideal as
a fly away kit.
Th e H S - 2 0 0 0 i s a f i v e c h a n n e l 1 0 - b i t 1 9 2 0x1080i or
12 8 0 x 7 2 0 p H D - S D I a n d D V I - D v i d e o & a udio switcher, with
ad v a n c e d f e a t u r e s s u c h a s a 1 7 - i n c h m u l ti-image video
m o n i t o r d i s p l a y i n g e a c h s o u r c e , t o g e t h e r with preview and
pr o g r a m , a c o m p l e t e f i v e w a y i n t e r c o m s ystem supplied
wi t h f i v e b e l t p a c k s , 1 4 p r e - s t o r e d l o g o s , digital clock dis -
pl a y, f i v e u s e r s e t u p , t i t l e o v e r l a y a n d D VI-D connection
id e a l f o r u s e wi t h p r e s e n t a t i o n s o f t w a r e .
Th e i n t e g r a t e d a u d i o m i x e r w i t h b a l a n c e d XLR connec -
to r s a l l o w s u p t o f o u r c h a n n e l s m i c r o p h o ne or line audio
in p u t s .
To a v o i d t h e m e s s a n d i n c o n v e n i e n c e o f individual
po w e r s u p p l i e s , D a t a v i d e o H S - 2 0 0 0 c o m es
wi t h a n i n t e g r a t e d p o w e r d i s t r i b u t i o n c e n tre.
Pr o v i d i n g a s i m p l e a n d s e c u r e s o l u t i o n f or
co n n e c t i n g a l l t h e i n t e g r a t e d e q u i p m e n t f rom
a single socket
W h e t h e r y o u ’ r e w o r k i n g i n w o r s h i p , e d u c ation, conducting a live out -
si d e b r o a d c a s t o r s h o o t i n g i n s i d e a p r o d uction studio, the Datavideo SE-2000 HD video and
au d i o s w i t c h e r e n a b l e s y o u t o s w i t c h s e a mlessly between video and audio sources and blend
hi g h - q u a l i t y d i g i t a l c o n t e n t o n t h e f l y, e v en without external genlock, thanks to the built in
tim e b a s e c o r r e c t o r.
FEATURES A P P L I C AT I O N S
■ HD 1920x1080i and 1280x720p
■ Input configuration: 4 x HD-SDI & 1 x DVI-D or 3 x HD-SDI &
2 x DVI-D.
■ 2 x HD-SDI & 1 x HD-YUV HD video output
■ 17-inch multi-image video monitor displaying each source, preview
and program
■ Built in digital clock and 5 logo store
■ Lumakey function for text overlay
■ 4 XLR microphone or line audio input
■ Picture in Picture function
■ Integrated five channels dual channel Intercom system with five cam-
era man belt packs each with dual colour tally light indicator
■ Seamlessly switching between all sources, thanks to the built in TBC
& frame synchronizer that synchronizes all inputs without the need
for external genlock of the cameras.
■ Integrated power distribution centre. Providing a simple and secure
solution for connecting all the integrated equipment from a single
socket

2. FRONT V IEW REAR VIEW
TLM -170
17 ” Multiview
display.
ITC - 50
5 - channel
Talkbacksystem.
Belt pack connectors DVI-D input
Audio input TALLY output
Monitor Audio output RS-232
Adjustments
Monitor HDMI input HD-SDI output
SE-20 0 0
Power on/off HD-YUV output
5 - channel HD-SDI input Power
HD - SDI
Switcher
HD-SDI/DVI-D input
Included
SYSTEM DIA GRAM
ITC -10 0SL CB -3
HD-SDI
Belt Pack 20m 5pin Cabling
Cam1
HD-SDI
1 2 3 4 EXT.MIC
Cam2 XLR XLR XLR XLR
7’ LCD MONITOR
HD-SDI TLM-700
HD-SDI
Cam3 CV
HD/SD-SDI YUV CONVERTER YUV
DAC-50
RCA
HD-SDI TO YUV AUDIO
HD-SDI or DVI CONVERTER
(OPTION)
DVD RECORDER
DAC-50 MP-6000
Cam4
INTERCOM
HS-2000
PC +TALLY HD-SDI
ITC-100SL
AUDIO AUDIO XLR
AUDIO
PC DVI AUDIO DELAY
BOX HD RECORDER
AD-100 WITH MONITOR
HRS-10
AUDIO MIXER
DIMENSION OPTIONAL ACCESSORIES
HRS -10 MP- 60 0 0 AD -10 0
HD Recorder DVD+R/ +RW Recorder Audio Delay Box
460 48
9
Datavideo Distributor / Reseller:
410
139
SIZE: 500x520x165mm
POWER: 100~240V AC 60Hz/50Hz 2.5A DAC - 8 DAC - 9 DAC - 50
WEIGHT: 17KG
HD-SDI to HDMI Converter HDMI to HD-SDI Converter HD/SD-SDI to YUV Converter
