This document provides information on the DRP 393 DVB MPEG-4 Receiver/Decoder. It can receive digital TV program streams encoded in MPEG-2 or MPEG-4 via various inputs like ASI, L-Band, DVB-T/T2, DVB-C, or IP. It decodes the streams and outputs a transport stream and video/audio signals. It supports decrypting encrypted channels via two Common Interfaces for Conditional Access Modules. Controls and monitoring are available via the front panel display, web server, and test ports.

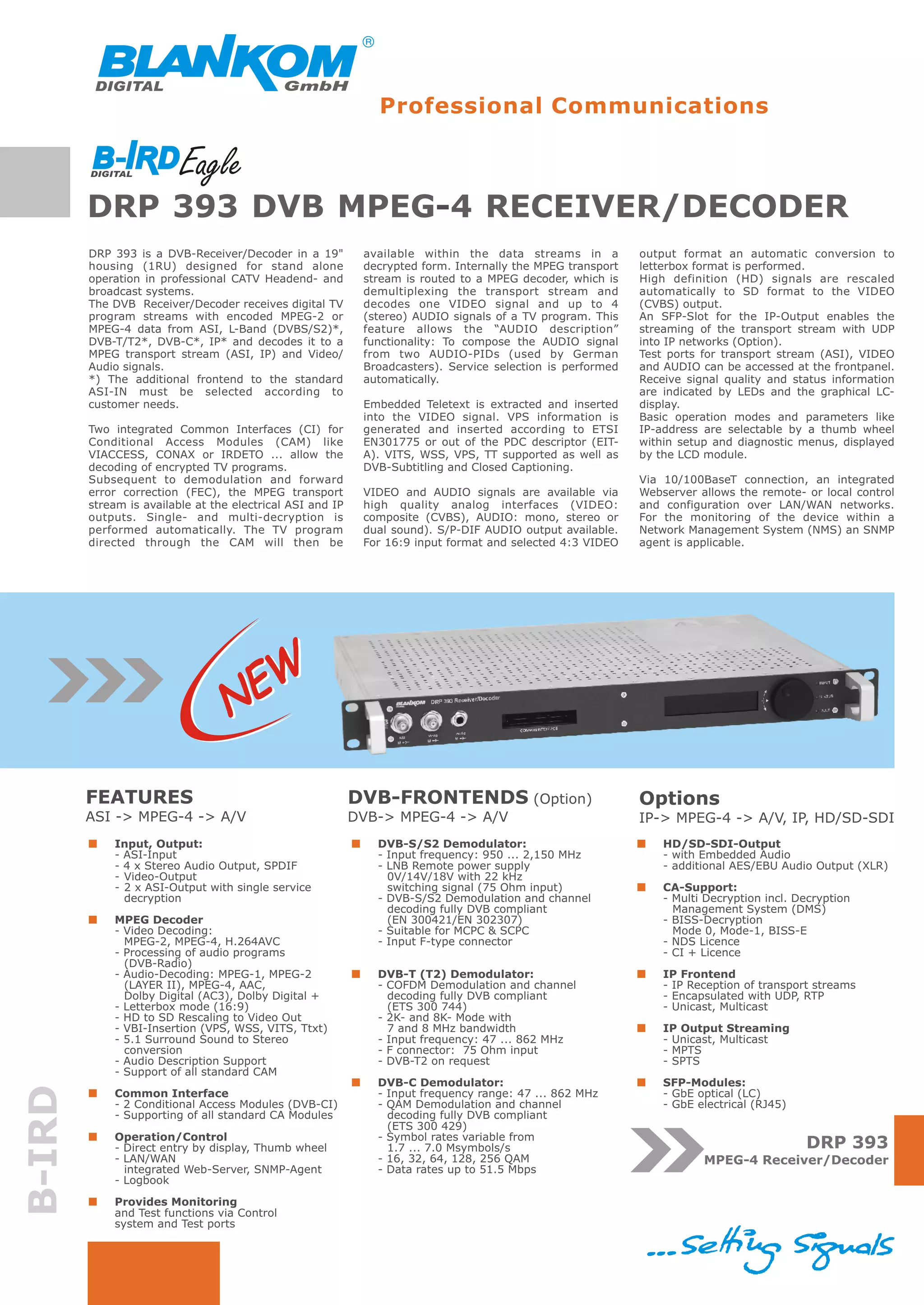

1. Professional Communications
DRP 393 DVB MPEG-4 RECEIVER/DECODER
DRP 393 is a DVB-Receiver/Decoder in a 19" available within the data streams in a output format an automatic conversion to
housing (1RU) designed for stand alone decrypted form. Internally the MPEG transport letterbox format is performed.
operation in professional CATV Headend- and stream is routed to a MPEG decoder, which is High definition (HD) signals are rescaled
broadcast systems. demultiplexing the transport stream and automatically to SD format to the VIDEO
The DVB Receiver/Decoder receives digital TV decodes one VIDEO signal and up to 4 (CVBS) output.
program streams with encoded MPEG-2 or (stereo) AUDIO signals of a TV program. This An SFP-Slot for the IP-Output enables the
MPEG-4 data from ASI, L-Band (DVBS/S2)*, feature allows the “AUDIO description” streaming of the transport stream with UDP
DVB-T/T2*, DVB-C*, IP* and decodes it to a functionality: To compose the AUDIO signal into IP networks (Option).
MPEG transport stream (ASI, IP) and Video/ from two AUDIO-PIDs (used by German Test ports for transport stream (ASI), VIDEO
Audio signals. Broadcasters). Service selection is performed and AUDIO can be accessed at the frontpanel.
*) The additional frontend to the standard automatically. Receive signal quality and status information
ASI-IN must be selected according to are indicated by LEDs and the graphical LC-
customer needs. Embedded Teletext is extracted and inserted display.
into the VIDEO signal. VPS information is Basic operation modes and parameters like
Two integrated Common Interfaces (CI) for generated and inserted according to ETSI IP-address are selectable by a thumb wheel
Conditional Access Modules (CAM) like EN301775 or out of the PDC descriptor (EIT- within setup and diagnostic menus, displayed
VIACCESS, CONAX or IRDETO ... allow the A). VITS, WSS, VPS, TT supported as well as by the LCD module.
decoding of encrypted TV programs. DVB-Subtitling and Closed Captioning.
Subsequent to demodulation and forward Via 10/100BaseT connection, an integrated
error correction (FEC), the MPEG transport VIDEO and AUDIO signals are available via Webserver allows the remote- or local control
stream is available at the electrical ASI and IP high quality analog interfaces (VIDEO: and configuration over LAN/WAN networks.
outputs. Single- and multi-decryption is composite (CVBS), AUDIO: mono, stereo or For the monitoring of the device within a
performed automatically. The TV program dual sound). S/P-DIF AUDIO output available. Network Management System (NMS) an SNMP
directed through the CAM will then be For 16:9 input format and selected 4:3 VIDEO agent is applicable.
NEW
FEATURES DVB-FRONTENDS (Option) Options
ASI -> MPEG-4 -> A/V DVB-> MPEG-4 -> A/V IP-> MPEG-4 -> A/V, IP, HD/SD-SDI
Input, Output: DVB-S/S2 Demodulator: HD/SD-SDI-Output
- ASI-Input - Input frequency: 950 ... 2,150 MHz - with Embedded Audio
- 4 x Stereo Audio Output, SPDIF - LNB Remote power supply - additional AES/EBU Audio Output (XLR)
- Video-Output 0V/14V/18V with 22 kHz
- 2 x ASI-Output with single service switching signal (75 Ohm input) CA-Support:
decryption - DVB-S/S2 Demodulation and channel - Multi Decryption incl. Decryption
decoding fully DVB compliant Management System (DMS)
MPEG Decoder (EN 300421/EN 302307) - BISS-Decryption
- Video Decoding: - Suitable for MCPC & SCPC Mode 0, Mode-1, BISS-E
MPEG-2, MPEG-4, H.264AVC - Input F-type connector - NDS Licence
- Processing of audio programs - CI + Licence
(DVB-Radio)
- Audio-Decoding: MPEG-1, MPEG-2 DVB-T (T2) Demodulator: IP Frontend
(LAYER II), MPEG-4, AAC, - COFDM Demodulation and channel - IP Reception of transport streams
Dolby Digital (AC3), Dolby Digital + decoding fully DVB compliant - Encapsulated with UDP, RTP
- Letterbox mode (16:9) (ETS 300 744) - Unicast, Multicast
- HD to SD Rescaling to Video Out - 2K- and 8K- Mode with
- VBI-Insertion (VPS, WSS, VITS, Ttxt) 7 and 8 MHz bandwidth IP Output Streaming
- 5.1 Surround Sound to Stereo - Input frequency: 47 ... 862 MHz - Unicast, Multicast
conversion - F connector: 75 Ohm input - MPTS
- Audio Description Support - DVB-T2 on request - SPTS
- Support of all standard CAM
DVB-C Demodulator: SFP-Modules:
B-IRD
Common Interface - Input frequency range: 47 ... 862 MHz - GbE optical (LC)
- 2 Conditional Access Modules (DVB-CI) - QAM Demodulation and channel - GbE electrical (RJ45)
- Supporting of all standard CA Modules decoding fully DVB compliant
(ETS 300 429)
Operation/Control - Symbol rates variable from
- Direct entry by display, Thumb wheel 1.7 ... 7.0 Msymbols/s DRP 393
- LAN/WAN - 16, 32, 64, 128, 256 QAM MPEG-4 Receiver/Decoder
integrated Web-Server, SNMP-Agent - Data rates up to 51.5 Mbps
- Logbook
Provides Monitoring
and Test functions via Control
system and Test ports

2. Professional Communications
DRP 393 DVB MPEG-4 RECEIVER/DECODER
TECHNICAL DATA
Input Monitoring
ASI-Input: MPEG TS test output DVB/ASI (EN 50083-9)
Connector, Impedance BNC, 75 Ohm Test video output Composite (CVBS)
Connector, Impedance BNC female, 75 Ohm
DVB-S/S2 (Option): acc. EN 300421/EN 302307 Test audio output Mono, stereo (left/right), dual sound
Input Frequency range 950 ... 2,150 MHz Connection 6.3 mm female,
Input signal level -25 ... -65 dBm unbalanced -20 dB
LNB remote power supply, 0 V/14 V/18 V, 500 mA max., Log file function max. 256 entries
Selectable 22 kHz signal
Connector, Impedance 75 Ohm Input F-type connector Subtitling DVB-Subtitling
Closed Captioning
DVB-S: VITS VITS generation on Line
Symbol rates variable 1 ... 45 MSps 17, 18, 330, 331
Code rates 1/2, 2/3, 3/4, 5/6, 7/8 Line 331: optional ramp or EBU
DVB-S2: Line 329, selectable sinx/x
Symbol rates QPSK 2 ... 36 MSps (enable/disable)
Symbol rates 8PSK 2 ... 30 MSps
Code rates 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 ,8/9, 9/10 VPS dataline insertion of Line 16
FEC Block length 64800 (enable/disable)
DVB-T (T2) (Option) acc. Bluebook A122 WSS WSS insertion w/respect of video
FEC (T) Convolutional Coding + Reed output aspect ratio
Solomon 1/2, 2/3, 3/4, 5/6, 7/8
FEC (T2) LPDC + BCH Testsignal generator colorbar for Video
1/2, 3/5, 2/3, 3/4, 4/5, 5/6 1 kHz Testtone for Audio
Modes QPSK, 16 QAM, 64 QAM, (256 QAM)
Guard Interval 1/4, (19/256), 1/8, (19/128), 1/16, Environment
1/32, (1/128) Operating temperature 5 ... 45 °C
DVB-C (Option) acc. to EN 300 429 Power Supply
Input frequency range 47 ... 862 MHz Redundant Power Supply (DRP393-02 only)
Modulations 16, 32, 64, 128, 256 QAM Mains voltage 100 ... 240 VAC
50 ... 60 Hz,
Signal Processing 0.4 ... 0.22 A
www.blankom-digital.de
MPEG video decoder MPEG-2/MPEG-4 Mechanical
PAL resolution max. 720 x 576 @ 25 Hz Housing 19" x 1RU
HD to SD Rescaling on Video-Output Dimension (W x H x D) 483 mm x 45 mm x 315 mm
MPEG audio decoder MPEG-1, MPEG-2 (Layer II),
MPEG-4, AAC, Dolby Digital (AC3),
Dolby Digital + OPTIONAL:
Conditional Access acc. EN 50221 HD/SD-SDI Digital A/V-Outputs
2 x DVB-CI Common Interface: with embedded audio (5.1 downmix),
support of all standard CAM additional AES/EBU audio output
Outputs IP Frontend (Option)
MPEG TS data output DVB/ASI (EN 50083-9) Input GbE SFP, electrical RJ45, optical LC
Connector, Impedance 2 x BNC port, 75 Ohm Format GbE, UDP, Uni- and Multicast
Analog Video output Component (CVBS) Option: RTP, MPEG pro
Video formats PAL, NTSC
Output level 1 Vpp IP Output Streaming (Option)
Connector, Impedance BNC female, 75 Ohm Output GbE SFP, electrical RJ45, optical LC
Analog audio output (up to 4) Mono, Stereo (left/right), dual sound Format GbE, UDP, Uni- and Multicast
Output level +6 dBm (1.546 V on 600 Ohm XLR) Option: RTP, MPEG pro
(-6 dBFS), balanced XLR
Adjustment range -30 dB ... +10 dB SFP-Modules GbE optical (LC)
Digital Audio Output: S/P-DIF on BNC, AC3 passthru GbE electr. RJ45
Operation/Control RJ 45 10/100 Mbit CA-Support (Option) NDS-Licence
Display, Keypad Direct entry via thumbwheel CI+ Licence
LAN/WAN integrated Web-Server, SNMP-Agent
BISS decryption BISS (Basic Interoperable Scrambling
(Option DCA315) by CAM System) Descrambler, 8 Services, Mode
Conditional Access Module 0, Mode 1, BISS-E
© 09/2011 BLANKOM Digital GmbH - Rev. D
Order-No. Name CA-Modul Type
Subject to modifications without notice
F030.01 DCA 311 Viaccess Multi-Decryption (Option) Multiservice Descrambling, min 16 PIDs
Depending on CAM
F031.01 DCA 312 Irdeto
F032.01 DCA 313 Mediaguard (Seca)
F033.01 DCA 314 Conax
F038.01 DCA 315 Alphacrypt
F034.01 DCA 316 Cryptoworks
Subject to change without notice Associated BLANKOM Products
- IRD Family (DRP 373, 375, 385, 364)
- DRD Family (DRD 694, 695, 696)
- EQM Family EDGE QAM MODULATORS
BLANKOM Digital GmbH
TecCenter · 31162 Bad Salzdetfurth/Germany
Phone: +49(0) 50 63/27 11 0 · Fax: +49(0) 50 63/27 11 60
www.blankom-digital.de
