Sachtler System Ace L
This document summarizes and promotes the features of the Sachtler Ace tripod systems. It describes the Ace M and Ace L fluid heads as being specially designed for lightweight cameras and offering precise panning and tilting. The document emphasizes that the Ace systems are the lightest in Sachtler's product line while still providing professional quality and reliability.
More Related Content
Sachtler System Ace L

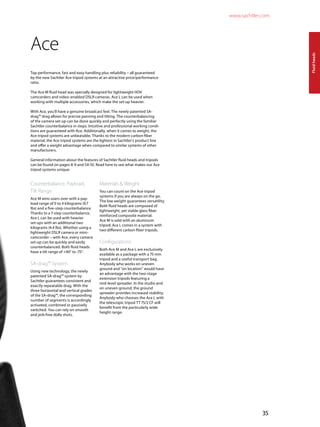

- 1. Ace Top performance, fastand easy handling plus reliability – all guaranteed by the new Sachtler Ace tripod systems at an attractive price/performance ratio. The Ace M fluid head was specially designed for lightweight HDV camcorders and video-enabled DSLR cameras. Ace L can be used when working with multiple accessories, which make the set-up heavier. With Ace, you'll have a genuine broadcast feel. The newly patented SA- drag™ drag allows for precise panning and tilting. The counterbalancing of the camera set-up can be done quickly and perfectly using the familiar Sachtler counterbalance in steps. Intuitive and professional working condi- tions are guaranteed with Ace. Additionally, when it comes to weight, the Ace tripod systems are unbeatable. Thanks to the modern carbon fiber material, the Ace tripod systems are the lightest in Sachtler's product line and offer a weight advantage when compared to similar systems of other manufacturers. General information about the features of Sachtler fluid heads and tripods can be found on pages 8-9 and 54-55. Read here to see what makes our Ace tripod systems unique: Counterbalance, Payload, Tilt Range Ace M wins users over with a pay- load range of 0 to 4 kilograms (9.7 lbs) and a five-step counterbalance. Thanks to a 7-step counterbalance, Ace L can be used with heavier set-ups with an additional two kilograms (4.4 lbs). Whether using a lightweight DSLR camera or mini- camcorder – with Ace, every camera set-up can be quickly and easily counterbalanced. Both fluid heads have a tilt range of +90° to -75°. SA-drag™ System Using new technology, the newly patented SA-drag™ system by Sachtler guarantees consistent and exactly repeatable drag. With the three horizontal and vertical grades of the SA-drag™, the corresponding number of segments is accordingly activated, combined or passively switched. You can rely on smooth and jerk-free dolly shots. Materials & Weight You can count on the Ace tripod systems if you are always on the go. The low weight guarantees versatility. Both fluid heads are composed of lightweight, yet stable glass fiber reinforced composite material. Ace M is sold with an aluminum tripod; Ace L comes in a system with two different carbon fiber tripods. Configurations Both Ace M and Ace L are exclusively available as a package with a 75 mm tripod and a useful transport bag. Anybody who works on uneven ground and “on location” would have an advantage with the two-stage extension tripods featuring a mid-level spreader. In the studio and on uneven ground, the ground spreader provides increased stability. Anybody who chooses the Ace L with the telescopic tripod TT 75/2 CF will benefit from the particularly wide height range. 35 www.sachtler.com Fluidheads

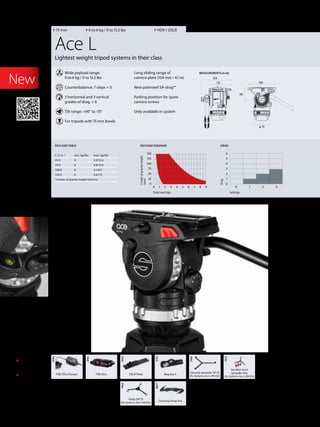

- 2. Ace L 75 mmHDV / DSLR0 to 6 kg / 0 to 13.2 lbs ACCessories Pages 74–81 Systems Pages 82–86 measurements in mmWide payload range: 0 to 6 kg / 0 to 13.2 lbs Counterbalance: 7 steps + 0 3 horizontal and 3 vertical grades of drag, + 0 Tilt range: +90° to -75° For tripods with 75 mm bowls Lightest weight tripod systems in their class Payload Table C. O. G. * min. kg/lbs max. kg/lbs 55/2 0 5.9/13.0 75/3 0 4.9/10.8 100/4 0 4.1/9.0 125/5 0 3.6/7.9 * Center of gravity height (mm/in) Payload diagram Drag Long sliding range of camera plate (104 mm / 4.1 in) New patented SA-drag™ Parking position for spare camera screws Only available in system In addition to the payload range of 0 to 6 kg (0 to 13 lbs), the Ace L fluid head shines with an illuminated bubble. This feature makes working with the lightweight fluid head especially comfortable. New DSLR Plate 0165 FSB CELL 0781 FSB CELLCharger 0782 Bag Ace L 9115 Set Mid-level spreader Ace (for Systems Ace L MS/GS) 7012 Dolly DV 75 (for Systems Ace L MS/GS) 7063 Carrying Strap Ace 8677 150 125 100 75 50 25 0 Centerofgravityheight (mm) 0 0 1 2 3 6 5 4 3 2 1 0 SettingsTotal load (kg) 1 2 3 4 5 6 7 8 9 Drag Watch this product in action! ! ! Read the manual Height Width Length Caution Warning Weight Payload Cleaning instructions No serviceable parts Operating temperature Head fixing type Colour Dry the product after use in wet conditions Lubrication Download Service centre Do not leave unattended Keep out of reach of children Do not transport with payload in place Don’t leave in direct sunlight Serviceable item ! ! Shopping basket Information English German French ! ! Decrease Increase Drag Finger trap Counterbalance Tilt Diameter Camera Plate Do not attach items to the pan bar No heavy items on the spreader Tripping hazard Ensure leg clamps are secure Hold the pan bar Hold the camera Use only genuine parts ! Depth Look Service Level Spares Power requirement Angle Stop Foot type Tiping Pedestal User Level Spares Fitting Guide Available EN 45°45°45°45° Ventilation Robotic Adhesive Eye protection Ear protection Caution - tripping hazard Caution - tiping hazard Caution - trap Caution - static Caution - heavy lifting Caution - Health & Safety Caution - Health & Safety Risk of personal injury H&SH&S Read the manual Height Width Length Weight Payload Cleaning instructions No serviceable parts Operating temperature Head fixing type Colour Dry the product after use in wet conditions Lubrication Download Service centre Do not leave unattended Keep out of reach of children Do not transport with payload in place Don’t leave in direct sunlight Serviceable item Shopping basket Information English German French Decrease Increase Finger trap Tilt Diameter Camera Plate Do not attach items to the pan bar No heavy items on the spreader Tripping hazard Ensure leg clamps are secure Hold the pan bar Hold the camera Use only genuine parts Depth Look Service Level Spares Power requirement Angle Stop Foot type Tiping Pedestal User Level Spares Fitting Guide Available EN 45°45°45°45° Ventilation Robotic Adhesive Eye protection Ear protection Caution - tripping hazard Caution - tiping hazard Caution - trap Caution - static Caution - heavy lifting Caution - Health & Safety Caution - Health & Safety Risk of personal injury H&SH&S he manual n g d ng instructions viceable parts ing temperature xing type e product after use conditions ation oad e centre leave unattended ut of reach of children transport with d in place eave in direct sunlight eable item ng basket ation h n ase se Drag trap Counterbalance Tilt Diameter Camera Plate Do not attach items to the pan bar No heavy items on the spreader Tripping hazard Ensure leg clamps are secure Hold the pan bar Hold the camera Use only genuine parts Look Service Level Spares Power requirement Notes Foot type Tiping Pedestal User Level Spares Fitting Guide Available Ventilation Robotic Adhesive Eye protection Ear protection Caution - tripping hazard Caution - tiping hazard Caution - trap Caution - static Caution - heavy lifting Caution - Health & Safety Caution - Health & Safety Risk of personal injury Hints Heavy lift Caution - Heavy lift Battery Level bubble H&SH&S he manual n g d ng instructions viceable parts ing temperature xing type e product after use conditions ation oad e centre leave unattended ut of reach of children transport with d in place eave in direct sunlight eable item ng basket ation h n ase se Drag trap Counterbalance Tilt Diameter Camera Plate Do not attach items to the pan bar No heavy items on the spreader Tripping hazard Ensure leg clamps are secure Hold the pan bar Hold the camera Use only genuine parts Look Service Level Spares Power requirement Notes Foot type Tiping Pedestal User Level Spares Fitting Guide Available Ventilation Robotic Adhesive Eye protection Ear protection Caution - tripping hazard Caution - tiping hazard Caution - trap Caution - static Caution - heavy lifting Caution - Health & Safety Caution - Health & Safety Risk of personal injury Hints Heavy lift Caution - Heavy lift Battery Level bubble H&SH&S he manual n g d ng instructions viceable parts ing temperature xing type e product after use conditions ation oad e centre leave unattended ut of reach of children transport with d in place eave in direct sunlight eable item ng basket ation h n ase se Drag trap Counterbalance Tilt Diameter Camera Plate Do not attach items to the pan bar No heavy items on the spreader Tripping hazard Ensure leg clamps are secure Hold the pan bar Hold the camera Use only genuine parts Look Service Level Spares Power requirement Notes Foot type Tiping Pedestal User Level Spares Fitting Guide Available Ventilation Robotic Adhesive Eye protection Ear protection Caution - tripping hazard Caution - tiping hazard Caution - trap Caution - static Caution - heavy lifting Caution - Health & Safety Caution - Health & Safety Risk of personal injury Hints Heavy lift Caution - Heavy lift Battery Level bubble H&SH&S Ground spreader SP 75 (for Systems Ace L MS/GS) 7001 112 140 ø 75 60 154 36
- 3. Photo:wemakethemwonder.com It’s all aboutace. „We have high expectations. For ourselves. For our videos. For our equipment. We do a lot of filming abroad. We have already worked in 18 countries—in the Brazilian jungle, on the beach in China and on Table Mountain in Capetown. Ace scores points with weight, easy handling and dependability. That was important for us, and that‘s exactly what we have now. Thanks Sachtler!“ Paul Jax, Niclas Löffler Filmmakers from Munich, Germany who founded their own production company wemakethemwonder.com. They film ambitious web-content and travel all over the world to do it.
- 4. Ace Systems System AceM MS System Ace M GS The ideal entry level camera support for smaller HDV camcorders and DSLR cameras up to 4 kg / 8.8 lbs when working on uneven ground. The ideal entry level camera support for smaller HDV camcorders and DSLR cameras up to 4 kg / 8.8 when shooting on level ground. Ace M fluid head + tripod Ace 75/2 D + mid-level spreader Ace (#S2036-1100) + Bag Ace M (#9114) Ace M fluid head + tripod Ace 75/2 D + spreader SP 75 (#7001) + Bag Ace M (#9114) System Ace L MS CF System Ace L GS CF System Ace L TT 75/2 CF The ideal camera support for cameras and rigs up to 6 kg / 13.2 lbs—extremly lightweight, maximum stability, high torsional stiffness. The ideal camera support for cameras and rigs up to 6 kg / 13.2 lbs that offers maximum stability and high torsional stiffness on even grounds. The ideal camera support for cameras and rigs up to 6 kg / 13.2 lbs if you need a very wide height range. Ace L fluid head + tripod Ace 75/2 CF + set mid-level spreader Ace (#7012) + Bag Ace L (#9115) Ace L fluid head + tripod Ace 75/2 CF + spreader SP 75 (#7001) + Bag Ace L (#9115) Ace L fluid head + tripod TT 75/2 CF + Bag Ace L (#9115) Ordercode 1011 Ordercode 1001 Ordercode 1002 Ordercode 1013 Ordercode 1012 (carrying strap optional) Not available in USA Sachtler’s lightest weight tripod system! Systems You need more information? For detailed product specifica- tions such as weight, height range and transport length, please go to page 86. 39 www.sachtler.com Fluidheads
