Week 3: Stack and Queues
Ferdin Joe John Joseph, PhD
Faculty of Information Technology
Thai-Nichi Institute of Technology, Bangkok

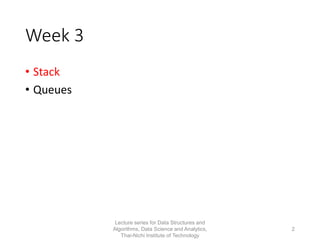

Week 3
• Stack
• Queues
Lecture series for Data Structures and
Algorithms, Data Science and Analytics,
Thai-Nichi Institute of Technology
2

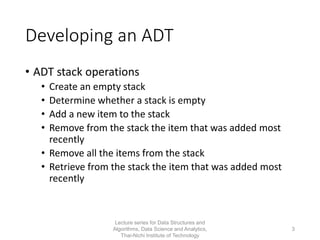

Developing an ADT
• ADT stack operations
• Create an empty stack
• Determine whether a stack is empty
• Add a new item to the stack
• Remove from the stack the item that was added most
recently
• Remove all the items from the stack
• Retrieve from the stack the item that was added most
recently
3

Developing an ADT During the
Design of a Solution
• A stack
• Last-in, first-out (LIFO)
property
• The last item placed on
the stack will be the
first item removed
• Analogy
• A stack of dishes in a
cafeteria
Stack of cafeteria dishes
Algorithms, Data Science and Analytics, Thai-
Nichi Institute of Technology
7A-4

Refining the Definition of the ADT
Stack

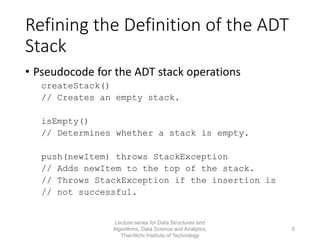

• Pseudocode for the ADT stack operations
createStack()
// Creates an empty stack.
isEmpty()
// Determines whether a stack is empty.
push(newItem) throws StackException
// Adds newItem to the top of the stack.
// Throws StackException if the insertion is
// not successful.
5

Refining the Definition of the ADT
Stack
• Pseudocode for the ADT stack operations (Cont)

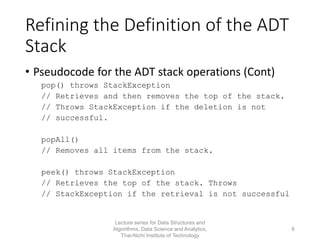

pop() throws StackException
// Retrieves and then removes the top of the stack.
// Throws StackException if the deletion is not
// successful.
popAll()
// Removes all items from the stack.
peek() throws StackException
// Retrieves the top of the stack. Throws
// StackException if the retrieval is not successful
6

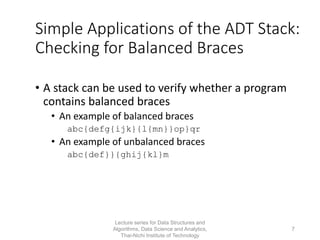

Simple Applications of the ADT Stack:
Checking for Balanced Braces
• A stack can be used to verify whether a program
contains balanced braces
• An example of balanced braces
abc{defg{ijk}{l{mn}}op}qr
• An example of unbalanced braces
abc{def}}{ghij{kl}m
7

• Requirements for balanced braces
• Each time you encounter a "{", push it on the stack
• Each time you encounter a “}”, it matches an already
encountered “{”, pop "{" off the stack
• When you reach the end of the string, you should have
matched each “{” and the stack should be empty
8

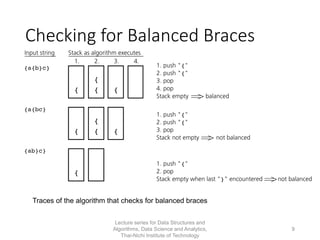

Traces of the algorithm that checks for balanced braces
9

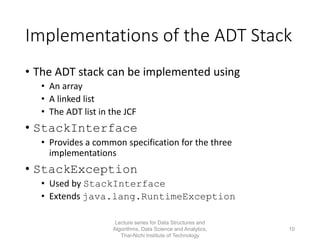

Implementations of the ADT Stack
• The ADT stack can be implemented using
• An array
• A linked list
• The ADT list in the JCF
• StackInterface
• Provides a common specification for the three
implementations
• StackException
• Used by StackInterface
• Extends java.lang.RuntimeException
10

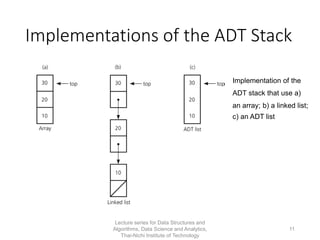

Implementations of the ADT Stack
Implementation of the
ADT stack that use a)
an array; b) a linked list;
c) an ADT list
11

An Array-Based Implementation of
the ADT Stack
• StackArrayBased class
• Implements StackInterface
• Instances
• Stacks
• Private data fields
• An array of Objects called items
• The index top

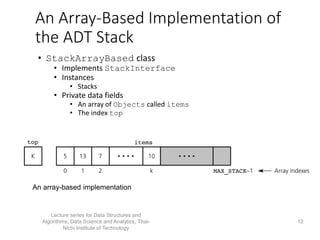

An array-based implementation
12

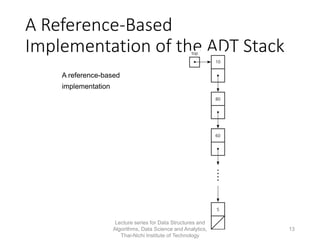

A Reference-Based
Implementation of the ADT Stack
A reference-based
implementation
13

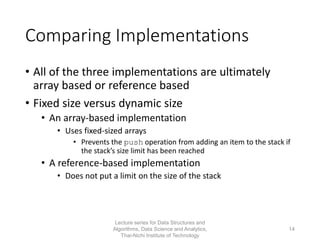

Comparing Implementations
• All of the three implementations are ultimately
array based or reference based
• Fixed size versus dynamic size
• An array-based implementation
• Uses fixed-sized arrays
• Prevents the push operation from adding an item to the stack if
the stack’s size limit has been reached
• A reference-based implementation
• Does not put a limit on the size of the stack
14

Evaluating Postfix Expressions
• A postfix calculator
• Requires you to enter postfix expressions
• Example: 2 3 4 + * (= 2*(3+4))
• When an operand is entered, the calculator
• Pushes it onto a stack
• When an operator is entered, the calculator
• Applies it to the top two operands of the stack
• Pops the operands from the stack
• Pushes the result of the operation on the stack
15

The action of a postfix calculator when evaluating the expression 2 * (3 + 4)
16

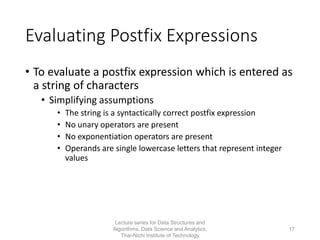

• To evaluate a postfix expression which is entered as
a string of characters
• Simplifying assumptions
• The string is a syntactically correct postfix expression
• No unary operators are present
• No exponentiation operators are present
• Operands are single lowercase letters that represent integer
values
17

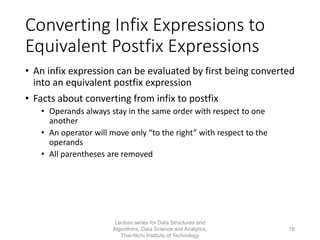

Converting Infix Expressions to
Equivalent Postfix Expressions
• An infix expression can be evaluated by first being converted
into an equivalent postfix expression
• Facts about converting from infix to postfix
• Operands always stay in the same order with respect to one
another
• An operator will move only “to the right” with respect to the
operands
• All parentheses are removed
18

Converting Infix Expressions to
Equivalent Postfix Expressions

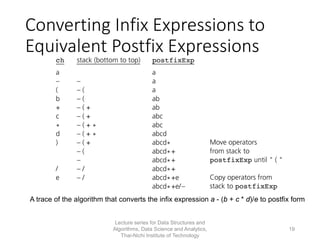

A trace of the algorithm that converts the infix expression a - (b + c * d)/e to postfix form
19

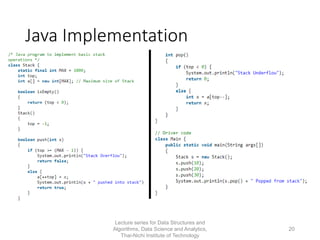

Java Implementation
20

Week 3
• Stack
• Queues
21

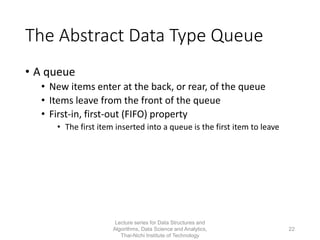

The Abstract Data Type Queue
• A queue
• New items enter at the back, or rear, of the queue
• Items leave from the front of the queue
• First-in, first-out (FIFO) property
• The first item inserted into a queue is the first item to leave
22

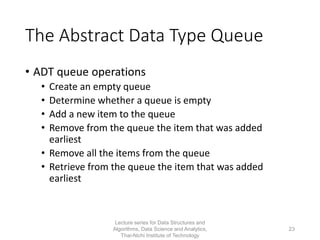

• ADT queue operations
• Create an empty queue
• Determine whether a queue is empty
• Add a new item to the queue
• Remove from the queue the item that was added
earliest
• Remove all the items from the queue
• Retrieve from the queue the item that was added
earliest
23

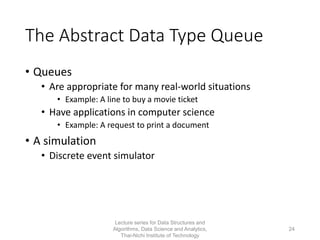

• Queues
• Are appropriate for many real-world situations
• Example: A line to buy a movie ticket
• Have applications in computer science
• Example: A request to print a document
• A simulation
• Discrete event simulator
24

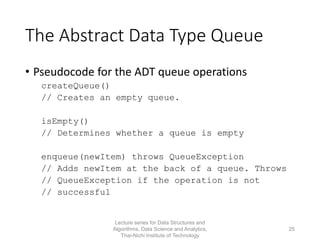

• Pseudocode for the ADT queue operations
createQueue()
// Creates an empty queue.
isEmpty()
// Determines whether a queue is empty
enqueue(newItem) throws QueueException
// Adds newItem at the back of a queue. Throws
// QueueException if the operation is not
// successful
25

• Pseudocode for the ADT queue operations (Cont)
dequeue() throws QueueException
// Retrieves and removes the front of a queue.
// Throws QueueException if the operation is
// not successful.
dequeueAll()
// Removes all items from a queue
peek() throws QueueException
// Retrieves the front of a queue. Throws
// QueueException if the retrieval is not
// successful
26

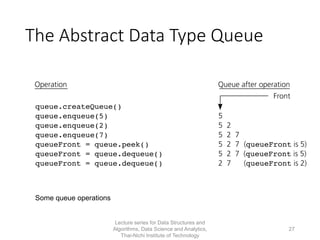

Some queue operations
27

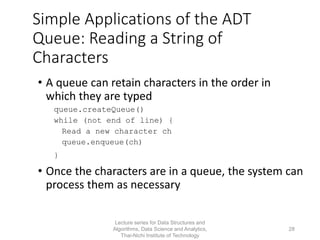

Simple Applications of the ADT
Queue: Reading a String of
Characters
• A queue can retain characters in the order in
which they are typed
queue.createQueue()
while (not end of line) {
Read a new character ch
queue.enqueue(ch)
}
• Once the characters are in a queue, the system can
process them as necessary
28

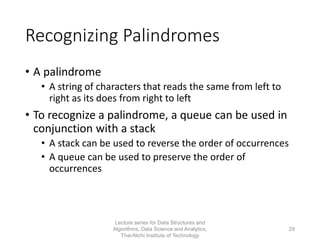

Recognizing Palindromes
• A palindrome
• A string of characters that reads the same from left to
right as its does from right to left
• To recognize a palindrome, a queue can be used in
conjunction with a stack
• A stack can be used to reverse the order of occurrences
• A queue can be used to preserve the order of
occurrences
29

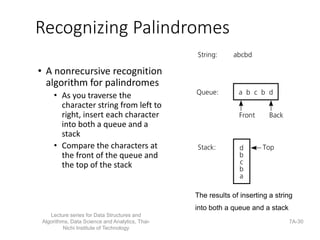

Recognizing Palindromes
• A nonrecursive recognition
algorithm for palindromes
• As you traverse the
character string from left to
right, insert each character
into both a queue and a
stack
• Compare the characters at
the front of the queue and
the top of the stack
The results of inserting a string
into both a queue and a stack
7A-30

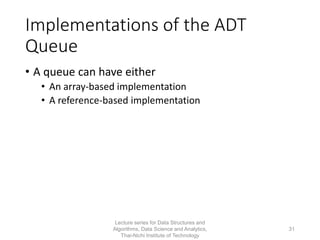

Implementations of the ADT
Queue
• A queue can have either
• An array-based implementation
• A reference-based implementation
31

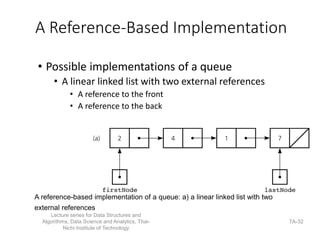

A Reference-Based Implementation
• Possible implementations of a queue
• A linear linked list with two external references
• A reference to the front
• A reference to the back
A reference-based implementation of a queue: a) a linear linked list with two
external references
7A-32

A Reference-Based Implementation
• Possible implementations of a queue (Continued)
• A circular linked list with one external reference
• A reference to the back
A reference-based implementation of a queue: b) a circular linear linked list with one
external reference
7A-33

A Reference-Based
Implementation

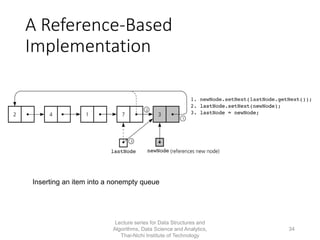

Inserting an item into a nonempty queue
34

A Reference-Based
Implementation
Inserting an item into an empty queue: a) before insertion; b) after insertion
35

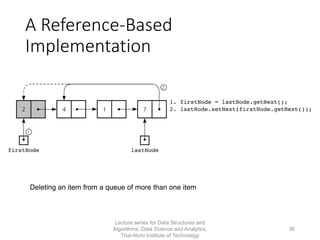

A Reference-Based
Implementation
Deleting an item from a queue of more than one item
36

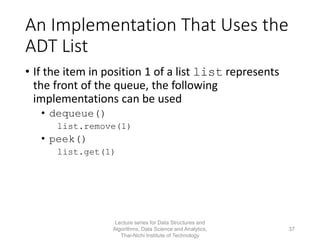

An Implementation That Uses the
ADT List
• If the item in position 1 of a list list represents
the front of the queue, the following
implementations can be used
• dequeue()
list.remove(1)
• peek()
list.get(1)
37

An Implementation That Uses the
ADT List
• If the item at the end of the list represents the
back of the queue, the following implementations
can be used
• enqueue(newItem)
list.add(list.size()+1, newItem)
An implementation that uses the ADT list
7A-38

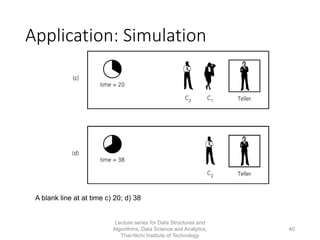

Application: Simulation

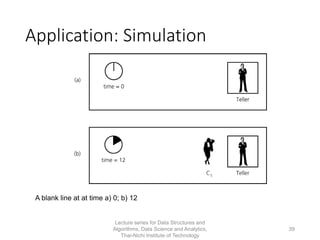

A blank line at at time a) 0; b) 12
39

A blank line at at time c) 20; d) 38
40

Java Implementation
41

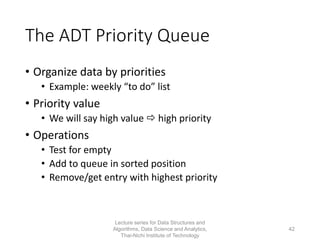

The ADT Priority Queue
• Organize data by priorities
• Example: weekly “to do” list
• Priority value
• We will say high value  high priority
• Operations
• Test for empty
• Add to queue in sorted position
• Remove/get entry with highest priority
42

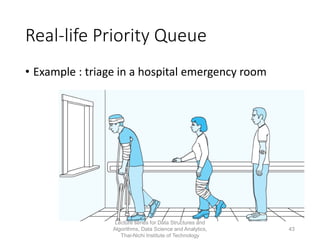

Real-life Priority Queue
• Example : triage in a hospital emergency room
43

Real-life Priority Queue
• Example : Public Transport in Thailand
44

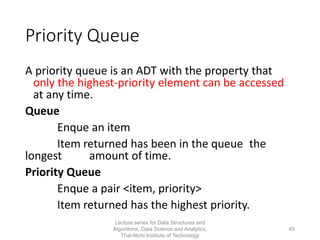

Priority Queue
A priority queue is an ADT with the property that
only the highest-priority element can be accessed
at any time.
Queue
Enque an item
Item returned has been in the queue the
longest amount of time.
Priority Queue
Enque a pair <item, priority>
Item returned has the highest priority.
45

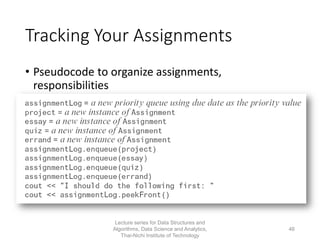

Tracking Your Assignments
• Pseudocode to organize assignments,
responsibilities
46

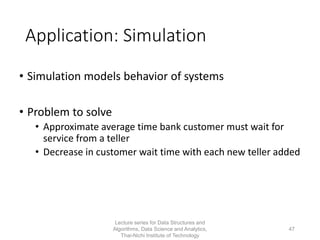

• Simulation models behavior of systems
• Problem to solve
• Approximate average time bank customer must wait for
service from a teller
• Decrease in customer wait time with each new teller added
47

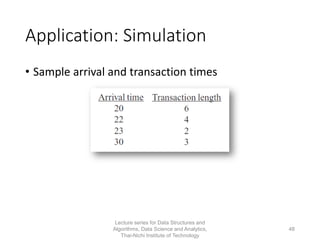

• Sample arrival and transaction times
48

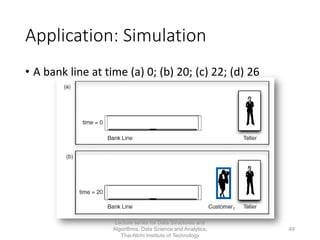

• A bank line at time (a) 0; (b) 20; (c) 22; (d) 26
49

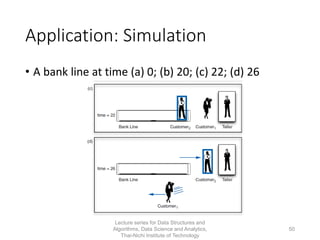

• A bank line at time (a) 0; (b) 20; (c) 22; (d) 26
50

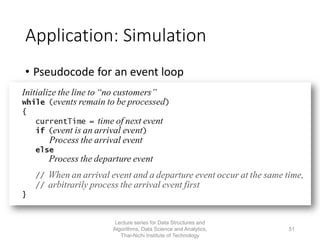

• Pseudocode for an event loop
51

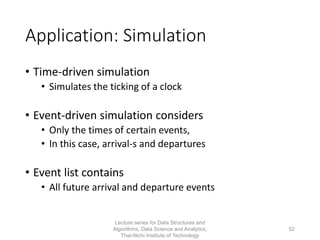

• Time-driven simulation
• Simulates the ticking of a clock
• Event-driven simulation considers
• Only the times of certain events,
• In this case, arrival-s and departures
• Event list contains
• All future arrival and departure events
52

• A typical instance of (a) an arrival event;
(b) a departure event
53

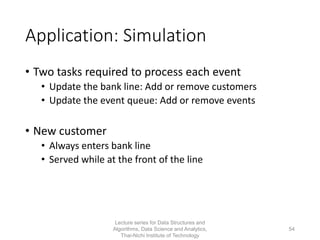

• Two tasks required to process each event
• Update the bank line: Add or remove customers
• Update the event queue: Add or remove events
• New customer
• Always enters bank line
• Served while at the front of the line
54

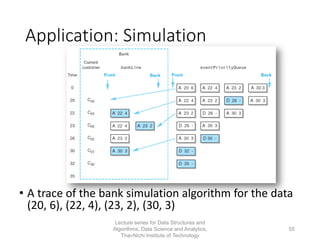

• A trace of the bank simulation algorithm for the data
(20, 6), (22, 4), (23, 2), (30, 3)
55

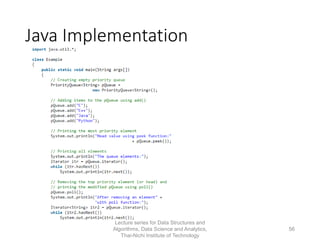

Java Implementation
56

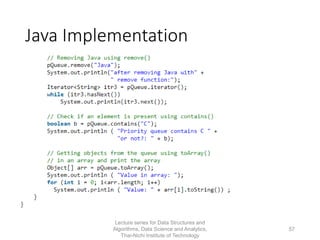

Java Implementation
57

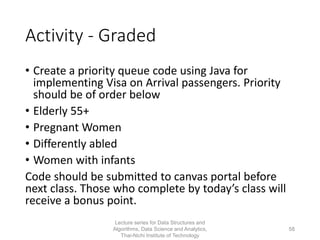

Activity - Graded
• Create a priority queue code using Java for
implementing Visa on Arrival passengers. Priority
should be of order below
• Elderly 55+
• Pregnant Women
• Differently abled
• Women with infants
Code should be submitted to canvas portal before
next class. Those who complete by today’s class will
receive a bonus point.
58

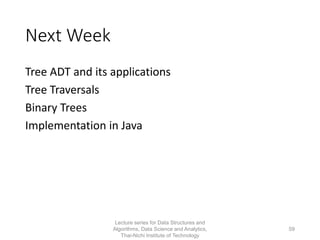

Next Week
Tree ADT and its applications
Tree Traversals
Binary Trees
Implementation in Java
59

Data Structures and Algorithm - Week 3 - Stacks and Queues

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Data Structures and Algorithm - Week 3 - Stacks and Queues

Similar to Data Structures and Algorithm - Week 3 - Stacks and Queues (20)

More from Ferdin Joe John Joseph PhD

More from Ferdin Joe John Joseph PhD (20)

Recently uploaded

Recently uploaded (20)

Data Structures and Algorithm - Week 3 - Stacks and Queues
