1. Introducing Datacontrols by Praveen Nandagiri

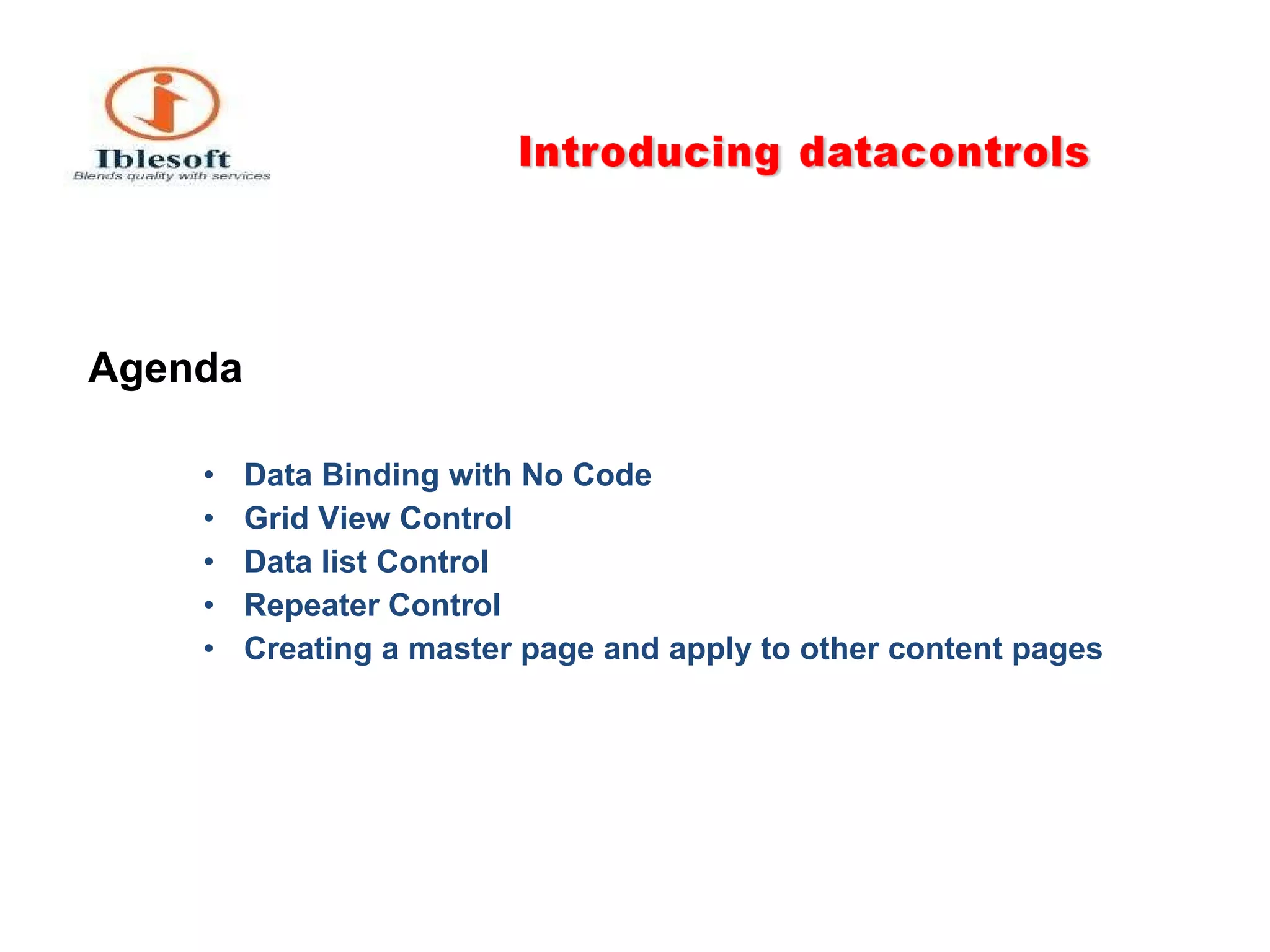

2. Agenda Data Binding with No Code Grid View Control Data list Control Repeater Control Creating a master page and apply to other content pages

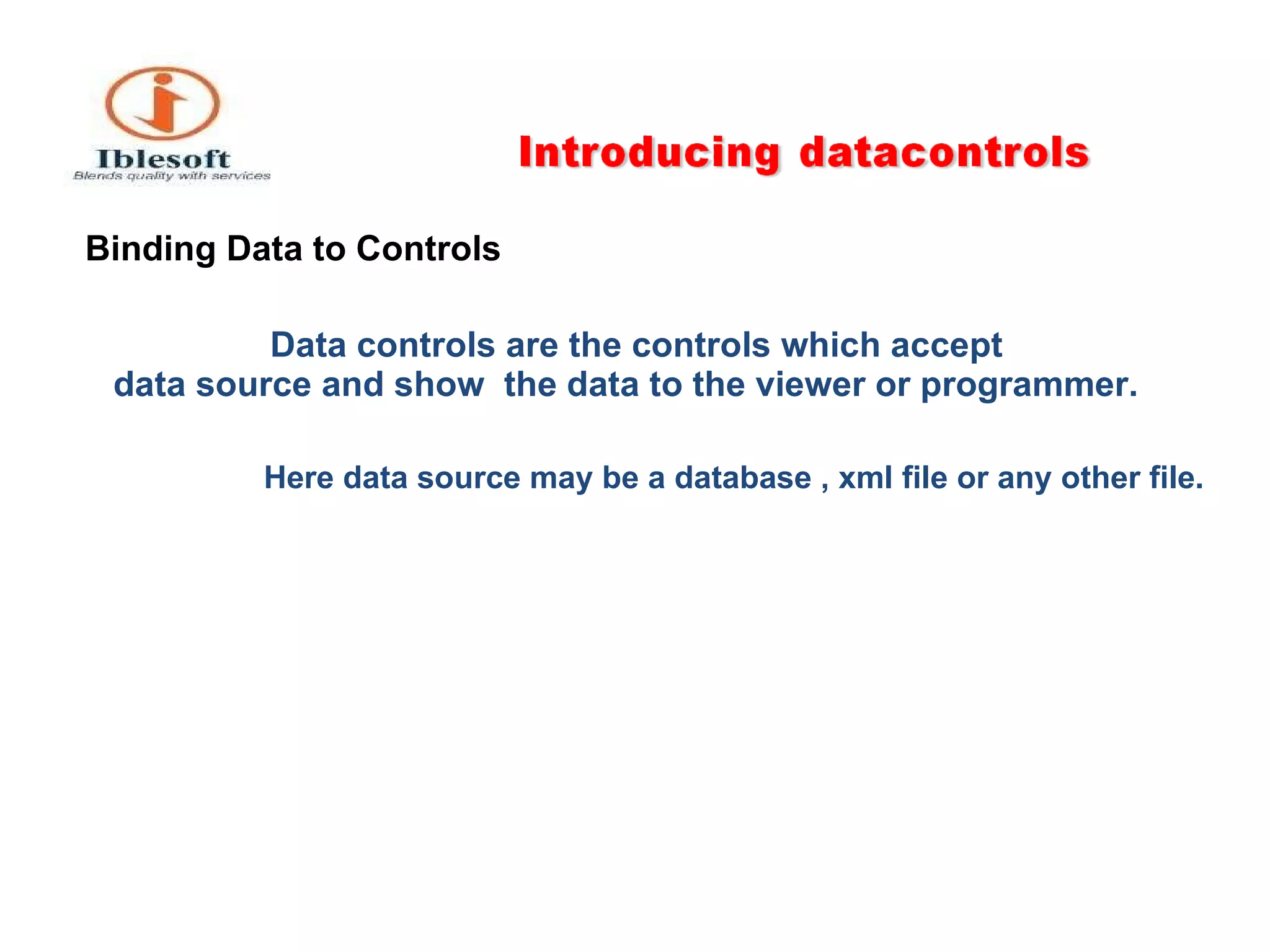

3. Binding Data to Controls Data controls are the controls which accept data source and show the data to the viewer or programmer. Here data source may be a database , xml file or any other file.

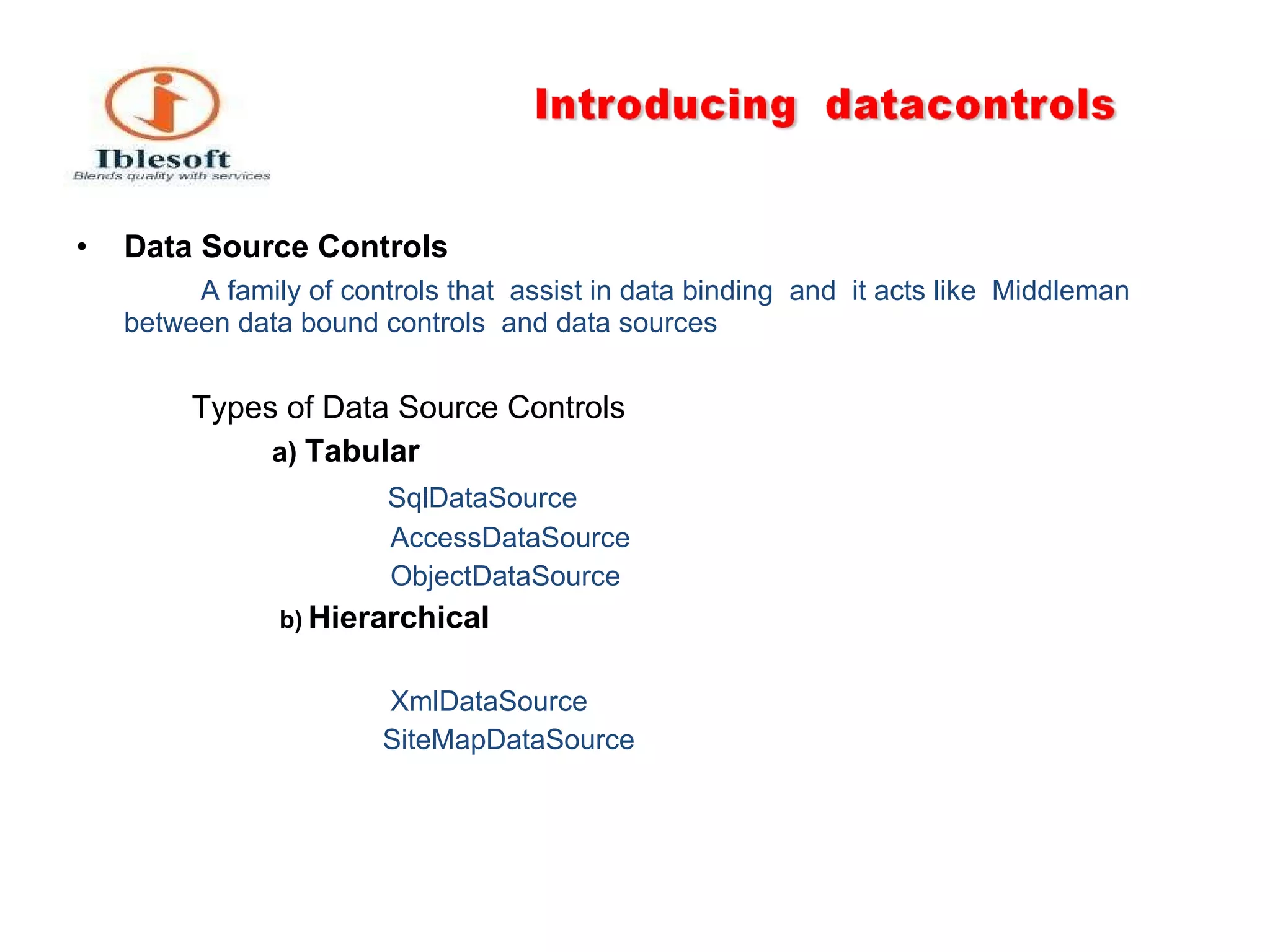

4. Data Source Controls A family of controls that assist in data binding and it acts like Middleman between data bound controls and data sources Types of Data Source Controls a) Tabular SqlDataSource AccessDataSource ObjectDataSource b) Hierarchical XmlDataSource SiteMapDataSource

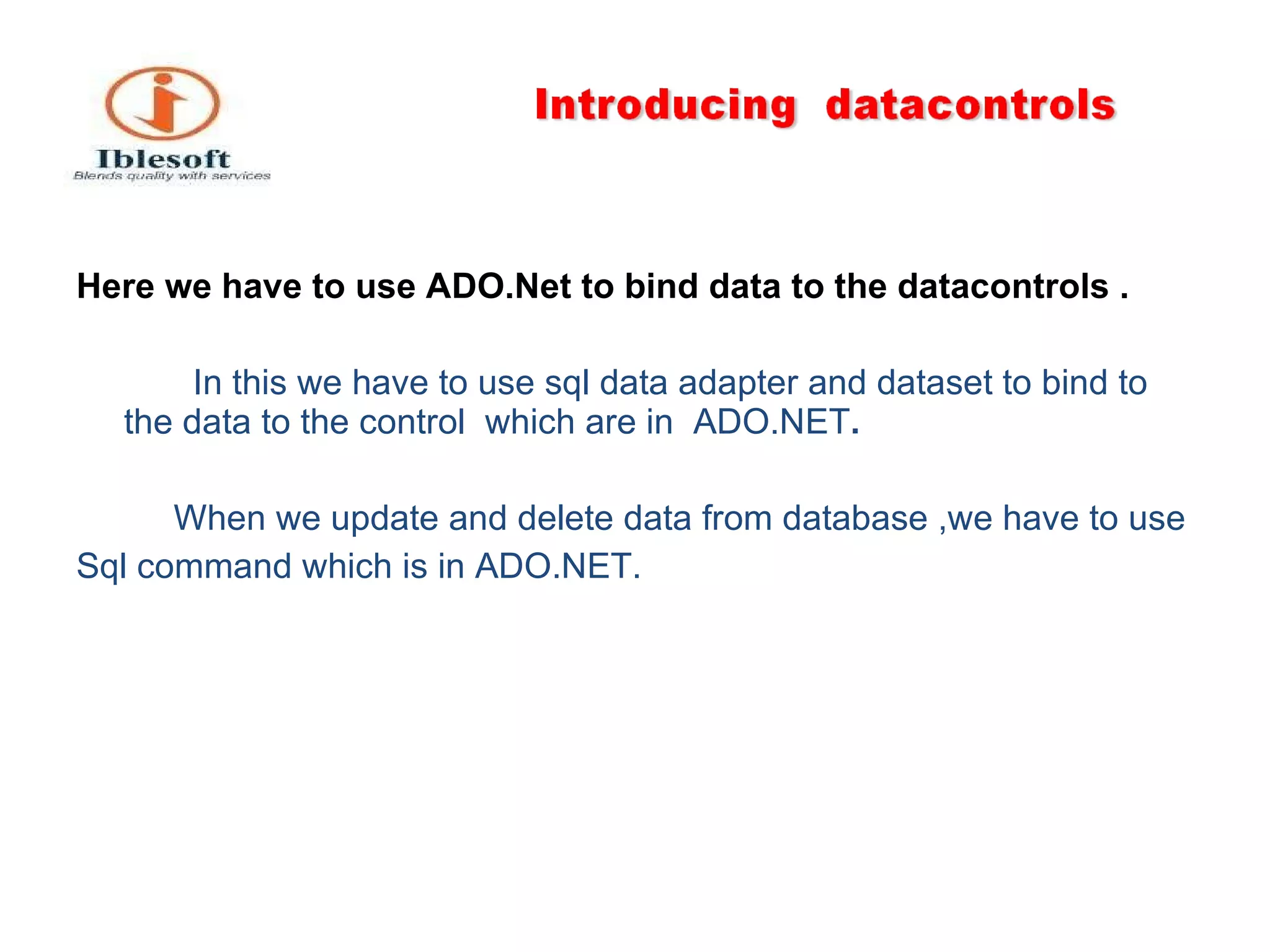

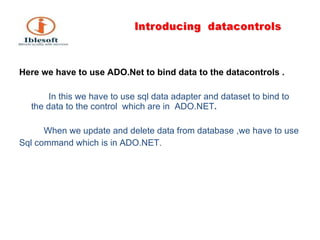

5. Here we have to use ADO.Net to bind data to the datacontrols . In this we have to use sql data adapter and dataset to bind to the data to the control which are in ADO.NET . When we update and delete data from database ,we have to use Sql command which is in ADO.NET.

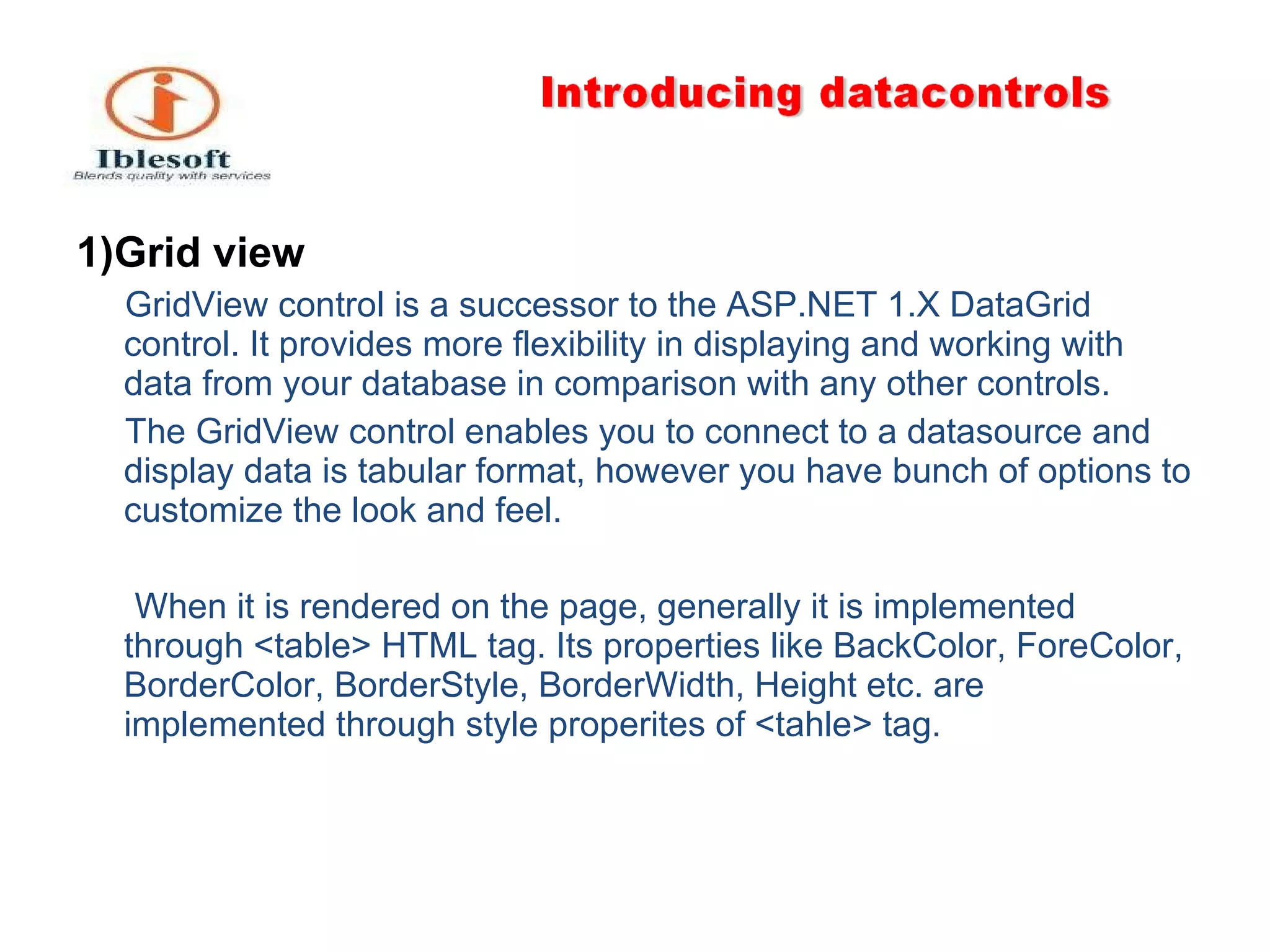

6. 1)Grid view GridView control is a successor to the ASP.NET 1.X DataGrid control. It provides more flexibility in displaying and working with data from your database in comparison with any other controls. The GridView control enables you to connect to a datasource and display data is tabular format, however you have bunch of options to customize the look and feel. When it is rendered on the page, generally it is implemented through <table> HTML tag. Its properties like BackColor, ForeColor, BorderColor, BorderStyle, BorderWidth, Height etc. are implemented through style properites of <tahle> tag.

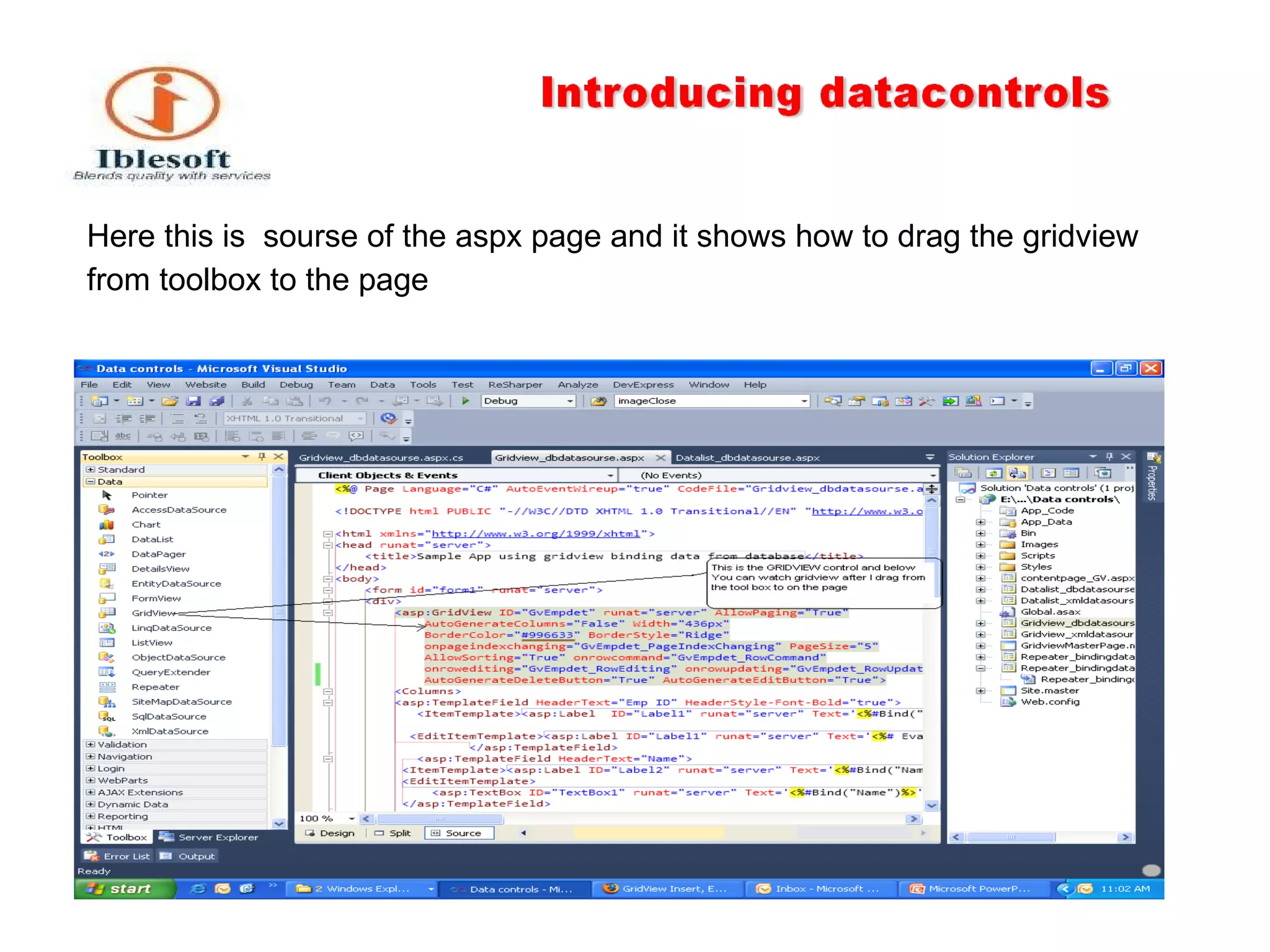

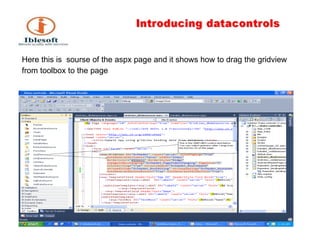

7. Here this is sourse of the aspx page and it shows how to drag the gridview from toolbox to the page

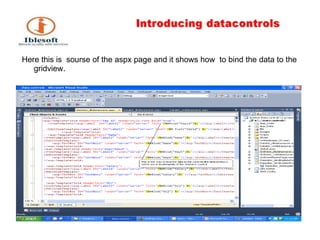

8. Here this is sourse of the aspx page and it shows how to bind the data to the gridview.

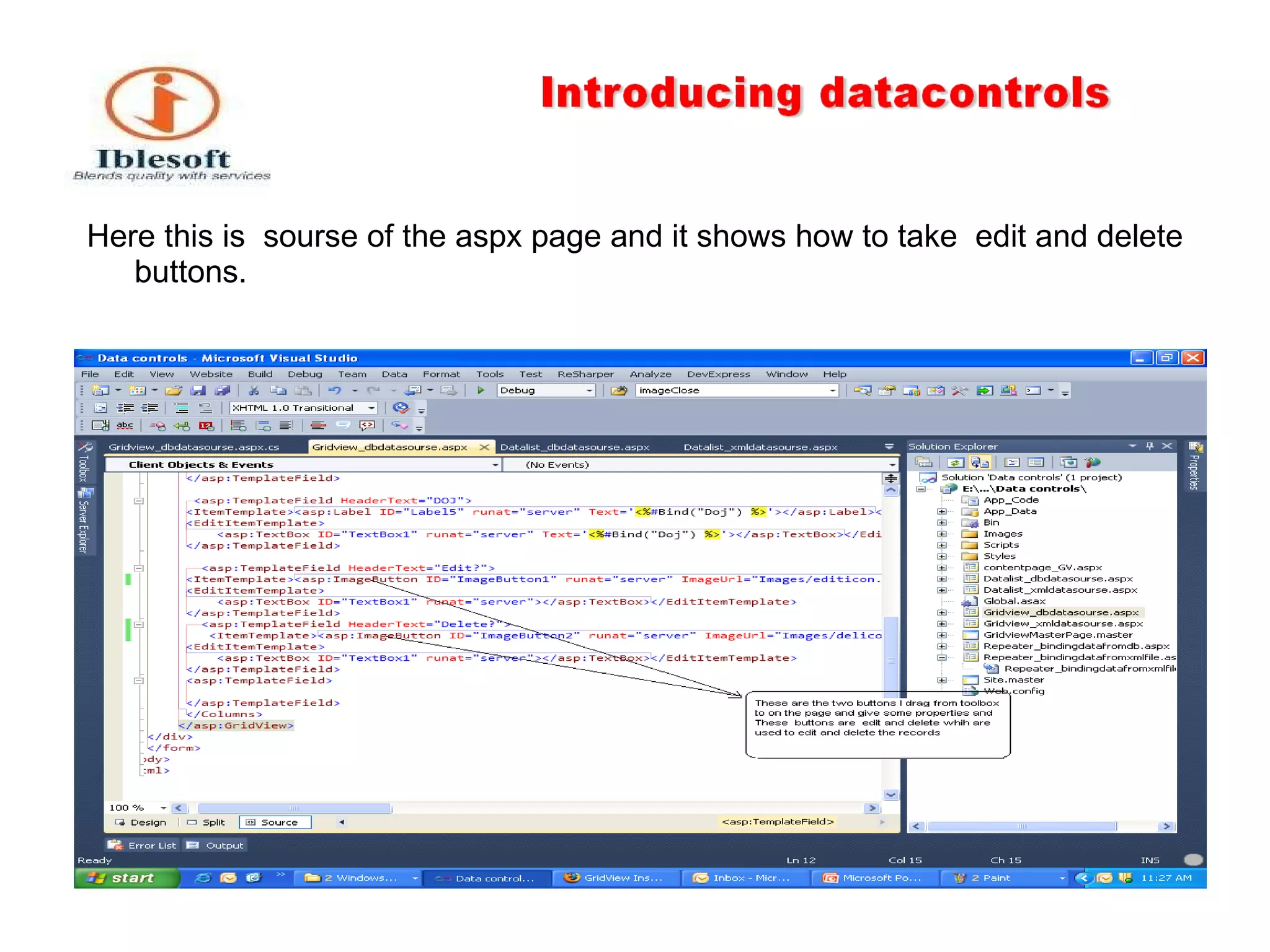

9. Here this is sourse of the aspx page and it shows how to take edit and delete buttons.

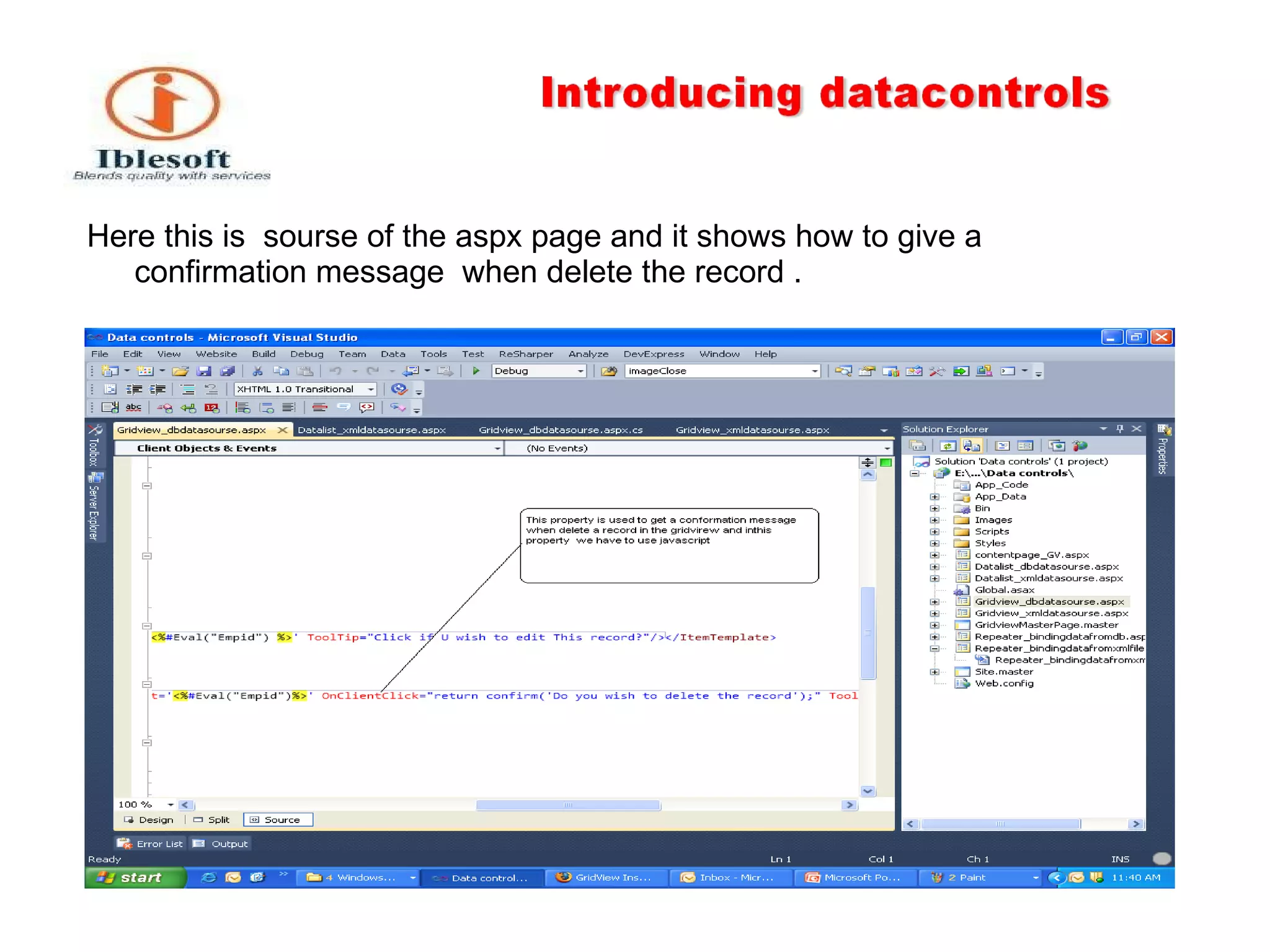

10. Here this is sourse of the aspx page and it shows how to give a confirmation message when delete the record .

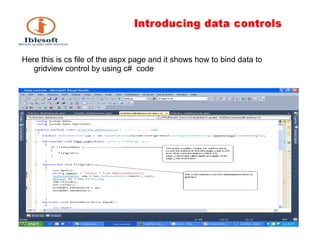

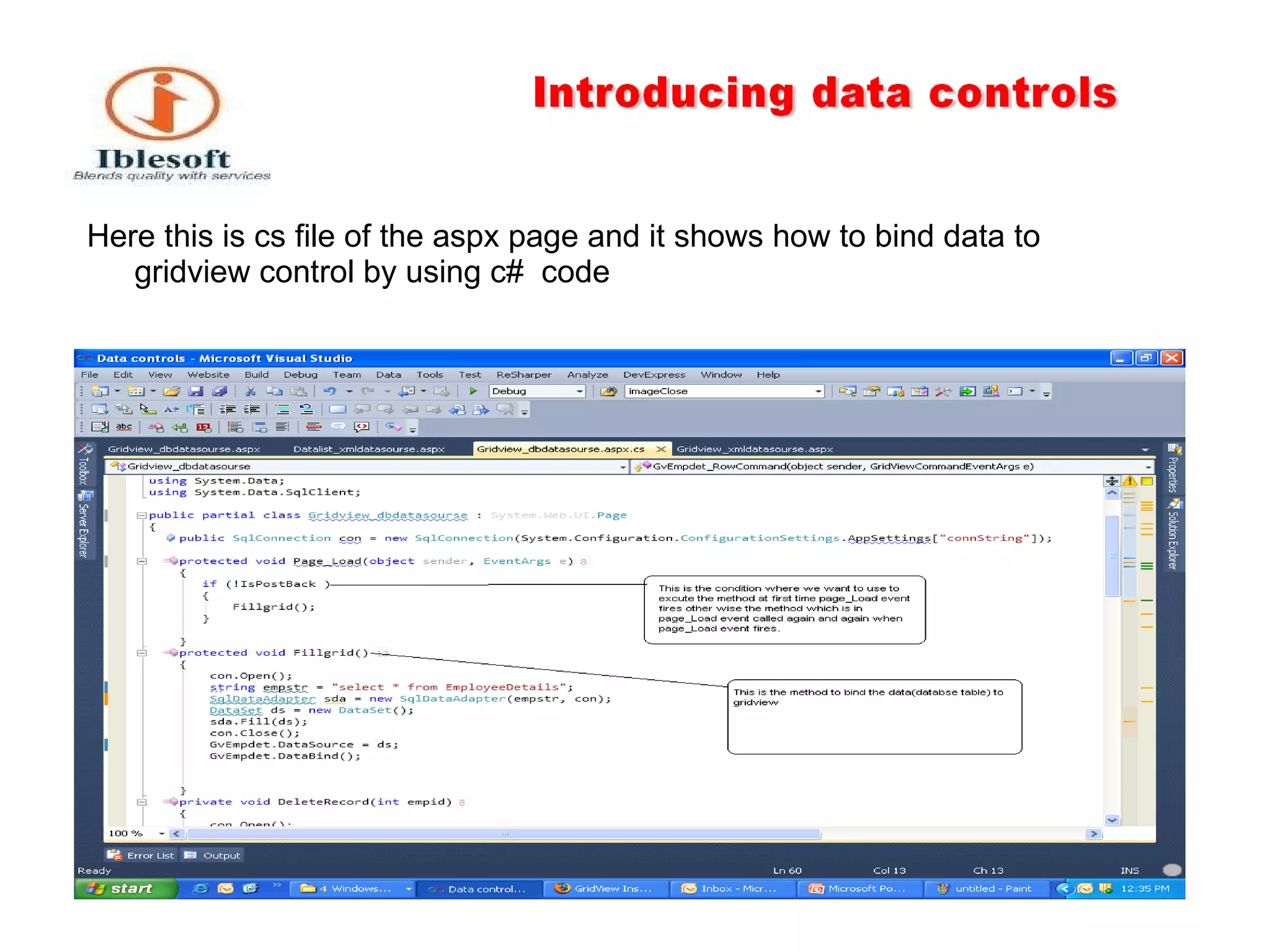

11. Here this is cs file of the aspx page and it shows how to bind data to gridview control by using c# code

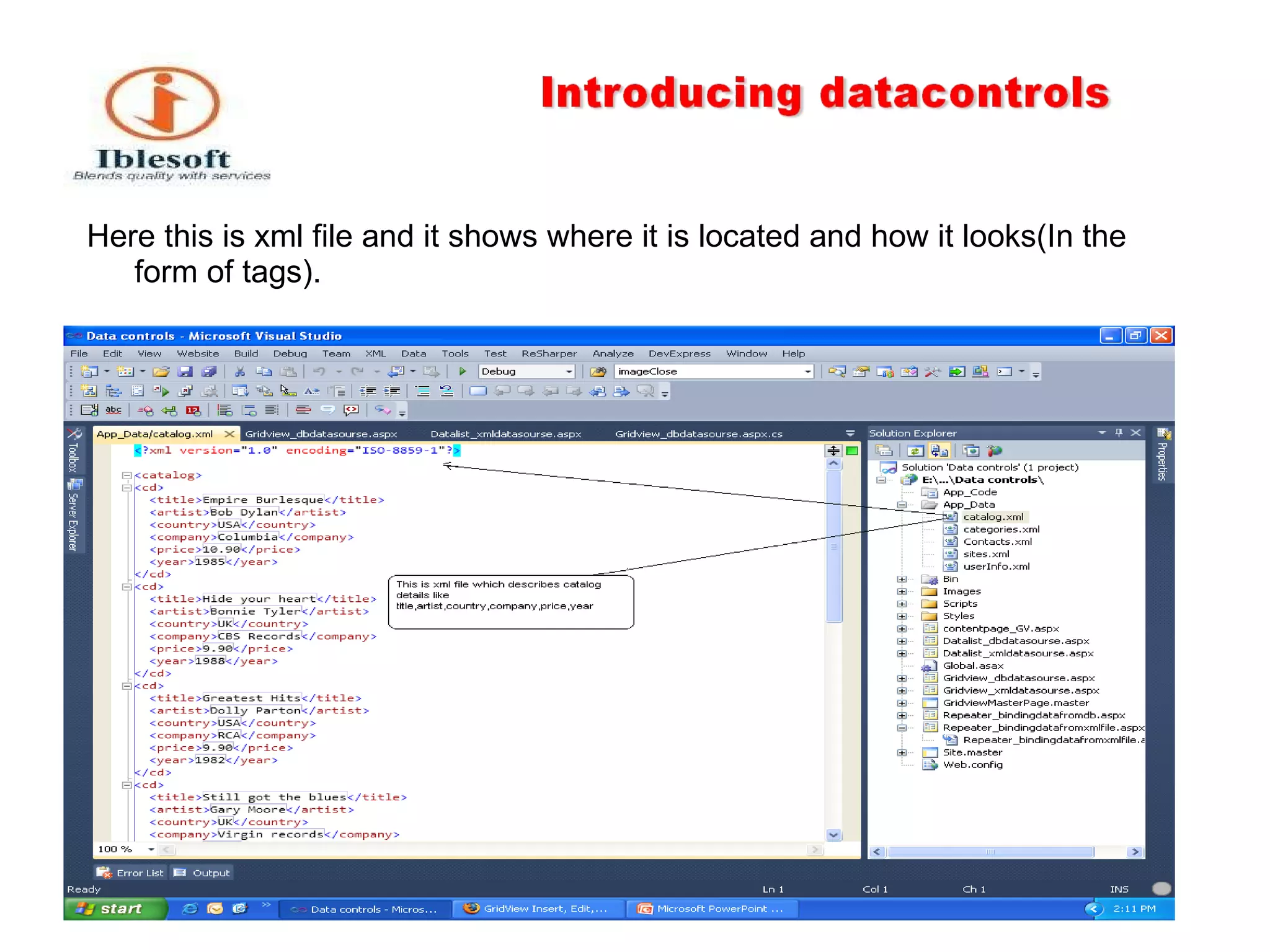

12. Here this is xml file and it shows where it is located and how it looks(In the form of tags).

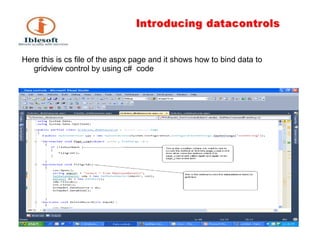

13. Here this is cs file of the aspx page and it shows how to bind data to gridview control by using c# code

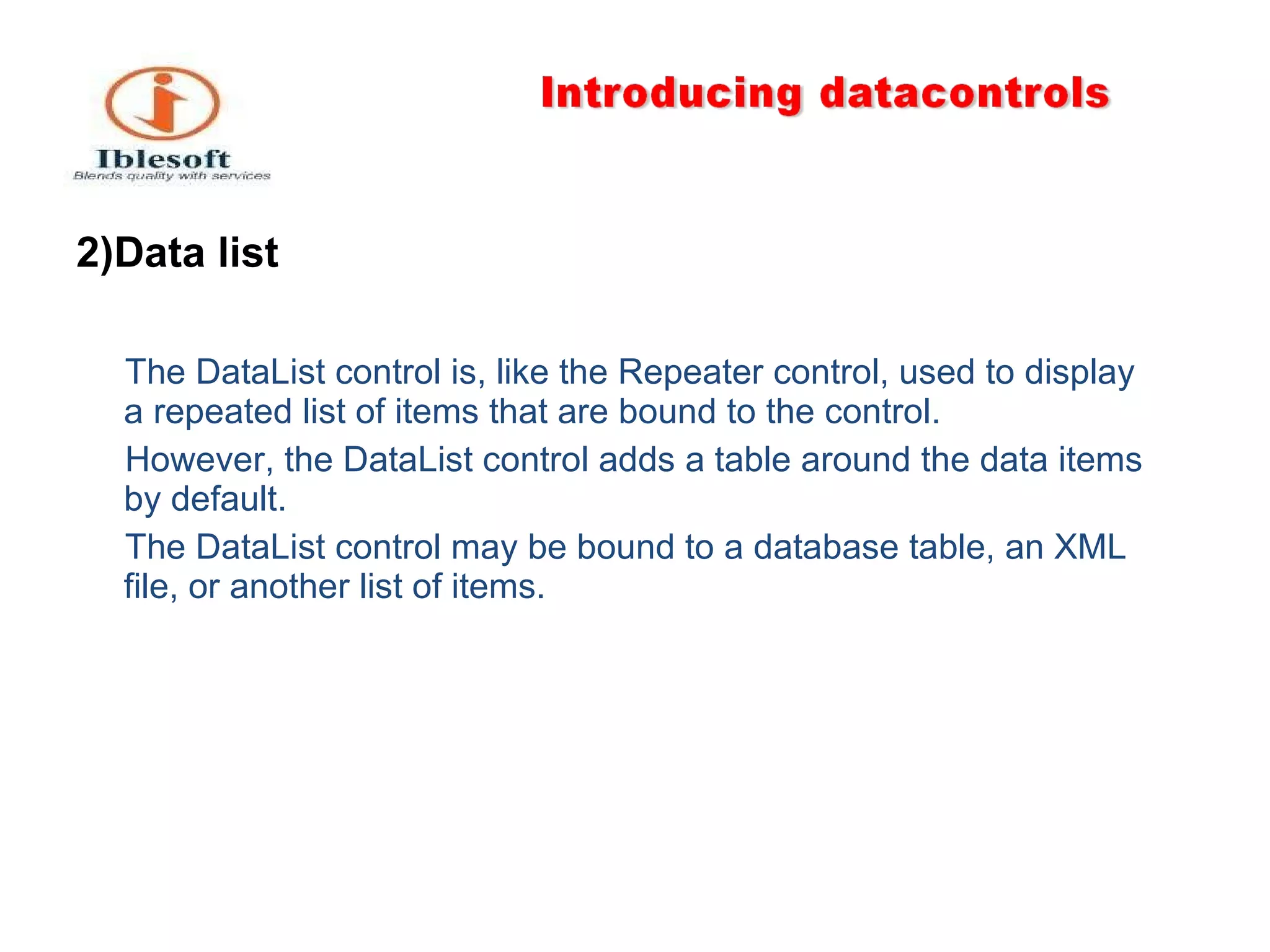

14. 2)Data list The DataList control is, like the Repeater control, used to display a repeated list of items that are bound to the control. However, the DataList control adds a table around the data items by default. The DataList control may be bound to a database table, an XML file, or another list of items.

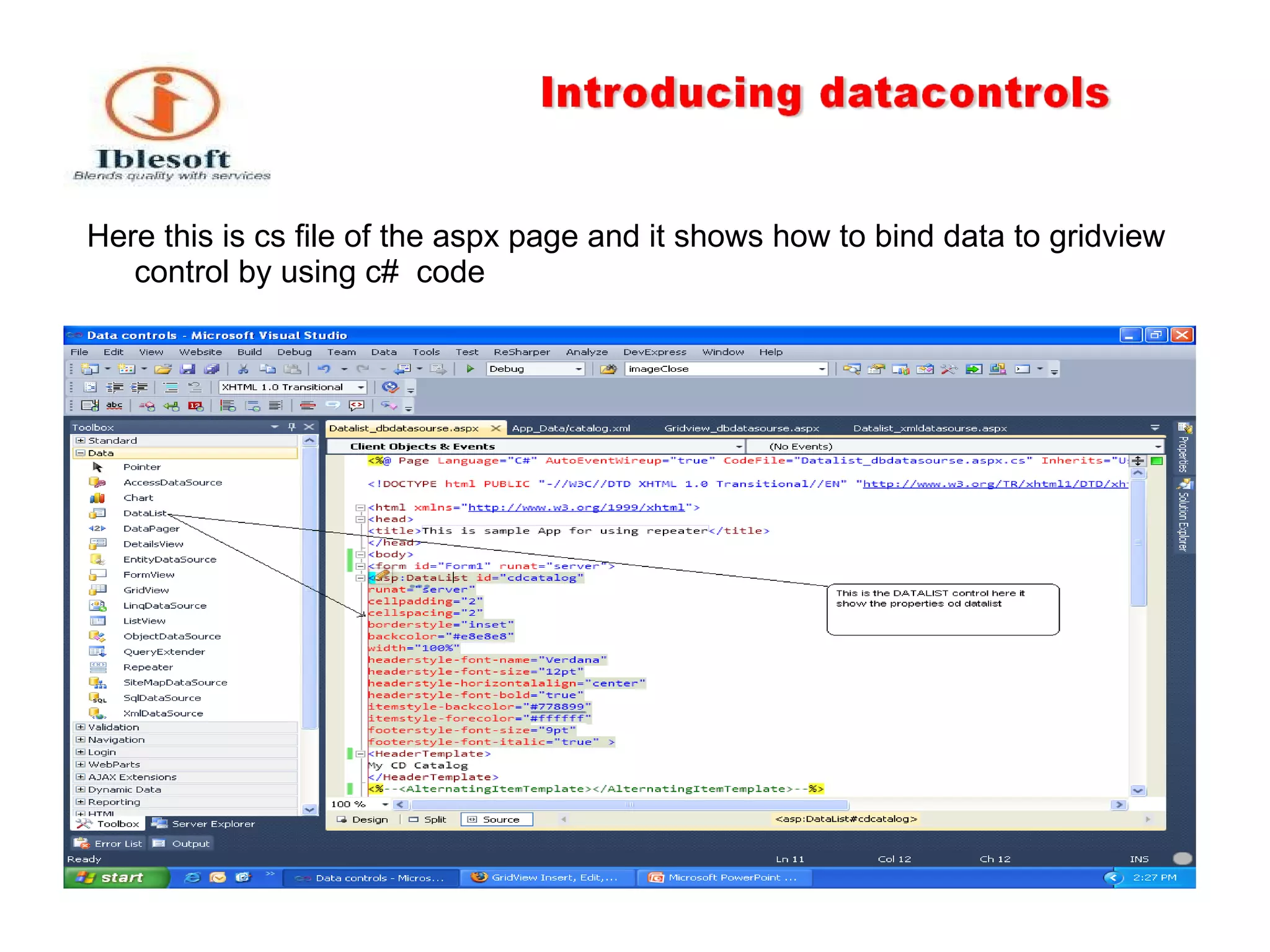

15. Here this is cs file of the aspx page and it shows how to bind data to gridview control by using c# code

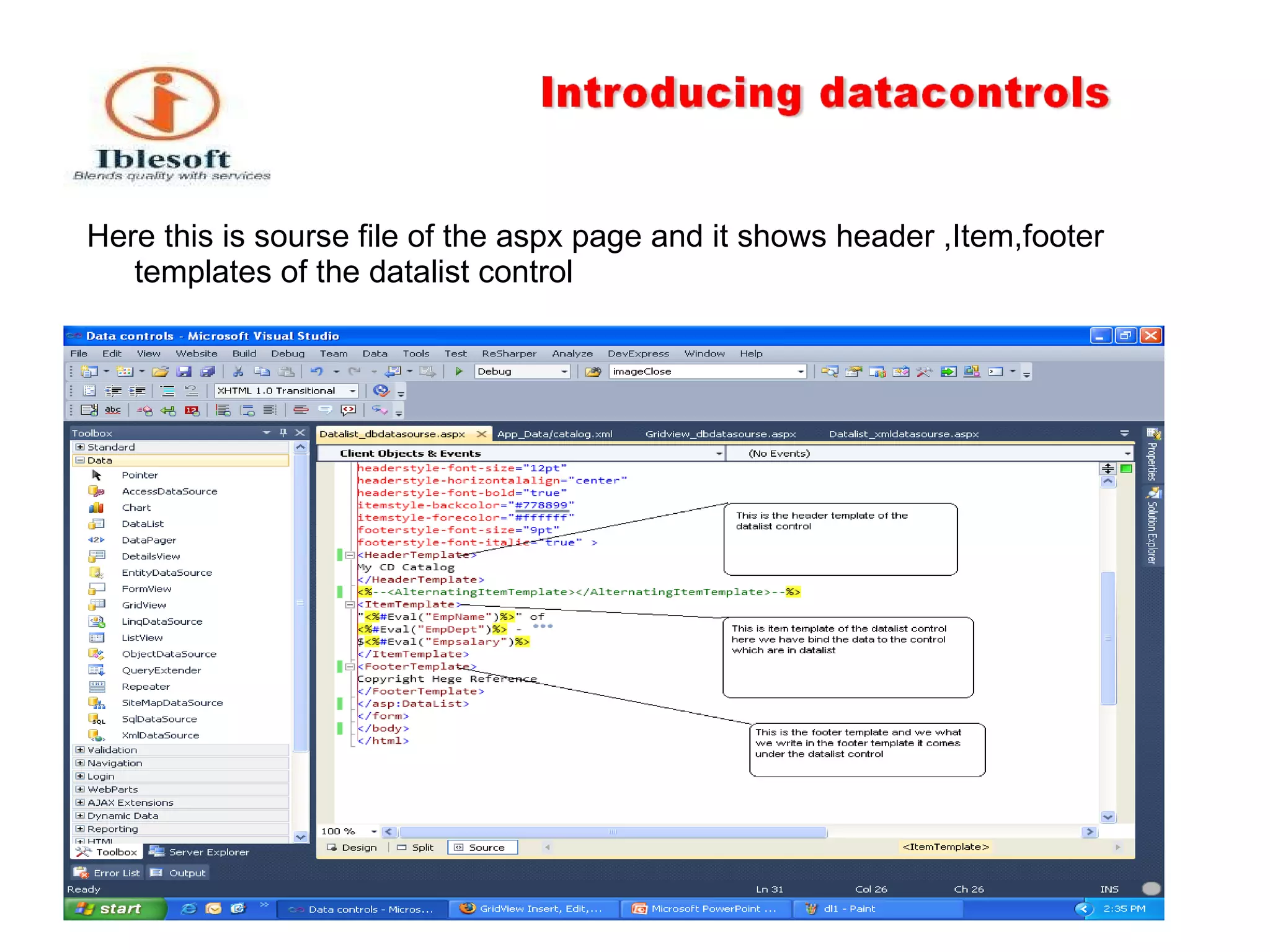

16. Here this is sourse file of the aspx page and it shows header ,Item,footer templates of the datalist control

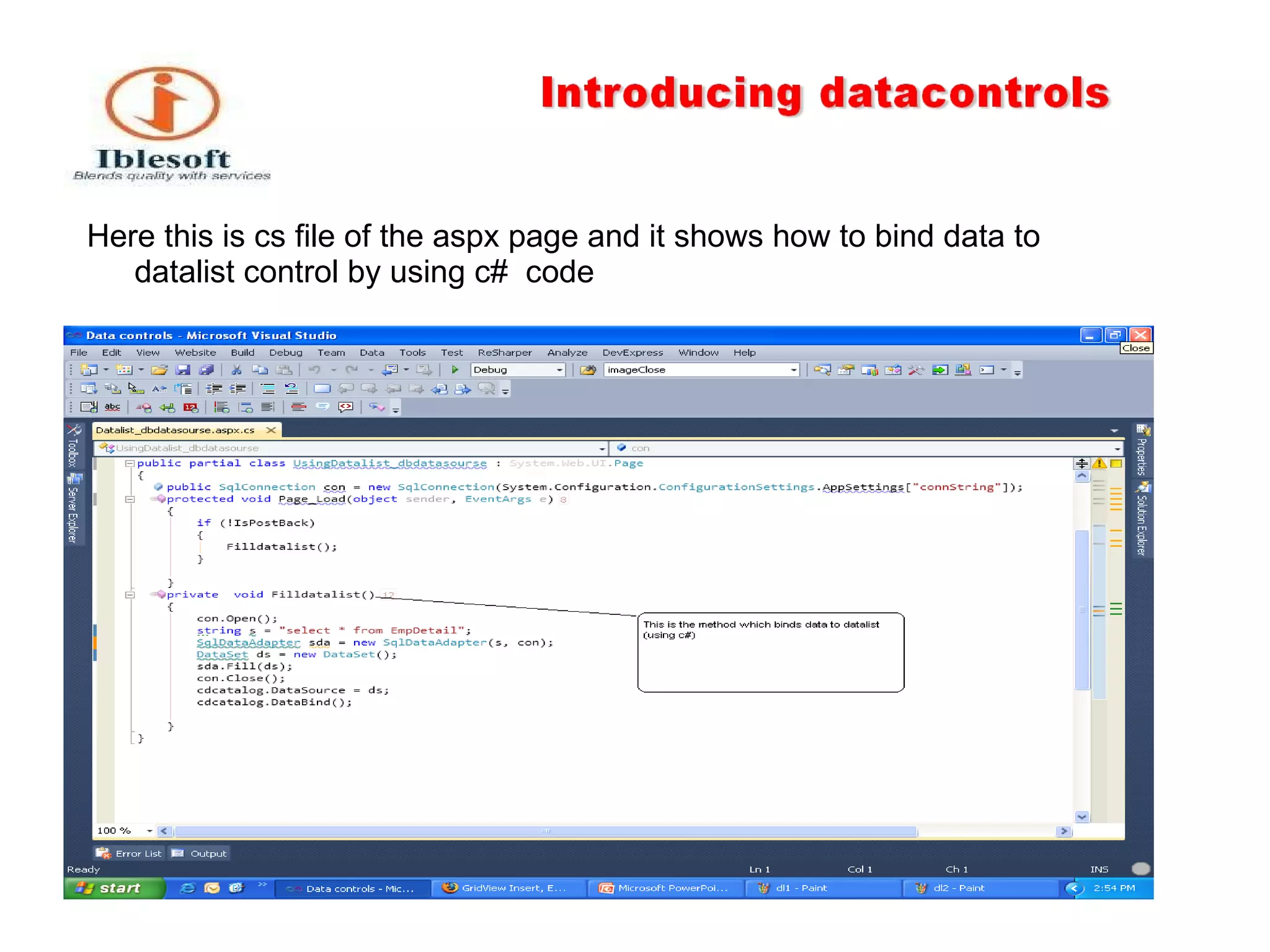

17. Here this is cs file of the aspx page and it shows how to bind data to datalist control by using c# code

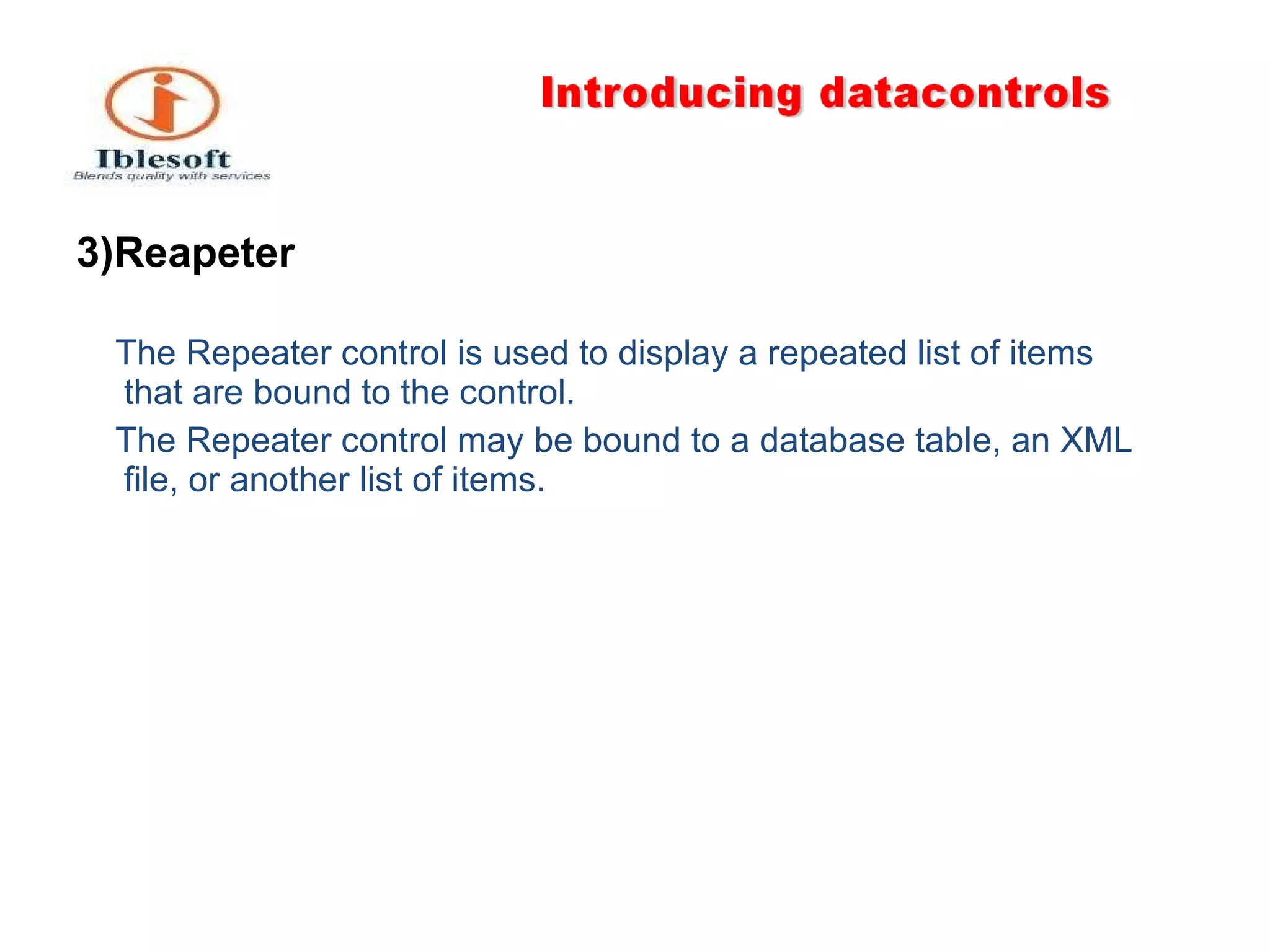

18. 3)Reapeter The Repeater control is used to display a repeated list of items that are bound to the control. The Repeater control may be bound to a database table, an XML file, or another list of items.

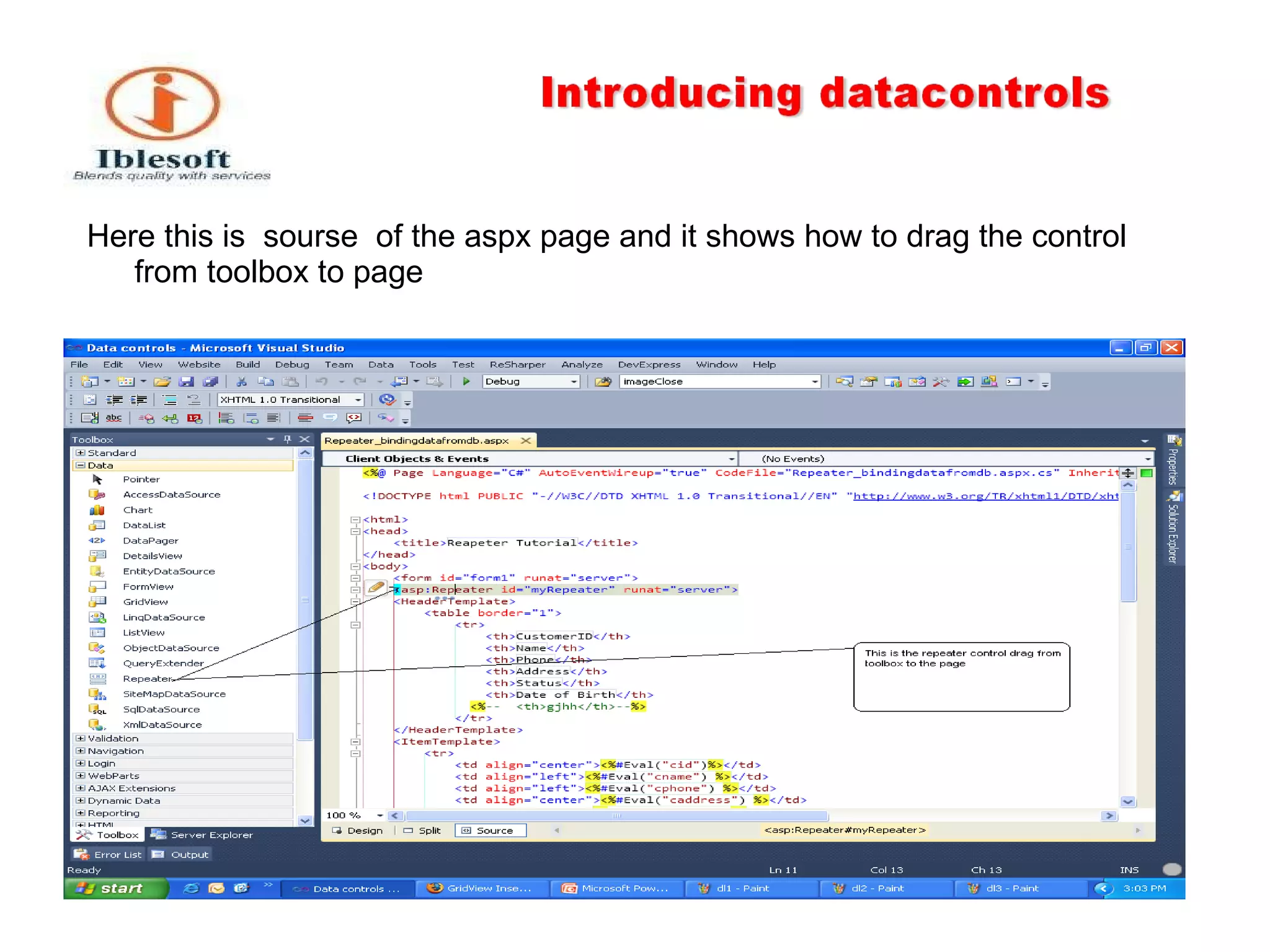

19. Here this is sourse of the aspx page and it shows how to drag the control from toolbox to page

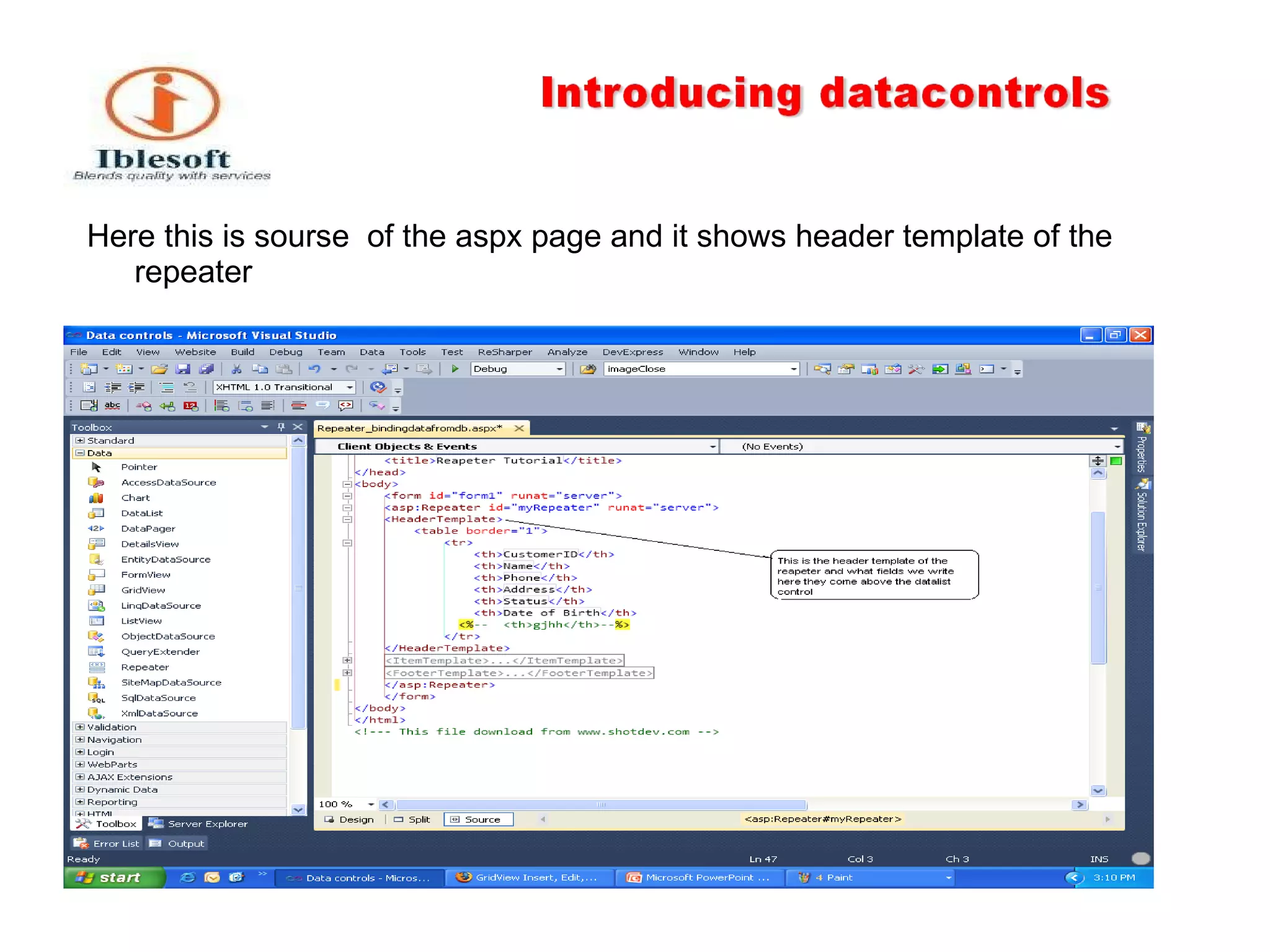

20. Here this is sourse of the aspx page and it shows header template of the repeater

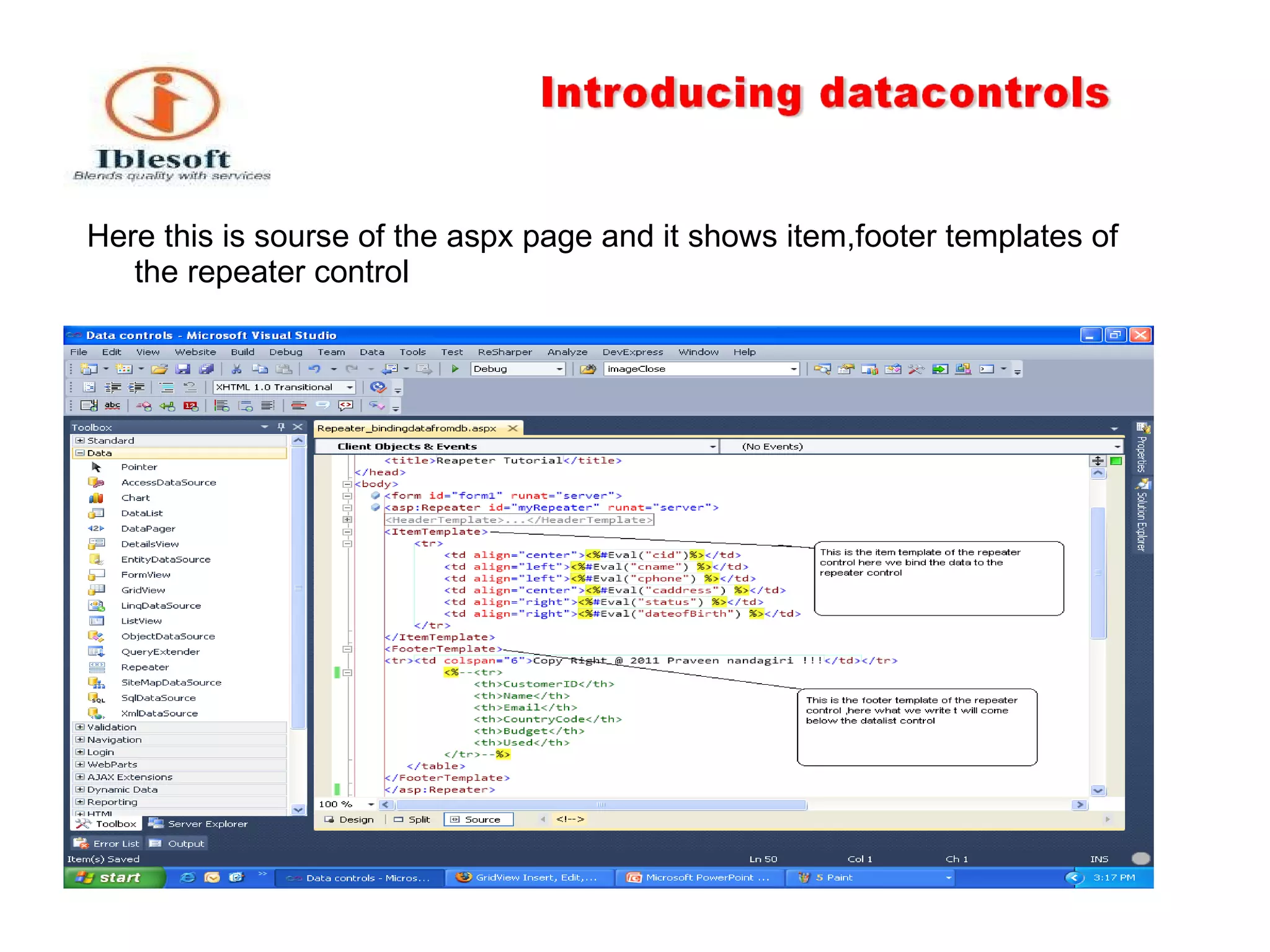

21. Here this is sourse of the aspx page and it shows item,footer templates of the repeater control

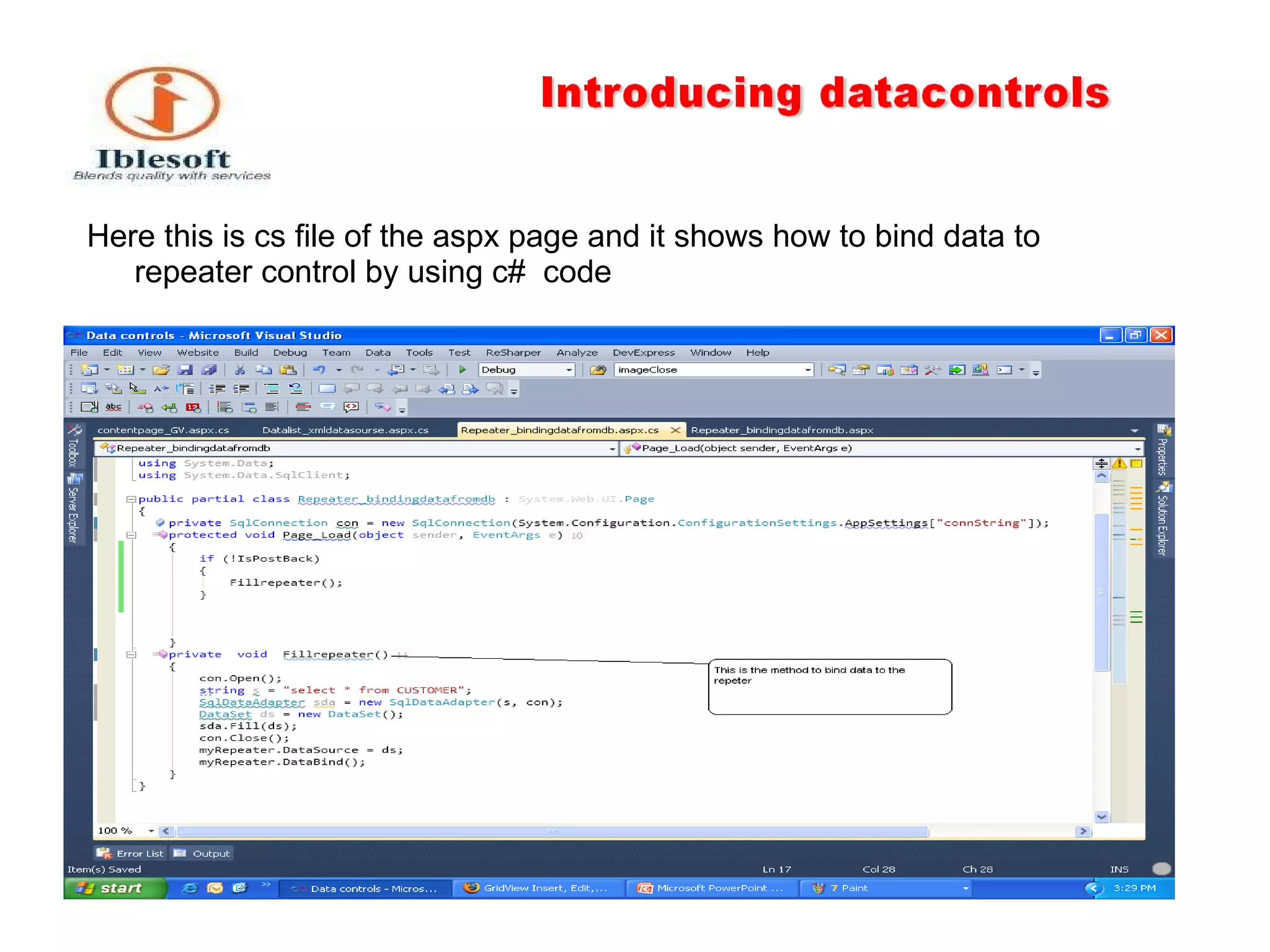

22. Here this is cs file of the aspx page and it shows how to bind data to repeater control by using c# code

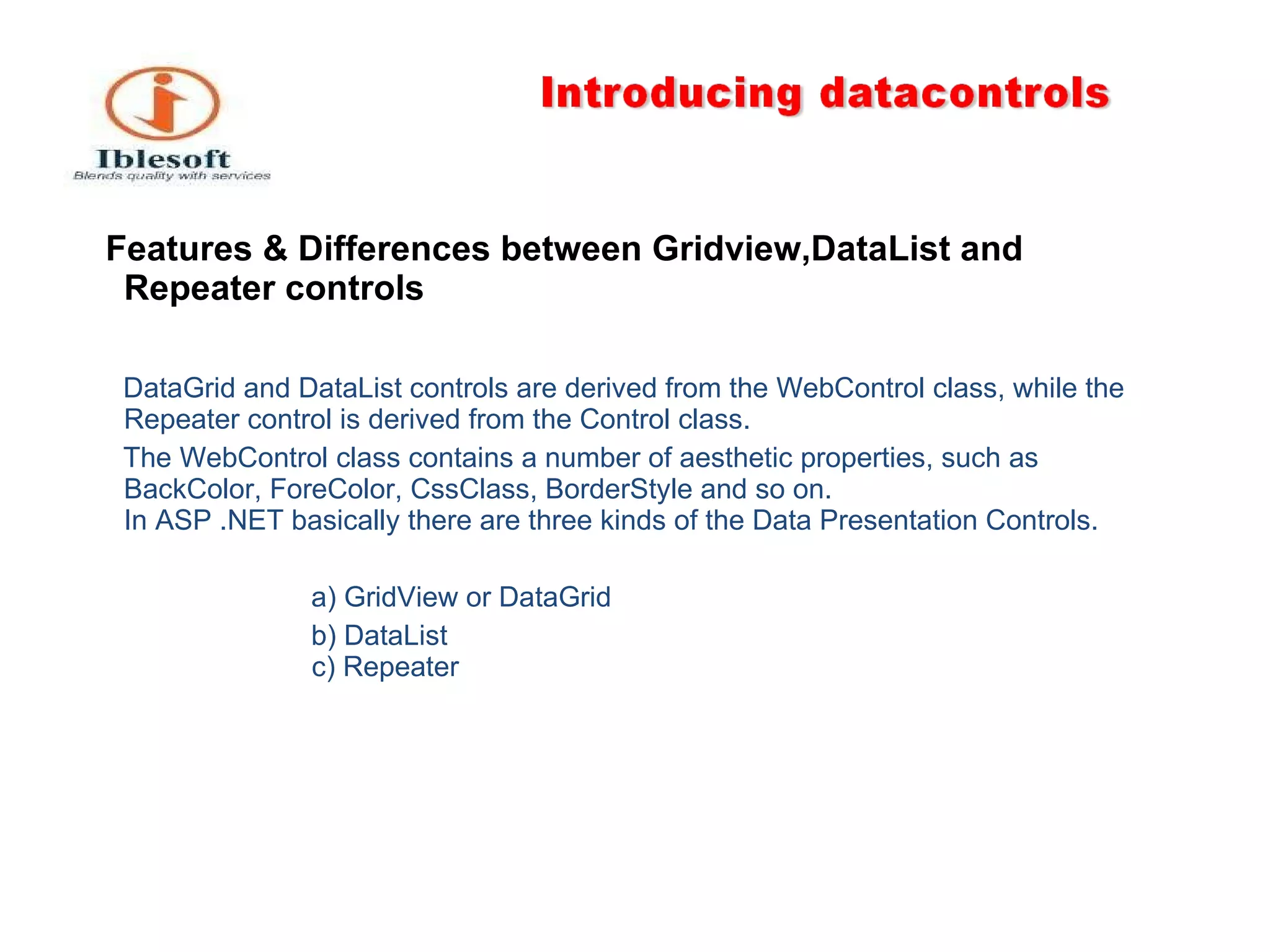

23. Features & Differences between Gridview,DataList and Repeater controls DataGrid and DataList controls are derived from the WebControl class, while the Repeater control is derived from the Control class. The WebControl class contains a number of aesthetic properties, such as BackColor, ForeColor, CssClass, BorderStyle and so on. In ASP .NET basically there are three kinds of the Data Presentation Controls. a) GridView or DataGrid b) DataList c) Repeater

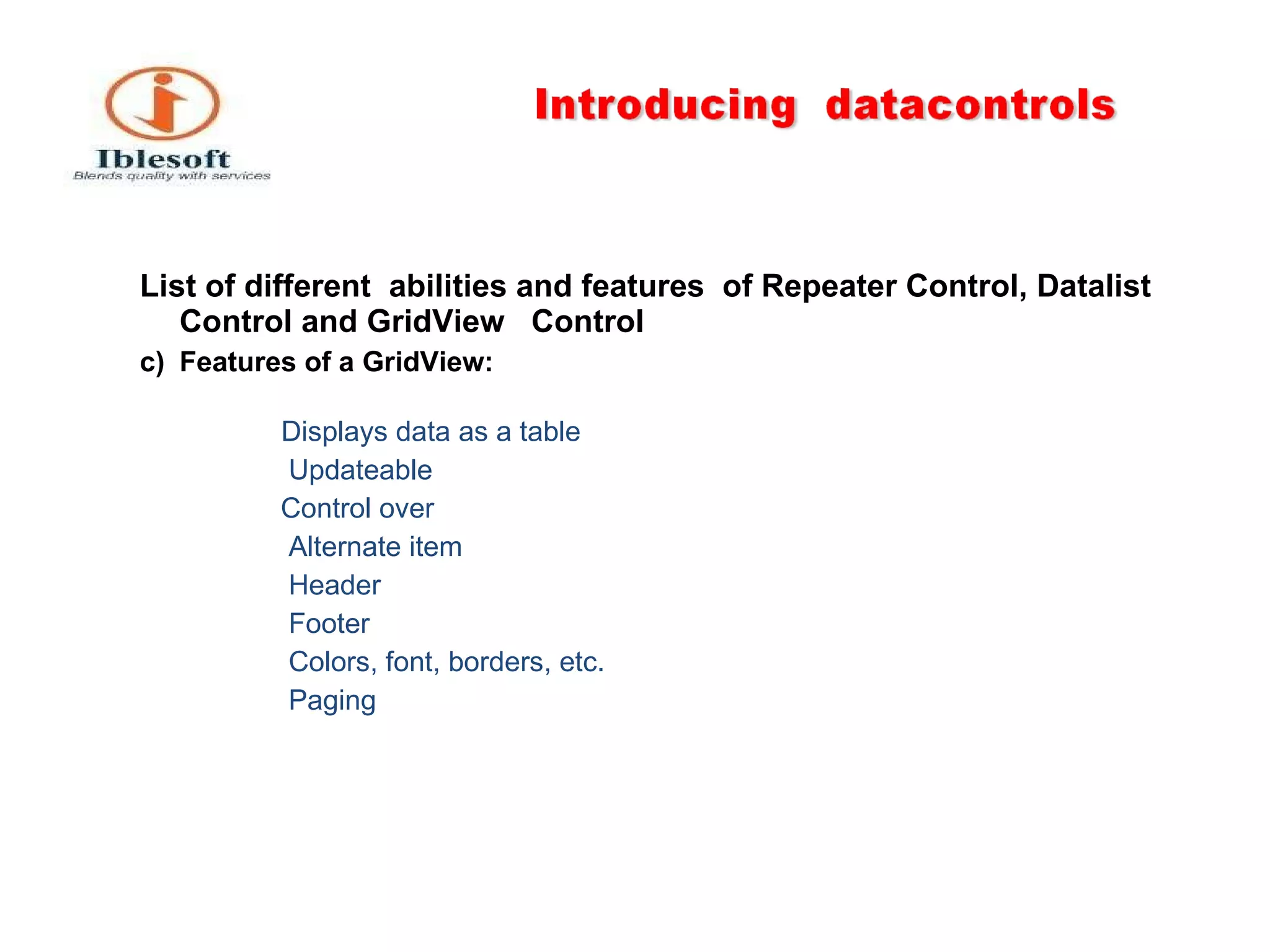

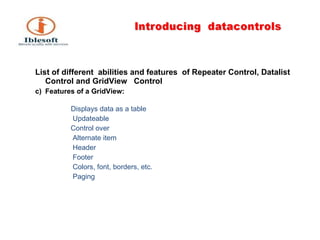

24. List of different abilities and features of Repeater Control, Datalist Control and GridView Control Features of a GridView: Displays data as a table Updateable Control over Alternate item Header Footer Colors, font, borders, etc. Paging

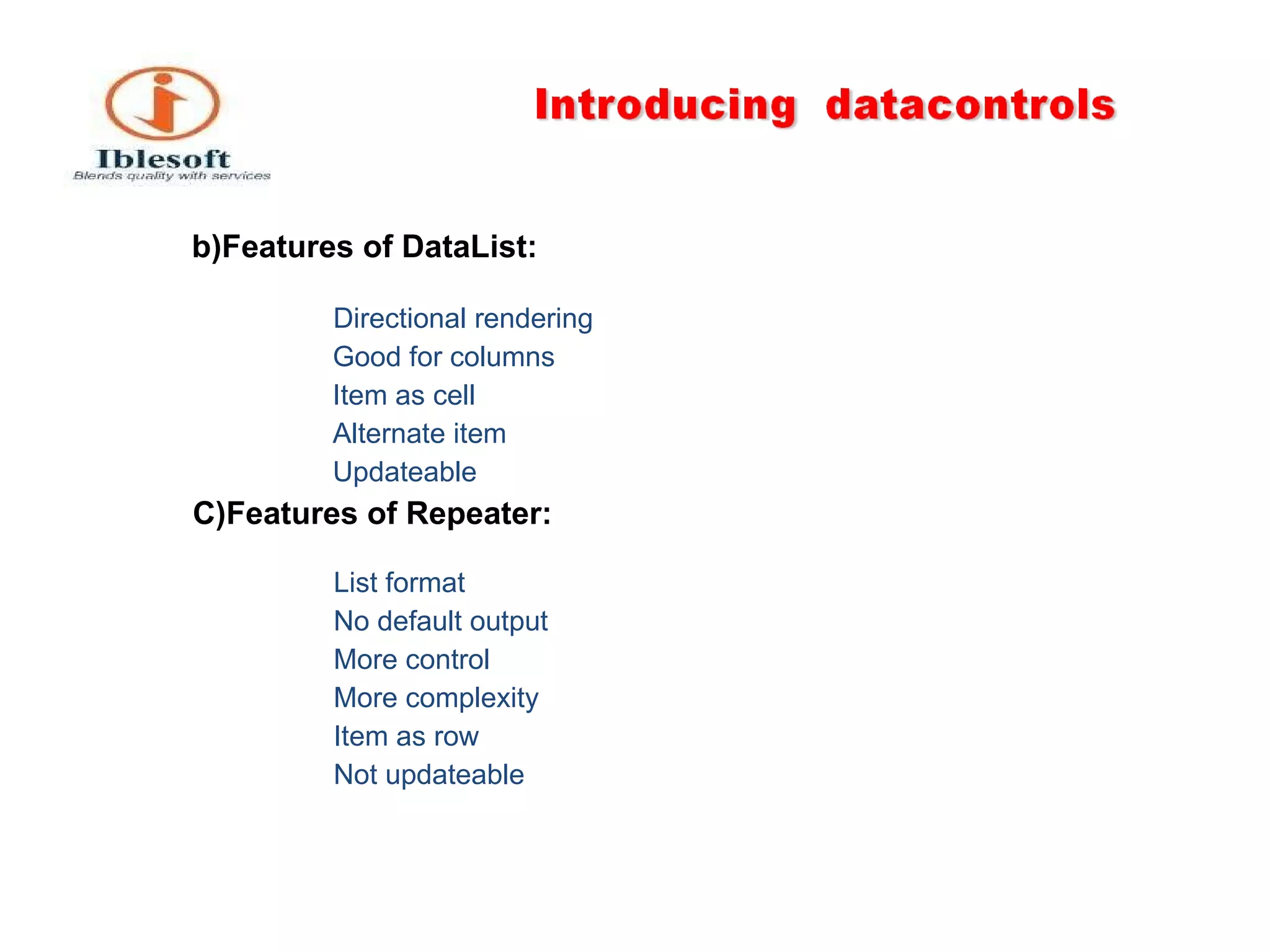

25. b)Features of DataList: Directional rendering Good for columns Item as cell Alternate item Updateable C)Features of Repeater: List format No default output More control More complexity Item as row Not updateable

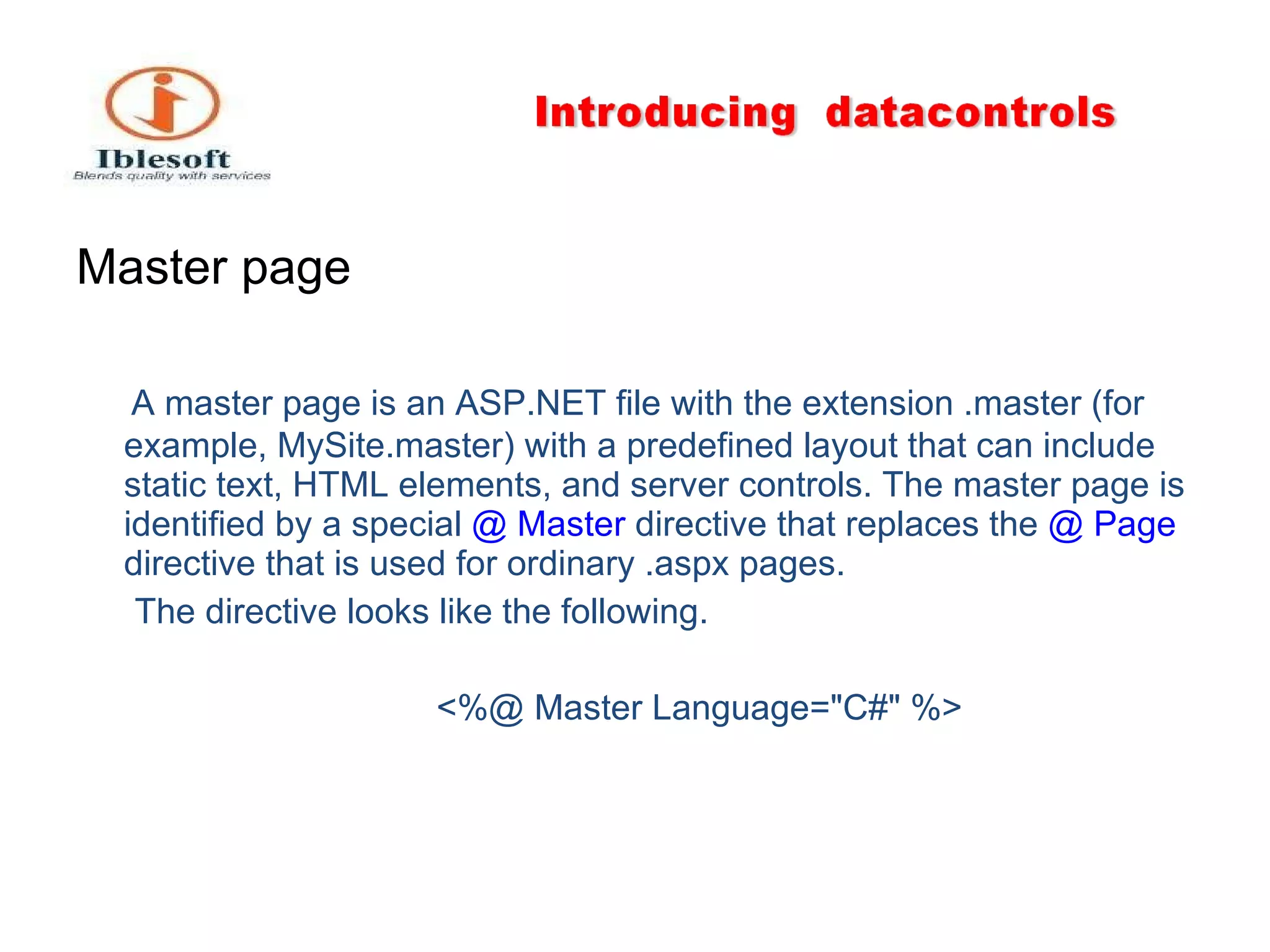

26. Master page A master page is an ASP.NET file with the extension .master (for example, MySite.master) with a predefined layout that can include static text, HTML elements, and server controls. The master page is identified by a special @ Master directive that replaces the @ Page directive that is used for ordinary .aspx pages. The directive looks like the following. <%@ Master Language=&quot;C#&quot; %>

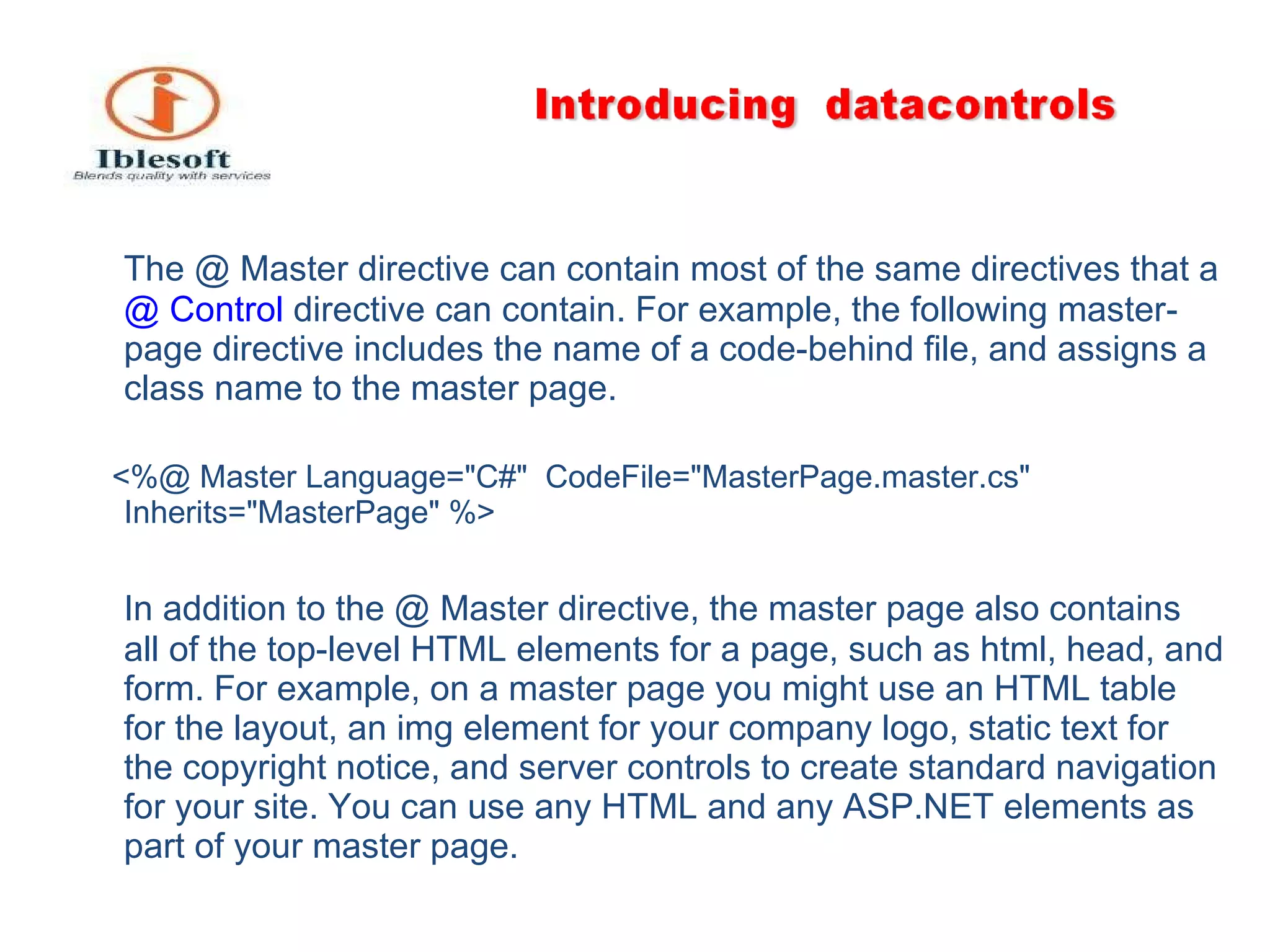

27. The @ Master directive can contain most of the same directives that a @ Control directive can contain. For example, the following master-page directive includes the name of a code-behind file, and assigns a class name to the master page. <%@ Master Language=&quot;C#&quot; CodeFile=&quot;MasterPage.master.cs&quot; Inherits=&quot;MasterPage&quot; %> In addition to the @ Master directive, the master page also contains all of the top-level HTML elements for a page, such as html, head, and form. For example, on a master page you might use an HTML table for the layout, an img element for your company logo, static text for the copyright notice, and server controls to create standard navigation for your site. You can use any HTML and any ASP.NET elements as part of your master page.

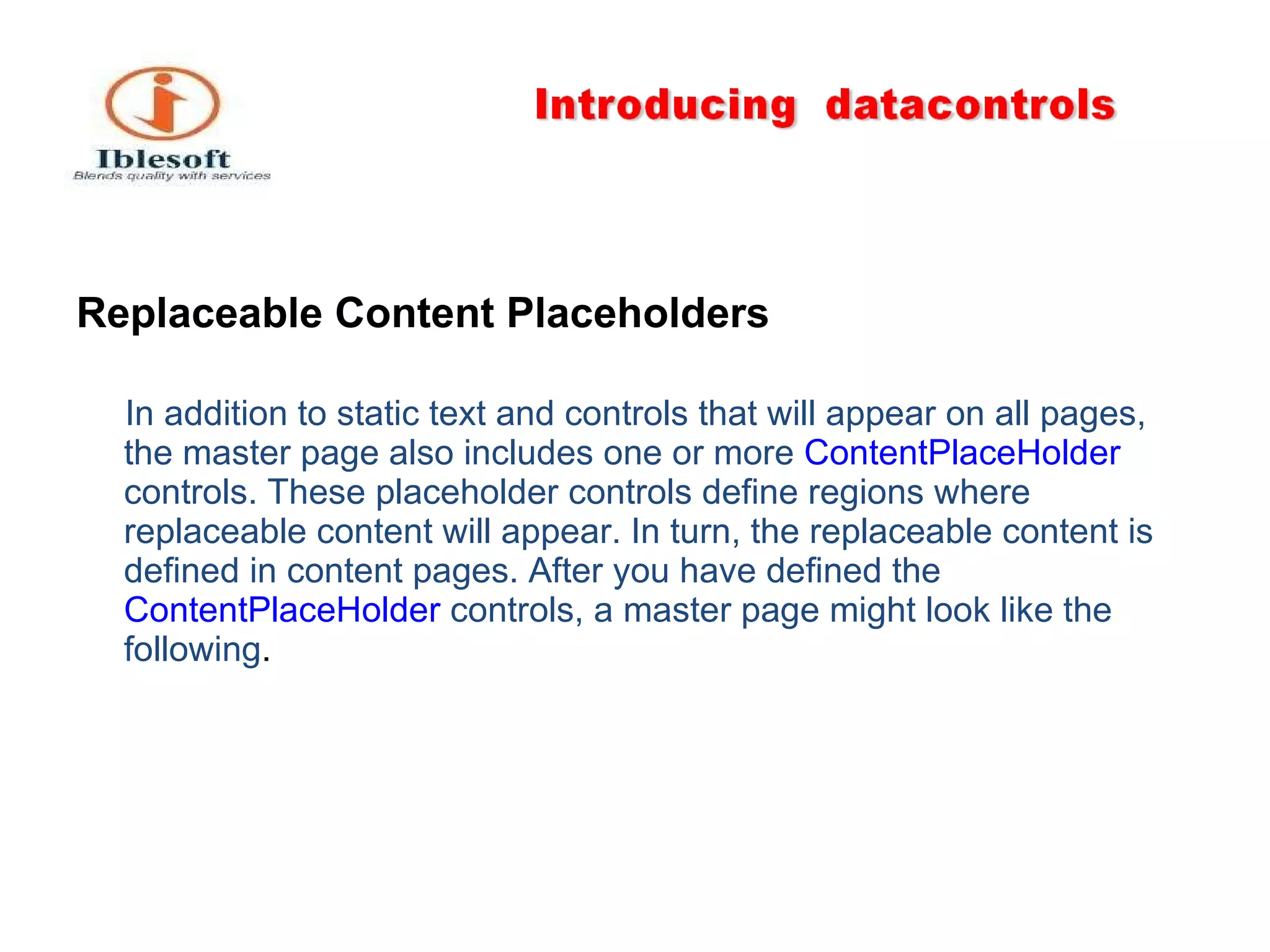

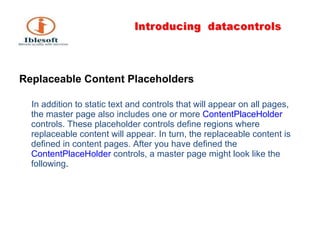

28. Replaceable Content Placeholders In addition to static text and controls that will appear on all pages, the master page also includes one or more ContentPlaceHolder controls. These placeholder controls define regions where replaceable content will appear. In turn, the replaceable content is defined in content pages. After you have defined the ContentPlaceHolder controls, a master page might look like the following .

29. <%@ Master Language=&quot;C#&quot; %> <!DOCTYPE html PUBLIC &quot;-//W3C//DTD XHTML 1.1//EN&quot; &quot;http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd&quot;> <html xmlns=&quot;http://www.w3.org/1999/xhtml&quot; > <head runat=&quot;server&quot; > <title>Master page title</title> </head> <body> <form id=&quot;form1&quot; runat=&quot;server&quot;> <table> <tr> <td><asp:contentplaceholder id=&quot;Main&quot; runat=&quot;server&quot; /></td> <td><asp:contentplaceholder id=&quot;Footer&quot; runat=&quot;server&quot; /></td> </tr> </table> </form> </body> </html>

30. Thank You !
