Datablick Presentation for 2013 Tableau Customer Conference

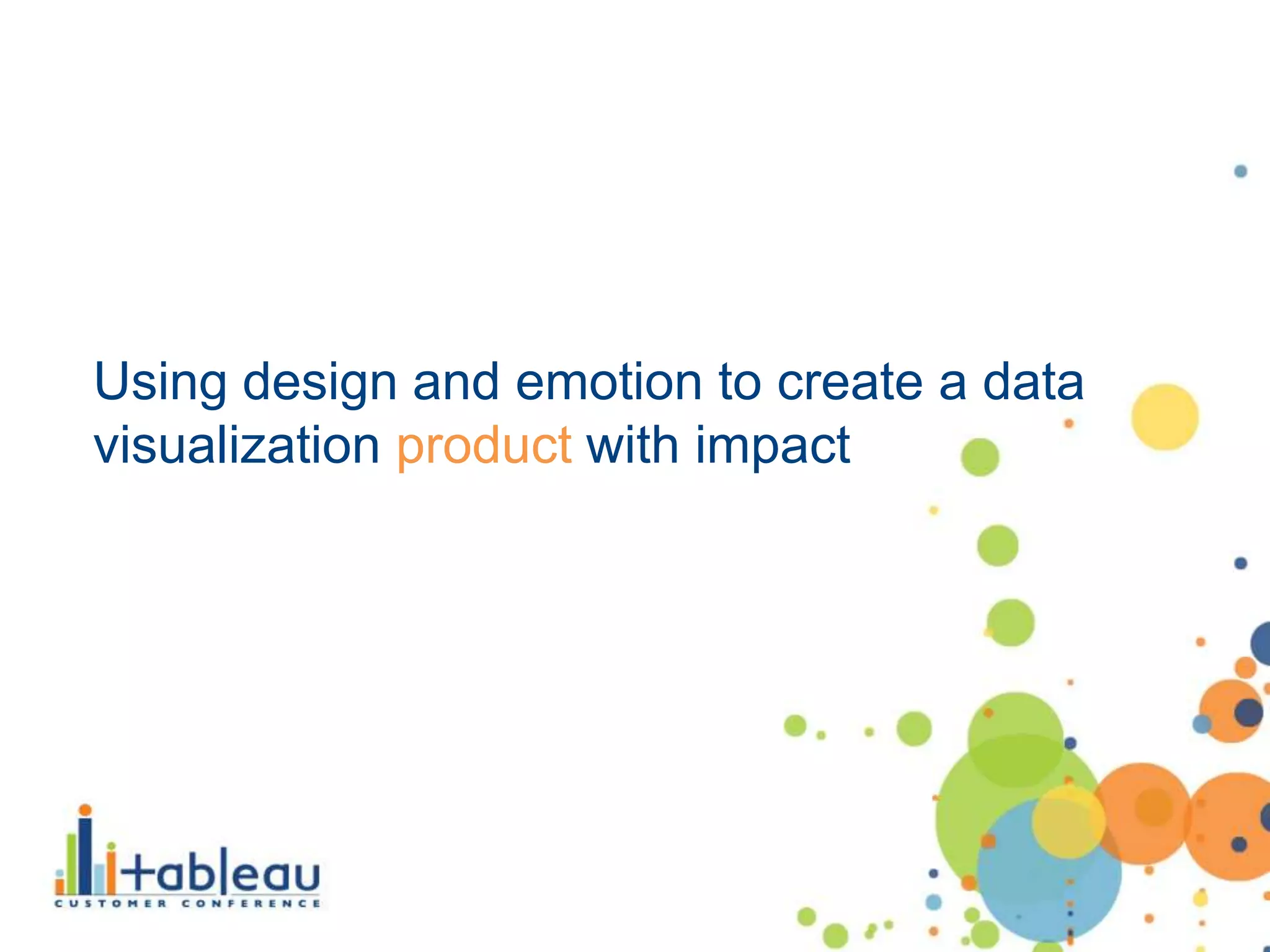

- 1. Using design and emotion to create a data visualization product with impact
- 2. ©2013 Tableau Software Inc. All rights reserved. If your data viz was a product, would you spend your hard earned money (time) to purchase (look at) it?
- 3. ©2013 Tableau Software Inc. All rights reserved. A viz ―product‖ should provide value based on user goals and context.
- 4. Which shoe is the best?
- 5. Git-R-Done! All I need are some tasty waves, a cool buzz, and I'm fine. Last Friday night…. It depends on the goal…
- 6. Git-R-Done! All I need are some tasty waves, a cool buzz, and I'm fine. Last Friday night…. It depends on the goal…
- 7. Git-R-Done! All I need are some tasty waves, a cool buzz, and I'm fine. Last Friday night…. And the context…
- 8. Is this a good data visualization?
- 9. ©2013 Tableau Software Inc. All rights reserved. Product constraints When designing a product - your ability to create and communicate is limited by many constraints such as: • Consumer - Level of understanding of topic - format of display (i.e. print, blog, variable screen resolutions, etc.) - project sponsors goals - timeline / deadline • Data - availability - data quality - size • Designer - Technology and materials available (i.e. Tableau, D3, Illustrator, etc.) - skill / creativity / design - emotion
- 10. ©2013 Tableau Software Inc. All rights reserved. Product constraints When designing a product - your ability to create and communicate is limited by many constraints such as: • Consumer - Level of understanding of topic - format of display (i.e. print, blog, variable screen resolutions, etc.) - project sponsors goals - timeline / deadline • Data - availability - data quality - size • Designer - Technology and materials available (i.e. Tableau, D3, Illustrator, etc.) - skill / creativity / design - emotion
- 11. ©2013 Tableau Software Inc. All rights reserved. Doesn’t this skew the data?
- 12. ©2013 Tableau Software Inc. All rights reserved. Ursus Wehrli – "tidies up" works of art
- 13. ©2013 Tableau Software Inc. All rights reserved. Ursus Wehrli – continued
- 14. ©2013 Tableau Software Inc. All rights reserved. Every act of communication is a translation.
- 15. Sebastian Wernike – Lies damned lies and statistics
- 16. ©2013 Tableau Software Inc. All rights reserved. No man's life can be encompassed in one telling. There is no way to give each year its allotted weight, to include each event, each person who helped to shape a lifetime. What can be done is to be faithful in spirit to the record, and to try to find one's way to the heart of the man . . . • John Richard Briley
- 17. ©2013 Tableau Software Inc. All rights reserved. Emotion and Design
- 18. Similar data, differing emotion and impact Ben Jones
- 19. Similar data, differing emotion and impact Jerome Cukier
- 20. Similar data, differing emotion and impact Periscopic
- 21. Using design and emotion given constraints
- 22. Fireworks, without the ―fireworks‖
- 23. Original inspiration Dumb Ways to Die Schoolhouse Rock
- 24. Just a disclaimer – I am not anti firework!
- 25. ©2013 Tableau Software Inc. All rights reserved. First idea - using American and British soldiers being blown up Cartoons courtesy of Ray Yuen rayuen.com
- 26. ©2013 Tableau Software Inc. All rights reserved. Show body parts or injuries on the body?
- 27. ©2013 Tableau Software Inc. All rights reserved. New inspiration…
- 28. ©2013 Tableau Software Inc. All rights reserved. Started to work on a comic book look and feel
- 29. Who doesn’t like some comedic gore?
- 30. A little layout and color inspiration as well…
- 31. ©2013 Tableau Software Inc. All rights reserved. Still playing with how to make the gore work
- 32. ©2013 Tableau Software Inc. All rights reserved. The final product….
- 33. ©2013 Tableau Software Inc. All rights reserved. Side by side comparison….
- 34. ©2013 Tableau Software Inc. All rights reserved. First draft was already made to have a ―Twitter‖ look
- 35. ©2013 Tableau Software Inc. All rights reserved. The Voice There is a voice inside of you That whispers all day long, "I feel this is right for me, I know that this is wrong." No teacher, preacher, parent, friend Or wise man can decide What's right for you--just listen to The voice that speaks inside.‖ ~Shel Silverstein
- 36. ©2013 Tableau Software Inc. All rights reserved. Some of the tweets…. Trayvon Martin NSA
- 37. ©2013 Tableau Software Inc. All rights reserved. Some of the tweets…. Anthony Weiner Royal Baby
- 38. ©2013 Tableau Software Inc. All rights reserved. Jimmy Jet and His TV Set I’ll tell you the story of Jimmy Jet— And you know what I tell you is true. He loved to watch his TV set Almost as much as you. He watched all day, he watched all night Till he grew pale and lean, From ―The Early Show‖ to ―The Late Late Show‖ And all the shows between. He watched till his eyes were frozen wide, And his bottom grew into his chair. And his chin turned into a tuning dial, And antennae grew from his hair. And his brains turned into TV tubes, And his face to a TV screen. And two knobs saying ―VERT.‖ and ―HORIZ.‖ Grew where his ears had been. And he grew a plug that looked like a tail So we plugged in little Jim. And now instead of him watching TV We all sit around and watch him. ~Shel Silverstein
- 39. ©2013 Tableau Software Inc. All rights reserved. Working on getting that hand drawn look…
- 40. ©2013 Tableau Software Inc. All rights reserved. Doing layout and custom work in Photoshop
- 41. ©2013 Tableau Software Inc. All rights reserved. The Final Product
- 42. Using design and emotion can be effective in creating a data visualization ―product‖ that had a strong impact and is therefore a success. anya@datablick.com
Editor's Notes
- Product must provide value or a solution to a needHow do you measure success? In value / impact (i.e. business value, user views, message conveyed, etc.). If it is not viewed / used, then what is it’s value? How do you prove good decisions were made as a result of data viz?My background is in Economics and Industrial Design so I treat a viz like designing a product.
- Link to Tableau WorkbookThis was one of the first visualizations that I did where I played with the custom shape files. It was around version 4 I believe. While very silly and a bit on the “bright” side, it was a success as a “product”.The context was that I was on a plane to Scotland (a very long flight from SF) with my 5 year old son. He wanted to know what I do for a living.There were a few goals:Explain what I did.Make it interesting for a 5 year old.Push the boundaries of what custom shapes could do. In one
- When designing a product - your ability to create and communicate is limited by many constraints
- Very often, the only ones you have much control over are the Designer constraints. Your narrative ability increases with the more tools, experience, etc. Design and Emotion are some of the strongest tools you have control over.
- Often times statisticians are critical of using anything such as graphical “chart junk” elements as the data should speak for itself and anything else is obstructing clarity and potentially misleading.Statistics them selves are a distillation of key attributes and metrics, and not necessarily the whole picture.
- http://www.ursuswehrli.com/deUrsusWerhrli is a Swiss comedian and artist. His work is taking famous paintings and other object such as nature (stars, leaves, etc.) and “cleaning them up.If you were a statistician trying to explain Paul Klee – this would be a likely representation
- MagritteVan GoughSurat (pointillism)KandinskyStars (nature )Pollock (just put the paint back in the cans…..
- Quoted from IF THIS BE TREASON by Gregory Rabassa (translator of Gabriel Garcia Marquez’ One Hundred Years of Solitude)Data can loose some of its meaning without emotion / context, etc
- Link toyoutubehttp://www.ted.com/talks/lies_damned_lies_and_statistics_about_tedtalks.html?quote=704Sebastian Wernicke: Lies, damned lies and statistics (about TEDTalks)Video shows how distilling and summarizing information can be very misleading.
- This was a quote written by the screen writer for the movie of Ghandi (1982)Not that all data tells a story as amazing an complex as the like of Ghandi, it does however share that capturing correct “spirit” is critical.
- Increase use and value by adding an emotional componentWhile working on my Masters in Industrial Design, I read an article on a man that brutally beat his mother for washing his cast iron pan with soap. I found this disturbing, but fascinating and did a research project on emotional attachments to cooking objects to try and understand this attachment. Research on Emotional attachments to Cooking Objects - favorite cooking items:Cast Iron Pan - nurturing, emotional investment in “seasoning the pan” involvementKnives - feeling of power Copper Pots - prestigeInterview with Chuck Williams - favorite item is pairing knife as it is practical useful – best friend in the kitchenHow to incorporate elements of these types of emotional attachments to data viz?
- Visualization as communication and analysis deviceUsing three different data visualizations, compare the goals, context and impact that emotion can play on a viz “product”Link to Viz
- Link to Viz http://www.jeromecukier.net/projects/crime/murders.html
- Link to Viz http://guns.periscopic.com/?year=2013
- This was the data viz that won the TCC 2012 Iron Viz Championship. There were many constraints:Data provided was not a topic of particular interest to meData didn’t have any really “interesting stories” and due to structure was hard to link to other data sets. An options under consideration had been, how does poverty effect fatalities and damage. There was only 20 minutes to create the viz, onstage while people watched and commented on the whole thingUsing design and emotional elements, a story was created and presented with impact.The original with no formatting is great as is, showcasing Tableau’s amazing default formatting, but a with a few design modifications, it became a real “winner”.In this case it was very hard to find a “story in the data” so design was emphasized to add impact and emotion to the viz. NY times look and feel: It has to be valid – it looks like news!Credibility: Annotation Layer – talking about the scientific researchersAccessibility: Added the Dorothy intro to make it something everyone can relate toInvite user interaction: Year mention -to draw user into interact with bar chart belowEmotion: Color scheme Red = fatalitiesIs this honest or dishonest?
- Again, using Tableau’s well designed default formatting, the viz is already interesting and informative.
- Original idea was to be a mash-up of :Dumb Ways to Die video http://www.youtube.com/watch?v=IJNR2EpS0jw And Schoolhouse RockIt was to be a kind of silly public service announcement.
- My own arsenal…..
- Idea was how silly it is that we blow ourselves up to celebrate independence….
- Is the best way to show these things....actual injuries with blood? Or cutaways to hands, fingers, eyeballs...with injuries? Hmmm
- Went to a meeting at YetiZen and got inspired by a comic book concept…..
- Wanted to work with the crash, boom, pow from old Batman and Robin cartoons.
- The images were blocking the bars so it made the data hard to read. When they were added as squares, they were super cool – goal… but in the context of the whole piece, they distracted too much.Many iterations and “playing with the views” to see what worked together to convey the data and a comedic yet advisory “product”
- Had to be done as 4th of July was coming up. Wanted to launch a couple days before the holiday.Went with no cartoons and didn’t feel they added to the story. Kept the comic look and feel though and emotion of the violence in cartoons.http://public.tableausoftware.com/views/FireworkInjuries/FireworkInjuries?:embed=y&:display_count=noDesign elements, cartoon colors, narrative “frames” done as a black layer behind the view and black outlines of chart elements added a hand drawn look. As no embedding of fonts, I had to create Headers and view titles in Illustrator and add as images. The only element that I couldn’t get quite right was the year drop down
- Not much different in terms of data and layout, but design and emotion made a big impact.
- The original idea was that Twitter was the live blog of the world, based on the them of their conference that had just been in SF. Using Viral Heat’s free trial, I tracked 4 keywords on twitterThen I noticed that some of the messages were a bit less than news worthy…. Really people? Royal Baby is that big?I started to think about how everyone is given this opportunity to have a voice and speak what is important to them….. And sometimes it is just blah blah blah….
- I started to think about how everyone is given this opportunity to have a voice and speak what is important to them….. And thought of this Shel Silverstein poem
- Had I added George Zimmerman and Edward Snowden to the key terms, the results would have been different
- And sometimes it is just blah blah blah….So then I thought of this one which made fun of the viewer becoming the view-ee, just like twitter allowed the tweeter to become more news than the news itself.
- This viz was much more constrained by time. I had only two nights to work on it….
- Cut and pasted images of the charts into Photoshop where the layout was thought out.Headers had to be custom created as did labels. The TV image was used to size the screen for the tv, etc. Once this was laid out it was recreated using images and the floating feature in Tableau 8.
- http://public.tableausoftware.com/views/TwitterTV/TwitterTV?:embed=y&:display_count=nohttp://datablick.com/blog/The Final Product – Artistic, interactive, data visualization!
