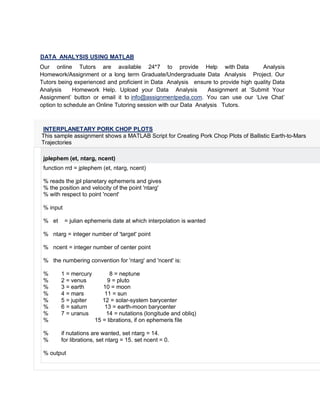

1. DATA ANALYSIS USING MATLAB
Our online Tutors are available 24*7 to provide Help with Data Analysis
Homework/Assignment or a long term Graduate/Undergraduate Data Analysis Project. Our
Tutors being experienced and proficient in Data Analysis ensure to provide high quality Data
Analysis Homework Help. Upload your Data Analysis Assignment at ‘Submit Your
Assignment’ button or email it to info@assignmentpedia.com. You can use our ‘Live Chat’
option to schedule an Online Tutoring session with our Data Analysis Tutors.
INTERPLANETARY PORK CHOP PLOTS
This sample assignment shows a MATLAB Script for Creating Pork Chop Plots of Ballistic Earth-to-Mars
Trajectories
jplephem (et, ntarg, ncent)
function rrd = jplephem (et, ntarg, ncent)
% reads the jpl planetary ephemeris and gives
% the position and velocity of the point 'ntarg'
% with respect to point 'ncent'
% input
% et = julian ephemeris date at which interpolation is wanted
% ntarg = integer number of 'target' point
% ncent = integer number of center point
% the numbering convention for 'ntarg' and 'ncent' is:
% 1 = mercury 8 = neptune
% 2 = venus 9 = pluto
% 3 = earth 10 = moon
% 4 = mars 11 = sun
% 5 = jupiter 12 = solar-system barycenter
% 6 = saturn 13 = earth-moon barycenter
% 7 = uranus 14 = nutations (longitude and obliq)
% 15 = librations, if on ephemeris file
% if nutations are wanted, set ntarg = 14.
% for librations, set ntarg = 15. set ncent = 0.
% output

2. % rrd = output 6-word array containing position and velocity
% of point 'ntarg' relative to 'ncent'. the units are au and
% au/day. for librations the units are radians and radians
% per day. in the case of nutations the first four words of
% rrd will be set to nutations and rates, having units of
% radians and radians/day.
% the option is available to have the units in km and km/sec.
% for this, set km = 1 via global in the calling program.
% Orbital Mechanics with Matlab
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
global cval ss au emrat ncon ipt np nv twot pc vc
global iephem ephname bary pvsun nrl fid lpt
rrd = zeros(6, 1);
list = zeros(12, 1);
et2 = zeros(2, 1);
% load time array
et2(1) = et;
et2(2) = 0;
% first entry?
if (iephem == 1)
pvsun = zeros(6, 1);
% read header file data
fid = fopen(ephname, 'r');
ttl = fread(fid, 252);
cnam = fread(fid, 2400);
ss = fread(fid, 3, 'double');
ncon = fread(fid, 1, 'int');
% astronomical unit

3. au = fread(fid, 1, 'double');
% earth-moon ratio
emrat = fread(fid, 1, 'double');
ipt = fread(fid, [3 12], 'int');
numde = fread(fid, 1, 'int');
lpt = fread(fid, 3, 'int');
% move to next record
status = fseek(fid, 8144, 'bof');
% read "constant" values
cval = fread(fid, 400, 'double');
% initialization
nrl = 0;
bary = 0;
pc(1) = 1;
pc(2) = 0;
vc(2) = 1;
np = 2;
nv = 3;
twot = 0;
iephem = 0;
end
if (ntarg == ncent)
return;
end
%%%%%%%%%%%%%%%%%%%%%%
% nutations requested?
%%%%%%%%%%%%%%%%%%%%%%
if (ntarg == 14)
if (ipt(2, 12) > 0)

4. list(11) = 2;
[pv, rrd] = state(et2, list);
list(11) = 0;
return;
else
fprintf('nnpleph - no nutations on this ephemeris file n');
return;
end
end
%%%%%%%%%%%%%%%%%%%%%%%
% librations requested?
%%%%%%%%%%%%%%%%%%%%%%%
if (ntarg == 15)
if (lpt(2) > 0)
list(12) = 2;
[pv, rrd] = state(et2, list);
list(12) = 0;
for i = 1:1:6
rrd(i) = pv(i, 11);
end
return
else
fprintf('nn no librations on this ephemeris file n');
return;
end
end
% force barycentric output by function 'state'
bsave = bary;
bary = 1;
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% set up proper entries in 'list' array for state call
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
for i = 1:1:2
k = ntarg;

5. if (i == 2)
k = ncent;
end
if (k <= 10)
list(k) = 2;
end
if (k == 10)
list(3) = 2;
end
if (k == 3)
list(10) = 2;
end
if (k == 13)
list(3) = 2;
end
end
%%%%%%%%%%%%%%%%%%%%
% make call to state
%%%%%%%%%%%%%%%%%%%%
[pv, rrd] = state(et2, list);
if (ntarg == 11 || ncent == 11)
for i = 1:1:6
pv(i, 11) = pvsun(i);
end
end
if (ntarg == 12 || ncent == 12)
for i = 1:1:6
pv(i, 12) = 0;
end
end
if (ntarg == 13 || ncent == 13)
for i = 1:1:6
pv(i, 13) = pv(i, 3);
end
end
if (ntarg * ncent == 30 && ntarg + ncent == 13)
for i = 1:1:6
pv(i, 3) = 0;

6. end
else
if (list(3) == 2)
for i = 1:1:6
pv(i, 3) = pv(i, 3) - pv(i, 10) / (1 + emrat);
end
end
if (list(10) == 2)
for i = 1:1:6
pv(i, 10) = pv(i, 3) + pv(i, 10);
end
end
end
for i = 1:1:6
rrd(i) = pv(i, ntarg) - pv(i, ncent);
end
bary = bsave;
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
function [pv, nut] = state(et2, list)
% reads and interpolates the jpl planetary ephemeris file
% input
% et2 2-word julian ephemeris epoch at which interpolation
% is wanted. any combination of et2(1) + et2(2) which falls
% within the time span on the file is a permissible epoch.
% a. for ease in programming, the user may put the
% entire epoch in et2(1) and set et2(2) = 0.
% b. for maximum interpolation accuracy, set et2(1) equal
% to the most recent midnight at or before interpolation
% epoch and set et2(2) equal to fractional part of a day
% elapsed between et2(1) and epoch.
% c. as an alternative, it may prove convenient to set
% et2(1) = some fixed epoch, such as start of integration,
% and et2(2) = elapsed interval between and epoch.
% list 12-word integer array specifying what interpolation
% is wanted for each of the bodies on the file.
%

7. % list(i) = 0 => no interpolation for body i
% = 1 => position only
% = 2 => position and velocity
% the designation of the astronomical bodies by i is:
% i = 1 => mercury
% = 2 => venus
% = 3 => earth-moon barycenter
% = 4 => mars
% = 5 => jupiter
% = 6 => saturn
% = 7 => uranus
% = 8 => neptune
% = 9 => pluto
% = 10 => geocentric moon
% = 11 => nutations in longitude and obliquity
% = 12 => lunar librations (if on file)
% output
% pv 6 x 11 array that will contain requested interpolated
% quantities. the body specified by list(i) will have its
% state in the array starting at pv(1, i). (on any given
% call, only those words in 'pv' which are affected by the
% first 10 'list' entries (and by list(12) if librations are
% on the file) are set. the rest of the 'pv' array
% is untouched). the order of components starting in
% pv(1, i) is x, y, z, dx, dy, dz.
% all output vectors are referenced to the earth mean
% equator and equinox of j2000 if the de number is 200 or
% greater; of b1950 if the de number is less than 200.
% the moon state is always geocentric; the other nine states
% are either heliocentric or solar-system barycentric,
% depending on the setting of common flags (see below).
% lunar librations, if on file, are put into pv(k, 11) if
% list(12) is 1 or 2.
%
% nut 4-word array that will contain nutations and rates,
% depending on the setting of list(11). the order of
% quantities in nut is:
% d psi (nutation in longitude)
% d epsilon (nutation in obliquity)
% d psi dot
% d epsilon dot

8. % global
% km logical flag defining physical units of the output states
% = 1 => kilometers and kilometers/second
% = 0 => au and au/day
% default value = 0 (km determines time unit
% for nutations and librations. angle unit is always radians.)
% bary logical flag defining output center.
% only the 9 planets are affected.
% bary = 1 => center is solar-system barycenter
% = 0 => center is sun
% default value = 0
% pvsun 6-word array containing the barycentric position and
% velocity of the sun
global ss au ipt lpt
global nrl fid km bary pvsun coef
nut = zeros(4, 1);
pv = zeros(6, 11);
if (et2(1) == 0)
return
end
s = et2(1) - 0.5;
tmp = split(s);
pjd(1) = tmp(1);
pjd(2) = tmp(2);
tmp = split(et2(2));
pjd(3) = tmp(1);
pjd(4) = tmp(2);
pjd(1) = pjd(1) + pjd(3) + 0.5;
pjd(2) = pjd(2) + pjd(4);

9. tmp = split(pjd(2));
pjd(3) = tmp(1);
pjd(4) = tmp(2);
pjd(1) = pjd(1) + pjd(3);
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% error return for epoch out of range
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
if (pjd(1) + pjd(4) < ss(1) || pjd(1) + pjd(4) > ss(2))
fprintf('nn error in state - epoch out of range n');
return;
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% calculate record number and relative time in interval
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
nr = fix((pjd(1) - ss(1)) / ss(3)) + 2;
if (pjd(1) == ss(2))
nr = nr - 1;
end
t(1) = ((pjd(1) - ((nr-2) * ss(3) + ss(1))) + pjd(4)) / ss(3);
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% read correct record if not in core
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
if (nr ~= nrl)
nrl = nr;
status = fseek(fid, nr * 8144, 'bof');
coef = fread(fid, 1018, 'double');
end
if (km == 1)
t(2) = ss(3) * 86400;
aufac = 1;
else
t(2) = ss(3);
aufac = 1 / au;
end

10. % interpolate barycentric state vector of sun
tmpv = zeros(3, 2);
ibuf = ipt(1, 11);
ncf = ipt(2, 11);
na = ipt(3, 11);
tmpv = interp(ibuf, t, ncf, 3, na, 2);
k = 0;
for j = 1:1:2
for i = 1:1:3
k = k + 1;
pvsun(k) = tmpv(i, j) * aufac;
end
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% check and interpolate bodies requested
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
tmpv = zeros(3, 2);
tempv = zeros(6, 1);
for i = 1:1:10
if (list(i) ~= 0)
ibuf = ipt(1, i);
ncf = ipt(2, i);
na = ipt(3, i);
tmpv = interp(ibuf, t, ncf, 3, na, list(i));
k = 0;
for j = 1:1:2
for m = 1:1:3
k = k + 1;
tempv(k) = tmpv(m, j);
end
end
for j = 1:1:6
if (i <= 9 && bary == 0)
pv(j, i) = tempv(j) * aufac - pvsun(j);

11. else
pv(j, i) = tempv(j) * aufac;
end
end
end
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% do nutations if requested (and if on file)
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
if (list(11) > 0 && ipt(2, 12) > 0)
ibuf = ipt(1, 12);
ncf = ipt(2, 12);
na = ipt(3, 12);
nut = interp(ibuf, t, ncf, 2, na, list(11));
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% get librations if requested (and if on file)
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
if (list(12) > 0 && lpt(2) > 0)
tmpv = interp(lpt(1), t, lpt(2), 3, lpt(3), list(12));
for i = 1:1:3
pv(i, 11) = tmpv(i, 1);
pv(i + 3, 11) = tmpv(i, 2);
end
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
function pv = interp(ibuf, t, ncf, ncm, na, ifl)
% this function differentiates and interpolates a set
% of chebyshev coefficients to give position and velocity
% input
% buf 1st location of array of chebyshev coefficients of position
% t t(1) is fractional time in interval covered by
% coefficients at which interpolation is wanted
% (0 <= t(1) <= 1). t(2) is length of whole

12. % interval in input time units.
% ncf number of coefficients per component
% ncm number of components per set of coefficients
% na number of sets of coefficients in full array
% (i.e., number of sub-intervals in full interval)
% ifl integer flag
% = 1 for positions only
% = 2 for pos and vel
% output
% pv interpolated quantities requested. dimension
% expected is pv(ncm, ifl)
global coef np nv twot pc vc
pv = zeros(6, 12);
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% get correct sub-interval number for this set of
% coefficients and get normalized chebyshev time
% within that subinterval.
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
dna = na;
dt1 = fix(t(1));
temp = dna * t(1);
ll = fix(temp - dt1) + 1;
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% tc is the normalized chebyshev time (-1 <= tc <= 1)
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
tc = 2 * (mod(temp, 1) + dt1) - 1;
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% check to see whether chebyshev time has changed,
% and compute new polynomial values if it has.
% (the element pc(2) is the value of t1(tc) and hence
% contains the value of tc on the previous call)
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

13. if (tc ~= pc(2))
np = 2;
nv = 3;
pc(2) = tc;
twot = tc + tc;
end
% be sure that at least 'ncf' polynomials have been evaluated
% and are stored in the array 'pc'.
if (np < ncf)
for i = np + 1:1:ncf
pc(i) = twot * pc(i - 1) - pc(i - 2);
end
np = ncf;
end
bcoef = ncf * na * ncm;
cbody = zeros(bcoef, 1);
n = ibuf;
for m = 1:1:bcoef
cbody(m) = coef(n);
n = n + 1;
end
cbuf = zeros(ncf, ncm, na);
n = 0;
for l = 1:1:na
for i = 1:1:ncm
for j = 1:1:ncf
n = n + 1;
cbuf(j, i, l) = cbody(n);
end
end
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% interpolate to get position for each component
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
for i = 1:1:ncm
pv(i, 1) = 0;

14. for j = ncf:-1:1
pv(i, 1) = pv(i, 1) + pc(j) * cbuf(j, i, ll);
end
end
if (ifl <= 1)
return
end
% if velocity interpolation is wanted, be sure enough
% derivative polynomials have been generated and stored.
vfac = (dna + dna) / t(2);
vc(3) = twot + twot;
if (nv < ncf)
for i = nv + 1:1:ncf
vc(i) = twot * vc(i - 1) + pc(i - 1) + pc(i - 1) - vc(i - 2);
end
nv = ncf;
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% interpolate to get velocity for each component
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
for i = 1:1:ncm
pv(i, 2) = 0;
for j = ncf:-1:2
pv(i, 2) = pv(i, 2) + vc(j) * cbuf(j, i, ll);
end
pv(i, 2) = pv(i, 2) * vfac;
end
%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%
function fr = split(tt)
% this function breaks a number into a integer
% and a fractional part.
% input
% tt = input number

15. % output
% fr = 2-word output array
% fr(1) contains integer part
% fr(2) contains fractional part
% for negative input numbers, fr(1) contains the next
% more negative integer; fr(2) contains a positive fraction.
fr = zeros(2, 1);
fr(1) = fix(tt);
fr(2) = tt - fr(1);
if (tt >= 0 || fr(2) == 0)
return
end
% make adjustments for negative input number
fr(1) = fr(1) - 1;
fr(2) = fr(2) + 1;
visit us at www.assignmentpedia.com or email us at info@assignmentpedia.com or call us at +1 520 8371215
