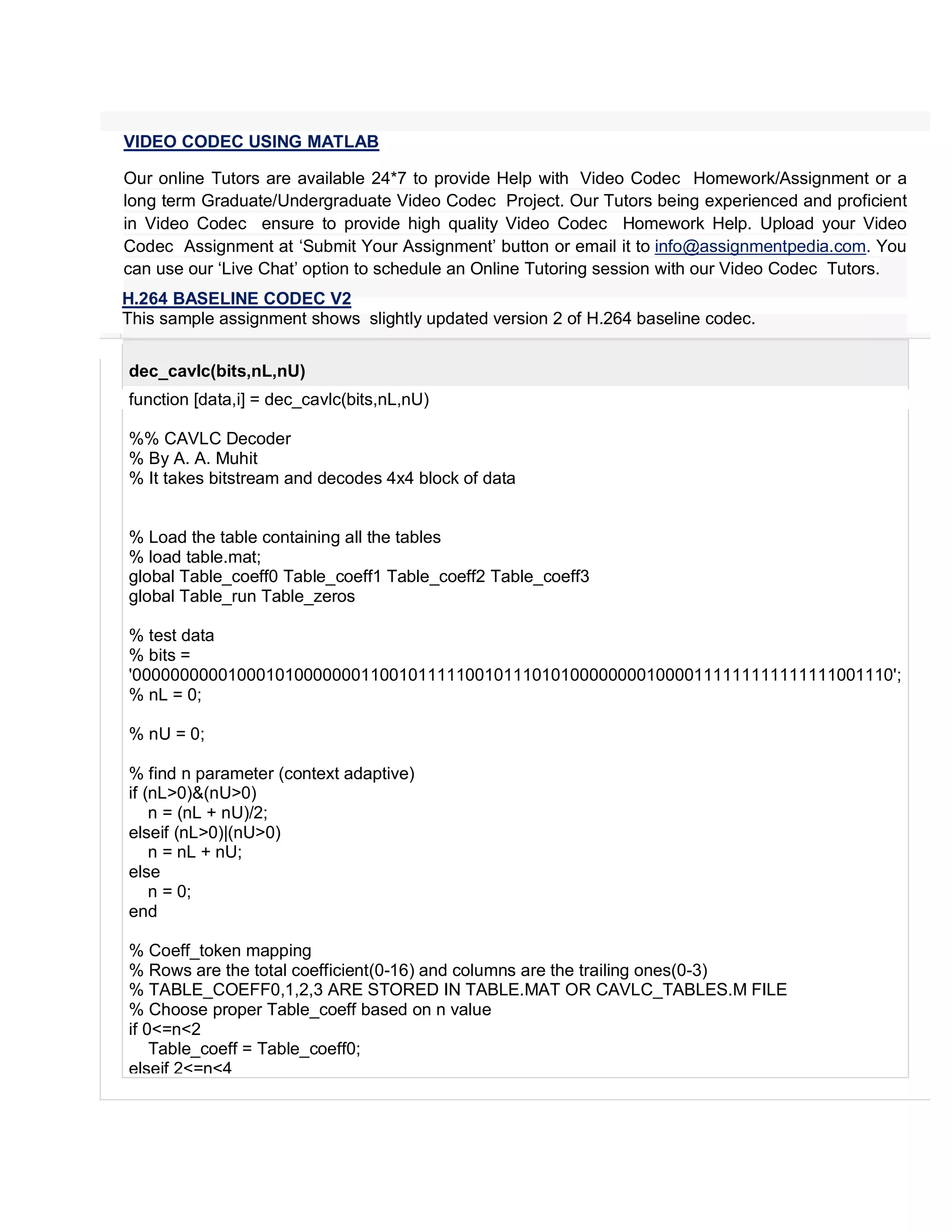

1. VIDEO CODEC USING MATLAB
Our online Tutors are available 24*7 to provide Help with Video Codec Homework/Assignment or a
long term Graduate/Undergraduate Video Codec Project. Our Tutors being experienced and proficient
in Video Codec ensure to provide high quality Video Codec Homework Help. Upload your Video
Codec Assignment at ‘Submit Your Assignment’ button or email it to info@assignmentpedia.com. You
can use our ‘Live Chat’ option to schedule an Online Tutoring session with our Video Codec Tutors.
H.264 BASELINE CODEC V2
This sample assignment shows slightly updated version 2 of H.264 baseline codec.
dec_cavlc(bits,nL,nU)
function [data,i] = dec_cavlc(bits,nL,nU)
%% CAVLC Decoder
% By A. A. Muhit
% It takes bitstream and decodes 4x4 block of data
% Load the table containing all the tables
% load table.mat;
global Table_coeff0 Table_coeff1 Table_coeff2 Table_coeff3
global Table_run Table_zeros
% test data
% bits =
'00000000001000101000000011001011111001011101010000000010000111111111111111001110';
% nL = 0;
% nU = 0;
% find n parameter (context adaptive)
if (nL>0)&(nU>0)
n = (nL + nU)/2;
elseif (nL>0)|(nU>0)
n = nL + nU;
else
n = 0;
end
% Coeff_token mapping
% Rows are the total coefficient(0-16) and columns are the trailing ones(0-3)
% TABLE_COEFF0,1,2,3 ARE STORED IN TABLE.MAT OR CAVLC_TABLES.M FILE
% Choose proper Table_coeff based on n value
if 0<=n<2
Table_coeff = Table_coeff0;
elseif 2<=n<4

2. Table_coeff = Table_coeff1;
elseif 4<=n<8
Table_coeff = Table_coeff2;
elseif 8<=n
Table_coeff = Table_coeff3;
end
i = 1;
coeff_token = '';
% Find total coefficients and trailing ones
while (i<=length(bits))
coeff_token = [coeff_token bits(i)];
x = strcmp(Table_coeff,coeff_token);
[r,c]=find(x==1);
i = i + 1;
if (r>0)&(c>0)
break;
end
end
% Find total coefficients and trailing ones
i_total = r - 1;
i_trailing = c - 1;
% if no coefficients return 4x4 empty blocks of data
if i_total==0
data = zeros(4,4);
return;
end
k = 1;
m = i_trailing;
while m>0
if bits(i)=='0'
level(k)=1;
elseif bits(i)=='1'
level(k)=-1;
end
k = k + 1;
m = m - 1;
i = i + 1;
end
%% Decode the non-zero coefficient/level values
if (i_total>10)&(i_trailing<3)
i_sufx_len = 1;

3. else
i_sufx_len = 0;
end
while k<=i_total
% Decode level prefix
[level_prfx,i]= dec_prfx(bits,i);
% Decode level suffix
level_sufx_size = 0;
if (i_sufx_len>0)||(level_prfx>=14)
if (level_prfx==14)&(i_sufx_len==0)
level_sufx_size = 4;
elseif level_prfx>=15
level_sufx_size = level_prfx - 3;
else
level_sufx_size = i_sufx_len;
end
end
if level_sufx_size==0
level_sufx = 0;
else
sufx = bits(i : i + level_sufx_size -1);
level_sufx = bin2dec(sufx);
i = i + level_sufx_size;
end
i_level_code = bitshift(min(15,level_prfx),i_sufx_len) + level_sufx;
if (level_prfx>=15)&(i_sufx_len==0)
i_level_code = i_level_code + 15;
end
if level_prfx>=16
i_level_code = i_level_code + (bitshift(1,level_prfx - 3) - 4096);
end
if (k == i_trailing + 1)&(i_trailing<3)
i_level_code = i_level_code + 2;
end
if rem(i_level_code,2)==0 % i_level_code is even
level(k) = bitshift(i_level_code + 2,-1);
else % odd number
level(k) = bitshift(-i_level_code - 1, -1);
end
if i_sufx_len==0

4. i_sufx_len = 1;
end
if ((abs(level(k)))>bitshift(3,i_sufx_len - 1))&(i_sufx_len<6)
i_sufx_len = i_sufx_len + 1;
end
k = k + 1;
end
%% Decode total zeros
s='';
i_total_zero = 0;
if i_total==16
i_zero_left = 0;
else
while (i<=length(bits))
s = [s bits(i)];
x = strcmp(Table_zeros(i_total,:),s);
r = find(x==1);
i = i + 1;
if r>0
i_total_zero = r-1;
break;
end
end
end
%% Decode run information
i_zero_left = i_total_zero;
j=1;
ss = '';
run = zeros(1,length(level));
while i_zero_left>0
while (j<i_total)&(i_zero_left>0)
ss = [ss bits(i)];
i_zl = min(i_zero_left,7);
x = strcmp(Table_run(:,i_zl),ss);
r = find(x==1);
i = i + 1;
if r>0
run(j)=r-1;
i_zero_left = i_zero_left - run(j);
j = j + 1;

5. ss = '';
end
end
if i_zero_left>0
run(j)=i_zero_left;
i_zero_left = 0;
end
end
%% Combine level and run information
k = i_total + i_total_zero;
l = zeros(1,16);
while k>0
for j=1:length(level)
l(k)=level(j);
k = k - 1;
k = k - run(j);
end
end
%% Reorder the data into 4x4 block
scan = [1,1;1,2;2,1;3,1;2,2;1,3;1,4;2,3;3,2;4,1;4,2;3,3;2,4;3,4;4,3;4,4];
for k=16:-1:1
m=scan(k,1);
n=scan(k,2);
data(m,n)=l(k); % l contains the reordered data
end
