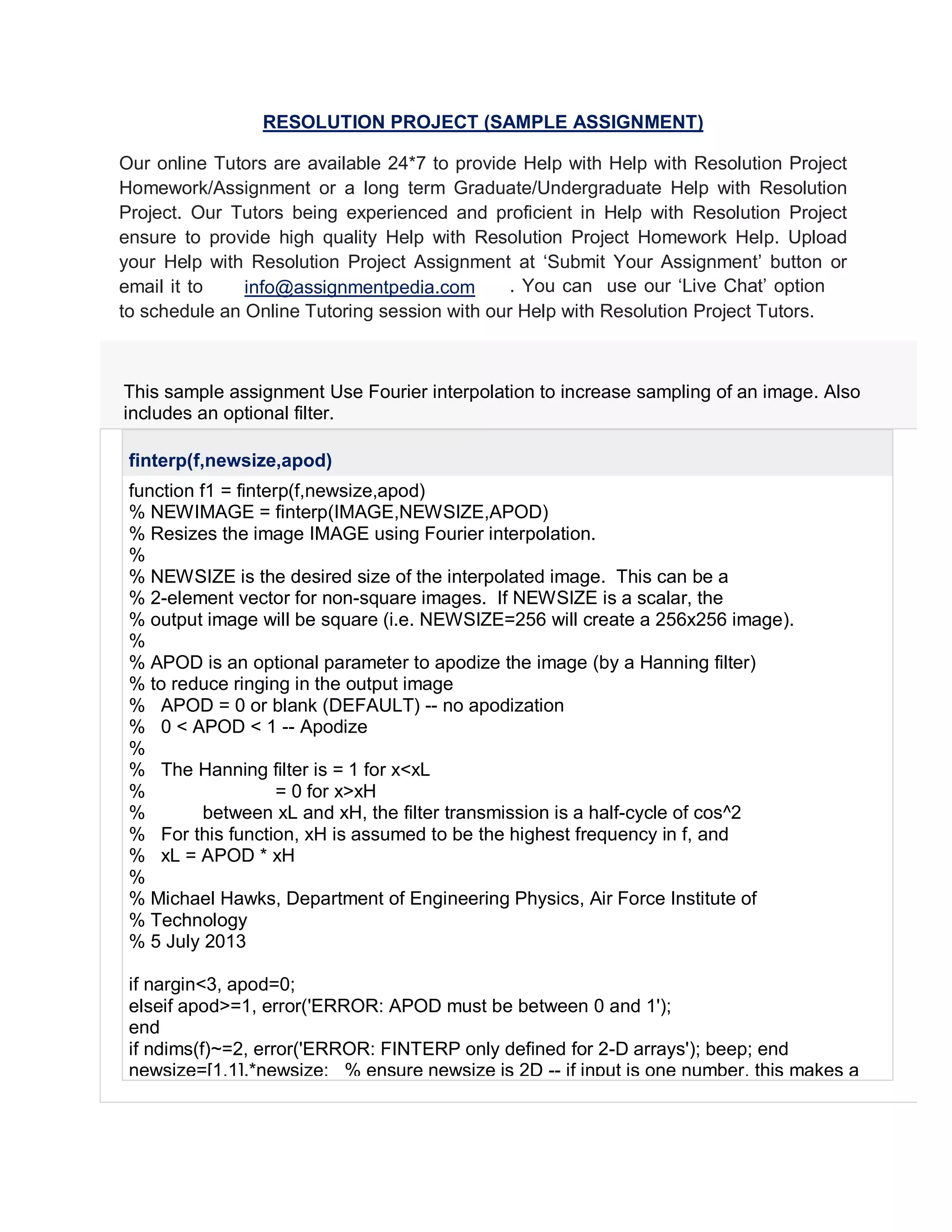

1. RESOLUTION PROJECT (SAMPLE ASSIGNMENT)
Our online Tutors are available 24*7 to provide Help with Help with Resolution Project
Homework/Assignment or a long term Graduate/Undergraduate Help with Resolution
Project. Our Tutors being experienced and proficient in Help with Resolution Project
ensure to provide high quality Help with Resolution Project Homework Help. Upload
your Help with Resolution Project Assignment at ‘Submit Your Assignment’ button or
email it to . You can use our ‘Live Chat’ option
to schedule an Online Tutoring session with our Help with Resolution Project Tutors.
This sample assignment Use Fourier interpolation to increase sampling of an image. Also
includes an optional filter.
finterp(f,newsize,apod)
function f1 = finterp(f,newsize,apod)
% NEWIMAGE = finterp(IMAGE,NEWSIZE,APOD)
% Resizes the image IMAGE using Fourier interpolation.
%
% NEWSIZE is the desired size of the interpolated image. This can be a
% 2-element vector for non-square images. If NEWSIZE is a scalar, the
% output image will be square (i.e. NEWSIZE=256 will create a 256x256 image).
%
% APOD is an optional parameter to apodize the image (by a Hanning filter)
% to reduce ringing in the output image
% APOD = 0 or blank (DEFAULT) -- no apodization
% 0 < APOD < 1 -- Apodize
%
% The Hanning filter is = 1 for x<xL
% = 0 for x>xH
% between xL and xH, the filter transmission is a half-cycle of cos^2
% For this function, xH is assumed to be the highest frequency in f, and
% xL = APOD * xH
%
% Michael Hawks, Department of Engineering Physics, Air Force Institute of
% Technology
% 5 July 2013
if nargin<3, apod=0;
elseif apod>=1, error('ERROR: APOD must be between 0 and 1');
end
if ndims(f)~=2, error('ERROR: FINTERP only defined for 2-D arrays'); beep; end
newsize=[1,1].*newsize; % ensure newsize is 2D -- if input is one number, this makes a
info@assignmentpedia.com

2. square array
if any(size(f)>newsize), f1=f; return; end;
maxI = max(max(f));
minI = min(min(f));
pad = newsize - size(f); % number of elements to add
pad1 = floor(pad/2); % portion to add to right/top
pad2 = pad - pad1; % remainder add to left/bottom
F = fft2(f);
Fpad = padarray(fftshift(F),pad1,'pre');
Fpad = padarray(Fpad,pad2,'post');
if apod>0
[Nx,Ny]=size(Fpad);
H = 0.5.*size(F); % use this as the high-freq cutoff (from -H to +H)
if isodd(Nx); x = -floor(Nx/2):floor(Nx/2);
else x = -((Nx/2)-1):(Nx/2);
end
if isodd(Ny); y = -floor(Ny/2):floor(Ny/2);
else y = -((Ny/2)-1):(Ny/2);
end
filt = hanning(x,apod*H(1),H(1))' * hanning(y,apod*H(2),H(2));
Fpad = Fpad.*filt;
end
ft = ifft2(ifftshift(Fpad));
f1 = (ft.*conj(ft)).^0.5; % assume we want a real-valued image out, but asymmetric padding
could add an
% imaginary componenet so we approximate by SQRT(F F*)
% rescale/normalize the image. This is kind of a hack, but it should take
% care of everything
f1 = f1 - min(min(f1)); f1 = f1./max(max(f1));
f1 = f1 .* maxI + minI;
% ...............
function i = isodd(x)
i = ( floor(x/2) ~= (x/2) );
% ...............
function f = hanning(x,xL,xH)

3. if ndims(squeeze(x))==1, x=1:x; dx=1;
else dx=abs(x(2)-x(1));
end
f=zeros(1,length(x));
if x(1) >= 0; % one-sided filter
jL = find(abs(x-xL)<dx,1); if isnan(jL); jL=1; end
jH = find(abs(x-xH)<dx,1); if isnan(jH); jH=length(x); end
f(1:jL)=1;
f(jH:end)=0;
k = jL:jH; f(k)=0.5 + 0.5*cos(pi*(k-jL)/(jH-jL));
else
j1 = find(abs(x+xL)<dx,1); if isnan(j1); j1=1; end
j2 = find(abs(x-xL)<dx,1); if isnan(j2); j2=length(x); end
j3 = find(abs(x+xH)<dx,1); if isnan(j3); j3=1; end
j4 = find(abs(x-xH)<dx,1); if isnan(j4); j4=length(x); end
f(1:j3)=0;
f(j4:end)=0;
f(j1:j2)=1;
k = j2:j4; f(k)=0.5 + 0.5*cos(pi*(k-j2)/(j4-j2));
k = j3:j1; f(k)=0.5 - 0.5*cos(pi*(k-j3)/(j3-j1));
end
