The document discusses how to add styles and interactivity to elements using CSS and JavaScript. It provides information on CSS border properties that specify borders around elements, as well as outline properties that specify outlines. Examples are given for setting various border styles, widths, colors and more using CSS syntax.

1. Unit III: Adding Styles
and Interactivity Using
CSS and Javascript

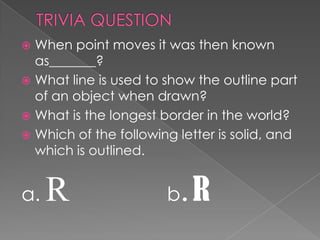

2.  When point moves it was then known
as_______?
 What line is used to show the outline part
of an object when drawn?
 What is the longest border in the world?
 Which of the following letter is solid, and
which is outlined.
a. R b .R

3. The CSS border properties
specify the borders around
an element.
The CSS outline properties
specify the outline around
an element.

4. PR0PERTY DESCRIPTION EXAMPLE
border-style Sets the width of borders/outline h1{border-style: solid;}
outline style to dotted, dashed, solid, h1{outline-style:
double, groove, ridge, inset, dashed;}
outset or none.
border-width Sets the width of borders to thin, body{border-style:
outline-width medium, thick or any numeric dashed; border-width:
value in pixels, like 20px thick;}
body{outline-style:
dashed; outline-width:
thick;}
border-color Defines the color of the border h1{border-style: dotted;
outline-color (the borders should be set first border-width: thin;
using the border-style property) border-color: red;}
h1{outline-style: dotted;
outline-width: thin;
outline-color: red;}
border Sets all the border/outline h1{border: medium
outline properties in one declaration. ridge, blue;}
h1{outline: medium,
ridge, blue;}

5. PROPERTIES DESCRIPTION EXAMPLE
Border-top-style Sets the style, width, color of the h1{border-top-style: dotted;}
Border-top-width top border. h1{border-top-width: thin;}
Border-top-color h1{border-top-color: blue;}
Sets the properties of the top
h1{border-top: thin dotted blue;}
border in one declaration
Border-top
Border-right-style Sets the style, width, color of the h1{border-right-style: dotted;}
Border-right-width right border. h1{border-right-width: thin;}
Border-right-color h1{border-right-color: blue;}
Sets the properties of the right
Border-right h1{border-right: thin dotted blue;}
border in one declaration
Border-bottom-style Sets the style, width, color of the h1{border-bottom-style: dotted;}
Border-bottom- bottom border. h1{border-bottom-width: thin;}
width h1{border-bottom-color: blue;}
Sets the properties of the bottom
Border-bottom- h1{border-bottom: thin dotted
border in one declaration
color blue;}
Border-bottom
Border-left-style Sets the style, width, color of the h1{border-left-style: dotted;}
Border-left-width left border. h1{border-left-width: thin;}
Border-left-color h1{border-left-color: blue;}
Sets the properties of the left
Border-left h1{border-left: thin dotted blue;}
border in one declaration

6. Syntax
border-image: source slice width outset repeat;
Value Description
border-image- The path to the image to be used as a border
source
border-image-slice The inward offsets of the image-border
border-image- The widths of the image-border
width
border-image- The amount by which the border image area extends
outset beyond the border box
border-image- Whether the image-border should be repeated,
repeat rounded or stretched

7. Text-shadow properties: CSS3
Syntax
p{text-shadow: 2px 2px 8px red;}
Value Description
h-shadow Required. The position of the horizontal shadow.
Negative values are allowed
v-shadow Required. The position of the vertical shadow.
Negative values are allowed
blur Optional. The blur distance
color Optional. The color of the shadow. Look at CSS
Color Values for a complete list of possible color
values

8. 1. Set thin borders to header 1.
2. Set green border to header 1
3. Set a 30 pixels size of border to header 1.
4. Set a solid border to a paragraph.
5. Set a thick top border to a paragraph.
6. Set a red left border in header 2.
7. Set a dotted right border in a paragraph.
8. Set a blue outline to header 1
9. Set an outset border in a header 2.
10. Set a green bottom border in a
paragraph

9. 1. h1{border-width: thin;}
2. h1{border-color: green;}
3. h1{border-width: 30px;}
4. p{border-style: solid;}
5. p{border-top-width: thick;}
6. h2{border-left-color: red;}
7. p{border-right-style: dotted;}
8. h1{outline-color: blue;}
9. h2{border-style: outset;}
10. p{border-bottom-color: green;}
