1. #CNSF2011
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 1

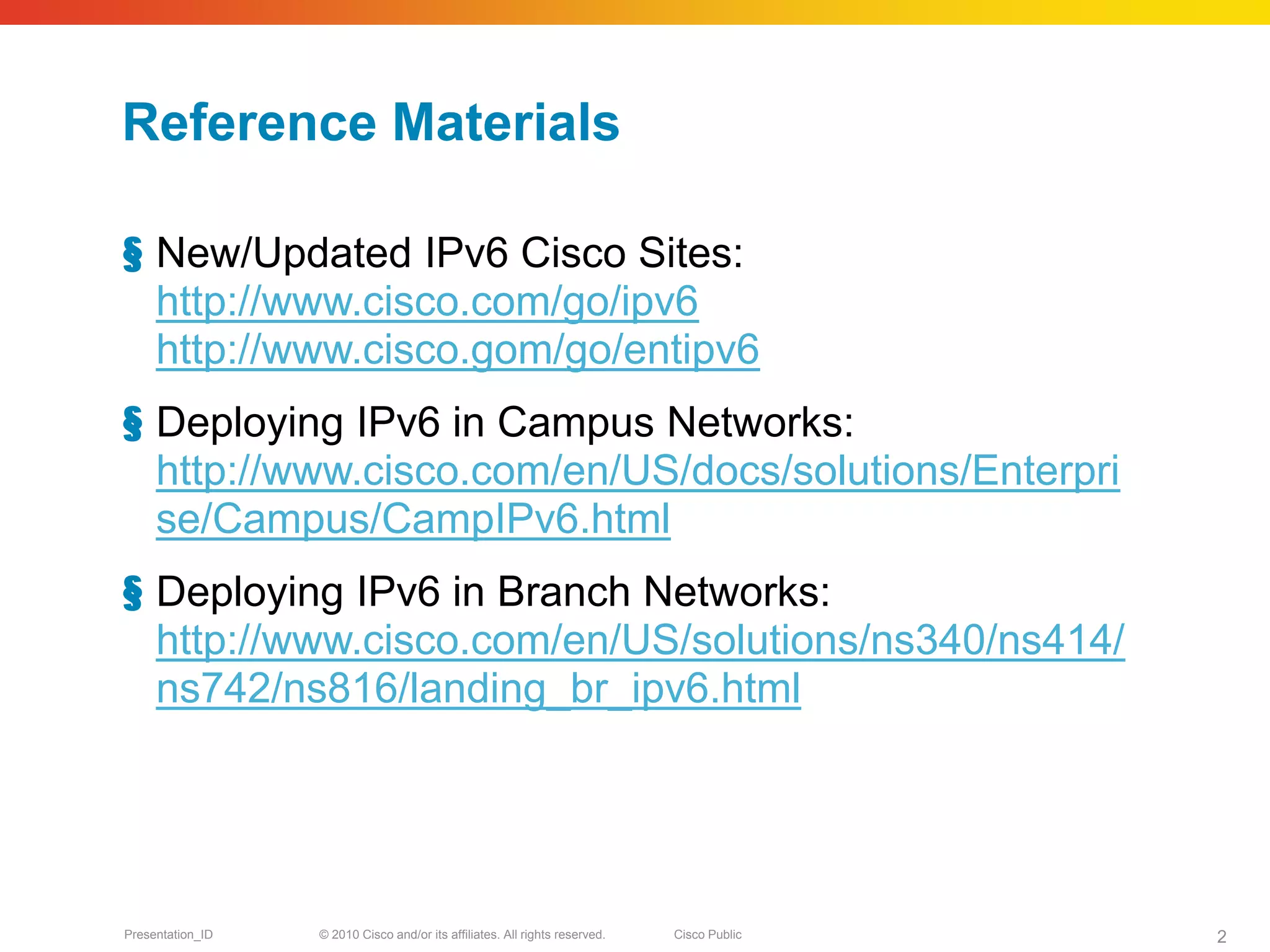

2. Reference Materials
§ New/Updated IPv6 Cisco Sites:
http://www.cisco.com/go/ipv6
http://www.cisco.gom/go/entipv6
§ Deploying IPv6 in Campus Networks:
http://www.cisco.com/en/US/docs/solutions/Enterpri
se/Campus/CampIPv6.html
§ Deploying IPv6 in Branch Networks:
http://www.cisco.com/en/US/solutions/ns340/ns414/
ns742/ns816/landing_br_ipv6.html
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 2

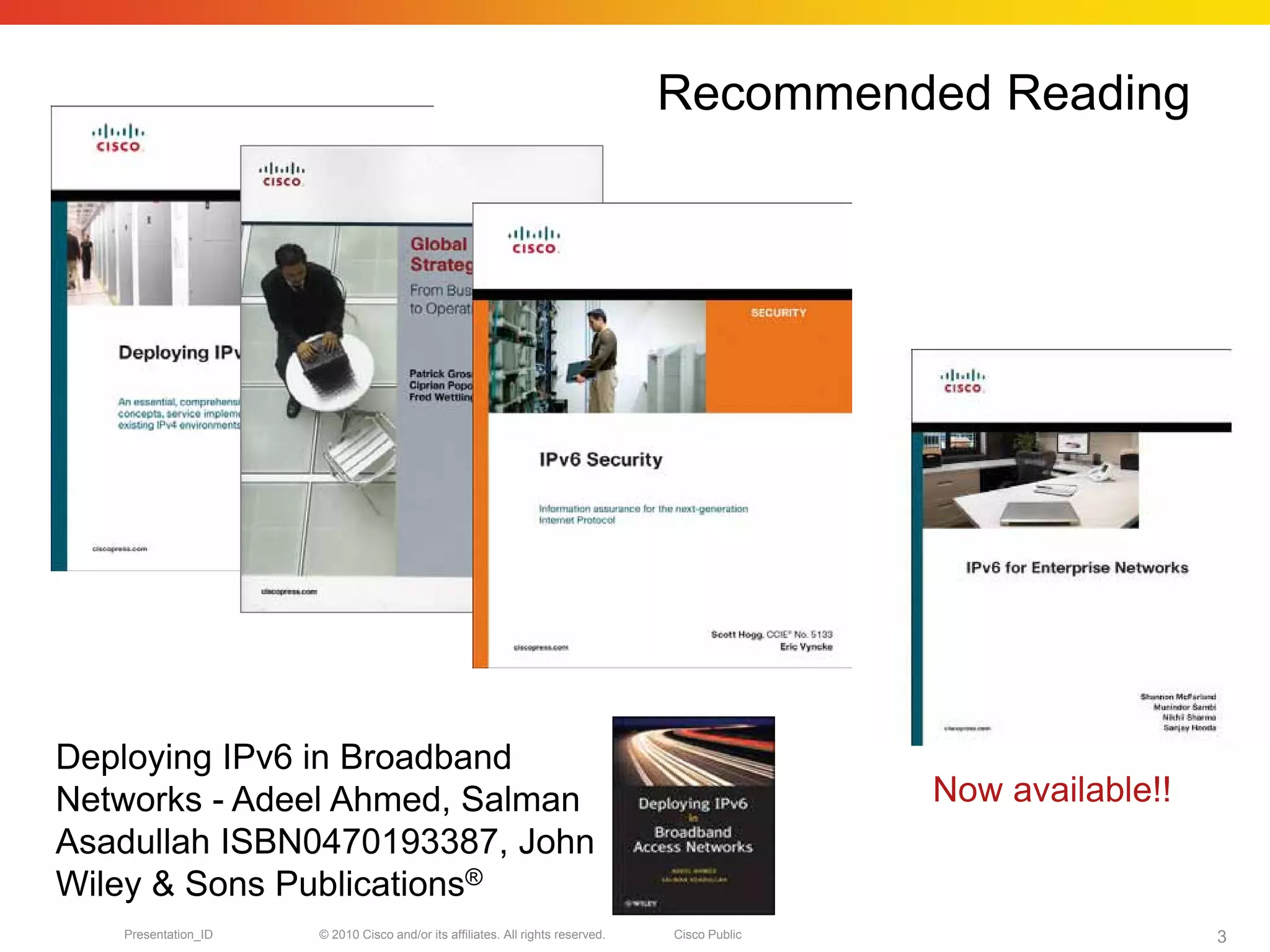

3. Recommended Reading
Deploying IPv6 in Broadband
Networks - Adeel Ahmed, Salman Now available!!
Asadullah ISBN0470193387, John
Wiley & Sons Publications®
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 3

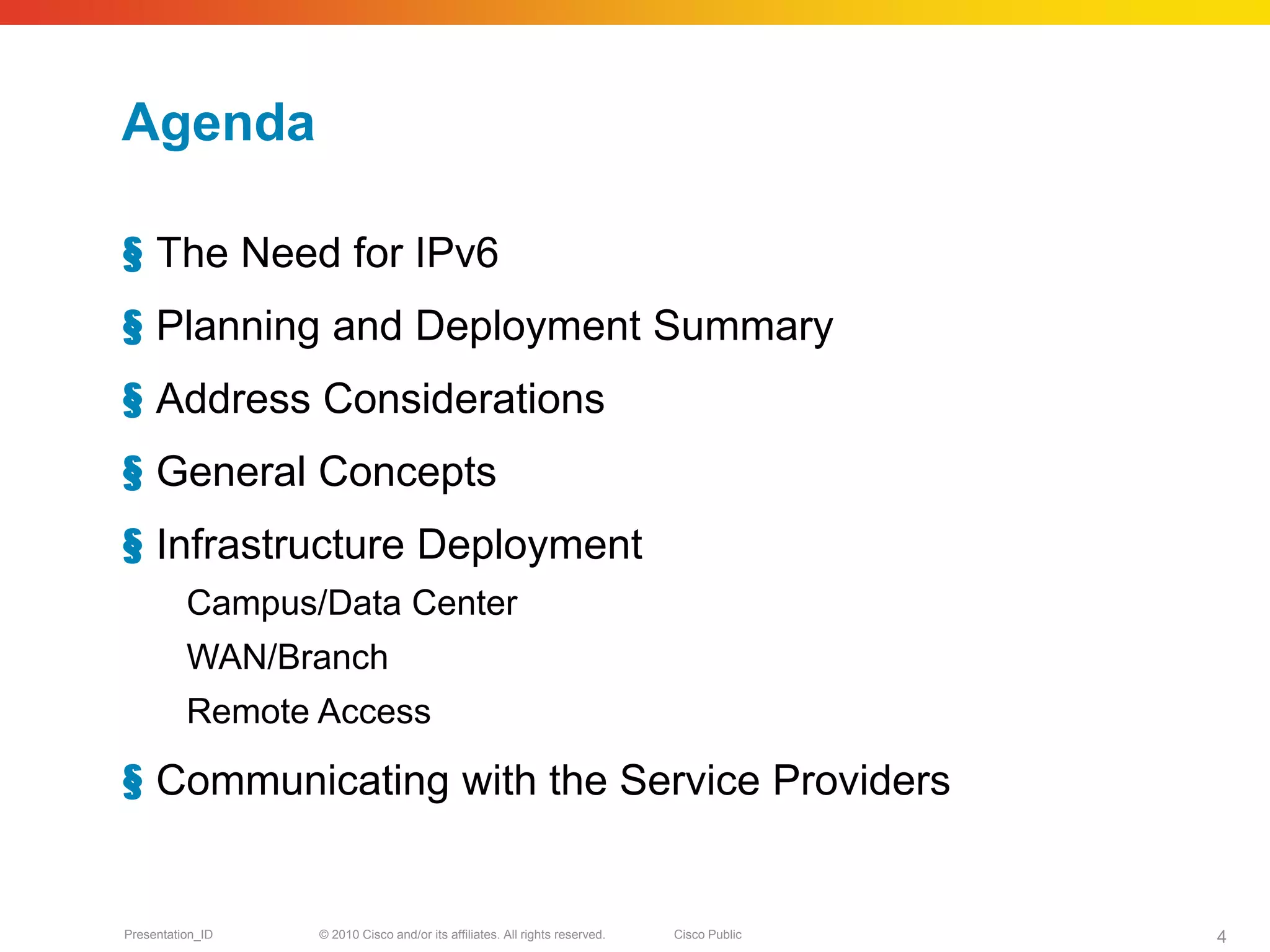

4. Agenda
§ The Need for IPv6
§ Planning and Deployment Summary
§ Address Considerations
§ General Concepts
§ Infrastructure Deployment
Campus/Data Center
WAN/Branch
Remote Access
§ Communicating with the Service Providers
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 4

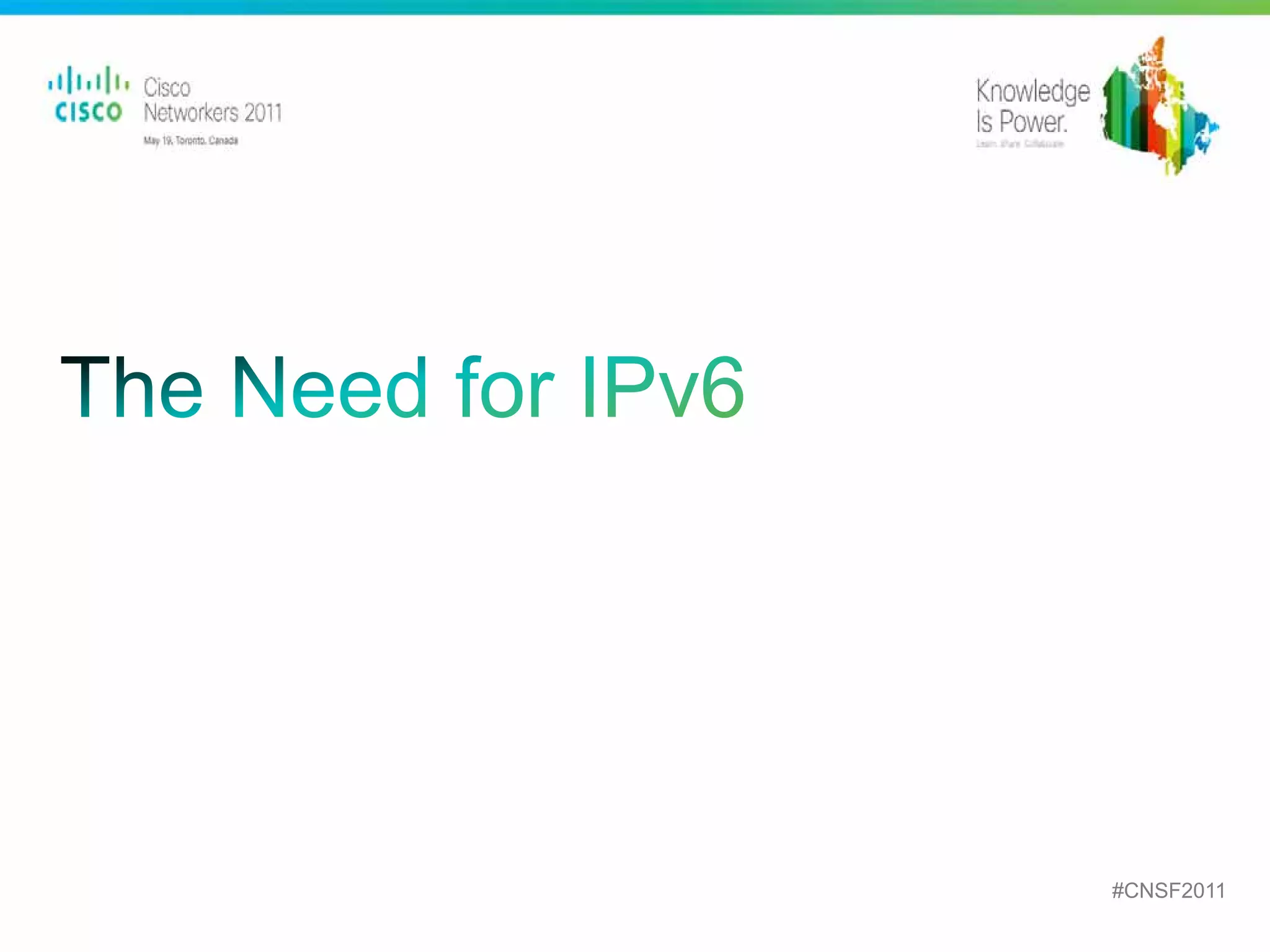

5. #CNSF2011
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 5

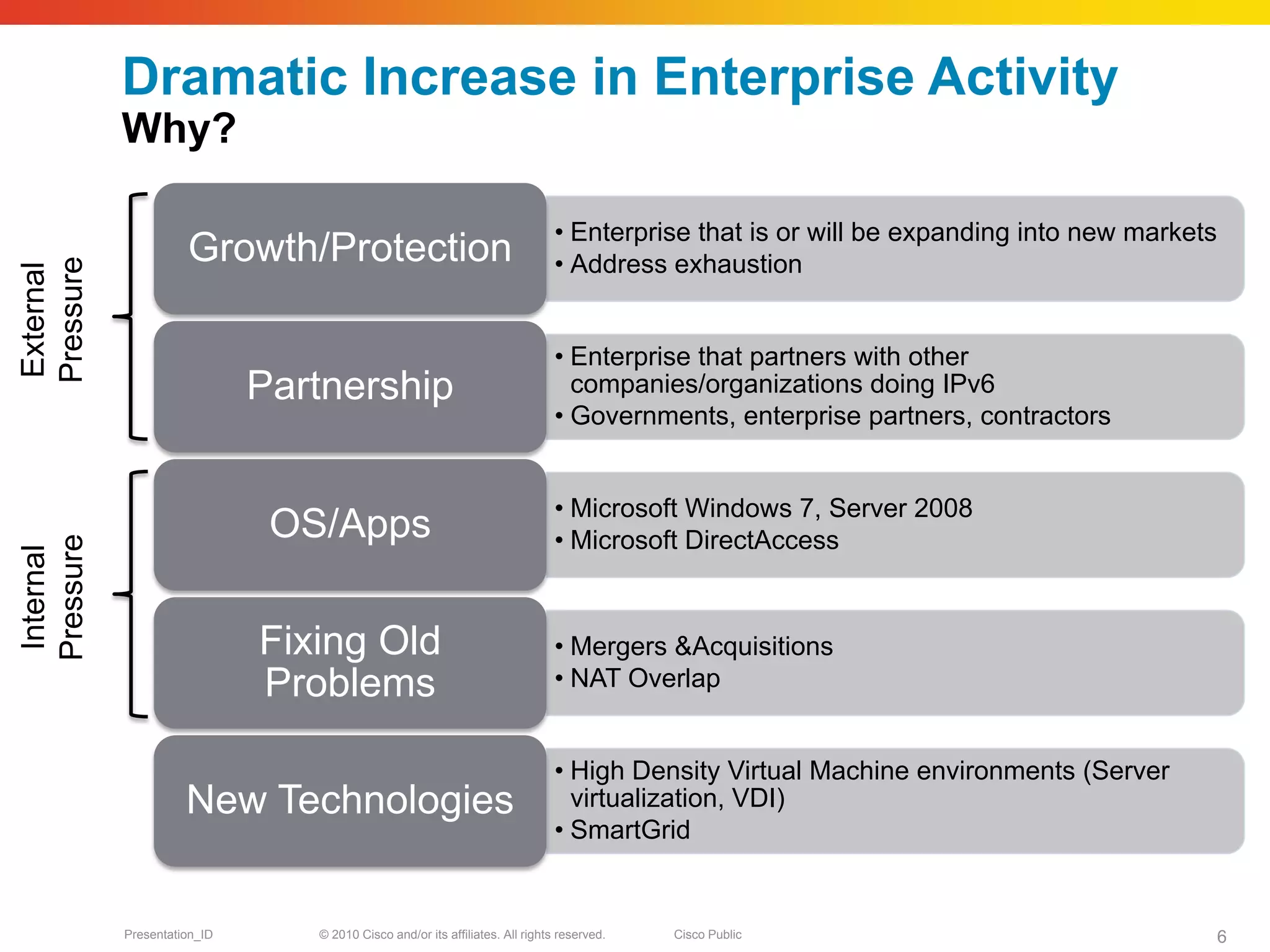

6. Dramatic Increase in Enterprise Activity
Why?
• Enterprise that is or will be expanding into new markets
Growth/Protection • Address exhaustion
Pressure
External
• Enterprise that partners with other
Partnership companies/organizations doing IPv6
• Governments, enterprise partners, contractors
• Microsoft Windows 7, Server 2008
OS/Apps • Microsoft DirectAccess
Pressure
Internal
Fixing Old • Mergers &Acquisitions
Problems • NAT Overlap
• High Density Virtual Machine environments (Server
New Technologies virtualization, VDI)
• SmartGrid
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 6

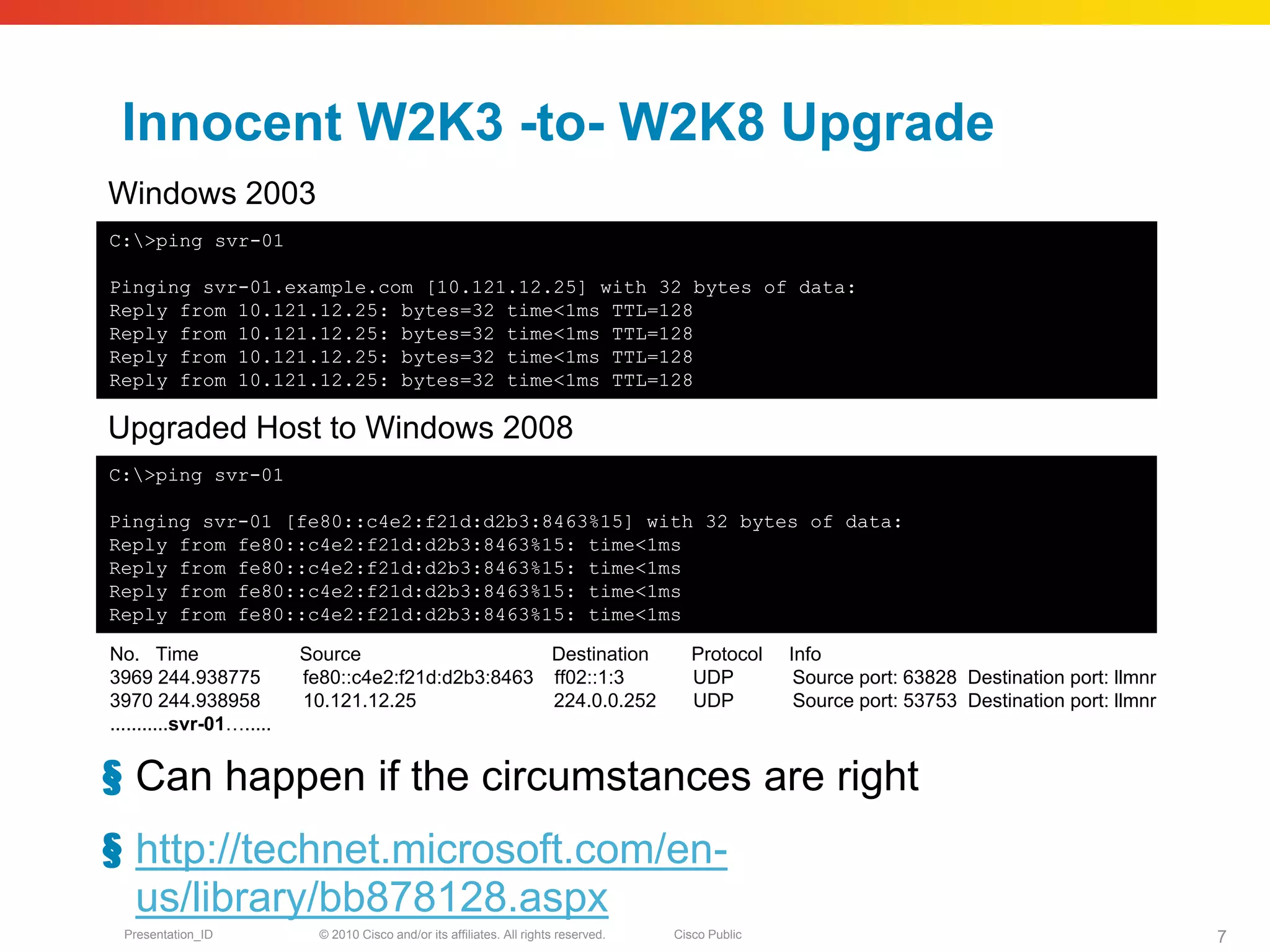

7. Innocent W2K3 -to- W2K8 Upgrade
Windows 2003
C:>ping svr-01
Pinging svr-01.example.com [10.121.12.25] with 32 bytes of data:
Reply from 10.121.12.25: bytes=32 time<1ms TTL=128
Reply from 10.121.12.25: bytes=32 time<1ms TTL=128
Reply from 10.121.12.25: bytes=32 time<1ms TTL=128
Reply from 10.121.12.25: bytes=32 time<1ms TTL=128
Upgraded Host to Windows 2008
C:>ping svr-01
Pinging svr-01 [fe80::c4e2:f21d:d2b3:8463%15] with 32 bytes of data:
Reply from fe80::c4e2:f21d:d2b3:8463%15: time<1ms
Reply from fe80::c4e2:f21d:d2b3:8463%15: time<1ms
Reply from fe80::c4e2:f21d:d2b3:8463%15: time<1ms
Reply from fe80::c4e2:f21d:d2b3:8463%15: time<1ms
No. Time Source Destination Protocol Info
3969 244.938775 fe80::c4e2:f21d:d2b3:8463 ff02::1:3 UDP Source port: 63828 Destination port: llmnr
3970 244.938958 10.121.12.25 224.0.0.252 UDP Source port: 53753 Destination port: llmnr
...........svr-01….....
§ Can happen if the circumstances are right
§ http://technet.microsoft.com/en-
us/library/bb878128.aspx
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 7

8. #CNSF2011
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 8

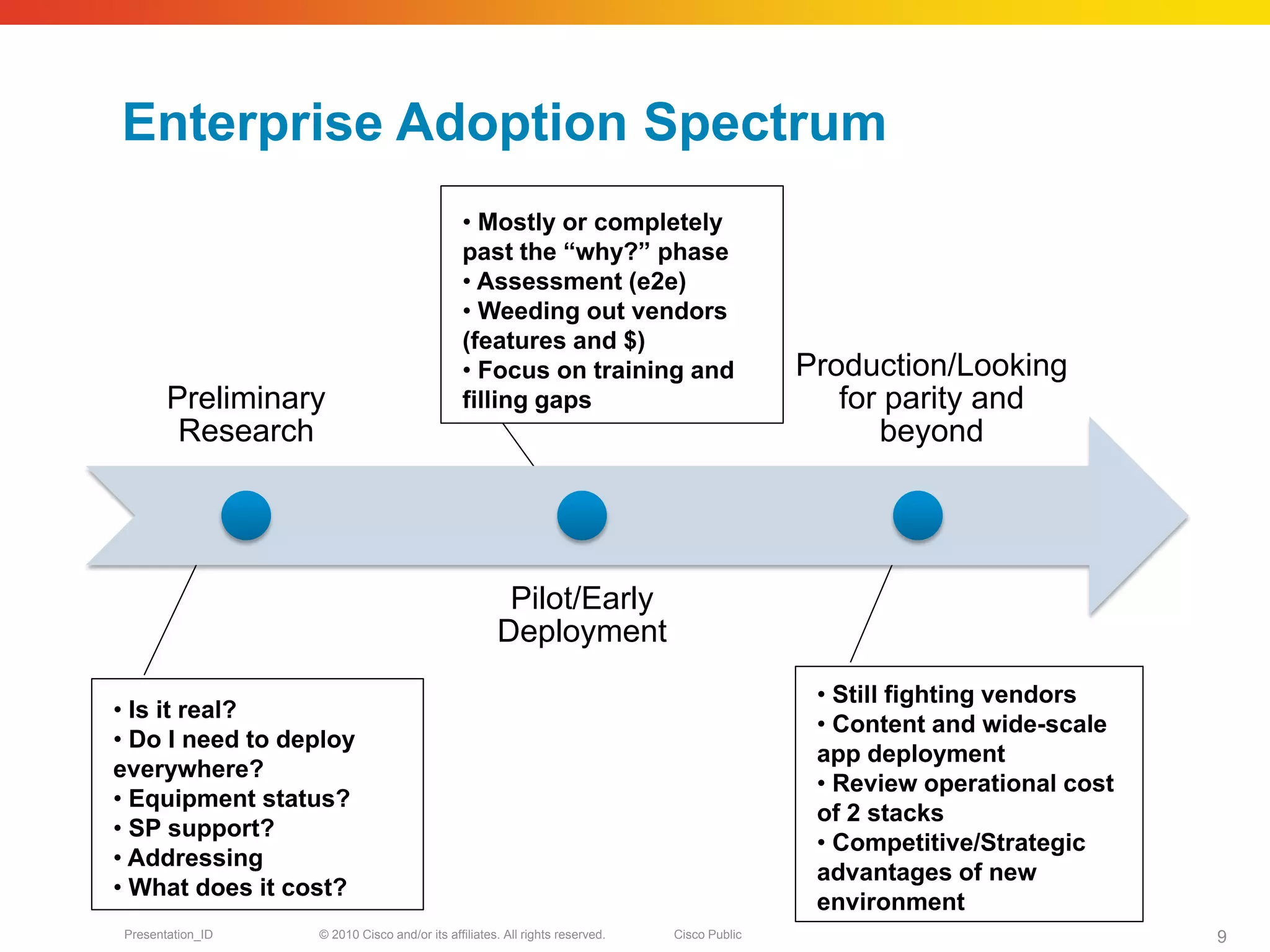

9. Enterprise Adoption Spectrum
• Mostly or completely
past the “why?” phase
• Assessment (e2e)
• Weeding out vendors
(features and $)
• Focus on training and Production/Looking
Preliminary filling gaps for parity and
Research beyond
Pilot/Early
Deployment
• Still fighting vendors
• Is it real?
• Content and wide-scale
• Do I need to deploy
app deployment
everywhere?
• Review operational cost
• Equipment status?
of 2 stacks
• SP support?
• Competitive/Strategic
• Addressing
advantages of new
• What does it cost?
environment
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 9

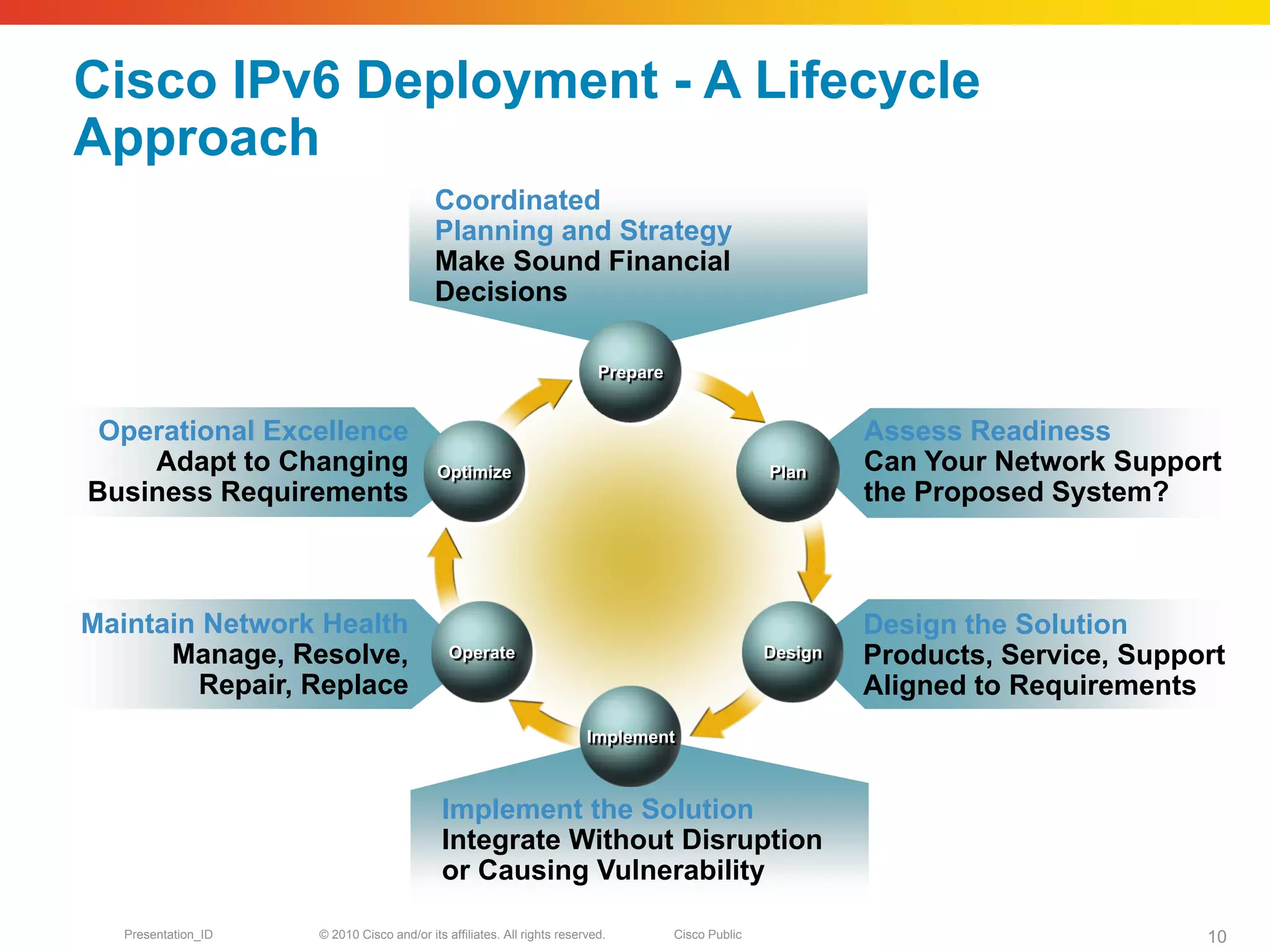

10. Cisco IPv6 Deployment - A Lifecycle
Approach
Coordinated
Planning and Strategy
Make Sound Financial
Decisions
Prepare
Operational Excellence Assess Readiness
Adapt to Changing Optimize Plan Can Your Network Support
Business Requirements the Proposed System?
Maintain Network Health Design the Solution
Manage, Resolve, Operate Design Products, Service, Support
Repair, Replace Aligned to Requirements
Implement
Implement the Solution
Integrate Without Disruption
or Causing Vulnerability
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 10

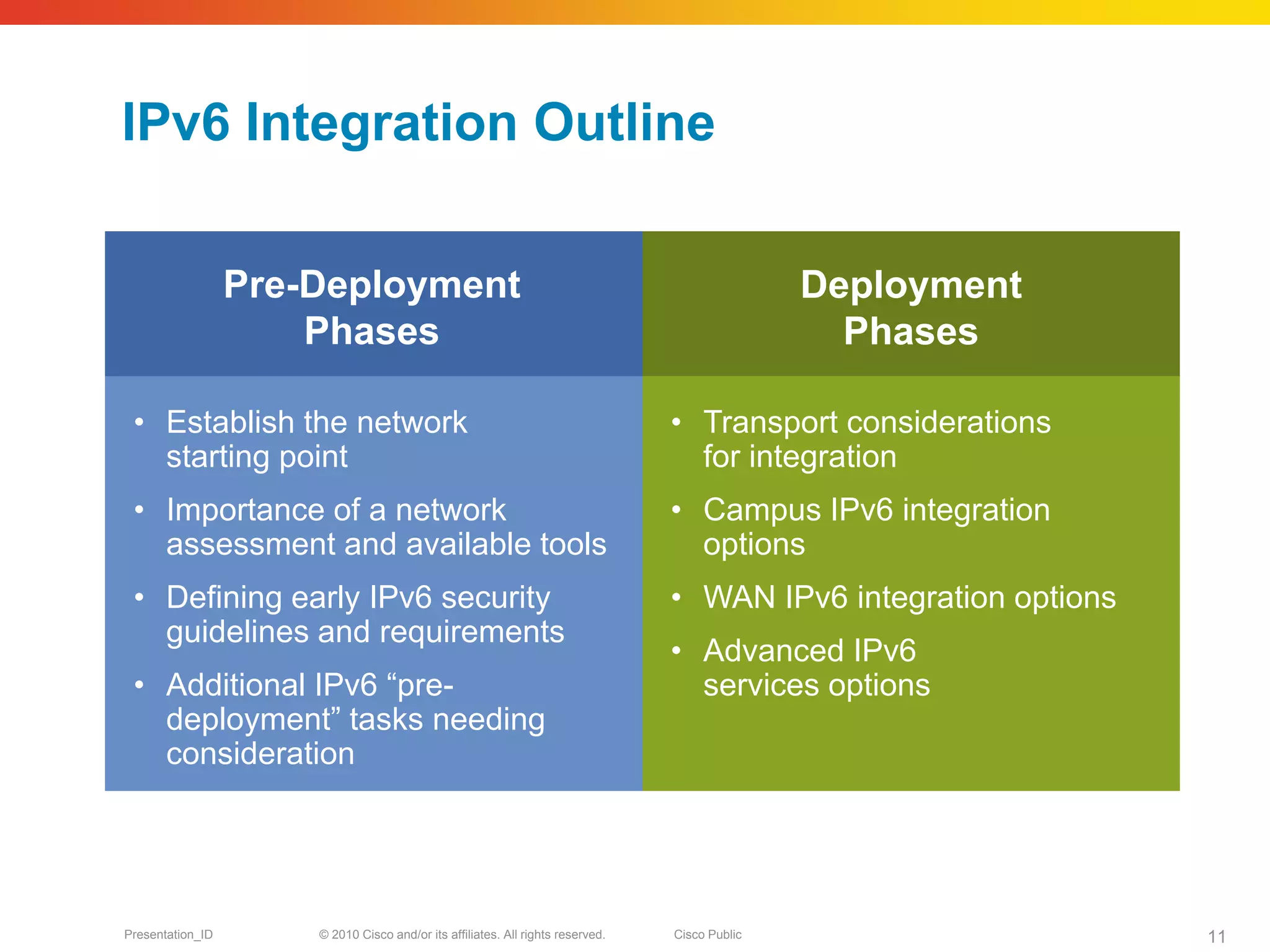

11. IPv6 Integration Outline
Pre-Deployment Deployment
Phases Phases
• Establish the network • Transport considerations
starting point for integration
• Importance of a network • Campus IPv6 integration
assessment and available tools options
• Defining early IPv6 security • WAN IPv6 integration options
guidelines and requirements
• Advanced IPv6
• Additional IPv6 “pre- services options
deployment” tasks needing
consideration
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 11

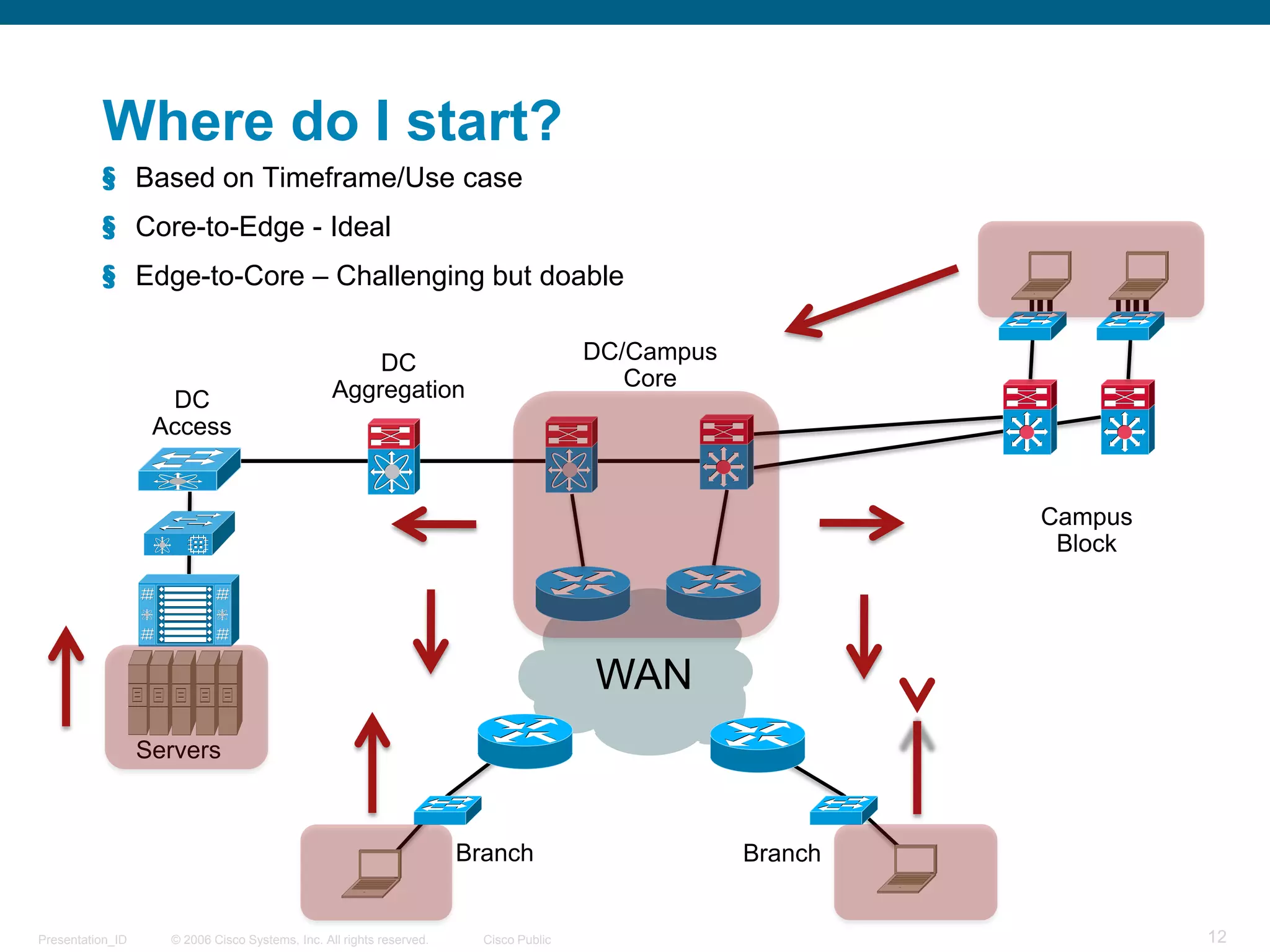

12. Where do I start?
§ Based on Timeframe/Use case
§ Core-to-Edge - Ideal
§ Edge-to-Core – Challenging but doable
DC DC/Campus
Aggregation Core
DC
Access
Campus
Block
WAN
Servers
Branch Branch
Presentation_ID © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 12

13. #CNSF2011
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 13

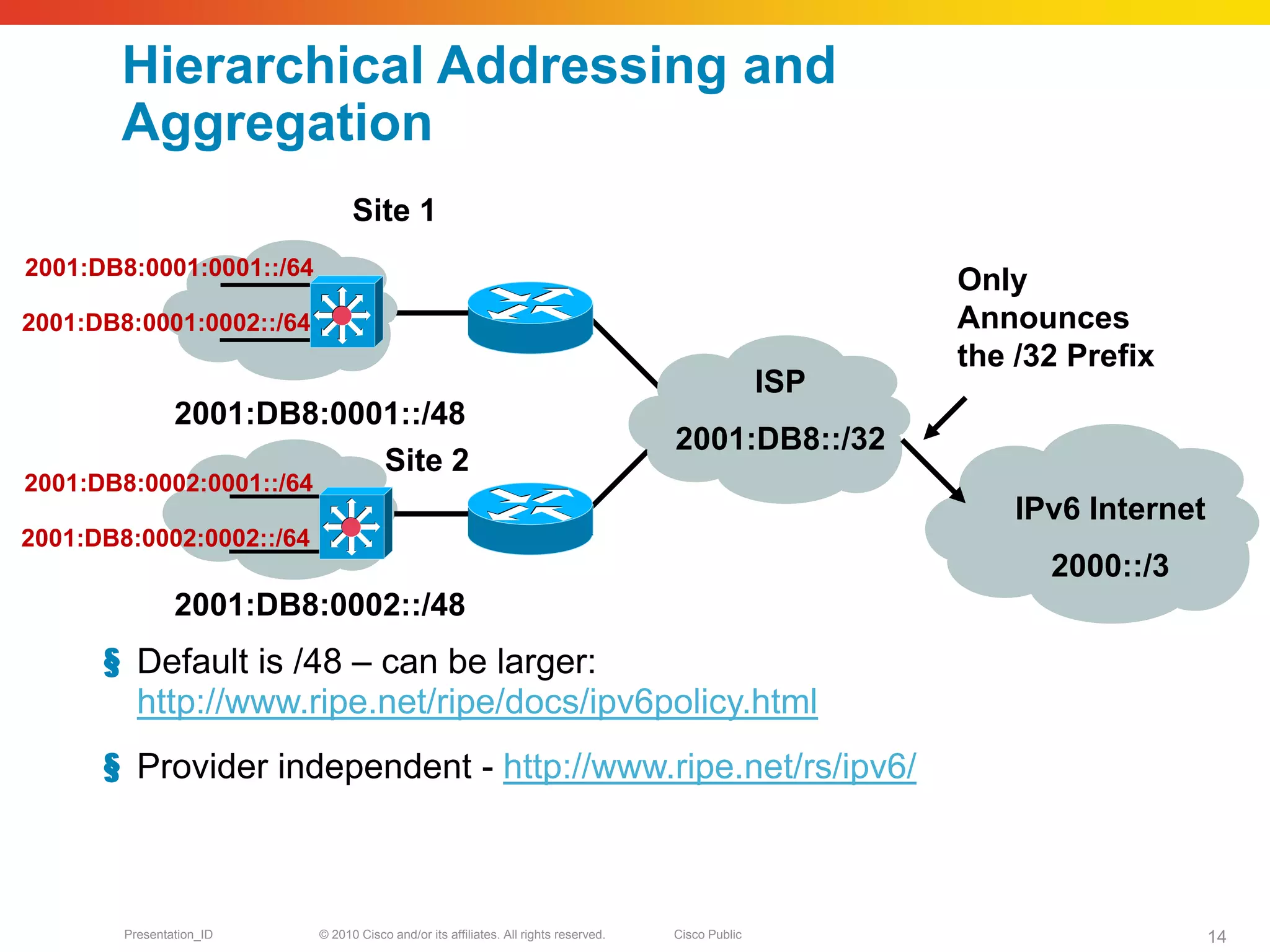

14. Hierarchical Addressing and
Aggregation
Site 1
2001:DB8:0001:0001::/64
Only
2001:DB8:0001:0002::/64 Announces
the /32 Prefix
ISP
2001:DB8:0001::/48
2001:DB8::/32
Site 2
2001:DB8:0002:0001::/64
IPv6 Internet
2001:DB8:0002:0002::/64
2000::/3
2001:DB8:0002::/48
§ Default is /48 – can be larger:
http://www.ripe.net/ripe/docs/ipv6policy.html
§ Provider independent - http://www.ripe.net/rs/ipv6/
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 14

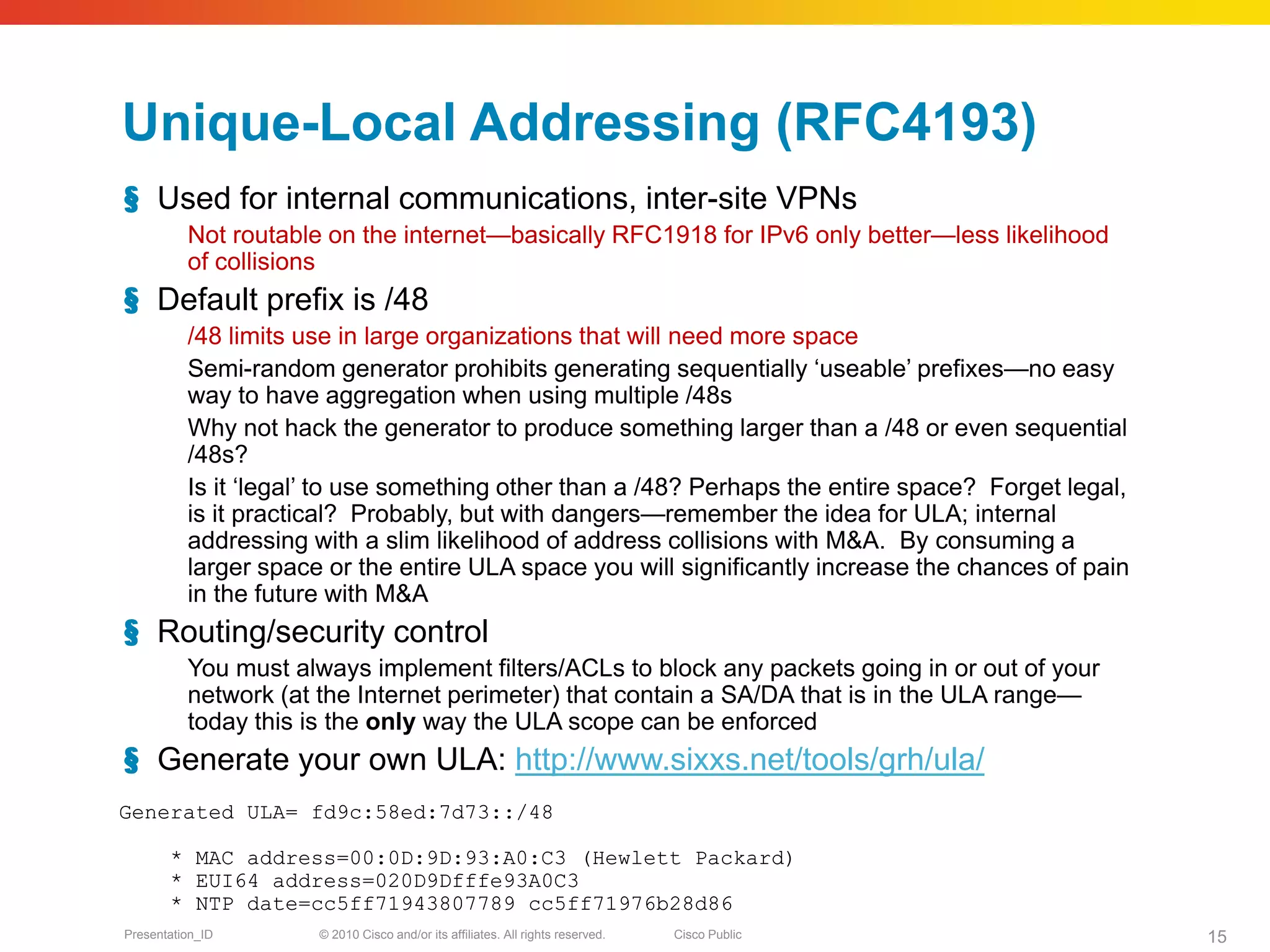

15. Unique-Local Addressing (RFC4193)
§ Used for internal communications, inter-site VPNs
Not routable on the internet—basically RFC1918 for IPv6 only better—less likelihood
of collisions
§ Default prefix is /48
/48 limits use in large organizations that will need more space
Semi-random generator prohibits generating sequentially ‘useable’ prefixes—no easy
way to have aggregation when using multiple /48s
Why not hack the generator to produce something larger than a /48 or even sequential
/48s?
Is it ‘legal’ to use something other than a /48? Perhaps the entire space? Forget legal,
is it practical? Probably, but with dangers—remember the idea for ULA; internal
addressing with a slim likelihood of address collisions with M&A. By consuming a
larger space or the entire ULA space you will significantly increase the chances of pain
in the future with M&A
§ Routing/security control
You must always implement filters/ACLs to block any packets going in or out of your
network (at the Internet perimeter) that contain a SA/DA that is in the ULA range—
today this is the only way the ULA scope can be enforced
§ Generate your own ULA: http://www.sixxs.net/tools/grh/ula/
Generated ULA= fd9c:58ed:7d73::/48
* MAC address=00:0D:9D:93:A0:C3 (Hewlett Packard)
* EUI64 address=020D9Dfffe93A0C3
* NTP date=cc5ff71943807789 cc5ff71976b28d86
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 15

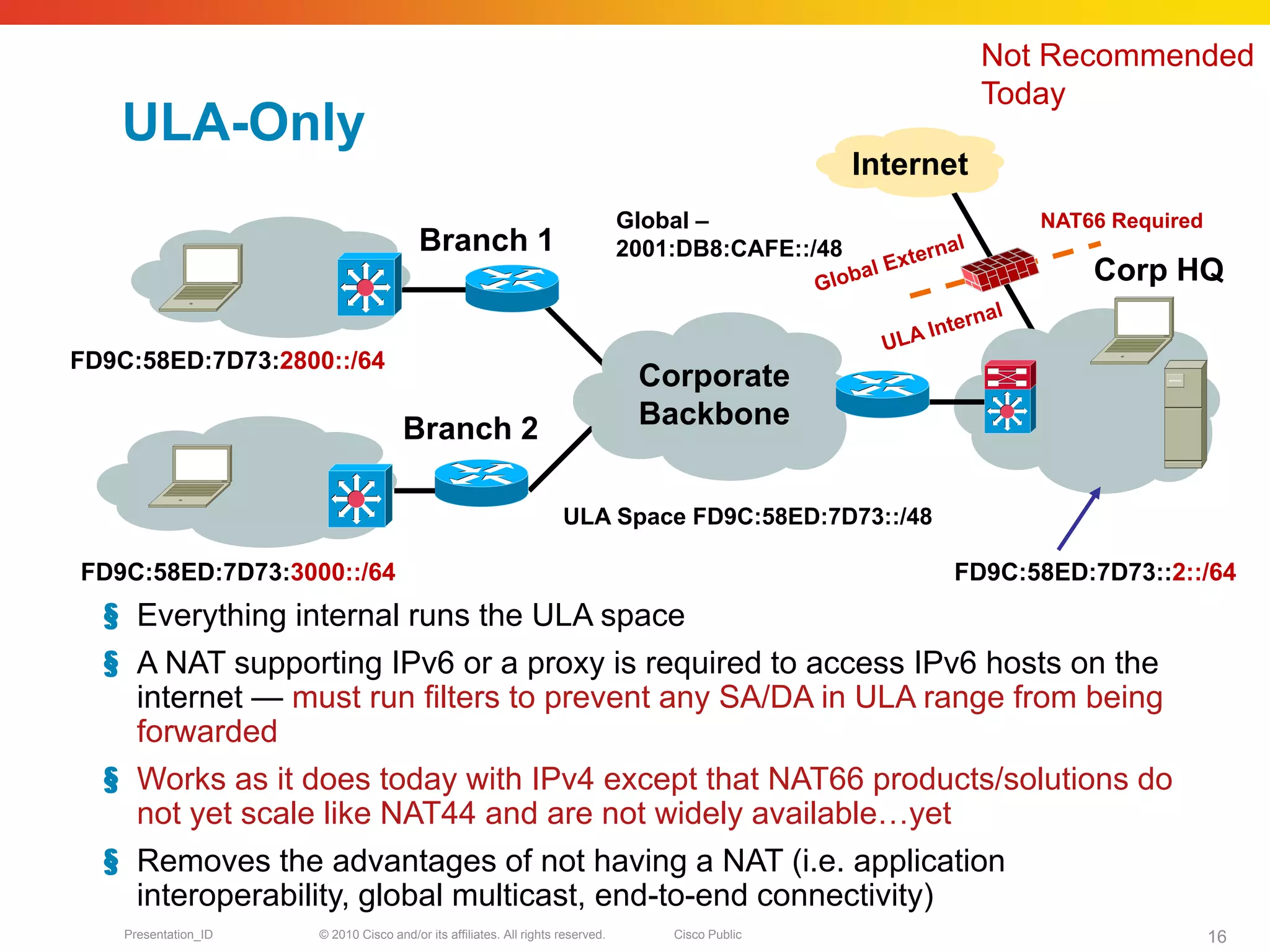

16. Not Recommended
Today
ULA-Only
Internet
Global – NAT66 Required
Branch 1 2001:DB8:CAFE::/48
Corp HQ
FD9C:58ED:7D73:2800::/64
Corporate
Branch 2 Backbone
ULA Space FD9C:58ED:7D73::/48
FD9C:58ED:7D73:3000::/64 FD9C:58ED:7D73::2::/64
§ Everything internal runs the ULA space
§ A NAT supporting IPv6 or a proxy is required to access IPv6 hosts on the
internet — must run filters to prevent any SA/DA in ULA range from being
forwarded
§ Works as it does today with IPv4 except that NAT66 products/solutions do
not yet scale like NAT44 and are not widely available…yet
§ Removes the advantages of not having a NAT (i.e. application
interoperability, global multicast, end-to-end connectivity)
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 16

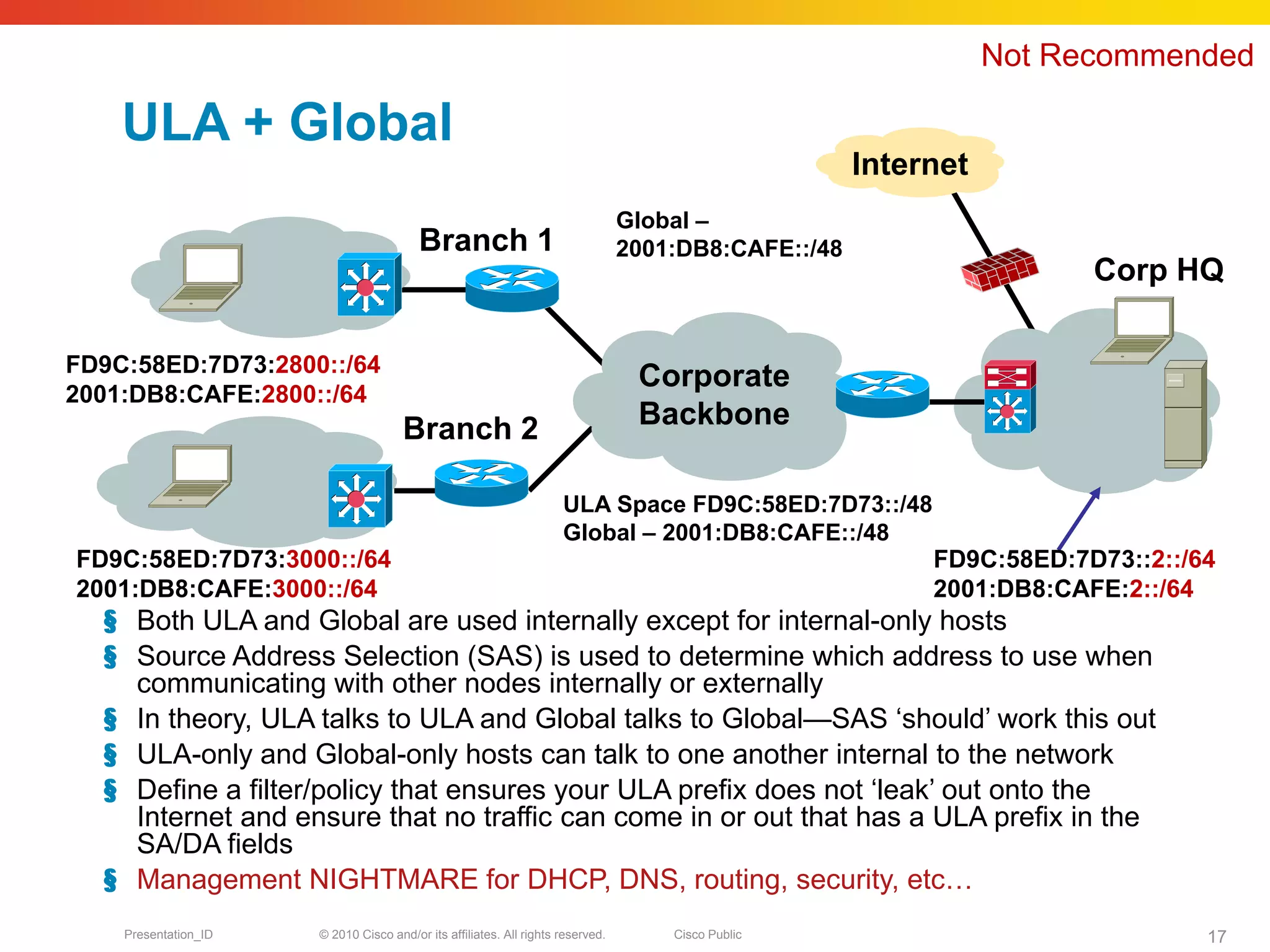

17. Not Recommended
ULA + Global
Internet
Global –
Branch 1 2001:DB8:CAFE::/48
Corp HQ
FD9C:58ED:7D73:2800::/64
Corporate
2001:DB8:CAFE:2800::/64
Branch 2 Backbone
ULA Space FD9C:58ED:7D73::/48
Global – 2001:DB8:CAFE::/48
FD9C:58ED:7D73:3000::/64 FD9C:58ED:7D73::2::/64
2001:DB8:CAFE:3000::/64 2001:DB8:CAFE:2::/64
§ Both ULA and Global are used internally except for internal-only hosts
§ Source Address Selection (SAS) is used to determine which address to use when
communicating with other nodes internally or externally
§ In theory, ULA talks to ULA and Global talks to Global—SAS ‘should’ work this out
§ ULA-only and Global-only hosts can talk to one another internal to the network
§ Define a filter/policy that ensures your ULA prefix does not ‘leak’ out onto the
Internet and ensure that no traffic can come in or out that has a ULA prefix in the
SA/DA fields
§ Management NIGHTMARE for DHCP, DNS, routing, security, etc…
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 17

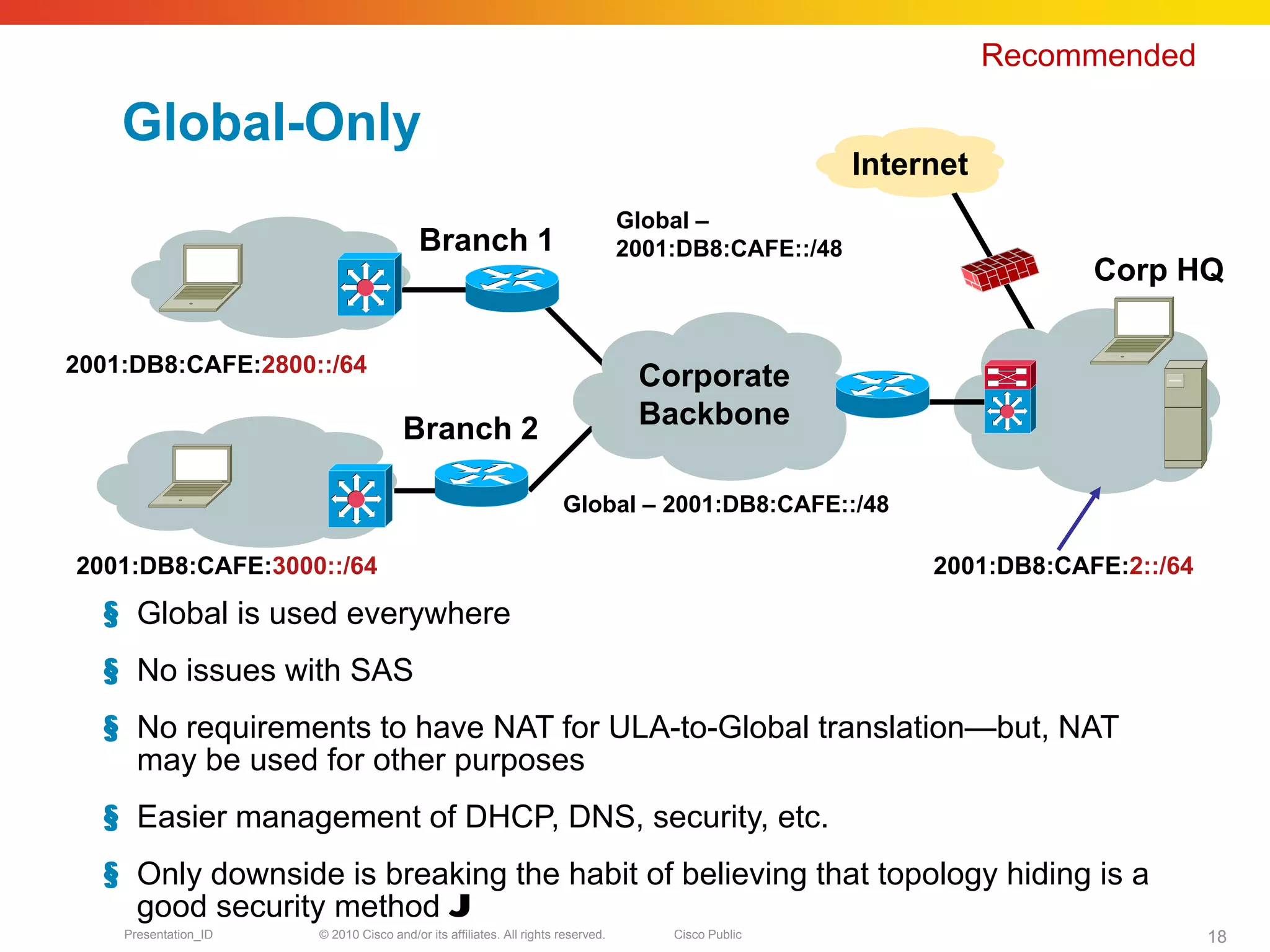

18. Recommended
Global-Only
Internet
Global –
Branch 1 2001:DB8:CAFE::/48
Corp HQ
2001:DB8:CAFE:2800::/64
Corporate
Branch 2 Backbone
Global – 2001:DB8:CAFE::/48
2001:DB8:CAFE:3000::/64 2001:DB8:CAFE:2::/64
§ Global is used everywhere
§ No issues with SAS
§ No requirements to have NAT for ULA-to-Global translation—but, NAT
may be used for other purposes
§ Easier management of DHCP, DNS, security, etc.
§ Only downside is breaking the habit of believing that topology hiding is a
good security method J
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 18

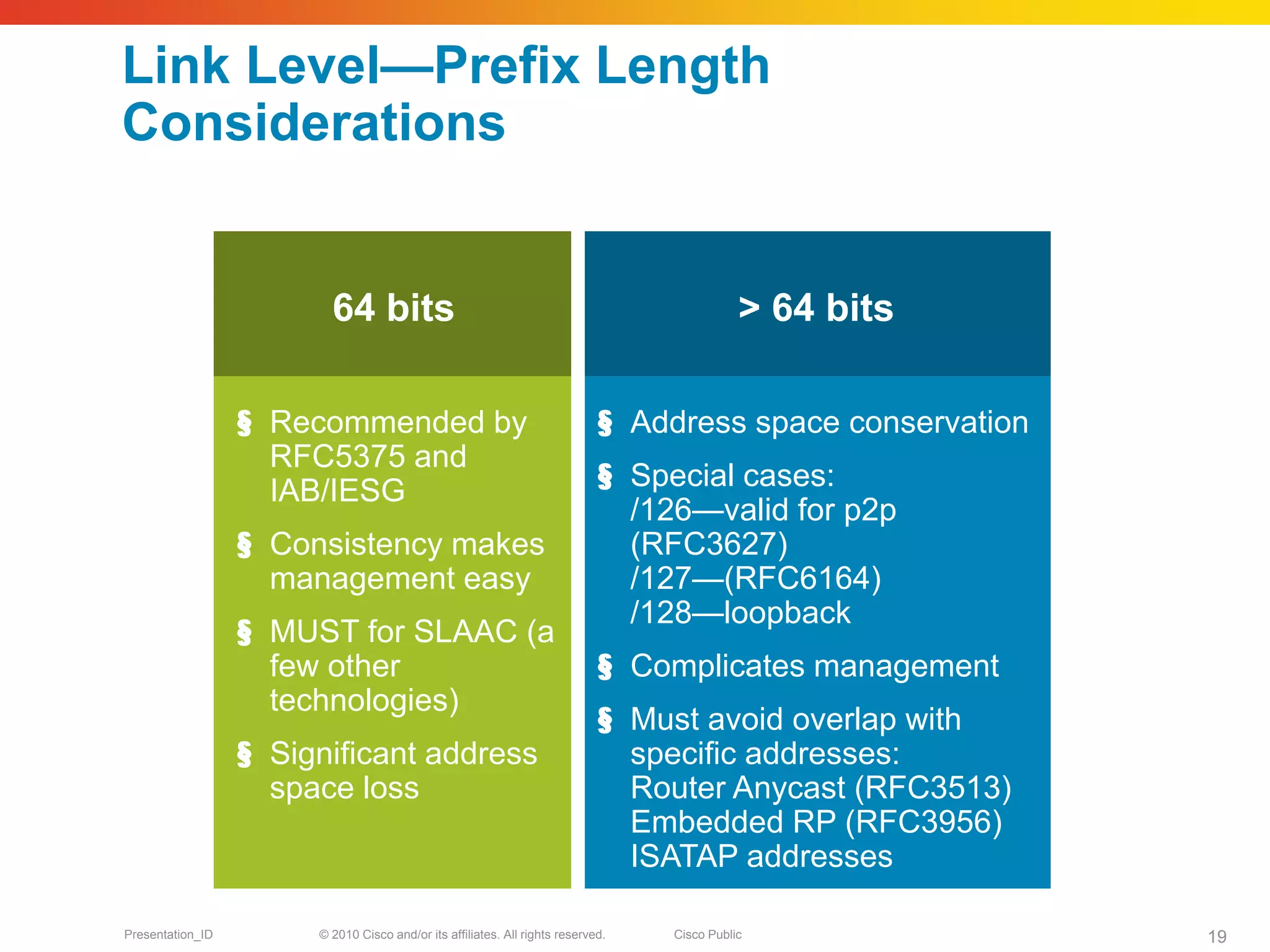

19. Link Level—Prefix Length
Considerations
64 bits > 64 bits
§ Recommended by § Address space conservation
RFC5375 and
IAB/IESG § Special cases:
/126—valid for p2p
§ Consistency makes (RFC3627)
management easy /127—(RFC6164)
/128—loopback
§ MUST for SLAAC (a
few other § Complicates management
technologies)
§ Must avoid overlap with
§ Significant address specific addresses:
space loss Router Anycast (RFC3513)
Embedded RP (RFC3956)
ISATAP addresses
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 19

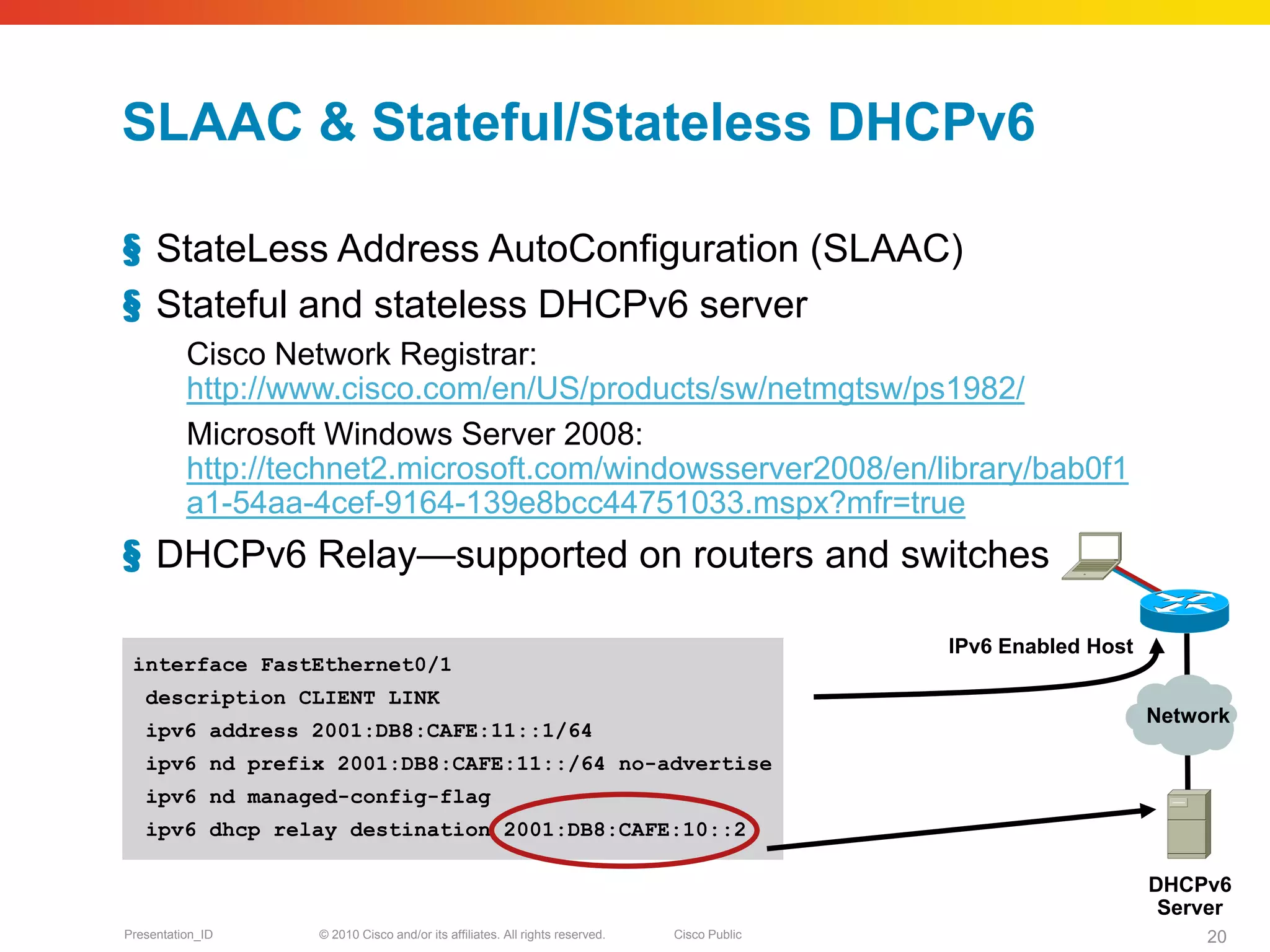

20. SLAAC & Stateful/Stateless DHCPv6
§ StateLess Address AutoConfiguration (SLAAC)
§ Stateful and stateless DHCPv6 server
Cisco Network Registrar:
http://www.cisco.com/en/US/products/sw/netmgtsw/ps1982/
Microsoft Windows Server 2008:
http://technet2.microsoft.com/windowsserver2008/en/library/bab0f1
a1-54aa-4cef-9164-139e8bcc44751033.mspx?mfr=true
§ DHCPv6 Relay—supported on routers and switches
IPv6 Enabled Host
interface FastEthernet0/1
description CLIENT LINK
Network
ipv6 address 2001:DB8:CAFE:11::1/64
ipv6 nd prefix 2001:DB8:CAFE:11::/64 no-advertise
ipv6 nd managed-config-flag
ipv6 dhcp relay destination 2001:DB8:CAFE:10::2
DHCPv6
Server
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 20

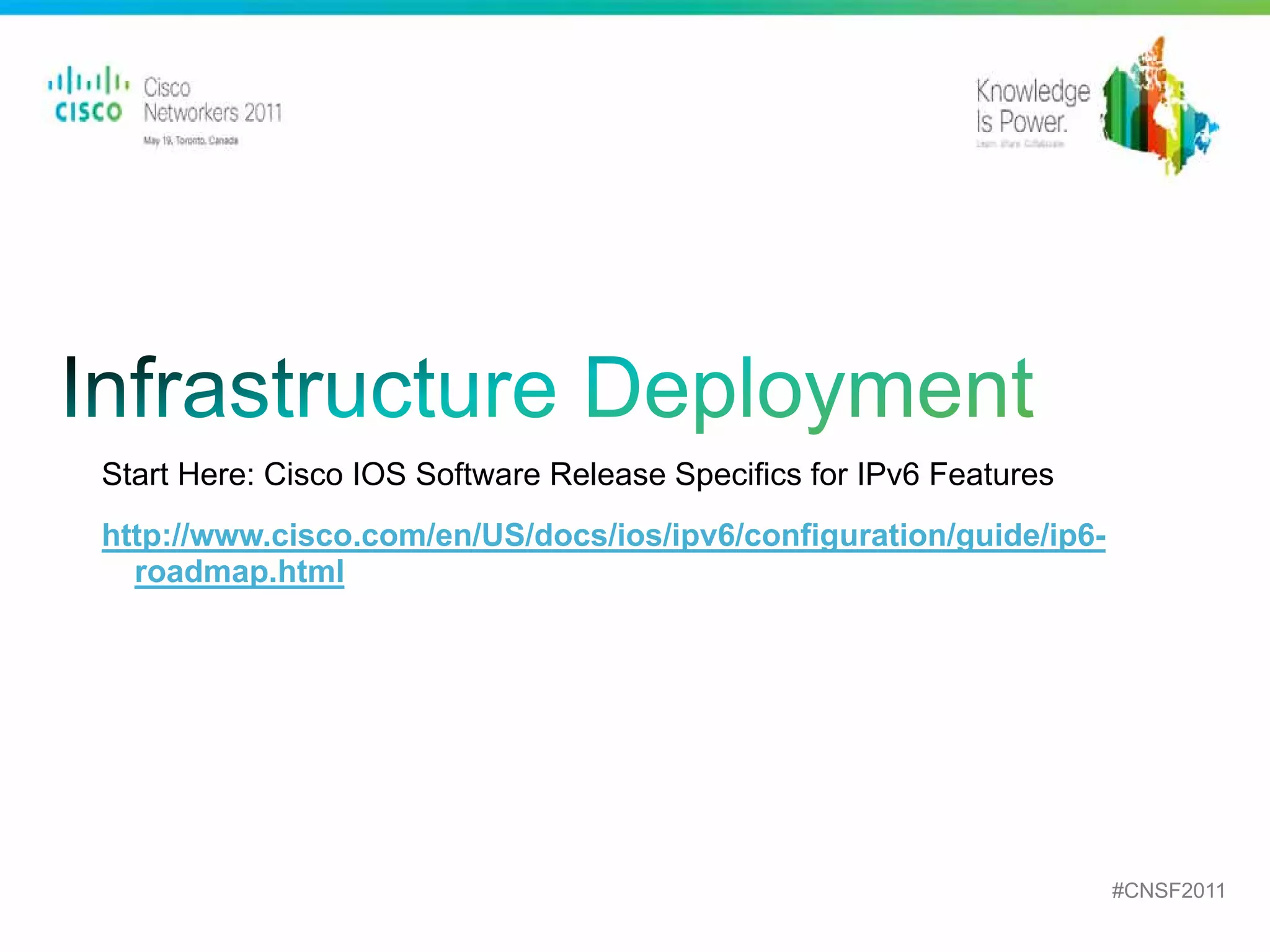

21. #CNSF2011
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 21

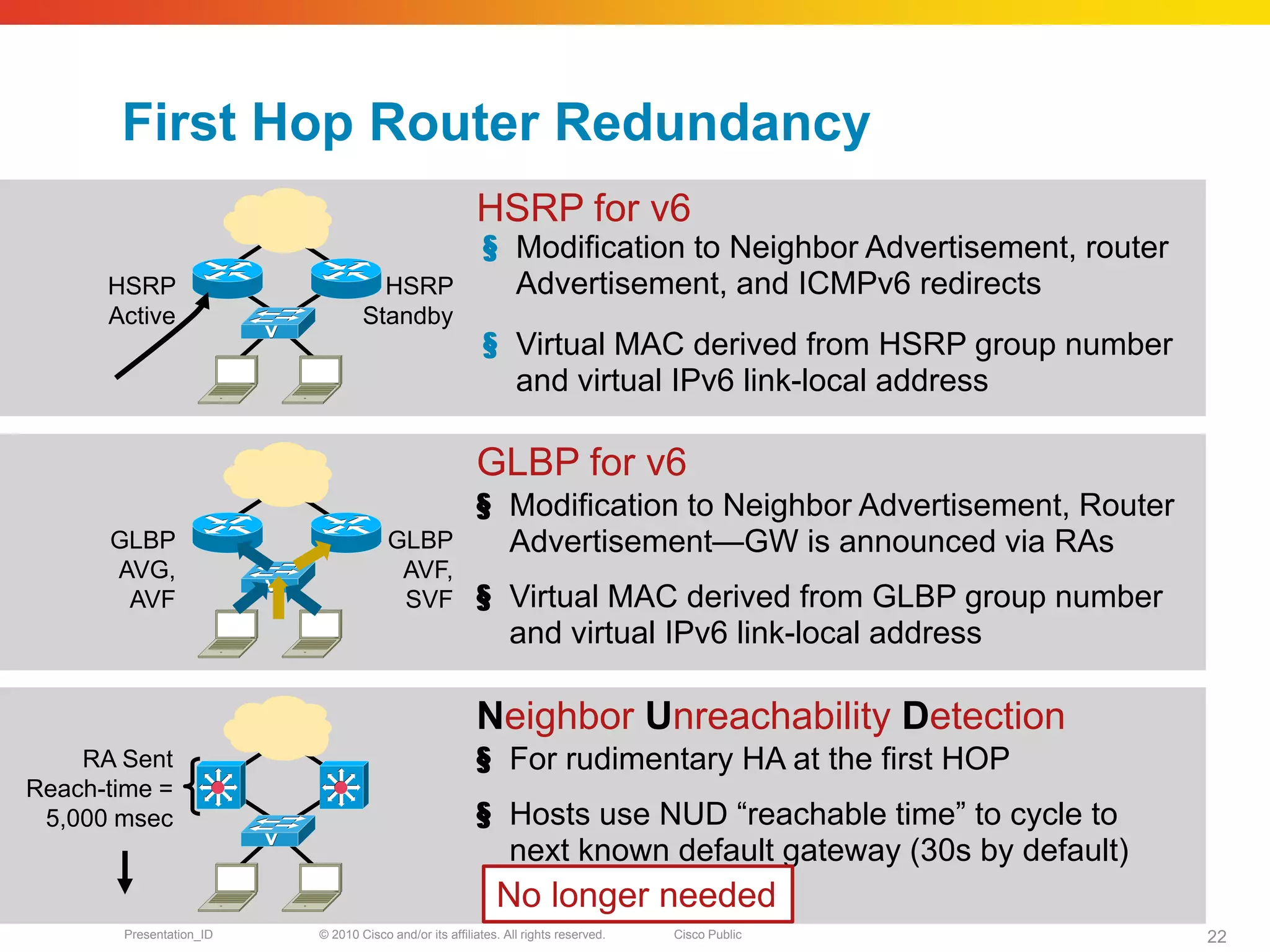

22. First Hop Router Redundancy

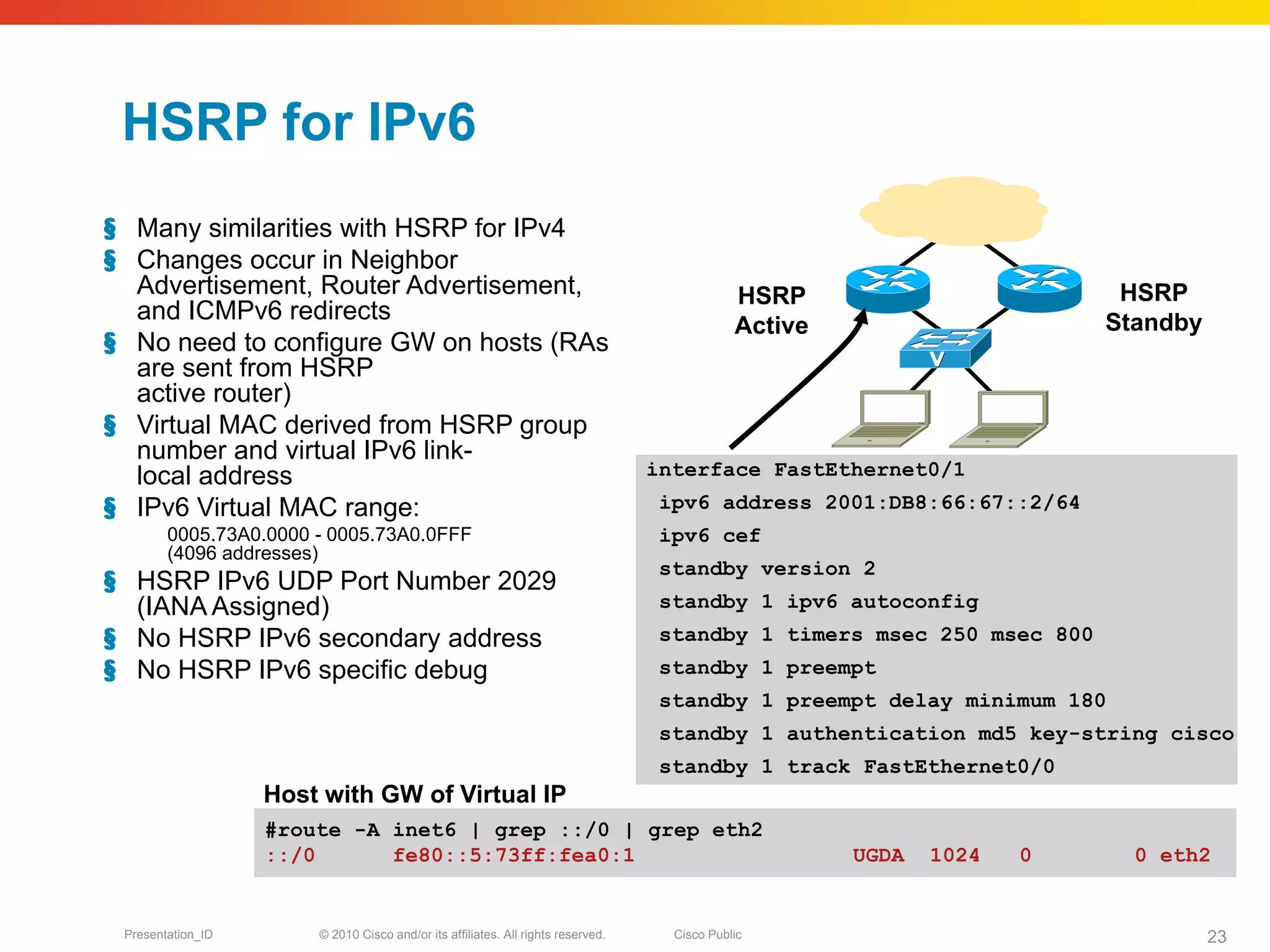

HSRP for v6
§ Modification to Neighbor Advertisement, router
HSRP HSRP Advertisement, and ICMPv6 redirects
Active Standby
§ Virtual MAC derived from HSRP group number
and virtual IPv6 link-local address
GLBP for v6
§ Modification to Neighbor Advertisement, Router
GLBP GLBP Advertisement—GW is announced via RAs
AVG, AVF,
AVF SVF § Virtual MAC derived from GLBP group number
and virtual IPv6 link-local address
Neighbor Unreachability Detection
RA Sent § For rudimentary HA at the first HOP
Reach-time =
5,000 msec § Hosts use NUD “reachable time” to cycle to
next known default gateway (30s by default)
No longer needed
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 22

23. HSRP for IPv6
§ Many similarities with HSRP for IPv4
§ Changes occur in Neighbor
Advertisement, Router Advertisement, HSRP HSRP
and ICMPv6 redirects Standby
Active
§ No need to configure GW on hosts (RAs
are sent from HSRP
active router)
§ Virtual MAC derived from HSRP group
number and virtual IPv6 link-
local address interface FastEthernet0/1
§ IPv6 Virtual MAC range: ipv6 address 2001:DB8:66:67::2/64
0005.73A0.0000 - 0005.73A0.0FFF ipv6 cef
(4096 addresses)
standby version 2
§ HSRP IPv6 UDP Port Number 2029
(IANA Assigned) standby 1 ipv6 autoconfig
§ No HSRP IPv6 secondary address standby 1 timers msec 250 msec 800
§ No HSRP IPv6 specific debug standby 1 preempt
standby 1 preempt delay minimum 180
standby 1 authentication md5 key-string cisco
standby 1 track FastEthernet0/0
Host with GW of Virtual IP
#route -A inet6 | grep ::/0 | grep eth2
::/0 fe80::5:73ff:fea0:1 UGDA 1024 0 0 eth2
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 23

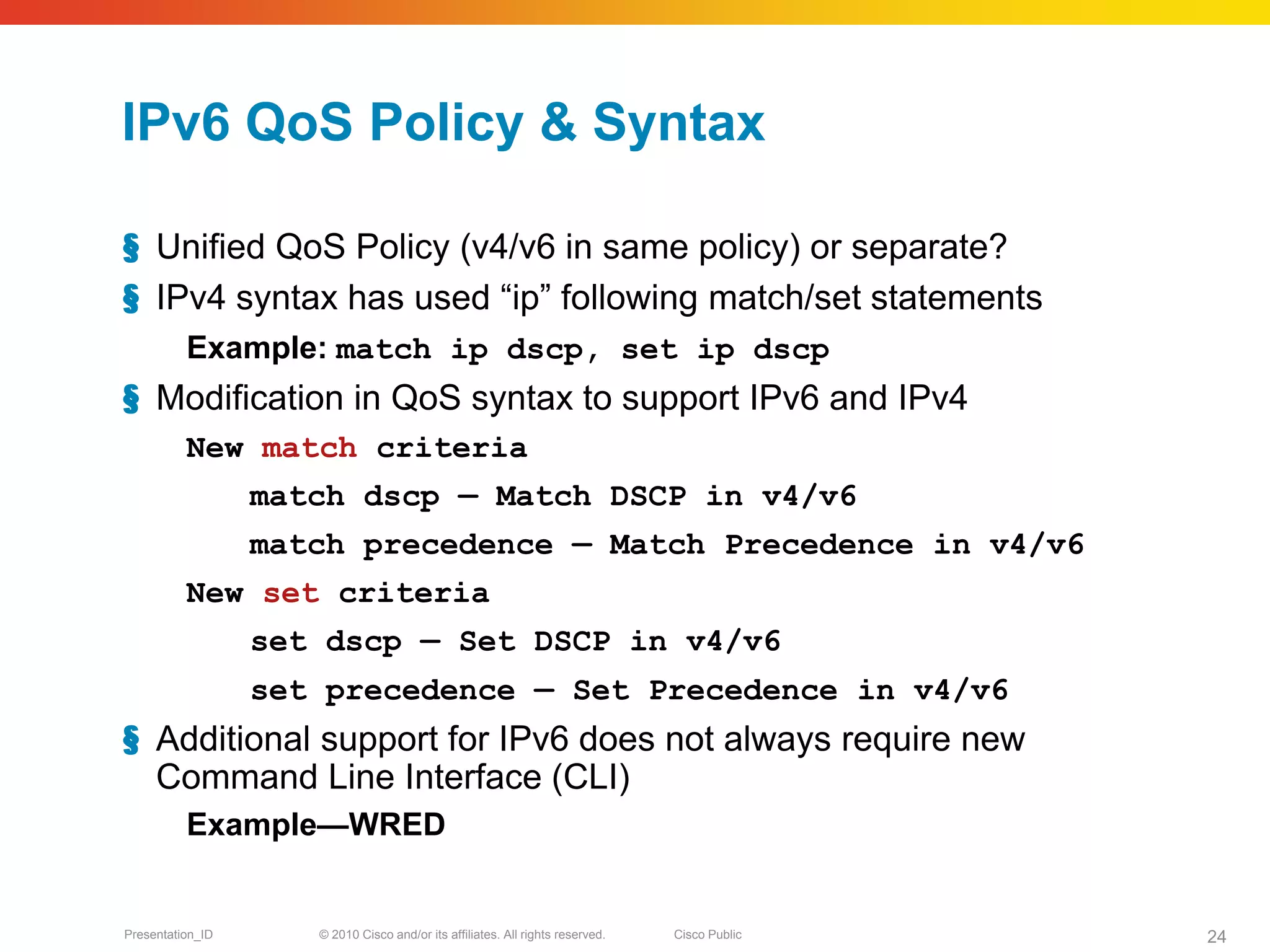

24. IPv6 QoS Policy & Syntax
§ Unified QoS Policy (v4/v6 in same policy) or separate?
§ IPv4 syntax has used “ip” following match/set statements
Example: match ip dscp, set ip dscp
§ Modification in QoS syntax to support IPv6 and IPv4
New match criteria
match dscp — Match DSCP in v4/v6
match precedence — Match Precedence in v4/v6
New set criteria
set dscp — Set DSCP in v4/v6
set precedence — Set Precedence in v4/v6
§ Additional support for IPv6 does not always require new
Command Line Interface (CLI)
Example—WRED
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 24

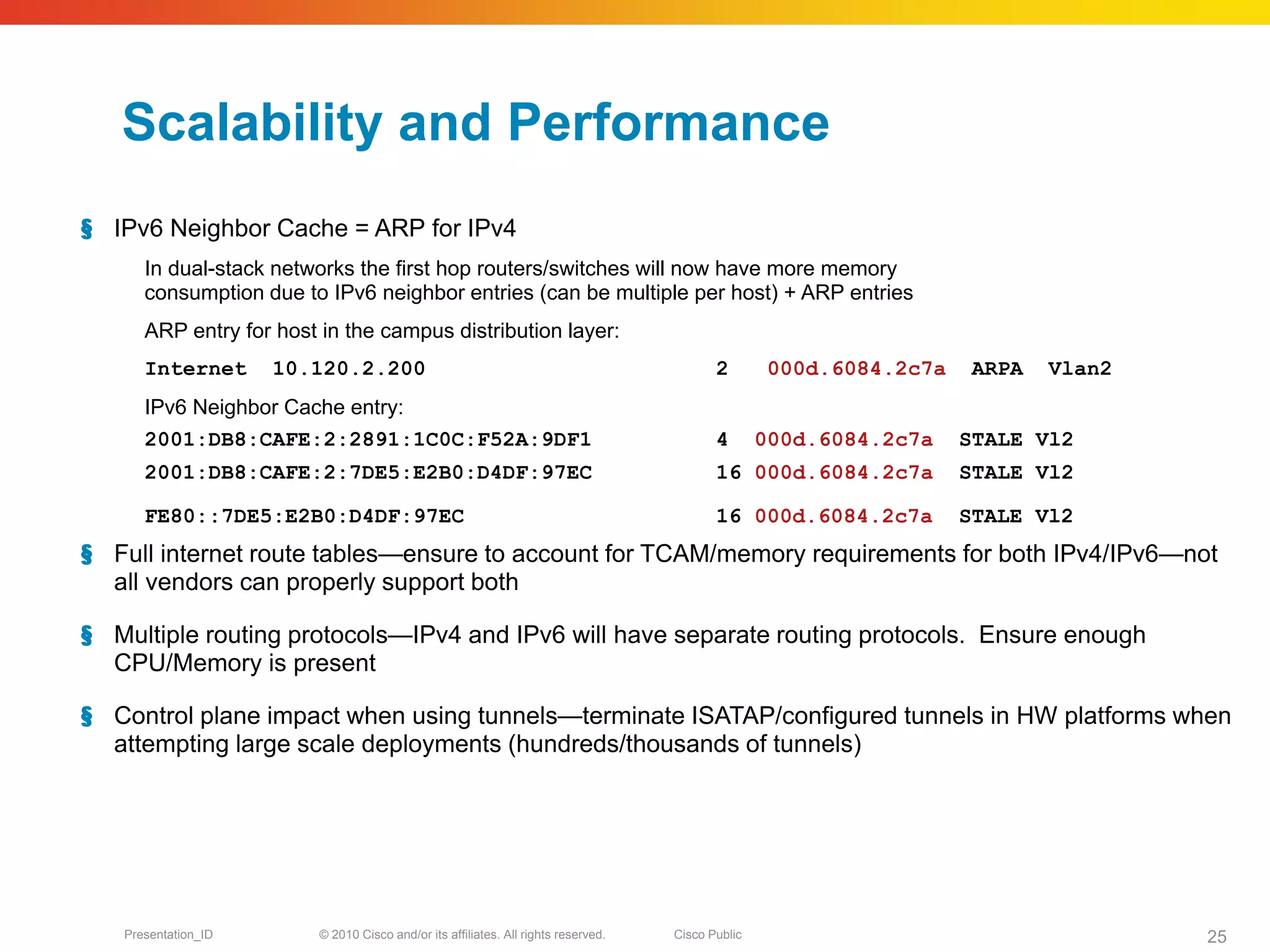

25. Scalability and Performance
§ IPv6 Neighbor Cache = ARP for IPv4
In dual-stack networks the first hop routers/switches will now have more memory
consumption due to IPv6 neighbor entries (can be multiple per host) + ARP entries
ARP entry for host in the campus distribution layer:
Internet 10.120.2.200 2 000d.6084.2c7a ARPA Vlan2
IPv6 Neighbor Cache entry:
2001:DB8:CAFE:2:2891:1C0C:F52A:9DF1 4 000d.6084.2c7a STALE Vl2
2001:DB8:CAFE:2:7DE5:E2B0:D4DF:97EC 16 000d.6084.2c7a STALE Vl2
FE80::7DE5:E2B0:D4DF:97EC 16 000d.6084.2c7a STALE Vl2
§ Full internet route tables—ensure to account for TCAM/memory requirements for both IPv4/IPv6—not
all vendors can properly support both
§ Multiple routing protocols—IPv4 and IPv6 will have separate routing protocols. Ensure enough
CPU/Memory is present
§ Control plane impact when using tunnels—terminate ISATAP/configured tunnels in HW platforms when
attempting large scale deployments (hundreds/thousands of tunnels)
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 25

26. Start Here: Cisco IOS Software Release Specifics for IPv6 Features
http://www.cisco.com/en/US/docs/ios/ipv6/configuration/guide/ip6-
roadmap.html
#CNSF2011
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 26

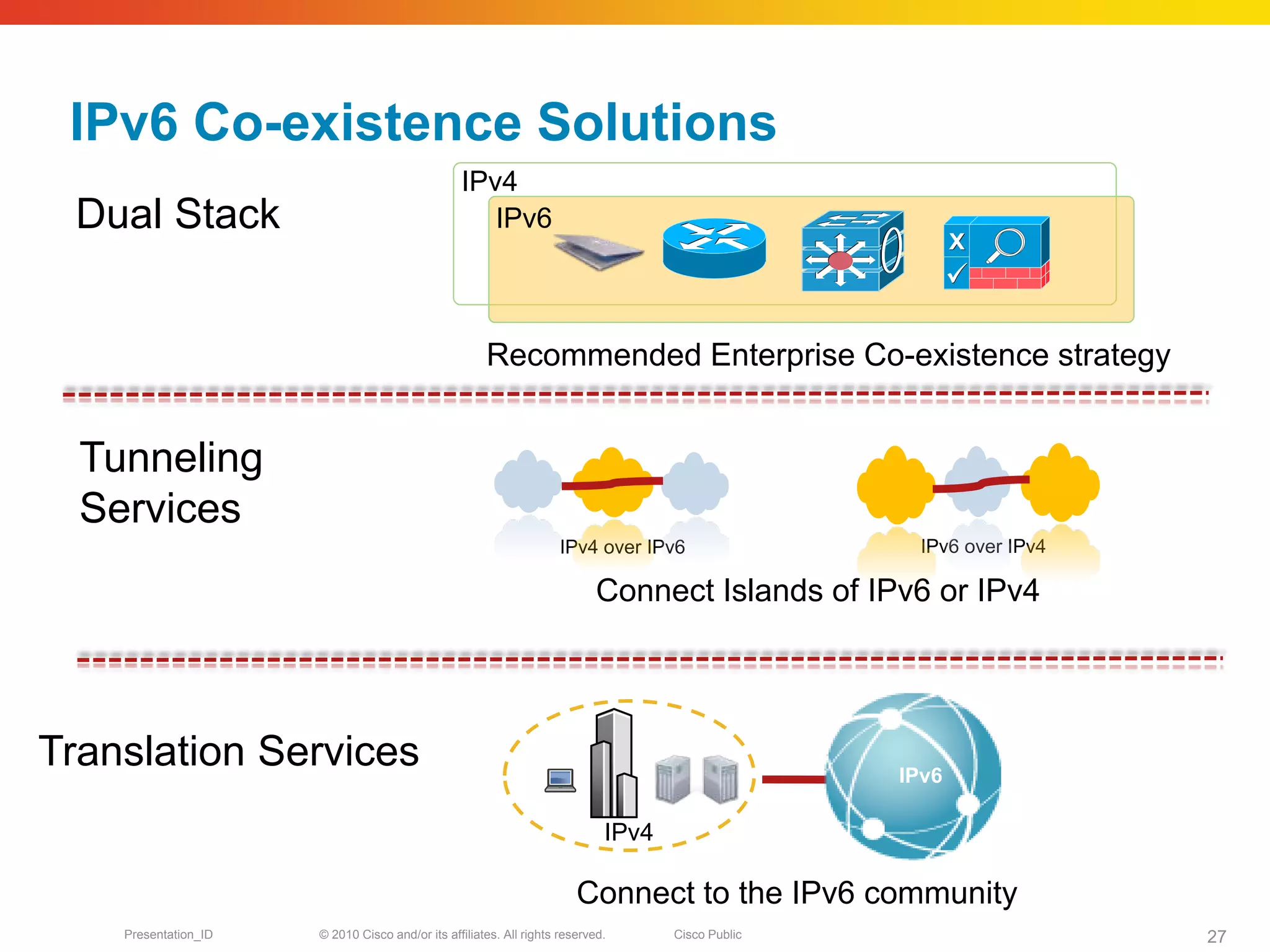

27. IPv6 Co-existence Solutions
IPv4
Dual Stack IPv6
Recommended Enterprise Co-existence strategy
Tunneling
Services
IPv4 over IPv6 IPv6 over IPv4
Connect Islands of IPv6 or IPv4
Business Partners
Translation Services IPv6
Government Agencies
International Sites
Remote Workers
IPv4 Internet consumers
Connect to the IPv6 community
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 27

28. Deploying IPv6 in Campus Networks:
http://www.cisco.com/univercd/cc/td/doc/solution/campipv6.pdf
#CNSF2011
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 28

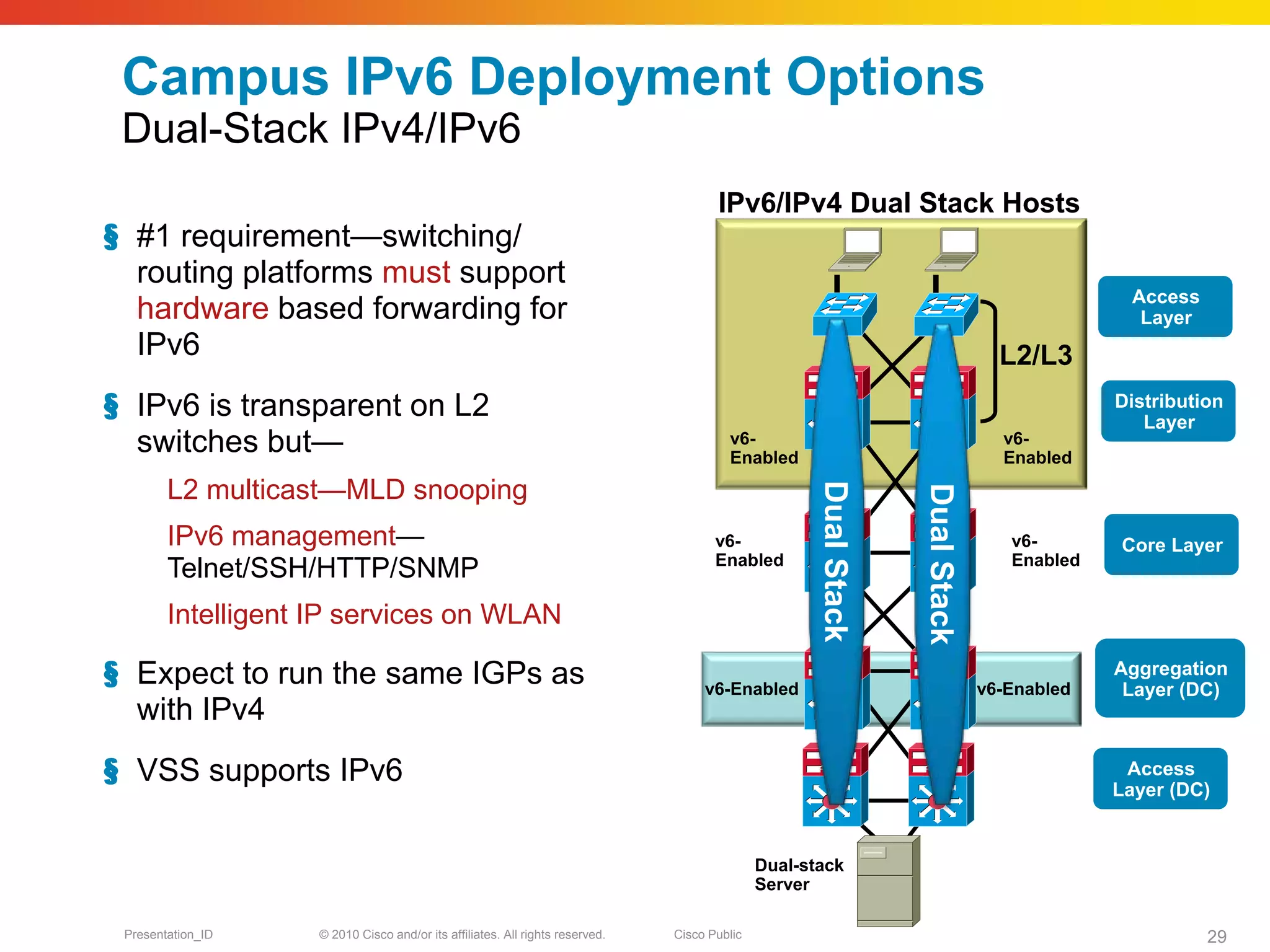

29. Campus IPv6 Deployment Options
Dual-Stack IPv4/IPv6
IPv6/IPv4 Dual Stack Hosts
§ #1 requirement—switching/
routing platforms must support
Access
hardware based forwarding for Layer
IPv6 L2/L3
§ IPv6 is transparent on L2 Distribution
Layer
switches but— v6-
Enabled
v6-
Enabled
L2 multicast—MLD snooping
Dual Stack
Dual Stack
IPv6 management— v6- v6- Core Layer
Enabled Enabled
Telnet/SSH/HTTP/SNMP
Intelligent IP services on WLAN
§ Expect to run the same IGPs as v6-Enabled v6-Enabled
Aggregation
Layer (DC)
with IPv4
§ VSS supports IPv6 Access
Layer (DC)
Dual-stack
Server
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 29

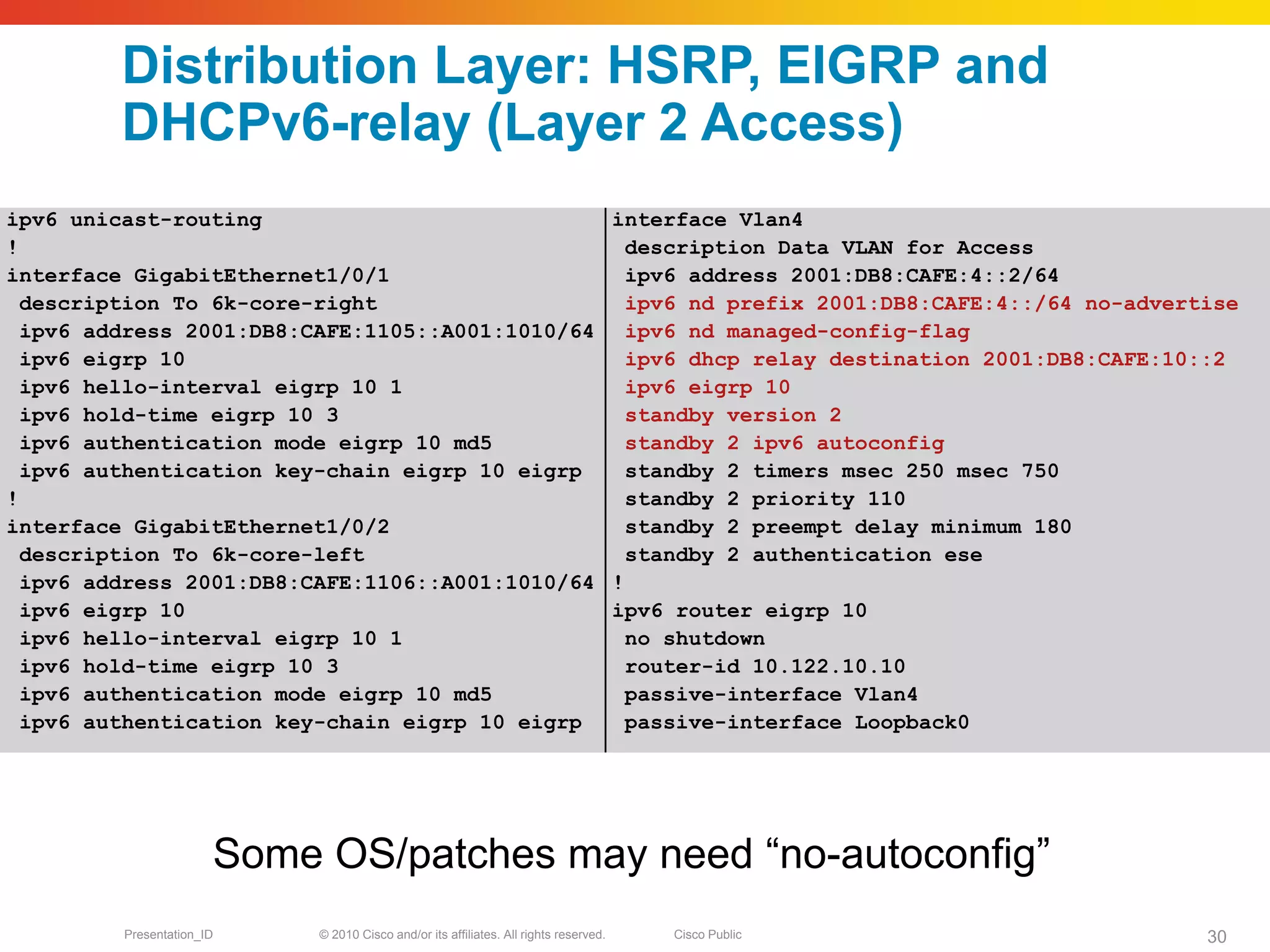

30. Distribution Layer: HSRP, EIGRP and
DHCPv6-relay (Layer 2 Access)
ipv6 unicast-routing interface Vlan4
! description Data VLAN for Access
interface GigabitEthernet1/0/1 ipv6 address 2001:DB8:CAFE:4::2/64
description To 6k-core-right ipv6 nd prefix 2001:DB8:CAFE:4::/64 no-advertise
ipv6 address 2001:DB8:CAFE:1105::A001:1010/64 ipv6 nd managed-config-flag
ipv6 eigrp 10 ipv6 dhcp relay destination 2001:DB8:CAFE:10::2
ipv6 hello-interval eigrp 10 1 ipv6 eigrp 10
ipv6 hold-time eigrp 10 3 standby version 2
ipv6 authentication mode eigrp 10 md5 standby 2 ipv6 autoconfig
ipv6 authentication key-chain eigrp 10 eigrp standby 2 timers msec 250 msec 750
! standby 2 priority 110
interface GigabitEthernet1/0/2 standby 2 preempt delay minimum 180
description To 6k-core-left standby 2 authentication ese
ipv6 address 2001:DB8:CAFE:1106::A001:1010/64 !
ipv6 eigrp 10 ipv6 router eigrp 10
ipv6 hello-interval eigrp 10 1 no shutdown
ipv6 hold-time eigrp 10 3 router-id 10.122.10.10
ipv6 authentication mode eigrp 10 md5 passive-interface Vlan4
ipv6 authentication key-chain eigrp 10 eigrp passive-interface Loopback0
Some OS/patches may need “no-autoconfig”
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 30

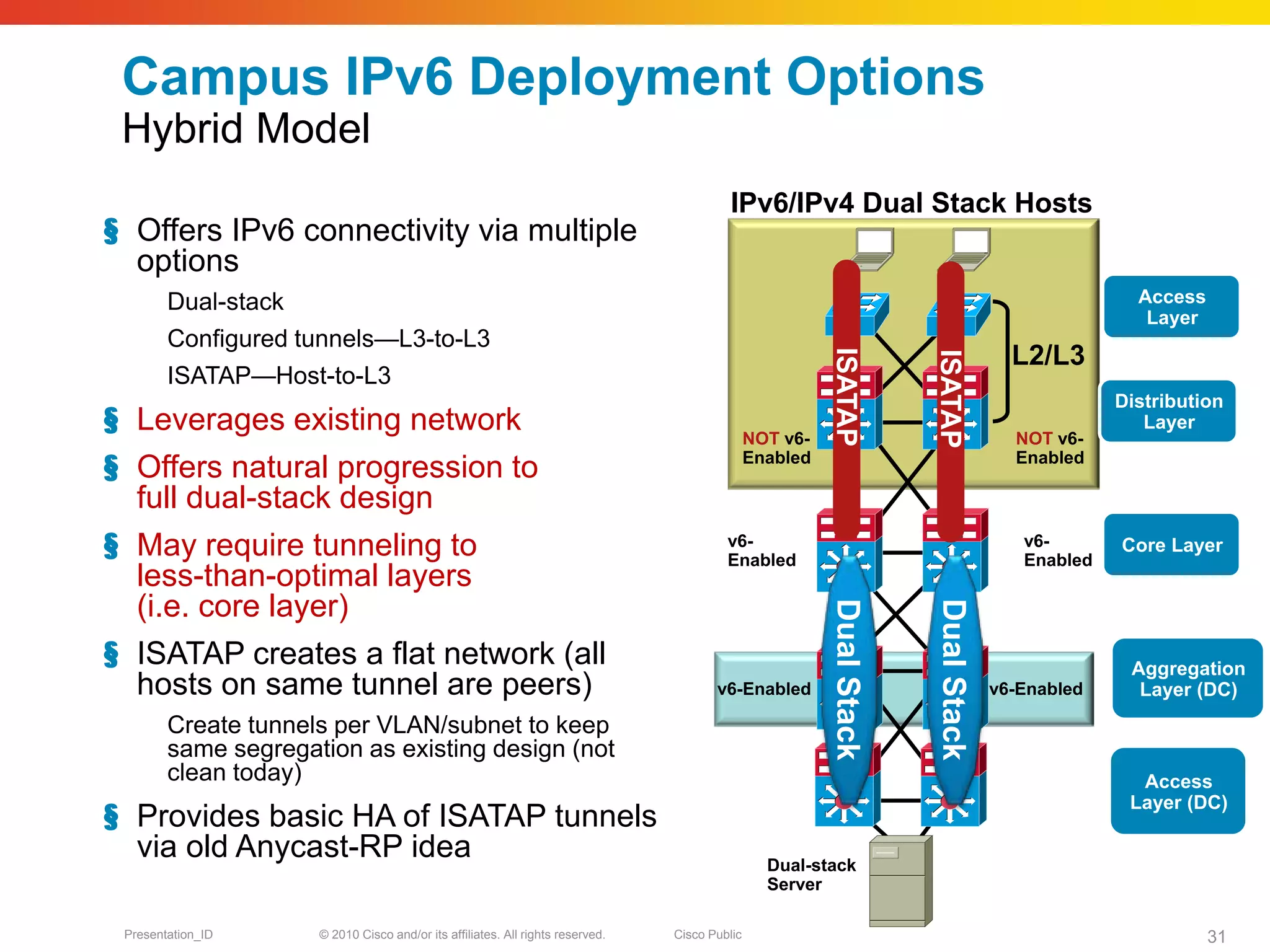

31. Campus IPv6 Deployment Options
Hybrid Model
IPv6/IPv4 Dual Stack Hosts
§ Offers IPv6 connectivity via multiple
options
Dual-stack Access
Layer
Configured tunnels—L3-to-L3
L2/L3
ISATAP
ISATAP
ISATAP—Host-to-L3
Distribution
§ Leverages existing network NOT v6- NOT v6-
Layer
§ Offers natural progression to Enabled Enabled
full dual-stack design
§ May require tunneling to v6-
Enabled
v6-
Enabled
Core Layer
less-than-optimal layers
(i.e. core layer)
Dual Stack
Dual Stack
§ ISATAP creates a flat network (all Aggregation
hosts on same tunnel are peers) v6-Enabled v6-Enabled Layer (DC)
Create tunnels per VLAN/subnet to keep
same segregation as existing design (not
clean today) Access
Layer (DC)
§ Provides basic HA of ISATAP tunnels
via old Anycast-RP idea Dual-stack
Server
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 31

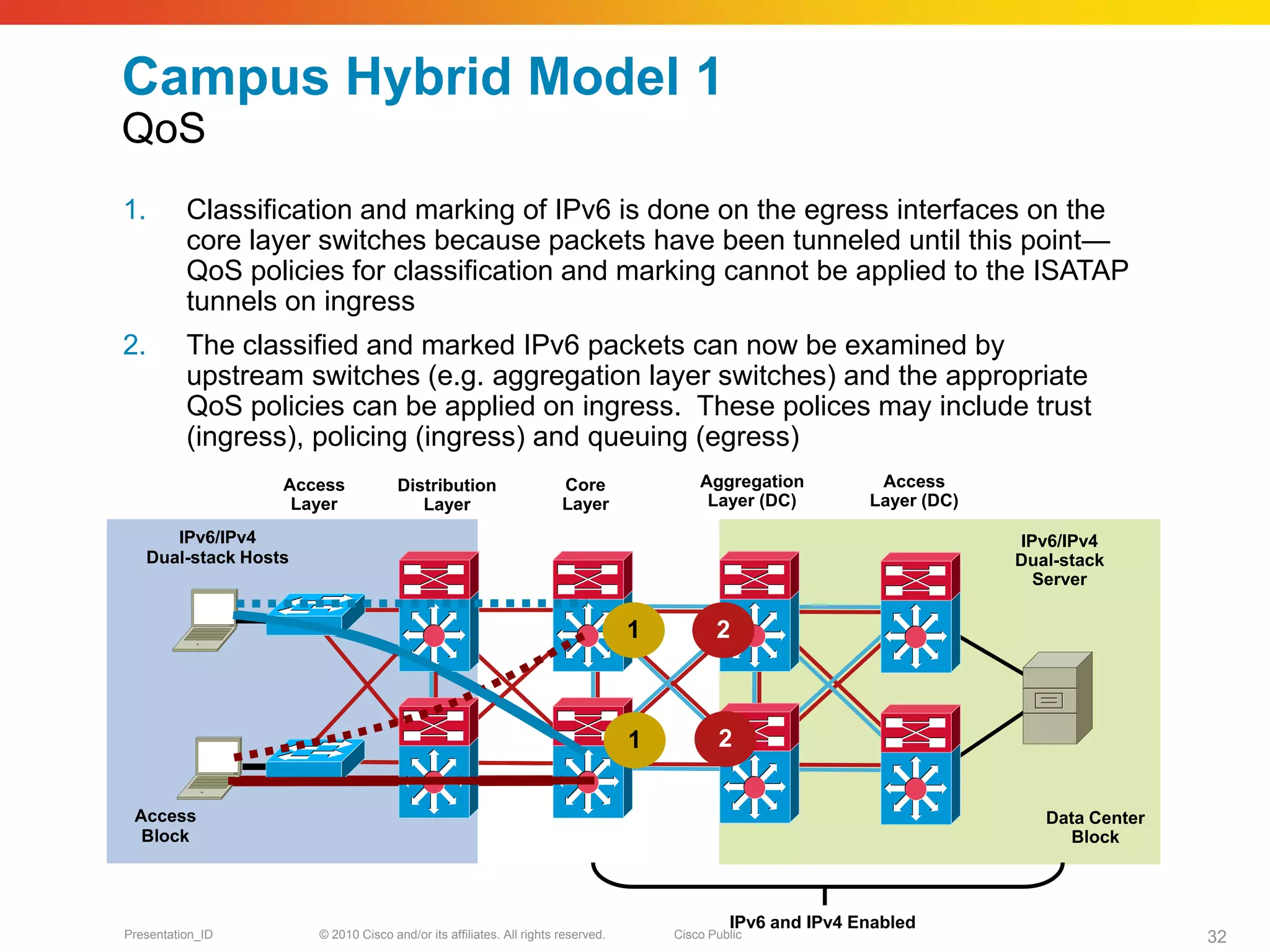

32. Campus Hybrid Model 1
QoS
1. Classification and marking of IPv6 is done on the egress interfaces on the
core layer switches because packets have been tunneled until this point—
QoS policies for classification and marking cannot be applied to the ISATAP
tunnels on ingress
2. The classified and marked IPv6 packets can now be examined by
upstream switches (e.g. aggregation layer switches) and the appropriate
QoS policies can be applied on ingress. These polices may include trust
(ingress), policing (ingress) and queuing (egress)
Access Distribution Core Aggregation Access
Layer Layer Layer Layer (DC) Layer (DC)
IPv6/IPv4 IPv6/IPv4
Dual-stack Hosts Dual-stack
Server
1 2
1 2
Access Data Center
Block Block
IPv6 and IPv4 Enabled
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 32

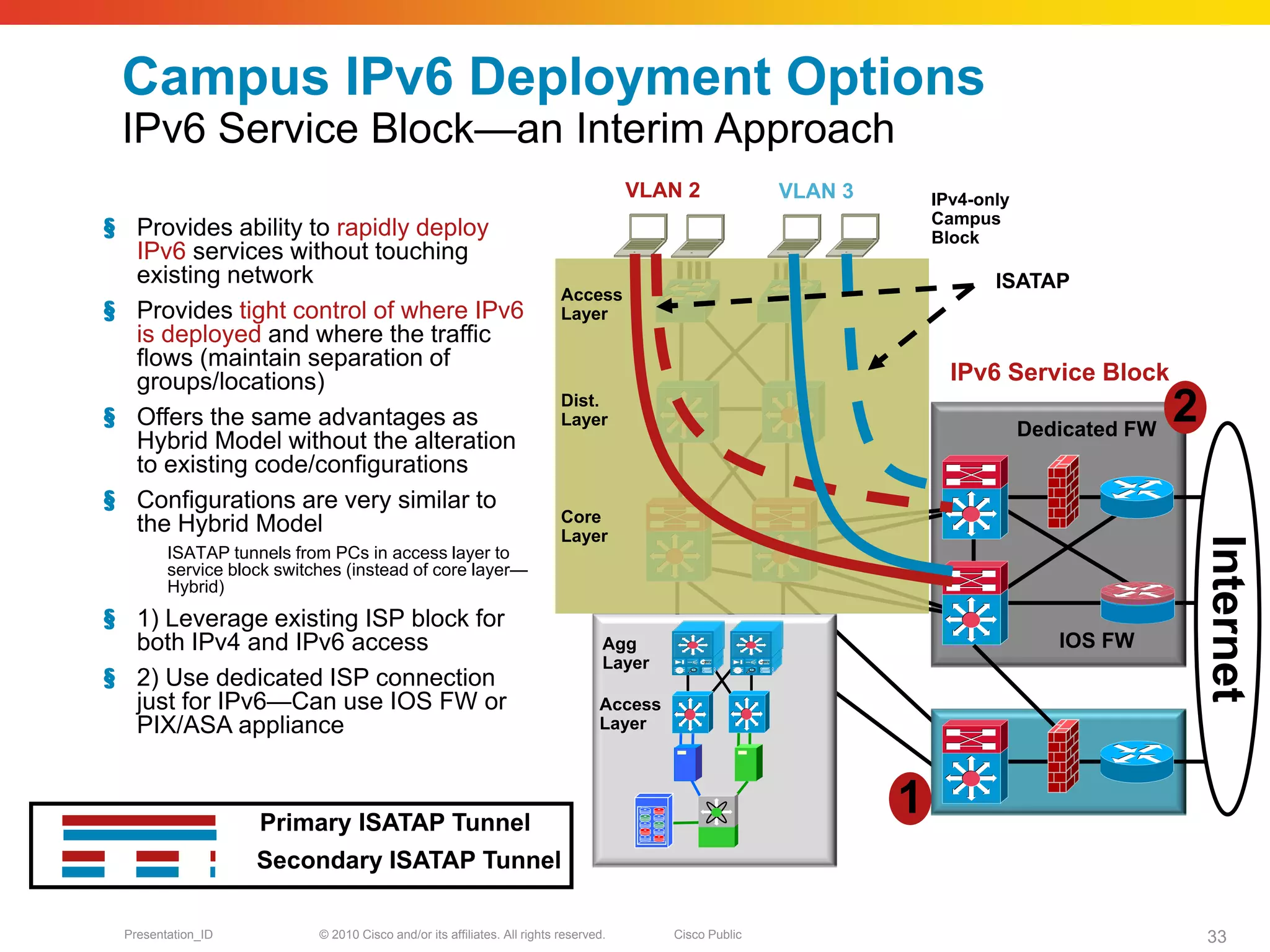

33. Campus IPv6 Deployment Options
IPv6 Service Block—an Interim Approach
VLAN 2 VLAN 3 IPv4-only
Campus
§ Provides ability to rapidly deploy Block
IPv6 services without touching
existing network ISATAP
Access
§ Provides tight control of where IPv6 Layer
is deployed and where the traffic
flows (maintain separation of
groups/locations) IPv6 Service Block
§ Offers the same advantages as
Dist.
Layer
Dedicated FW
2
Hybrid Model without the alteration
to existing code/configurations
§ Configurations are very similar to
Core
the Hybrid Model Layer
Internet
ISATAP tunnels from PCs in access layer to
service block switches (instead of core layer—
Hybrid)
§ 1) Leverage existing ISP block for
both IPv4 and IPv6 access Agg IOS FW
Layer
§ 2) Use dedicated ISP connection
just for IPv6—Can use IOS FW or Access
PIX/ASA appliance Layer
Primary ISATAP Tunnel
1
WAN/ISP Block
Secondary ISATAP Tunnel
Data Center Block
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 33

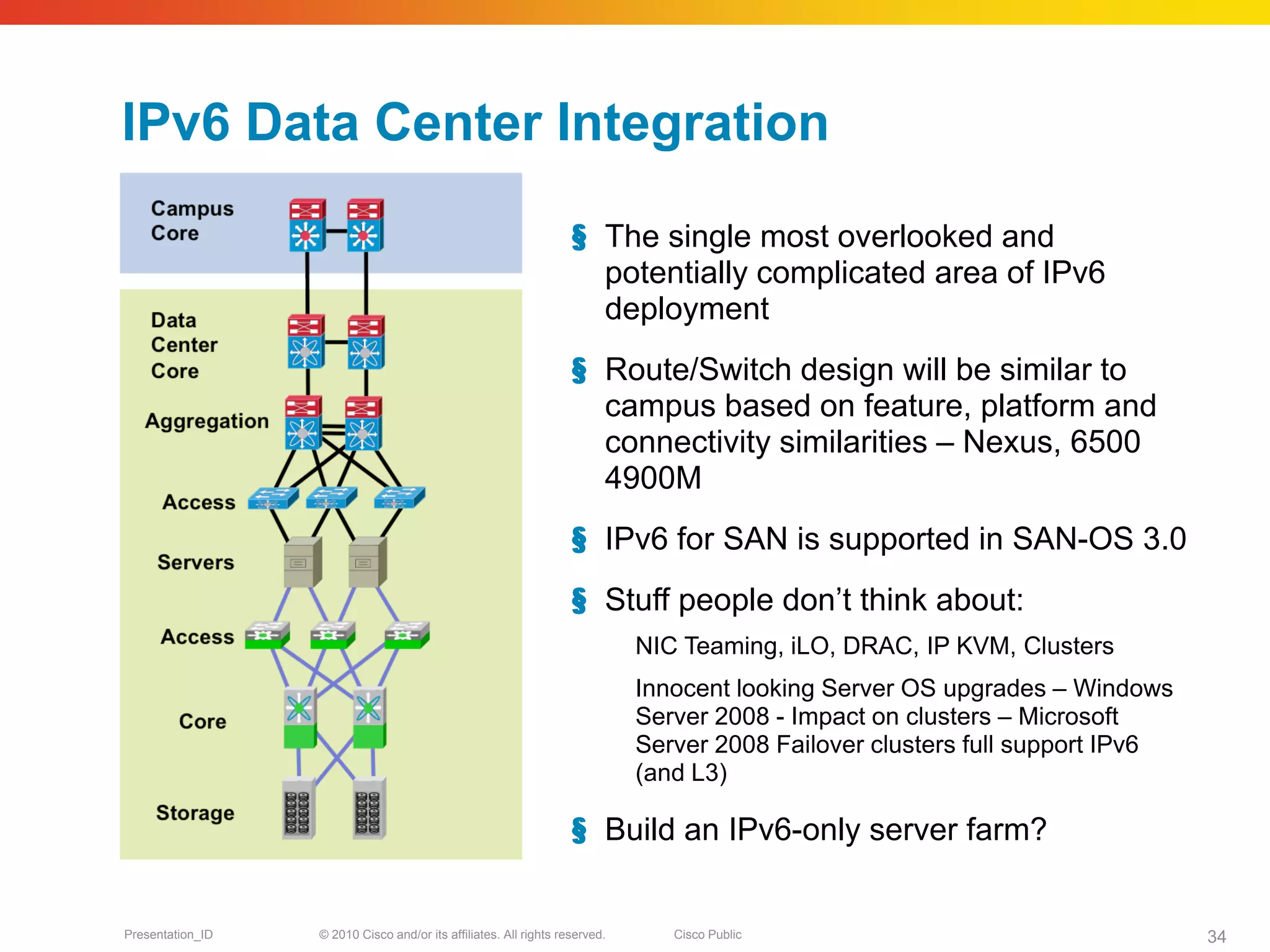

34. IPv6 Data Center Integration
§ The single most overlooked and
potentially complicated area of IPv6
deployment
§ Route/Switch design will be similar to
campus based on feature, platform and
connectivity similarities – Nexus, 6500
4900M
§ IPv6 for SAN is supported in SAN-OS 3.0
§ Stuff people don’t think about:
NIC Teaming, iLO, DRAC, IP KVM, Clusters
Innocent looking Server OS upgrades – Windows
Server 2008 - Impact on clusters – Microsoft
Server 2008 Failover clusters full support IPv6
(and L3)
§ Build an IPv6-only server farm?
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 34

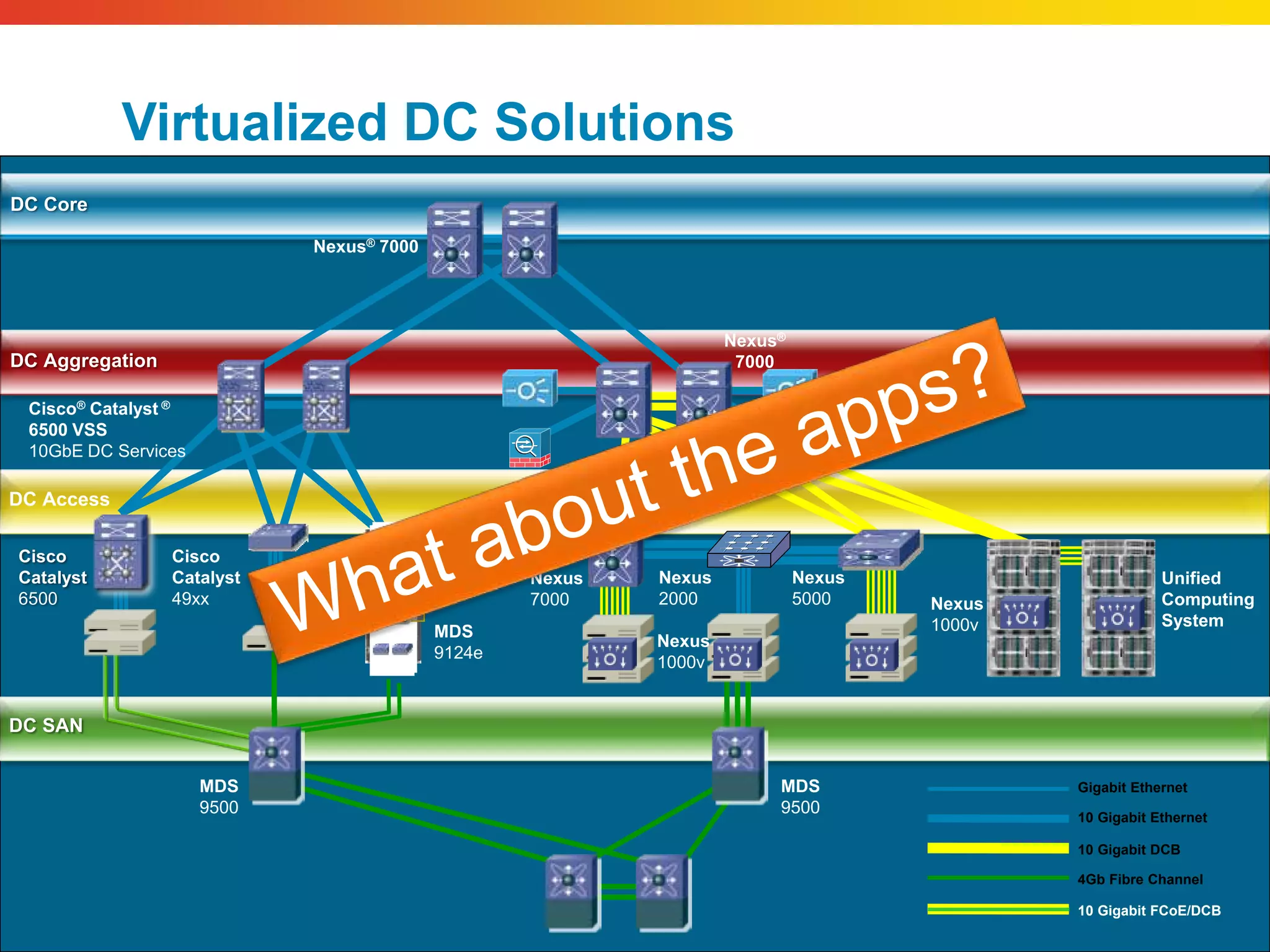

35. Virtualized DC Solutions
DC Core
Nexus® 7000
Nexus®
DC Aggregation 7000
Cisco® Catalyst ® ACE/ASA/WAAS
6500 VSS DC Services
10GbE DC Services
DC Access
Cisco Cisco CBS
Catalyst Catalyst 3100 Nexus Nexus Nexus Unified
6500 49xx 7000 2000 5000 Nexus Computing
1000v System
MDS
Nexus
9124e
1000v
DC SAN
MDS MDS Gigabit Ethernet
9500 9500 10 Gigabit Ethernet
10 Gigabit DCB
4Gb Fibre Channel
10 Gigabit FCoE/DCB
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 35

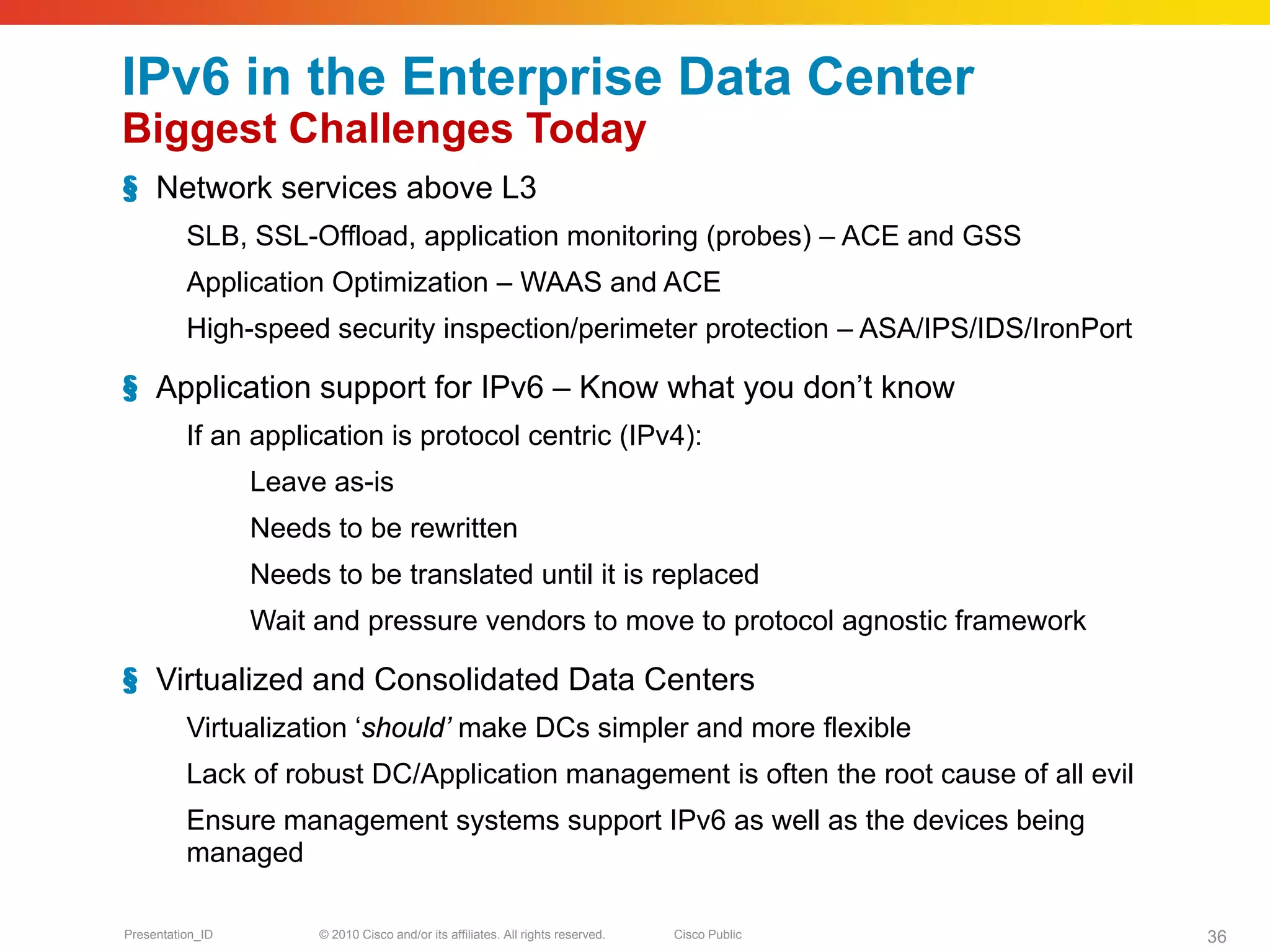

36. IPv6 in the Enterprise Data Center
Biggest Challenges Today
§ Network services above L3
SLB, SSL-Offload, application monitoring (probes) – ACE and GSS
Application Optimization – WAAS and ACE
High-speed security inspection/perimeter protection – ASA/IPS/IDS/IronPort
§ Application support for IPv6 – Know what you don’t know
If an application is protocol centric (IPv4):
Leave as-is
Needs to be rewritten
Needs to be translated until it is replaced
Wait and pressure vendors to move to protocol agnostic framework
§ Virtualized and Consolidated Data Centers
Virtualization ‘should’ make DCs simpler and more flexible
Lack of robust DC/Application management is often the root cause of all evil
Ensure management systems support IPv6 as well as the devices being
managed
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 36

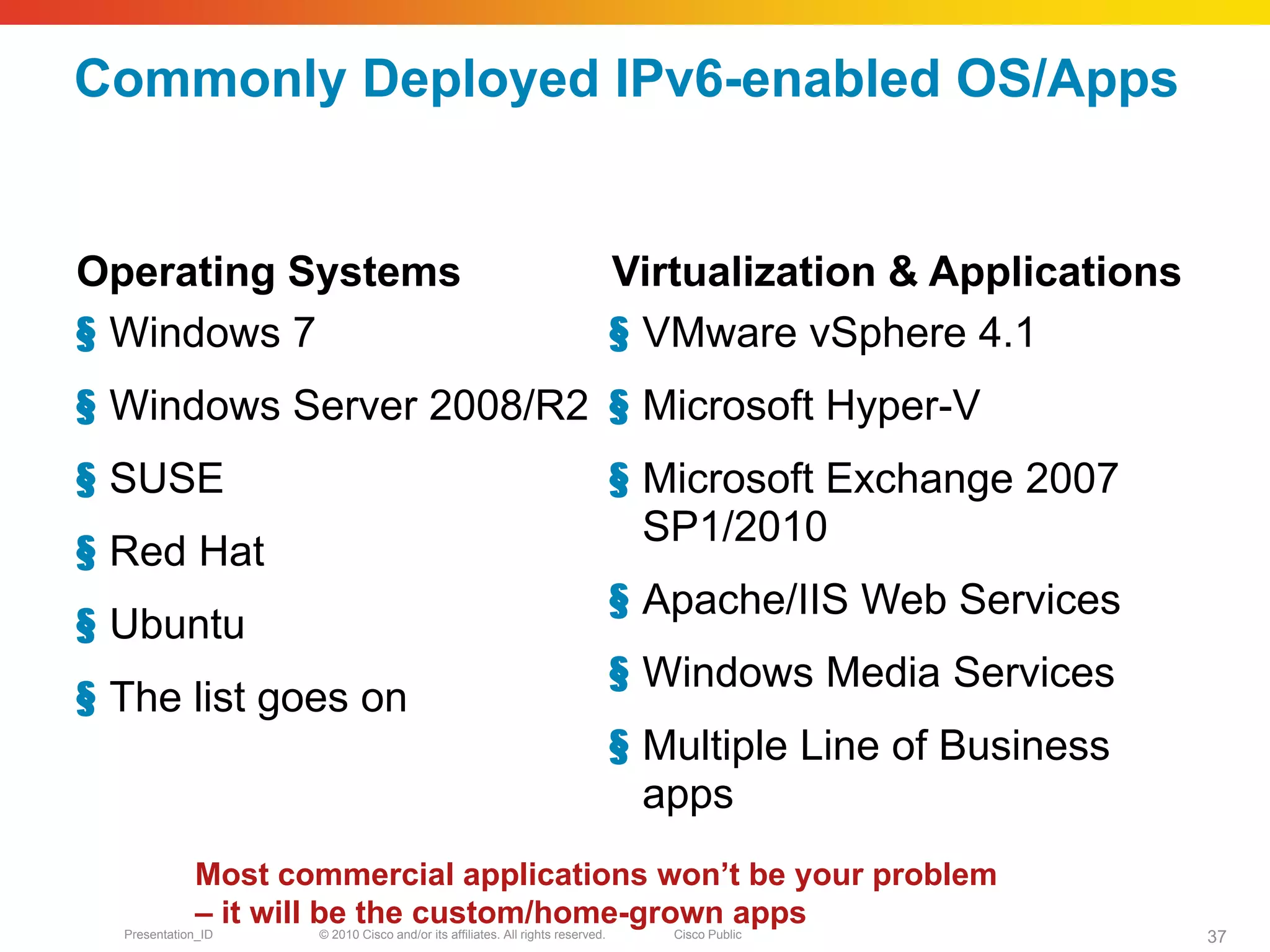

37. Commonly Deployed IPv6-enabled OS/Apps
Operating Systems Virtualization & Applications
§ Windows 7 § VMware vSphere 4.1
§ Windows Server 2008/R2 § Microsoft Hyper-V
§ SUSE § Microsoft Exchange 2007
SP1/2010
§ Red Hat
§ Apache/IIS Web Services
§ Ubuntu
§ Windows Media Services
§ The list goes on
§ Multiple Line of Business
apps
Most commercial applications won’t be your problem
– it will be the custom/home-grown apps
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 37

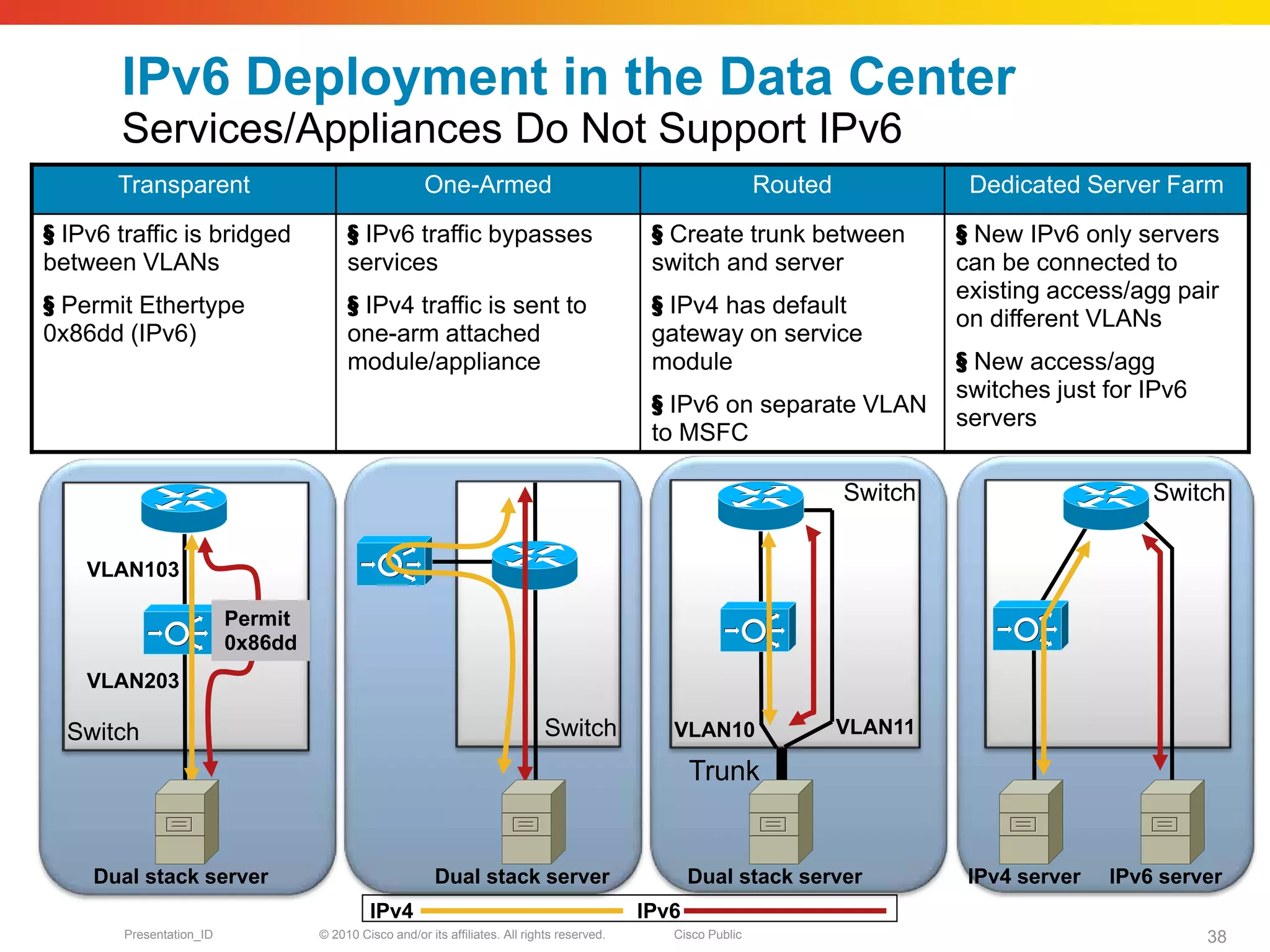

38. IPv6 Deployment in the Data Center
Services/Appliances Do Not Support IPv6
Transparent One-Armed Routed Dedicated Server Farm
§ IPv6 traffic is bridged § IPv6 traffic bypasses § Create trunk between § New IPv6 only servers
between VLANs services switch and server can be connected to
existing access/agg pair
§ Permit Ethertype § IPv4 traffic is sent to § IPv4 has default
on different VLANs
0x86dd (IPv6) one-arm attached gateway on service
module/appliance module § New access/agg
switches just for IPv6
§ IPv6 on separate VLAN
servers
to MSFC
Switch Switch
VLAN103
Permit
0x86dd
VLAN203
Switch Switch VLAN10 VLAN11
Trunk
Dual stack server Dual stack server Dual stack server IPv4 server IPv6 server
IPv4 IPv6
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 38

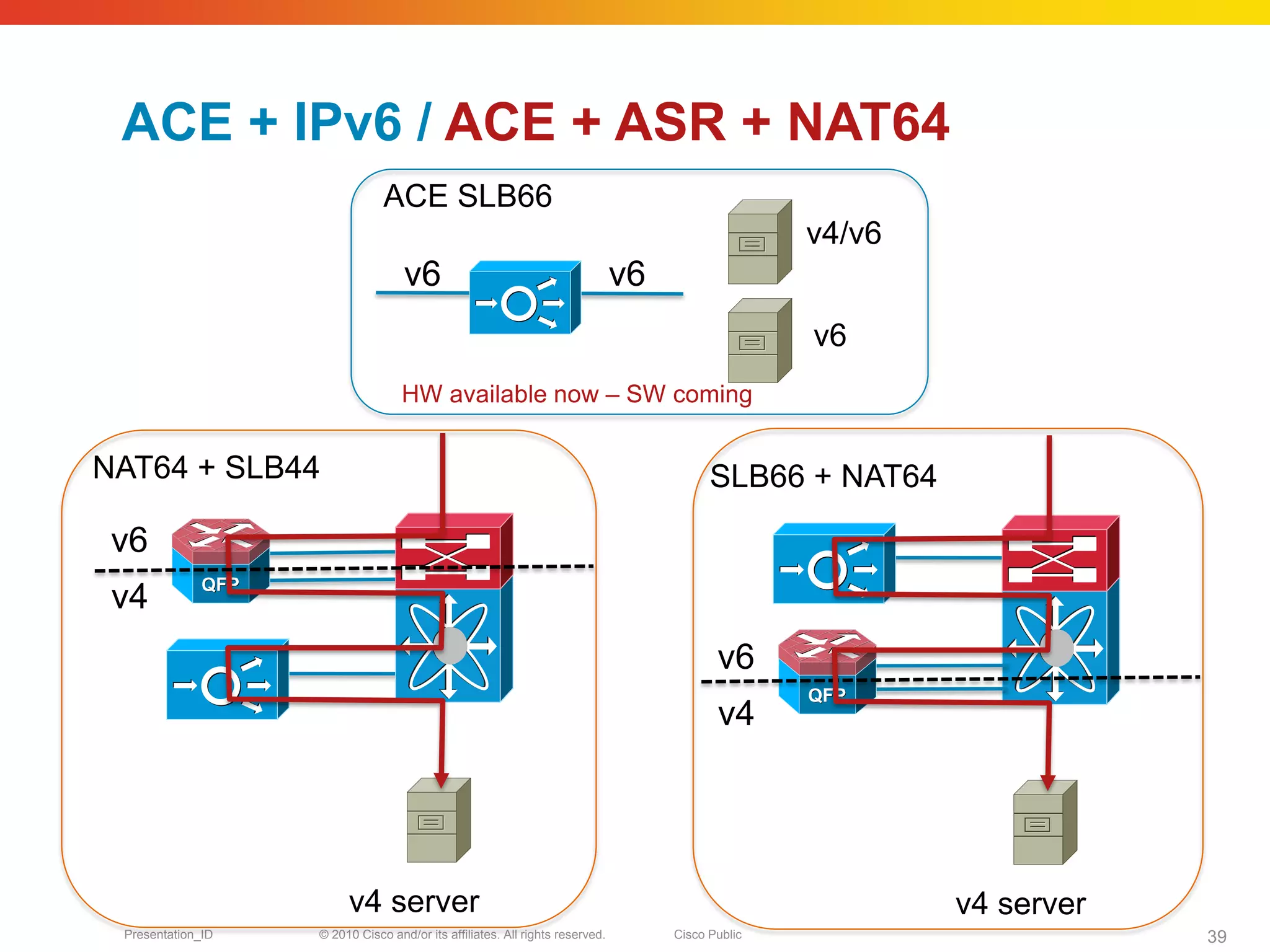

39. ACE + IPv6 / ACE + ASR + NAT64
ACE SLB66
v4/v6
v6 v6
v6
HW available now – SW coming
NAT64 + SLB44 SLB66 + NAT64
v6
v4
v6
v4
v4 server v4 server
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 39

40. Deploying IPv6 in Branch Networks:
http://www.cisco.com/univercd/cc/td/doc/solution/brchipv6.pdf
#CNSF2011
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 40

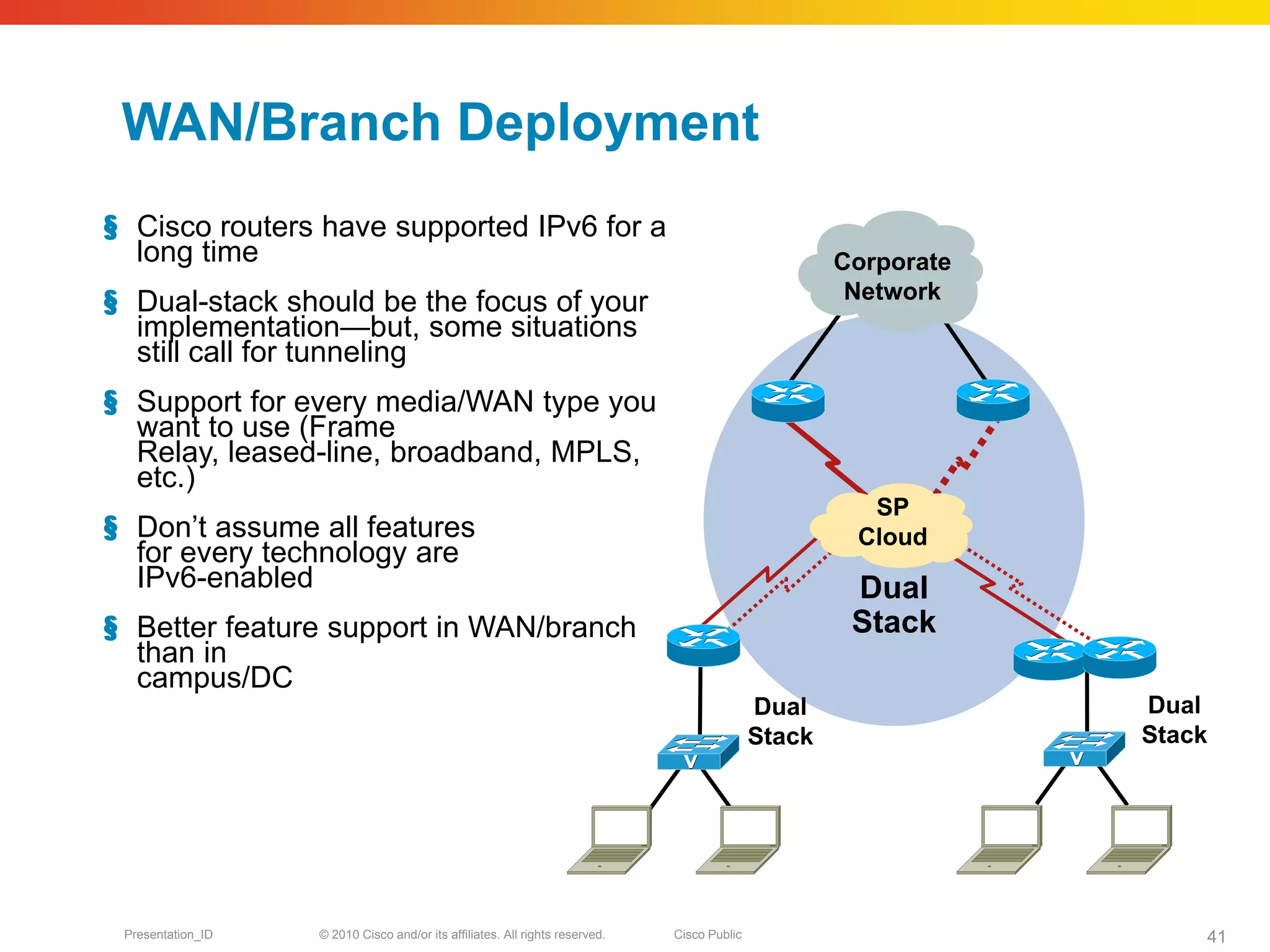

41. WAN/Branch Deployment
§ Cisco routers have supported IPv6 for a
long time Corporate
§ Dual-stack should be the focus of your Network
implementation—but, some situations
still call for tunneling
§ Support for every media/WAN type you
want to use (Frame
Relay, leased-line, broadband, MPLS,
etc.)
SP
§ Don’t assume all features Cloud
for every technology are
IPv6-enabled Dual
§ Better feature support in WAN/branch Stack
than in
campus/DC
Dual Dual
Stack Stack
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 41

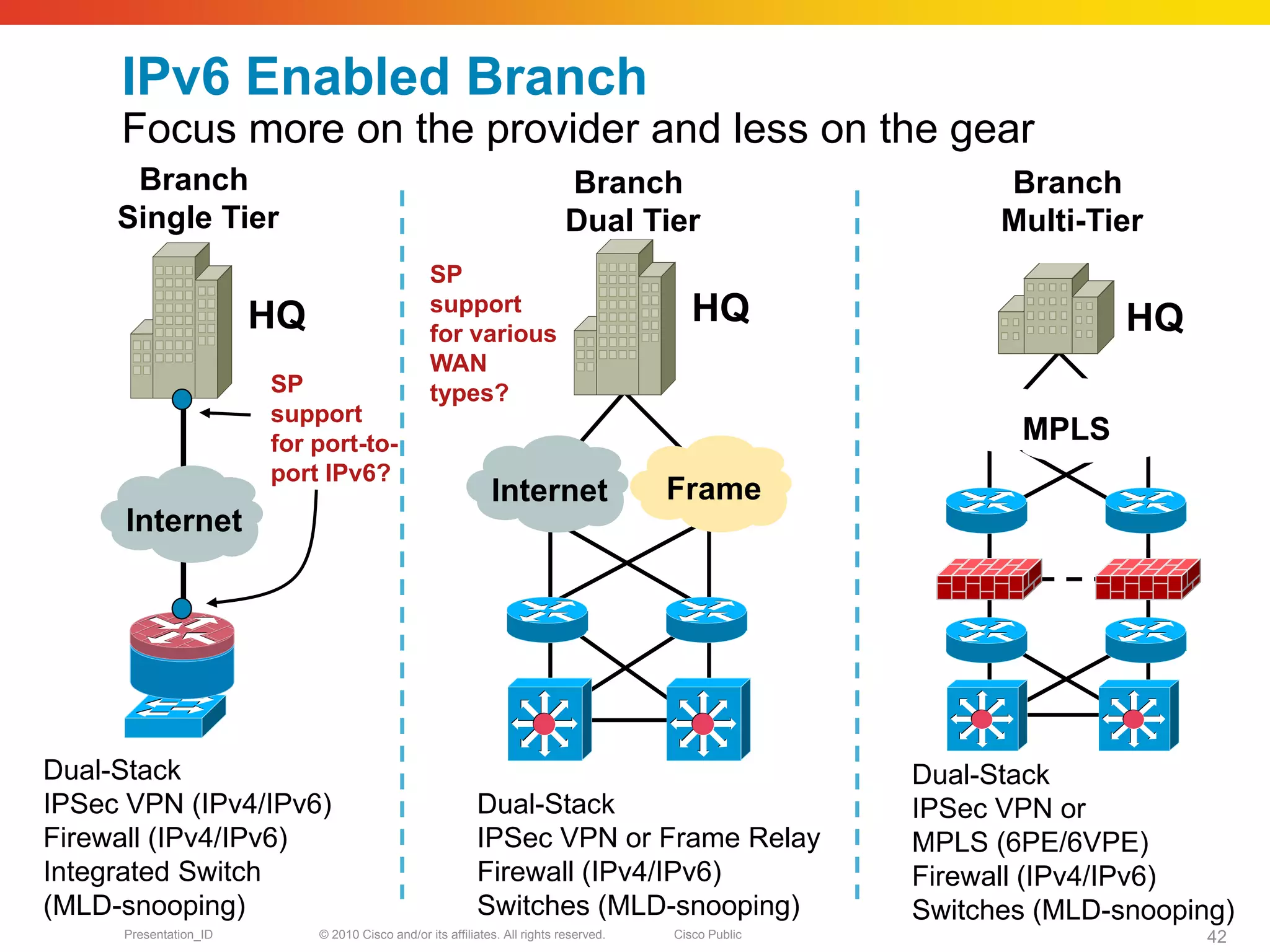

42. IPv6 Enabled Branch
Focus more on the provider and less on the gear
Branch Branch Branch
Single Tier Dual Tier Multi-Tier
SP
HQ support HQ HQ
for various
WAN
SP types?
support
for port-to- MPLS
port IPv6?
Internet Frame
Internet
Dual-Stack Dual-Stack
IPSec VPN (IPv4/IPv6) Dual-Stack IPSec VPN or
Firewall (IPv4/IPv6) IPSec VPN or Frame Relay MPLS (6PE/6VPE)
Integrated Switch Firewall (IPv4/IPv6) Firewall (IPv4/IPv6)
(MLD-snooping) Switches (MLD-snooping) Switches (MLD-snooping)
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 42

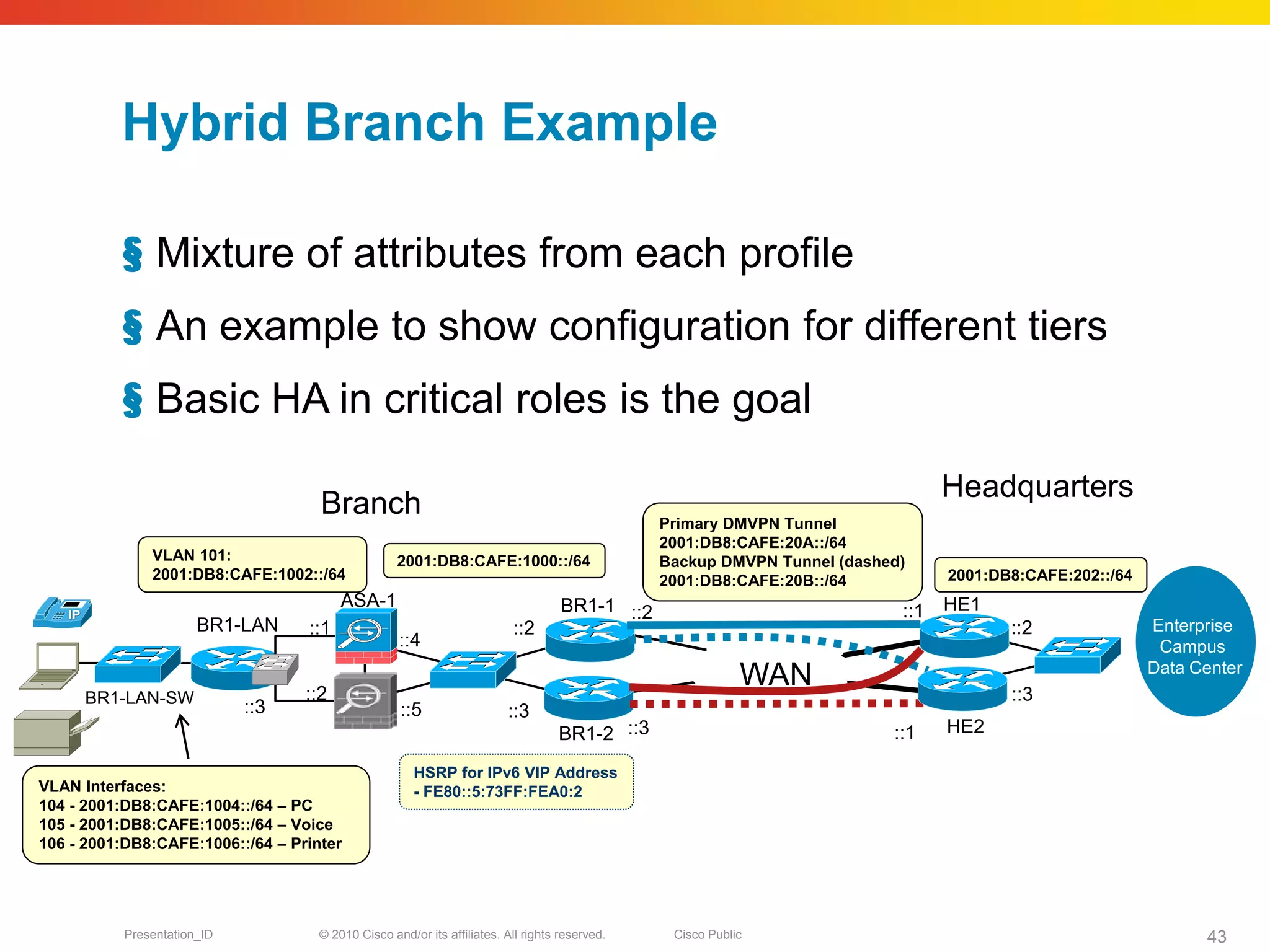

43. Hybrid Branch Example
§ Mixture of attributes from each profile
§ An example to show configuration for different tiers
§ Basic HA in critical roles is the goal
Headquarters
Branch Primary DMVPN Tunnel
2001:DB8:CAFE:20A::/64
VLAN 101: 2001:DB8:CAFE:1000::/64 Backup DMVPN Tunnel (dashed)
2001:DB8:CAFE:1002::/64 2001:DB8:CAFE:20B::/64 2001:DB8:CAFE:202::/64
ASA-1 BR1-1 ::2 ::1 HE1
BR1-LAN ::1 ::2 ::2 Enterprise
::4 Campus
Data Center
::2
WAN ::3
BR1-LAN-SW
::3 ::5 ::3
BR1-2 ::3 ::1 HE2
HSRP for IPv6 VIP Address
VLAN Interfaces: - FE80::5:73FF:FEA0:2
104 - 2001:DB8:CAFE:1004::/64 – PC
105 - 2001:DB8:CAFE:1005::/64 – Voice
106 - 2001:DB8:CAFE:1006::/64 – Printer
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 43

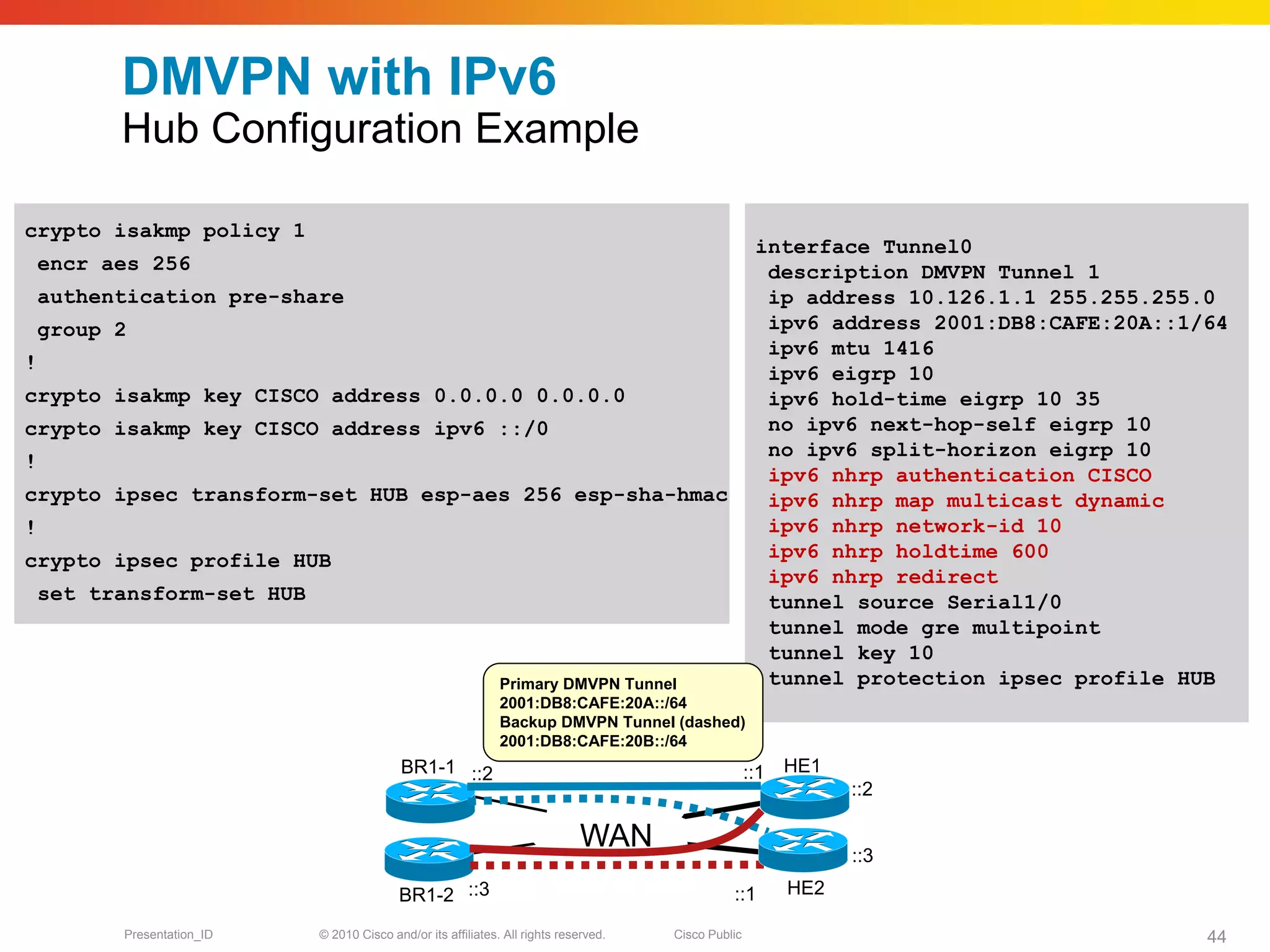

44. DMVPN with IPv6
Hub Configuration Example
crypto isakmp policy 1
interface Tunnel0
encr aes 256 description DMVPN Tunnel 1
authentication pre-share ip address 10.126.1.1 255.255.255.0
group 2 ipv6 address 2001:DB8:CAFE:20A::1/64
ipv6 mtu 1416
!
ipv6 eigrp 10
crypto isakmp key CISCO address 0.0.0.0 0.0.0.0 ipv6 hold-time eigrp 10 35
crypto isakmp key CISCO address ipv6 ::/0 no ipv6 next-hop-self eigrp 10
no ipv6 split-horizon eigrp 10
!
ipv6 nhrp authentication CISCO
crypto ipsec transform-set HUB esp-aes 256 esp-sha-hmac ipv6 nhrp map multicast dynamic
! ipv6 nhrp network-id 10
crypto ipsec profile HUB ipv6 nhrp holdtime 600
ipv6 nhrp redirect
set transform-set HUB tunnel source Serial1/0
tunnel mode gre multipoint
tunnel key 10
Primary DMVPN Tunnel tunnel protection ipsec profile HUB
2001:DB8:CAFE:20A::/64
Backup DMVPN Tunnel (dashed)
2001:DB8:CAFE:20B::/64
BR1-1 ::2 ::1 HE1
::2
WAN ::3
BR1-2 ::3 ::1 HE2
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 44

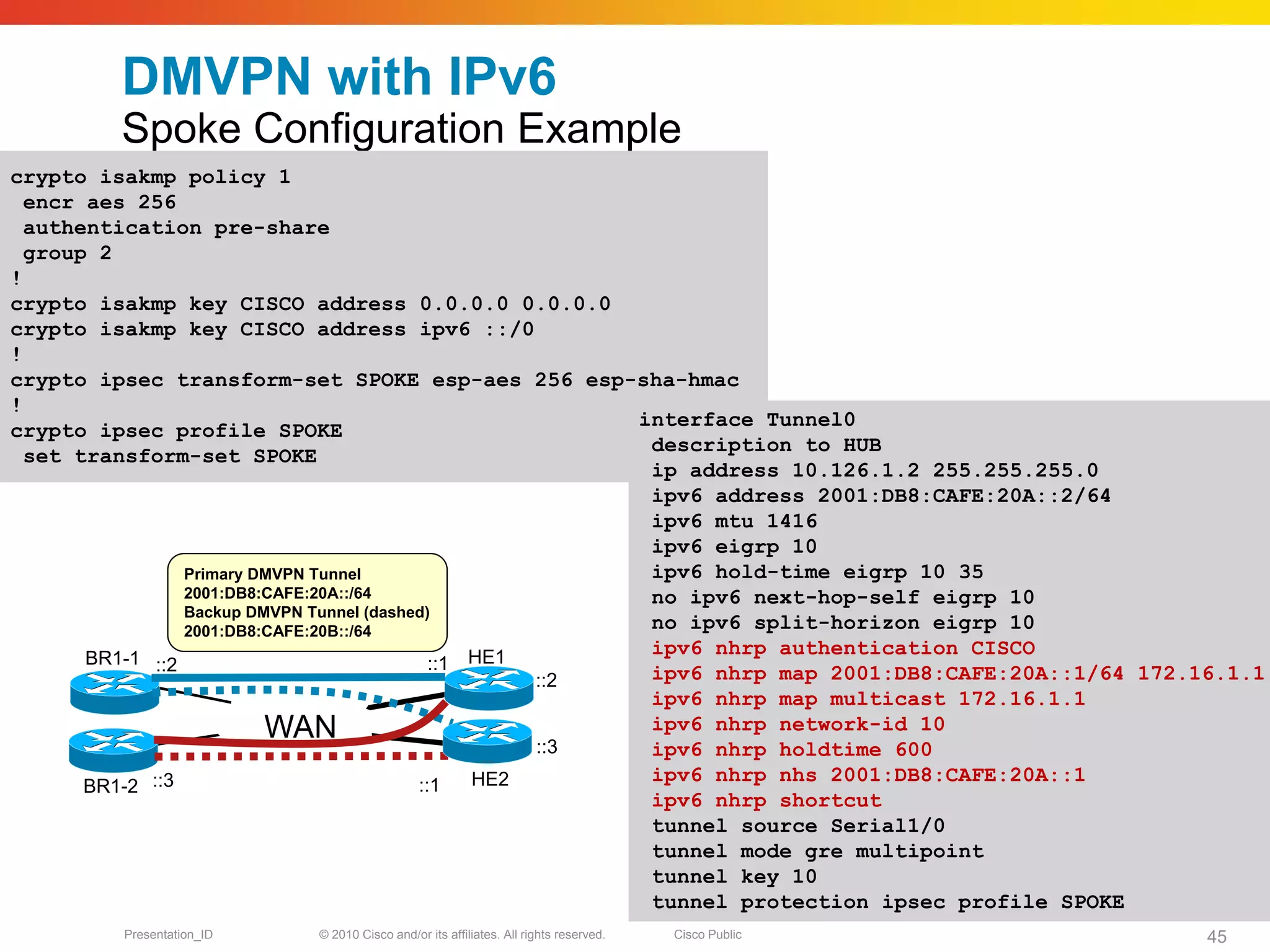

45. DMVPN with IPv6
Spoke Configuration Example
crypto isakmp policy 1
encr aes 256
authentication pre-share
group 2
!
crypto isakmp key CISCO address 0.0.0.0 0.0.0.0
crypto isakmp key CISCO address ipv6 ::/0
!
crypto ipsec transform-set SPOKE esp-aes 256 esp-sha-hmac
!
interface Tunnel0
crypto ipsec profile SPOKE
description to HUB
set transform-set SPOKE
ip address 10.126.1.2 255.255.255.0
ipv6 address 2001:DB8:CAFE:20A::2/64
ipv6 mtu 1416
ipv6 eigrp 10
Primary DMVPN Tunnel ipv6 hold-time eigrp 10 35
2001:DB8:CAFE:20A::/64 no ipv6 next-hop-self eigrp 10
Backup DMVPN Tunnel (dashed)
2001:DB8:CAFE:20B::/64 no ipv6 split-horizon eigrp 10
ipv6 nhrp authentication CISCO
BR1-1 ::2 ::1 HE1 ipv6 nhrp map 2001:DB8:CAFE:20A::1/64 172.16.1.1
::2
ipv6 nhrp map multicast 172.16.1.1
WAN ::3
ipv6 nhrp network-id 10
ipv6 nhrp holdtime 600
HE2 ipv6 nhrp nhs 2001:DB8:CAFE:20A::1
BR1-2 ::3 ::1
ipv6 nhrp shortcut
tunnel source Serial1/0
tunnel mode gre multipoint
tunnel key 10
tunnel protection ipsec profile SPOKE
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 45

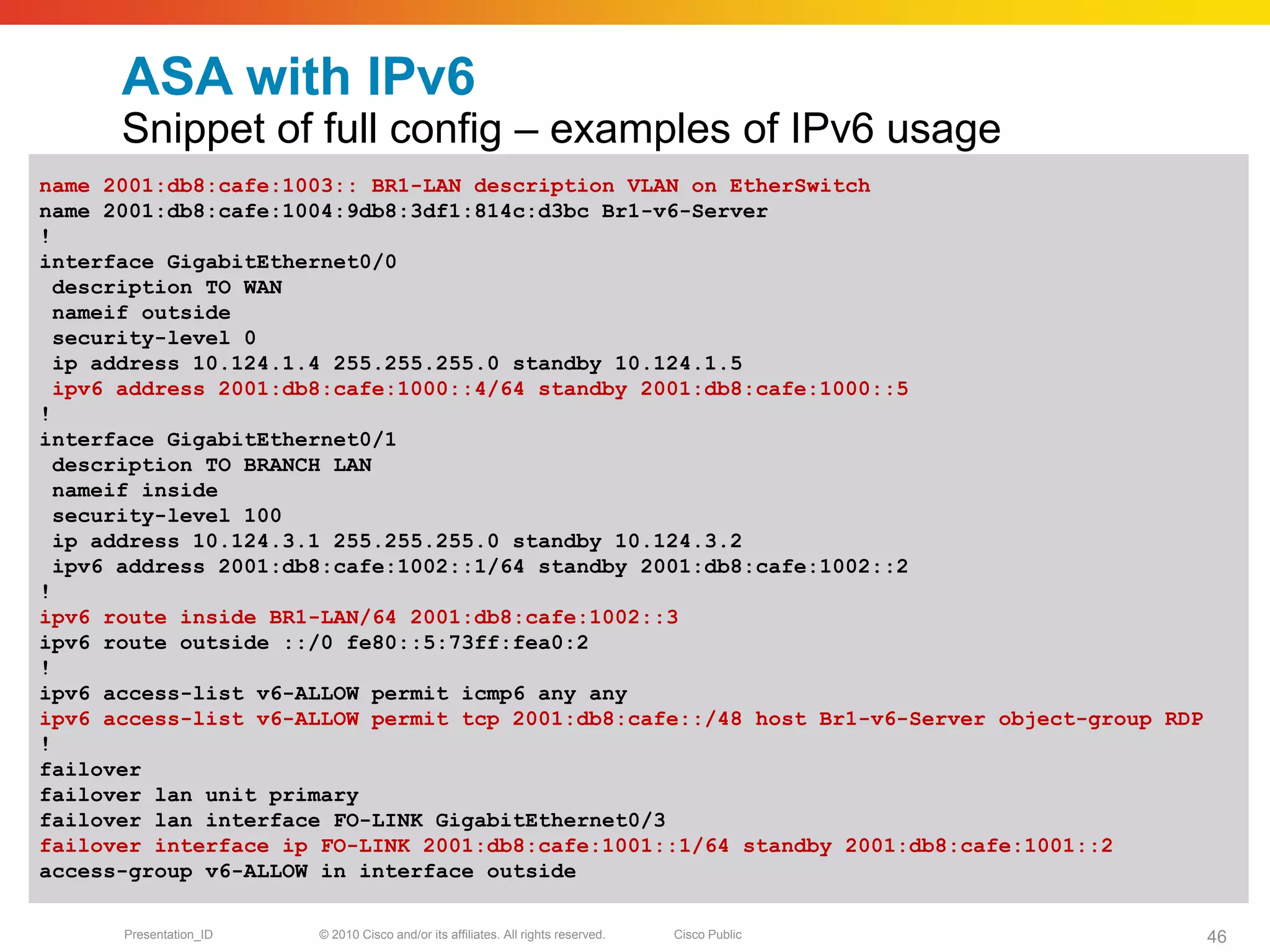

46. ASA with IPv6
Snippet of full config – examples of IPv6 usage
name 2001:db8:cafe:1003:: BR1-LAN description VLAN on EtherSwitch
name 2001:db8:cafe:1004:9db8:3df1:814c:d3bc Br1-v6-Server
!
interface GigabitEthernet0/0
description TO WAN
nameif outside
security-level 0
ip address 10.124.1.4 255.255.255.0 standby 10.124.1.5
ipv6 address 2001:db8:cafe:1000::4/64 standby 2001:db8:cafe:1000::5
!
interface GigabitEthernet0/1
description TO BRANCH LAN
nameif inside
security-level 100
ip address 10.124.3.1 255.255.255.0 standby 10.124.3.2
ipv6 address 2001:db8:cafe:1002::1/64 standby 2001:db8:cafe:1002::2
!
ipv6 route inside BR1-LAN/64 2001:db8:cafe:1002::3
ipv6 route outside ::/0 fe80::5:73ff:fea0:2
!
ipv6 access-list v6-ALLOW permit icmp6 any any
ipv6 access-list v6-ALLOW permit tcp 2001:db8:cafe::/48 host Br1-v6-Server object-group RDP
!
failover
failover lan unit primary
failover lan interface FO-LINK GigabitEthernet0/3
failover interface ip FO-LINK 2001:db8:cafe:1001::1/64 standby 2001:db8:cafe:1001::2
access-group v6-ALLOW in interface outside
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 46

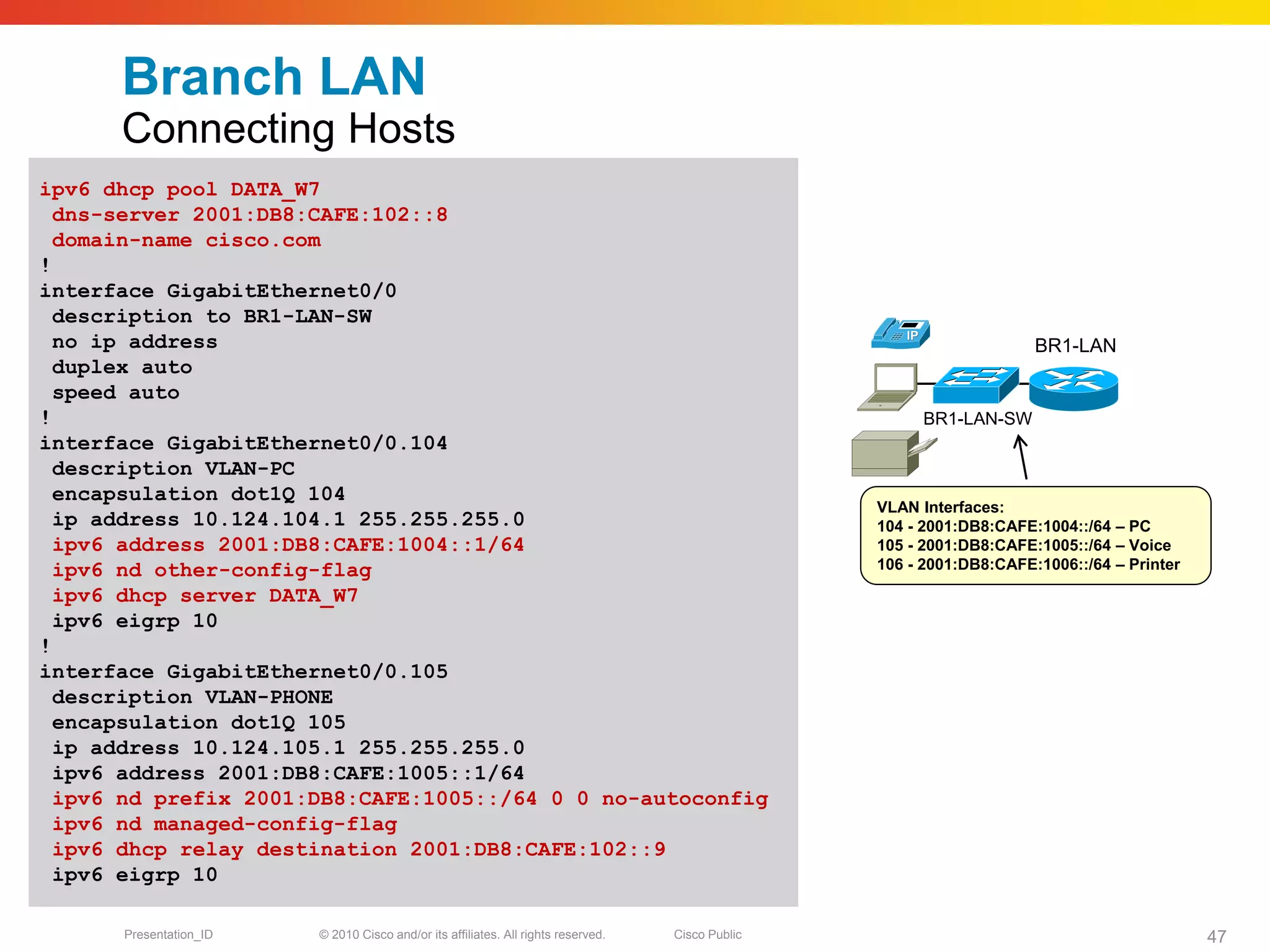

47. Branch LAN
Connecting Hosts
ipv6 dhcp pool DATA_W7
dns-server 2001:DB8:CAFE:102::8
domain-name cisco.com
!
interface GigabitEthernet0/0
description to BR1-LAN-SW
no ip address BR1-LAN
duplex auto
speed auto
! BR1-LAN-SW
interface GigabitEthernet0/0.104
description VLAN-PC
encapsulation dot1Q 104
VLAN Interfaces:
ip address 10.124.104.1 255.255.255.0 104 - 2001:DB8:CAFE:1004::/64 – PC
ipv6 address 2001:DB8:CAFE:1004::1/64 105 - 2001:DB8:CAFE:1005::/64 – Voice
ipv6 nd other-config-flag 106 - 2001:DB8:CAFE:1006::/64 – Printer
ipv6 dhcp server DATA_W7
ipv6 eigrp 10
!
interface GigabitEthernet0/0.105
description VLAN-PHONE
encapsulation dot1Q 105
ip address 10.124.105.1 255.255.255.0
ipv6 address 2001:DB8:CAFE:1005::1/64
ipv6 nd prefix 2001:DB8:CAFE:1005::/64 0 0 no-autoconfig
ipv6 nd managed-config-flag
ipv6 dhcp relay destination 2001:DB8:CAFE:102::9
ipv6 eigrp 10
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 47

48. #CNSF2011
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 48

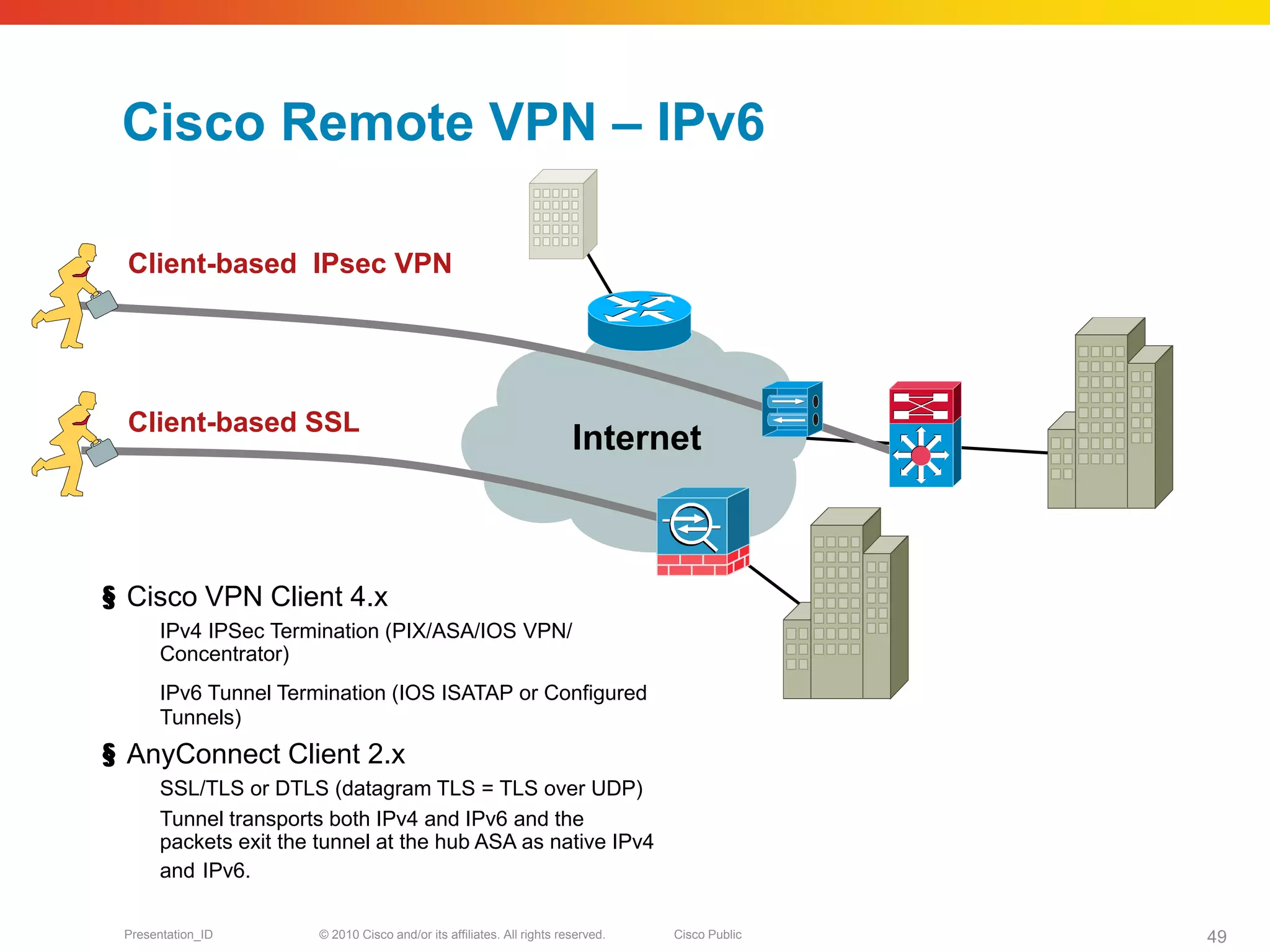

49. Cisco Remote VPN – IPv6
Client-based IPsec VPN
Client-based SSL
Internet
§ Cisco VPN Client 4.x
IPv4 IPSec Termination (PIX/ASA/IOS VPN/
Concentrator)
IPv6 Tunnel Termination (IOS ISATAP or Configured
Tunnels)
§ AnyConnect Client 2.x
SSL/TLS or DTLS (datagram TLS = TLS over UDP)
Tunnel transports both IPv4 and IPv6 and the
packets exit the tunnel at the hub ASA as native IPv4
and IPv6.
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 49

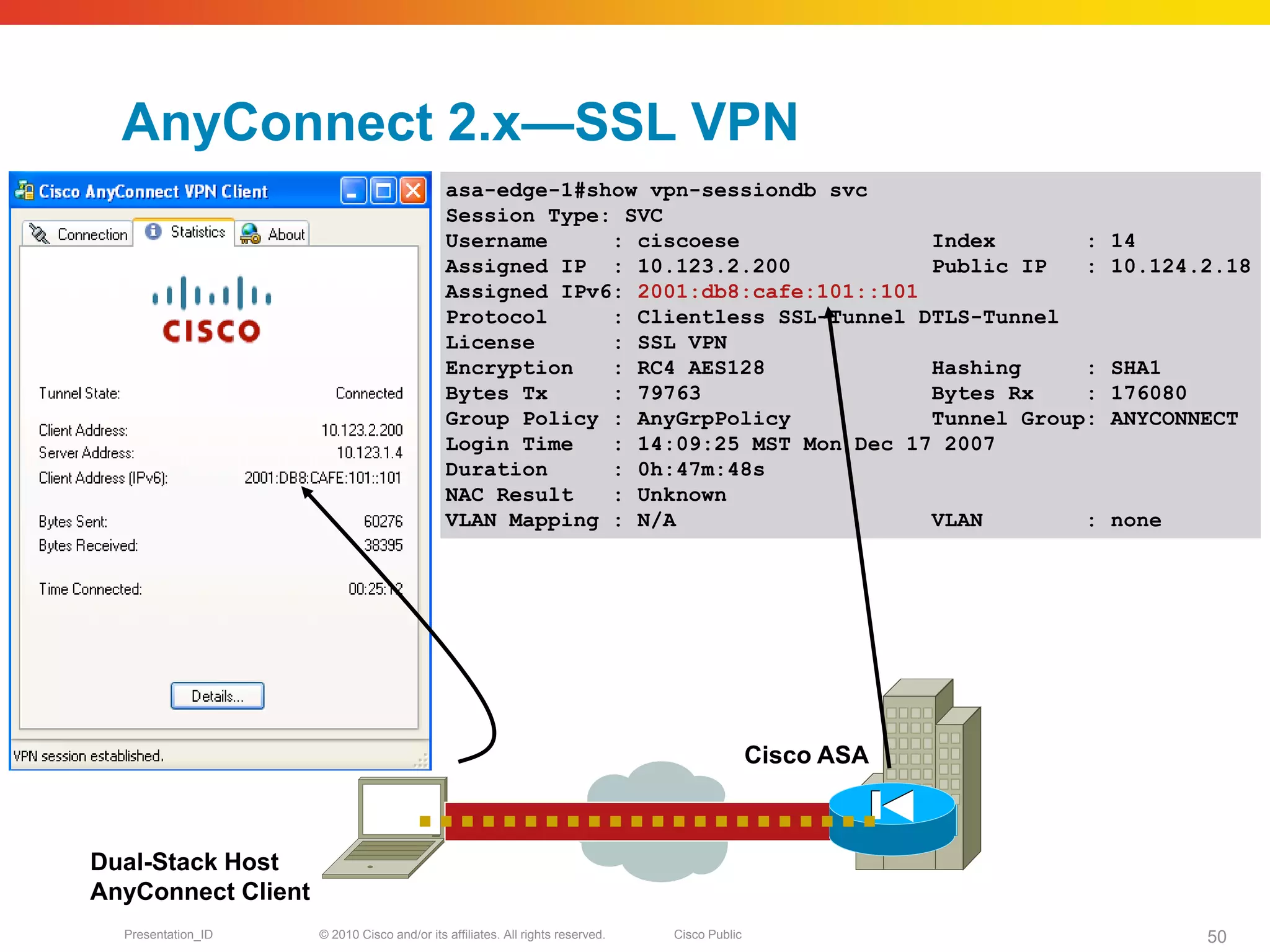

50. AnyConnect 2.x—SSL VPN
asa-edge-1#show vpn-sessiondb svc
Session Type: SVC
Username : ciscoese Index : 14
Assigned IP : 10.123.2.200 Public IP : 10.124.2.18
Assigned IPv6: 2001:db8:cafe:101::101
Protocol : Clientless SSL-Tunnel DTLS-Tunnel
License : SSL VPN
Encryption : RC4 AES128 Hashing : SHA1
Bytes Tx : 79763 Bytes Rx : 176080
Group Policy : AnyGrpPolicy Tunnel Group: ANYCONNECT
Login Time : 14:09:25 MST Mon Dec 17 2007
Duration : 0h:47m:48s
NAC Result : Unknown
VLAN Mapping : N/A VLAN : none
Cisco ASA
Dual-Stack Host
AnyConnect Client
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 50

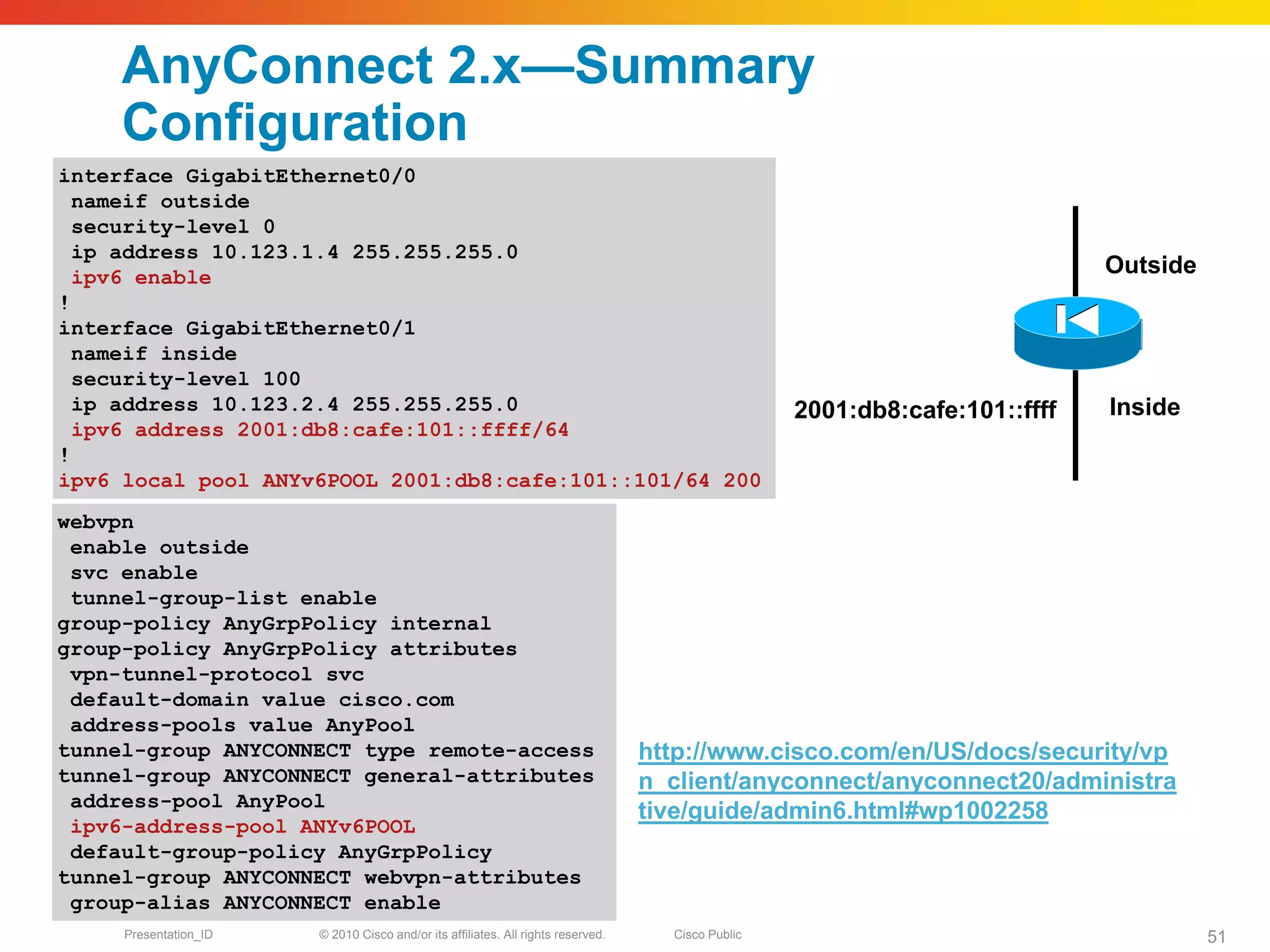

51. AnyConnect 2.x—Summary
Configuration
interface GigabitEthernet0/0
nameif outside
security-level 0
ip address 10.123.1.4 255.255.255.0
ipv6 enable Outside
!
interface GigabitEthernet0/1
nameif inside
security-level 100
ip address 10.123.2.4 255.255.255.0 2001:db8:cafe:101::ffff Inside
ipv6 address 2001:db8:cafe:101::ffff/64
!
ipv6 local pool ANYv6POOL 2001:db8:cafe:101::101/64 200
webvpn
enable outside
svc enable
tunnel-group-list enable
group-policy AnyGrpPolicy internal
group-policy AnyGrpPolicy attributes
vpn-tunnel-protocol svc
default-domain value cisco.com
address-pools value AnyPool
tunnel-group ANYCONNECT type remote-access http://www.cisco.com/en/US/docs/security/vp
tunnel-group ANYCONNECT general-attributes n_client/anyconnect/anyconnect20/administra
address-pool AnyPool
tive/guide/admin6.html#wp1002258
ipv6-address-pool ANYv6POOL
default-group-policy AnyGrpPolicy
tunnel-group ANYCONNECT webvpn-attributes
group-alias ANYCONNECT enable
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 51

52. #CNSF2011
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 52

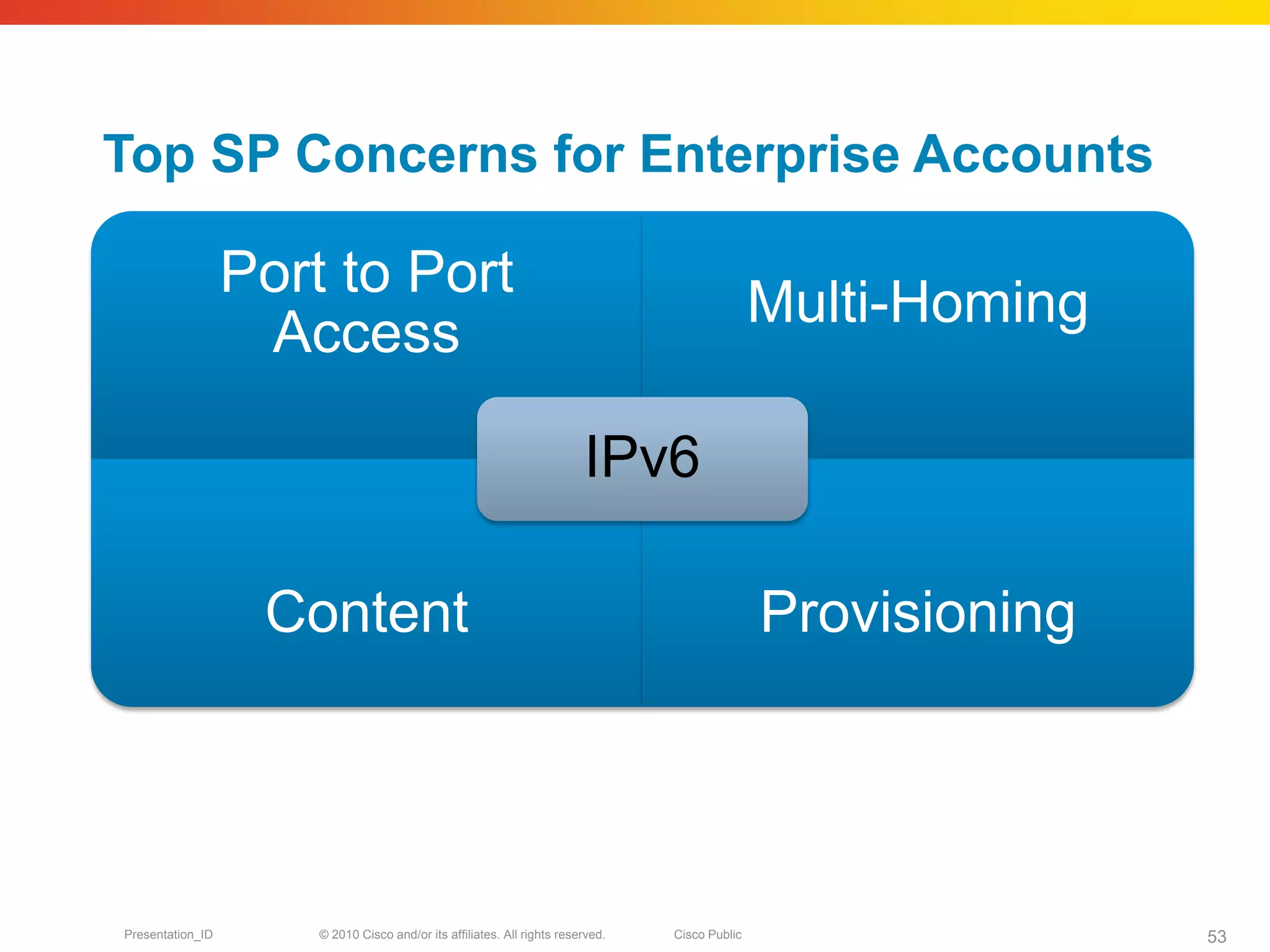

53. Top SP Concerns for Enterprise Accounts
Port to Port
Multi-Homing
Access
IPv6
Content Provisioning
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 53

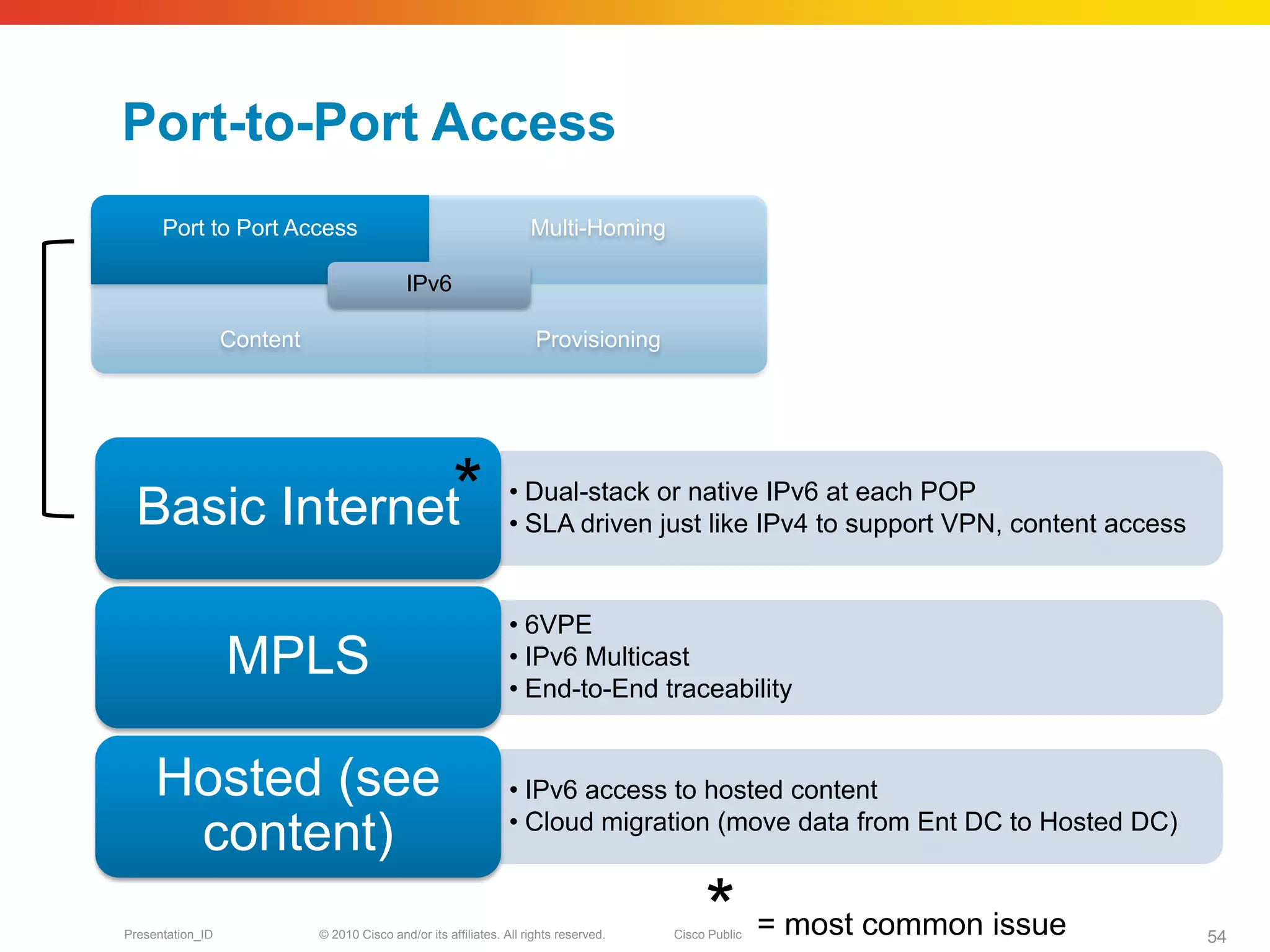

54. Port-to-Port Access
Port to Port Access Multi-Homing
IPv6
Content Provisioning
Basic Internet* • Dual-stack or native IPv6 at each POP
• SLA driven just like IPv4 to support VPN, content access
• 6VPE
MPLS • IPv6 Multicast
• End-to-End traceability
Hosted (see • IPv6 access to hosted content
• Cloud migration (move data from Ent DC to Hosted DC)
content)
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. * = most common issue
Cisco Public 54

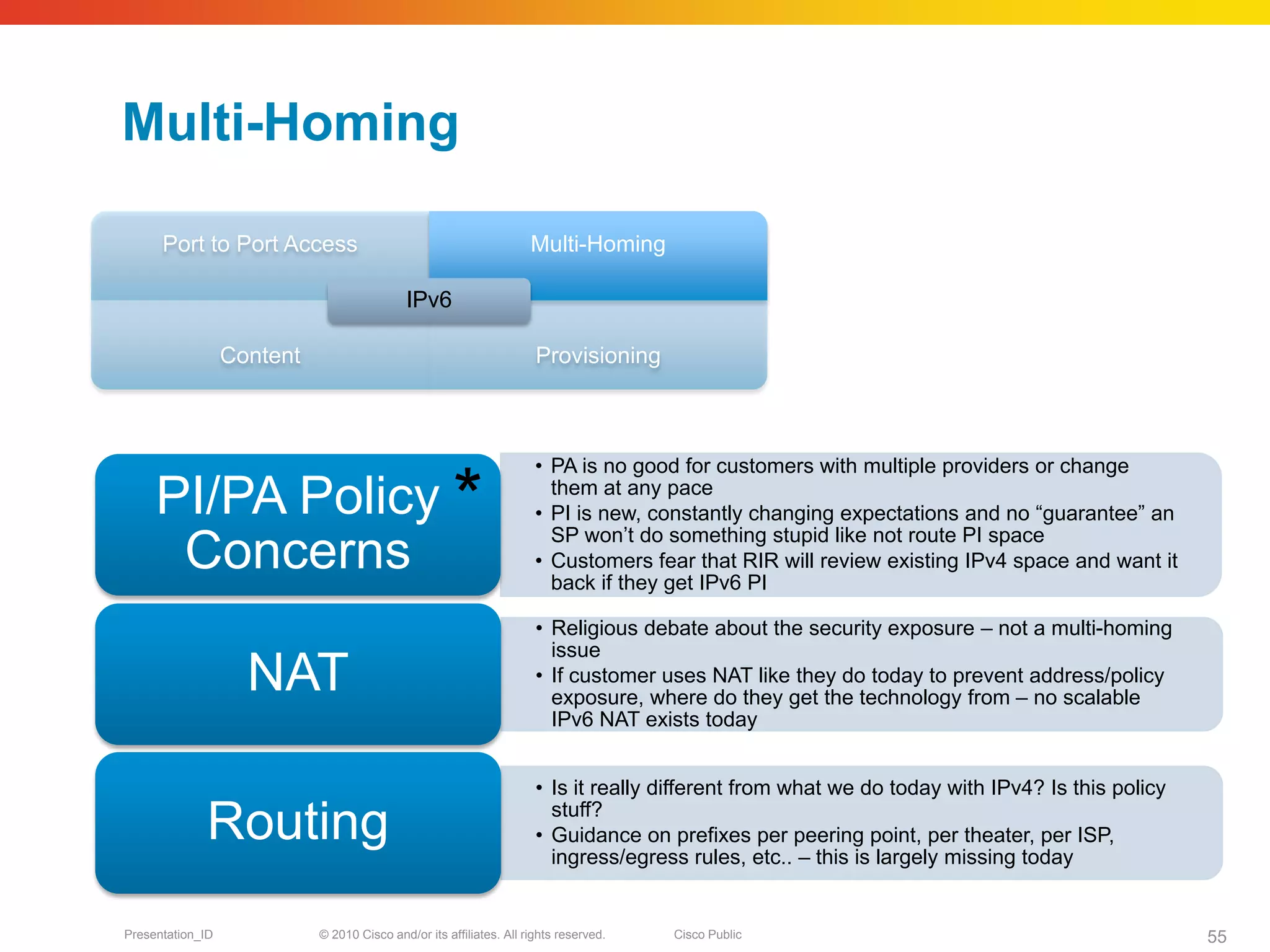

55. Multi-Homing
Port to Port Access Multi-Homing
IPv6
Content Provisioning
• PA is no good for customers with multiple providers or change
PI/PA Policy * them at any pace
• PI is new, constantly changing expectations and no “guarantee” an
SP won’t do something stupid like not route PI space
Concerns • Customers fear that RIR will review existing IPv4 space and want it
back if they get IPv6 PI
• Religious debate about the security exposure – not a multi-homing
issue
NAT • If customer uses NAT like they do today to prevent address/policy
exposure, where do they get the technology from – no scalable
IPv6 NAT exists today
• Is it really different from what we do today with IPv4? Is this policy
Routing stuff?
• Guidance on prefixes per peering point, per theater, per ISP,
ingress/egress rules, etc.. – this is largely missing today
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 55

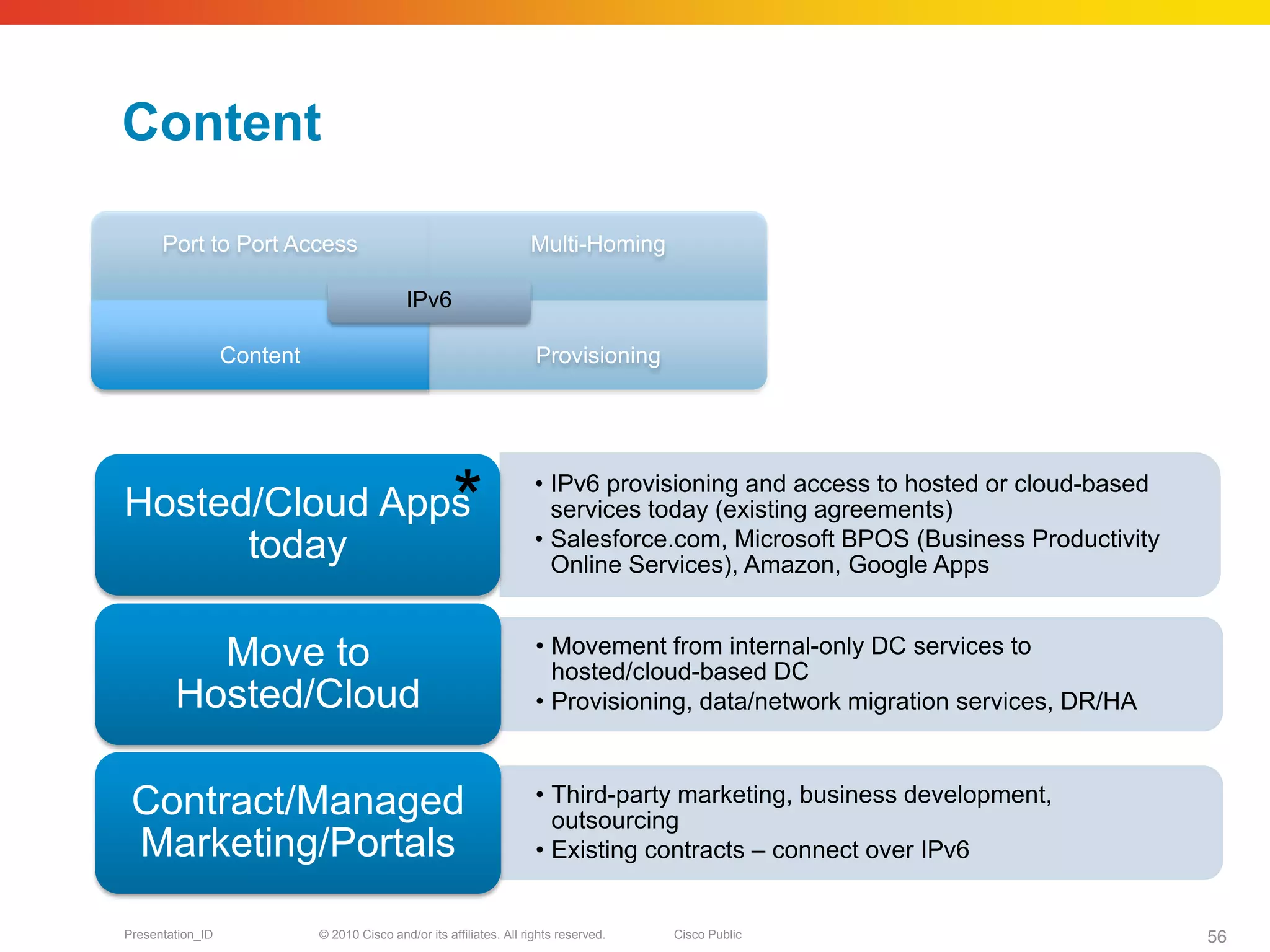

56. Content
Port to Port Access Multi-Homing
IPv6
Content Provisioning
Hosted/Cloud Apps
today
* • IPv6 provisioning and access to hosted or cloud-based
services today (existing agreements)
• Salesforce.com, Microsoft BPOS (Business Productivity
Online Services), Amazon, Google Apps
Move to • Movement from internal-only DC services to
hosted/cloud-based DC
Hosted/Cloud • Provisioning, data/network migration services, DR/HA
Contract/Managed • Third-party marketing, business development,
outsourcing
Marketing/Portals • Existing contracts – connect over IPv6
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 56

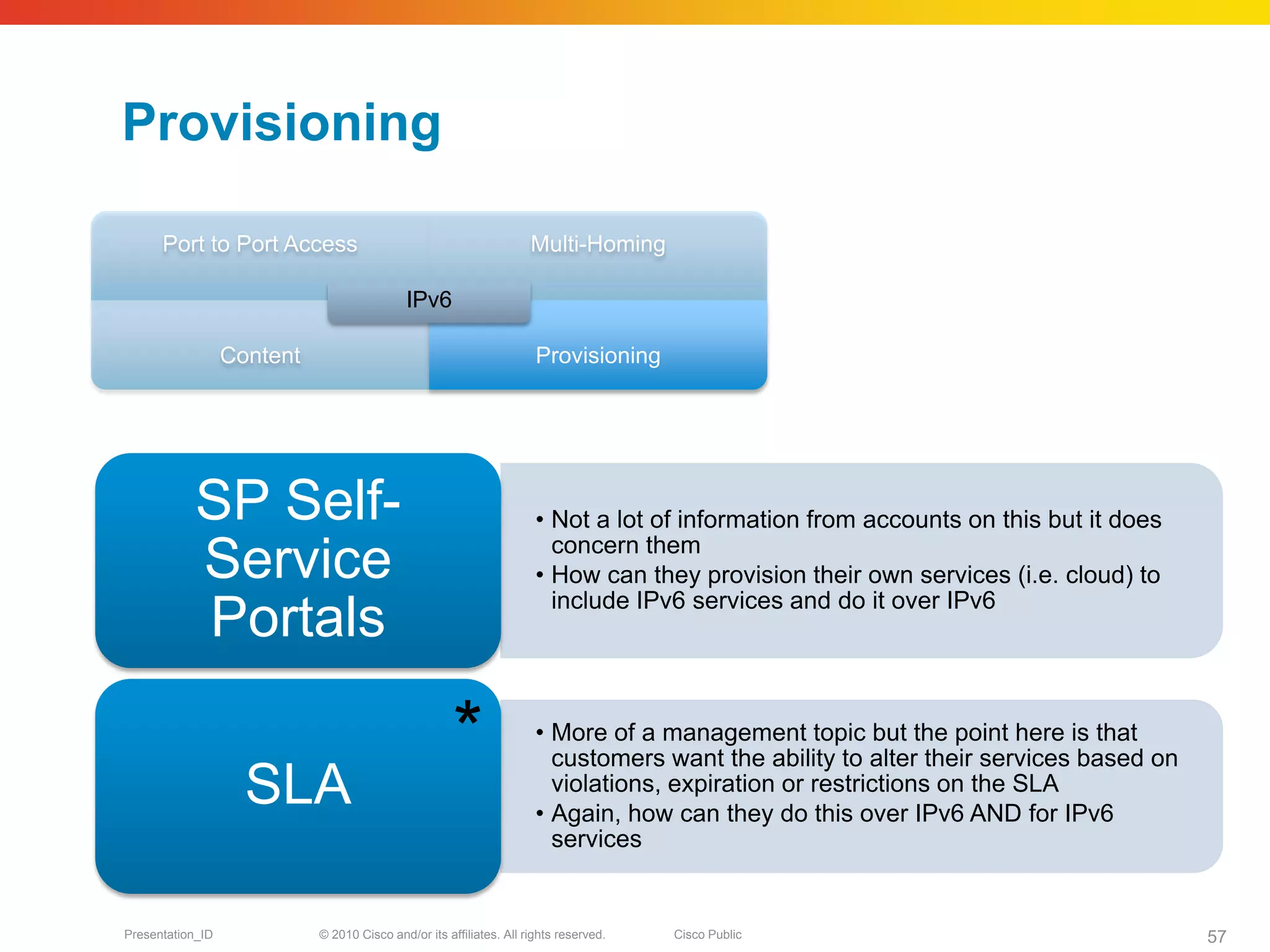

57. Provisioning
Port to Port Access Multi-Homing
IPv6
Content Provisioning
SP Self- • Not a lot of information from accounts on this but it does
concern them
Service • How can they provision their own services (i.e. cloud) to
include IPv6 services and do it over IPv6
Portals
* • More of a management topic but the point here is that
customers want the ability to alter their services based on
SLA violations, expiration or restrictions on the SLA
• Again, how can they do this over IPv6 AND for IPv6
services
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 57

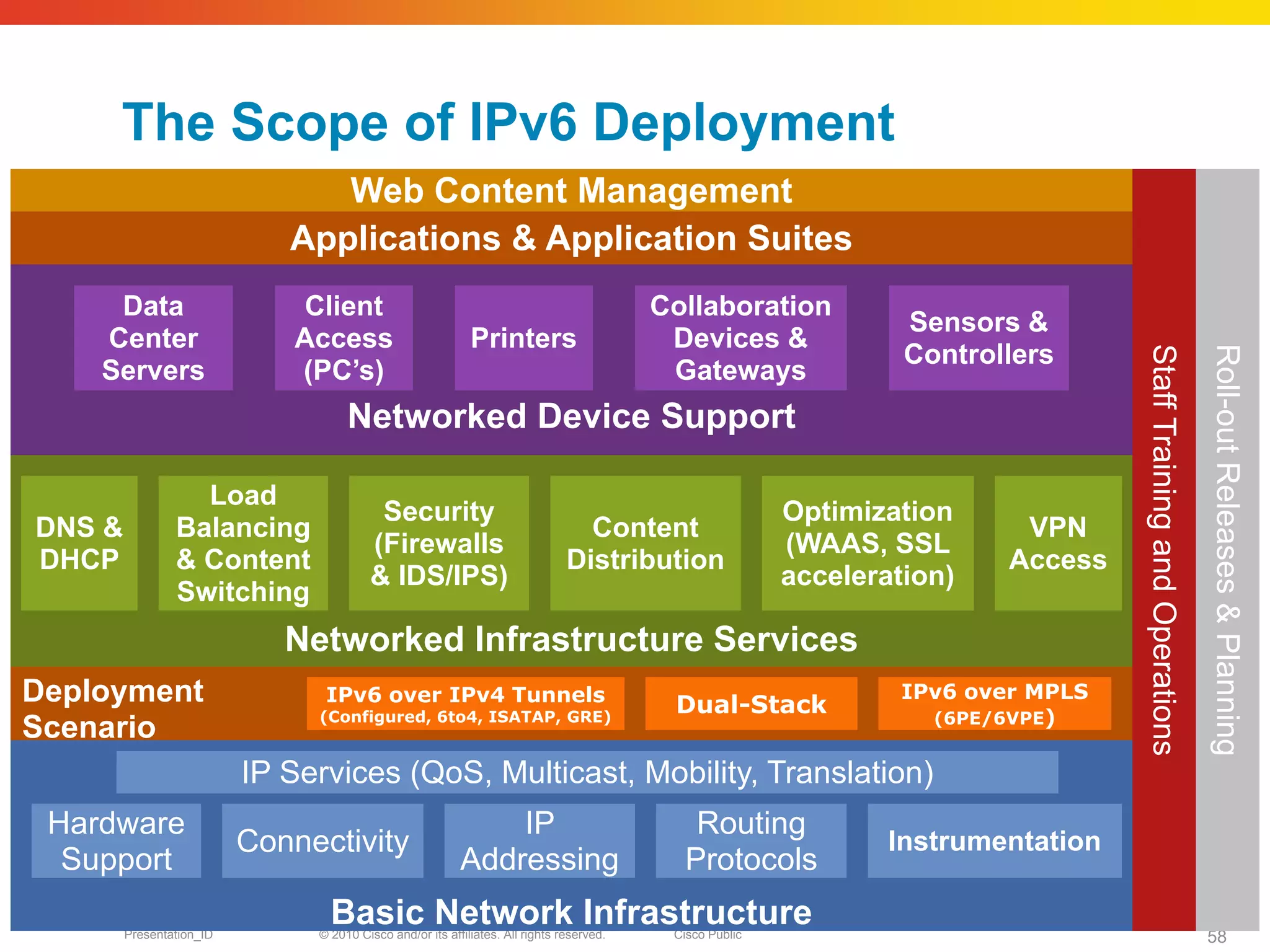

58. The Scope of IPv6 Deployment
Web Content Management
Applications & Application Suites
Data Client Collaboration
Sensors &
Center Access Printers Devices &
Controllers
Roll-out Releases & Planning
Staff Training and Operations
Servers (PC’s) Gateways
Networked Device Support
Load
Security Optimization
DNS & Balancing Content VPN
(Firewalls (WAAS, SSL
DHCP & Content Distribution Access
& IDS/IPS) acceleration)
Switching
Networked Infrastructure Services
Deployment IPv6 over IPv4 Tunnels IPv6 over MPLS
(Configured, 6to4, ISATAP, GRE)
Dual-Stack (6PE/6VPE)
Scenario
IP Services (QoS, Multicast, Mobility, Translation)
Hardware IP Routing
Connectivity Instrumentation
Support Addressing Protocols
Presentation_ID
Basic Network Infrastructure
© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 58

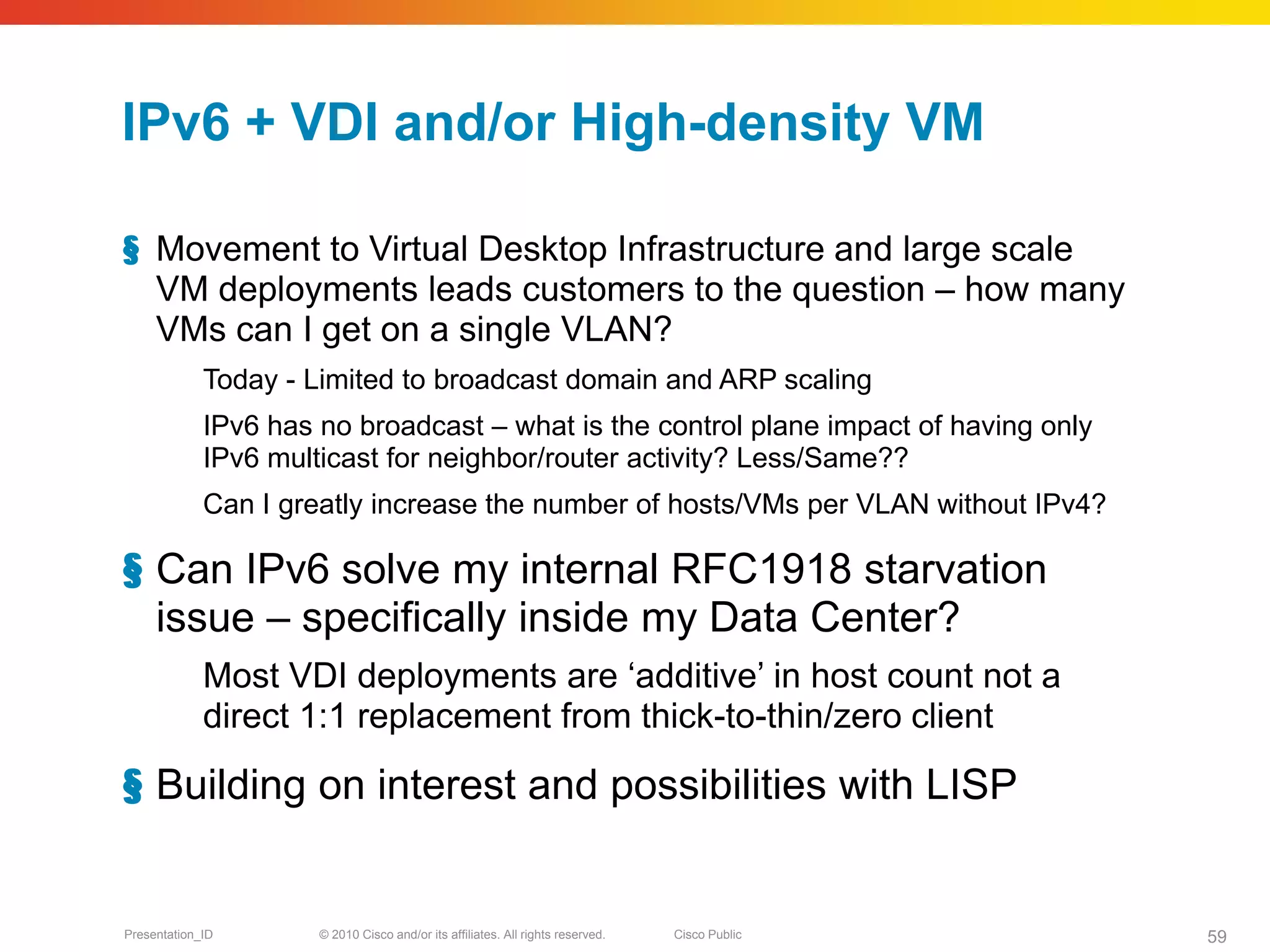

59. IPv6 + VDI and/or High-density VM
§ Movement to Virtual Desktop Infrastructure and large scale
VM deployments leads customers to the question – how many
VMs can I get on a single VLAN?
Today - Limited to broadcast domain and ARP scaling
IPv6 has no broadcast – what is the control plane impact of having only
IPv6 multicast for neighbor/router activity? Less/Same??
Can I greatly increase the number of hosts/VMs per VLAN without IPv4?
§ Can IPv6 solve my internal RFC1918 starvation
issue – specifically inside my Data Center?
Most VDI deployments are ‘additive’ in host count not a
direct 1:1 replacement from thick-to-thin/zero client
§ Building on interest and possibilities with LISP
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 59

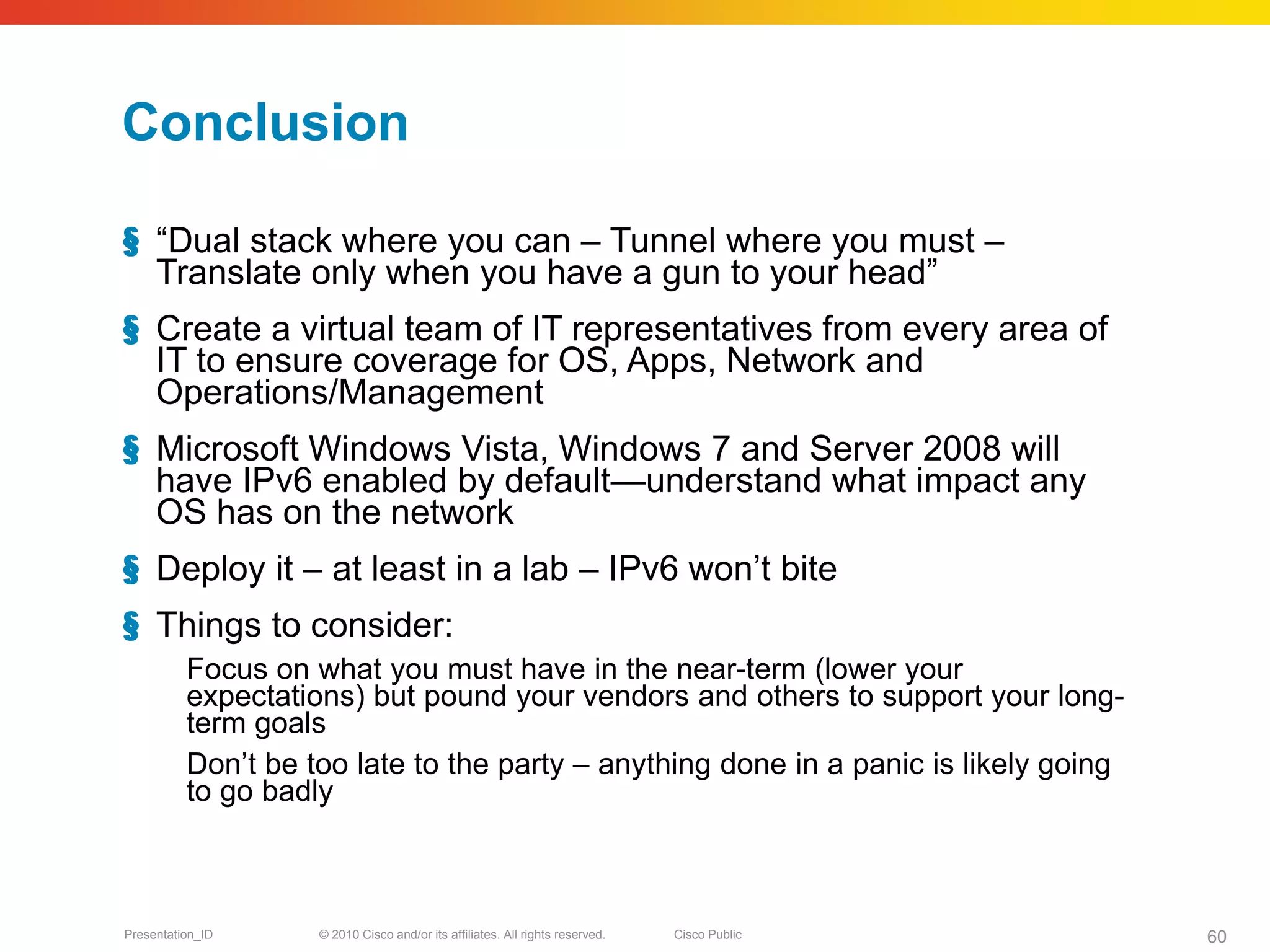

60. Conclusion
§ “Dual stack where you can – Tunnel where you must –
Translate only when you have a gun to your head”
§ Create a virtual team of IT representatives from every area of
IT to ensure coverage for OS, Apps, Network and
Operations/Management
§ Microsoft Windows Vista, Windows 7 and Server 2008 will
have IPv6 enabled by default—understand what impact any
OS has on the network
§ Deploy it – at least in a lab – IPv6 won’t bite
§ Things to consider:
Focus on what you must have in the near-term (lower your
expectations) but pound your vendors and others to support your long-
term goals
Don’t be too late to the party – anything done in a panic is likely going
to go badly
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 60

61. #CNSF2011
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 61

62. #CNSF2011
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 62

63. Thank you.
#CNSF2011

64. #CNSF2011
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 64

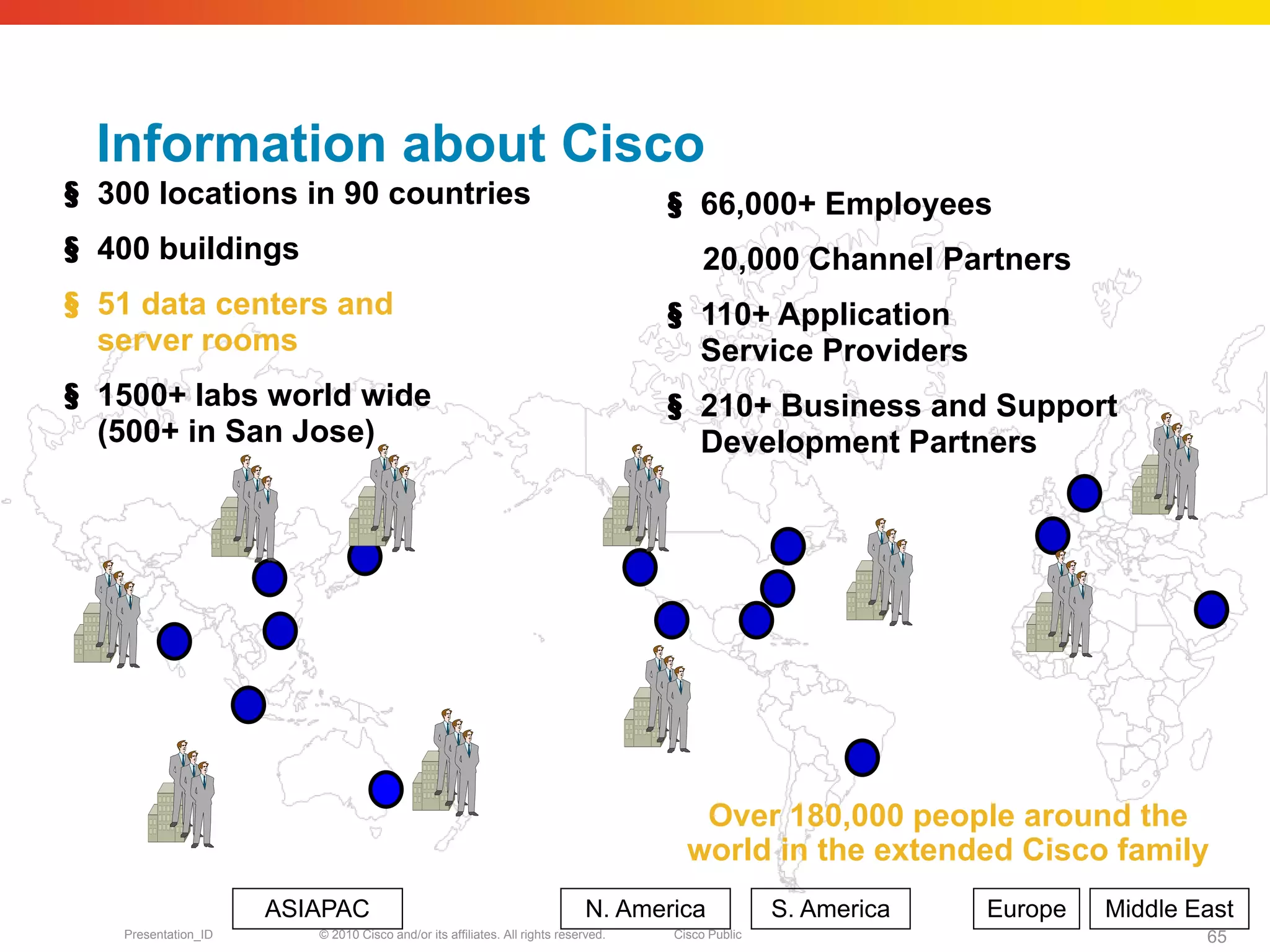

65. Information about Cisco
§ 300 locations in 90 countries § 66,000+ Employees
§ 400 buildings 20,000 Channel Partners
§ 51 data centers and § 110+ Application
server rooms Service Providers
§ 1500+ labs world wide § 210+ Business and Support
(500+ in San Jose) Development Partners
Over 180,000 people around the
world in the extended Cisco family
ASIAPAC N. America S. America Europe Middle East
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 65

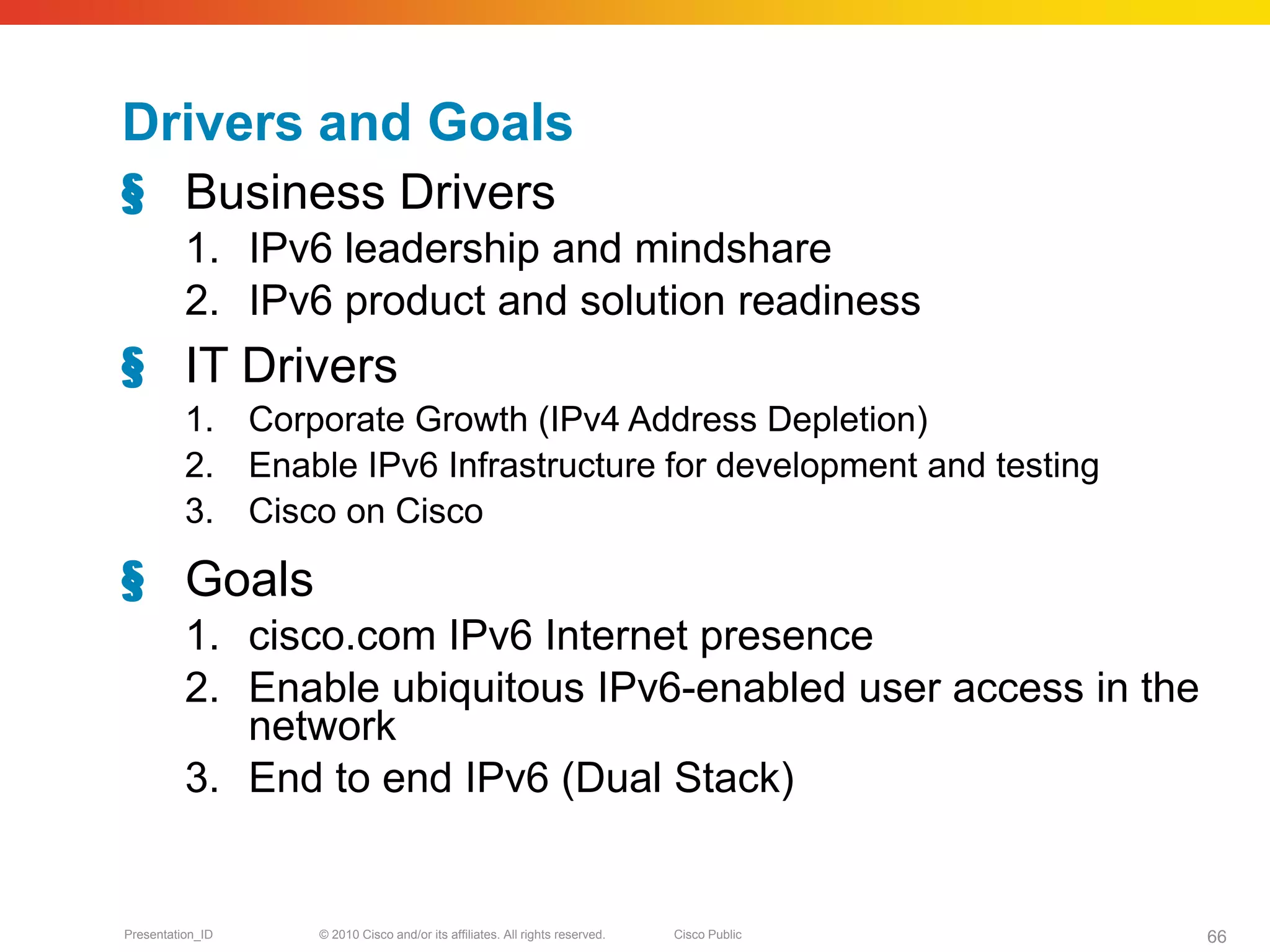

66. Drivers and Goals
§ Business Drivers
1. IPv6 leadership and mindshare
2. IPv6 product and solution readiness
§ IT Drivers
1. Corporate Growth (IPv4 Address Depletion)
2. Enable IPv6 Infrastructure for development and testing
3. Cisco on Cisco
§ Goals
1. cisco.com IPv6 Internet presence
2. Enable ubiquitous IPv6-enabled user access in the
network
3. End to end IPv6 (Dual Stack)
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 66

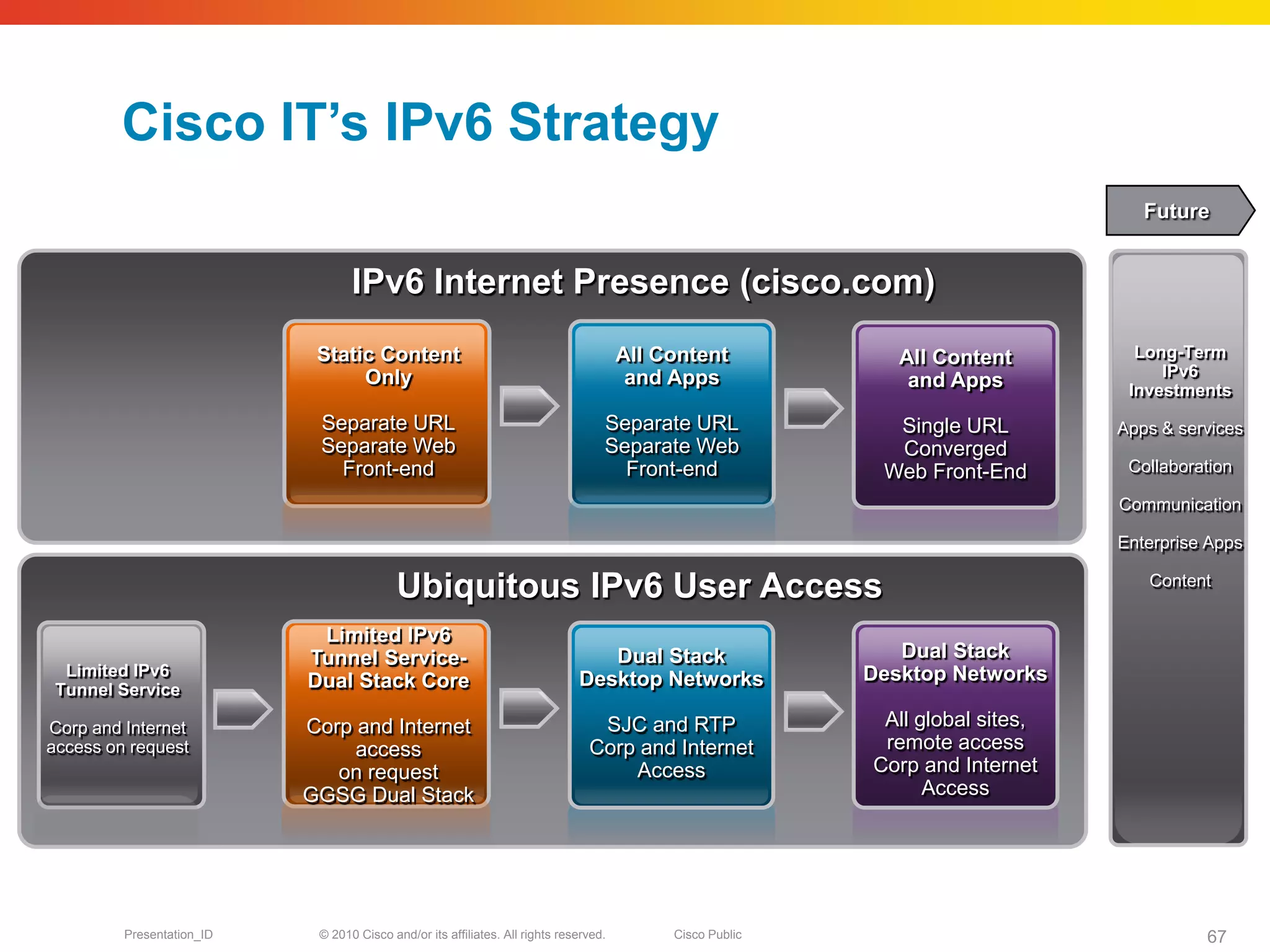

67. Cisco IT’s IPv6 Strategy
Future
IPv6 Internet Presence (cisco.com)
Static Content All Content All Content Long-Term
Only and Apps IPv6
and Apps Investments
Separate URL Separate URL Single URL Apps & services
Separate Web Separate Web Converged
Front-end Front-end Web Front-End Collaboration
Communication
Enterprise Apps
Ubiquitous IPv6 User Access Content
Limited IPv6
Tunnel Service- Dual Stack Dual Stack
Limited IPv6 Desktop Networks
Tunnel Service Dual Stack Core Desktop Networks
Corp and Internet Corp and Internet SJC and RTP All global sites,
access on request access Corp and Internet remote access
on request Access Corp and Internet
GGSG Dual Stack Access
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 67

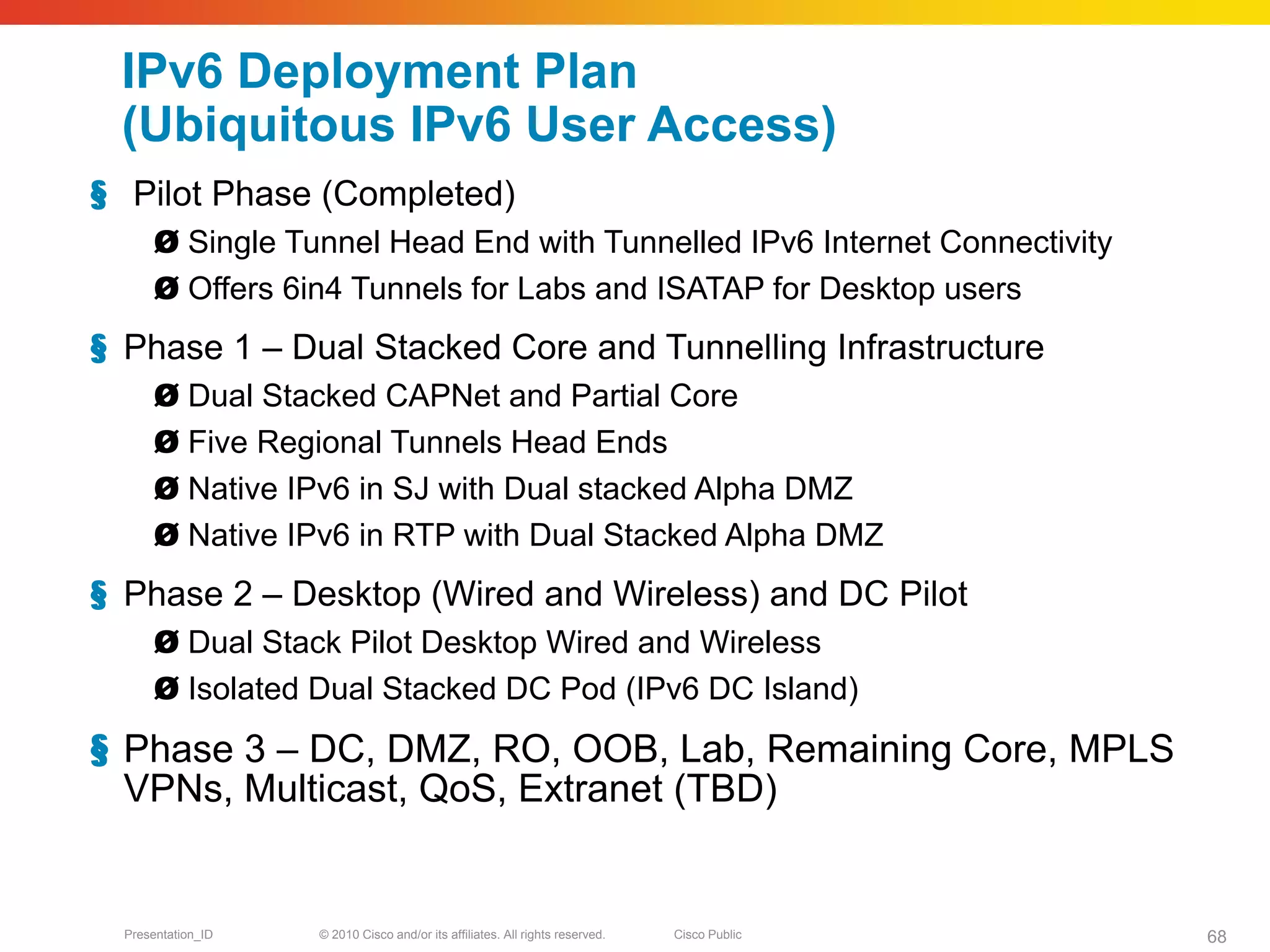

68. IPv6 Deployment Plan
(Ubiquitous IPv6 User Access)
§ Pilot Phase (Completed)
Ø Single Tunnel Head End with Tunnelled IPv6 Internet Connectivity
Ø Offers 6in4 Tunnels for Labs and ISATAP for Desktop users
§ Phase 1 – Dual Stacked Core and Tunnelling Infrastructure
Ø Dual Stacked CAPNet and Partial Core
Ø Five Regional Tunnels Head Ends
Ø Native IPv6 in SJ with Dual stacked Alpha DMZ
Ø Native IPv6 in RTP with Dual Stacked Alpha DMZ
§ Phase 2 – Desktop (Wired and Wireless) and DC Pilot
Ø Dual Stack Pilot Desktop Wired and Wireless
Ø Isolated Dual Stacked DC Pod (IPv6 DC Island)
§ Phase 3 – DC, DMZ, RO, OOB, Lab, Remaining Core, MPLS
VPNs, Multicast, QoS, Extranet (TBD)
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 68

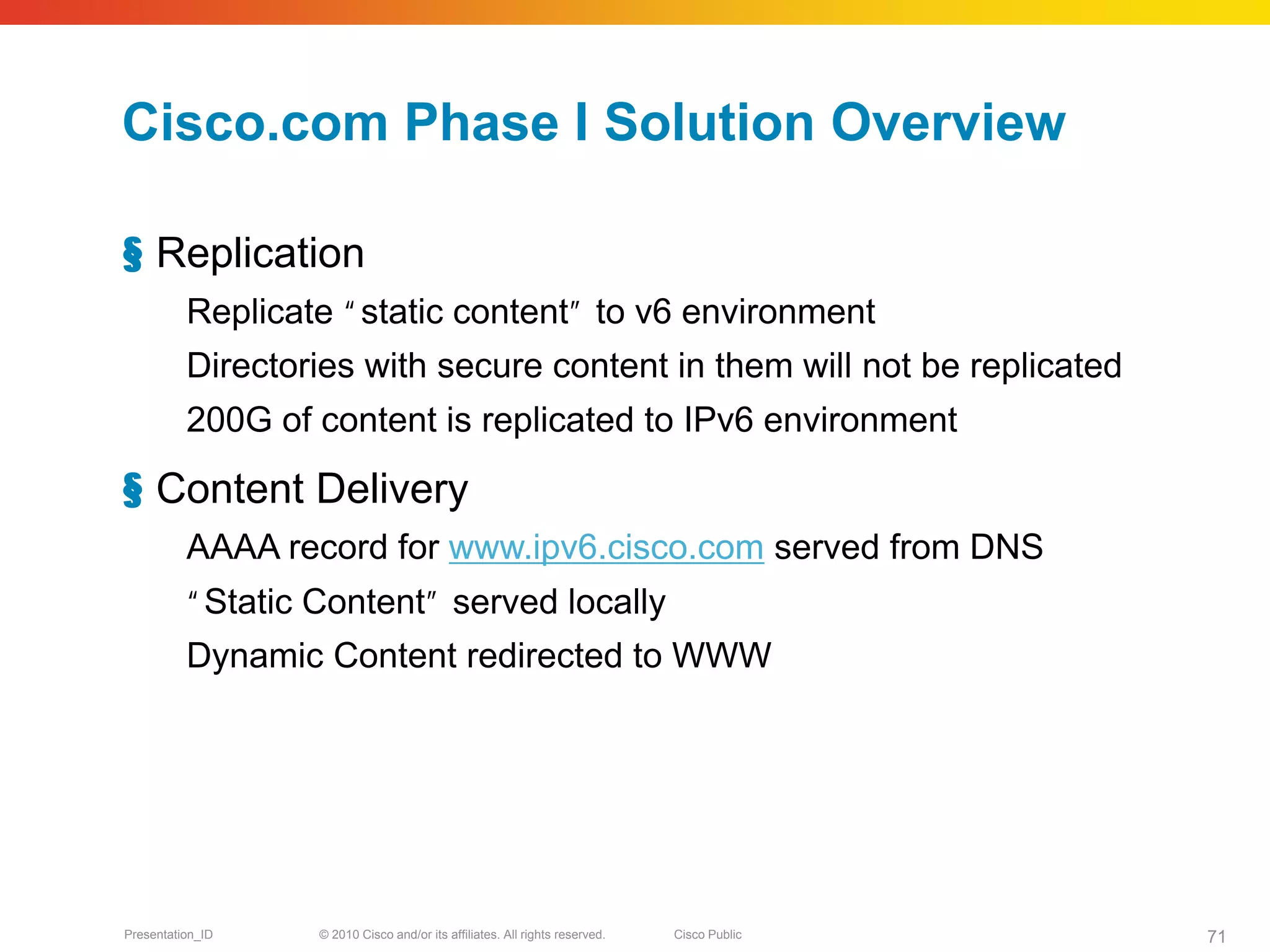

69. Cisco.com Phase I Solution Overview
§ Replication
Replicate •g
static content•hto v6 environment
Directories with secure content in them will not be replicated
200G of content is replicated to IPv6 environment
§ Content Delivery
AAAA record for www.ipv6.cisco.com served from DNS
•g
Static Content•hserved locally
Dynamic Content redirected to WWW
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 71

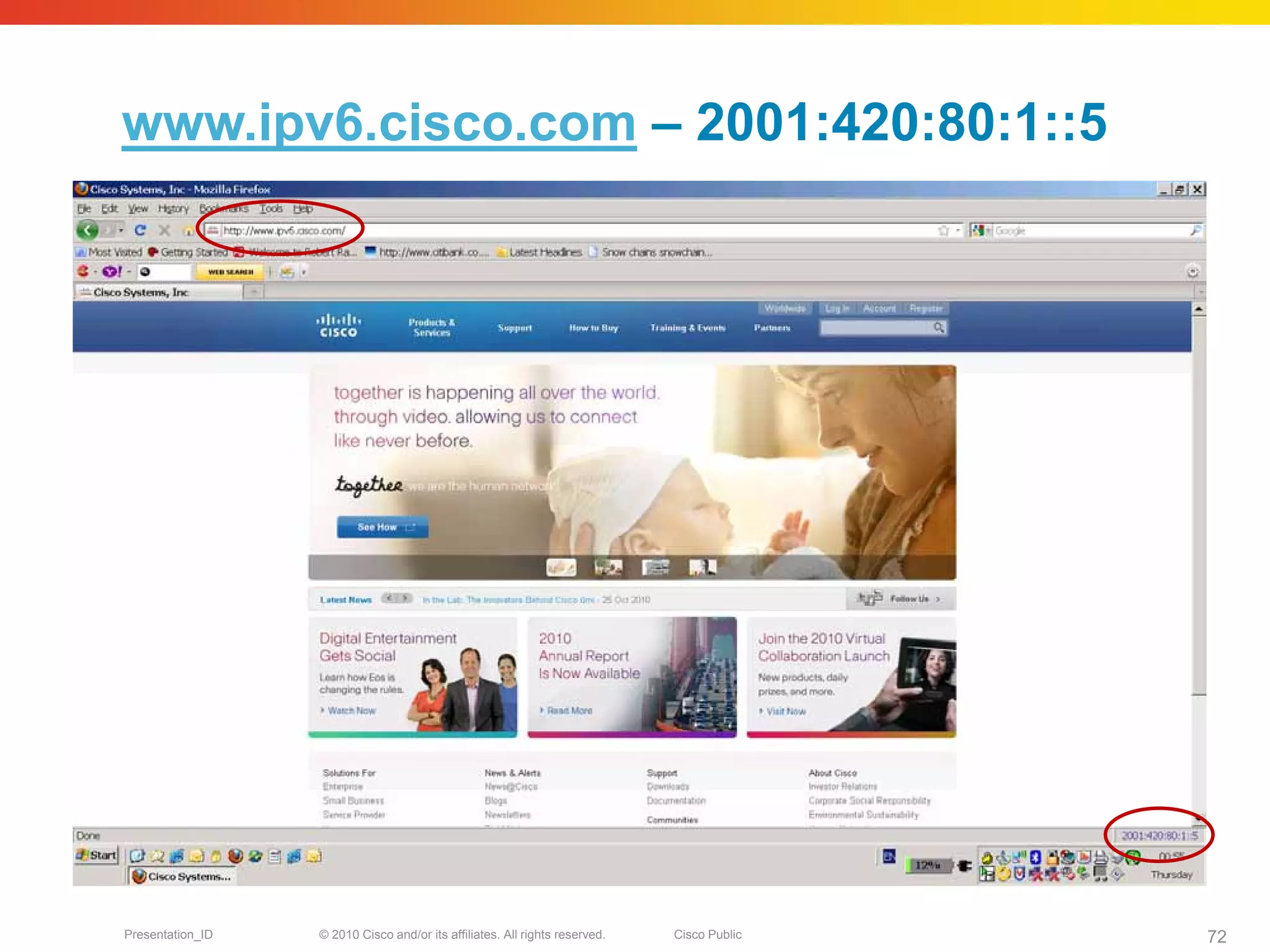

70. www.ipv6.cisco.com – 2001:420:80:1::5
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 72

71. #CNSF2011
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 74

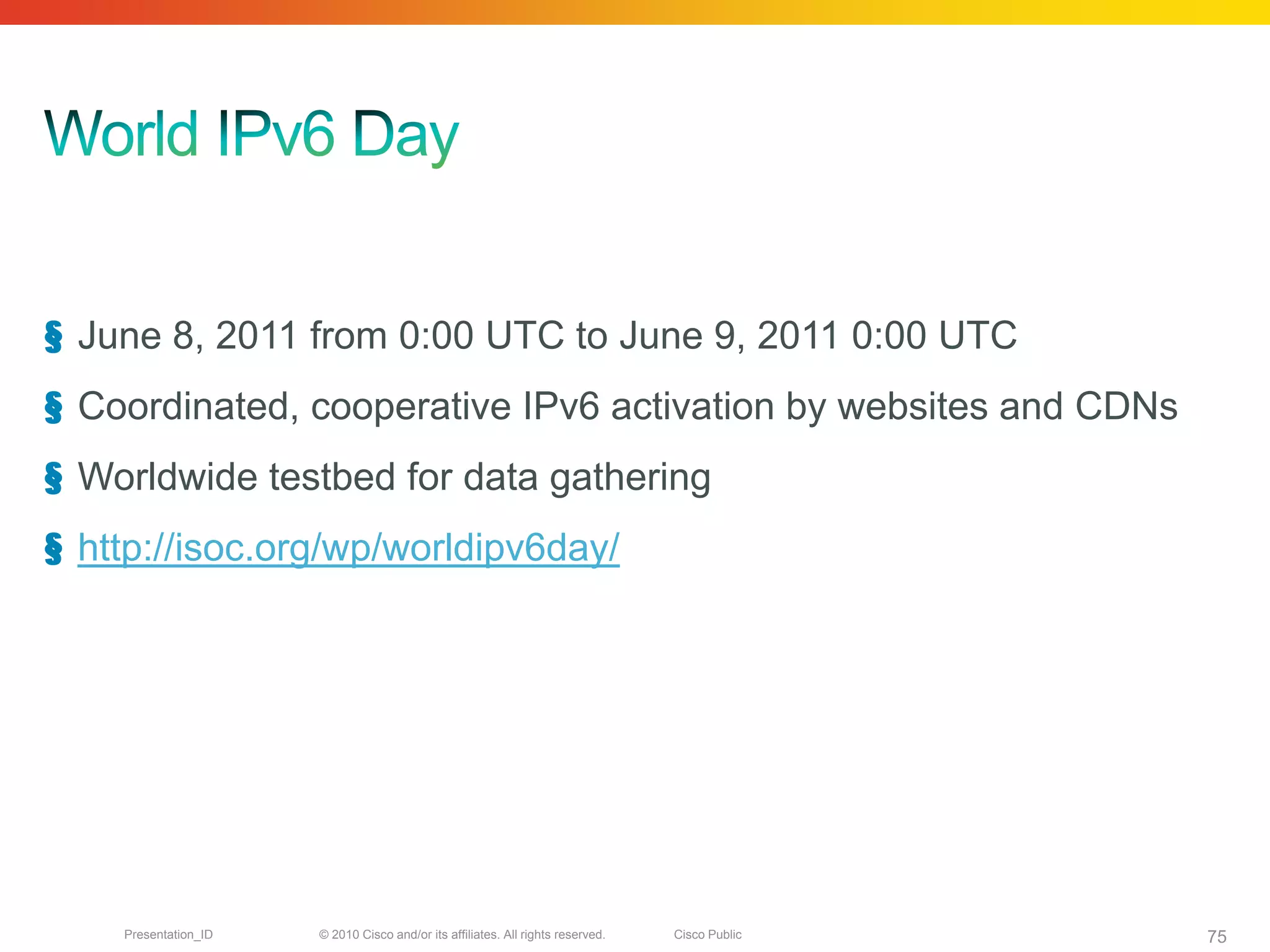

72. § June 8, 2011 from 0:00 UTC to June 9, 2011 0:00 UTC
§ Coordinated, cooperative IPv6 activation by websites and CDNs
§ Worldwide testbed for data gathering
§ http://isoc.org/wp/worldipv6day/
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 75

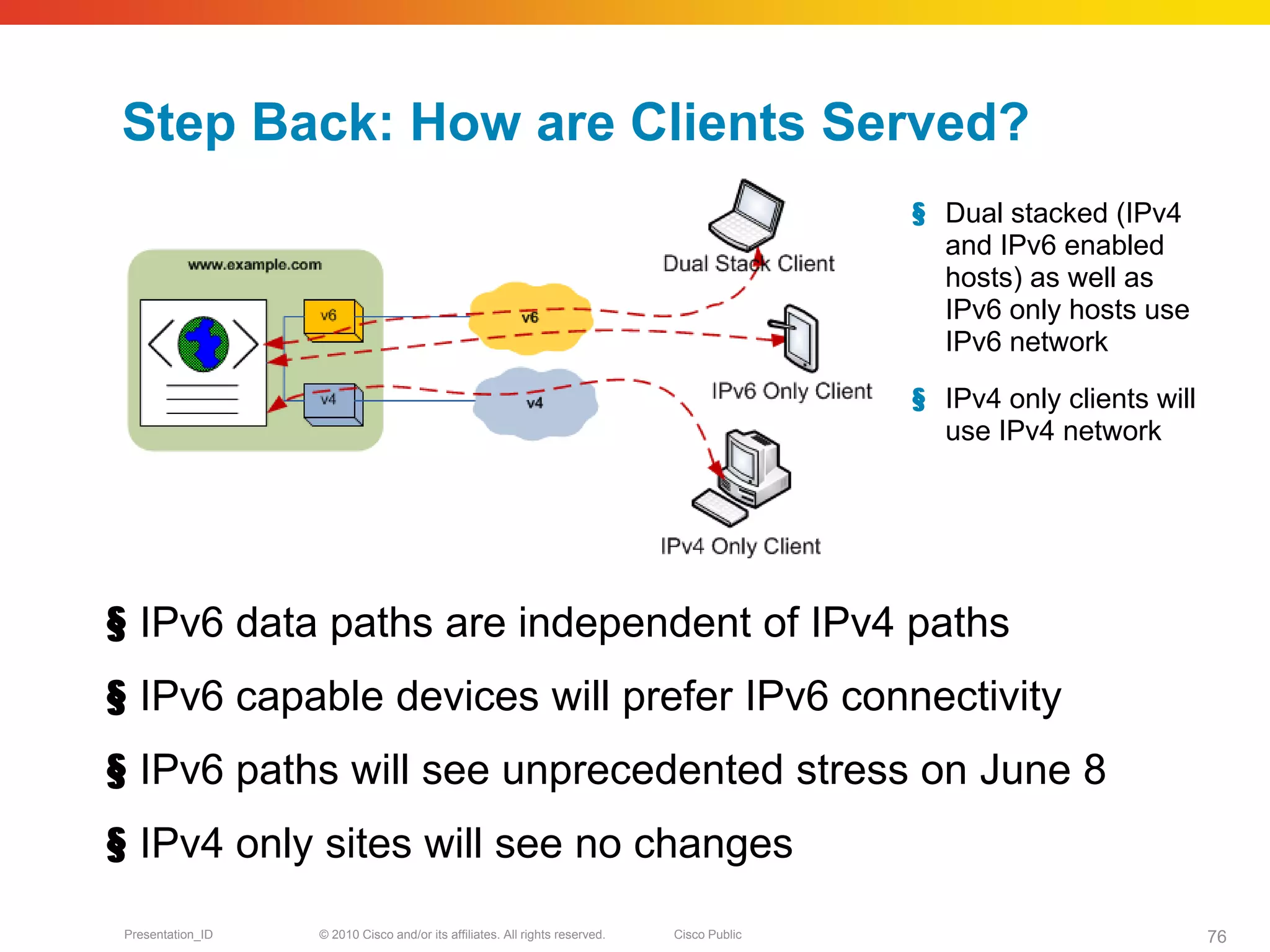

73. Step Back: How are Clients Served?
§ Dual stacked (IPv4
and IPv6 enabled
hosts) as well as
IPv6 only hosts use
IPv6 network
§ IPv4 only clients will
use IPv4 network
§ IPv6 data paths are independent of IPv4 paths
§ IPv6 capable devices will prefer IPv6 connectivity
§ IPv6 paths will see unprecedented stress on June 8
§ IPv4 only sites will see no changes
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 76

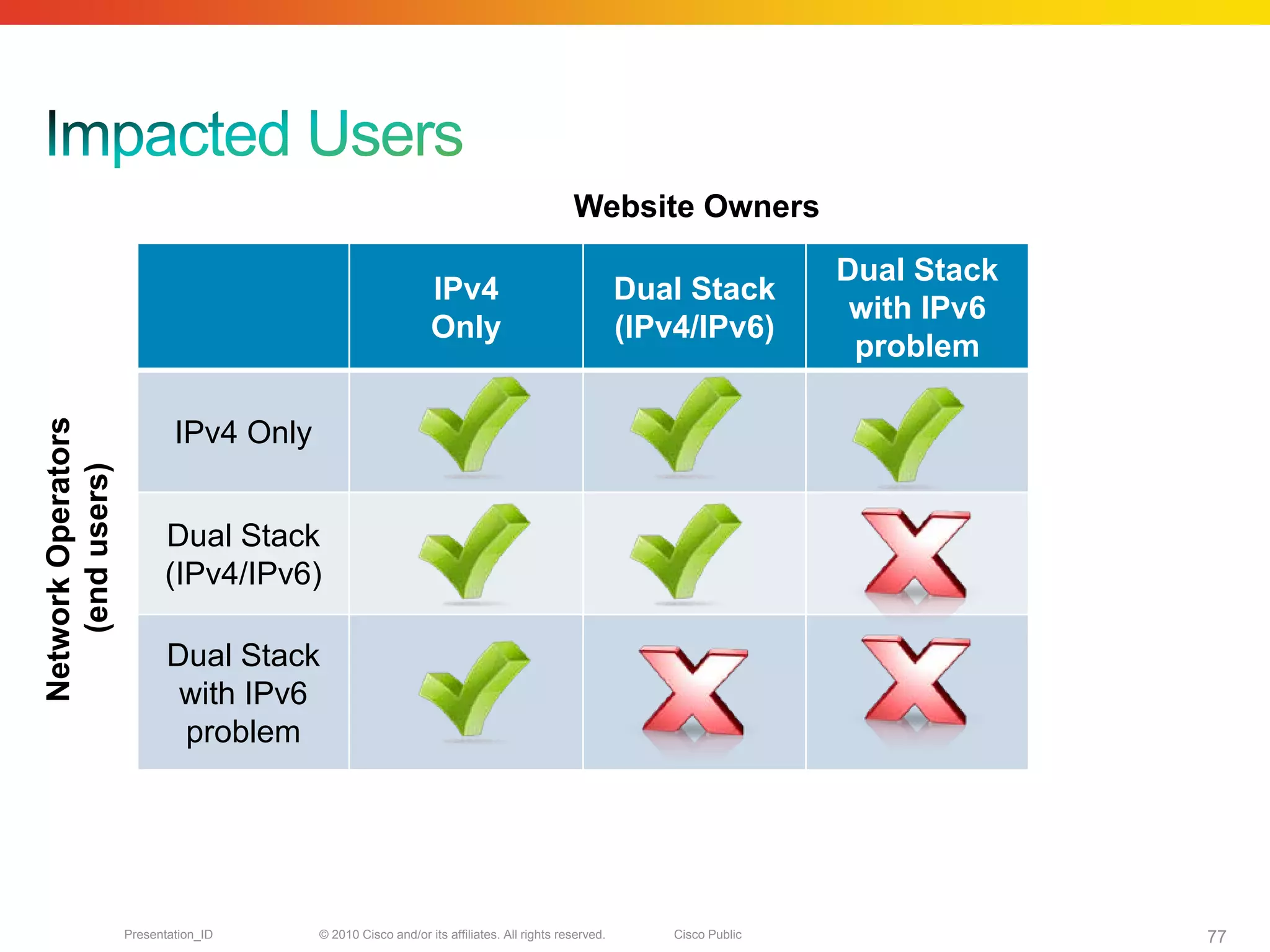

74. Website Owners
Dual Stack
IPv4 Dual Stack
with IPv6
Only (IPv4/IPv6)
problem
Network Operators
IPv4 Only
(end users)
Dual Stack
(IPv4/IPv6)
Dual Stack
with IPv6
problem
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 77

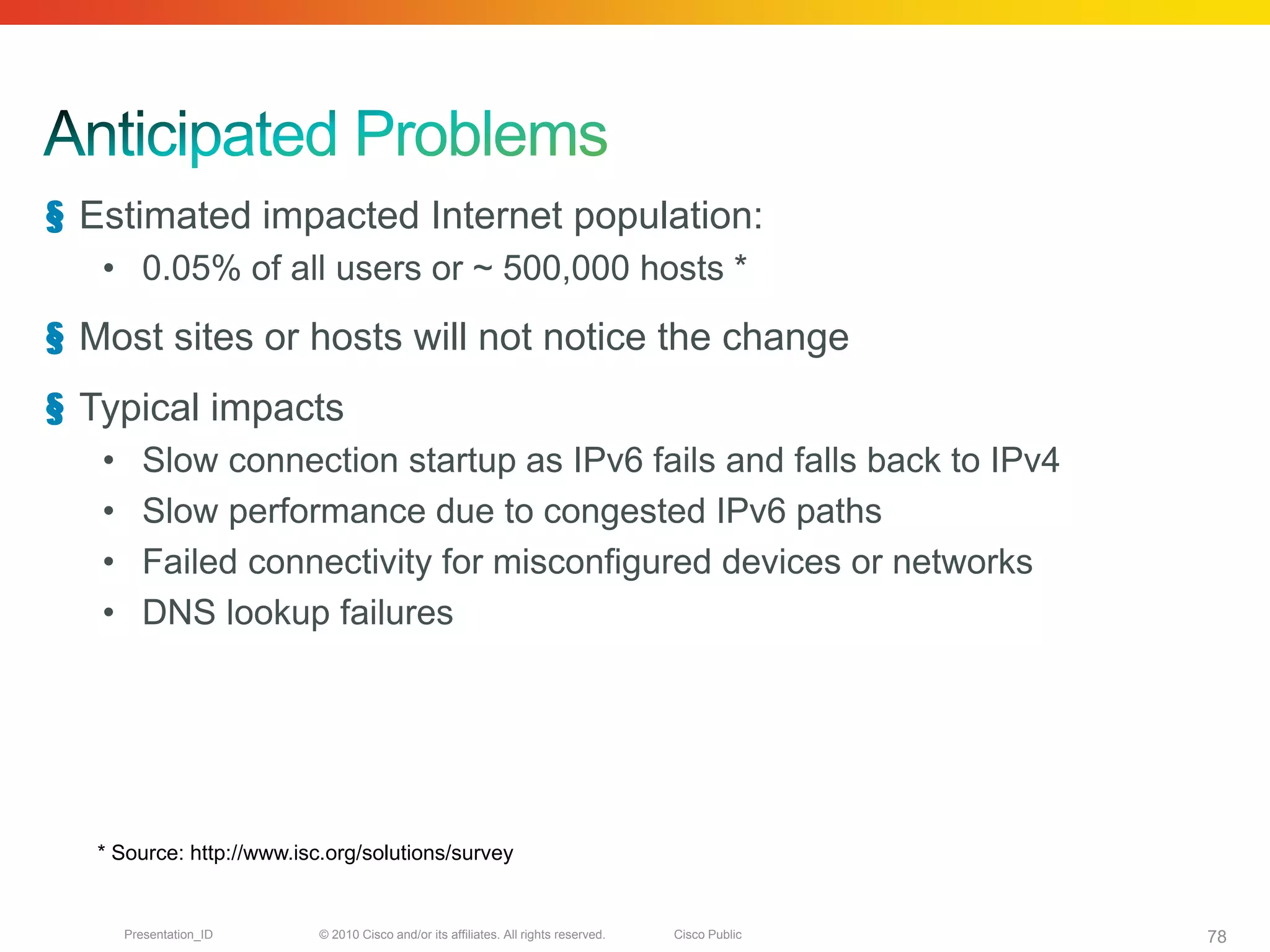

75. § Estimated impacted Internet population:
• 0.05% of all users or ~ 500,000 hosts *
§ Most sites or hosts will not notice the change
§ Typical impacts
• Slow connection startup as IPv6 fails and falls back to IPv4
• Slow performance due to congested IPv6 paths
• Failed connectivity for misconfigured devices or networks
• DNS lookup failures
* Source: http://www.isc.org/solutions/survey
Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Public 78

76. Thank you.
#CNSF2011
