This document provides an overview and introduction to creating data-driven user interfaces with Vue components. It discusses what a data-driven dynamic UI is and when it would be needed. It then covers the basics of using the <component> tag to dynamically load components based on a prop, data property, or computed property. It discusses how props and events can be used with dynamic components, including how unknown props are handled. Finally, it demonstrates how to build dynamic forms using a JSON schema and dynamically loading form components based on field types, including handling data binding and updating form data.

1. VUETIFUL
DATA-DRIVEN USER INTERFACES
EVAN SCHULTZ

2. VUETIFUL
DATA-DRIVEN USER INTERFACES

3. DATA DRIVEN INTERFACES
WHATS COMING UP?
▸ What is a Data Driven Dynamic UI?

4. DATA DRIVEN INTERFACES
WHATS COMING UP?
▸ What is a Data Driven Dynamic UI?
▸ Understanding `<component>`

5. DATA DRIVEN INTERFACES
WHATS COMING UP?
▸ What is a Data Driven Dynamic UI?
▸ Understanding `<component>`
▸ Basic use

6. DATA DRIVEN INTERFACES
WHATS COMING UP?
▸ What is a Data Driven Dynamic UI?
▸ Understanding `<component>`
▸ Basic use
▸ Props and Events

7. DATA DRIVEN INTERFACES
WHATS COMING UP?
▸ What is a Data Driven Dynamic UI?
▸ Understanding `<component>`
▸ Basic use
▸ Props and Events
▸ Dynamic Forms

8. WHAT DOES IT
MEAN
DATA DRIVEN UI

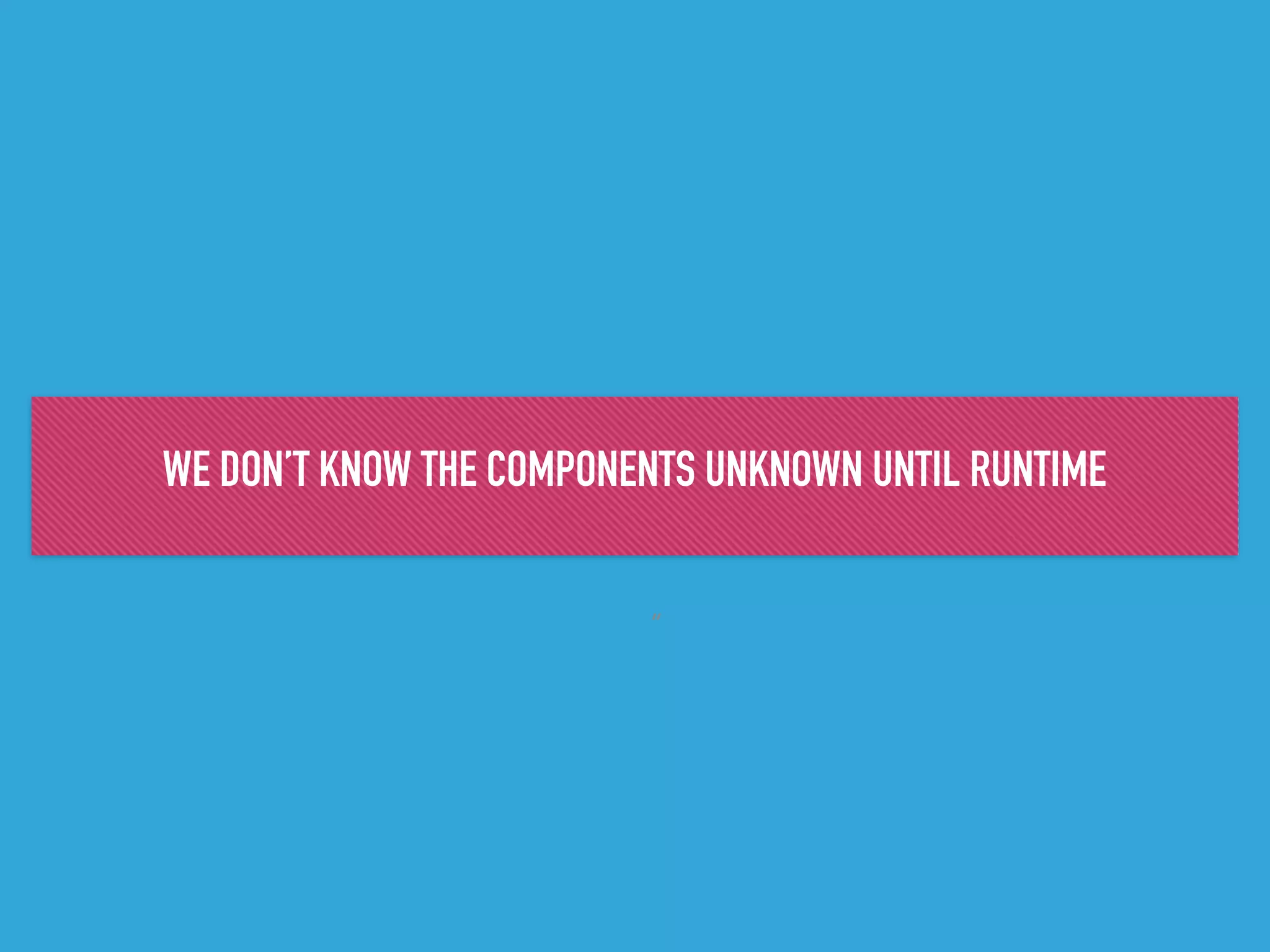

9. “
WE DON’T KNOW THE COMPONENTS UNKNOWN UNTIL RUNTIME

10. WHAT DO WE MEAN?
UI BASED ON RUNTIME DATA
▸ API Response

11. WHAT DO WE MEAN?
UI BASED ON RUNTIME DATA
▸ API Response
▸ Application State

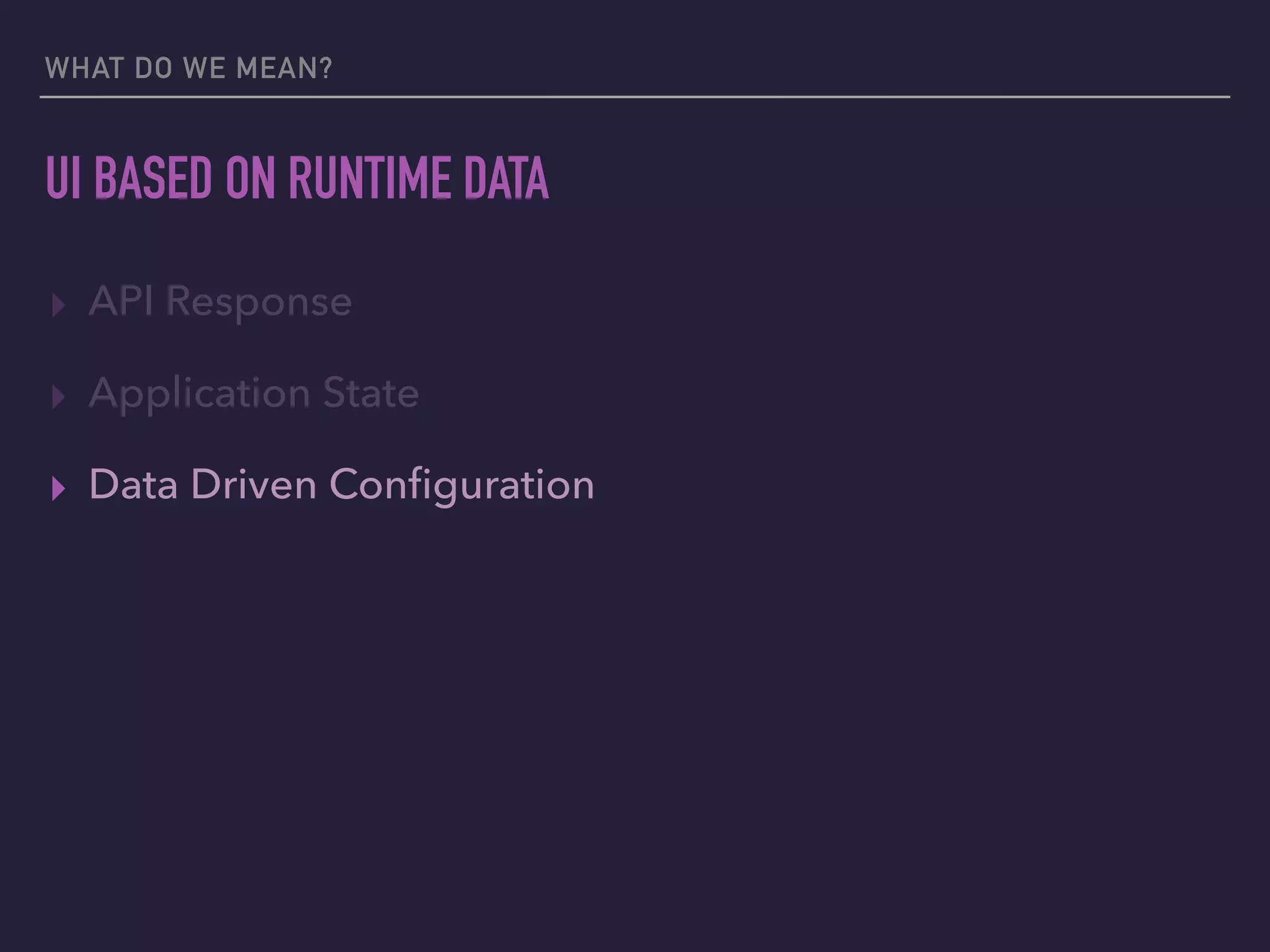

12. WHAT DO WE MEAN?
UI BASED ON RUNTIME DATA
▸ API Response
▸ Application State
▸ Data Driven Configuration

13. “
WHEN WOULD YOU NEED THIS?

14. “
“DYNAMIC COMPONENTS ARE NOT A COMMON REQUIREMENT”
BLOG POST I (SORTA) DISAGREE WITHBLOG POST I (SORTA) DISAGREE WITH

15. CAN BE AN ELEGANT SOLUTION FOR
▸ Workflow Builders
WHAT DO WE MEAN?

16. CAN BE AN ELEGANT SOLUTION FOR
▸ Workflow Builders
▸ Personalization
WHAT DO WE MEAN?

17. CAN BE AN ELEGANT SOLUTION FOR
▸ Workflow Builders
▸ Personalization
▸ A/B Testing
WHAT DO WE MEAN?

18. CAN BE AN ELEGANT SOLUTION FOR
▸ Workflow Builders
▸ Personalization
▸ A/B Testing
‣ Data Driven Customization
WHAT DO WE MEAN?

19. CAN BE AN ELEGANT SOLUTION FOR
▸ Workflow Builders
▸ Personalization
▸ A/B Testing
‣ Data Driven Customization
▸ Form Generators
WHAT DO WE MEAN?

20. CAN BE AN ELEGANT SOLUTION FOR
▸ Workflow Builders
▸ Personalization
▸ A/B Testing
‣ Data Driven Customization
▸ Form Generators
▸ … and lots more
WHAT DO WE MEAN?

21. “
DATA / STATE UITRANSFORM

22. “
BASICALLY

23. WE WANT TO GO FROM THIS

24. TO THIS

25. COMPONENT
THE BASICS

28. WHY AM I EXCITED?

29. “
SO EASY IT’S ALMOST BORING*

30. “
SO EASY IT’S ALMOST BORING*
* If I haven’t felt the pain points with other frameworks - I’d just expect this is how they work.

31. “
SPEND TIME BUILDING SOLUTIONS WITH THEM.

32. “
SPEND TIME BUILDING SOLUTIONS WITH THEM.
NOT TRYING TO FIGURE OUT HOW TO LOAD COMPONENTS DYNAMICALLY.

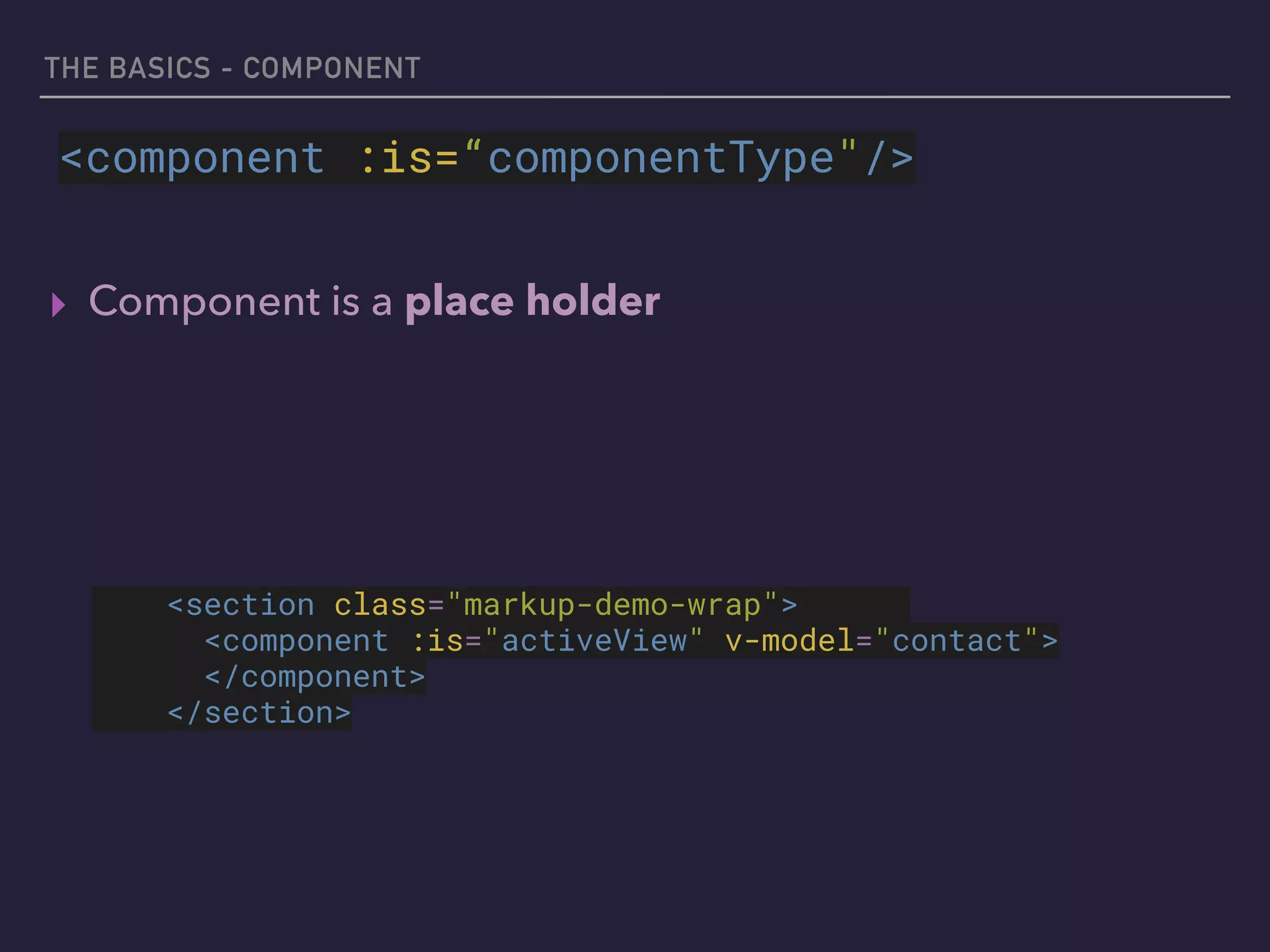

33. THE BASICS - COMPONENT
▸ Component is a place holder
<component :is=“componentType”/>
<section class="markup-demo-wrap">
<component :is="activeView" v-model="contact">
</component>
</section>
<component :is=“componentType"/>

34. THE BASICS - COMPONENT
▸ Component is a place holder
<component :is=“componentType”/>
<section class="markup-demo-wrap">
<component :is="activeView" v-model="contact">
</component>
</section>
<component :is=“componentType"/>

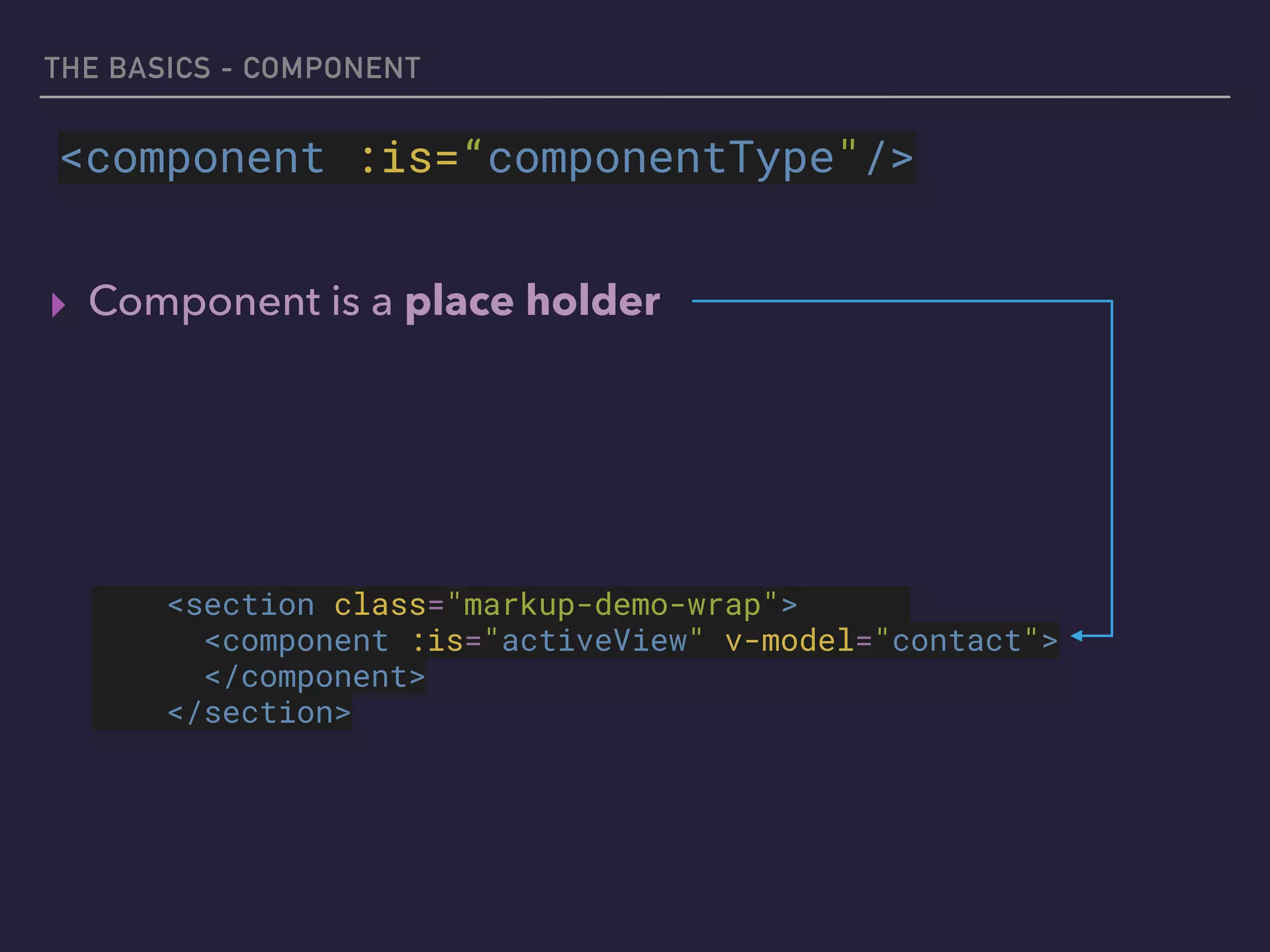

35. THE BASICS - COMPONENT
▸ Component is a place holder
<component :is=“componentType”/>
<section class="markup-demo-wrap">
<component :is="activeView" v-model="contact">
</component>
</section>
<component :is=“componentType"/>

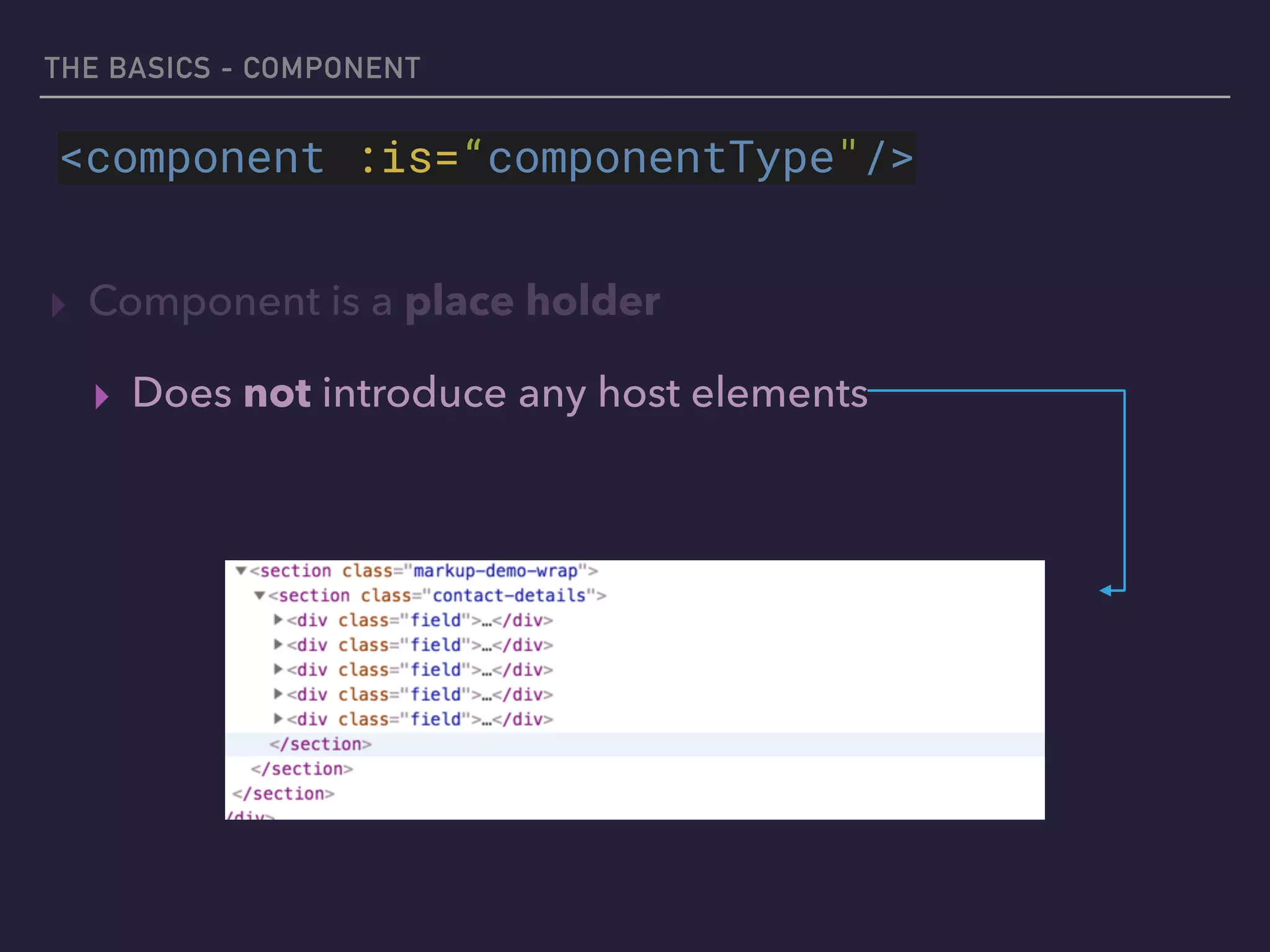

36. THE BASICS - COMPONENT
▸ Component is a place holder
▸ Does not introduce any host elements
<component :is=“componentType”/><component :is=“componentType"/>

37. THE BASICS - COMPONENT
<component :is=“componentType"/>

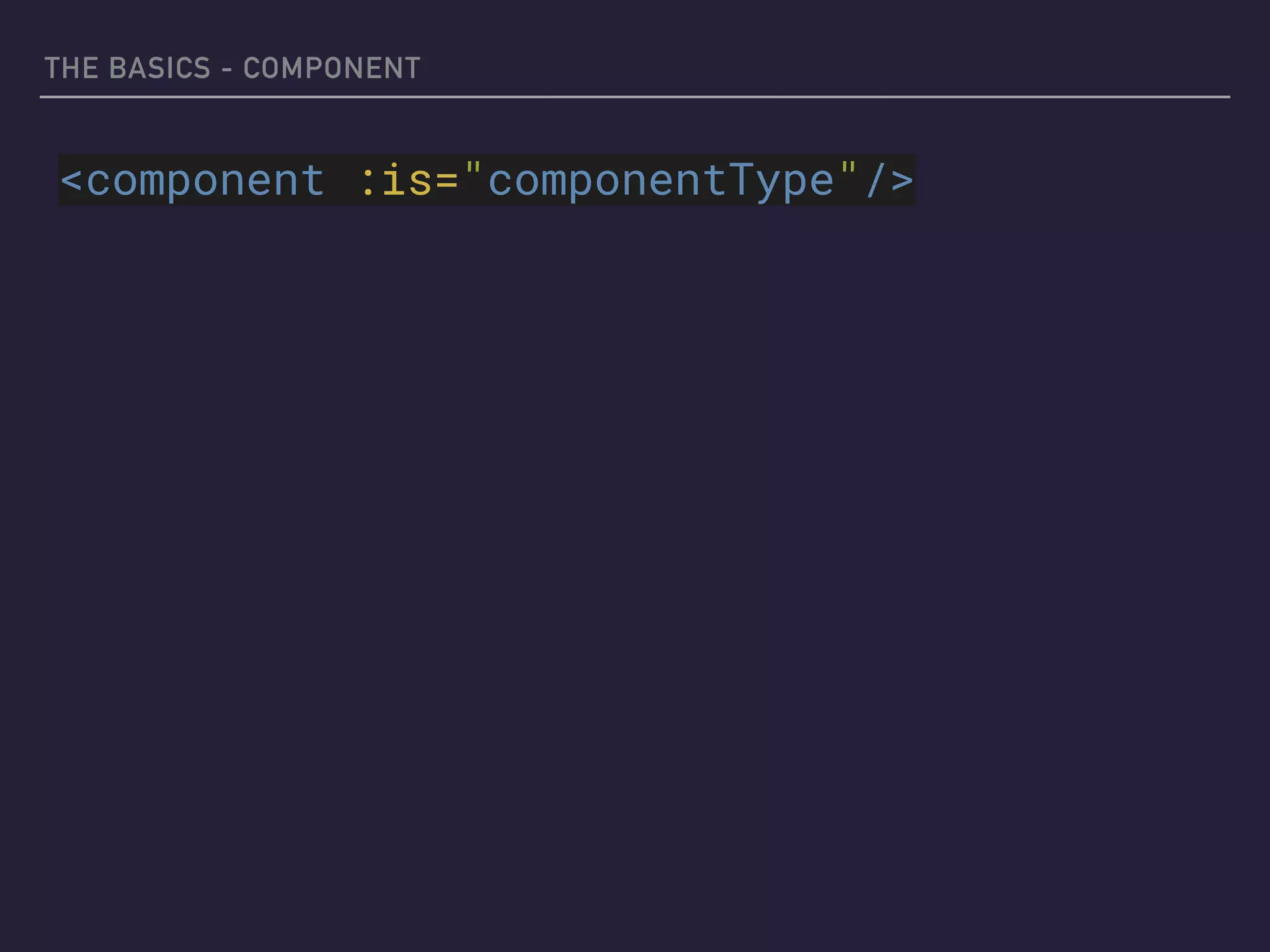

38. THE BASICS - COMPONENT
<component :is="componentType"/>

39. THE BASICS - COMPONENT
▸ :is can bound to
<component :is="componentType"/>

40. THE BASICS - COMPONENT
▸ :is can bound to
▸ Prop
<component :is="componentType"/>

41. THE BASICS - COMPONENT
▸ :is can bound to
▸ Prop
▸ Data Property
<component :is="componentType"/>

42. THE BASICS - COMPONENT
▸ :is can bound to
▸ Prop
▸ Data Property
▸ Computed Property
<component :is="componentType"/>

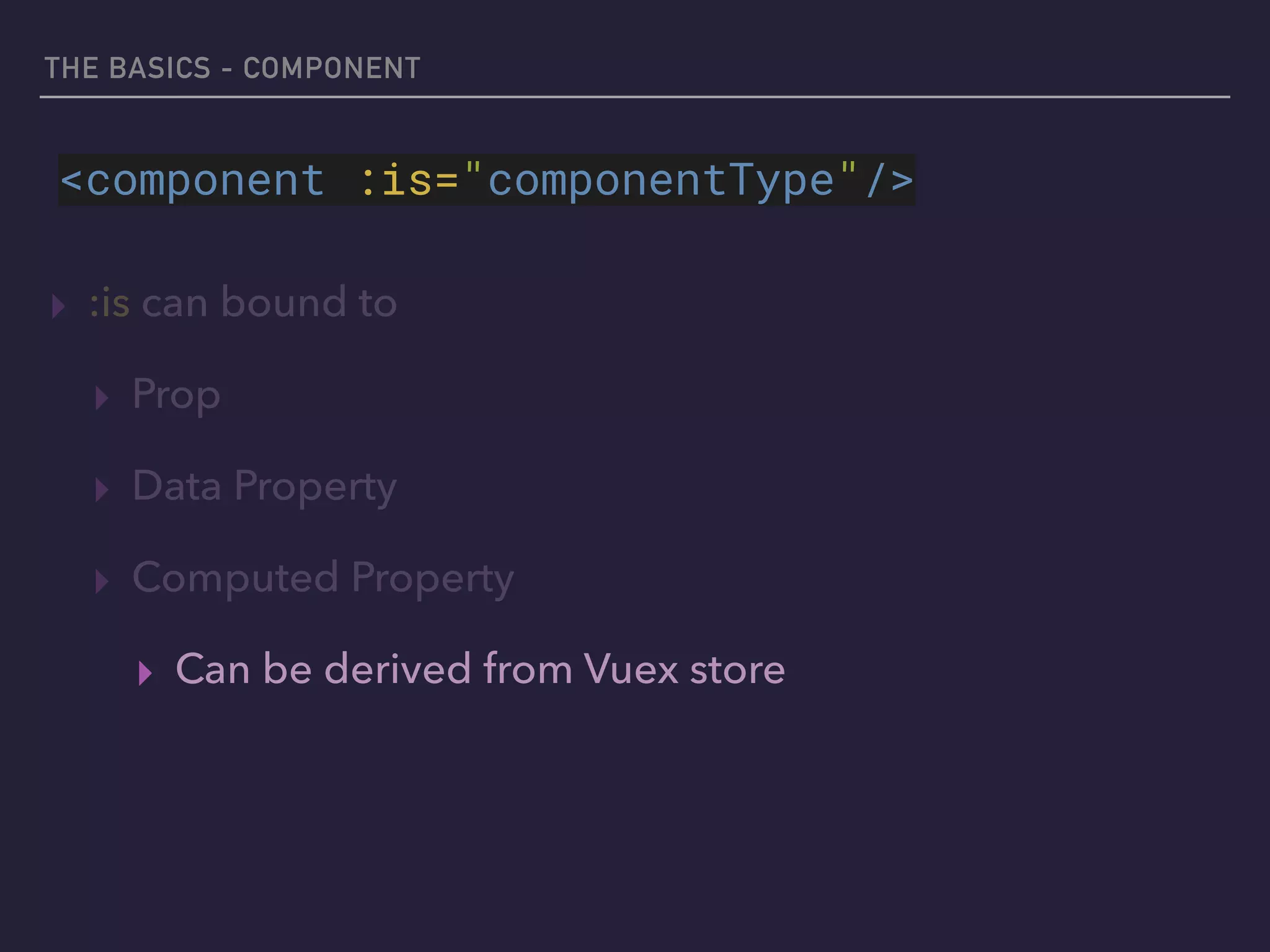

43. THE BASICS - COMPONENT
▸ :is can bound to
▸ Prop
▸ Data Property
▸ Computed Property
▸ Can be derived from Vuex store
<component :is="componentType"/>

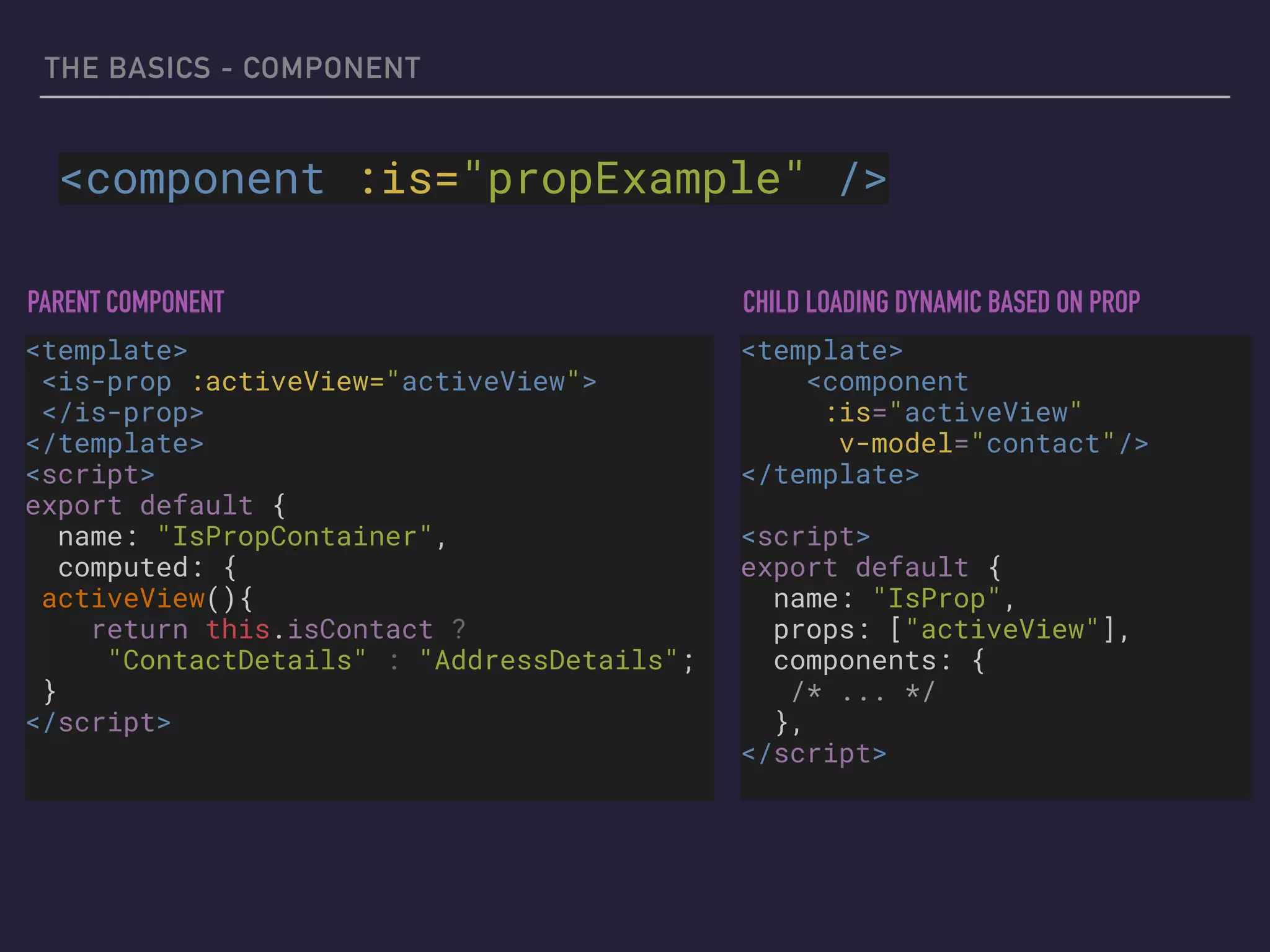

44. THE BASICS - COMPONENT
<component :is="propExample" />
<template>
<is-prop :activeView="activeView">
</is-prop>
</template>
<script>
export default {
name: "IsPropContainer",
computed: {
activeView(){
return this.isContact ?
"ContactDetails" : "AddressDetails";
}
</script>
<template>
<component
:is="activeView"
v-model="contact"/>
</template>
<script>
export default {
name: "IsProp",
props: ["activeView"],
components: {
/* ... */
},
</script>
PARENT COMPONENT CHILD LOADING DYNAMIC BASED ON PROP

45. THE BASICS - COMPONENT
<component :is="propExample" />

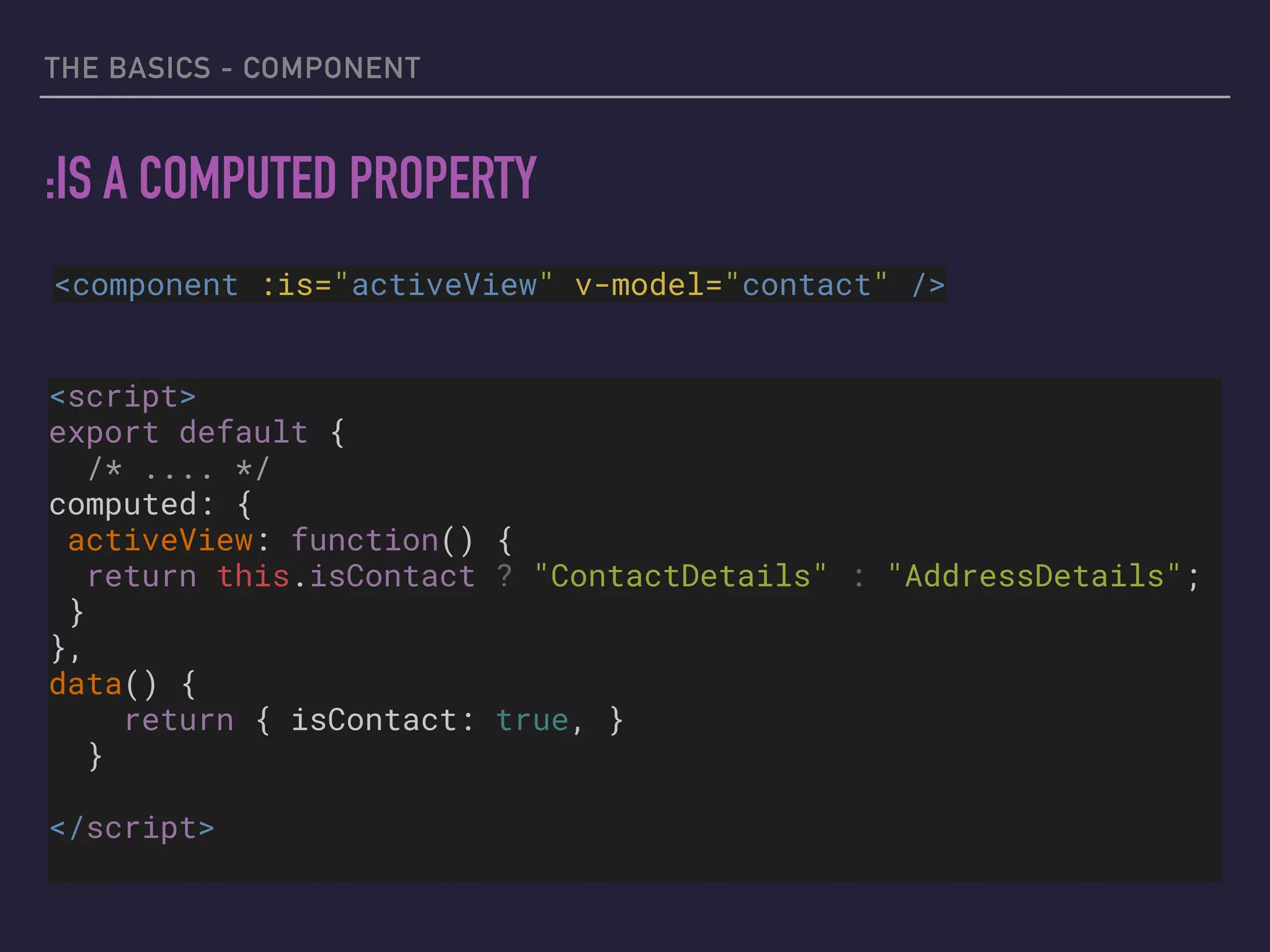

46. THE BASICS - COMPONENT
:IS A COMPUTED PROPERTY
<component :is="activeView" v-model="contact" />
<script>
export default {
/* .... */
computed: {
activeView: function() {
return this.isContact ? "ContactDetails" : "AddressDetails";
}
},
data() {
return { isContact: true, }
}
</script>

47. THE BASICS - COMPONENT
<component :is="computedExample"/>

48. PROPS AND EVENTS
COMPONENTS

49. <address-view
:street1="contact.street1"
:street2="contact.street1"
:country="contact.street1"
:province="contact.street1"
:postalCode=“contact.street1"/>
<contact-view
:firstName="contact.firstName"
:lastName="contact.lastName"
:userName="contact.userName"
:email=“contact.email"/>
PROPS AND EVENTS
PROPS
▸ Props can be bound just like any other component

50. <component :is="activeView"
:firstName="contact.firstName"
:lastName="contact.lastName"
:password="contact.password"
:email="contact.email"
:userName="contact.userName"
:street1="contact.street1"
:street2="contact.street2"
:country="contact.country"
:postalCode="contact.postalCode"
:province="contact.province">
</component>
PROPS AND EVENTS
PROPS
▸ Props can be bound just like any other component

51. <component :is="activeView"
:firstName="contact.firstName"
:lastName="contact.lastName"
:password="contact.password"
:email="contact.email"
:userName="contact.userName"
:street1="contact.street1"
:street2="contact.street2"
:country="contact.country"
:postalCode="contact.postalCode"
:province="contact.province">
</component>
PROPS AND EVENTS
PROPS
▸ Props can be bound just like any other component
▸ Unknown props will not cause errors
CONTACT PROPS
ADDRESS PROPS

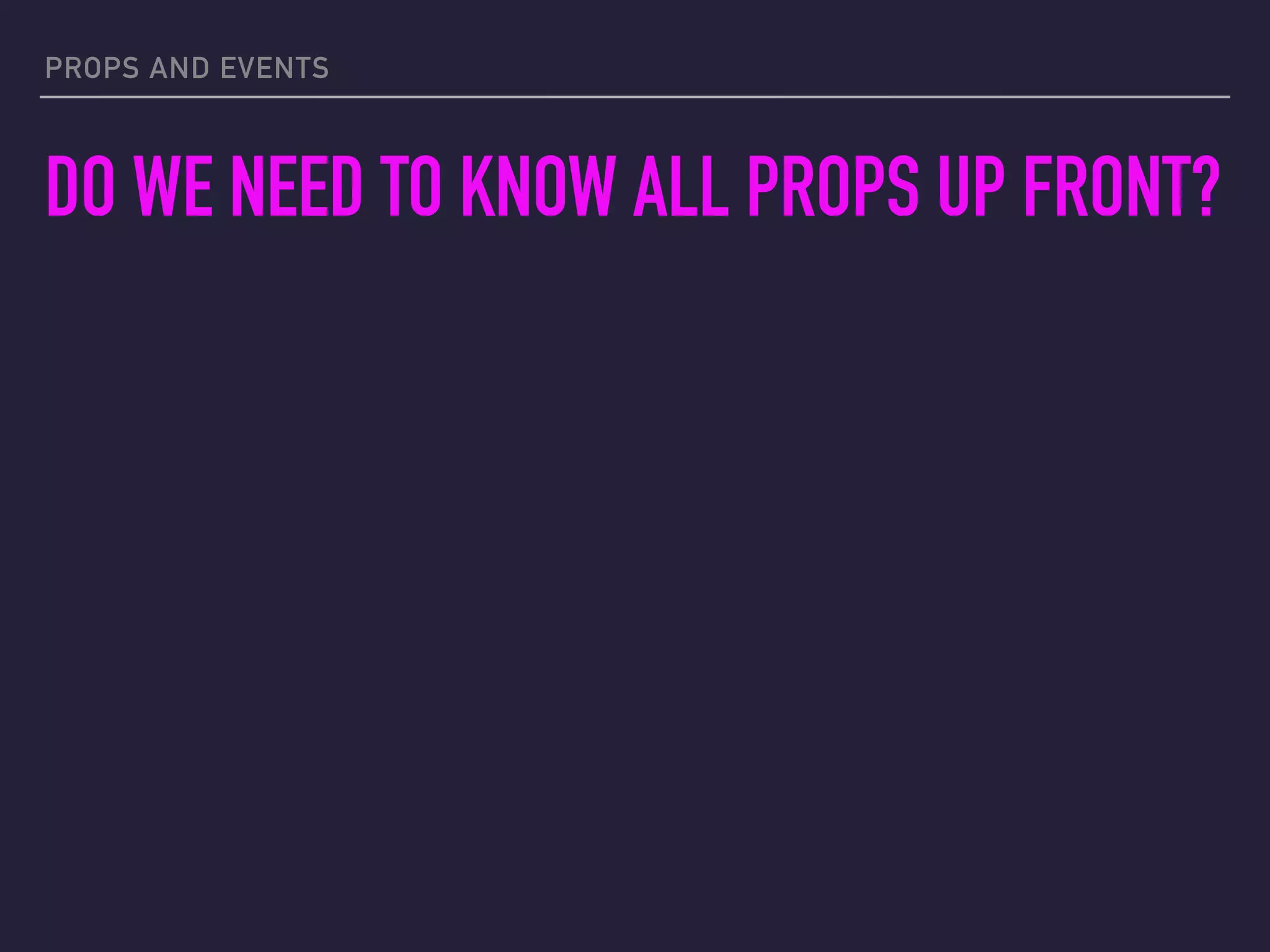

52. PROPS AND EVENTS
DO WE NEED TO KNOW ALL PROPS UP FRONT?

53. PROPS AND EVENTS
DO WE NEED TO KNOW ALL PROPS UP FRONT?
▸ No, “v-bind” to the rescue

54. PROPS AND EVENTS
DO WE NEED TO KNOW ALL PROPS UP FRONT?
▸ No, “v-bind” to the rescue
▸ Object Properties that match Props get bound as Props

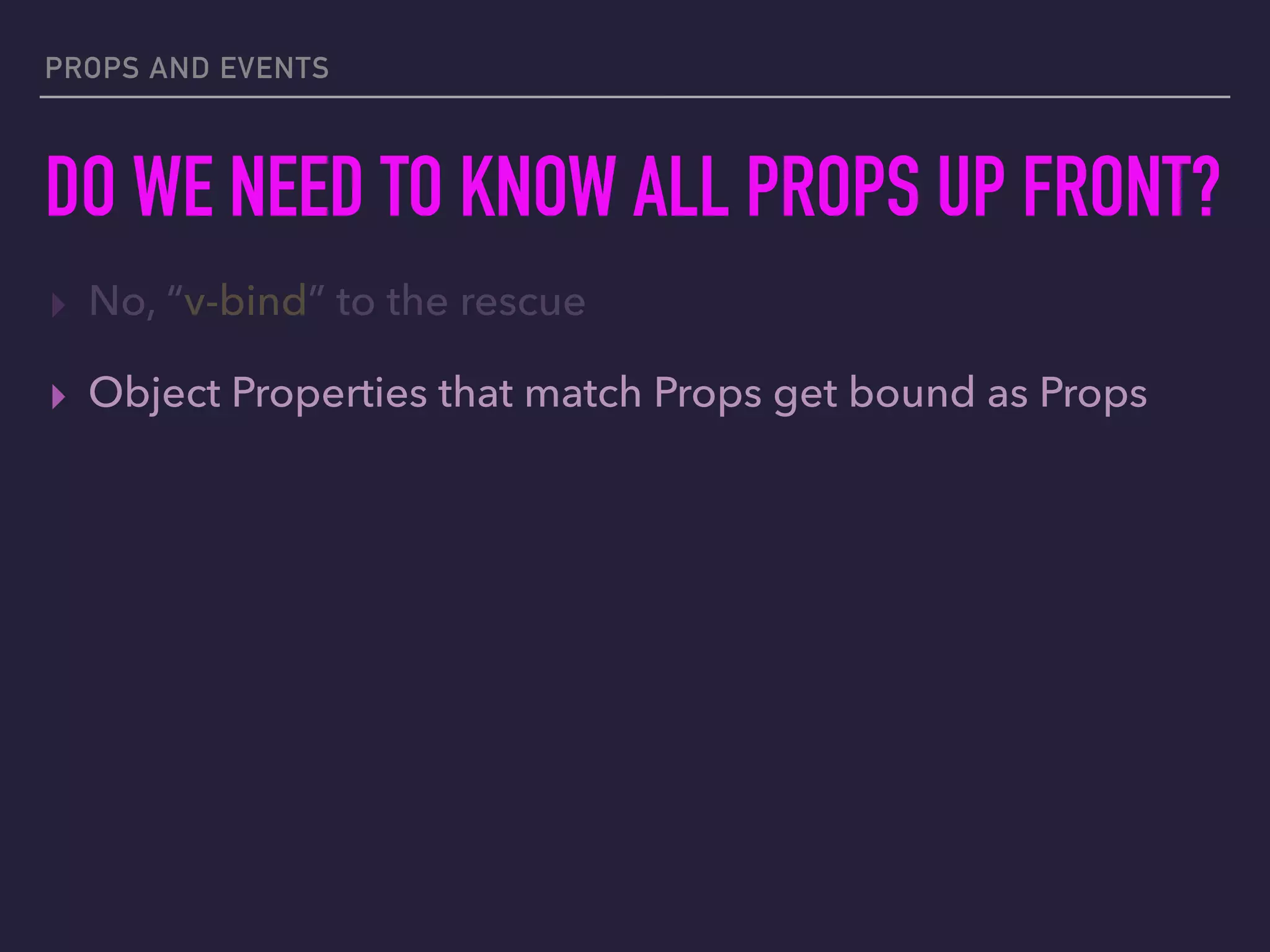

55. PROPS AND EVENTS
DO WE NEED TO KNOW ALL PROPS UP FRONT?
▸ No, “v-bind” to the rescue
▸ Object Properties that match Props get bound as Props
<component :is="activeView"
:firstName="contact.firstName"
:lastName="contact.lastName"
:password="contact.password"
:email="contact.email"
:userName="contact.userName"
:street1="contact.street1"
:street2="contact.street2"
:country="contact.country"
:postalCode="contact.postalCode"
:province="contact.province">
</component>
V-BIND BEFORE

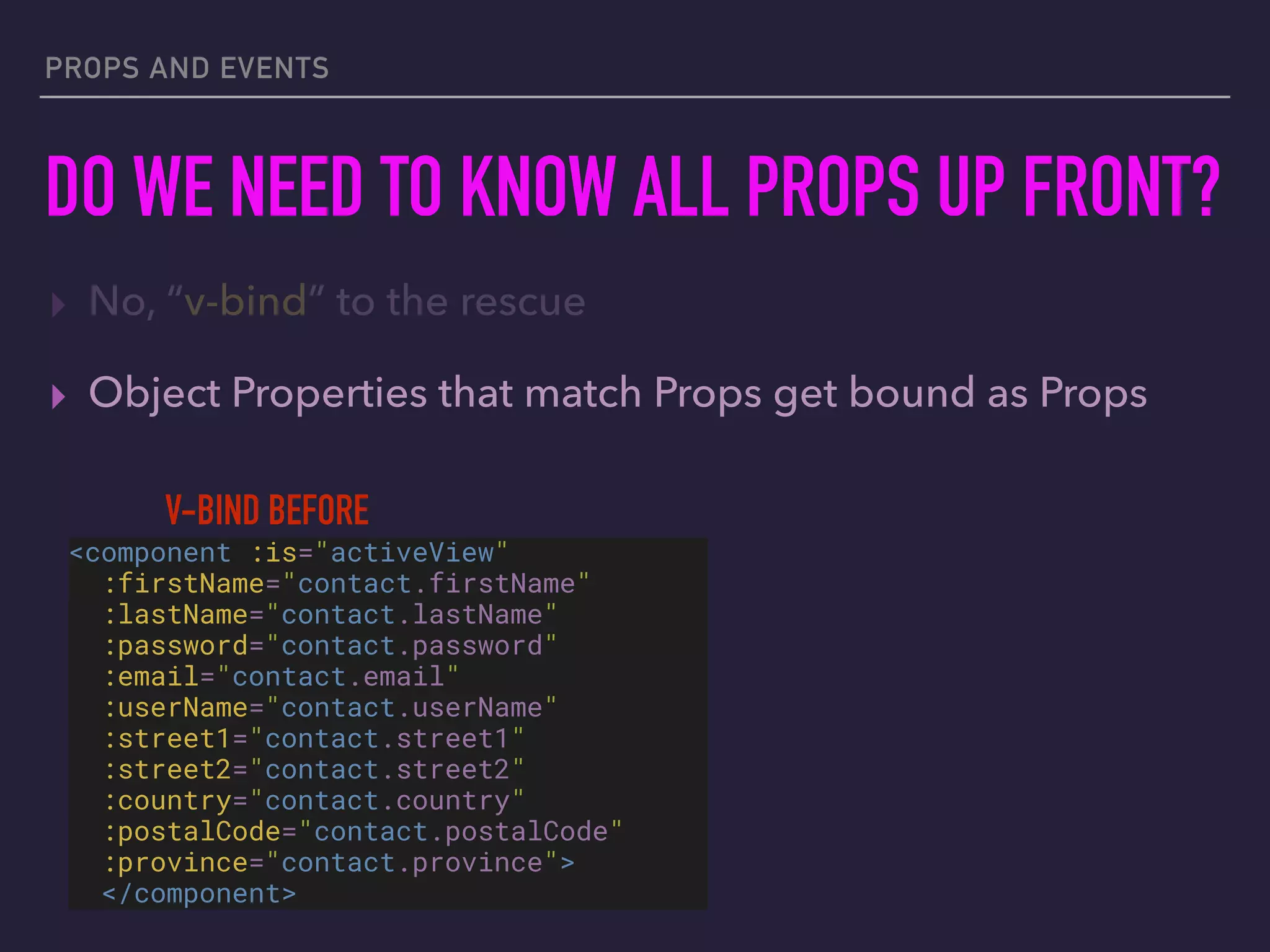

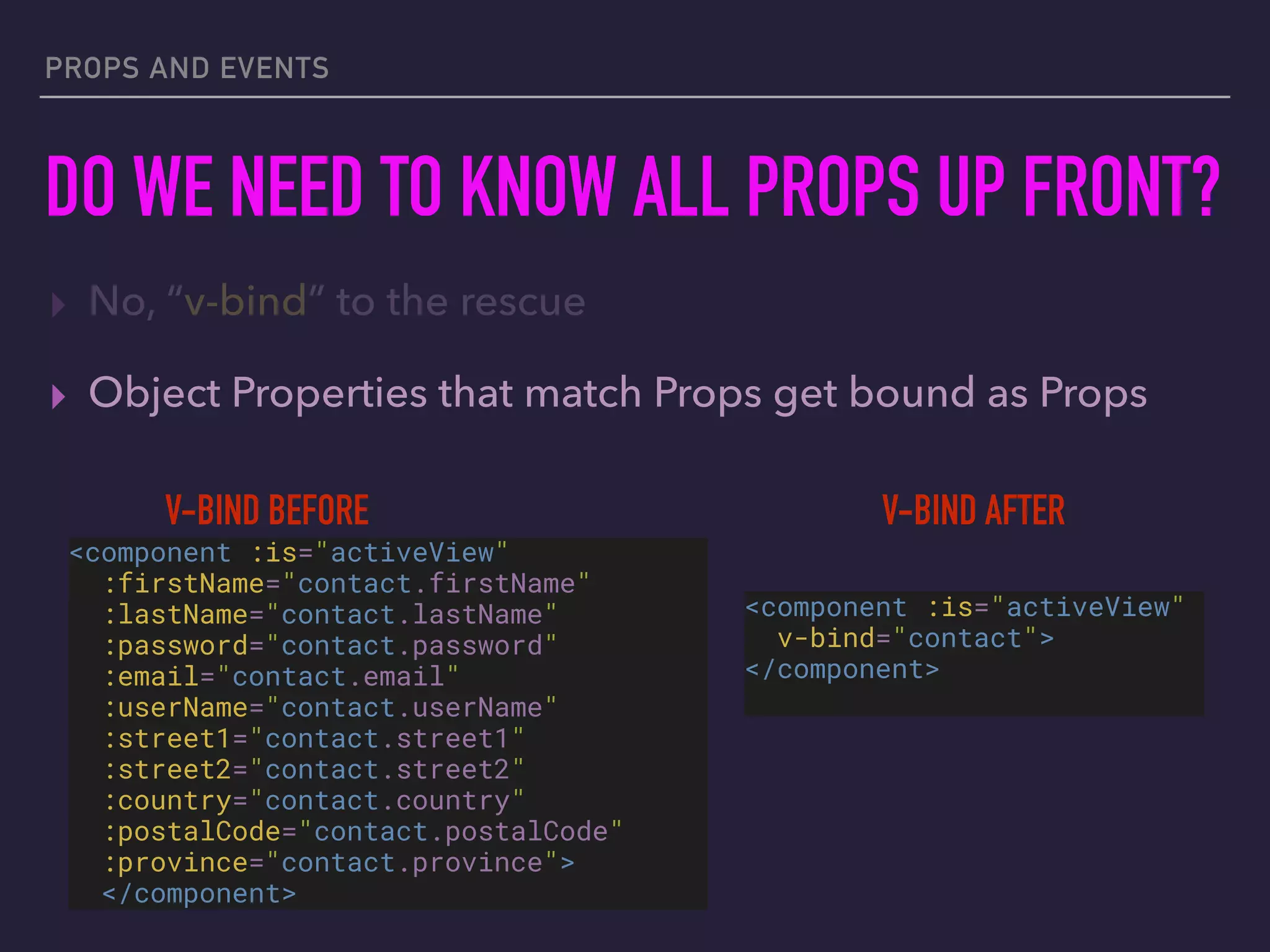

56. PROPS AND EVENTS
DO WE NEED TO KNOW ALL PROPS UP FRONT?
▸ No, “v-bind” to the rescue
▸ Object Properties that match Props get bound as Props
<component :is="activeView"
:firstName="contact.firstName"
:lastName="contact.lastName"
:password="contact.password"
:email="contact.email"
:userName="contact.userName"
:street1="contact.street1"
:street2="contact.street2"
:country="contact.country"
:postalCode="contact.postalCode"
:province="contact.province">
</component>
V-BIND BEFORE
<component :is="activeView"
v-bind="contact">
</component>
V-BIND AFTER

57. PROPS AND EVENTS
WHAT HAPPENS TO THE OTHER PROPS?

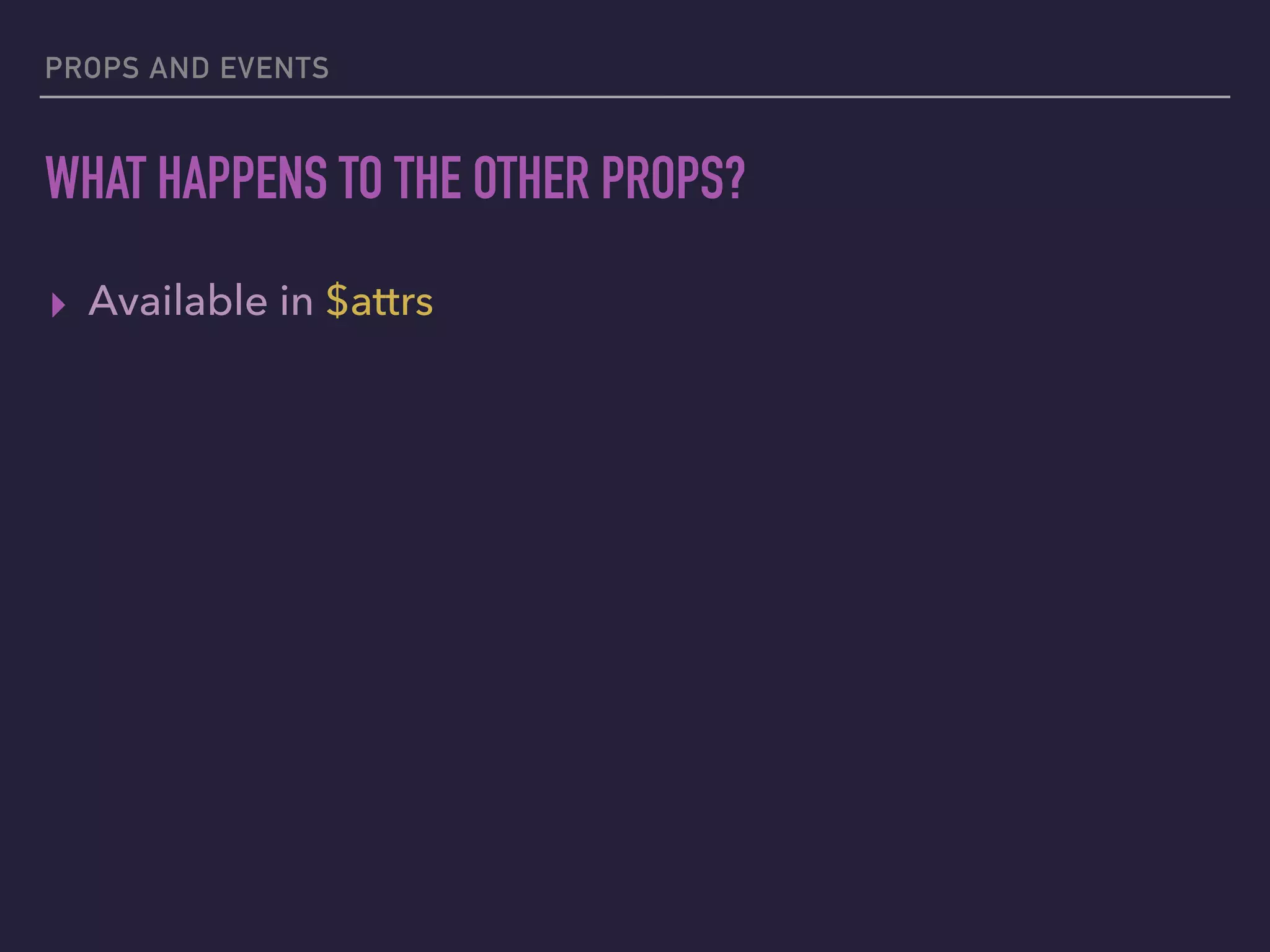

58. PROPS AND EVENTS
WHAT HAPPENS TO THE OTHER PROPS?
▸ Available in $attrs

59. PROPS AND EVENTS
WHAT HAPPENS TO THE OTHER PROPS?
▸ Available in $attrs
▸ inheritAttrs: true (default)

60. PROPS AND EVENTS
WHAT HAPPENS TO THE OTHER PROPS?
▸ Available in $attrs
▸ inheritAttrs: true (default)
▸ Become attributes on the root of the component

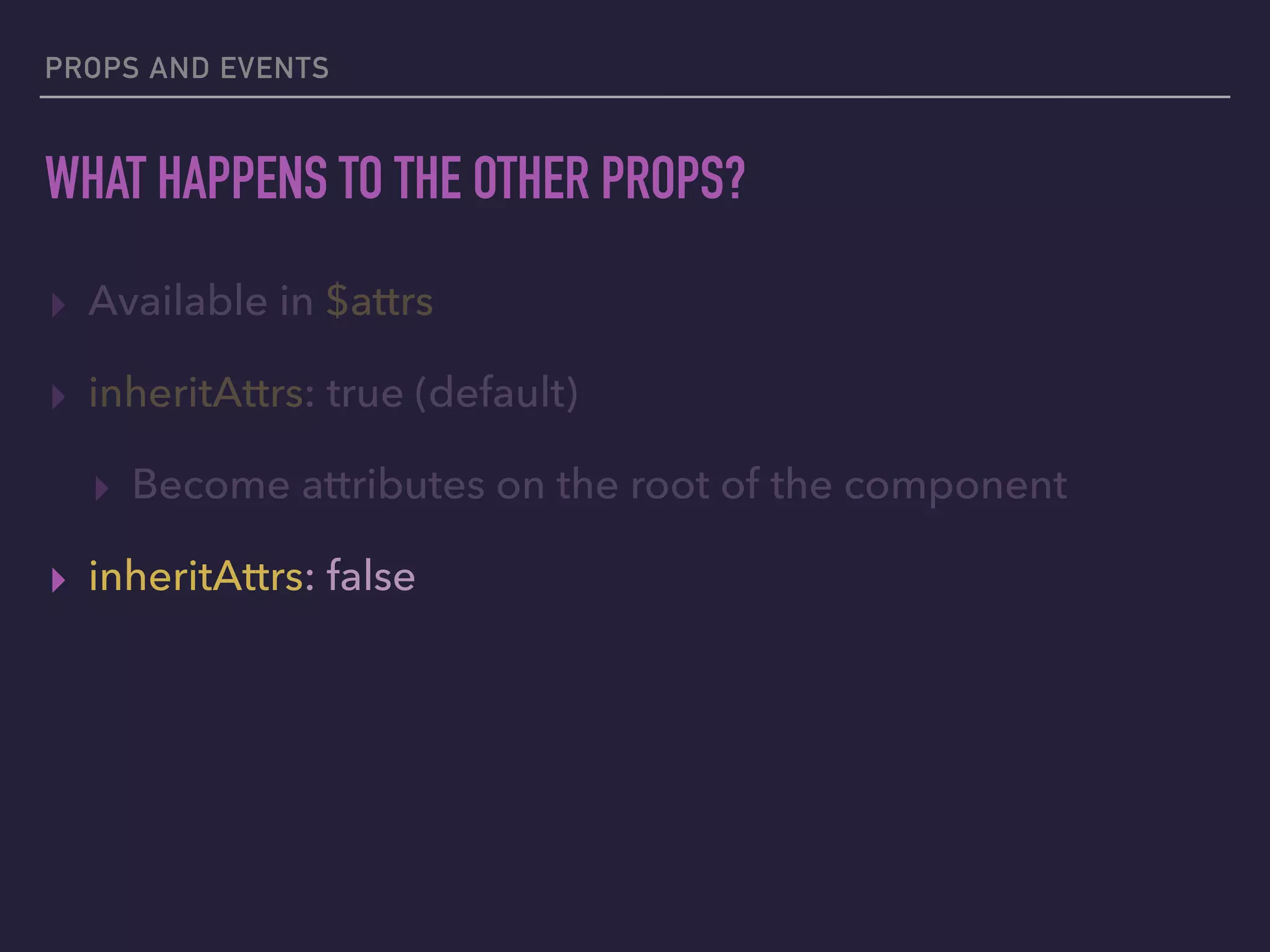

61. PROPS AND EVENTS
WHAT HAPPENS TO THE OTHER PROPS?
▸ Available in $attrs
▸ inheritAttrs: true (default)
▸ Become attributes on the root of the component
▸ inheritAttrs: false

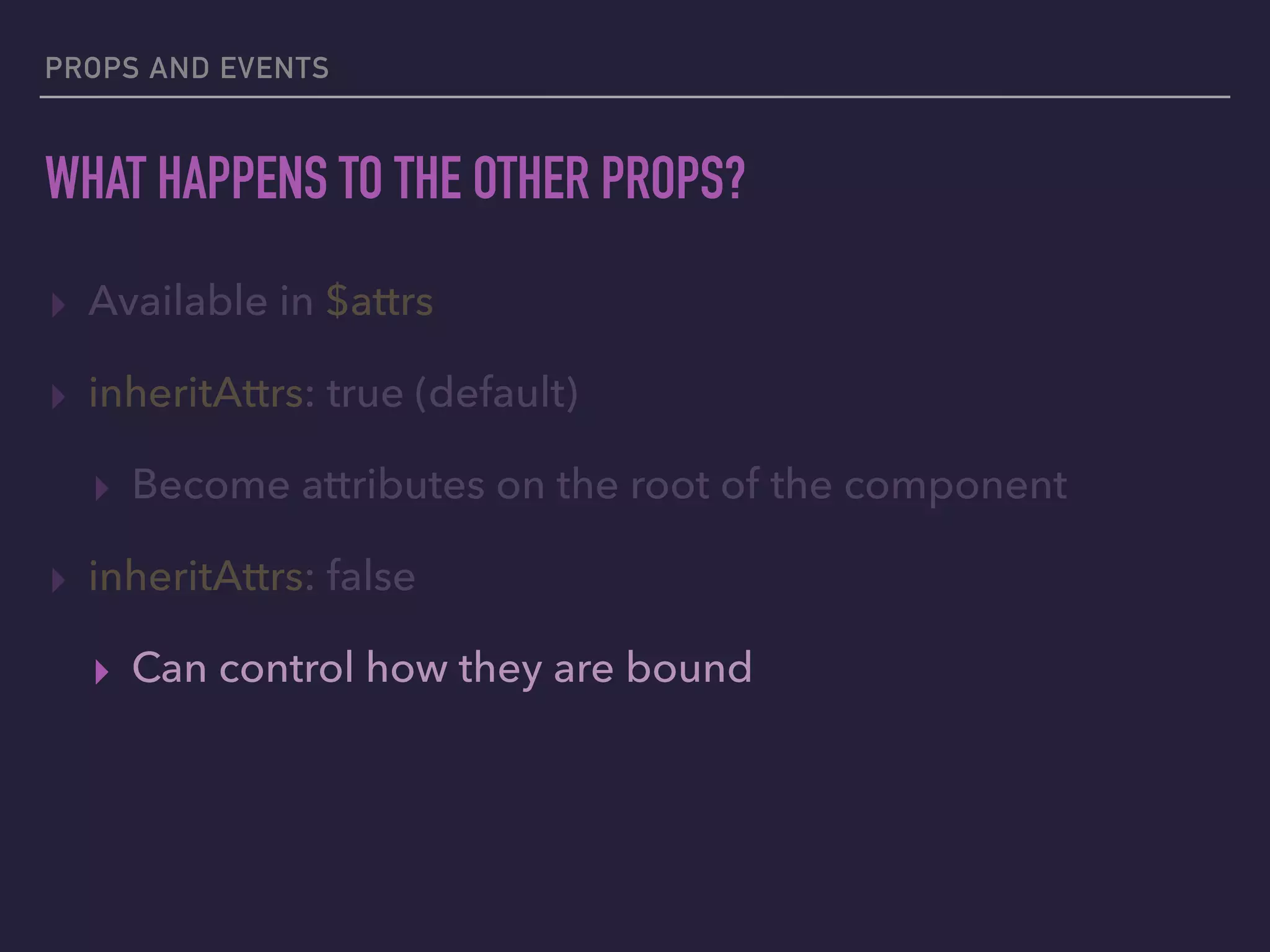

62. PROPS AND EVENTS
WHAT HAPPENS TO THE OTHER PROPS?
▸ Available in $attrs
▸ inheritAttrs: true (default)
▸ Become attributes on the root of the component
▸ inheritAttrs: false
▸ Can control how they are bound

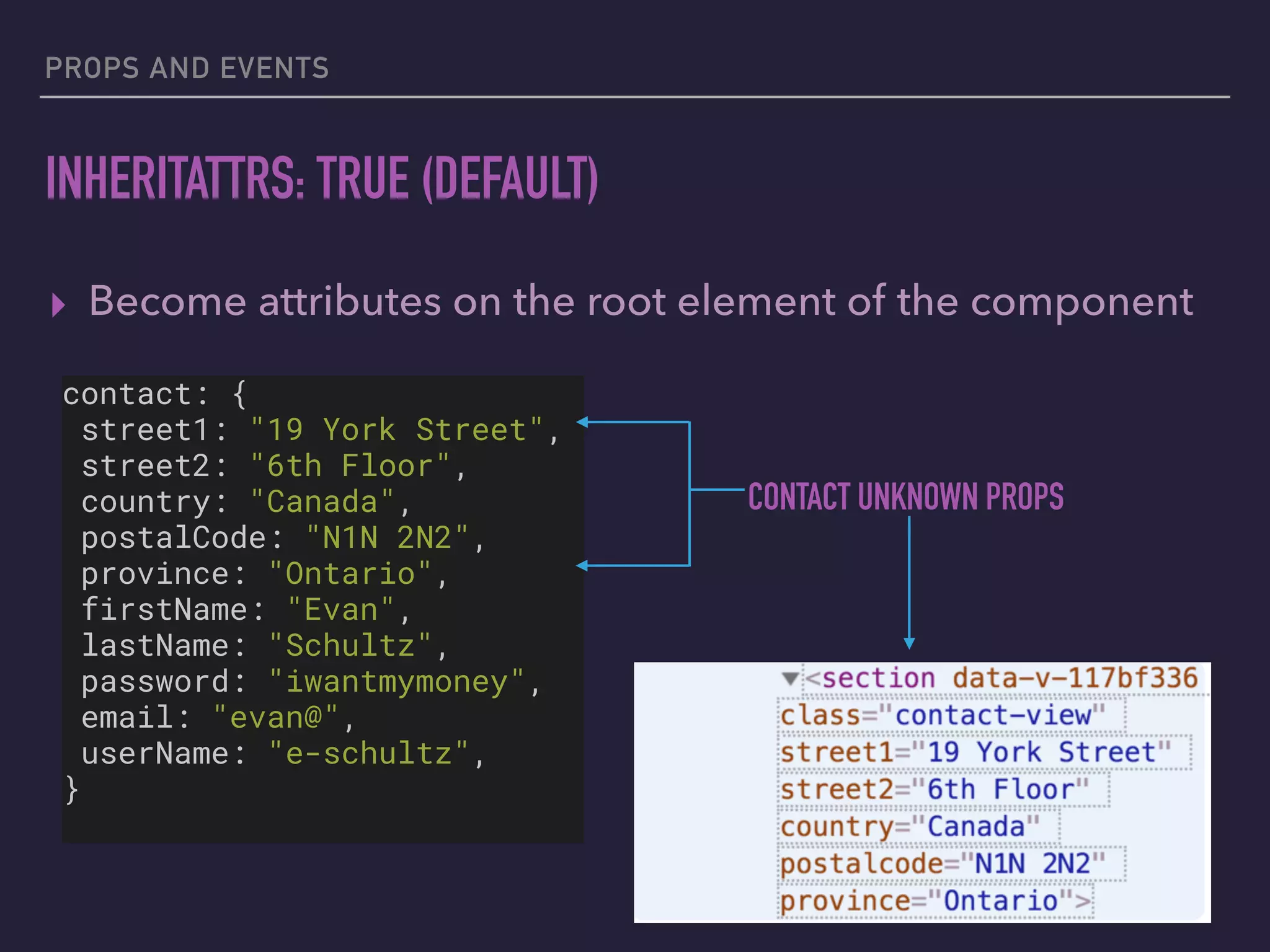

63. PROPS AND EVENTS
INHERITATTRS: TRUE (DEFAULT)
▸ Become attributes on the root element of the component
contact: {
street1: "19 York Street",
street2: "6th Floor",
country: "Canada",
postalCode: "N1N 2N2",
province: "Ontario",
firstName: "Evan",
lastName: "Schultz",
password: "iwantmymoney",
email: "evan@",
userName: "e-schultz",
}
CONTACT UNKNOWN PROPS

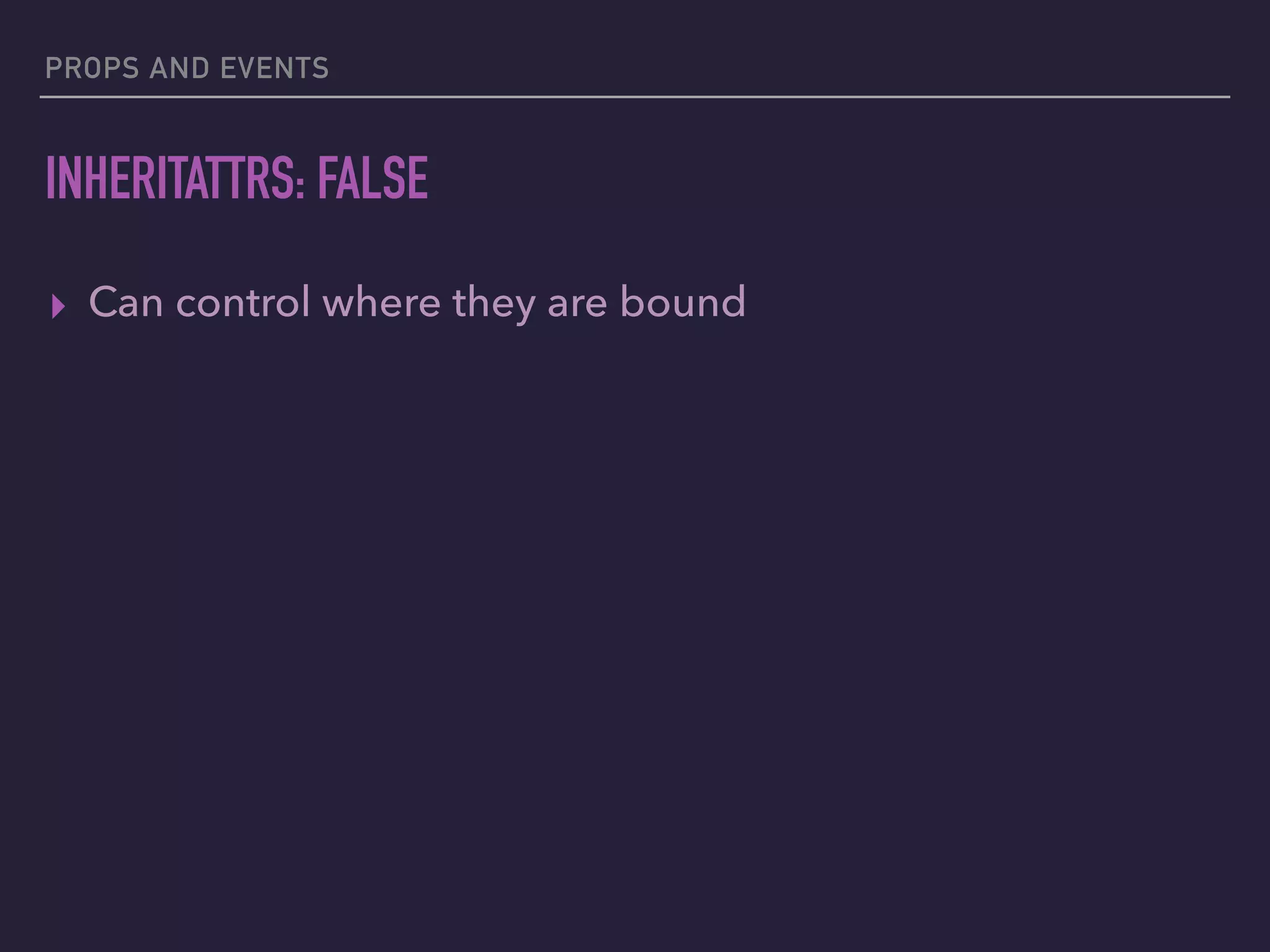

64. PROPS AND EVENTS
INHERITATTRS: FALSE
▸ Can control where they are bound

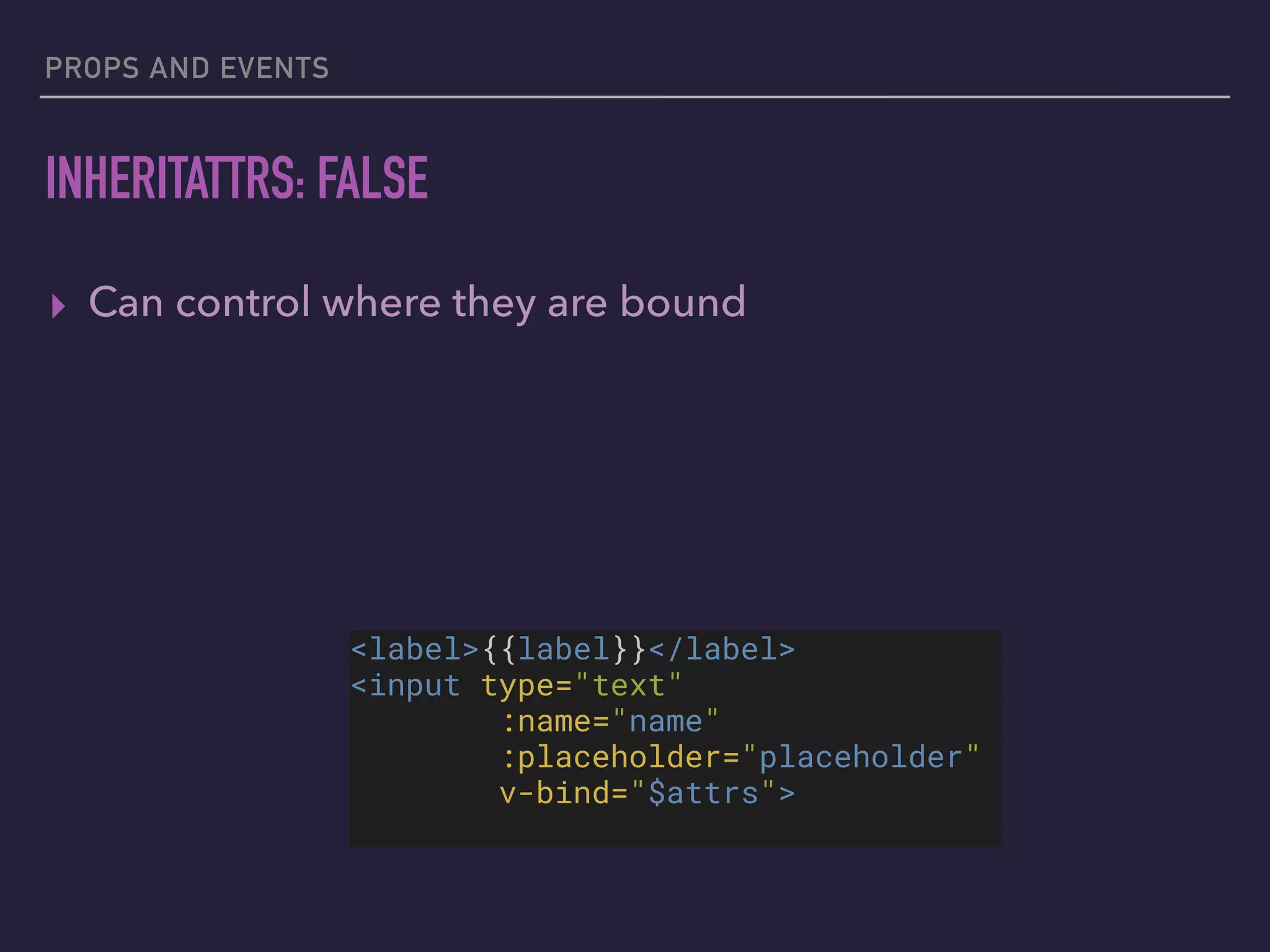

65. PROPS AND EVENTS
INHERITATTRS: FALSE
▸ Can control where they are bound
<label>{{label}}</label>
<input type="text"
:name="name"
:placeholder="placeholder"
v-bind="$attrs">

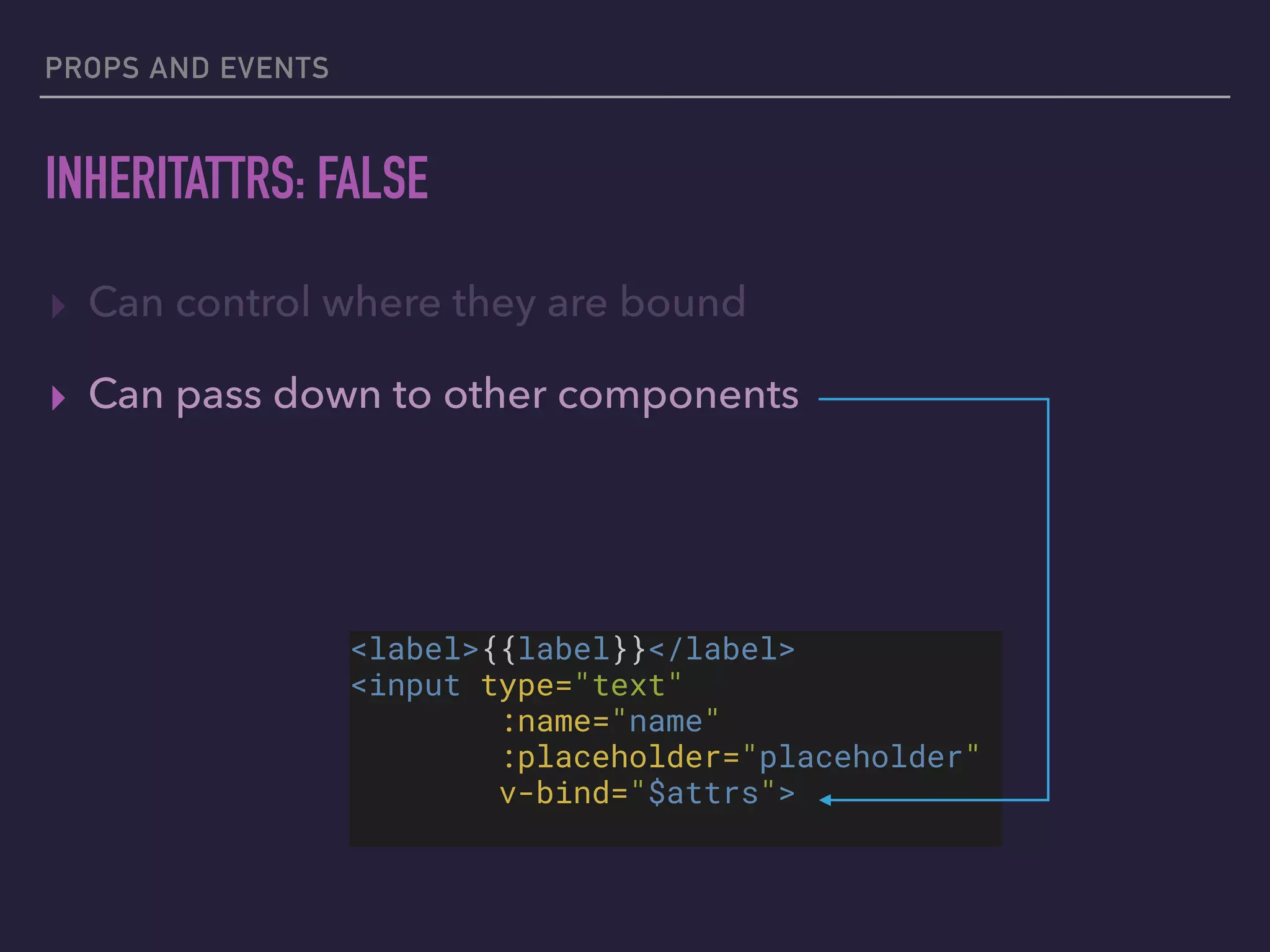

66. PROPS AND EVENTS
INHERITATTRS: FALSE
▸ Can control where they are bound
▸ Can pass down to other components
<label>{{label}}</label>
<input type="text"
:name="name"
:placeholder="placeholder"
v-bind="$attrs">

67. PROPS AND EVENTS
INHERITATTRS: FALSE
▸ Can control where they are bound
▸ Can pass down to other components
▸ Useful for working with other libraries
<b-dropdown :value="value"
@input="$emit('input',$event)"
v-bind="$attrs">
<!-- ... -->
<b-dropdown-item v-for="(option) in options" :key="option"
:value="option">
{{option}}
</b-dropdown-item>
</b-dropdown>

68. PROPS AND EVENTS
EVENTS

69. PROPS AND EVENTS
EVENTS
▸ Can bind DOM events

70. PROPS AND EVENTS
EVENTS
▸ Can bind DOM events
▸ @click

71. PROPS AND EVENTS
EVENTS
▸ Can bind DOM events
▸ @click
▸ @focus

72. PROPS AND EVENTS
EVENTS
▸ Can bind DOM events
▸ @click
▸ @focus
▸ Can bind custom events

73. PROPS AND EVENTS
EVENTS
▸ Can bind DOM events
▸ @click
▸ @focus
▸ Can bind custom events
▸ @upperCase=“switchCase(‘upperCase')"

74. FORMS
PUTTING IT TOGETHER

75. FORMS

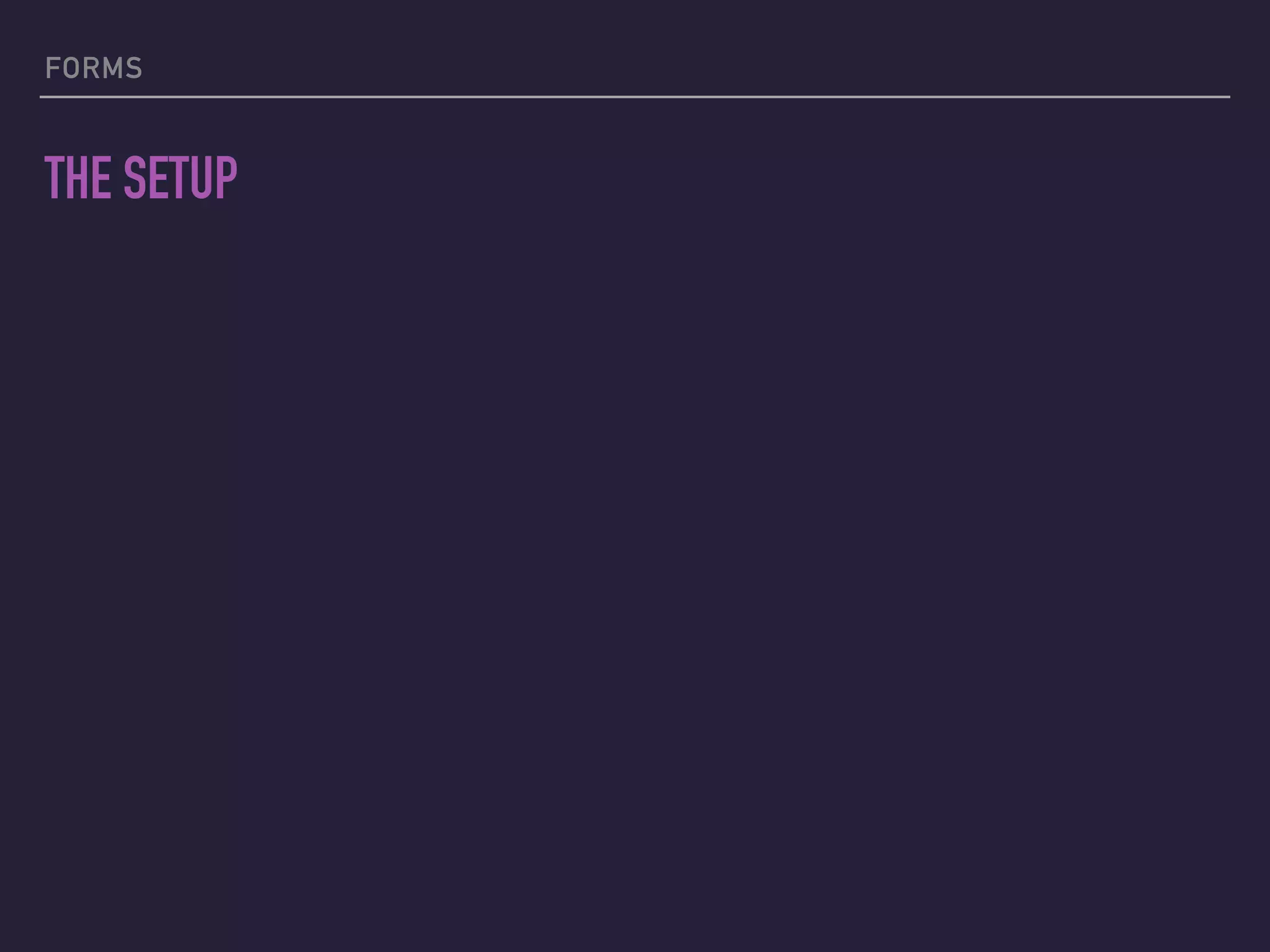

THE SETUP

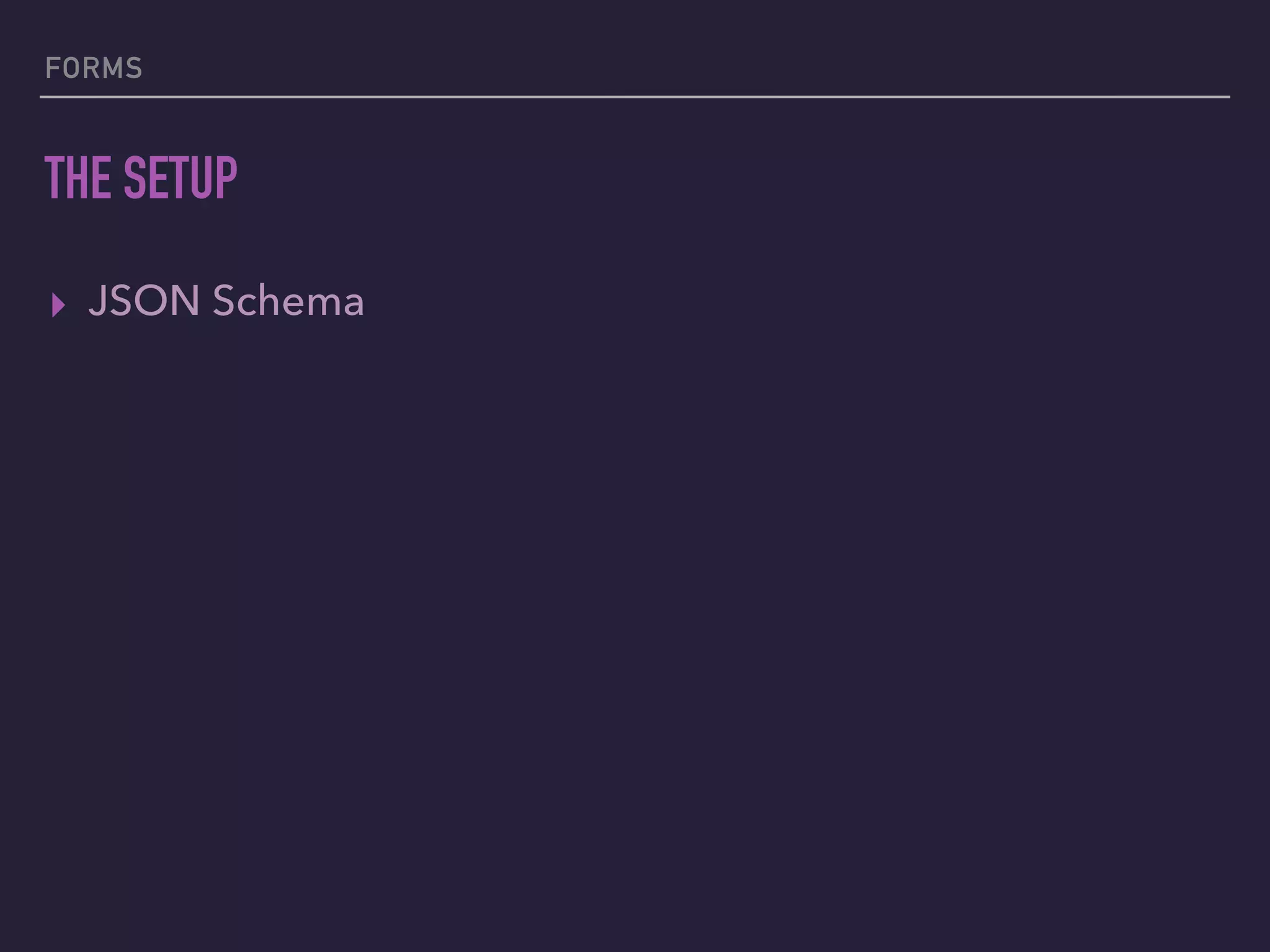

76. FORMS
THE SETUP
▸ JSON Schema

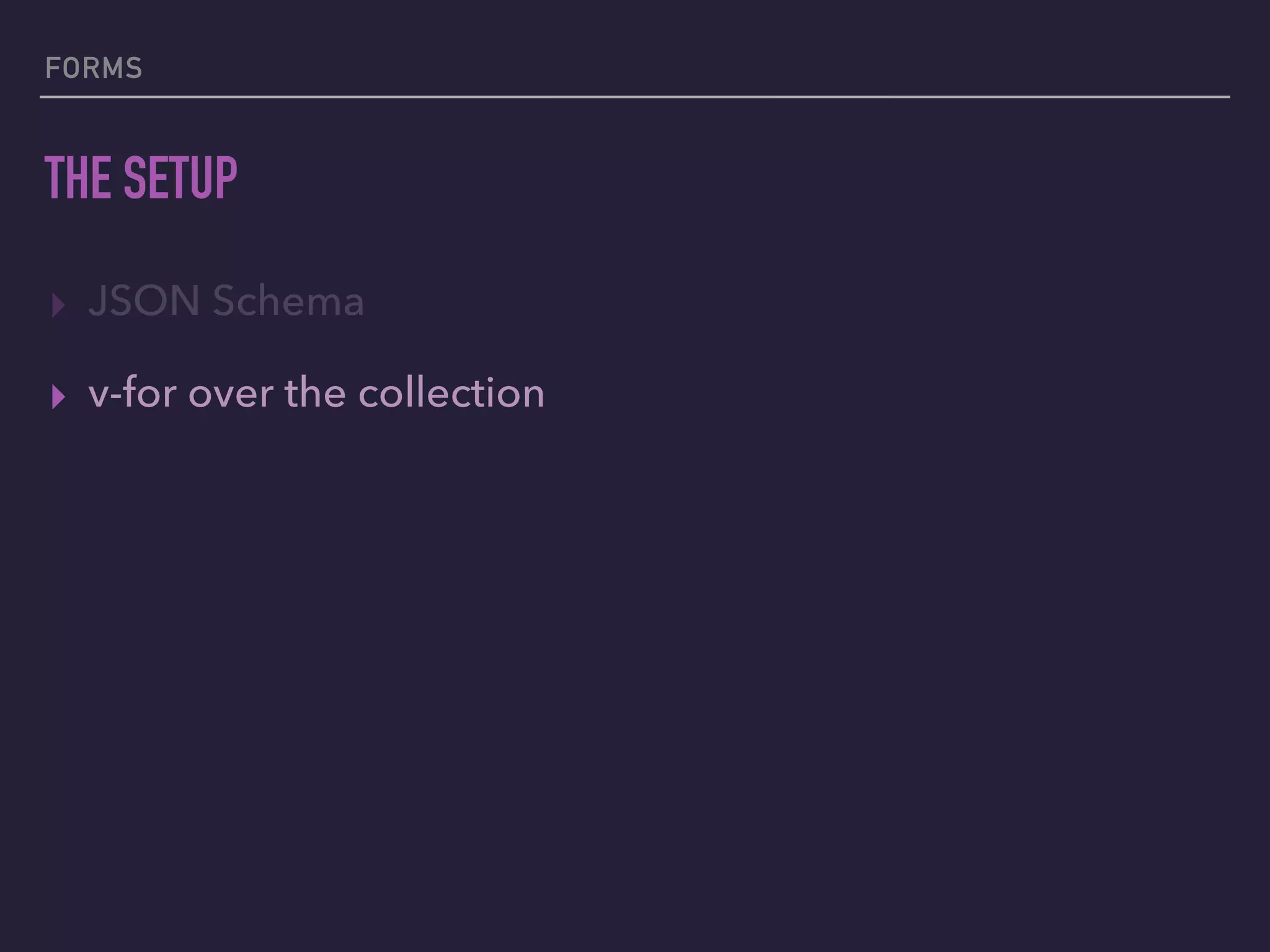

77. FORMS
THE SETUP
▸ JSON Schema
▸ v-for over the collection

78. FORMS
THE SETUP
▸ JSON Schema
▸ v-for over the collection
▸ Playing nice with v-model

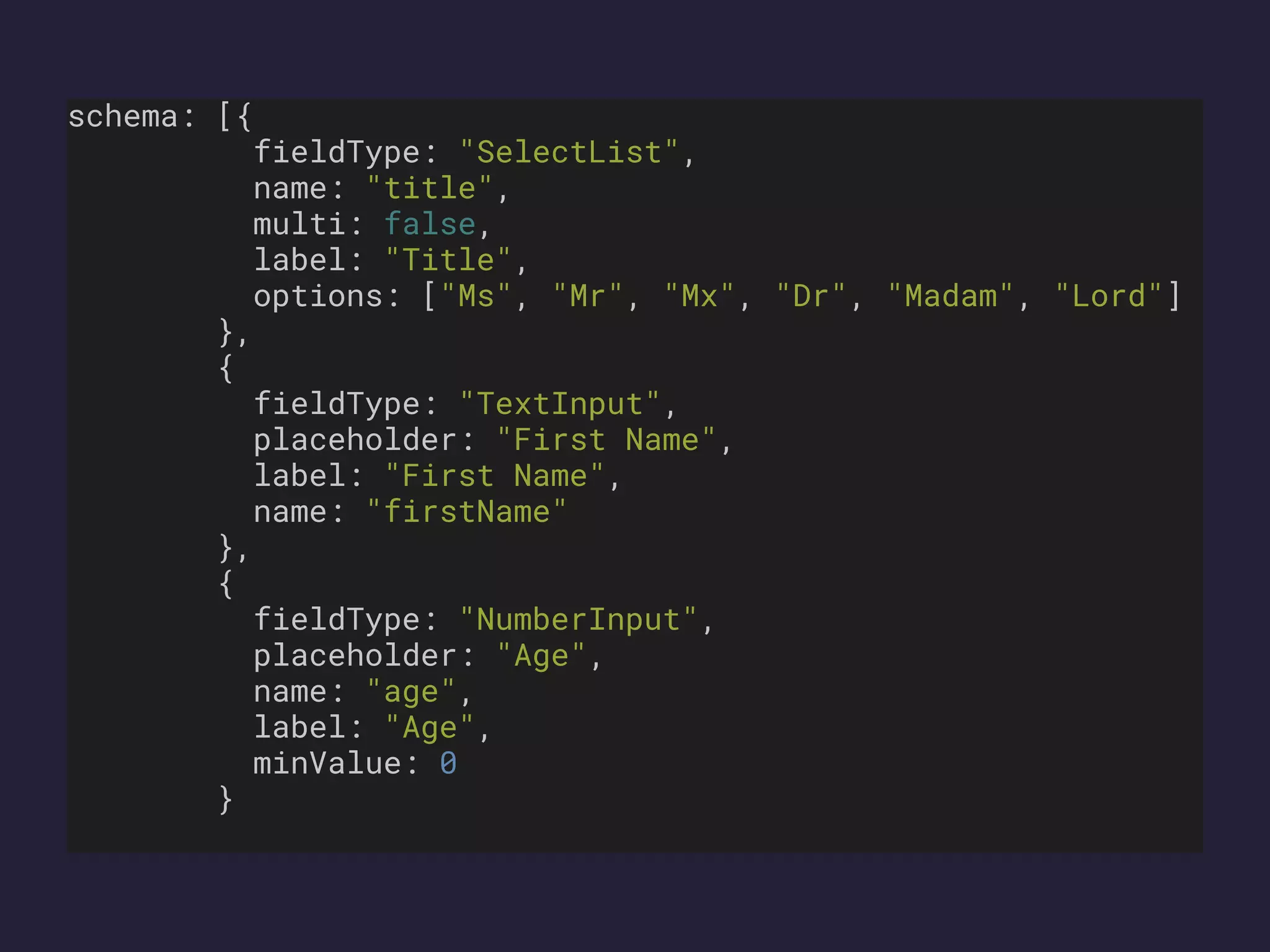

79. schema: [{
fieldType: "SelectList",
name: "title",
multi: false,
label: "Title",
options: ["Ms", "Mr", "Mx", "Dr", "Madam", "Lord"]
},
{
fieldType: "TextInput",
placeholder: "First Name",
label: "First Name",
name: "firstName"
},
{
fieldType: "NumberInput",
placeholder: "Age",
name: "age",
label: "Age",
minValue: 0
}

80. FORMS
EXAMPLE COMPONENT - TEXT INPUT
<template>
<div>
<label>{{label}}</label>
<input type="text"
:name=“name"
:value=“value"
:placeholder="placeholder">
</div>
</template>
<script>
export default {
name: "TextInput",
props: ["placeholder", "label", “name”, "value"]
};
</script>

81. FORMS
V-FOR
<component v-for="(field, index) in schema" :key="index"
:is="field.fieldType" v-bind="field">
</component>

82. FORMS
<component v-for="(field, index) in schema" :key="index"
:is="field.fieldType" v-bind="field">
</component>

83. V-IF
WHAT ABOUT

84. FORMS
WHAT ABOUT V-IF
▸ Still useful for simple cases

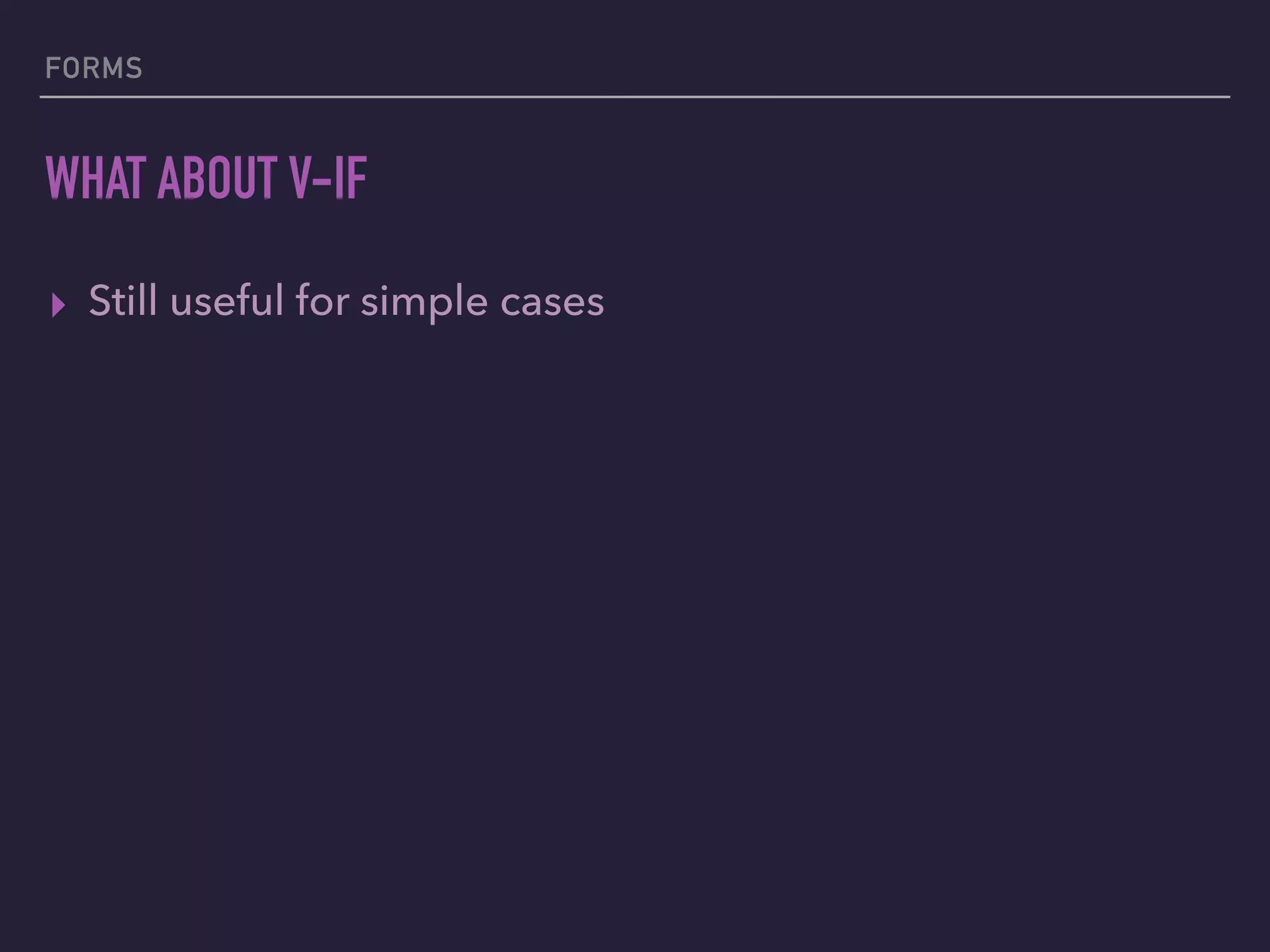

85. FORMS
WHAT ABOUT V-IF
▸ Still useful for simple cases
▸ Can quickly bloat templates

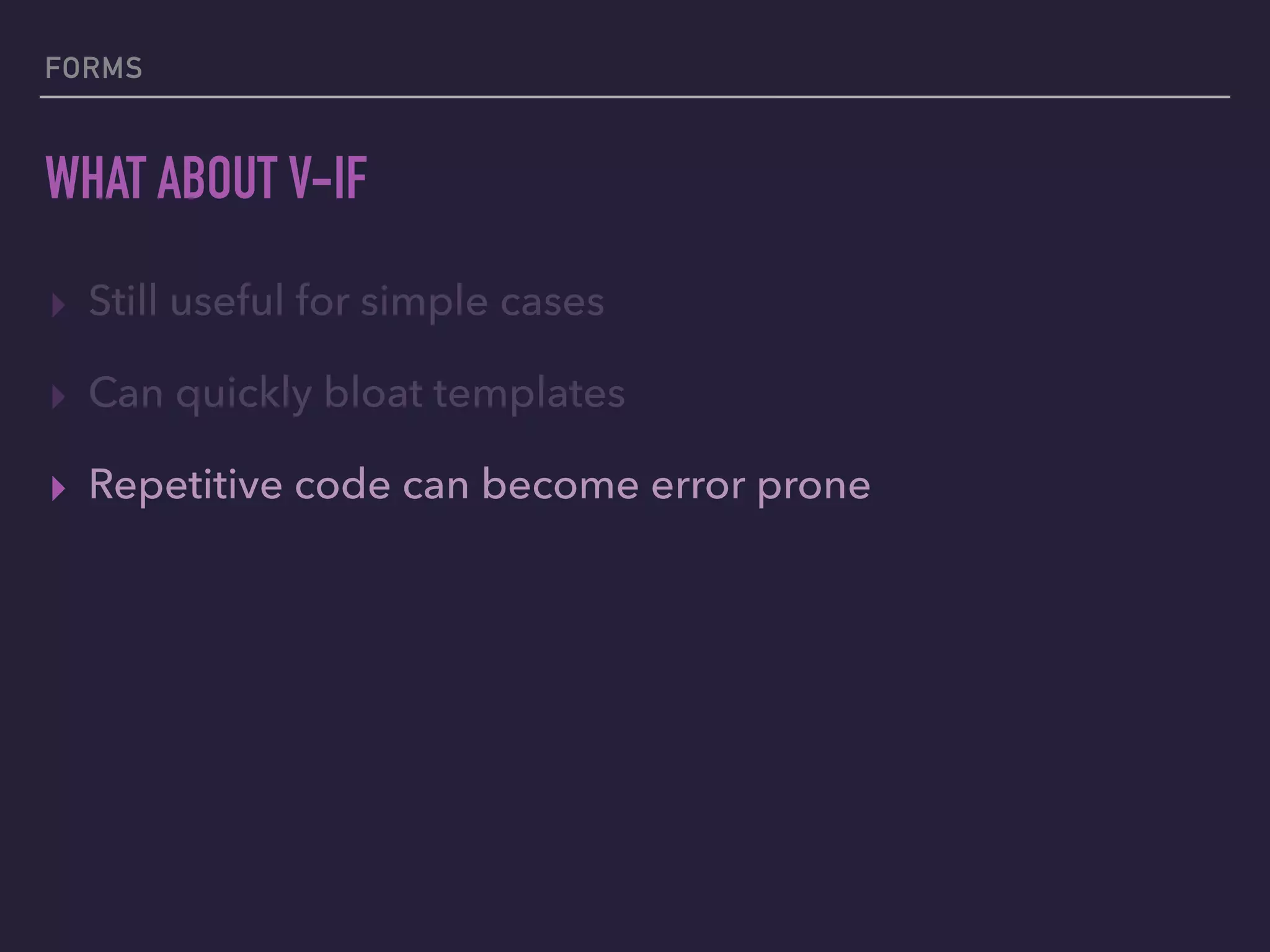

86. FORMS
WHAT ABOUT V-IF
▸ Still useful for simple cases
▸ Can quickly bloat templates
▸ Repetitive code can become error prone

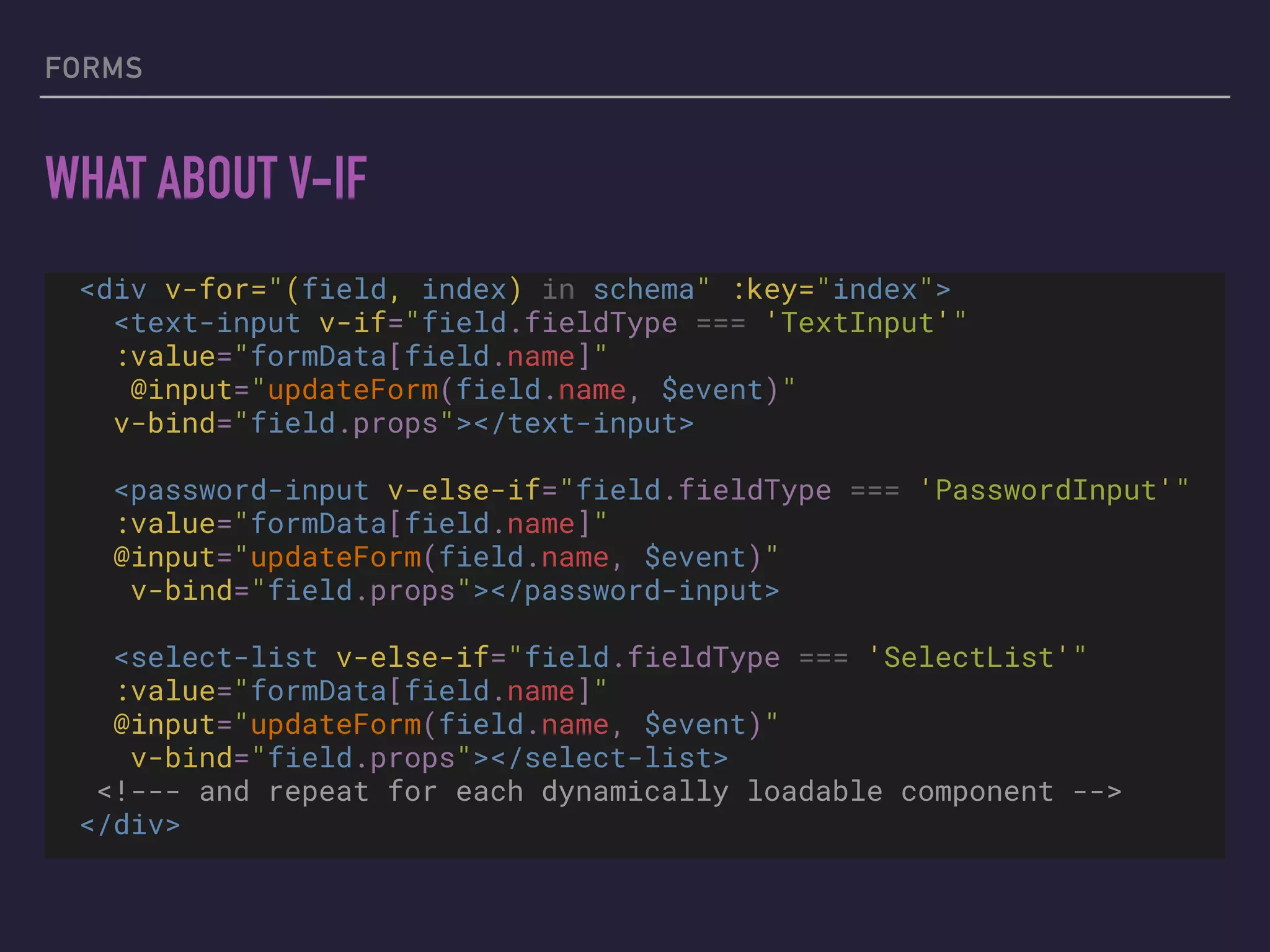

87. FORMS
WHAT ABOUT V-IF
<div v-for="(field, index) in schema" :key="index">
<text-input v-if="field.fieldType === 'TextInput'"
:value="formData[field.name]"
@input="updateForm(field.name, $event)"
v-bind="field.props"></text-input>
<password-input v-else-if="field.fieldType === 'PasswordInput'"
:value="formData[field.name]"
@input="updateForm(field.name, $event)"
v-bind="field.props"></password-input>
<select-list v-else-if="field.fieldType === 'SelectList'"
:value="formData[field.name]"
@input="updateForm(field.name, $event)"
v-bind="field.props"></select-list>
<!--- and repeat for each dynamically loadable component -->
</div>

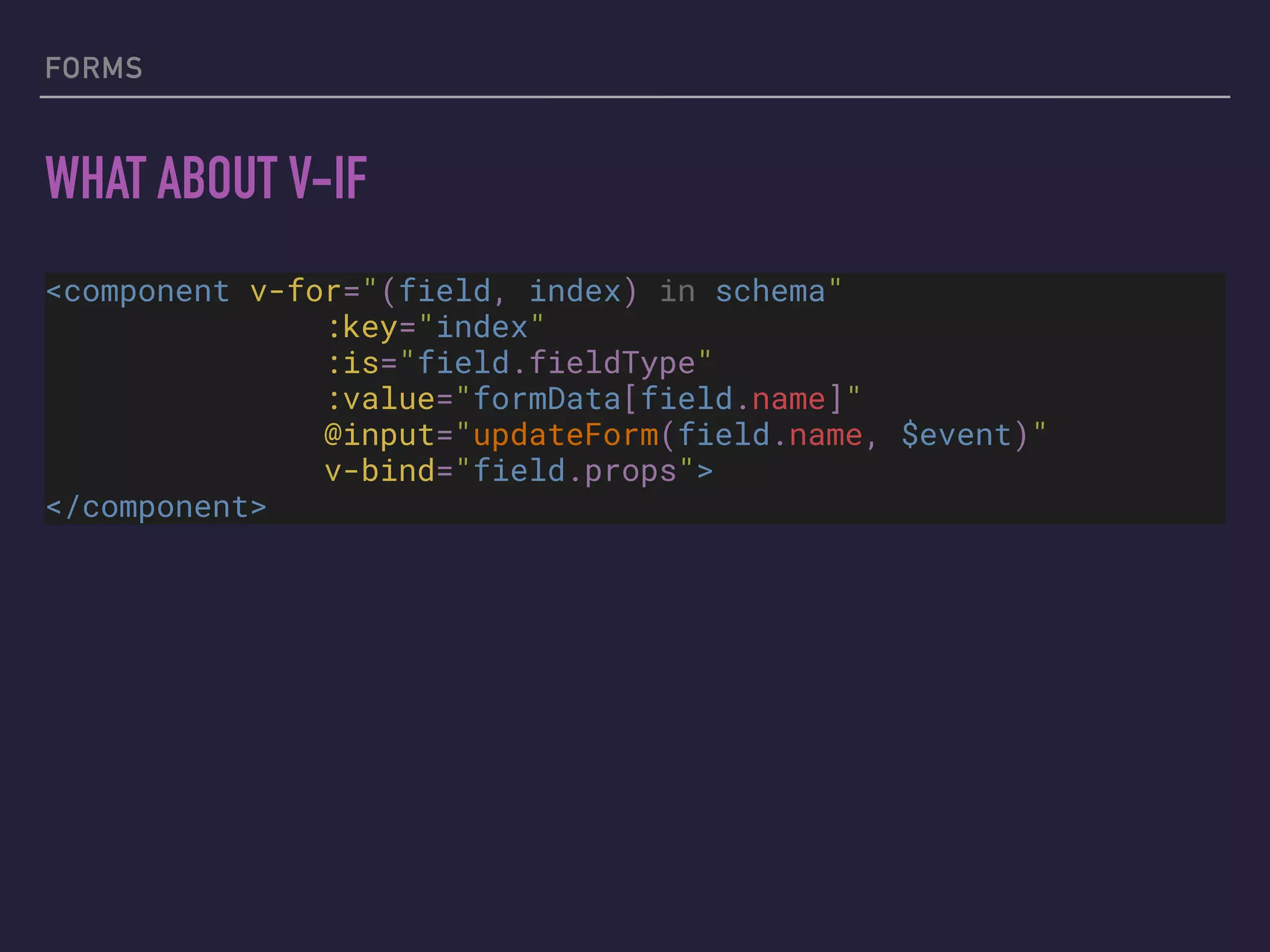

88. FORMS
WHAT ABOUT V-IF
<component v-for="(field, index) in schema"
:key="index"
:is="field.fieldType"
:value="formData[field.name]"
@input="updateForm(field.name, $event)"
v-bind="field.props">
</component>

89. DATA BINDING
FORMS

90. FORMS
DATA BINDING - EXPLORING V-MODEL
<input v-model="value">
<input :value="value" @input=“value = $event.target.value">
IS SUGAR ON TOP OF

91. FORMS
DATA BINDING - GOALS FOR THE COMPONENT
▸ Let the parent provide a value to the child component
▸ Let the parent know that the value has changed

92. FORMS
DATA BINDING - GOALS FOR THE COMPONENT
<label>{{label}}</label>
<input type="text"
:name="name"
:value="value"
@input="$emit('input',$event.target.value)"
:placeholder="placeholder">

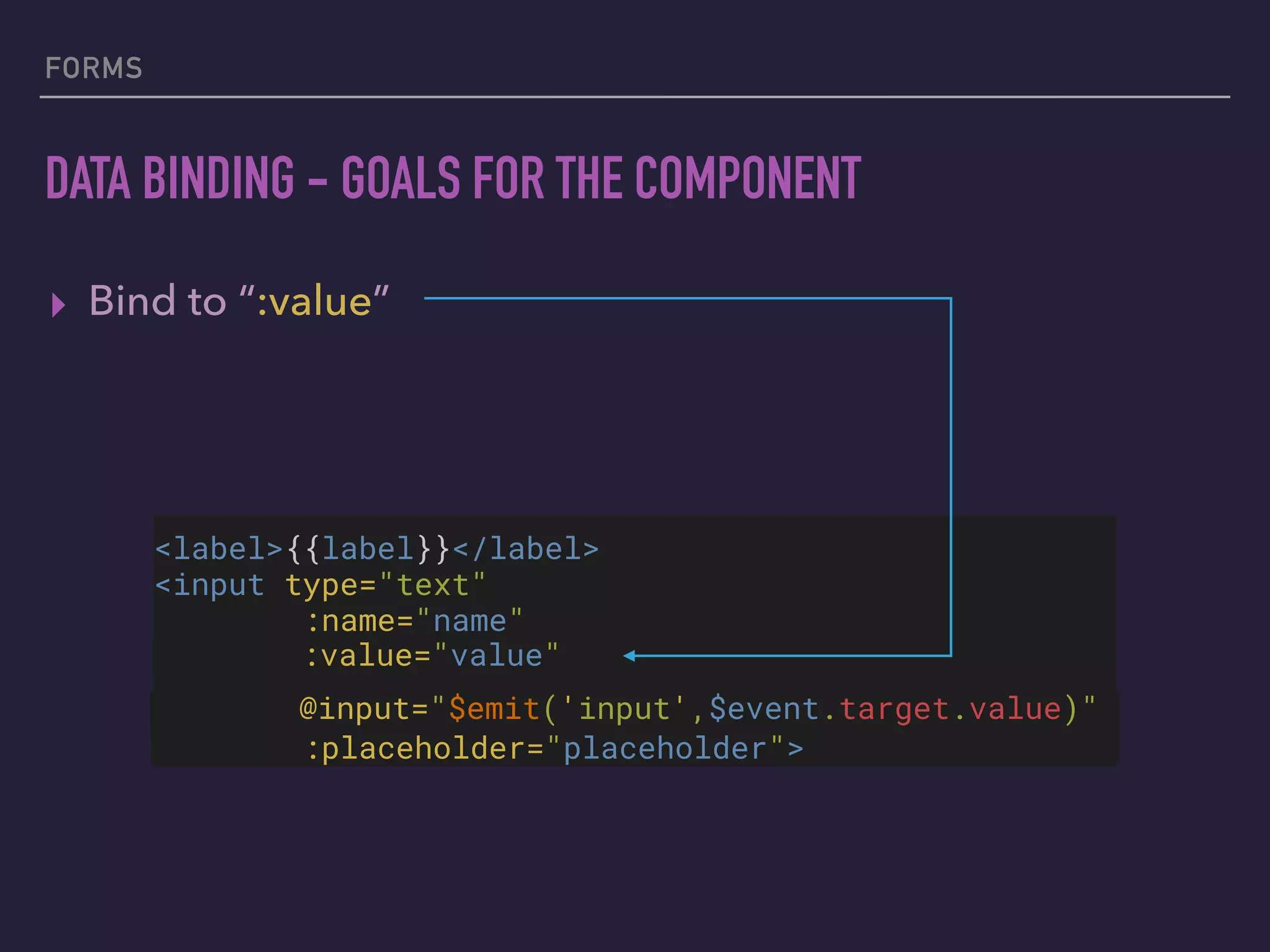

93. ▸ Bind to “:value”
FORMS
DATA BINDING - GOALS FOR THE COMPONENT
<label>{{label}}</label>
<input type="text"
:name="name"
:value="value"
@input="$emit('input',$event.target.value)"
:placeholder="placeholder">

94. ▸ Bind to “:value”
▸ Emit an “@input” event to notify the parent
FORMS
DATA BINDING - GOALS FOR THE COMPONENT
<label>{{label}}</label>
<input type="text"
:name="name"
:value="value"
@input="$emit('input',$event.target.value)"
:placeholder="placeholder">

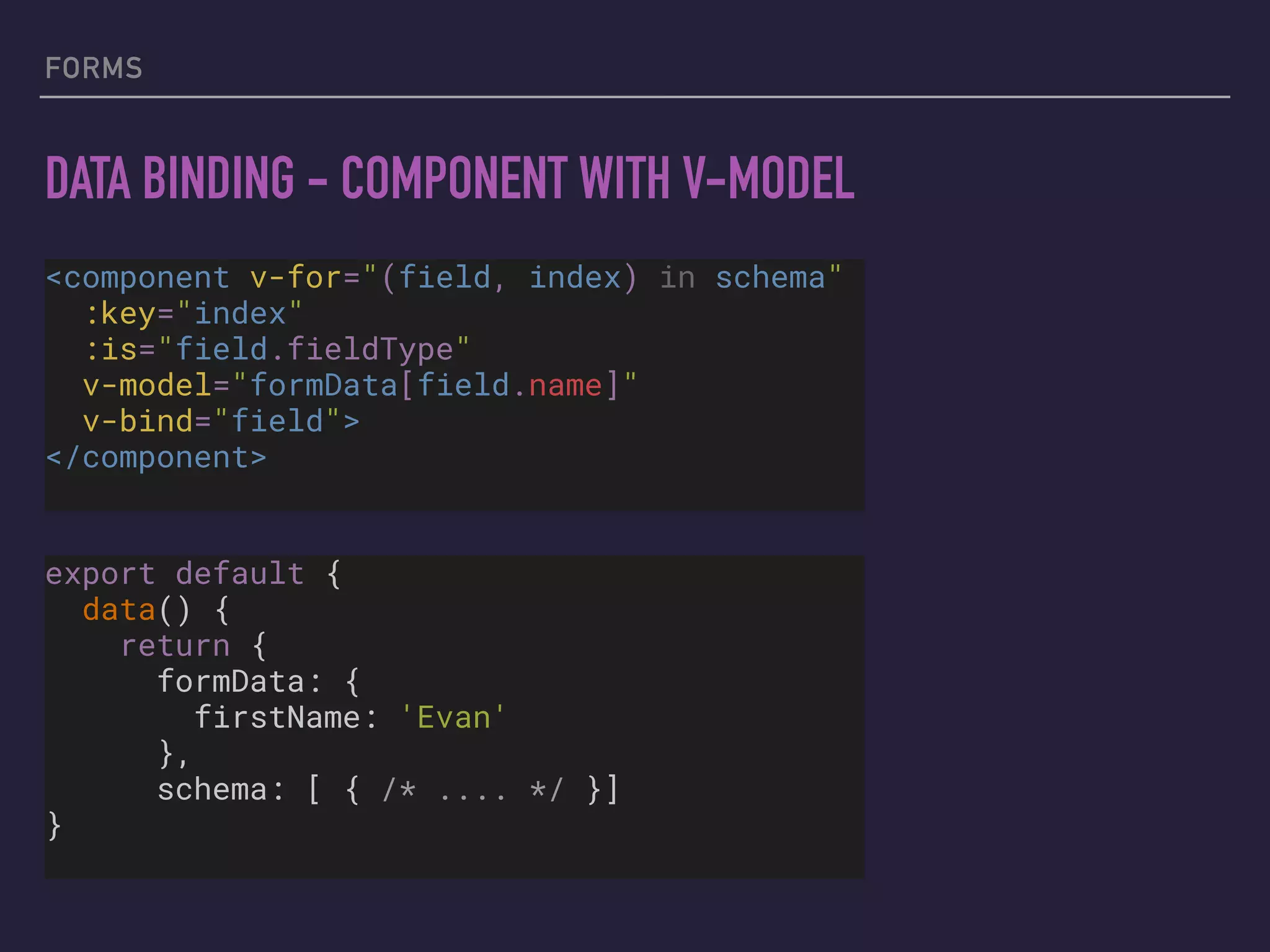

95. FORMS
DATA BINDING - COMPONENT WITH V-MODEL
<component v-for="(field, index) in schema"
:key="index"
:is="field.fieldType"
v-model="formData[field.name]"
v-bind="field">
</component>
export default {
data() {
return {
formData: {
firstName: 'Evan'
},
schema: [ { /* .... */ }]
}

96. DEMO TIME
LETS SEE IT

97. THATS ALL
THANKS!
▸ Repo: bit.ly/js-camp-2018-demo
▸ Demo:bit.ly/js-camp-bcn-demo
▸ Blog: bit.ly/data-driven-vue
@e_p82
e-schultz

98. THANKS! Evan Schultz
@e_p82
e-schultz
evan@rangle.io
