This document discusses using CQRS, ReactJS, and Docker to build a new project quickly. It recommends separating the project into bounded contexts with each handling a specific domain. Communication between bounded contexts is done through message buses and events. The infrastructure is containerized with Docker to provide a consistent development environment. A development workflow is established using Docker, Gulp, and Webpack to bundle frontends. Deployments are automated through Docker Cloud and a green/blue deployment strategy ensures zero downtime.

1. CQRS, REACTJS, DOCKERIN A NUTSHELL
Andrea GiulianoClaudio D'Alicandro Simone Di Maulo

2. NEW AMAZING
PROJECT

3. WE CAN WRITE IT
FROM SCRATCH

4. BUT

5. immagine manager incazzato
WE NEED IT IN A VERY FEW TIME

6. AND

7. IT SHOULD BE

8. WTF!

9. WHERE DO WE
START?

10. COMFORT ZONE

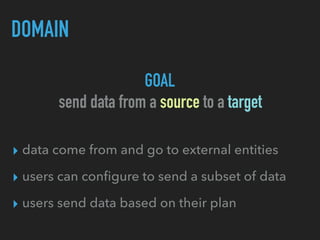

11. DOMAIN
▸ data come from and go to external entities
▸ users can configure to send a subset of data
▸ users send data based on their plan
send data from a source to a target
GOAL

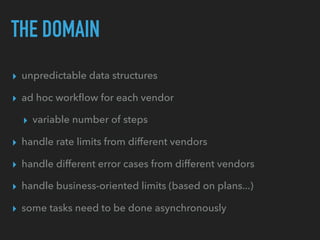

12. THE DOMAIN
▸ unpredictable data structures
▸ ad hoc workflow for each vendor
▸ variable number of steps
▸ handle rate limits from different vendors
▸ handle different error cases from different vendors
▸ handle business-oriented limits (based on plans...)
▸ some tasks need to be done asynchronously

13. IDEA

14. BLACK BOX REASONING
▸ identify the main entities involved
▸ define a common input and output
▸ find a way to let things talk
INPUT OUTPUT

15. FROM
BLACK BOXES
TO
BOUNDED CONTEXTS

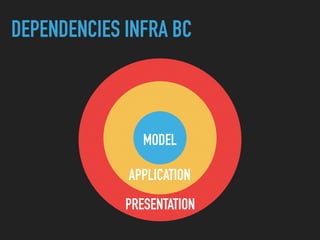

16. DEPENDENCIES INFRA BC
MODEL
APPLICATION
PRESENTATION

17. PROJECT DIRECTORY TREE

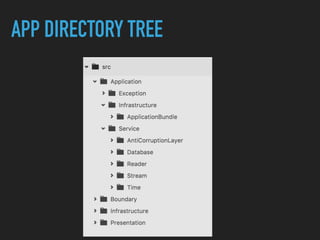

18. APP DIRECTORY TREE

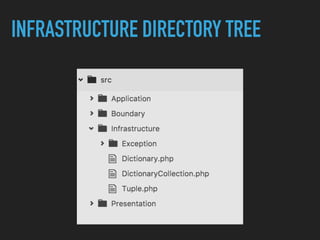

19. INFRASTRUCTURE DIRECTORY TREE

20. INSIDE THE
BOUNDED CONTEXT

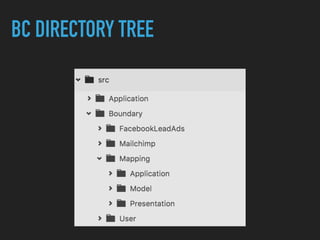

21. BC DIRECTORY TREE

22. BC APPLICATION DIRECTORY TREE

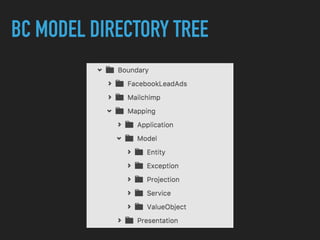

23. BC MODEL DIRECTORY TREE

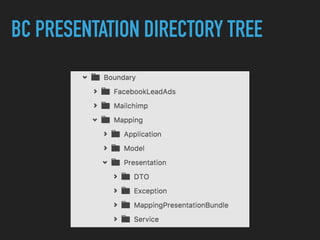

24. BC PRESENTATION DIRECTORY TREE

25. EVERYTHING'S AWESOME
▸ the framework is an
implementation detail
▸ the directory structure is
explicit
▸ the domain is isolated

26. WE DON'T WANT TO
MESS THINGS UP

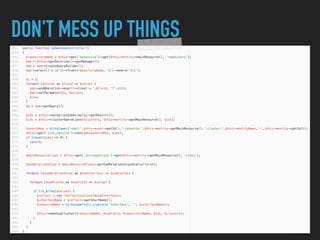

27. DON'T MESS UP THINGS

28. WHAT'S THE ISSUE HERE
▸ understandable?
▸ code can't be reused
▸ high coupling
▸ untestable
▸ too many responsibilities
▸ hard to find bugs
▸ not changes-prone

29. WHAT WE WANT

30. COMMAND QUERY
RESPONSIBILITY
SEGREGATIONAKA CQRS
A SOLUTION

31. CQRS
▸ separe reads from writes
▸ commands perform actions
▸ queries return data
▸ heterogeneous data storages
▸ easy scaling
▸ deal with eventual consistency

32. WRITE STORAGE
QUERY
COMMAND
COMMAND
COMMAND BUS
COMMAND HANDLER
DOMAIN
REPOSITORY
READ STORAGE
REPOSITORY
EVENT BUS
EVENT SUBSCRIBER

33. IT'S ALL ABOUT
BUSES

34. IT'S ALL ABOUT
BUSES COMMUNICATION

35. INTERNAL COMMUNICATION
BC
EVENT
COMMAND

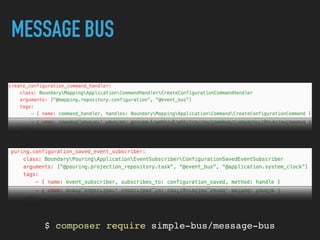

36. MESSAGE BUS
$ composer require simple-bus/message-bus

37. COMMANDS
COMMAND BUS
Represent the change that should be done in the domain
They are named with a verb in the imperative tense and may include
the aggregate type, for example ScheduleATask.

38. COMMANDS
COMMAND BUS
CONTROLLER
$commandBus->handle(
ScheduleATask::fromTaskId($taskId)
);
HANDLER
public function handle(Command $command)
{
//do something with the $command
}

39. EVENTS
BC 1 BC 2
EVENT BUS
An event represents something that took place in
the domain.
They are always named with a past-participle verb,
such as TaskScheduled

40. EVENTS
BC 1 BC 2
EVENT BUS
subscribes_to: 'user-created'
subscribes_to: 'task-stopped'
subscribes_to: 'task-suspended'

41. EVENTS
BC 1 BC 2
EVENT BUS
$messageBus->handle(
UserCreatedEvent::fromUser($user)
);
subscribes_to: 'user-created'
subscribes_to: 'task-stopped'
subscribes_to: 'task-suspended'
$messageBus->handle(
TaskSuspendedEvent::fromTask($task)
);

42. COMMUNICATION AMONG BCS
BC 1 BC 2
QUEUE
NETWORK

43. QUEUE
BC 1 BC 2
QUEUE
$producer->publish($message); $consumer->consume($message);

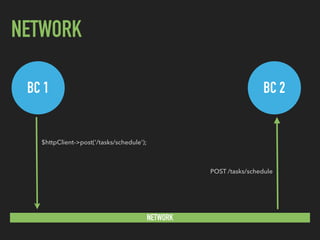

44. NETWORK
BC 1 BC 2
NETWORK
$httpClient->post('/tasks/schedule');
POST /tasks/schedule

45. SCENARIO: TRIGGER THE TASKS SCHEDULE EVERY 10 MINUTES
TIMER

46. SCENARIO: TRIGGER THE TASKS SCHEDULE EVERY 10 MINUTES
TIMER SCHEDULER
POST /tasks/schedule

47. SCENARIO: TRIGGER THE TASKS SCHEDULE EVERY 10 MINUTES
TIMER SCHEDULER
POST /tasks/schedule
DATA STORAGE
$taskRepository->getAll()

48. SCENARIO: TRIGGER THE TASKS SCHEDULE EVERY 10 MINUTES
TIMER SCHEDULER
POST /tasks/schedule
DATA STORAGE
$taskRepository->getAll()
TASK QUEUE
enqueue($taskId)

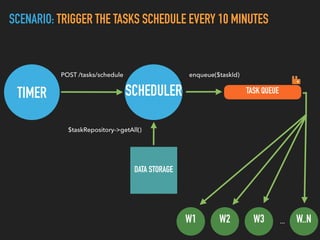

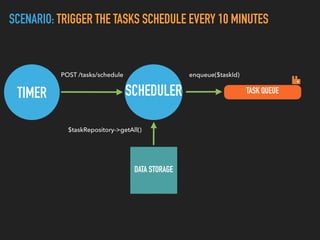

49. SCENARIO: TRIGGER THE TASKS SCHEDULE EVERY 10 MINUTES
TIMER SCHEDULER
POST /tasks/schedule
DATA STORAGE
$taskRepository->getAll()
TASK QUEUE
enqueue($taskId)
W1 W2 W3 W..N...

50. LET ME SEE WHAT
YOU HAVE DONE
IT'S TIME TO SHOW DOWN

51. WHAT THE TEAM HAS DELIVERED

52. WHAT THE MANAGEMENT SEE

53. WHAT THE MANAGEMENT WANTS

54. LET'S START FROM
THE TEMPLATE

55. TWIG

56. THE FRONTEND STUFF

57. THE FRONTEND STUFF
ORDER DEPENDENT

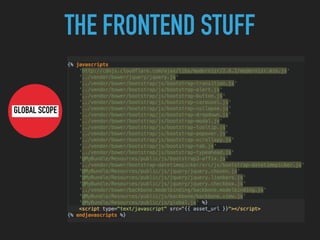

58. THE FRONTEND STUFF
GLOBAL SCOPE

59. <script>
$('.btn').click(function(e){
e.stopPropagation();
// Do something cool!
});
</script>
NEVER TRUST THE GLOBAL SCOPE

60. A STEP
BACKWARD

61. WE ARE BACKEND DEVELOPERS

62. OUR
COMFORT ZONE

63. OOP

64. ENCAPSULATION

65. MODULES

66. DEPENDENCY
INJECTION

67. GOOD NEWS

69. ECMASCRIPT 6

70. DEFAULT VALUES

71. CLASSES

72. INHERITANCE

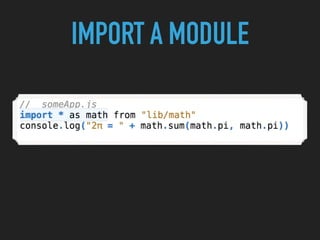

73. CREATE YOUR MODULES

74. IMPORT A MODULE

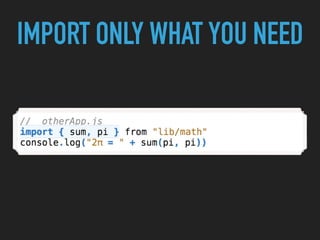

75. IMPORT ONLY WHAT YOU NEED

76. WHAT ABOUT THE UI?

78. var React = require('react');
var ReactDOM = require('react-dom');
ReactDOM.render(
<h1>Hello, world!</h1>,
document.getElementById('app')
);

80. https://kangax.github.io/compat-table/es6/

82. ASSETIC CUSTOM FILTERS

84. ANOTHER STEP
BACKWARD

85. REMEMBER THE
BOUNDED CONTEXT

86. A LOT OF SMALL COMPONENTS

87. A LOT OF SMALL APPLICATIONS

88. BOUNDED CONTEXT FACEBOOK BOUNDED CONTEXT MAILCHIMPBOUNDED CONTEXT MAPPING

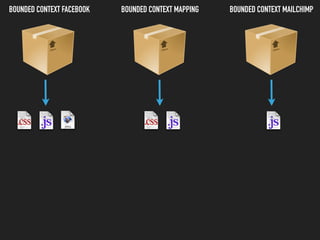

89. BOUNDED CONTEXT FACEBOOK BOUNDED CONTEXT MAILCHIMPBOUNDED CONTEXT MAPPING

90. Gulp Bundler
+
BOUNDED CONTEXT FACEBOOK BOUNDED CONTEXT MAILCHIMPBOUNDED CONTEXT MAPPING

91. DEVELOPMENT
WORKFLOW

92. $ docker/gulp
docker-compose run --rm --entrypoint bash npm -c "gulp"

93. // gulpfile.js
var gulp = require('gulp');
var hub = require('gulp-hub');
process
.env
.WEBPACK_CONFIG_FILE = path.join(
__dirname,
'webpack.config.js'
)
;
hub(['src/**/gulpfile.js']);

94. BOUNDED CONTEXT FACEBOOK BOUNDED CONTEXT MAILCHIMPBOUNDED CONTEXT MAPPING
gulpfile.js gulpfile.js gulpfile.js

95. BOUNDED CONTEXT FACEBOOK
gulpfile.js
"## FacebookPresentationBundle.php
$## Resources
"## assets
"## config
"## public
$## views

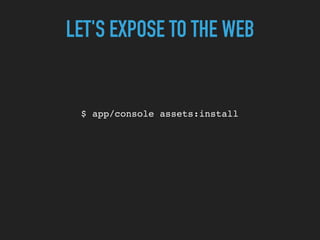

96. $ app/console assets:install
LET'S EXPOSE TO THE WEB

97. APPLICATION ENTRYPOINT

98. IT'S A BIG WORLD OUT THERE!

103. THE DEVELOPMENT ENVIRONMENT
▸ Easy to use so many technologies at no installation cost
▸ Prepare the scaffolding for a new developer is extremely
simple
▸ Superior performances over previous systems

104. docker-compose.yml docker-compose.dev.yml

105. THE INFRASTRUCTURE

106. THE INFRASTRUCTURE

107. THE INFRASTRUCTURE

108. THE INFRASTRUCTURE

109. THE INFRASTRUCTURE
VS

110. THE INFRASTRUCTURE
VS

111. STAGE
▸ Automate image building
▸ Copy the same structure used in dev

112. STAGE
▸ Automate image building
▸ Copy the same structure used in dev

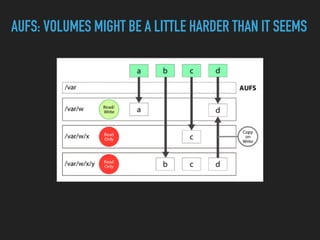

113. AUFS: VOLUMES MIGHT BE A LITTLE HARDER THAN IT SEEMS

114. SYMFONY PARAMETERS

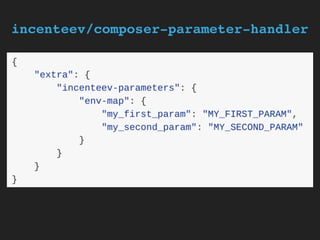

115. incenteev/composer-parameter-handler

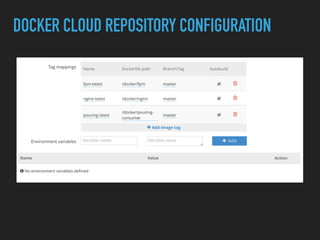

116. DOCKER CLOUD REPOSITORY CONFIGURATION

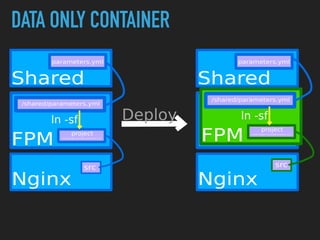

119. DATA ONLY CONTAINER

120. DATA ONLY CONTAINER

121. DATA ONLY CONTAINER

122. DATA ONLY CONTAINER

123. FIRST DEPLOY

124. AN ELEPHANT IN THE ROOM... WE NEED
▸ Automated deploy strategy
▸ The freedom to easily scale

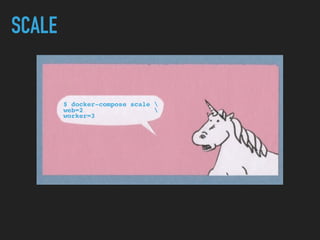

125. SCALE
$ docker-compose scale
web=2
worker=3

126. HARD TRUTH
fpm:
image: 'adespresso/hubespresso-staging:fpm-latest'
deployment_strategy: every_node
sequential_deployment: true
tags:
- fpm
- hubespresso
- production
volumes:
- /var/www/project
volumes_from:
- shared-fpm.hubespresso-production
SCALE CONTAINERS IS WORTHLESS IF YOU DO NOT SCALE NODES

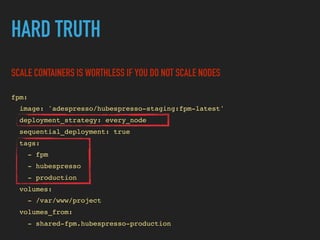

127. HARD TRUTH
SCALE CONTAINERS IS WORTHLESS IF YOU DO NOT SCALE NODES
fpm:
image: 'adespresso/hubespresso-staging:fpm-latest'
deployment_strategy: every_node
sequential_deployment: true
tags:
- fpm
- hubespresso
- production
volumes:
- /var/www/project
volumes_from:
- shared-fpm.hubespresso-production

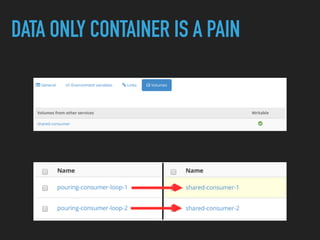

128. DATA ONLY CONTAINER IS A PAIN

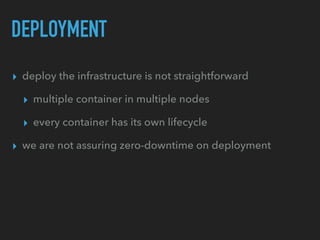

130. DEPLOYMENT
▸ deploy the infrastructure is not straightforward
▸ multiple container in multiple nodes
▸ every container has its own lifecycle
▸ we are not assuring zero-downtime on deployment

131. THE SOLUTION: GREEN BLUE DEPLOYMENT

132. THE SOLUTION: GREEN BLUE DEPLOYMENT

133. THE SOLUTION: GREEN BLUE DEPLOYMENT

134. CONCLUSION

135. CQRSPHP7
DOCKER
REACTJS
MONGODBWEBPACK
GULP

136. LEAVE THE
COMFORT ZONE

137. THANKS

138. QUESTIONS?
