CQRS and Event Sourcing for Java Developers
- 1. CQRS and Event Sourcing for Java Developers @myfear blog.eisele.net https://keybase.io/myfear

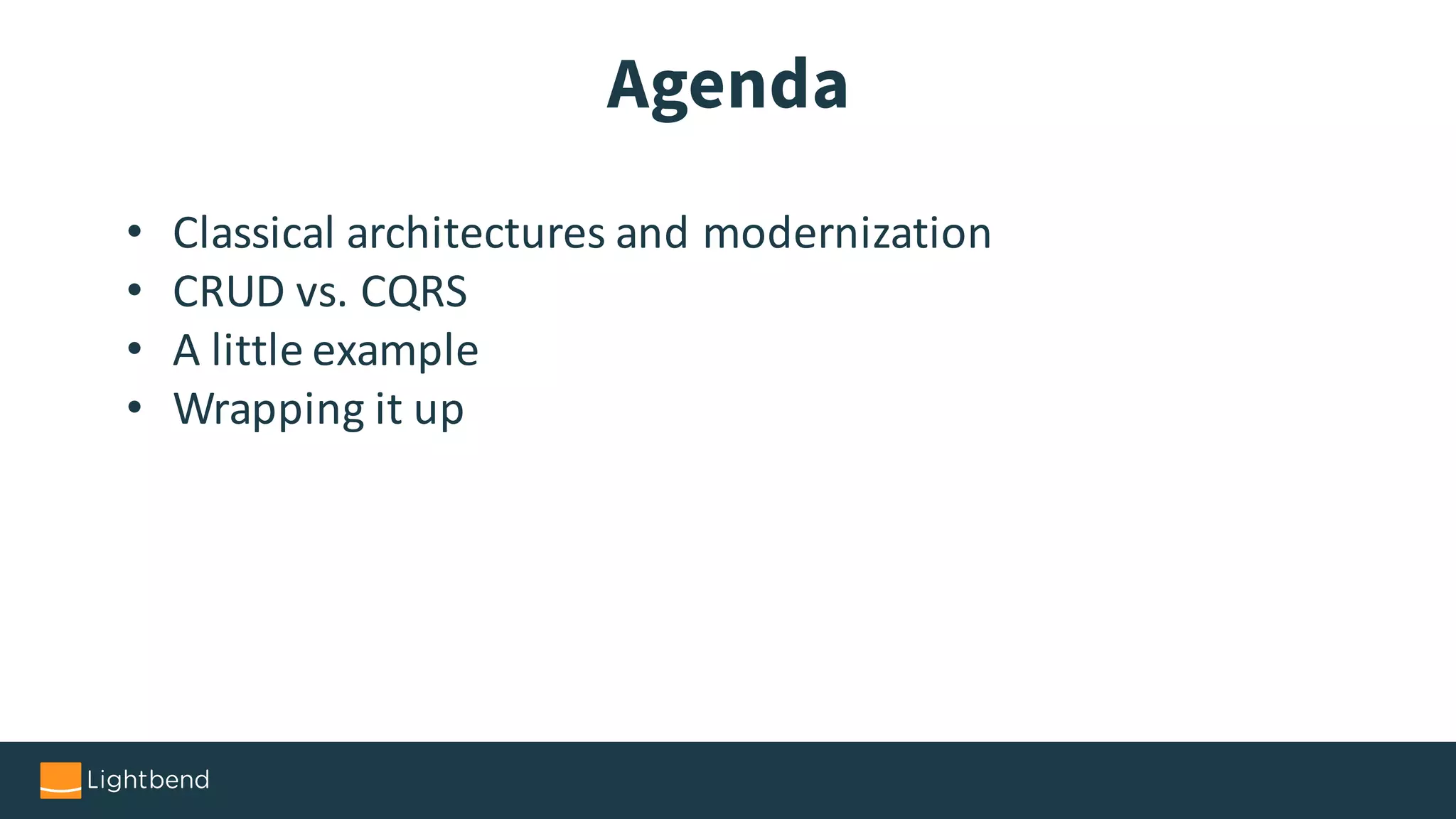

- 2. • Classical architectures and modernization • CRUD vs. CQRS • A little example • Wrapping it up Agenda

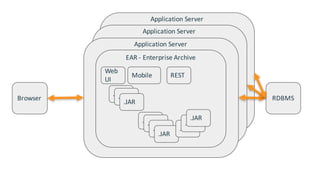

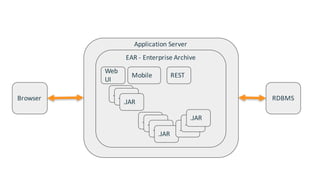

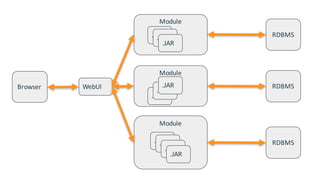

- 7. Module Module Module WebUI .JAR.JAR .JAR .JAR.JAR .JAR .JAR .JAR .JAR .JARBrowser RDBMS RDBMS RDBMS
- 9. CRUD is OK!
- 10. • For simple domain models! • Complex models start to show weaknesses • DTO vs. VO • Read vs. Write performance • Optimistic Locking • Distributed Caches but only …
- 11. But what else?

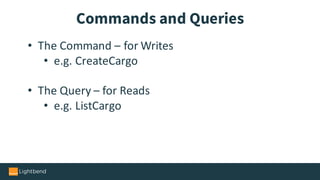

- 14. • The Command – for Writes • e.g. CreateCargo • The Query – for Reads • e.g. ListCargo Commands and Queries
- 15. Just separating reads from writes?

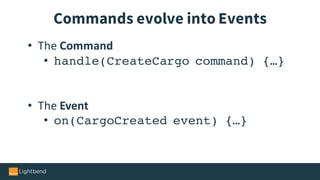

- 16. • The Command • handle(CreateCargo command) {…} • The Event • on(CargoCreated event) {…} Commands evolve into Events

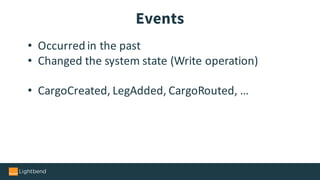

- 17. • Occurred in the past • Changed the system state (Write operation) • CargoCreated, LegAdded, CargoRouted, … Events
- 18. WAIT! WHAT DID YOU DO TO MY ENTITIES?
- 19. • Book-keeping of changes • Contains a full history implicitly • Storing events in sequence with a strict global order (time-stamp based) • No updates or deletes. Ever! • No single “current state”. The collection of events make up the system state in any point of time. Persistent Events

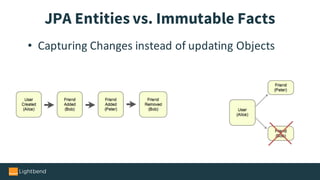

- 20. • Capturing Changes instead of updating Objects JPA Entities vs. Immutable Facts
- 22. Current State is a second class citizen

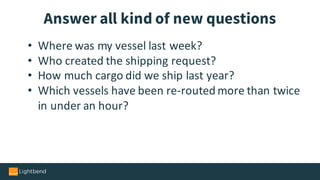

- 24. • Where was my vessel last week? • Who created the shipping request? • How much cargo did we ship last year? • Which vessels have been re-routed more than twice in under an hour? Answer all kind of new questions

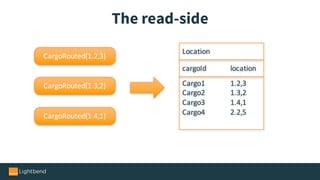

- 25. The read-side cargoId location Location Cargo1 1.2,3 Cargo2 1.3,2 Cargo3 1.4,1 Cargo4 2.2,5 CargoRouted(1.2,3) CargoRouted(1.3,2) CargoRouted(1.4,1)

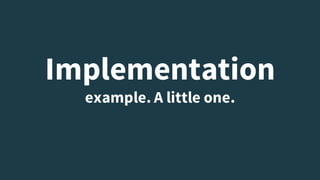

- 27. Implementation example. A little one.

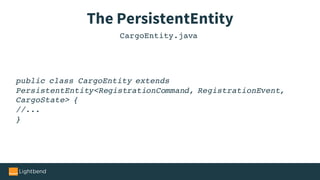

- 32. The PersistentEntity public class CargoEntity extends PersistentEntity<RegistrationCommand, RegistrationEvent, CargoState> { //... } CargoEntity.java

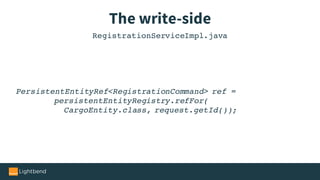

- 33. The write-side PersistentEntityRef<RegistrationCommand> ref = persistentEntityRegistry.refFor( CargoEntity.class, request.getId()); RegistrationServiceImpl.java
- 34. The read-side (preparation) prepareCreateTables(session) .thenCompose(a -> prepareWriteCargo(session) .thenCompose(b -> prepareWriteOffset(session) .thenCompose(c -> selectOffset(session)))); CargoEventProcessor.java

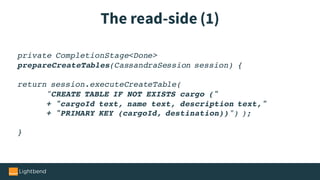

- 35. The read-side (1) private CompletionStage<Done> prepareCreateTables(CassandraSession session) { return session.executeCreateTable( "CREATE TABLE IF NOT EXISTS cargo (" + "cargoId text, name text, description text," + "PRIMARY KEY (cargoId, destination))") ); }

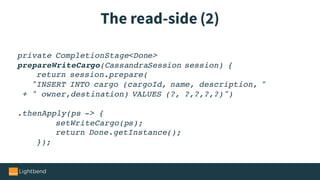

- 36. The read-side (2) private CompletionStage<Done> prepareWriteCargo(CassandraSession session) { return session.prepare( "INSERT INTO cargo (cargoId, name, description, " + " owner,destination) VALUES (?, ?,?,?,?)") .thenApply(ps -> { setWriteCargo(ps); return Done.getInstance(); });

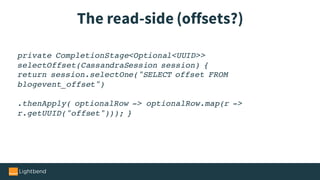

- 37. The read-side (offsets?) private CompletionStage<Optional<UUID>> selectOffset(CassandraSession session) { return session.selectOne("SELECT offset FROM blogevent_offset") .thenApply( optionalRow -> optionalRow.map(r -> r.getUUID("offset"))); }

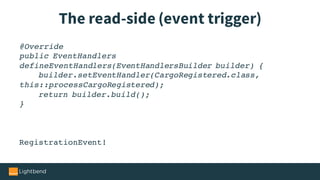

- 38. The read-side (event trigger) @Override public EventHandlers defineEventHandlers(EventHandlersBuilder builder) { builder.setEventHandler(CargoRegistered.class, this::processCargoRegistered); return builder.build(); } RegistrationEvent!

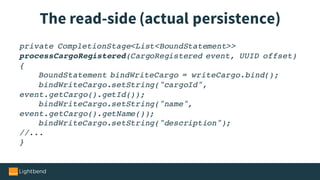

- 39. The read-side (actual persistence) private CompletionStage<List<BoundStatement>> processCargoRegistered(CargoRegistered event, UUID offset) { BoundStatement bindWriteCargo = writeCargo.bind(); bindWriteCargo.setString("cargoId", event.getCargo().getId()); bindWriteCargo.setString("name", event.getCargo().getName()); bindWriteCargo.setString("description"); //... }
- 40. WHY IS THIS SO.. complicated?
- 41. BECAUSE.. it’s lightning FAST for users!!
- 42. [info] s.c.r.i.RegistrationServiceImpl - Cargo ID: 322667. [info] s.c.r.i.CargoEventProcessor - Persisted 322667

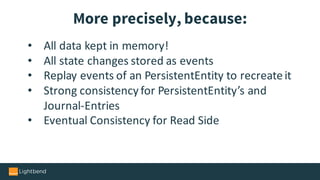

- 43. • All data kept in memory! • All state changes stored as events • Replay events of an PersistentEntity to recreate it • Strong consistency for PersistentEntity’s and Journal-Entries • Eventual Consistency for Read Side More precisely, because:
- 44. BECAUSE.. you can do a lot more a lot easier!!

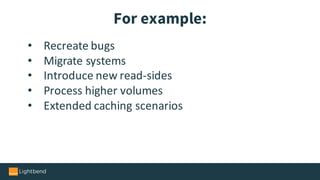

- 45. • Recreate bugs • Migrate systems • Introduce new read-sides • Process higher volumes • Extended caching scenarios For example:

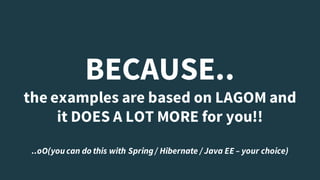

- 46. BECAUSE.. the examples are based on LAGOM and it DOES A LOT MORE for you!! ..oO(you can do this with Spring / Hibernate / Java EE – your choice)

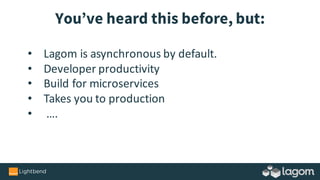

- 47. • Lagom is asynchronous by default. • Developer productivity • Build for microservices • Takes you to production • …. You’ve heard this before, but:
- 48. ..oO(you can do this with Spring / Hibernate / Java EE – your choice)

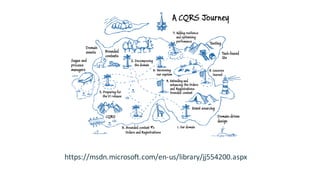

- 51. •Keep all data in memory! • Store all state changes as events • Replay all events of an actor to recreate it • Strong consistencyfor Actor (aggregate) and Journal • Eventual Consistencyfor Read Side https://msdn.microsoft.com/en-us/library/jj554200.aspx
