This document discusses continuous integration using Jenkins, GitHub, and Grunt. It describes setting up automated builds and tests that are triggered by code commits to the GitHub repository and run by Jenkins. The goals are to integrate changes quickly, find problems early, and ensure everything keeps working together as features are added. Key practices covered include committing code often, keeping builds fast, fixing broken builds immediately, and making the latest code changes easily accessible.

1. Continuous Integration
with Jenkins, Github & Grunt

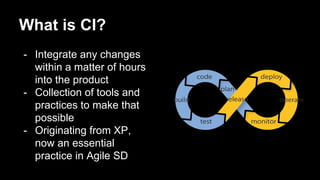

3. - Integrate any changes
within a matter of hours
into the product
- Collection of tools and
practices to make that
possible
- Originating from XP,
now an essential
practice in Agile SD
What is CI?

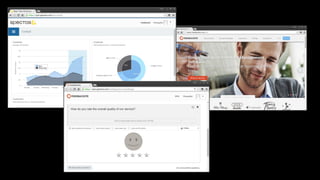

4. RPM/Spectos Cloud

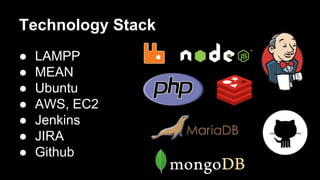

5. ● LAMPP
● MEAN
● Ubuntu
● AWS, EC2
● Jenkins
● JIRA
● Github
Technology Stack

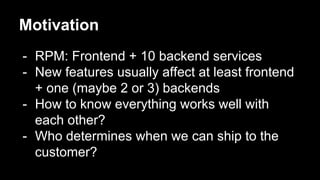

6. Motivation
- RPM: Frontend + 10 backend services
- New features usually affect at least frontend
+ one (maybe 2 or 3) backends
- How to know everything works well with
each other?
- Who determines when we can ship to the
customer?

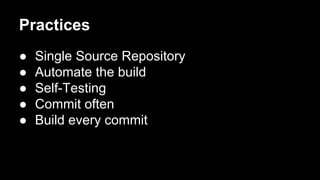

7. Practices
● Single Source Repository
● Automate the build
● Self-Testing
● Commit often
● Build every commit

8. Practices (cont.)
● Fix broken builds ASAP
● Keep builds fast
● Easy access to latest version
● Everybody can see what’s happening
● Automate deployment

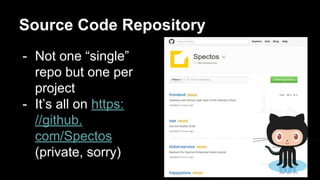

9. Source Code Repository
- Not one “single”
repo but one per
project
- It’s all on https:
//github.
com/Spectos
(private, sorry)

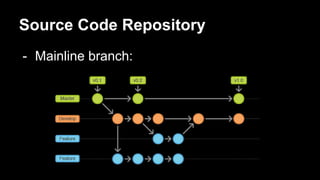

10. Source Code Repository
- Mainline branch:

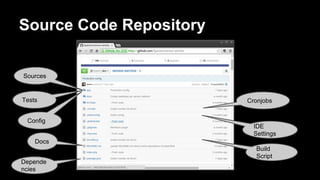

11. Source Code Repository
Sources
Docs
Depende
ncies
Tests Cronjobs
IDE
Settings
Build
Script
Config

12. Build Automation
- Using Grunt: http:
//gruntjs.com/
- Javascript taskrunner,
based on Node.js
- Simple syntax (JS)
- Easy to wrap around
other tools (Cake Shell,
bash)
- Lot of plugins

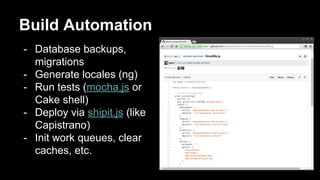

13. Build Automation
- Database backups,
migrations
- Generate locales (ng)
- Run tests (mocha.js or
Cake shell)
- Deploy via shipit.js (like
Capistrano)
- Init work queues, clear
caches, etc.

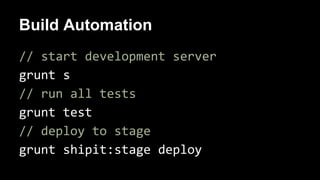

14. Build Automation
// start development server
grunt s
// run all tests
grunt test
// deploy to stage
grunt shipit:stage deploy

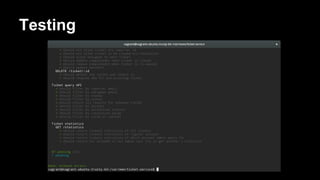

15. Testing

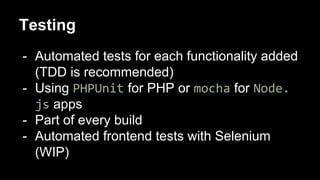

16. Testing
- Automated tests for each functionality added
(TDD is recommended)
- Using PHPUnit for PHP or mocha for Node.
js apps
- Part of every build
- Automated frontend tests with Selenium
(WIP)

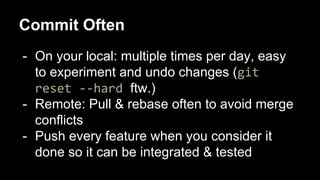

17. Commit Often
- On your local: multiple times per day, easy
to experiment and undo changes (git
reset --hard ftw.)
- Remote: Pull & rebase often to avoid merge
conflicts
- Push every feature when you consider it
done so it can be integrated & tested

18. Fix Broken Builds ASAP
- Emails are not very
effective
- Desktop notifications,
sounds
- Integrations (Slack)
- Broken build is top
priority!

19. Speed
- Full commit build
not > 10 min
- Currently: ~6 min
for full ecosystem
- Component builds
(one per service)

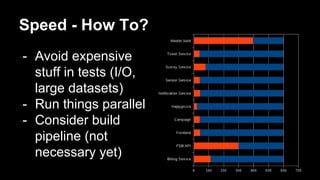

20. Speed - How To?
- Avoid expensive
stuff in tests (I/O,
large datasets)
- Run things parallel
- Consider build
pipeline (not
necessary yet)

21. Build Triggers
- Jenkins
- Using Github hooks
- Every commit pushed to
dev/master will trigger a
build
- Production deploy: manual

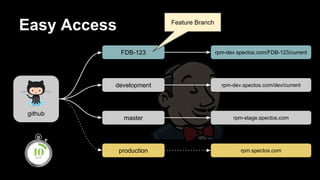

22. Easy Access
github
master
development
production
FDB-123 rpm-dev.spectos.com/FDB-123/current
rpm-dev.spectos.com/dev/current
rpm-stage.spectos.com
rpm.spectos.com
Feature Branch

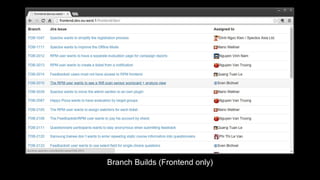

23. Branch Builds (Frontend only)

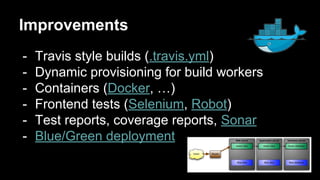

24. Improvements
- Travis style builds (.travis.yml)
- Dynamic provisioning for build workers
- Containers (Docker, …)
- Frontend tests (Selenium, Robot)
- Test reports, coverage reports, Sonar
- Blue/Green deployment

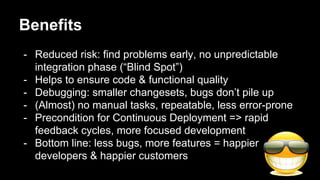

25. Benefits
- Reduced risk: find problems early, no unpredictable
integration phase (“Blind Spot”)
- Helps to ensure code & functional quality
- Debugging: smaller changesets, bugs don’t pile up
- (Almost) no manual tasks, repeatable, less error-prone
- Precondition for Continuous Deployment => rapid
feedback cycles, more focused development
- Bottom line: less bugs, more features = happier
developers & happier customers

26. References/Further Reading
- Martin Fowler: http://www.
martinfowler.
com/articles/continuousIntegrati
on.html
- Duvall, Matyas, Glover:
“Continuous Integration:
Improving Software Quality and
Reducing Risk”
