Jesse Robbins discusses the concept of operations at web scale, emphasizing the importance of continuous delivery and automation in deploying reliable software on complex infrastructures. He outlines the shift from traditional systems to cloud environments, highlighting common characteristics of successful web scale cultures and the necessity for full-stack automation. The presentation also details the processes required for achieving continuous deployment, including version control, code reviews, and infrastructure automation.

1. Jesse Robbins
Cofounder, Opscode
@jesserobbins
jesse@opscode.com
Continuous Delivery
+ Hacking Culture
QCON 2012

2. Operations at Web Scale
is the ability to consistently
create and deploy reliable
software to an unreliable
platform that scales horizontally.
http://radar.oreilly.com/2007/10/operations-is-a-competitive-ad.html

3. Google, Amazon, Microsoft, Yahoo
built their own automation &
deployment tools

4. but it was “secret sauce”

5. everyone else was here
... inexperienced & poorly
equipped for the world they must
now operate in.
Copyright © 2010 Opscode, Inc - All Rights Reserved 5

6. Cloud Infrastructure Automation

7. Copyright © 2010 Opscode, Inc - All Rights Reserved 7

8. Continuous Delivery

9. This man is
John Allspaw
http://www.flickr.com/photos/norby/7446208116/

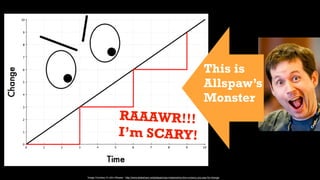

10. This is
Allspaw’s
Monster
RAAAWR!!!
I’m SCARY!
Image Courtesy of John Allspaw - http://www.slideshare.net/jallspaw/ops-metametrics-the-currency-you-pay-for-change

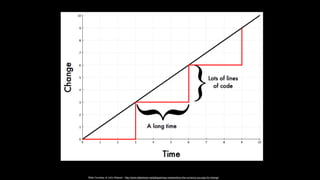

11. Slide Courtesy of John Allspaw - http://www.slideshare.net/jallspaw/ops-metametrics-the-currency-you-pay-for-change

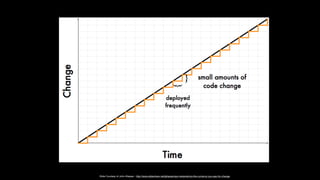

12. Slide Courtesy of John Allspaw - http://www.slideshare.net/jallspaw/ops-metametrics-the-currency-you-pay-for-change

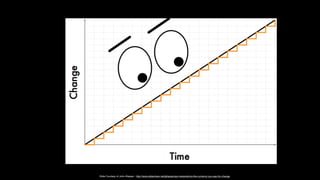

13. Slide Courtesy of John Allspaw - http://www.slideshare.net/jallspaw/ops-metametrics-the-currency-you-pay-for-change

14. I can haz
cuddle?
Images Courtesy of John Allspaw - http://www.slideshare.net/jallspaw/ops-metametrics-the-currency-you-pay-for-change

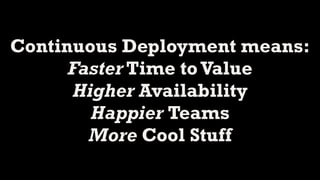

15. Continuous Deployment means:
Faster Time to Value
Higher Availability
Happier Teams
More Cool Stuff

16. Continuously Deploying code
before you even write it.

17. meanwhile... back at the office...

20. Tools* are not enough
(* even really great tools like Chef!)

21. Conway’s law:
“Organizations which design systems ...
are constrained to produce designs
which are copies of the communication
structures of these organizations...”

22. Brook’s said:
“Quality is strongly affected by
organization structure.”

24. Choose:
Discourage change in the
interests of stability
or
Allow change to happen as often
as it needs to
Slide Courtesy of John Allspaw - http://www.slideshare.net/jallspaw/10-deploys-per-day-dev-and-ops-cooperation-at-flickr

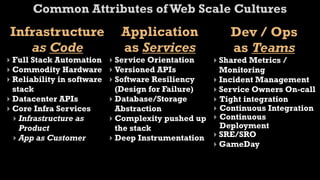

25. Common Attributes of Web Scale Cultures
Infrastructure Application Dev / Ops
as Code as Services as Teams
‣ Full Stack Automation ‣ Service Orientation ‣ Shared Metrics /
‣ Commodity Hardware ‣ Versioned APIs Monitoring
‣ Reliability in software ‣ Software Resiliency ‣ Incident Management
stack (Design for Failure) ‣ Service Owners On-call
‣ Datacenter APIs ‣ Database/Storage ‣ Tight integration
‣ Core Infra Services Abstraction ‣ Continuous Integration
‣ Infrastructure as ‣ Complexity pushed up ‣ Continuous
Product the stack Deployment
‣ App as Customer ‣ Deep Instrumentation ‣ SRE/SRO
‣ GameDay

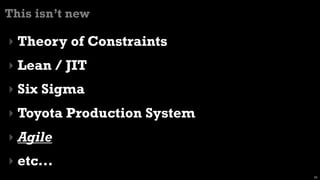

26. This isn’t new
‣ Theory of Constraints
‣ Lean / JIT
‣ Six Sigma
‣ Toyota Production System
‣ Agile
‣ etc...
26

27. ...but we can’t
do it that way
because...
elephants cannot fly just by
flapping their ears harder...
http://www.flickr.com/photos/garymacfadyen/6860004327/

28. To fly you must have wings, surface area, and a
high power to weight ratio...
elephants cannot fly by flapping
their ears harder...
http://www.flickr.com/photos/lhirlimann/4872199920/

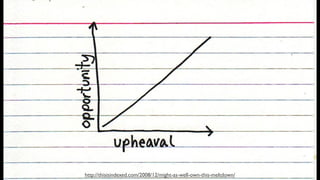

29. http://thisisindexed.com/2008/12/might-as-well-own-this-meltdown/

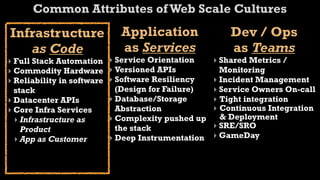

30. Common Attributes of Web Scale Cultures
Infrastructure Application Dev / Ops
as Code as Services as Teams
‣ Full Stack Automation ‣ Service Orientation ‣ Shared Metrics /
‣ Commodity Hardware ‣ Versioned APIs Monitoring
‣ Reliability in software ‣ Software Resiliency ‣ Incident Management
stack (Design for Failure) ‣ Service Owners On-call
‣ Datacenter APIs ‣ Database/Storage ‣ Tight integration
‣ Core Infra Services Abstraction ‣ Continuous Integration
‣ Infrastructure as ‣ Complexity pushed up & Deployment
Product the stack ‣ SRE/SRO
‣ App as Customer ‣ Deep Instrumentation ‣ GameDay

31. Infrastructure as Code:
Enable the reconstruction of the business
from nothing but a source code repository,
an application data backup, and bare
resources.

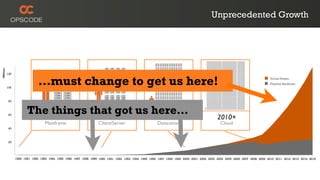

32. Unprecedented Growth
…must change to get us here! Virtual Nodes
Physical Hardware
The1980
things that got us here…
1990 2000 2010+
Mainframe Client/Server Datacenter Cloud
1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015

33. Managing Complexity Then
To Add a New Server…
• 2x Web Server
Configurations
• 2 Web Server Restarts
Add 1 server Frontend Web • 4x Database Configurations
20+ Changes Servers
• 8x Firewall Configurations
• DNS Service
Application Servers
• Network Configuration
• Deployer
Database • 8x Monitoring Changes
The Bottom Line…
20+ Changes
12+ New Infrastructure
Dependencies
4+ Hours

34. Managing Complexity Later
We added:
• Load Balancers
• MemCache
• Search Appliances
• Lots of VM’s
• More Scale
Exponential Increase In
• Configuration Changes
• Infrastructure
Dependencies
• Skills Needed
• Greater Risk

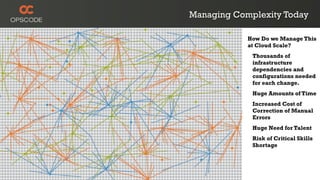

35. Managing Complexity Today
How Do we Manage This
at Cloud Scale?
• Thousands of
infrastructure
dependencies and
configurations needed
for each change.
• Huge Amounts of Time
• Increased Cost of
Correction of Manual
Errors
• Huge Need for Talent
• Risk of Critical Skills
Shortage

36. Copyright © 2010 Opscode, Inc - All Rights Reserved 36

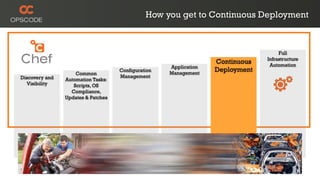

37. How you get to Continuous Deployment
Full
Infrastructure
Continuous Automation
Application
Configuration
Management
Deployment
Common
Discovery and Management
Automation Tasks:
Visibility Scripts, OS
Compliance,
Updates & Patches

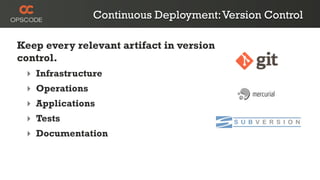

38. Continuous Deployment: Version Control
Keep every relevant artifact in version
control.
‣ Infrastructure
‣ Operations
‣ Applications
‣ Tests
‣ Documentation

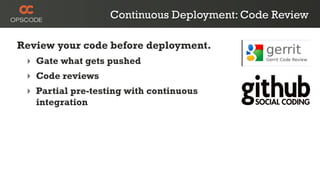

39. Continuous Deployment: Code Review
Review your code before deployment.
‣ Gate what gets pushed
‣ Code reviews
‣ Partial pre-testing with continuous
integration

40. Continuous Deployment: Provisioning
Automate the deployment infrastructure.
‣ Vagrant
‣ Bare-metal provisioning
‣ Virtualization
‣ Private cloud
‣ Public cloud
‣ knife

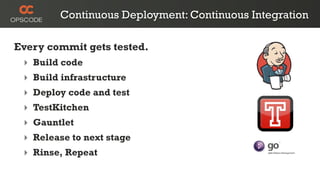

41. Continuous Deployment: Continuous Integration
Every commit gets tested.
‣ Build code
‣ Build infrastructure
‣ Deploy code and test
‣ TestKitchen
‣ Gauntlet
‣ Release to next stage
‣ Rinse, Repeat

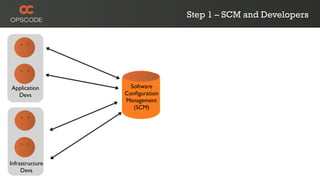

42. Step 1 – SCM and Developers
Application Software
Devs Configuration
Management
(SCM)
Infrastructure
Devs

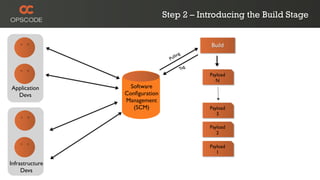

43. Step 2 – Introducing the Build Stage
Build Changes in SCM
llin
g triggers builds
Pu
and tests
Tag
Payload
N
Application Software
Devs Configuration
Management
(SCM) Payload
3
Payload
2
Payload
1
Infrastructure
Devs

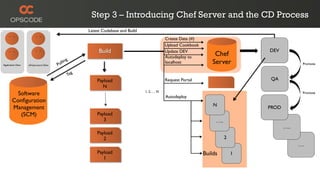

44. Step 3 – Introducing Chef Server and the CD Process
Latest Codebase and Build
Create Data (#)
Upload Cookbook
Build Update DEV DEV
Autodeploy to
Chef
ng Server
Application Devs Infrastructure Devs Pul l i localhost Promote
Tag
Payload Request Portal QA
N
1, 2, … N
Software Autodeploy
Promote
Configuration
N
Management PROD
(SCM) Payload
3 …..
…..
Payload
2 2
….
Payload Builds 1
1

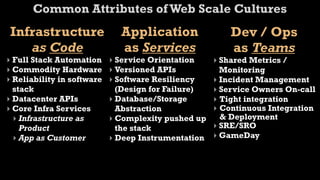

45. Common Attributes of Web Scale Cultures
Infrastructure Application Dev / Ops
as Code as Services as Teams
‣ Full Stack Automation ‣ Service Orientation ‣ Shared Metrics /
‣ Commodity Hardware ‣ Versioned APIs Monitoring
‣ Reliability in software ‣ Software Resiliency ‣ Incident Management
stack (Design for Failure) ‣ Service Owners On-call
‣ Datacenter APIs ‣ Database/Storage ‣ Tight integration
‣ Core Infra Services Abstraction ‣ Continuous Integration
‣ Infrastructure as ‣ Complexity pushed up & Deployment
Product the stack ‣ SRE/SRO
‣ App as Customer ‣ Deep Instrumentation ‣ GameDay
