The document discusses soil anchoring solutions from CON-TECH Systems including TITAN injection-bored (IBO) soil nails and micropiles that can be used for retaining walls, excavations, infrastructure projects, and adding support to grade beams or footings. It provides details on the TITAN IBO system, equipment, materials, installation process, and applications for soil nails and micropiles.

1. YOUR PARTNERS WITH SOLUTIONS

2. Do you have these types of projects?

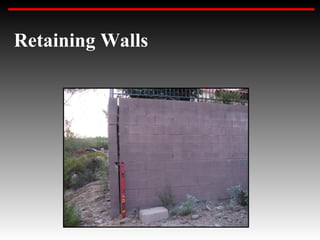

3. Retaining Walls

4. Excavation for Basements

5. Infrastructure Excavation

6. No Room for Caisson Placement

7. Added Support for Grade Beams or Footings

8. We Have The Solutions

9. CON-TECH Systems

10. CTS/ TITAN IBO Soil Anchors Micropiles Soil Nails I NJECTION- BO RED MICRO PILES

11. CTS/TITAN IBO System Hollow Bar with external thread. The Drill Bit selected to meet soil conditions has Venturi grout exit holes. Optional Centralizer centers the bar inside the bore hole. The Coupler connects the hollow bars. Self locking Thread (Pitch < 6°). Special Approved Fine-Grain Steel The hollow bar:

12. CTS/ TITAN IBO Bearing Plate HDPE tube for free length or additional corrosion protection in the area of Soil quality and friction Sphencal collar nut Soil cement grout body Final injection grout CTS/TITAN hollow bar thread deformations to ASTM-A 615 to limit Cracks widths in grout CTS/TITAN hollow bar, allows grout injection boring Coupler Circular spacer to achieve grout cover >3/4” allows grout passage Drill Bit Flushing holes or jets

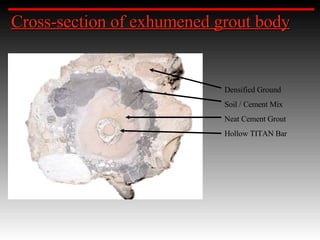

13. Cross-section of exhumened grout body Densified Ground Soil / Cement Mix Neat Cement Grout Hollow TITAN Bar

14. Equipment, Material & Installation Specification For Self-Drilling Dynamic Grouted TITAN Soil-Nails and Micro-Piles 1.0 Scope TITAN Hollow Bars are 3 meters long (IBO) Continuously threaded, can be cut at any length TITAN thread conforms to the requirements of reinforcing steel and exceeds the requirements of ASTM A-615 GRADE 75 Specifications:

15. Many Applications Anchor Soil Nail Pile Rock Bolt

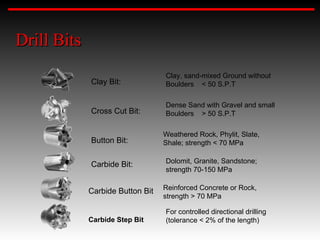

16. Drill Bits Clay Bit: Carbide Bit: Button Bit: Carbide Step Bit Carbide Button Bit Cross Cut Bit: Clay, sand-mixed Ground without Boulders < 50 S.P.T For controlled directional drilling (tolerance < 2% of the length) Dolomit, Granite, Sandstone; strength 70-150 MPa Weathered Rock, Phylit, Slate, Shale; strength < 70 MPa Reinforced Concrete or Rock, strength > 70 MPa Dense Sand with Gravel and small Boulders > 50 S.P.T

17. System-Parts Drill Bit Hollow Titan Bar Centralizer Coupling Bearing Plate Hex Nut Pipe Sleeve

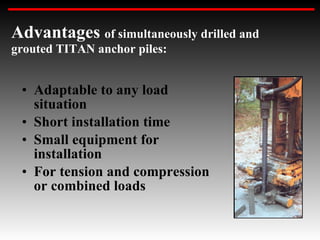

18. Adaptable to any load situation Short installation time Small equipment for installation For tension and compression or combined loads Advantages of simultaneously drilled and grouted TITAN anchor piles:

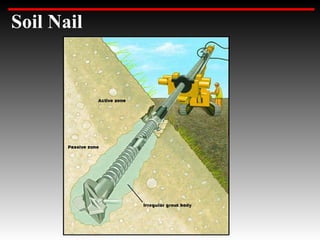

19. Soil Nail

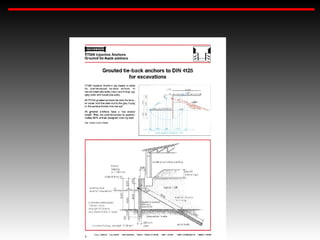

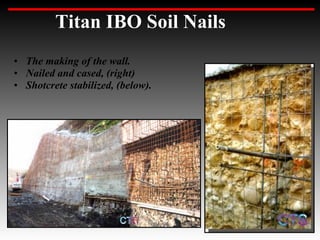

21. Titan IBO Soil Nails The making of the wall. Nailed and cased, (right) Shotcrete stabilized, (below).

22. Micro-Piles Footers or grade beams Anchors for transmission towers

23. Guy Wire Anchors

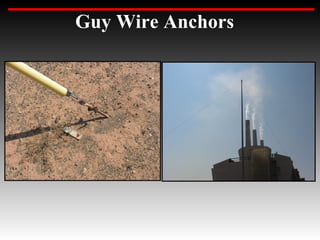

24. Guy Wire Anchors

25. Drill mounted on bob cat

26. Hollow core drill shaft with rock bit

27. Instructions on the drills remote controls

28. Drilling with air

29. YOUR PARTNERS WITH SOLUTIONS TITAN INJECTION-BORED MICOR PILES & SOIL NAILS RAM JACK HELICAL AND HYDRAULIC PIERS HJ3 CARBON FIBER WRAPS PREASURE GROUTING MUDJACKING NEGATIVE SIDE CONCRETE WATERPROOFING CONCRETE REPAIR AND RESTORATION

30. Arizona Ram Jack, LLC Questions? Arizona Repair Masons, Inc.
