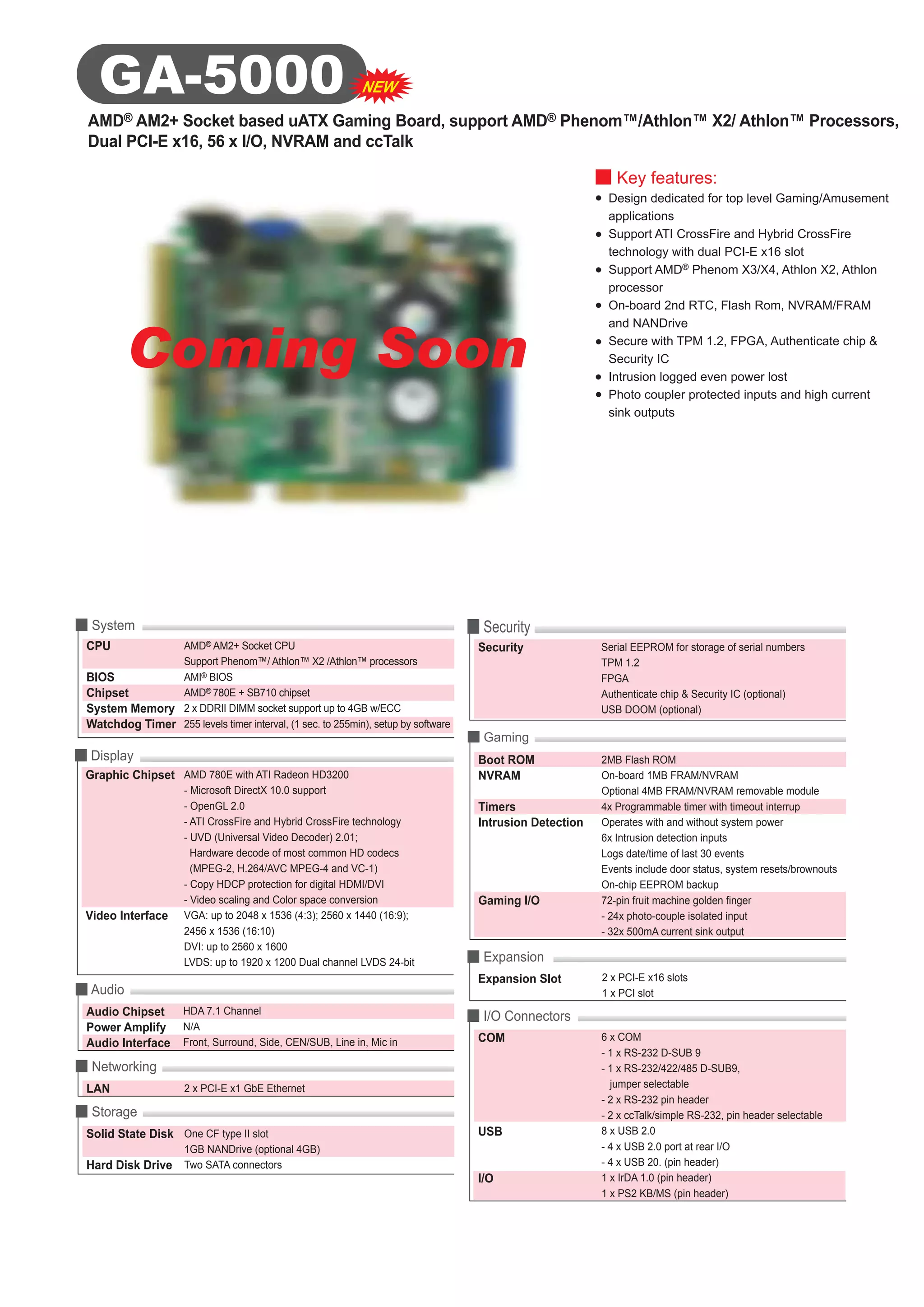

1. GA-5000 NEW
AMD® AM2+ Socket based uATX Gaming Board, support AMD® Phenom™/Athlon™ X2/ Athlon™ Processors,
Dual PCI-E x16, 56 x I/O, NVRAM and ccTalk
■ Key features:
Design dedicated for top level Gaming/Amusement
applications
Support ATI CrossFire and Hybrid CrossFire
technology with dual PCI-E x16 slot
Support AMD® Phenom X3/X4, Athlon X2, Athlon
processor
On-board 2nd RTC, Flash Rom, NVRAM/FRAM
Coming Soon
and NANDrive
Secure with TPM 1.2, FPGA, Authenticate chip &
Security IC
Intrusion logged even power lost
Photo coupler protected inputs and high current
sink outputs
■ System ■ Security
CPU AMD® AM2+ Socket CPU Security Serial EEPROM for storage of serial numbers
Support Phenom™/ Athlon™ X2 /Athlon™ processors TPM 1.2
BIOS AMI® BIOS FPGA
Chipset AMD® 780E + SB710 chipset Authenticate chip & Security IC (optional)
System Memory 2 x DDRII DIMM socket support up to 4GB w/ECC USB DOOM (optional)
Watchdog Timer 255 levels timer interval, (1 sec. to 255min), setup by software
■ Gaming
■ Display Boot ROM 2MB Flash ROM
Graphic Chipset AMD 780E with ATI Radeon HD3200 NVRAM On-board 1MB FRAM/NVRAM
- Microsoft DirectX 10.0 support Optional 4MB FRAM/NVRAM removable module
- OpenGL 2.0 Timers 4x Programmable timer with timeout interrup
- ATI CrossFire and Hybrid CrossFire technology Intrusion Detection Operates with and without system power
- UVD (Universal Video Decoder) 2.01; 6x Intrusion detection inputs
Hardware decode of most common HD codecs Logs date/time of last 30 events
(MPEG-2, H.264/AVC MPEG-4 and VC-1) Events include door status, system resets/brownouts
- Copy HDCP protection for digital HDMI/DVI On-chip EEPROM backup
- Video scaling and Color space conversion Gaming I/O 72-pin fruit machine golden finger
Video Interface VGA: up to 2048 x 1536 (4:3); 2560 x 1440 (16:9); - 24x photo-couple isolated input
2456 x 1536 (16:10) - 32x 500mA current sink output
DVI: up to 2560 x 1600
LVDS: up to 1920 x 1200 Dual channel LVDS 24-bit ■ Expansion
Expansion Slot 2 x PCI-E x16 slots
■ Audio 1 x PCI slot
Audio Chipset HDA 7.1 Channel ■ I/O Connectors
Power Amplify N/A
Audio Interface Front, Surround, Side, CEN/SUB, Line in, Mic in COM 6 x COM
- 1 x RS-232 D-SUB 9
■ Networking - 1 x RS-232/422/485 D-SUB9,
LAN 2 x PCI-E x1 GbE Ethernet jumper selectable
- 2 x RS-232 pin header
■ Storage - 2 x ccTalk/simple RS-232, pin header selectable
Solid State Disk One CF type II slot USB 8 x USB 2.0
1GB NANDrive (optional 4GB) - 4 x USB 2.0 port at rear I/O
Hard Disk Drive Two SATA connectors - 4 x USB 20. (pin header)
I/O 1 x IrDA 1.0 (pin header)
1 x PS2 KB/MS (pin header)

2. ■ Power Supply ■ Ordering Information
Voltage ATX 12V 2.2 compliant Standard
GA-5000A AMD® AM2+ socket based uATX gaming board, 2 x PCI-E x16, 1MB
■ Software NVRAM, 128MB sideport memory, 2 x GbE, 8 x USB, 6 x COM, 1G
NANDrive, 2MB Flash ROM, 2nd RTC, Intrusion Detection, 24 x Input I/O,
Operating System Microsoft Windows XP Embedded 32 x Output I/O
Linux (optional) GA-5000B AMD® AM2+ socket based uATX gaming board, 2 x PCI-E x16, 512K
NVRAM, 1 x GbE, 6 x USB, 4 x COM, Intrusion Detection, 24 x Input I/O,
32 x Output I/O
■ Mechanical and Environment AMD® AM2+ socket based uATX gaming board, 1 x PCI-E x16, 128K
GA-5000C NVRAM, 4 x USB, 2 x COM, 16 x Input I/O, 16 x Output I/O
System Health Measurement of CPU core and system
Monitoring temperature with thermal trip
■ Optional
Speed monitoring for CPU fan and two system
fans R-135A Gaming I/O testing board
Environmental Operating Temperature: 0~60 ºC (32~140 ºF) 46L-IDE025-00 Testing cable for R135A
Storage Temperature: -20~80 ºC (-4~185 ºF) TCB-GA3K-02 2.5” HDD shelf accessory kit
Humidity: 10~85% non-condensing TCB-GA3K-03 R107A 4MB FRAM module kit
Approval FCC/CE Class A TCB-GA3K-04 R-107B 4MB NVRAM module kit
Dimension 244 x 244mm (9.6” L x 9.6” W)
* Note All specifications are subject to change without prior notice
■ Applications
Main Application Video slot machines (Class II/III)
Video lottery terminals
Amusement game machines
Master unit of roulette machine
Downloadable gaming terminal
High end 3D gaming machines
Multi player gaming machines
