The Radius from NextComputing is a portable computing system designed for professional users who need more powerful and expandable computing capabilities than a laptop. The Radius is a briefcase-sized system that allows users to integrate expansion cards and easily upgrade storage, memory, and processors. It is intended to support tasks like digital media work, testing and measurement, 3D design, and software demonstrations in the field.

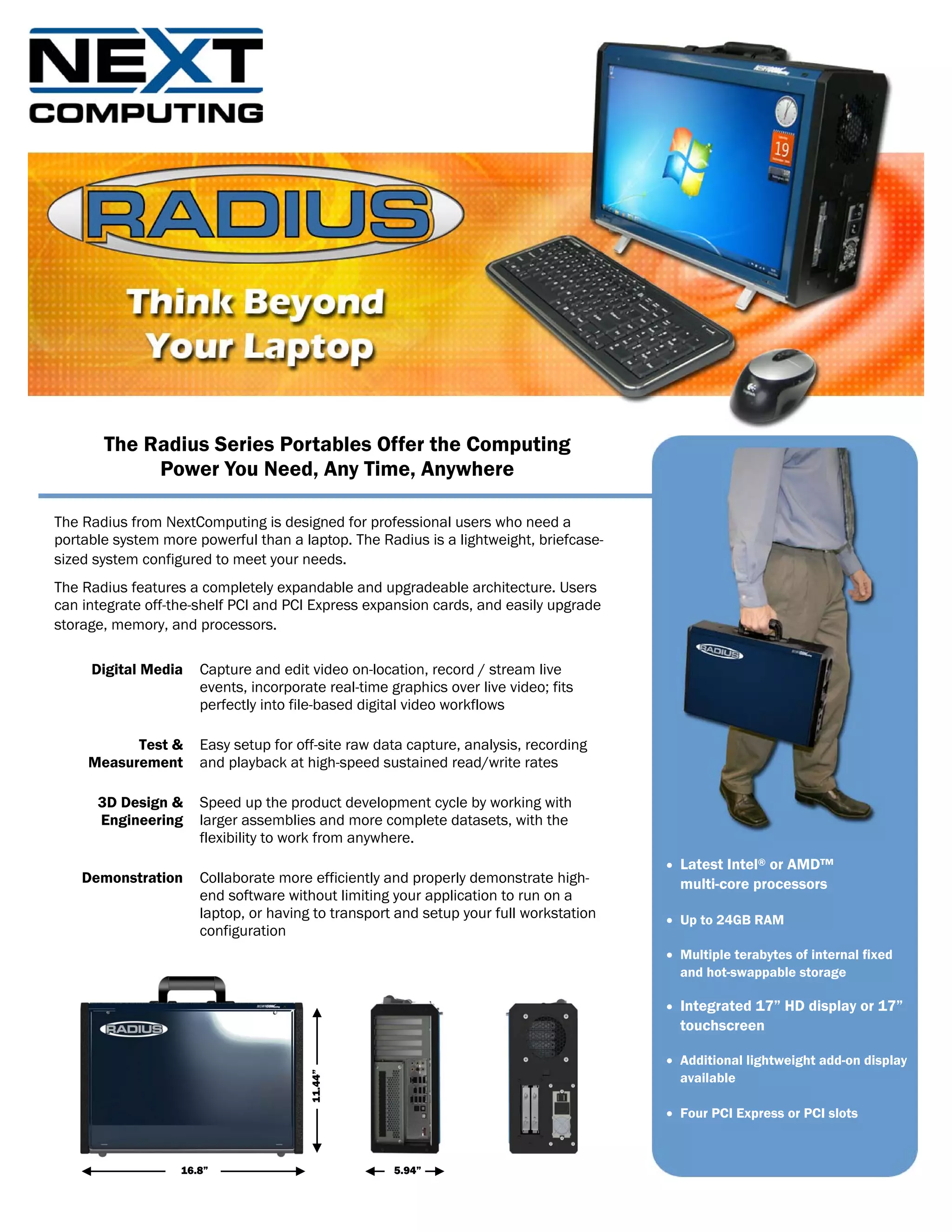

1. The Radius Series Portables Offer the Computing
Power You Need, Any Time, Anywhere
The Radius from NextComputing is designed for professional users who need a
portable system more powerful than a laptop. The Radius is a lightweight, briefcase-
sized system configured to meet your needs.
The Radius features a completely expandable and upgradeable architecture. Users
can integrate off-the-shelf PCI and PCI Express expansion cards, and easily upgrade
storage, memory, and processors.
Digital Media Capture and edit video on-location, record / stream live
events, incorporate real-time graphics over live video; fits
perfectly into file-based digital video workflows
Test & Easy setup for off-site raw data capture, analysis, recording
Measurement and playback at high-speed sustained read/write rates
3D Design & Speed up the product development cycle by working with
Engineering larger assemblies and more complete datasets, with the
flexibility to work from anywhere.
• Latest Intel® or AMD™
Demonstration Collaborate more efficiently and properly demonstrate high- multi-core processors
end software without limiting your application to run on a
laptop, or having to transport and setup your full workstation • Up to 24GB RAM
configuration
• Multiple terabytes of internal fixed
and hot-swappable storage
• Integrated 17” HD display or 17”
touchscreen
• Additional lightweight add-on display
11.44”
available
• Four PCI Express or PCI slots
16.8” 5.94”

2. Model IP55 AX58 M785
• Quad-Core Intel® Core™ i7 2.8 GHz • Quad-Core Intel® Core™ i7 3.06 GHz • Quad-Core AMD Phenom™ II X4 3.0 GHz
• Quad-Core Intel® Core™ i7 2.93 GHz • Quad-Core Intel® Core™ i7 3.2 GHz • Quad-Core AMD Phenom™ II X4 3.4 GHz
Available CPUs • Quad-Core Intel® Xeon® 2.4 GHz • Six-Core Intel Core i7 Extreme Edition
• Quad-Core Intel® Xeon® 2.67 GHz 3.33 GHz
• Quad-Core Intel® Xeon® 2.93 GHz
Memory (up to) 16GB DDR3 RAM, Dual Channel 24GB DDR3 RAM, Triple Channel 16GB DDR3 RAM, Dual Channel
• (1) PCI Express 2.0 x16 • (2) PCI Express 2.0 x16 • (1) PCI Express 2.0 x16
PCI Expansion or (2) PCI Express 2.0 x8 • (1) PCI Express 2.0 x4 • (1) PCI Express 2.0 x1
• (2) PCI Express 2.0 x1 • (1) PCI • (2) PCI
Storage • Config 1: Up to (2) hot-swappable 2.5” • Config 1: Up to (2) hot-swappable 2.5” • Config 1: Up to (2) hot-swappable 2.5”
7200RPM SATA hard drives to 500GB 7200RPM SATA hard drives to 500GB 7200RPM SATA hard drives to 500GB
each with: each with: each with:
up to (6) internal 2.5” SATA or up to (4) up to (6) internal 2.5” SATA or up to (4) up to (6) internal 2.5” SATA or up to (4)
2.5” SAS drives 2.5” SAS drives 2.5” SAS drives
• Config 2: No hot-swappable drives • Config 2: No hot-swappable drives • Config 2: No hot-swappable drives
- up to (9) internal 2.5” SATA or up to (6) - up to (9) internal 2.5” SATA or up to (6) - up to (9) internal 2.5” SATA or up to (6)
2.5” SAS drives 2.5” SAS drives 2.5” SAS drives
• RAID 0/1/5/10 or Matrix RAID • RAID 0/1/5/10 • RAID 0/1/0+1
Optical Drive Internal DVD±RW
ATI Radeon HD 4200 GPU (128MB DDR3
Onboard Video None (must use add-in GPU) None (must use add-in GPU)
1333 memory)
Display • Integrated 17” WUXGA+ LCD up to 1920x1200
• Supports additional external displays including NextComputing’s specially designed clip-on displays with resolutions to 1920x1200
• Optional capacitive touchscreen (1920x1200)
Ports • (8) external USB 2.0 • (1) PS/2 • (1) PS/2
• (5) internal USB 2.0 • (7) external USB 2.0 • (1) D-SUB + DVI Video Ports
• (1) IEEE 1394a • (6) internal USB 2.0 • (1) HDMI out
• (1) eSATA (3Gb/s) • (2) external USB 3.0 • (6) external USB 2.0
• (1) Gigabit Ethernet • (1) IEEE 1394a • (3) internal USB 2.0
• (1) S/PDIF digital audio out • (1) Gigabit Ethernet • (1) IEEE 1394a
• (1) S/PDIF digital audio in • (1) S/PDIF digital audio out • (1) eSATA (3Gb/s)
• (6) analog audio ports • (6) analog audio ports • (1) Gigabit Ethernet
• No onboard video • No onboard video • (1) S/PDIF digital audio out
• (6) analog audio ports
Operating Systems • Microsoft Windows 2008 Server
• Microsoft Windows XP Professional
• Windows Vista Business (64-bit only)
• Microsoft Windows 7
Power Sub-System 460w Whisper Technology 110/220V 50/60Hz auto-switching power supply
Physical 5.94" (D) x 11.44" (H) x 16.8" (W)
Basic configuration ~15lbs.
Carrying Cases Includes soft carrying case. Optional hardened cases. Optional rack-mount kit.
Warranty 1 year parts and labor
Made in the USA This document is for informational purposes only. Updates and changes can occur without notice. All logos, trademarks,
and service marks are the property of their respective owners. Copyright © 2010 NextComputing all rights reserved.
Rev 1.7 – 12/10
4 Townsend West, Building 17, Nashua, NH 03063
Phone: 1 (603) 886-3874 • Fax: 1 (419) 828-2030
