1. ENGINEERING
MECHANICS-
CONCURRENT FORCE
SYSTEM
Prof. VINOD B SHIKHARE
HOD & Assistant Professor
Department of Civil Engineering
ICEEM, Aurangabad

2. Concurrent Force System
If the line of action of forces forming the system passes through
a common point (point of concurrence) then the system is said
to be concurrent.

3. Problem 1
 Find out the magnitude and direction of resultant for the given force
system.

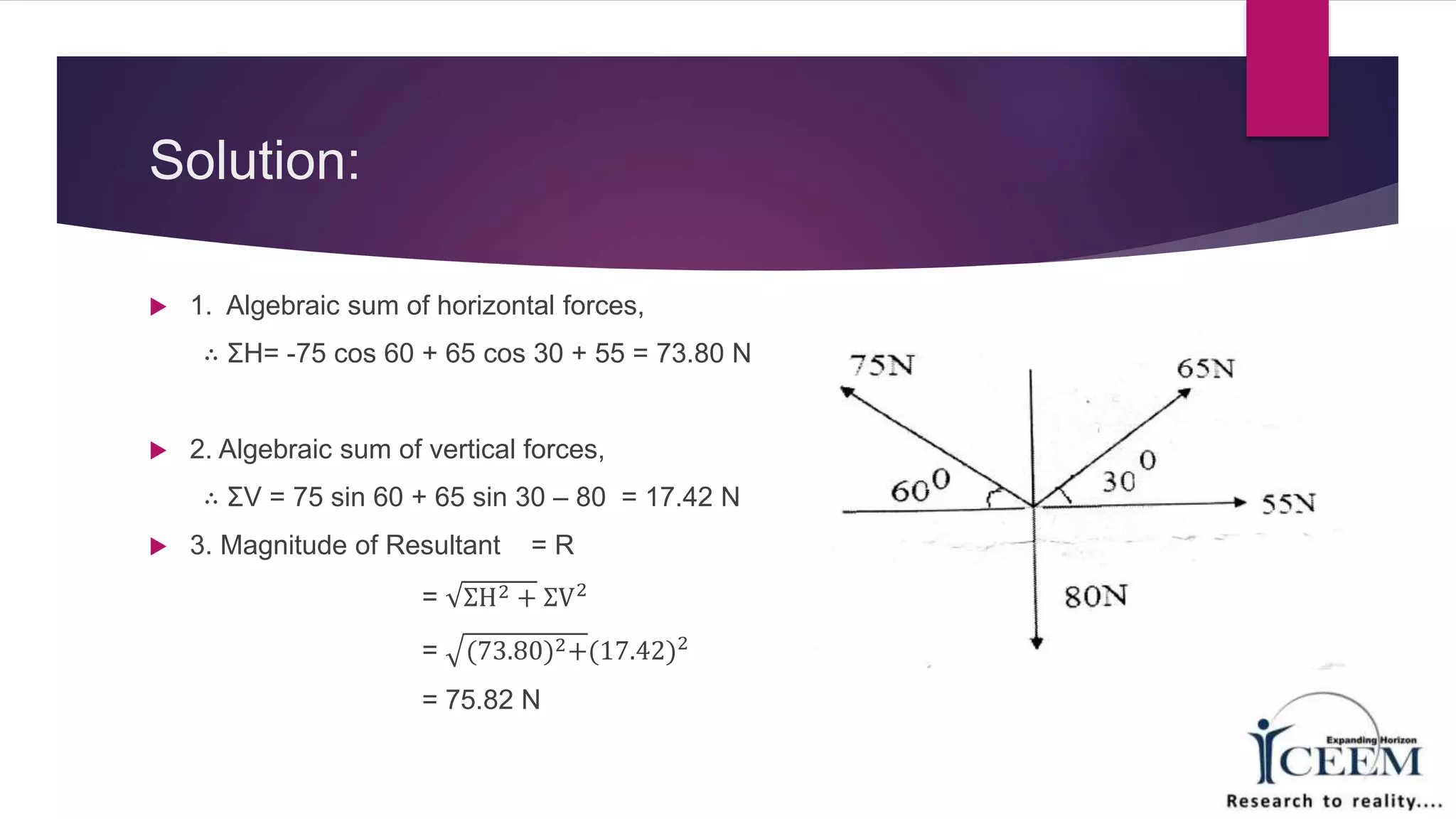

4. Solution:
 1. Algebraic sum of horizontal forces,
∴ ƩH= -75 cos 60 + 65 cos 30 + 55 = 73.80 N
 2. Algebraic sum of vertical forces,
∴ ƩV = 75 sin 60 + 65 sin 30 – 80 = 17.42 N
 3. Magnitude of Resultant = R
= ƩH2 + ƩV2
= (73.80)2+(17.42)2
= 75.82 N

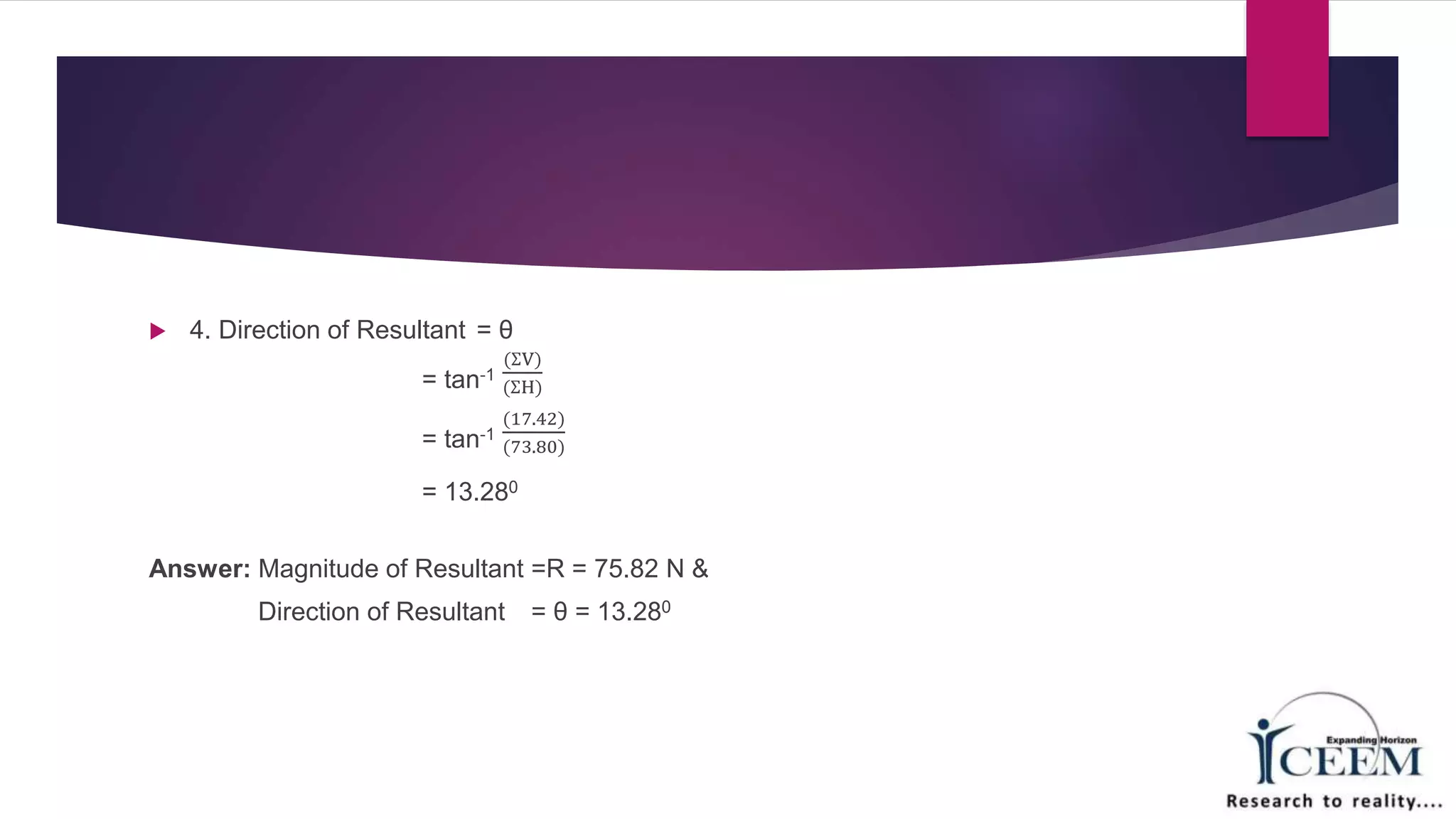

5.  4. Direction of Resultant = θ
= tan-1
(ƩV)
(ƩH)
= tan-1
(17.42)
(73.80)
= 13.280
Answer: Magnitude of Resultant =R = 75.82 N &
Direction of Resultant = θ = 13.280

6. Problem 2
 Find out the magnitude and direction of resultant for the given force
system.

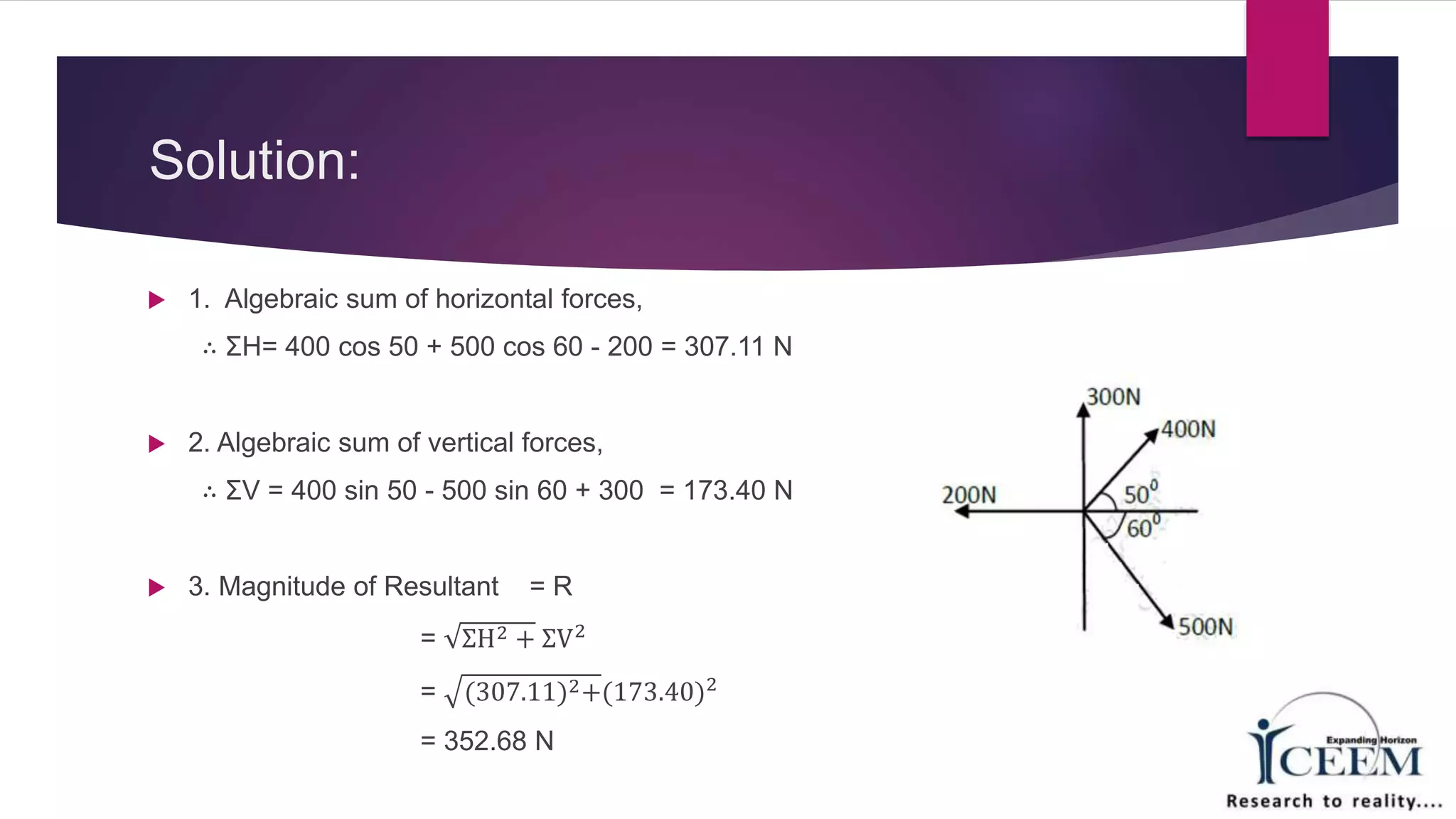

7. Solution:
 1. Algebraic sum of horizontal forces,
∴ ƩH= 400 cos 50 + 500 cos 60 - 200 = 307.11 N
 2. Algebraic sum of vertical forces,
∴ ƩV = 400 sin 50 - 500 sin 60 + 300 = 173.40 N
 3. Magnitude of Resultant = R
= ƩH2 + ƩV2
= (307.11)2+(173.40)2
= 352.68 N

8.  4. Direction of Resultant = θ
= tan-1
(ƩV)
(ƩH)
= tan-1
(173.40)
(307.11)
= 29.440
Answer: Magnitude of Resultant =R = 352.68 N &
Direction of Resultant = θ = 29.440
