Richard Marks has a background in avionics, robotics, and control theory. He worked at the Aerospace Robotics Lab where he researched visual sensing for underwater robots. He then worked at Teleos Research/Autodesk on real-time optical flow, stereo vision, and people tracking software. Marks now works at Sony developing computer vision libraries and applications for the PlayStation consoles, including creating the initial vision library for PS2 and specifying the EyeToy camera hardware. For PS3, he discusses the vision capabilities including the new PLAYSTATION Eye camera, sample games that use computer vision, and the PS3 Vision SDK.

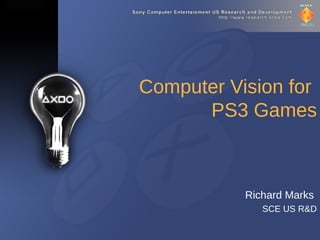

1. Computer Vision for
PS3 Games
Richard Marks
SCE US R&D

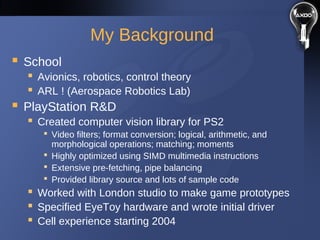

2. My Background
 School
 Avionics, robotics, control theory
 ARL ! (Aerospace Robotics Lab)
 PlayStation R&D
 Created computer vision library for PS2
 Video filters; format conversion; logical, arithmetic, and
morphological operations; matching; moments
 Highly optimized using SIMD multimedia instructions
 Extensive pre-fetching, pipe balancing
 Provided library source and lots of sample code
 Worked with London studio to make game prototypes
 Specified EyeToy hardware and wrote initial driver
 Cell experience starting 2004

3. Computer Vision for PS3 Games
 PS3 Introduction
 Video input to PS3
 PLAYSTATION Eye
 Released games
 PS3 Vision SDK
 Current research topics
 Head tracking
 Color tracking
 Sketch analysis

4. PS3 Introduction
 Hardware
 1 PPE, 7 SPE (6 available to game)
 256 MB main memory, 256 MB graphics memory
 RSX graphics chip (Nvidia)
 USB 2.0
 Considerations
 RSX, PPE are heavily utilized by games
 Main memory is precious
 SPEs are under-utilized
 SPURS tasks or jobs are encouraged

5. PS3 live video input
 USB 2.0
 libcamera
 part of PS3 system software
 Implements simple driver model
 Open, Start, Read, Stop, Close
 Set/Get Attribute (e.g. gain, exposure, red/blue/green
gains, AGC flag, mirror flag, LED flag, etc.)
 Read copies most recent complete frame from
system memory to application memory
 Supports UVC, PS Eye, EyeToy
 Cameras are asynchronous to PS3 display

6. PLAYSTATION Eye (beyond EyeToy)
 Uncompressed Video
 No artifacts
 Software demosaicking
 Low CPU overhead
 Increased Sensitivity
 Low-light/No-light operation
 Shortened exposure times
 Lower visual noise
 Faster Frame Rate
 Quicker response
 Smaller tracking search regions
 More temporal information
 Dual Fixed Field of View
 Standard-angle, proven by EyeToy
 Wide-angle for full-body apps
 No focus adjustment needed
 Higher Resolution
 Lower pixelation effects
 Improved definition
 Better statistical behavior
 Improved voice input
 Unencumbered speech recognition
 Audio chat in noisy environment
 Echo location tracking

7. PS Eye Specification
 Cost similar to EyeToy
 56/75 degree dual-FOV lens
 <1% distortion, fixed focus (0.5m to 10m)
 ¼” CMOS sensor
 6 micron pixels
 640x480 Bayer at 60 frames/sec, 320x240 at 120 frames/sec
 640x480 YUV422 at 30 frames/sec, 320x240 at 60 frames/sec
 10-bit dynamic range, or 8-bit with gamma curve
 rolling shutter (no frame buffer)
 USB2/compression chip
 bulk transfer (low CPU overhead)
 optional JPEG compression
 Omni-directional 4-microphone linear array

8. Typical PS Eye video processing
1. Read 640x480 Bayer pattern, 60 frames/sec
2. Stuck pixel removal (calibrated or uncalibrated)
3. Bayer to RGB (demosaicking)
4. RGB to RGB’ (color correction)
5. RGB’ to YUV (color space conversion)
 (steps 2-5 use <2ms on 1 SPE)
-or-
 Read 640x480 YUV422, 30 frames/sec

9. Eye of Judgment
 Augmented reality card game (video)
 Uses modified version of Sony Cybercode
 Green markers provide card detection and
homography transform
 2-D barcode provides card identification

10. London Studio titles
 EyeCreate (free)
 Movie editing with effects
 Aquatopia, Operation Creature Feature,
Mesmerize, Tori-Emaki, Towers of Topoq
 Motion detection
 Feature tracking (similar to Lucas-Kanade, video)

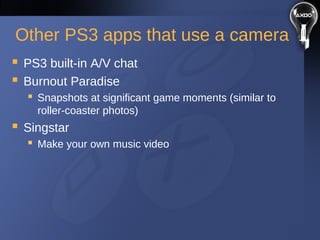

11. Other PS3 apps that use a camera
 PS3 built-in A/V chat
 Burnout Paradise
 Snapshots at significant game moments (similar to
roller-coaster photos)
 Singstar
 Make your own music video

12. PS3 Vision SDK
libcamera
sys_audio
libvision
Game
libvision
vision
tasks
vision
jobs
libspurs
SPE
PPE

13. PS3 Vision SDK (SPE)
 SPE libvision function library
 Video filters; format conversion; logical, arithmetic, and morphological
operations; matching; moments
 Completely internal to SPE (no DMA, etc)
 cellSlice (8, 16, RGBA, Float)
 Note: some tasks cannot break images into slices (e.g. rotate)
 Optimized (SIMD, unrolled, pipelined), no assembly (only intrinsics)
 SPE tasks
 Typically call SPE libvision functions for cellSlices
 Handle DMA, double-buffering
 VisionTaskInfo, cellImage
 SPE jobs
 Call SPE libvision functions
 DMA set up in advance for slices, handled by SPURS
 Some things are hard to break up into jobs

14. PS3 Vision SDK (PPE)
 PPE libvision
 PPE versions of all SPE libvision functions using
#include <spu2vmx.h>
 cellImage
 cellImage8, cellImage16, cellImageRGBA, cellImageFloat
 VisionTaskSet
 Task synchronization
 Run-time reloadable SPE code
 Easy SPE task execution using similar calling model to PPE

15. PS3 Vision SDK
 Sample code
 Mostly use 1 SPE
 RSX shader renders YUV directly and boosts
saturation
 Easy to switch between SPE and PPE execution
 Not yet released to 3rd
party game developers
 Maintenance concerns
 Unhappy with design

16. Head Tracking
 Face detector from Sony Corporation
 Detects multiple faces at various scales, rotations
 Robust, but not smooth
 Face tracking
 Based on template (patch) matching
 Correlation of images filtered with signum of Laplacian of
Gaussian (sLoG)
 16x16 patches for 320x240 video
 Multiple templates allow different rotations and scales
 Uses motion patch tracking if template match fails
 Face detector directs face tracker search area

17. Color tracking
 Segmentation every frame
 Not really tracking at all
 Chrominance smoothing, thresholding
 Repeated windowed centroid/area calculation to
reject noise
 X, Y from centroid, Z from area (for sphere)
 Second moments provide principal axes
 In bad lighting, principal moment better for Z than area
 Video or demo

18. Got Light?


19. Sketch Analysis
 Image processing
 Sketches: edge detection
 Objects: background subtraction
 Segmentation (region finding)
 Find closed contours by walking around edges
 Vectorization (regions to polygons)
 Adjustable
 Texture lifted from original image
 Machination (polygon to game object)
 Physical objects
 Game-specific objects (e.g. tank, lunar lander, etc.)

20. Sketch Analysis Key Factors
 Known camera (PS Eye)
 Known camera position (Eye of Judgment stand)
 Known surface (white paper)
 Good lighting situation (paper faces up at lights,
camera looking down)
 High contrast naturally provided by user
 Shadows are problematic, but addressable
 video

21. Questions?
 Thank you!
 richard_marks@playstation.sony.com

22. Fundamental Issue: Lighting
 Unknown lighting environment limits robustness
 Variable lighting leads to variable performance
 Users often do not understand “good lighting”, or
they cannot easily accomplish it
 Simple auto gain, exposure are insufficient
 Positive methods give too many false negatives

23. My Background
 School
 Avionics, robotics, dynamics, control theory
 Embedded systems
 ARL (Aerospace Robotics Lab)
 “Visual Sensing for Automatic Control of an Underwater Robot”
 Automatic station-keeping, mosaic creation, and navigation
 Teleos Research (acquired by Autodesk)
 Real-time optical flow and stereo
 PeopleTracker® for Canon video conferencing camera
 Semi-automatic 3d modeling from photos
