1. Compiler Design Project
Topic – To convert BNF rules into YACC form and
write code to generate abstract syntax tree
Group 19
• Dushyant Sharma
• Rohit Kumar
• Yogesh Sharma
• Raghulal Prajapati
• Rajesh Kumar

2. BNF Notation in Compiler Design
BNF stands for Backus Naur Form notation. It is a
formal method for describing the syntax of
programing language which is understood as
Backus Naur Formas introduced by John Bakus and
Peter Naur in 1960. BNF and CFG (Context Free
Grammar) were nearly identical. BNF may be a
meta-language (a language that cannot describe
another language) for primary languages.
For human consumption, a proper notation for
encoding grammars intended and called Backus
Naur Form (BNF). Different languages have
different description and rules but the general
structure of BNF is given below –

3. • = expansion The symbol ::= means “may expand into” and
“may get replaced with.” In some texts, a reputation is
additionally called a non-terminal symbol.
• Every name in Backus-Naur form is surrounded by angle
brackets, < >, whether it appears on the left- or right-hand
side of the rule.
• An expansion is an expression containing terminal symbols
and non-terminal symbols, joined together by sequencing
and selection.
• A terminal symbol may be a literal like (“+” or “function”)
or a category of literals (like integer).
• Simply juxtaposing expressions indicates sequencing.
• A vertical bar | indicates choice

4. Introduction to YACC
• Last Updated: 06-05-2019A parser generator is a
program that takes as input a specification of a
syntax, and produces as output a procedure for
recognizing that language. Historically, they are
also called compiler-compilers.
• YACC (yet another compiler-compiler) is
an LALR(1) (LookAhead, Left-to-right, Rightmost
derivation producer with 1 lookahead token)
parser generator. YACC was originally designed
for being complemented by Lex.

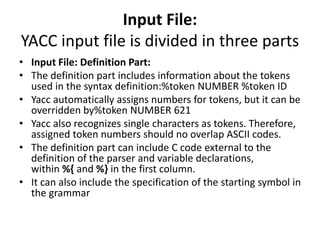

5. Input File:
YACC input file is divided in three parts
• Input File: Definition Part:
• The definition part includes information about the tokens
used in the syntax definition:%token NUMBER %token ID
• Yacc automatically assigns numbers for tokens, but it can be
overridden by%token NUMBER 621
• Yacc also recognizes single characters as tokens. Therefore,
assigned token numbers should no overlap ASCII codes.
• The definition part can include C code external to the
definition of the parser and variable declarations,
within %{ and %} in the first column.
• It can also include the specification of the starting symbol in
the grammar

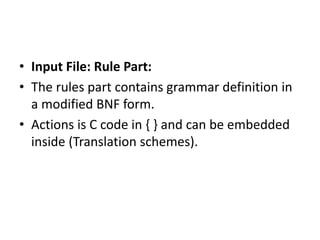

6. • Input File: Rule Part:
• The rules part contains grammar definition in
a modified BNF form.
• Actions is C code in { } and can be embedded
inside (Translation schemes).

7. • Input File: Auxiliary Routines Part:
• The auxiliary routines part is only C code.
• It includes function definitions for every function needed in rules
part.
• It can also contain the main() function definition if the parser is
going to be run as a program.
• The main() function must call the function yyparse().
• Input File:
• If yylex() is not defined in the auxiliary routines sections, then it
should be included:
#include "lex.yy.c"
• YACC input file generally finishes with:
.y

8. Output Files
• The output of YACC is a file named y.tab.c
• If it contains the main() definition, it must be compiled to be
executable.
• Otherwise, the code can be an external function definition for the
function int yyparse()
• If called with the –d option in the command line, Yacc produces as
output a header file y.tab.h with all its specific definition
(particularly important are token definitions to be included, for
example, in a Lex input file).
• If called with the –v option, Yacc produces as output a
file y.output containing a textual description of the LALR(1) parsing
table used by the parser. This is useful for tracking down how the
parser solves conflicts

9. Syntax Directed Translation in
Compiler Design
• Background : Parser uses a CFG(Context-free-Grammer) to
validate the input string and produce output for next phase
of the compiler. Output could be either a parse tree or
abstract syntax tree. Now to interleave semantic analysis
with syntax analysis phase of the compiler, we use Syntax
Directed Translation.
• Definition
Syntax Directed Translation are augmented rules to the
grammar that facilitate semantic analysis. SDT involves
passing information bottom-up and/or top-down the parse
tree in form of attributes attached to the nodes. Syntax
directed translation rules use 1) lexical values of nodes, 2)
constants & 3) attributes associated to the non-terminals in
their definitions.

10. • The general approach to Syntax-Directed Translation is to
construct a parse tree or syntax tree and compute the values
of attributes at the nodes of the tree by visiting them in some
order. In many cases, translation can be done during parsing
without building an explicit tree
• Example
 E -> E+T | T
 T -> T*F | F
 F -> INTLIT

11. • This is a grammar to syntactically validate an expression
having additions and multiplications in it. Now, to carry out
semantic analysis we will augment SDT rules to this
grammar, in order to pass some information up the parse
tree and check for semantic errors, if any. In this example
we will focus on evaluation of the given expression, as we
don’t have any semantic assertions to check in this very
basic example.
• E -> E+T { E.val = E.val + T.val }
• E -> T { E.val = T.val }
• T -> T*F { T.val = T.val * F.val }
• T -> F { T.val = F.val }
• F -> INTLIT { F.val = INTLIT.lexval }

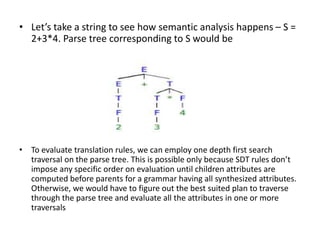

12. • Let’s take a string to see how semantic analysis happens – S =
2+3*4. Parse tree corresponding to S would be
• To evaluate translation rules, we can employ one depth first search
traversal on the parse tree. This is possible only because SDT rules don’t
impose any specific order on evaluation until children attributes are
computed before parents for a grammar having all synthesized attributes.
Otherwise, we would have to figure out the best suited plan to traverse
through the parse tree and evaluate all the attributes in one or more
traversals

13. Above diagram shows how semantic analysis could happen. The flow of
information happens bottom-up and all the children attributes are computed
before parents, as discussed above. Right hand side nodes are sometimes
annotated with subscript 1 to distinguish between children and parent.
