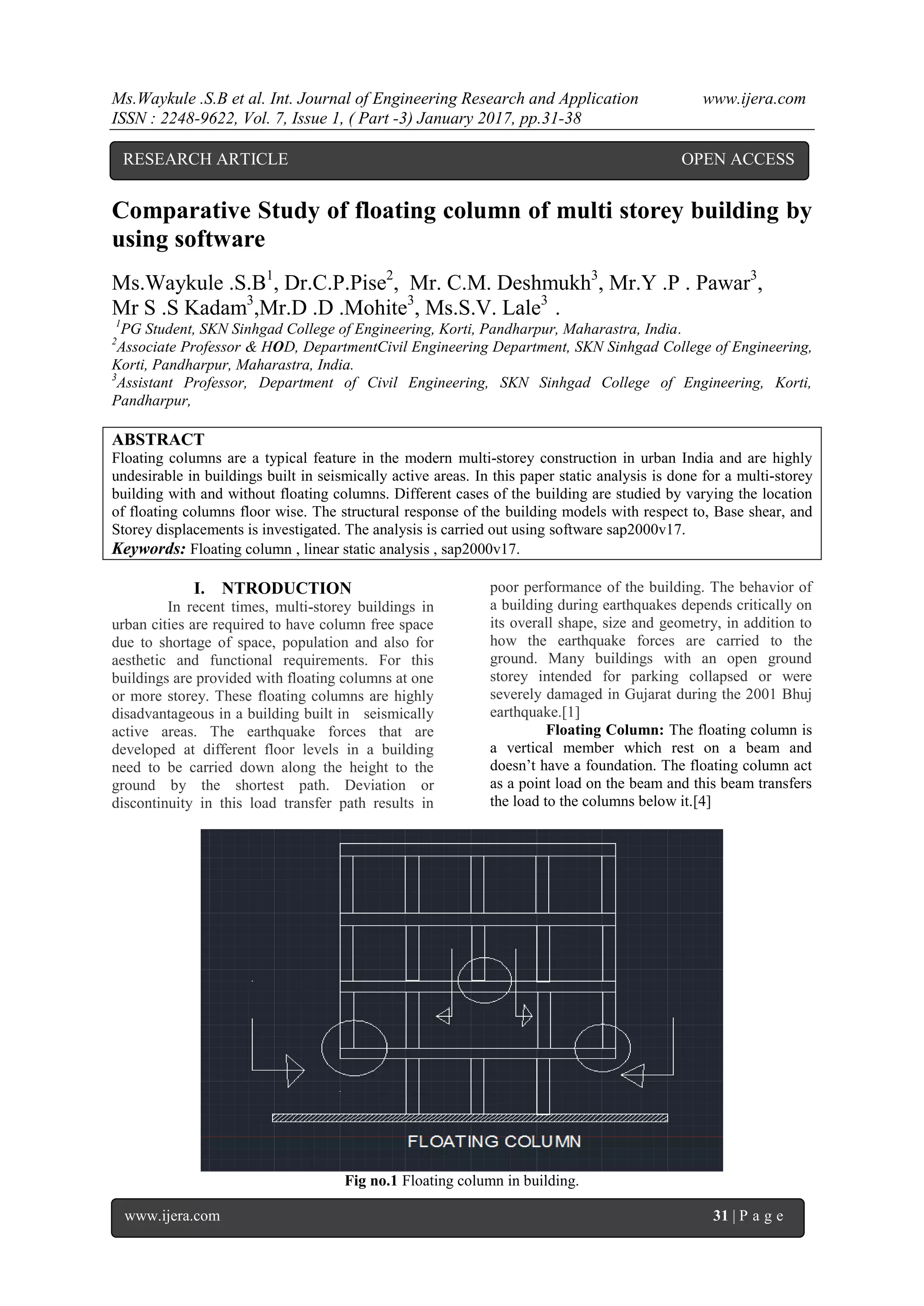

Floating columns are a typical feature in the modern multi-storey construction in urban India and are highly undesirable in buildings built in seismically active areas. In this paper static analysis is done for a multi-storey building with and without floating columns. Different cases of the building are studied by varying the location of floating columns floor wise. The structural response of the building models with respect to, Base shear, and Storey displacements is investigated. The analysis is carried out using software sap2000v17.
Special shear walls + ordinary shear walls ACI - 318 - جدران القص الخاصة - P...Dr.Youssef Hammida
Specifications of Special
shear walls
• 1- to form a plastic hinge and wall work in the plastic area
distracting section of the quake, where increasing energy transfer and nonlinear distortions
With firmness despite rising resistance section loads base shear forces
Detailed plastically shaped at the bottom of the wall up the foundation base point
Where the forces of bending moment and shear baseband is greatest
• 2 - have a long high hinge plastically area along the height of the wall
And almost equal to the rise in the wall / 6, H / 6 or along the plan length L
• 3 - the region where the plastic hinge cracked consider (cracked section) and the reduction of inertia (Ig) = (0.35 - 0.5) according to the local code
But after the hinge ductile shear wall treats ordinary wall
area (un cracked section) = (0.7 - 0.8)
• 4 - neglecting the resistance of concrete to resist shear forces
and reinforcing longitudinal and horizontal
In the area and the plastic hinge along only
