The document discusses several common syndromes affecting the face and jaw bones, including: - Gardner's syndrome, which involves intestinal polyposis, osteomas or bony exostoses, and epidermoid cysts. - Gorlin-Goltz syndrome (basal cell nevus syndrome), which causes multiple nevoid basal cell carcinomas and multiple jaw cysts appearing as radiolucencies. - Cleidocranial dysplasia, which affects the skull, jaws, teeth, clavicles and long bones and causes abnormalities like frontal bossing, high arched palate and impacted/supernumerary teeth. - Ectodermal dysplasia, which causes

1. M.Ekram
Common Syndromes
affecting Face and jaw bones
Prof. M.Ekram

2. M.Ekram
What is meant by a syndrome ?
A set of symptoms (symptom complex)
or physical conditions that occur together
giving the picture of a particular disease or
abnormality.

3. M.Ekram
Gardner's syndrome
Intestinal Polyposis Syndrome

4. M.Ekram
Gardner's syndrome
In 1951 Gardner initiated a series of articles
described a syndrome involving:
polyposis of the large intestine
Osteomas or bony exostosis

5. M.Ekram
Gardner's syndrome
Epidermoid cysts
and fibromas
Multiple large epidermoid cysts.

6. M.Ekram
clinical picture
Complete triad occurs in less than 10% of the affected
patients.
The mean age of onset is 22 years with a chance of
malignant transformation of the polyps before puberty
and 50% chance by the age of 30 years.
Typical findings are: rectal bleeding, diarrhea and
abdominal pain

7. M.Ekram
Skeletal manifestations include
osteomas that arise from either the
inner or outer cortical tables of flat
bones specially the sinus mandible or
long bones.
Soft tissue lesions include
epidermoid cysts, sebaceous cysts,
fibromas, lipomas, and fibrosarcoma,
occuring anywhere in the body.
Gardner's syndrome

8. M.Ekram
Gardner's syndrome
Jaw lesions
Multiple osteomas.
Radiographic picture
Multiple radiopacities
Generalized radiopacities

9. M.Ekram
Typical oral findings include multiple odontomas,
impacted or supernumerary teeth.
Gardner's syndrome

10. M.Ekram
Basal Cell Nevus Syndrome
Nevoid Basal Cell Carcinoma Syndrome
Gorlin-Goltz syndrome
Age: starts early in life between 5 to 30ys.
Gender : Occurs equally in both sexes.

11. M.Ekram
Skull :True hypertolarism,
broad nasal bridge, fronto-
parietal bone bossing with
prominent supraorbital ridges
and mild mandibular
prognathism.
Skeletal lesions :Bifid ribs and
other skeletal abnormalities.
Gorlin-Goltz syndrome
Abnormalities
Bifid ribs
Characteristic frontal bossing
and broad nasal root

12. M.Ekram
Skin lesions : Multiple nevoid basal cell carcinomas.
Gorlin-Goltz syndrome

13. M.Ekram
Jaw lesions : Multiple jaw cysts of variable sizes common
in the mandibular premolar - molar and maxillary third
molar regions appearing as multiple radiolucenceis
(multiple keratocysts).
Gorlin-Goltz syndrome

14. M.Ekram
N.B Lining of the
cyst is essentially
the same as in
keratocyst
Gorlin-Goltz syndrome

15. M.Ekram
Cleidocranial Dysplasia
(Dysostosis)

16. M.Ekram
Cleidocranial Dysplasia (Dysostosis)
Clinically
abnormalities in skull, jaws, teeth,
clavicles and long bones.(membranous
bone).
Skull: opened fontanels with delayed
ossification of cranial sutures leads to
prominent parietal, frontal and occipital
bossing ( large and wide).
Long bones: short and fragile.
Clavicles: defective or completely absent.

17. M.Ekram
cleidocranial dysostosis
Wide spaced sutures.
Frontal bossing and
increased of biparietal
diameter.
Radiologic findings
Of the skull

18. M.Ekram
Orally:
High arched palate.
Cleft palate is common.
Underdeveloped maxilla.
Retention of deciduous
teeth.
Delayed eruption of permanent teeth with multiple
impacted and supernumerary teeth.
cleidocranial dysostosis
Disturbed dentition

19. M.Ekram
Ectodermal
dysplasia

20. M.Ekram
Ectodermal dysplasia
A rare hereditary condition in which two or more
ectodermally derived tissues fail to develop.
Depending on the type of ectodermal dysplasia,
hypoplasia or aplasia of tissues such as skin, hair,
nails, teeth , sweat or salivary glands may occur.
The best known of ectodermal dysplasia syndromes is
the hypohydrotic ectodermal dysplasia

21. M.Ekram
Ectodermal dysplasia
Clinical features:
Heat intolerance due to a reduced number of sweat
glands (death may result from hyperpyrexia).
Xerostomia occurs according to the degree of
involvement of salivary glands.

22. M.Ekram
Ectodermal dysplasia
Clinical features:
Fine sparse blonde hair.
Reduced density of eyebrows
and eyelash hair.
Nails may appear brittle.

23. M.Ekram
Ectodermal dysplasia
Mid facial hypoplasia is
frequently observed with
frontal bossing and depressed
nasal bridge, this often results
in protruded lips.
Skin may show fine wrinkling
and pigmentation.
The face & skin

24. M.Ekram
Ectodermal dysplasia
In the absence of teeth, the jaws fail to develop normally
and and are overclosed. Such children have a
charachteristic prematurely senile “nutcracker” profile
commonly accentuated by the frontal bossing.
Frontal
bossin

25. M.Ekram
Ectodermal dysplasia
Dental findings
Hypodontia or oligodontia.
Anodontia is reported but is
uncommon.

26. M.Ekram
Oligodontia
No extractions performed
No extractions performed

27. M.Ekram
Ectodermal dysplasia
Dental findings
Characteristic abnormal crown
morphology of teeth, Incisors
are conical, tapered or pointed
and molar crowns are reduced
in diameter.

28. M.Ekram
Prosthetic management
Removable or partial dentures.
Fixed appliances.
Endosseous Implants

29. M.Ekram
Papillon-Lefevren
Syndrome 1924
hyperkeratosis palmoplantaris

30. M.Ekram
Papillon-Lefevren Syndrome 1924
hyperkeratosis palmoplantaris
It is a syndrome which includes both oral and
dermatologic findings.
Clinical findings:
Occurs in childhood and adolescents.
Diffuse or localized hyperkeratosis of palmar and pluntar
surfaces with some erythema.
Other sites as the dorsal surface of the fingers and toes,
elbows, legs, and rarely the trunk.

31. M.Ekram
Oral findings
1. Normally erupted primary teeth.
Once the teeth erupt, rapid progressing periodontitis appears
and is characterized by :
Markedly swollen and inflamed gingiva.
Fetid odor.
Regional lymphadenopathy.
Extensive bone resorption and deep pocket fromation.
Hypermobility, migration and exfoliation of teeth.
At the age of 4-5 years the child may become edentulous.
Periodontal findings

32. M.Ekram
Oral findings
2. After the eruption of permanent teeth:
The cycle starts again and by the age of 13 years or
after, the permanent teeth may become lost.
Radiographic findings
Severe loss of alveolar bone.
Teeth appear floating without bone support.

33. M.Ekram
Papillon-Lefevre syndrome (Case)
Radiographic survey for
7-years old female
Primary teeth lost prematurely
, first molars exfoliated one
year following eruption and
mandibular anterior teeth
exhibit severe periodontitis.
Same patient age 31
Keratnization of both palms and heels
with painful cracks through the
hyperkeratotic area on the heel. The
skin on the back of her hands is thin
hyperkeratotic, dry and erythematous.

34. M.Ekram
Total fixed reconstructions established
Papillon-Lefevre syndrome

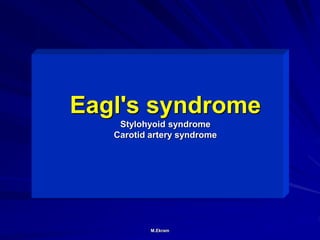

35. M.Ekram
Eagl's syndrome
Stylohyoid syndrome
Carotid artery syndrome

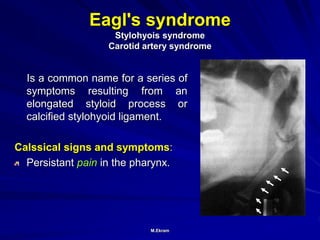

36. M.Ekram
Eagl's syndrome
Stylohyois syndrome
Carotid artery syndrome
Is a common name for a series of
symptoms resulting from an
elongated styloid process or
calcified stylohyoid ligament.
Calssical signs and symptoms:
Persistant pain in the pharynx.

37. M.Ekram
Clinical manifestations
Dysphagia.
Lateral throat pain.
Foreign body sensation.
Difficulty in swallowing.
Tinnitus.
Pain may be referred to the TMJ.
Pain during turning of the neck along the distribution of
the internal and external carotid artery.

38. M.Ekram
Diagnosis
By palpating the styloid process in the
tonsillar fossa, pain is elicited.
The relief of symptoms following injection
of local anesthetic into the tonsillar fossa
is highly suggestive for the diagnosis.

39. M.Ekram
Radiographic picture
The styloid process is long,
tapered and appears as a thin
radiopacity between the ramus
and the mastoid proces.
The styloid process appears to
extend to the hyoid bone.
It is well presented in lateral
skull and panoramic views.

40. M.Ekram

41. M.Ekram
Sjogren's
syndrome

42. M.Ekram
Sjogren's syndrome
It is a chronic, systemic auto-immune
disorder that principally involves the salivary
and lacrimal glands, resulting in xerostomia
(dry mouth) and xerophthalmia (dry eye).
The effects on the eye often are called
Keratoconjunctivitis sicca (sicca=dry).
The clinical presentation of both xerostomia
and xerophthalmia is sometimes called the
sicca syndrome.

43. M.Ekram
Sjogren's syndrome
Forms of the disease:
Primary Sjogren's syndrome: sicca syndrome alone; no
other auto-immune disorders are present.
Secondary Sjogren's syndrome: the patient manifests the
sicca syndrome with other auto-immune disorders.
Age : middle aged adults.
Gender : more in females.
Clinical features

44. M.Ekram
Clinical features
Primary Sjogren's syndrome:
Salivary gland and oral manifestations
Xerostomia.
Difficulty of swallowing.
Altered taste.
Tongue is atrophic and fissured.
Oral mucosa becomes red and tender.
Candidosis : denture stmatitis and angular cheilitis.
Teeth decay especially cervical caries.
Increased incidence of periodontal disease.
Intermittent or persistent diffuse firm enlargement of
salivary glands which may be slightly tender.
Eye manifestations
Xerophthalmia.
Keratoconjunctivitis.

45. M.Ekram
Clinical features
Secondary Sjogren's syndrome:
In addidion to the symptoms of the
primary type, the disease may
accompany:
Rheumatoid arthritis (RA).
Systemic lupus erythematosus (SLE).
Progressive systemic sclerosis (PSS).

46. M.Ekram
Sialography
for the major salivary glands

47. M.Ekram
sialography

48. M.Ekram
sialography
sialography

49. M.Ekram
Normal parotid glandNormal submandibular gland
sialography

50. M.Ekram
Sjogren's syndrome
Sialographic features
Widespread dots or blobs of contrast
medium within the gland, an
appearance known as punctate
sialectasis or snowstorm. This is
caused by weakening of the
epithelium lining the intercalated ducts
allowing the contrast medium to get
out of the ducts.
The mian duct is usually normal.
Considerable retention of the contrast
medium during the emptying phase.
Sialogram of a parotid gland
affected by Sjogren's syndrome

51. M.Ekram
Down’s Syndrome
Trisomy 21 syndrome

52. M.Ekram
It is the most common Chromosomal abnormality to
occur in man.
It is a disease associated with subnormal mentality in
which an extremely wide variety of anomalies and
functional disorders may occur, two of the chief types
being cranial and facial deformities.
Etiology
Chromosomal abnormality.
Advanced maternal age.
Placental abnormalities.
Down’s Syndrome
Trisomy 21 syndrome
A disorder appeared in a brief report by John Langdon Down in
1866 and clearly defined the physical features of this syndrome.

53. M.Ekram
Clinical features
Flat face (mongoloid face)
Frequent prognasthism.
Flat nasal bridge.
Small slanting eyes with epicanthal folds.
Abnormalities and hypermobility of the joints.
Downs syndrome

54. M.Ekram
Clinical features
Open mouth and open bite.
Malocclusion.
Downs syndrome
Open mouth
Open bite

55. M.Ekram
Radiographic features
Large anterior fontanels
Open sutures.
Downs syndrome

56. M.Ekram

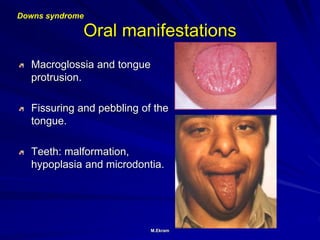

Oral manifestations
Macroglossia and tongue
protrusion.
Fissuring and pebbling of the
tongue.
Teeth: malformation,
hypoplasia and microdontia.
Downs syndrome

57. M.Ekram
Oral manifestations
High arched palate.
Teeth: malformation,
hypoplasia and microdontia.
Downs syndrome
High arched palate.

58. M.Ekram
Downs syndrome
Severe forms of periodontal disease.

59. M.Ekram
Thank you
