The document describes the technical specifications of the Powercom entrance panel housing, which is made of aluminum and is angled at 45° for practical user interaction. It outlines the dimensions, compatibility with various systems, and packaging details including size and weight. The entrance panel is designed for easy installation and use within several system configurations.

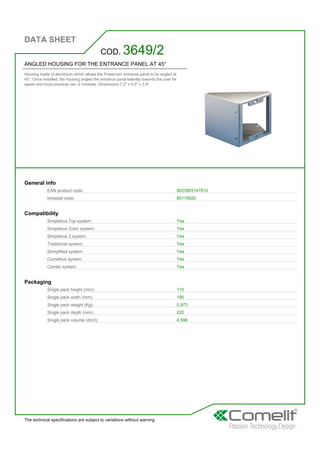

1. DATA SHEET
The technical specifications are subject to variations without warning
ANGLED HOUSING FOR THE ENTRANCE PANEL AT 45°
Housing made of aluminium which allows the Powercom entrance panel to be angled at
45°. Once installed, the housing angles the entrance panel laterally towards the user for
easier and more practical use. 2 modules. Dimensions 7.2'' x 9.5'' x 3.9''
COD. 3649/2
General info
EAN product code: 8023903147810
Intrastat code: 85176920
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Semplified system: Yes
Comelbus system: Yes
Comtel system: Yes
Packaging
Single pack height (mm): 110
Single pack width (mm): 190
Single pack weight (Kg): 0,973
Single pack depth (mm): 220
Single pack volume (dm3): 4,598
