This document provides specifications for a hidden button pinhole video camera with digital video recorder (DVR). The camera is disguised as a button that is 15mm or 20mm in diameter and can be attached to clothing. The included 2 inch LCD DVR allows for recording video up to 640x480 resolution with audio to a mini SD card of up to 4GB in size. The system includes extra buttons, AV cables, a rechargeable battery, charger, and software drivers. It is presented as a surveillance or fun hidden camera system.

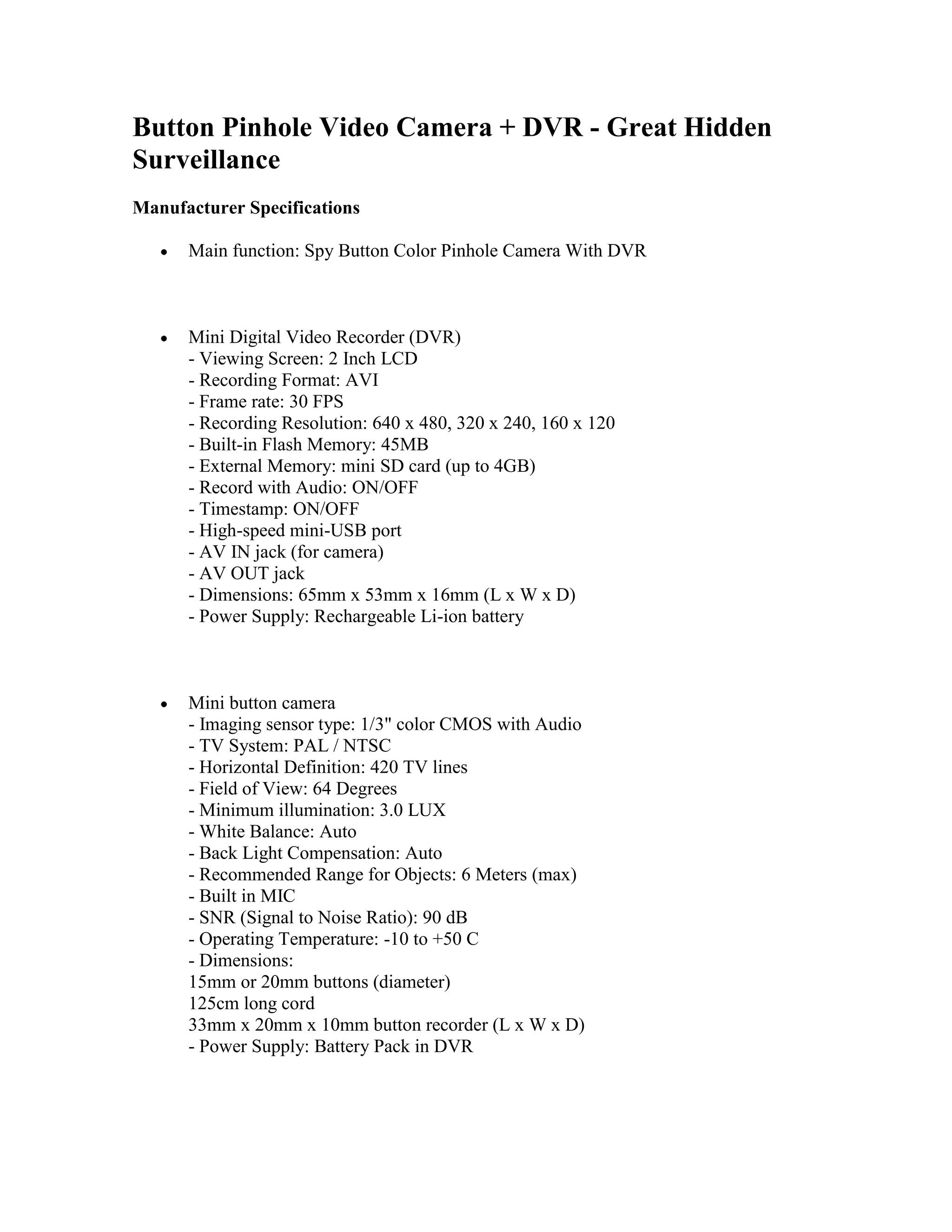

1. Button Pinhole Video Camera + DVR - Great Hidden SurveillanceManufacturer SpecificationsMain function: Spy Button Color Pinhole Camera With DVRMini Digital Video Recorder (DVR) - Viewing Screen: 2 Inch LCD - Recording Format: AVI - Frame rate: 30 FPS - Recording Resolution: 640 x 480, 320 x 240, 160 x 120 - Built-in Flash Memory: 45MB - External Memory: mini SD card (up to 4GB) - Record with Audio: ON/OFF - Timestamp: ON/OFF - High-speed mini-USB port - AV IN jack (for camera) - AV OUT jack - Dimensions: 65mm x 53mm x 16mm (L x W x D) - Power Supply: Rechargeable Li-ion batteryMini button camera - Imaging sensor type: 1/3\"

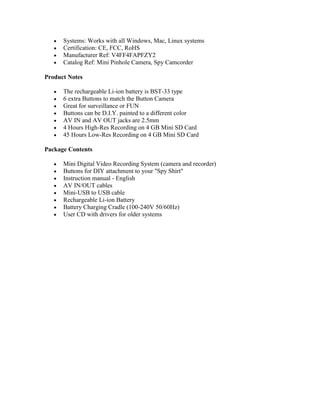

color CMOS with Audio - TV System: PAL / NTSC - Horizontal Definition: 420 TV lines - Field of View: 64 Degrees - Minimum illumination: 3.0 LUX - White Balance: Auto - Back Light Compensation: Auto - Recommended Range for Objects: 6 Meters (max) - Built in MIC - SNR (Signal to Noise Ratio): 90 dB - Operating Temperature: -10 to +50 C - Dimensions: 15mm or 20mm buttons (diameter) 125cm long cord 33mm x 20mm x 10mm button recorder (L x W x D) - Power Supply: Battery Pack in DVRSystems: Works with all Windows, Mac, Linux systemsCertification: CE, FCC, RoHSManufacturer Ref: V4FF4FAPFZY2Catalog Ref: Mini Pinhole Camera, Spy CamcorderProduct NotesThe rechargeable Li-ion battery is BST-33 type6 extra Buttons to match the Button CameraGreat for surveillance or FUNButtons can be D.I.Y. painted to a different colorAV IN and AV OUT jacks are 2.5mm4 Hours High-Res Recording on 4 GB Mini SD Card45 Hours Low-Res Recording on 4 GB Mini SD CardPackage ContentsMini Digital Video Recording System (camera and recorder)Buttons for DIY attachment to your \"
Spy Shirt\"
Instruction manual - EnglishAV IN/OUT cablesMini-USB to USB cableRechargeable Li-ion BatteryBattery Charging Cradle (100-240V 50/60Hz)User CD with drivers for older systems
