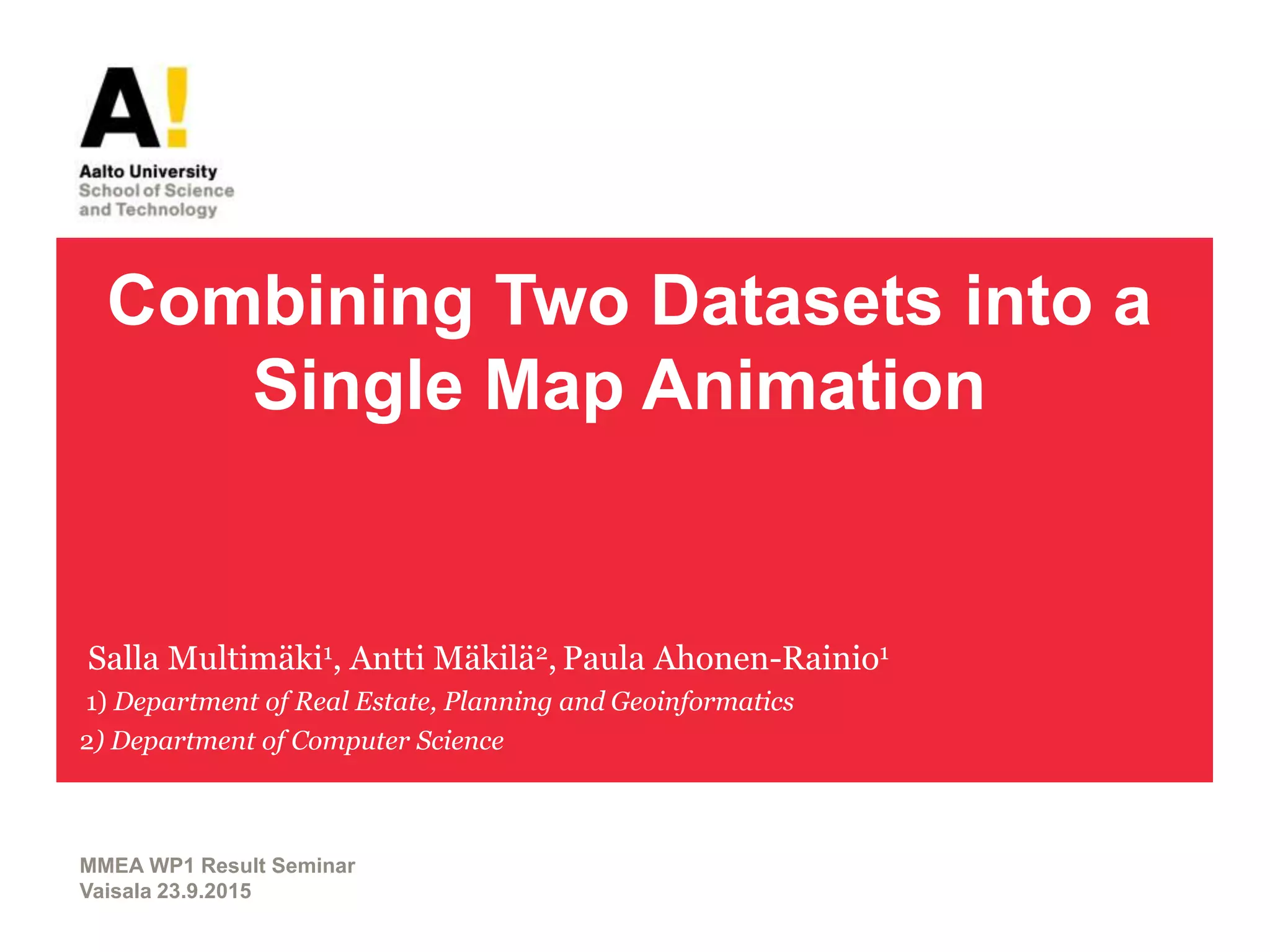

1. Combining Two Datasets into a
Single Map Animation
Salla Multimäki1, Antti Mäkilä2, Paula Ahonen-Rainio1
1) Department of Real Estate, Planning and Geoinformatics
2) Department of Computer Science
MMEA WP1 Result Seminar
Vaisala 23.9.2015

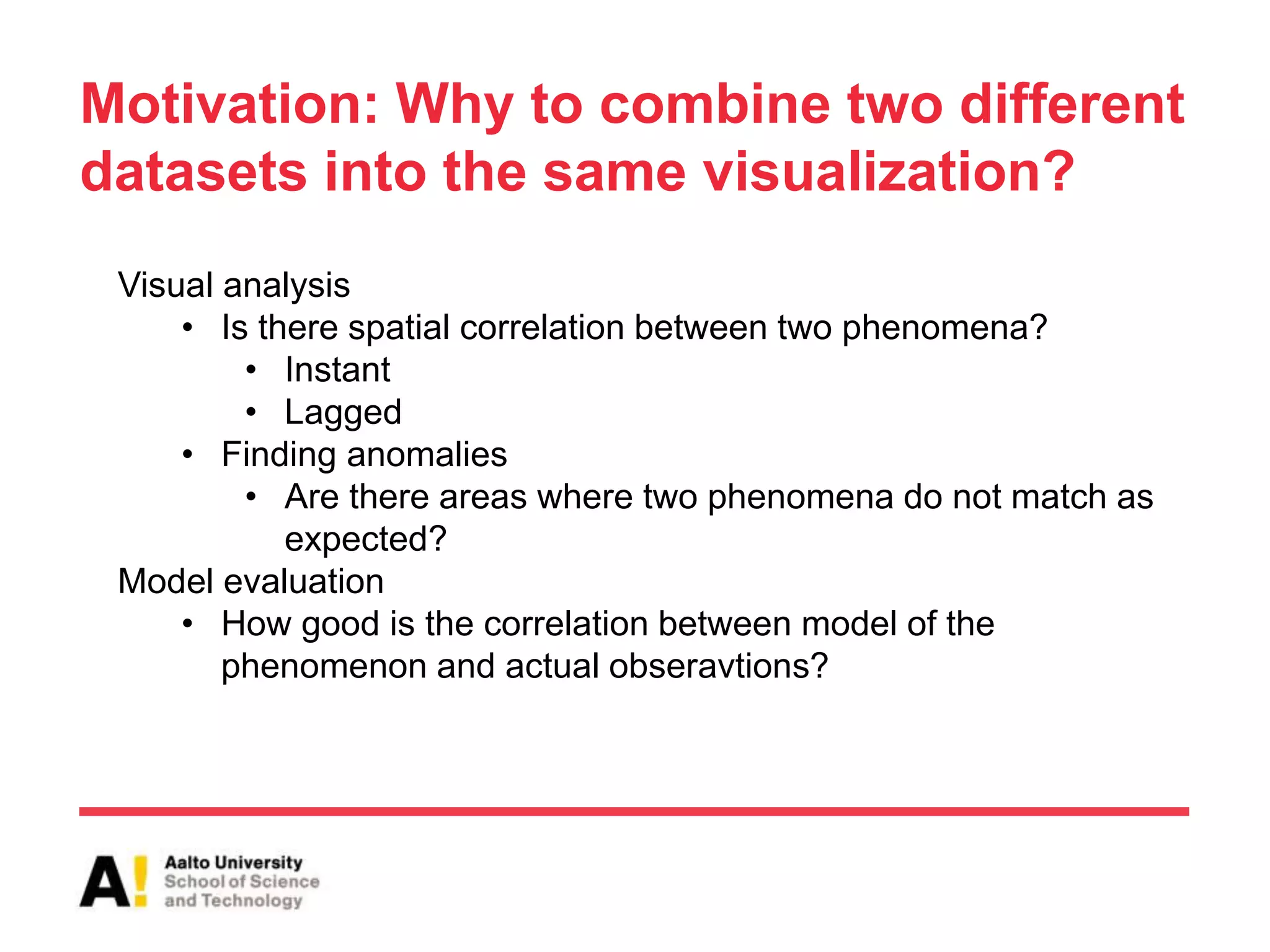

2. Motivation: Why to combine two different
datasets into the same visualization?
Visual analysis
• Is there spatial correlation between two phenomena?
• Instant
• Lagged
• Finding anomalies
• Are there areas where two phenomena do not match as
expected?
Model evaluation
• How good is the correlation between model of the
phenomenon and actual obseravtions?

3. Dataset combination 1/2
Rain radar (FMI) and rain model (SILAM)
• Hypothesis: modelled and observed rain should meet
• Visualization considerations:
• Viewer’s interest is in those areas where observations and model
do not meet
– Complementary colours
– Combination forms neutral grey
– Transparency levels
• No ”good/bad” or ”real/fake” associations
• Classification simple enough
– Classification must be the same with both
datasets

4. Dataset combination 1/2
http://ankka.github.io/p
sychic-
nemesis/examples/9a.
html

5. Dataset combination 2/2
Birch pollen concentration (SILAM) and relative air humidity
(SILAM)
• Hypothesis: high air humidity ( > 70%) should remove high pollen
concentrations ( > 50 grains / m3)
Bartková-Ščevková, J. "The influence of temperature, relative humidity and
rainfall on the occurrence of pollen allergens (Betula, Poaceae, Ambrosia
artemisiifolia) in the atmosphere of Bratislava (Slovakia)." International Journal of
Biometeorology 48.1 (2003): 1-5.
• Visualization considerations:
• Two colours which together forms third,
easily separable colour
• Natural associations: yellow pollen, blue
water
• No classification, only binary values
because of the hypothesis

6. Dataset combination 2/2

7. Validation of the results
• Coming up in September: focus group interviews
– three separate groups of 4-6 participants: students, GIS
professionals and meteorology professionals
• The focus groups are evaluating:
– Used colours and their suitability for the task
– Classification
– Background map
• Analysis of e.g. following things:
– Colour combinations
– Effect of geometrical complexity of the datasets
– Other suggestions?

8. Some preliminary results from the first focus
group interview (GIS professionals)
Rain model and observations
• Was easier to interpret because of the logical movement
of the areas
• Neutral grey is easily missed or mixed with other light
values (or sea)
• Green areas of the model were experienced too
dominant because of their geometry
– Suggestion: show dappled radar images on the top of the more
solid model, no transparency
– Suggestion: show only outlines of model areas

9. Some preliminary results from the first focus
group interview (GIS professionals)
Pollen and air humidity
• The geometry and behaviour of the datasets have a
great effect
• Blue was seen as a sea area
• Green was seen as a third, separate phenomenon
– Suggestion: show only the areas where the datasets overlap
(because that is what should not happen according to the
previous research!)
• The task of the user was not as clear as with the other
example

10. Publication of the results
• EuroCarto 2015: 1st ICA European Symposium on
Cartography 10.-12.11.2015 Vienna, Austria
• Selected papers are intended to be published in the
International Journal of Cartography and in a book of
the series Lecture Notes on Geoinformation and
Cartography by Springer.
