1. Color Theory
How to manipulate
color digitally?

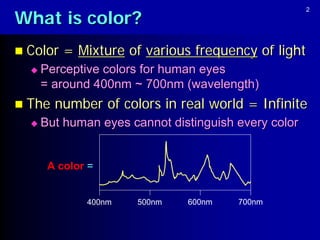

2. What is color?
2
 Color = Mixture of various frequency of light
 Perceptive colors for human eyes
= around 400nm ~ 700nm (wavelength)
 The number of colors in real world = Infinite
 But human eyes cannot distinguish every color
A color =
400nm 500nm 600nm 700nm

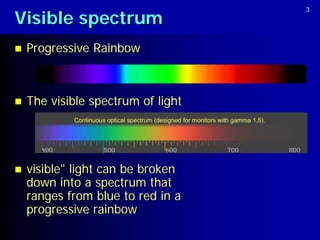

3. Visible spectrum
3
 Progressive Rainbow
 The visible spectrum of light
Continuous optical spectrum (designed for monitors with gamma 1.5).
 visible" light can be broken
down into a spectrum that
ranges from blue to red in a
progressive rainbow

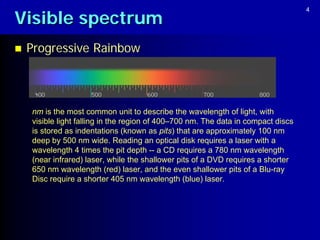

4. Visible spectrum
4
 Progressive Rainbow
nm is the most common unit to describe the wavelength of light, with
visible light falling in the region of 400–700 nm. The data in compact discs
is stored as indentations (known as pits) that are approximately 100 nm
deep by 500 nm wide. Reading an optical disk requires a laser with a
wavelength 4 times the pit depth -- a CD requires a 780 nm wavelength
(near infrared) laser, while the shallower pits of a DVD requires a shorter
650 nm wavelength (red) laser, and the even shallower pits of a Blu-ray
Disc require a shorter 405 nm wavelength (blue) laser.

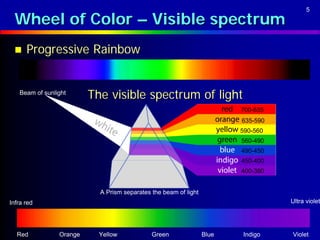

5. 5
Wheel of Color – Visible spectrum
 Progressive Rainbow
Beam of sunlight
The visible spectrum of light
700-635
635-590
590-560
560-490
490-450
450-400
400-380
A Prism separates the beam of light
Infra red Ultra violet
Red Orange Yellow Green Blue Indigo Violet

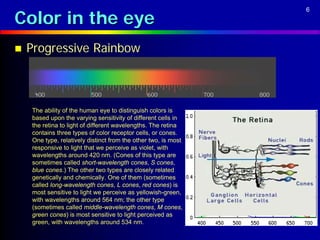

6. Color in the eye
6
 Progressive Rainbow
The ability of the human eye to distinguish colors is
based upon the varying sensitivity of different cells in
the retina to light of different wavelengths. The retina
contains three types of color receptor cells, or cones.
One type, relatively distinct from the other two, is most
responsive to light that we perceive as violet, with
wavelengths around 420 nm. (Cones of this type are
sometimes called short-wavelength cones, S cones,
blue cones.) The other two types are closely related
genetically and chemically. One of them (sometimes
called long-wavelength cones, L cones, red cones) is
most sensitive to light we perceive as yellowish-green,
with wavelengths around 564 nm; the other type
(sometimes called middle-wavelength cones, M cones,
green cones) is most sensitive to light perceived as
green, with wavelengths around 534 nm.

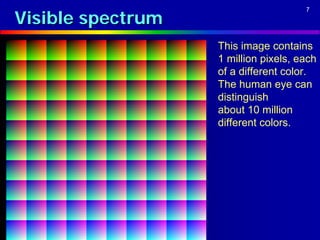

7. Visible spectrum
7
This image contains
1 million pixels, each
of a different color.
The human eye can
distinguish
about 10 million
different colors.

8. Color Model
8
 Math model for color information
 RGB
 Red, Green, Blue
 CMY / CMYK
 Cyan, Magenta, Yellow, blacK (or Key)
 HSL / HSB / HSV / HVC
 Hue , Saturation , Lightness (Brightness/Value)
 YUV / YCbCr (YCC)
 Luminance + 2 Chrominance (Color differences)
 Other color models

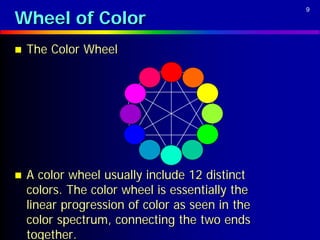

9. Wheel of Color
9
 The Color Wheel
 A color wheel usually include 12 distinct
colors. The color wheel is essentially the
linear progression of color as seen in the
color spectrum, connecting the two ends
together.

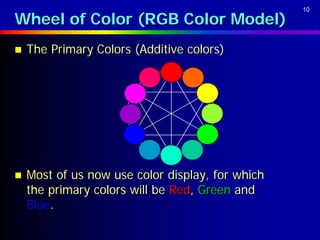

10. 10
Wheel of Color (RGB Color Model)
 The Primary Colors (Additive colors)
 Most of us now use color display, for which
the primary colors will be Red, Green and
Blue.

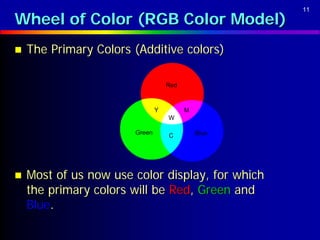

11. 11
Wheel of Color (RGB Color Model)
 The Primary Colors (Additive colors)
Red
Y M
W
Green C Blue
 Most of us now use color display, for which
the primary colors will be Red, Green and
Blue.

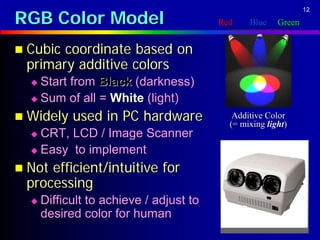

12. RGB Color Model
12
Red Blue Green
 Cubiccoordinate based on
primary additive colors
 Start from Black (darkness)
 Sum of all = White (light)
 Widely used in PC hardware Additive Color
(= mixing light)
 CRT, LCD / Image Scanner
 Easy to implement B
 Notefficient/intuitive for
processing Black
White
 Difficult to achieve / adjust to G
desired color for human R

13. 13
Wheel of Color (CMY Color Model)
 The Secondary Colors (Subtractive Colors)
 Secondary color wheel: the three colors that
are obtained by combining any two adjacent
primary colors. These will be the secondary
colors: cyan, magenta, and yellow.

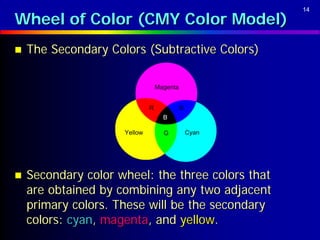

14. 14
Wheel of Color (CMY Color Model)
 The Secondary Colors (Subtractive Colors)
Magenta
R B
B
Yellow G Cyan
 Secondary color wheel: the three colors that
are obtained by combining any two adjacent
primary colors. These will be the secondary
colors: cyan, magenta, and yellow.

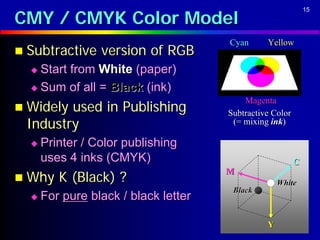

15. CMY / CMYK Color Model
15
Cyan Yellow
 Subtractive version of RGB
 Start from White (paper)
 Sum of all = Black (ink)
Magenta
 Widelyused in Publishing Subtractive Color
Industry (= mixing ink)
 Printer / Color publishing
uses 4 inks (CMYK) C
 Why K (Black) ?
M
White
Black
 For pure black / black letter
Y

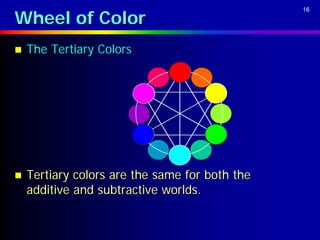

16. Wheel of Color
16
 The Tertiary Colors
 Tertiary colors are the same for both the
additive and subtractive worlds.

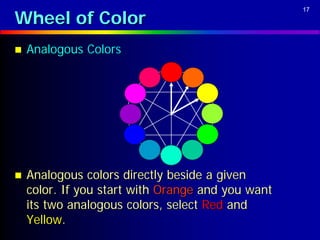

17. Wheel of Color
17
 Analogous Colors
 Analogous colors directly beside a given
color. If you start with Orange and you want
its two analogous colors, select Red and
Yellow.

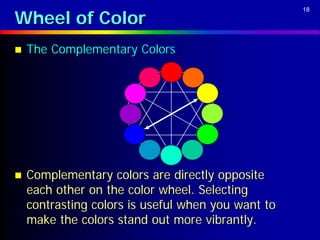

18. Wheel of Color
18
 The Complementary Colors
 Complementary colors are directly opposite
each other on the color wheel. Selecting
contrasting colors is useful when you want to
make the colors stand out more vibrantly.

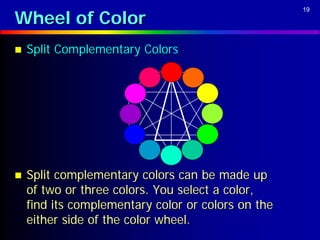

19. Wheel of Color
19
 Split Complementary Colors
 Split complementary colors can be made up
of two or three colors. You select a color,
find its complementary color or colors on the
either side of the color wheel.

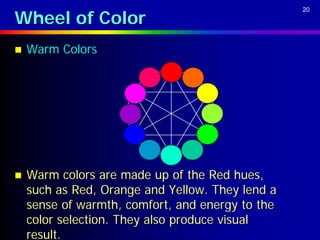

20. Wheel of Color
20
 Warm Colors
 Warm colors are made up of the Red hues,
such as Red, Orange and Yellow. They lend a
sense of warmth, comfort, and energy to the
color selection. They also produce visual
result.

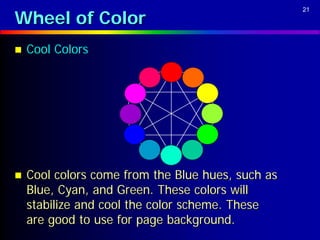

21. Wheel of Color
21
 Cool Colors
 Cool colors come from the Blue hues, such as
Blue, Cyan, and Green. These colors will
stabilize and cool the color scheme. These
are good to use for page background.

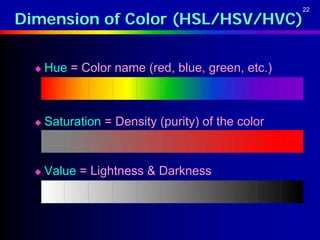

22. 22
Dimension of Color (HSL/HSV/HVC)
 Hue = Color name (red, blue, green, etc.)
 Saturation = Density (purity) of the color
 Value = Lightness & Darkness

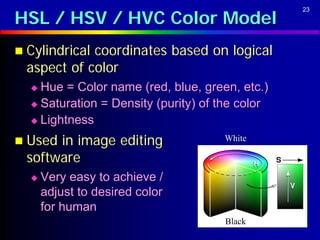

23. HSL / HSV / HVC Color Model
23
 Cylindricalcoordinates based on logical
aspect of color
 Hue = Color name (red, blue, green, etc.)
 Saturation = Density (purity) of the color
 Lightness
 Used in image editing White
software
 Very easy to achieve /
adjust to desired color
for human
Black

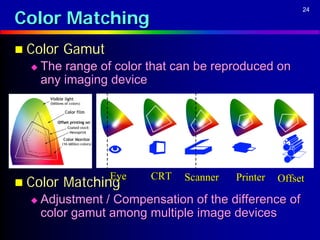

24. Color Matching
24
 Color Gamut
 The range of color that can be reproduced on
any imaging device
Eye CRT
 Color Matching Scanner Printer Offset
 Adjustment / Compensation of the difference of
color gamut among multiple image devices

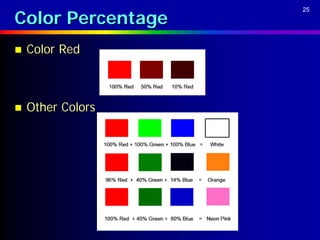

25. Color Percentage
25
 Color Red
 Other Colors

26. Color Bit Depth
26
Bit depth, or color depth, refers to the number of colors a
monitor can display. Full RGB combines three 8-bit channels,
resulting in a 24-bit color depth that adds up to over 16 million
colors. 24-bit color is sometimes referred to as True Color.
Windows Bit depth Number of colors Macintosh
True color 24-bit 16,777,216 Millions of colors
High color 16-bit 65,536 Thousands of colors
Indexed color 8-bit 256 256 colors

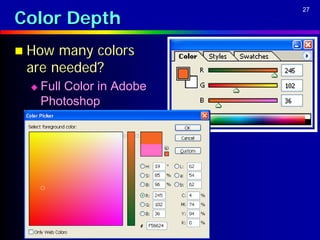

27. Color Depth
27
 How many colors
are needed?
 Full Color in Adobe
Photoshop

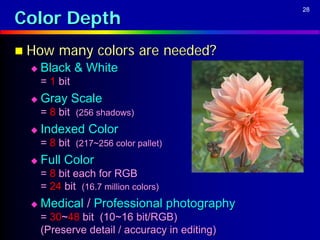

28. Color Depth
28
 How many colors are needed?
 Black & White
= 1 bit
 Gray Scale
= 8 bit (256 shadows)
 Indexed Color
= 8 bit (217~256 color pallet)
 Full Color
= 8 bit each for RGB
= 24 bit (16.7 million colors)
 Medical / Professional photography
= 30~48 bit (10~16 bit/RGB)
(Preserve detail / accuracy in editing)

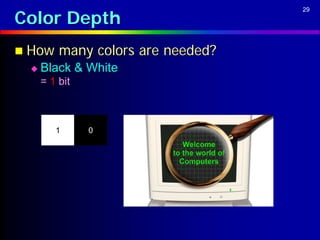

29. Color Depth
29
 How many colors are needed?
 Black & White
= 1 bit
1 0

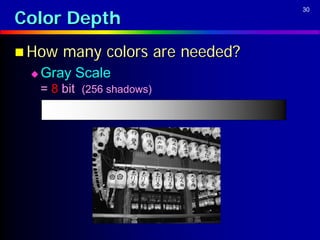

30. Color Depth
30
 How many colors are needed?
 Gray Scale
= 8 bit (256 shadows)

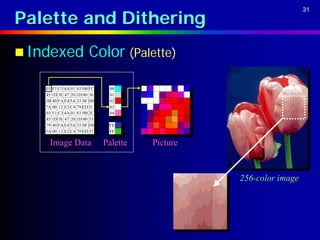

31. Palette and Dithering
31
 Indexed Color (Palette)
03 F1 C3 4A 01 83 9B FC 00
45 1D 3E 47 20 1D 80 56 01
5B 40 FA E4 5A 33 0F D0 02
7A 00 12 E2 C4 79 ED 1C 03
03 F1 C3 4A 01 83 9B 2C 04
45 1D 3E 47 20 1D 80 53
79 40 FA E4 5A 33 0F D8 FE
5A 00 12 E2 C4 79 ED 32 FF
Image Data Palette Picture
256-color image

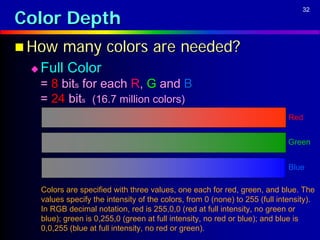

32. Color Depth
32
 How many colors are needed?
 Full Color
= 8 bits for each R, G and B
= 24 bits (16.7 million colors)
Red
Green
Blue
Colors are specified with three values, one each for red, green, and blue. The
values specify the intensity of the colors, from 0 (none) to 255 (full intensity).
In RGB decimal notation, red is 255,0,0 (red at full intensity, no green or
blue); green is 0,255,0 (green at full intensity, no red or blue); and blue is
0,0,255 (blue at full intensity, no red or green).

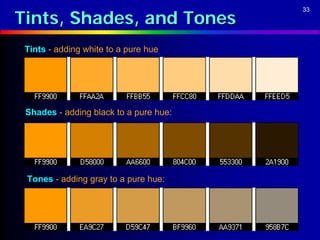

33. Tints, Shades, and Tones
33
Tints - adding white to a pure hue
Shades - adding black to a pure hue:
Tones - adding gray to a pure hue:

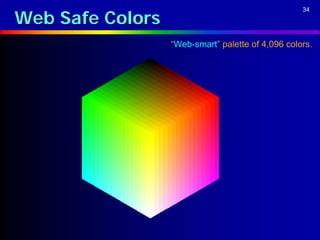

34. Web Safe Colors
34
“Web-smart” palette of 4,096 colors.

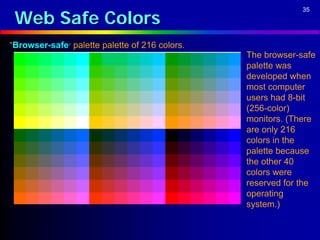

35. Web Safe Colors
35
“Browser-safe” palette palette of 216 colors.
The browser-safe
palette was
developed when
most computer
users had 8-bit
(256-color)
monitors. (There
are only 216
colors in the
palette because
the other 40
colors were
reserved for the
operating
system.)

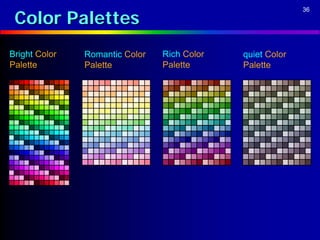

36. Color Palettes
36
Bright Color Romantic Color Rich Color quiet Color
Palette Palette Palette Palette

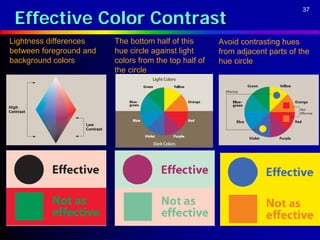

37. Effective Color Contrast
37
Lightness differences The bottom half of this Avoid contrasting hues
between foreground and hue circle against light from adjacent parts of the
background colors colors from the top half of hue circle
the circle

38. Color Depth
38
 Graphic/Image Data Structure
 Pixels: picture elements in digital
images
 Image resolution: number of pixels in
a digital image
 Bit-map: a representation of the
graphic/image data in the same
manner as they are stored in video
memory

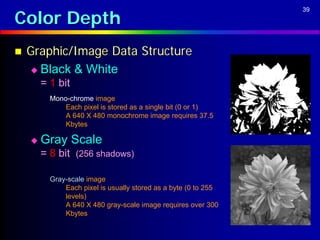

39. Color Depth
39
 Graphic/Image Data Structure
 Black & White
= 1 bit
Mono-chrome image
Each pixel is stored as a single bit (0 or 1)
A 640 X 480 monochrome image requires 37.5
Kbytes
 Gray Scale
= 8 bit (256 shadows)
Gray-scale image
Each pixel is usually stored as a byte (0 to 255
levels)
A 640 X 480 gray-scale image requires over 300
Kbytes

40. Color Depth
40
 Graphic/Image Data Structure
 Indexed Color
= 8 bit (217~256 color pallet)
One byte for each pixel
Support 256 colors
A 640 X 480 8-bit color image requires 307.2
KBytes
 Full Color
= 8 bit each for RGB
= 24 bit (16.7 million colors)
Three byte for each pixel
Support 256X256X256 colors
A 640 X 480 24-bit color image requires 921.6
KBytes

41. Creations with Color
41

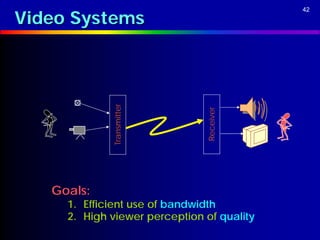

42. Video Systems
42
Transmitter
Receiver
Goals:
1. Efficient use of bandwidth
2. High viewer perception of quality

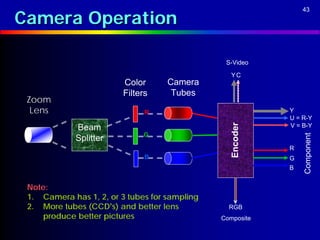

43. Camera Operation
43
S-Video
YC
Color Camera
Filters Tubes
Zoom
Lens R Y
U = R-Y
Encoder
Beam V = B-Y
G
Component
Splitter
R
B G
B
Note:
1. Camera has 1, 2, or 3 tubes for sampling
2. More tubes (CCD’s) and better lens RGB
produce better pictures Composite

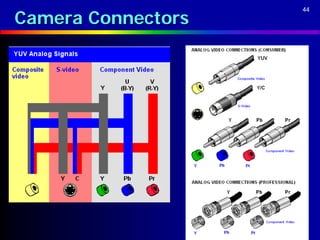

44. Camera Connectors
44

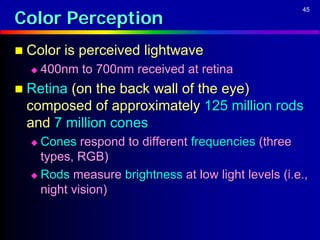

45. Color Perception
45
 Color is perceived lightwave
 400nm to 700nm received at retina
 Retina (on the back wall of the eye)
composed of approximately 125 million rods
and 7 million cones
 Cones respond to different frequencies (three
types, RGB)
 Rods measure brightness at low light levels (i.e.,
night vision)

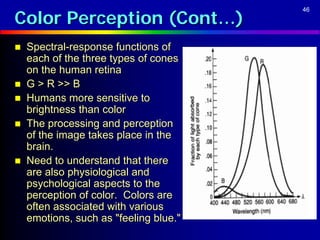

46. Color Perception (Cont…)
46
 Spectral-response functions of
each of the three types of cones
on the human retina
 G > R >> B
 Humans more sensitive to
brightness than color
 The processing and perception
of the image takes place in the
brain.
 Need to understand that there
are also physiological and
psychological aspects to the
perception of color. Colors are
often associated with various
emotions, such as "feeling blue."

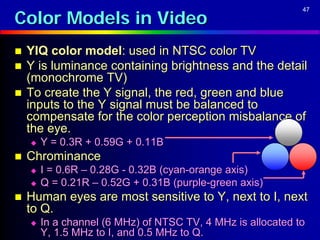

47. Color Models in Video
47
 YIQ color model: used in NTSC color TV
 Y is luminance containing brightness and the detail
(monochrome TV)
 To create the Y signal, the red, green and blue
inputs to the Y signal must be balanced to
compensate for the color perception misbalance of
the eye.
 Y = 0.3R + 0.59G + 0.11B
 Chrominance
 I = 0.6R – 0.28G - 0.32B (cyan-orange axis)
 Q = 0.21R – 0.52G + 0.31B (purple-green axis)
 Human eyes are most sensitive to Y, next to I, next
to Q.
 In a channel (6 MHz) of NTSC TV, 4 MHz is allocated to
Y, 1.5 MHz to I, and 0.5 MHz to Q.

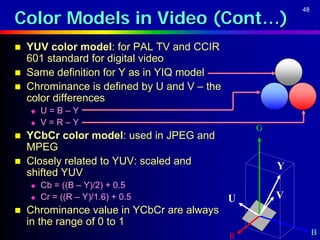

48. Color Models in Video (Cont…)
48
 YUV color model: for PAL TV and CCIR
601 standard for digital video
 Same definition for Y as in YIQ model
 Chrominance is defined by U and V – the
color differences
 U=B–Y
 V=R–Y
G
 YCbCr color model: used in JPEG and
MPEG
 Closely related to YUV: scaled and Y
shifted YUV
 Cb = ((B – Y)/2) + 0.5
 Cr = ((R – Y)/1.6) + 0.5 U V
 Chrominance value in YCbCr are always
in the range of 0 to 1
R B

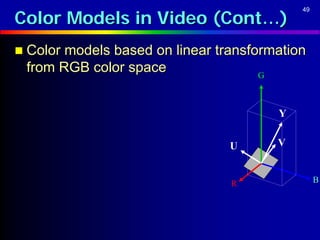

49. Color Models in Video (Cont…)
49
 Color models based on linear transformation
from RGB color space G
Y
U V
R B

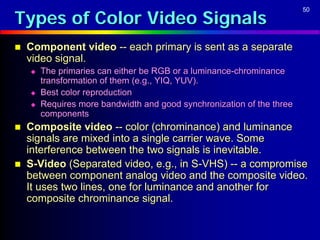

50. Types of Color Video Signals
50
 Component video -- each primary is sent as a separate
video signal.
 The primaries can either be RGB or a luminance-chrominance
transformation of them (e.g., YIQ, YUV).
 Best color reproduction
 Requires more bandwidth and good synchronization of the three
components
 Composite video -- color (chrominance) and luminance
signals are mixed into a single carrier wave. Some
interference between the two signals is inevitable.
 S-Video (Separated video, e.g., in S-VHS) -- a compromise
between component analog video and the composite video.
It uses two lines, one for luminance and another for
composite chrominance signal.

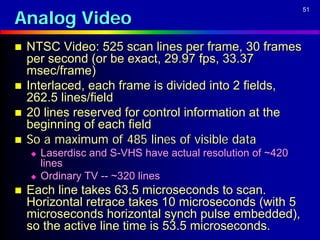

51. Analog Video
51
 NTSC Video: 525 scan lines per frame, 30 frames
per second (or be exact, 29.97 fps, 33.37
msec/frame)
 Interlaced, each frame is divided into 2 fields,
262.5 lines/field
 20 lines reserved for control information at the
beginning of each field
 So a maximum of 485 lines of visible data
 Laserdisc and S-VHS have actual resolution of ~420
lines
 Ordinary TV -- ~320 lines
 Each line takes 63.5 microseconds to scan.
Horizontal retrace takes 10 microseconds (with 5
microseconds horizontal synch pulse embedded),
so the active line time is 53.5 microseconds.

52. Scanning Video
52
 Chroma subsampling: human visual system
is more sensitive to luminance than
chrominance
 We can sub-sample chrominance
 4:4:4 – No sub-sampling
 4:2:2 – horizontally subsample
 4:1:1 – horizontally subsample
 4:2:0 – horizontally and vertically

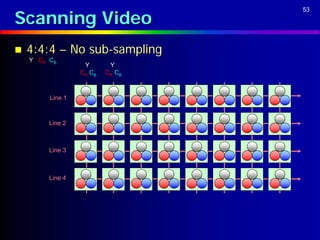

53. Scanning Video
53
 4:4:4 – No sub-sampling
Y CR CB
Y Y
CR CB CR CB
Line 1
Line 2
Line 3
Line 4

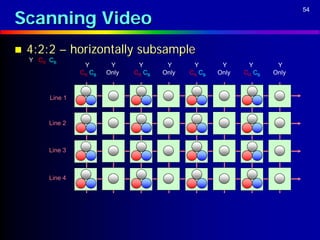

54. Scanning Video
54
 4:2:2 – horizontally subsample
Y CR CB
Y Y Y Y Y Y Y Y
CR CB Only CR CB Only CR CB Only CR CB Only
Line 1
Line 2
Line 3
Line 4

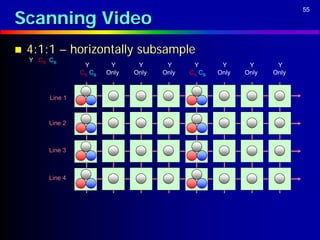

55. Scanning Video
55
 4:1:1 – horizontally subsample
Y CR CB
Y Y Y Y Y Y Y Y
CR CB Only Only Only CR CB Only Only Only
Line 1
Line 2
Line 3
Line 4

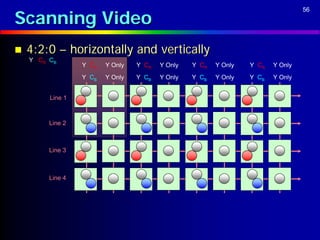

56. Scanning Video
56
 4:2:0 – horizontally and vertically
Y CR CB
Y CR Y Only Y CR Y Only Y CR Y Only Y CR Y Only
Y CB Y Only Y CB Y Only Y CB Y Only Y CB Y Only
Line 1
Line 2
Line 3
Line 4

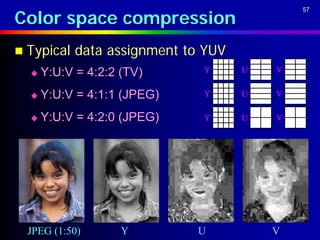

57. Color space compression
57
 Typical data assignment to YUV
 Y:U:V = 4:2:2 (TV) Y U V
 Y:U:V = 4:1:1 (JPEG) Y U V
 Y:U:V = 4:2:0 (JPEG) Y U V
JPEG (1:50) Y U V

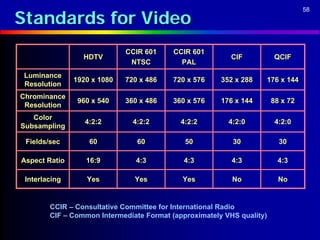

58. Standards for Video
58
CCIR 601 CCIR 601
HDTV CIF QCIF
NTSC PAL
Luminance
1920 x 1080 720 x 486 720 x 576 352 x 288 176 x 144
Resolution
Chrominance
960 x 540 360 x 486 360 x 576 176 x 144 88 x 72
Resolution
Color
4:2:2 4:2:2 4:2:2 4:2:0 4:2:0
Subsampling
Fields/sec 60 60 50 30 30
Aspect Ratio 16:9 4:3 4:3 4:3 4:3
Interlacing Yes Yes Yes No No
CCIR – Consultative Committee for International Radio
CIF – Common Intermediate Format (approximately VHS quality)

59. Sampling
59
 1 Frame is stored 720x480 pixels for NTSC
 1 Frame is stored 720x576 pixels for PAL
 Each Pixel is processed for Y (Luminance (B&W)
 4:2:2 Samples 2 of every 4 pixels for color
 4:1:1 Samples 1 of every 4 pixels for color
 4:2:2 has twice the color detail for 4:1:1 (shaper
color edges)
 4:4:4 is not necessary as humans are more
sensitive to change in luminance than color

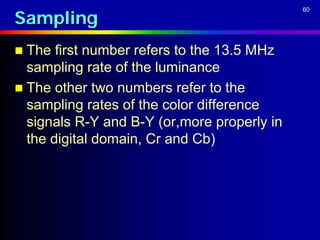

60. Sampling
60
 The first number refers to the 13.5 MHz
sampling rate of the luminance
 The other two numbers refer to the
sampling rates of the color difference
signals R-Y and B-Y (or,more properly in
the digital domain, Cr and Cb)

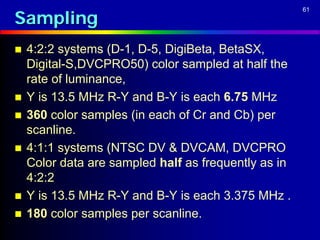

61. Sampling
61
 4:2:2 systems (D-1, D-5, DigiBeta, BetaSX,
Digital-S,DVCPRO50) color sampled at half the
rate of luminance,
 Y is 13.5 MHz R-Y and B-Y is each 6.75 MHz
 360 color samples (in each of Cr and Cb) per
scanline.
 4:1:1 systems (NTSC DV & DVCAM, DVCPRO
Color data are sampled half as frequently as in
4:2:2
 Y is 13.5 MHz R-Y and B-Y is each 3.375 MHz .
 180 color samples per scanline.

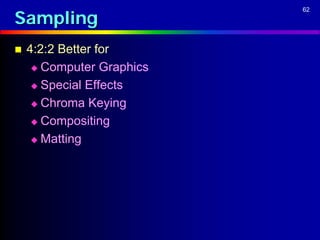

62. Sampling
62
 4:2:2 Better for
 Computer Graphics
 Special Effects
 Chroma Keying
 Compositing
 Matting

63. Uncompressed Sizes (NTSC)
63
 For the 525 line TV standard the line data
is:
 720(Y) + 360(Cr) + 360(Cb) = 1,440
pixels/line
 487 active lines/picture there are 1,440 x
487 = 701,280 pixels/picture
 (sampling at 8-bits, a picture takes 701.3
kbytes)
 1 sec takes 701.3 x 30 = 21,039 kbytes, or
21 Mbytes
 1 min takes 21,039 x 60 = 1,262,340 kbytes,
or 1.26 gigs

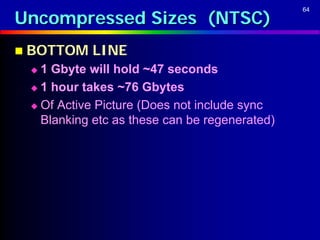

64. Uncompressed Sizes (NTSC)
64
 BOTTOM LINE
 1 Gbyte will hold ~47 seconds
 1 hour takes ~76 Gbytes
 Of Active Picture (Does not include sync
Blanking etc as these can be regenerated)

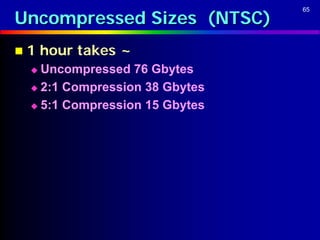

65. Uncompressed Sizes (NTSC)
65
1 hour takes ~
 Uncompressed 76 Gbytes
 2:1 Compression 38 Gbytes
 5:1 Compression 15 Gbytes

66. Palette and Dithering
66
 Indexed Color (Palette)
03 F1 C3 4A 01 83 9B FC 00
45 1D 3E 47 20 1D 80 56 01
5B 40 FA E4 5A 33 0F D0 02
7A 00 12 E2 C4 79 ED 1C 03
03 F1 C3 4A 01 83 9B 2C 04
45 1D 3E 47 20 1D 80 53
79 40 FA E4 5A 33 0F D8 FE
5A 00 12 E2 C4 79 ED 32 FF
Image Data Palette Picture
 Palette Optimization 256-color image
Optimized Palette
 Dithering & Dithered
 Better perception Banding Effect

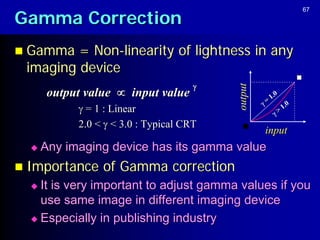

67. Gamma Correction
67
 Gamma = Non-linearity of lightness in any
imaging device

output
output value  input value 1.0
= 1.0
 = 1 : Linear >
2.0 <  < 3.0 : Typical CRT
input
 Any imaging device has its gamma value
 Importance of Gamma correction
 It is very important to adjust gamma values if you
use same image in different imaging device
 Especially in publishing industry

68. Alpha Channel
68
 Transparency information of image
 Important for image editing, animation
Original Photo Collage
Alpha
Channel
(1-bit)
Transparency
Image (GIF)
Grayscale Alpha Channel (8-bit)

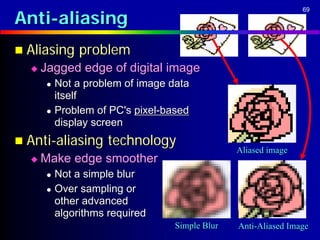

69. Anti-aliasing
69
 Aliasing problem
 Jagged edge of digital image
 Not a problem of image data
itself
 Problem of PC's pixel-based
display screen
 Anti-aliasing technology
Aliased image
 Make edge smoother
 Not a simple blur
 Over sampling or
other advanced
algorithms required
Simple Blur Anti-Aliased Image

70. 2D Bitmap Image
Theory

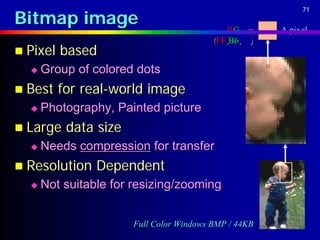

71. Bitmap image
71
R GB = A pixel
(FF,B6,98)
 Pixel based
 Group of colored dots
 Best for real-world image
 Photography, Painted picture
 Large data size
 Needs compression for transfer
 Resolution Dependent
 Not suitable for resizing/zooming
Full Color Windows BMP / 44KB

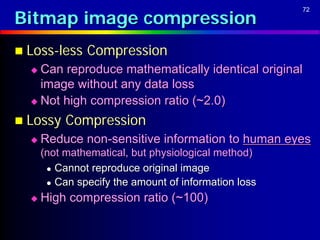

72. Bitmap image compression
72
 Loss-less Compression
 Can reproduce mathematically identical original
image without any data loss
 Not high compression ratio (~2.0)
 Lossy Compression
 Reduce non-sensitive information to human eyes
(not mathematical, but physiological method)
 Cannot reproduce original image
 Can specify the amount of information loss
 High compression ratio (~100)

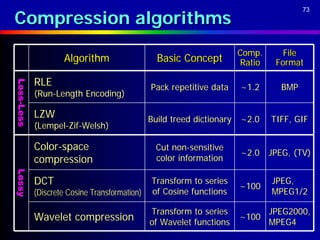

73. Compression algorithms
73
Comp. File
Algorithm Basic Concept Ratio Format
RLE
Loss-Less
Loss-Less
Pack repetitive data ~1.2 BMP
(Run-Length Encoding)
LZW Build treed dictionary ~2.0 TIFF, GIF
(Lempel-Zif-Welsh)
Color-space Cut non-sensitive
~2.0 JPEG, (TV)
compression color information
Lossy
Lossy
DCT Transform to series
~100
JPEG,
(Discrete Cosine Transformation) of Cosine functions MPEG1/2
Transform to series JPEG2000,
Wavelet compression of Wavelet functions
~100
MPEG4

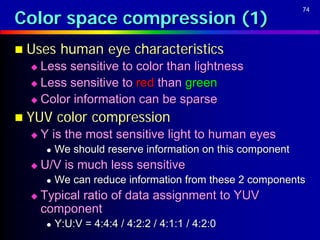

74. Color space compression (1)
74
 Uses human eye characteristics
 Less sensitive to color than lightness
 Less sensitive to red than green
 Color information can be sparse
 YUV color compression
 Y is the most sensitive light to human eyes
 We should reserve information on this component
 U/V is much less sensitive
 We can reduce information from these 2 components
 Typical ratio of data assignment to YUV
component
 Y:U:V = 4:4:4 / 4:2:2 / 4:1:1 / 4:2:0

75. Color space compression (2)
75
 Typical data assignment to YUV
 Y:U:V = 4:2:2 (TV) Y U V
 Y:U:V = 4:1:1 (JPEG) Y U V
 Y:U:V = 4:2:0 (JPEG) Y U V
JPEG (1:50) Y U V

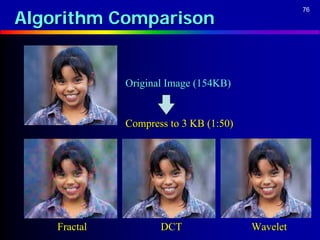

76. Algorithm Comparison
76
Original Image (154KB)
Compress to 3 KB (1:50)
Fractal DCT Wavelet

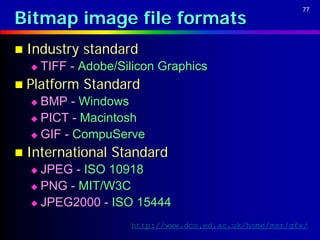

77. Bitmap image file formats
77
 Industry standard
 TIFF - Adobe/Silicon Graphics
 Platform Standard
 BMP - Windows
 PICT - Macintosh
 GIF - CompuServe
 International Standard
 JPEG - ISO 10918
 PNG - MIT/W3C
 JPEG2000 - ISO 15444
http://www.dcs.ed.ac.uk/home/mxr/gfx/

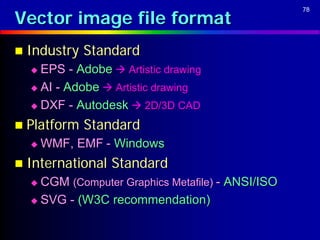

78. Vector image file format
78
 Industry Standard
 EPS - Adobe  Artistic drawing
 AI - Adobe  Artistic drawing
 DXF - Autodesk  2D/3D CAD
 Platform Standard
 WMF, EMF - Windows
 International Standard
 CGM (Computer Graphics Metafile) - ANSI/ISO
 SVG - (W3C recommendation)

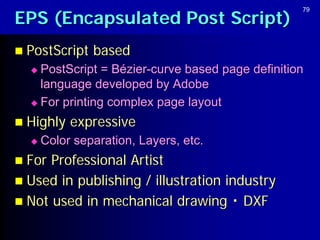

79. EPS (Encapsulated Post Script)
79
 PostScript based
 PostScript = Bézier-curve based page definition
language developed by Adobe
 For printing complex page layout
 Highly expressive
 Color separation, Layers, etc.
 For Professional Artist
 Used in publishing / illustration industry
 Not used in mechanical drawing ・ DXF

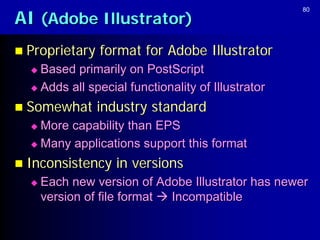

80. AI (Adobe Illustrator)
80
 Proprietary format for Adobe Illustrator
 Based primarily on PostScript
 Adds all special functionality of Illustrator
 Somewhat industry standard
 More capability than EPS
 Many applications support this format
 Inconsistency in versions
 Each new version of Adobe Illustrator has newer
version of file format  Incompatible

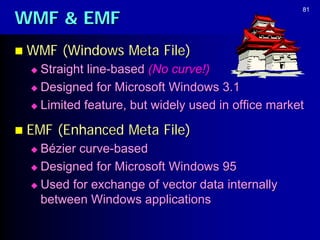

81. WMF & EMF
81
 WMF (Windows Meta File)
 Straight line-based (No curve!)
 Designed for Microsoft Windows 3.1
 Limited feature, but widely used in office market
 EMF (Enhanced Meta File)
 Bézier curve-based
 Designed for Microsoft Windows 95
 Used for exchange of vector data internally
between Windows applications
