Colloquium presentation

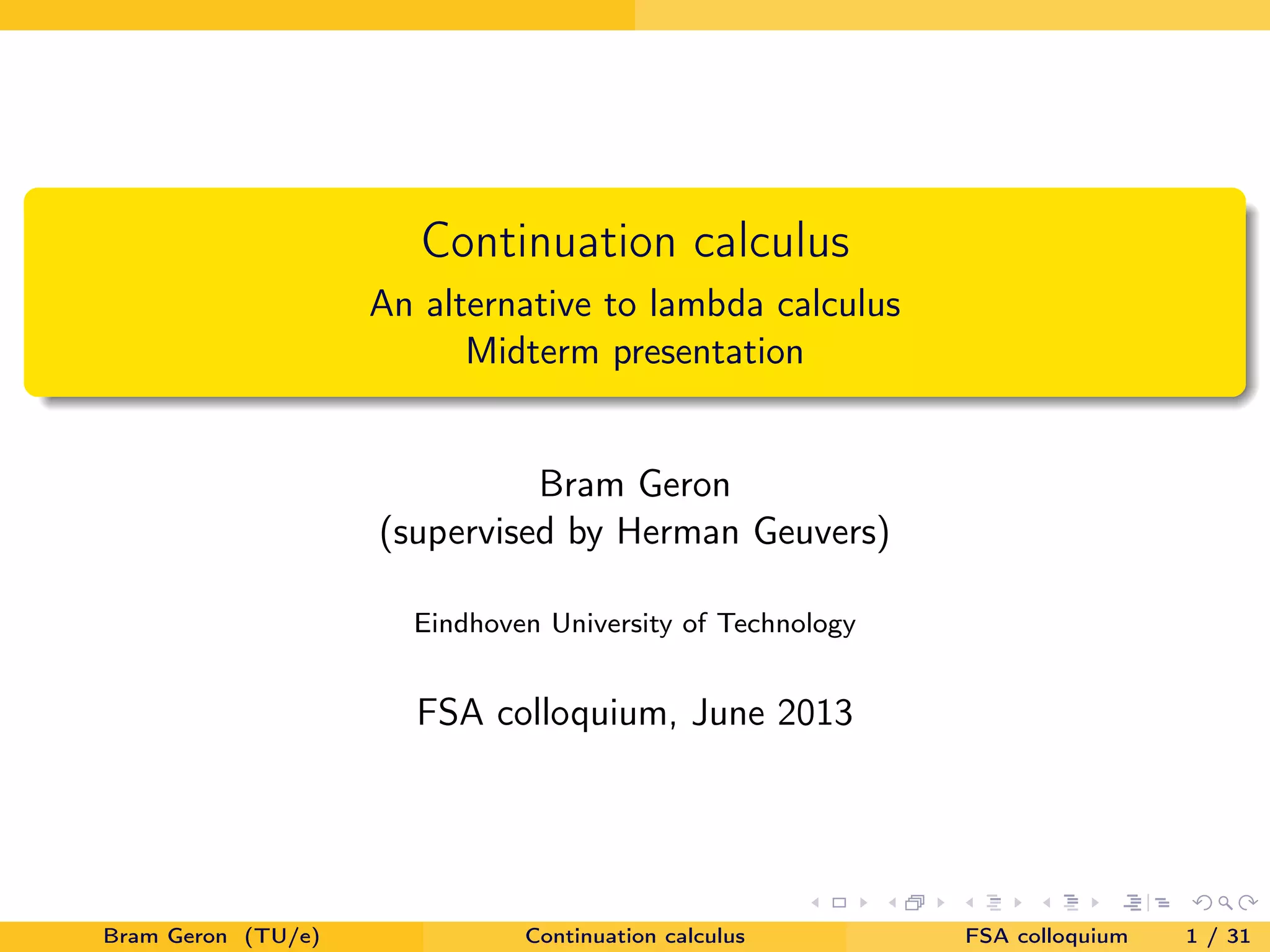

1. Continuation calculus
An alternative to lambda calculus
Midterm presentation
Bram Geron
(supervised by Herman Geuvers)
Eindhoven University of Technology
FSA colloquium, June 2013
Bram Geron (TU/e) Continuation calculus FSA colloquium 1 / 31
2. Modeling programming languages
Goals:
Assign exact meaning to programs
Assign exact meaning to functions
Reason on functions
Approaches:
Big-step semantics
Small-step semantics
Reduction to simpler calculus
Bram Geron (TU/e) Continuation calculus FSA colloquium 2 / 31
3. Modeling programming languages
Goals:
Assign exact meaning to programs
Assign exact meaning to functions
Reason on functions
Approaches:
Big-step semantics: lambda calculus
Small-step semantics: lambda calculus, continuation calculus
Reduction to simpler calculus: programming languages to λ or CC
Bram Geron (TU/e) Continuation calculus FSA colloquium 2 / 31
4. Modeling programming languages
Simple calculi
Lambda calculus
Tree of expressions
(fact 4)+1
β 25
Continuation calculus
Tree of “continuation terms”
Fact.(AddOne.Return).4
Return.25
Bram Geron (TU/e) Continuation calculus FSA colloquium 3 / 31
5. First look
Outline
1 First look
2 Definition
3 Long-term goal
4 The importance of head reduction
5 Case study: list multiplication
6 Conclusion
Bram Geron (TU/e) Continuation calculus FSA colloquium 4 / 31
6. First look Rules, names, variables, terms
CC is a term rewriting system in a constrained shape
Comp.f .g.x
def
−→ f .(g.x)
Comp.AddOne.Fact.4 → AddOne.(Fact.4)
Rules
One definition per name
(max)
No pattern matching
Only head reduction
Consequences
Deterministic
Simple operational semantics
Suitable for modeling
continuations, hence exceptions
Bram Geron (TU/e) Continuation calculus FSA colloquium 5 / 31
7. First look Rules, names, variables, terms
CC is a term rewriting system in a constrained shape
rule
Comp
name
(constant)
.f .g.x
variables
def
−→ f .(g.x)
Comp.AddOne.Fact.4
term
→ AddOne.(Fact.4)
term
Rules
One definition per name
(max)
No pattern matching
Only head reduction
Consequences
Deterministic
Simple operational semantics
Suitable for modeling
continuations, hence exceptions
Bram Geron (TU/e) Continuation calculus FSA colloquium 5 / 31
8. First look Rules, names, variables, terms
CC is a term rewriting system in a constrained shape
rule
Comp
name
(constant)
.f .g.x
variables
def
−→ f .(g.x)
Comp.AddOne.Fact.4
term
→ AddOne.(Fact.4)
term
Rules
One definition per name
(max)
No pattern matching
Only head reduction
Consequences
Deterministic
Simple operational semantics
Suitable for modeling
continuations, hence exceptions
Bram Geron (TU/e) Continuation calculus FSA colloquium 5 / 31
9. First look Head reduction: continuation passing style
Functions fill in the result in their continuation parameter
Comp.f .g.x
def
−→ f .(g.x)
Comp.AddOne.Fact.4 → AddOne.(Fact).4
Realistic names:
Fact.r.x r.x!
AddOne.r.x r.(x +1)
Fact.(AddOne.r).4 AddOne.r.24
r.25
−→ CPS transformation
Bram Geron (TU/e) Continuation calculus FSA colloquium 6 / 31
10. First look Head reduction: continuation passing style
Functions fill in the result in their continuation parameter
Comp.f .g.x
def
−→ f .(g.x)
Comp.AddOne.Fact.4 → AddOne.(Fact).4
Realistic names:
Fact.r.x r.x!
AddOne.r.x r.(x +1)
Fact.(AddOne.r).4 AddOne.r.24
r.25
−→ CPS transformation
Bram Geron (TU/e) Continuation calculus FSA colloquium 6 / 31
11. First look Head reduction: continuation passing style
Functions fill in the result in their continuation parameter
Comp.f .g.x
def
−→ f .(g.x)
Comp.AddOne.Fact.4 → AddOne.(Fact).4
Realistic names:
Fact.r.x r.x!
AddOne.r.x r.(x +1)
Fact.(AddOne.r).4 AddOne.r.24
r.25
−→ CPS transformation
Bram Geron (TU/e) Continuation calculus FSA colloquium 6 / 31
12. First look Head reduction: continuation passing style
Functions fill in the result in their continuation parameter
Comp.r.f .g.x
def
−→ g.(f .r).x
Comp.r.AddOne.Fact.4 → Fact.(AddOne.r).4
Realistic names:
Fact.r.x r.x!
AddOne.r.x r.(x +1)
Fact.(AddOne.r).4 AddOne.r.24
r.25
−→ CPS transformation
Bram Geron (TU/e) Continuation calculus FSA colloquium 6 / 31
13. First look Head reduction: continuation passing style
Functions fill in the result in their continuation parameter
Comp.r.f .g.x
def
−→ g.(f .r).x
Comp.r.AddOne.Fact.4 → Fact.(AddOne.r).4
Realistic names:
Fact.r.x r.x!
AddOne.r.x r.(x +1)
Fact.(AddOne.r).4 AddOne.r.24
r.25
−→ CPS transformation
Bram Geron (TU/e) Continuation calculus FSA colloquium 6 / 31
14. First look Head reduction: continuation passing style
Functions fill in the result in their continuation parameter
Comp.r.f .g.x
def
−→ g.(f .r).x
Comp.r.AddOne.Fact.4 → Fact.(AddOne.r).4
Realistic names:
Fact.r.x r.x!
AddOne.r.x r.(x +1)
Fact.(AddOne.r).4 AddOne.r.24
r.25
−→ CPS transformation
Bram Geron (TU/e) Continuation calculus FSA colloquium 6 / 31
15. First look Another example
Natural numbers
Representation and AddOne
We represent 0 by Zero, 3 by S.(S.(S.Zero)), and n by
S.(··· .(S.Zero)···). These terms are denoted n .
We implement the function AddOne, such that AddOne.r. n r. n +1 .
AddOne.r.m
def
−→ r.(S.m)
Bram Geron (TU/e) Continuation calculus FSA colloquium 7 / 31
16. First look Another example
Natural numbers
Behavior and Double
We represent 0 by Zero, 3 by S.(S.(S.Zero)), and n by
S.(··· .(S.Zero)···). These terms are denoted n .
There are rules for Zero and S:
Zero.z.s
def
−→ z s.t. 0 .z.s z
S.m.z.s
def
−→ s.m s.t. m +1 .z.s s. m
We can now make a function Double such that Double.r. n r. 2n .
Double.r.m
def
−→ m.(r.Zero).(Double.(AddOne.(AddOne.r)))
Bram Geron (TU/e) Continuation calculus FSA colloquium 8 / 31
17. First look Another example
Natural numbers
Behavior and Double
We represent 0 by Zero, 3 by S.(S.(S.Zero)), and n by
S.(··· .(S.Zero)···). These terms are denoted n .
We can now make a function Double such that Double.r. n r. 2n .
Double.r.m
def
−→ m.(r.Zero).(Double.(AddOne.(AddOne.r)))
Bram Geron (TU/e) Continuation calculus FSA colloquium 8 / 31
18. First look Another example
Natural numbers
Behavior and Double
We represent 0 by Zero, 3 by S.(S.(S.Zero)), and n by
S.(··· .(S.Zero)···). These terms are denoted n .
We can now make a function Double such that Double.r. n r. 2n .
Double.r.m
def
−→ m.(r.Zero).(Double.(AddOne.(AddOne.r)))
Double.r. 0 → Zero.(r. 0 ).(Double.(AddOne.(AddOne.r)))
→ r. 0
Bram Geron (TU/e) Continuation calculus FSA colloquium 8 / 31
19. First look Another example
Natural numbers
Behavior and Double
We represent 0 by Zero, 3 by S.(S.(S.Zero)), and n by
S.(··· .(S.Zero)···). These terms are denoted n .
We can now make a function Double such that Double.r. n r. 2n .
Double.r.m
def
−→ m.(r.Zero).(Double.(AddOne.(AddOne.r)))
Double.r. 2 → S. 1 .(r. 0 ).(Double.(AddOne.(AddOne.r)))
→ Double.(AddOne.(AddOne.r)). 1
→ S. 0 .(AddOne.(AddOne.r). 0 ).(Double.(AddOne.(AddOne.(AddOne.(Add
→ Double.(AddOne.(AddOne.(AddOne.(AddOne.r)))). 0
→ Zero.(AddOne.(AddOne.(AddOne.(AddOne.r))). 0 ).(Double.(AddOne.(Ad
→ AddOne.(AddOne.(AddOne.(AddOne.r))). 0
r. 4 in 4 steps
Bram Geron (TU/e) Continuation calculus FSA colloquium 8 / 31
20. Definition
Definitions
There is an infinite set of names, indicated by a capital.
A term is either a name, or two terms combined by a dot.
We write a.b.c as shorthand for (a.b).c.
A program P consists of a set of rules, of the form
Name.variable.··· .variable
def
−→ term over those variables
That rule defines that name.
Each rule defines a different name.
If “N.x1 .··· .xk
def
−→ r” ∈ P, then we reduce N.t → r[t/x].
Term N.x1.··· .xl for l = k does not reduce at all.
There is only head reduction.
Bram Geron (TU/e) Continuation calculus FSA colloquium 9 / 31
21. Definition
Definitions
There is an infinite set of names, indicated by a capital.
A term is either a name, or two terms combined by a dot.
We write a.b.c as shorthand for (a.b).c.
A program P consists of a set of rules, of the form
Name.variable.··· .variable
def
−→ term over those variables
That rule defines that name.
Each rule defines a different name.
If “N.x1 .··· .xk
def
−→ r” ∈ P, then we reduce N.t → r[t/x].
Term N.x1.··· .xl for l = k does not reduce at all.
There is only head reduction.
Bram Geron (TU/e) Continuation calculus FSA colloquium 9 / 31
22. Definition
Definitions
There is an infinite set of names, indicated by a capital.
A term is either a name, or two terms combined by a dot.
We write a.b.c as shorthand for (a.b).c.
A program P consists of a set of rules, of the form
Name.variable.··· .variable
def
−→ term over those variables
That rule defines that name.
Each rule defines a different name.
If “N.x1 .··· .xk
def
−→ r” ∈ P, then we reduce N.t → r[t/x].
Term N.x1.··· .xl for l = k does not reduce at all.
There is only head reduction.
Bram Geron (TU/e) Continuation calculus FSA colloquium 9 / 31
23. Long-term goal
Long-term goal
Formally modeling programming languages
Hopefully as a base for better languages
Operational semantics
Running time: #steps ∼ seconds CPU time
Warning: some unsubstantiated claims
Compositional
Facilitates proving properties
Deterministic by nature
Works with continuations
Explained later
Bram Geron (TU/e) Continuation calculus FSA colloquium 10 / 31
24. Long-term goal
Long-term goal
Formally modeling programming languages
Hopefully as a base for better languages
Operational semantics
Running time: #steps ∼ seconds CPU time
Warning: some unsubstantiated claims
Compositional
Facilitates proving properties
Deterministic by nature
Works with continuations
Explained later
Bram Geron (TU/e) Continuation calculus FSA colloquium 10 / 31
25. The importance of head reduction
Outline
1 First look
2 Definition
3 Long-term goal
4 The importance of head reduction
5 Case study: list multiplication
6 Conclusion
Bram Geron (TU/e) Continuation calculus FSA colloquium 11 / 31
26. The importance of head reduction
Outline
1 First look
2 Definition
3 Long-term goal
4 The importance of head reduction
5 Case study: list multiplication
6 Conclusion
Bram Geron (TU/e) Continuation calculus FSA colloquium 12 / 31
27. The importance of head reduction
Back to modeling programs
Lambda calculus
λx.+ (f x) (g x)
M N Push N on stack,
continue in M
λx.M Pop N off stack,
continue in M[N/x]
Programming language
fun x → (f x) + (g x)
M N Apply function object
to argument
fun x → M Make function object
In “real languages”, functions throw exceptions and have other side effects.
Bram Geron (TU/e) Continuation calculus FSA colloquium 13 / 31
28. The importance of head reduction
Back to modeling programs
Lambda calculus
λx.+ (f x) (g x)
M N Push N on stack,
continue in M
λx.M Pop N off stack,
continue in M[N/x]
Programming language
fun x → (f x) + (g x)
throws exception
now what?
M N Apply function object
to argument
fun x → M Make function object
In “real languages”, functions throw exceptions and have other side effects.
Bram Geron (TU/e) Continuation calculus FSA colloquium 13 / 31
29. The importance of head reduction
Operational semantics
Computational models with control
Lambda calculus + continuations (λC)
Reduction using four instructions on the top level
M N Push N on stack, continue in M
λx.M Pop N off stack, continue in M[N/x]
A M Empty the stack, continue in M
C M Empty the stack, continue in M (λx.S x)
where function S ‘restores’ the previous stack
(details omitted)
Can model exception-like facilities
CPS transformation to transform λC terms to λ terms
Bram Geron (TU/e) Continuation calculus FSA colloquium 14 / 31
30. The importance of head reduction
CPS transformation
λC
CPS transformation
−−−−−−−−−−−→ subset of λ, makes minimal use of stack
Two calculi in action:
λC calculus: M N, λx.M, A M, C M
Expressive
Subset of λ calculus: M N, λx.M
Simpler
Bram Geron (TU/e) Continuation calculus FSA colloquium 15 / 31
31. The importance of head reduction
CPS transformation
λC
CPS transformation
−−−−−−−−−−−→ subset of λ, makes minimal use of stack
Two calculi in action:
λC calculus: M N, λx.M, A M, C M
Expressive
Subset of λ calculus: M N, λx.M
Simpler
What is this subset, really?
Bram Geron (TU/e) Continuation calculus FSA colloquium 15 / 31
32. The importance of head reduction
CPS transformation
λC
CPS transformation
−−−−−−−−−−−→ subset of λ, makes minimal use of stack
Two calculi in action:
λC calculus: M N, λx.M, A M, C M
Expressive
Subset of λ calculus: M N, λx.M
Simpler
What is this subset, really?
Can we describe it?
Bram Geron (TU/e) Continuation calculus FSA colloquium 15 / 31
33. The importance of head reduction
CPS transformation
λC
CPS transformation
−−−−−−−−−−−→ subset of λ, makes minimal use of stack
Two calculi in action:
λC calculus: M N, λx.M, A M, C M
Expressive
Subset of λ calculus: M N, λx.M
Simpler
What is this subset, really?
Can we describe it?
An elegant model of computation, perhaps?
Bram Geron (TU/e) Continuation calculus FSA colloquium 15 / 31
34. The importance of head reduction
Lambda calculus vs. continuation calculus
λC
Four instructions on the top level
M N Push N on stack, continue in M
λx.M Pop N off stack, continue in M[N/x]
A M Empty the stack, continue in M
C M Empty the stack, continue in M (λx.S x)
where function S ‘restores’ the stack
Continuation calculus
One instruction on the top level, using program P
n.t1.··· .tk Empty the stack, continue in r[t/x]
if n.x1 .··· .xk
def
−→ r ∈ P
Bram Geron (TU/e) Continuation calculus FSA colloquium 16 / 31
35. The importance of head reduction
Lambda calculus vs. continuation calculus
λC
Four instructions on the top level
M N Push N on stack, continue in M
λx.M Pop N off stack, continue in M[N/x]
A M Empty the stack, continue in M
C M Empty the stack, continue in M (λx.S x)
where function S ‘restores’ the stack
Continuation calculus
One instruction on the top level, using program P
n.t1.··· .tk Empty the stack, continue in r[t/x]
if n.x1 .··· .xk
def
−→ r ∈ P
Bram Geron (TU/e) Continuation calculus FSA colloquium 16 / 31
36. The importance of head reduction
Continuation calculus
Continuation calculus
One instruction on the top level, using program P
n.t1.··· .tk Continue in r[t/x]
if n.x1 .··· .xk
def
−→ r ∈ P
No stack needed, because
n.t1.··· .tl does not reduce for l = k.
Subterms are not reduced
Bram Geron (TU/e) Continuation calculus FSA colloquium 17 / 31
37. Case study: list multiplication
Outline
1 First look
2 Definition
3 Long-term goal
4 The importance of head reduction
5 Case study: list multiplication
6 Conclusion
Bram Geron (TU/e) Continuation calculus FSA colloquium 18 / 31
38. Case study: list multiplication
List multiplication
An algorithm
product [4,2,6] = 4∗2∗6 = 48
product l = case l of
| [] → 1
| [x]++xs → x ∗product xs
product [4,2,6] = 4∗(2∗(6∗1)) = 48
Bram Geron (TU/e) Continuation calculus FSA colloquium 19 / 31
39. Case study: list multiplication
List multiplication
An algorithm
product [4,2,6] = 4∗2∗6 = 48
product l = case l of
| [] → 1
| [x]++xs → x ∗product xs
product [4,2,6] = 4∗(2∗(6∗1)) = 48
Bram Geron (TU/e) Continuation calculus FSA colloquium 19 / 31
40. Case study: list multiplication
List multiplication
A better algorithm
product [4,0,6] = 4∗0∗6 = 0
product l = case l of
| [] → 1
| [x]++xs → x ∗product xs
product [4,0,6] = 4∗(0∗(6∗1)) = 0
Bram Geron (TU/e) Continuation calculus FSA colloquium 20 / 31
41. Case study: list multiplication
List multiplication
A better algorithm
product [4,0,6] = 4∗0∗6 = 0
product l =
try:
let subproduct l = case l of
| [] → 1
| [0]++xs → abort
| [x]++xs → x ∗subproduct xs
in subproduct l
catch abort :
0
Bram Geron (TU/e) Continuation calculus FSA colloquium 20 / 31
42. Case study: list multiplication
List multiplication
A better algorithm
product l =
try:
let subproduct l = case l of
| [] → 1
| [0]++xs → abort
| [x]++xs → x ∗subproduct xs
in subproduct l
catch abort :
0
product [4,0,6] = try: {4∗abort} catch abort : 0
= 0
Bram Geron (TU/e) Continuation calculus FSA colloquium 20 / 31
43. Case study: list multiplication
List multiplication
Implementation
Implemented ListMult with this behavior in continuation calculus
includes modeling of naturals and lists with CC rules
Proved correct
ListMult. l .r r. product l for all l ∈ ListN
Empirical evidence of efficiency
ListMult. [4,0,6] .r r. 0 in 10 steps
ListMult. [4,2,6] .r r. 48 in 339 steps
Bram Geron (TU/e) Continuation calculus FSA colloquium 21 / 31
44. Conclusion
Conclusion
CC is a term rewriting system in a constrained shape
CC is deterministic
Only head reduction
As a consequence,
Suitable for control with continuations (exceptions)
CC is similar to a subset of lambda calculus
Mimics running times of real programs to some degree
Bram Geron (TU/e) Continuation calculus FSA colloquium 22 / 31
45. Conclusion
Current state and future work
Joint paper with Herman Geuvers
Accepted in proceedings of COS 2013, 24–25 June
Future work:
Systematic translation of functional programming language to CC
Prove that this translation preserves semantics
Type system
Model hierarchical side-effects using an extension
Bram Geron (TU/e) Continuation calculus FSA colloquium 23 / 31
49. Extra slides Relation to lambda calculus
Relation to lambda calculus
λ,λC
CPS transformation
−−−−−−−−−−−→ subset of λ
subset of λ
λx to rules∗
−−−−−−−−−−−−−−−−−−−−−−
unfold†
rules to λx
CC
∗ λx to rules: involves a supercombinator transformation
† Unfold rules to λx: first apply a fixed-point elimination to eliminate cyclic references
Catchphrase
CC is more limited than λ,
thus more suitable to model continuations
Bram Geron (TU/e) Continuation calculus FSA colloquium 27 / 31
50. Extra slides Relation to lambda calculus
Relation to lambda calculus
λ,λC
CPS transformation
−−−−−−−−−−−→ subset of λ
subset of λ
λx to rules∗
−−−−−−−−−−−−−−−−−−−−−−
unfold†
rules to λx
CC
∗ λx to rules: involves a supercombinator transformation
† Unfold rules to λx: first apply a fixed-point elimination to eliminate cyclic references
Catchphrase
CC is more limited than λ,
thus more suitable to model continuations
Bram Geron (TU/e) Continuation calculus FSA colloquium 27 / 31
51. Extra slides Interfaces, not pattern matching
Natural numbers
Slightly similar to lambda calculus
Zero.z.s
def
−→ z
S.x.z.s
def
−→ s.x
Add.r.x.y
def
−→ y.(r.x).(Add.r.(S.x))
Algorithm:
x +0 = x
x +S(y) = S(x)+y
Add.r.(S.Zero).Zero → Zero.(r.(S.Zero)).(Add.r.(S.(S.Zero)))
→ r.(S.Zero)
Add.r.Zero.(S.Zero) → S.Zero.(r.Zero).(Add.r.(S.Zero))
→ Add.r.(S.Zero).Zero
→ Zero.(r.(S.Zero)).(Add.r.(S.(S.Zero)))
→ r.(S.Zero)
Bram Geron (TU/e) Continuation calculus FSA colloquium 28 / 31
52. Extra slides Interfaces, not pattern matching
Natural numbers
Slightly similar to lambda calculus
Zero.z.s
def
−→ z
S.x.z.s
def
−→ s.x
Add.r.x.y
def
−→ y.(r.x).(Add.r.(S.x))
Algorithm:
x +0 = x
x +S(y) = S(x)+y
Add.r.(S.Zero).Zero → Zero.(r.(S.Zero)).(Add.r.(S.(S.Zero)))
→ r.(S.Zero)
Add.r.Zero.(S.Zero) → S.Zero.(r.Zero).(Add.r.(S.Zero))
→ Add.r.(S.Zero).Zero
→ Zero.(r.(S.Zero)).(Add.r.(S.(S.Zero)))
→ r.(S.Zero)
Bram Geron (TU/e) Continuation calculus FSA colloquium 28 / 31
53. Extra slides Interfaces, not pattern matching
Natural numbers
Slightly similar to lambda calculus
Zero.z.s
def
−→ z
S.x.z.s
def
−→ s.x
Add.r.x.y
def
−→ y.(r.x).(Add.r.(S.x))
Algorithm:
x +0 = x
x +S(y) = S(x)+y
What can we feed to Add?
Zero
S.(··· .(S.Zero)···)
Something else?
Bram Geron (TU/e) Continuation calculus FSA colloquium 29 / 31
54. Extra slides Interfaces, not pattern matching
Natural numbers
Slightly similar to lambda calculus
Zero.z.s
def
−→ z
S.x.z.s
def
−→ s.x
Add.r.x.y
def
−→ y.(r.x).(Add.r.(S.x))
Algorithm:
x +0 = x
x +S(y) = S(x)+y
What can we feed to Add?
Zero
S.(··· .(S.Zero)···)
Something else? Yes!
Bram Geron (TU/e) Continuation calculus FSA colloquium 29 / 31
55. Extra slides Interfaces, not pattern matching
Natural numbers
Compatible naturals
Zero.z.s
def
−→ z
S.x.z.s
def
−→ s.x
Add.r.x.y
def
−→ y.(r.x).(Add.r.(S.x))
Algorithm:
x +0 = x
x +S(y) = S(x)+y
We define when a term t represents natural number n.
1 t represents 0 if ∀z,s : t.z.s z
Informally: t “behaves the same as” Zero
2 t represents n +1 if ∀z,s : t.z.s s.q, and q represents n
Informally: t “behaves the same as” S.q
With this, we can define LazyFact such that LazyFact.x represents (x!).
(Omitted.)
Bram Geron (TU/e) Continuation calculus FSA colloquium 30 / 31
56. Extra slides Interfaces, not pattern matching
Natural numbers
Compatible naturals
Zero.z.s
def
−→ z
S.x.z.s
def
−→ s.x
Add.r.x.y
def
−→ y.(r.x).(Add.r.(S.x))
Algorithm:
x +0 = x
x +S(y) = S(x)+y
With this, we can define LazyFact such that LazyFact.x represents (x!).
(Omitted.)
Add.r.Zero.(LazyFact.(S.Zero)) → LazyFact.(S.Zero).(r.Zero).(Add.r.(S.Zero))
Add.r.(S.Zero).Zero
→ Zero.(r.(S.Zero)).(Add.r.(S.(S.Zero)))
→ r.(S.Zero)
Bram Geron (TU/e) Continuation calculus FSA colloquium 30 / 31
57. Extra slides Interfaces, not pattern matching
Natural numbers
Compatible naturals
Zero.z.s
def
−→ z
S.x.z.s
def
−→ s.x
Add.r.x.y
def
−→ y.(r.x).(Add.r.(S.x))
Algorithm:
x +0 = x
x +S(y) = S(x)+y
With this, we can define LazyFact such that LazyFact.x represents (x!).
(Omitted.)
Add.r.Zero.(LazyFact.(S.Zero)) r.(S.Zero)
Two types of function names
Call-by-value / eager: calculate result, fill in in continuation
Call-by-name / lazy: compatible with Sn.Zero but delayed
computation
Bram Geron (TU/e) Continuation calculus FSA colloquium 30 / 31
