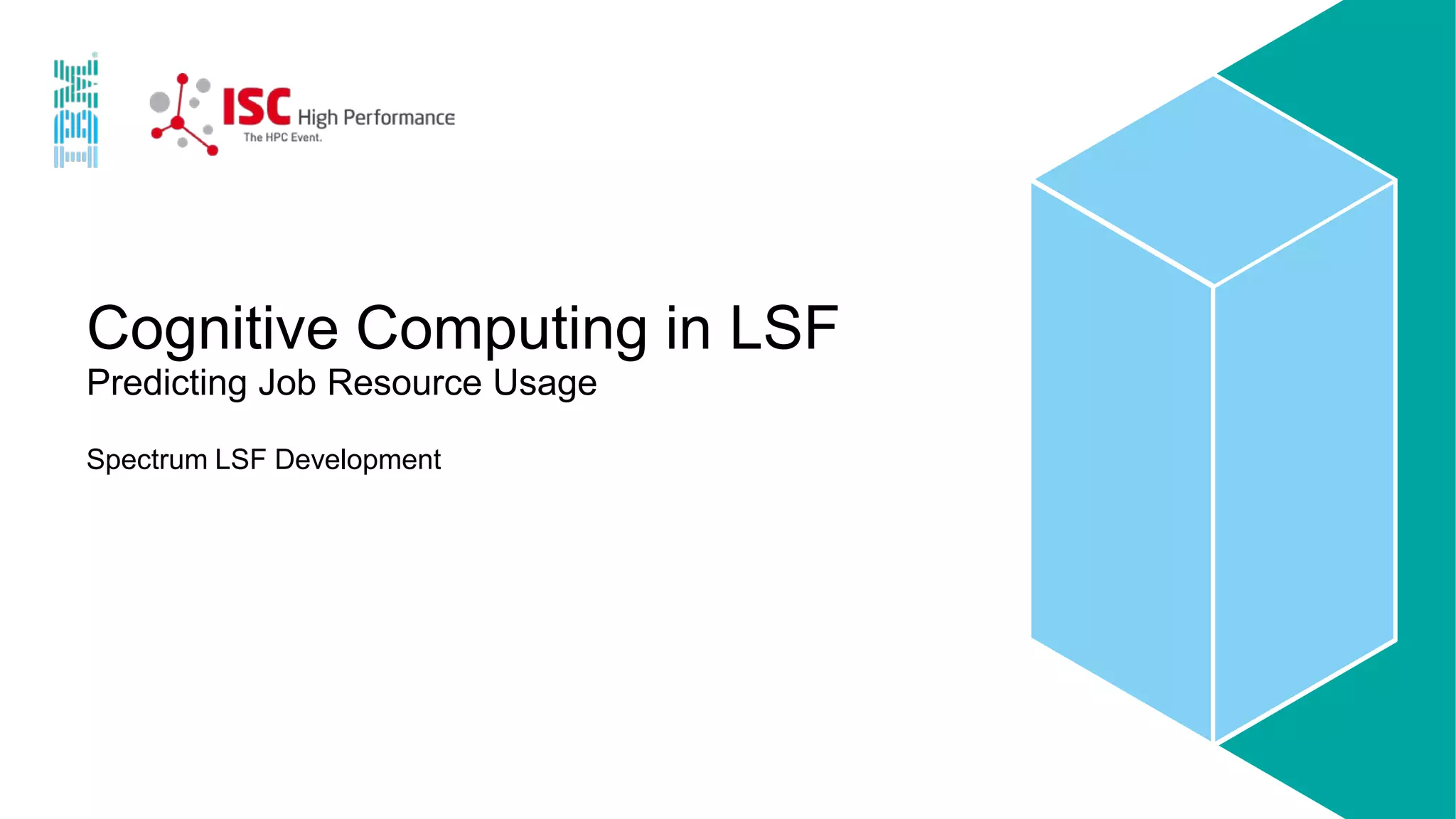

Presentation from IBM theatre at ISC High-Performance 2017 (Frankfurt, Germany). Learn about ongoing research around prediction of job resource usage in IBM Spectrum LSF.

1. Cognitive Computing in LSF
Predicting Job Resource Usage
Spectrum LSF Development

2. IBM
Systems

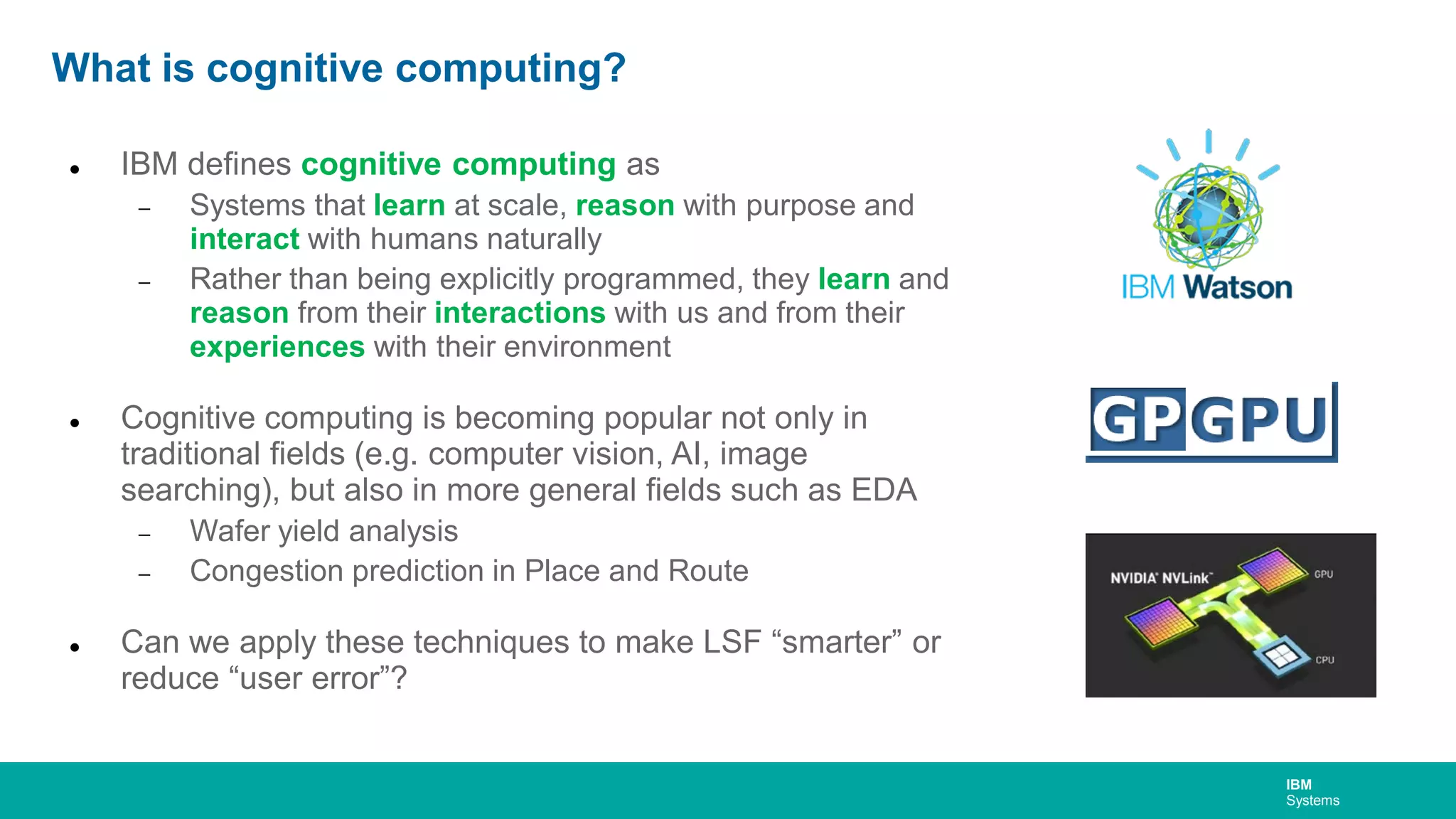

What is cognitive computing?
 IBM defines cognitive computing as
− Systems that learn at scale, reason with purpose and
interact with humans naturally
− Rather than being explicitly programmed, they learn and
reason from their interactions with us and from their
experiences with their environment
 Cognitive computing is becoming popular not only in
traditional fields (e.g. computer vision, AI, image
searching), but also in more general fields such as EDA
− Wafer yield analysis
− Congestion prediction in Place and Route
 Can we apply these techniques to make LSF “smarter” or
reduce “user error”?

3. IBM
Systems
When LSF meets Cognitive Era …
 LSF produces huge amount of data which is not
only for the purpose of problem diagnosis or
restarting cluster
− Historical job records contain job resource
requirements and resource consuming
information
− Cluster performance monitoring data and system
configuration changing records
 Cognitive technologies could make LSF smarter:
− Break the obstacles of mapping user domain
knowledge to resource requirements in LSF
− Automatically tune LSF cluster performance by
learning the best parameter configurations
− Intelligently predict job resource usage:
 Memory Usage
 Runtime
How much memory
does my job need?
LSF
Tell me other
information about
your job! I will
figure out your
memory
requirements!

4. IBM
Systems
Predictor Overview

5. IBM
Systems
Preliminary prediction verification using LSF customer data
 Prediction targets
− Job maximum memory usage: the maximum memory consumed by a job
during its lifecycle in LSF
− Job runtime: the total running time of a job in LSF
 Prediction algorithms
− Machine Learning algorithms
 k-nearest neighbors algorithm (k-NN): find k-th nearest job records
to calculate the value for the job to be predicted
 Support Vector Machine (SVM): “small sample” learning to avoid
high-dimension disaster
− Deep learning networks using MXNET and Caffe
 Build the model by choosing proper hyper-parameters (e.g. number
of layers, neutrons)
 Prediction method
− Use classification model to predict the range of maximum memory usage
− Use regression model to predict the continuous value of job runtimes
LSF Job events
collection
Feature extraction
Training processed
job features
Prediction using
trained models

6. IBM
Systems
Job Memory Prediction
Green: Average deviation ratio of user specified value
Blue: Average deviation ratio of predicted value
DeviationRatio
• For this client’s data set, the users are significantly
over reserving memory for “small” jobs.
• In this case, the prediction is more accurate than
the user specified values but there are still “errors”.
• This means we could potentially run more jobs on
these nodes.

7. IBM
Systems
Job Runtime Prediction  For this client’s data set, the users
significantly over specify the expected
runtime for a job (probably just accepting
scripted/queue defaults).
 This prediction gives very good results,
but again, there are still some errors.
 This means we could potentially give
fairly accurate predictions on turnaround
time for a set of jobs and/or better backfill
scheduling.

8. IBM
Systems
Selecting the Model
 There are many different Deep Learning frameworks MXNET,
Caffe, Tensor Flow, Torch etc
− Selecting the wrong model will give no useful results.
 You also need the right “hyper parameters” to get good results.
− A poor choice of parameters will give a sub-optimal result.
 Selection of the right model and parameters takes time and
effort.
− Within Spectrum Computing we have a related project to help
with automating the model and hyper-parameter selection and
training of the model
Caffe
MXNET
NOT convergent!!
Convergent but
not very good
Train
Test

9. IBM
Systems
Open Discussion
 The prototype has shown promising results with sample client data.
 We’re looking for your feedback and have packaged the prototype as a VM for you to try.
− It can be used in a passive or active mode for memory and runtime.
 What kinds of job resource requirements are difficult for end users to specify for their
jobs?
 What scenarios can use the prediction data in your cluster? Can the prediction errors be
tolerated?
 Are there any other scenarios might utilize the predictions provided by cognitive computing
approaches?

10. IBM
Systems
If you are interested in the prototype: LSF Predictor VM
1. Configure and start VM image
2. Install data collect in LSF cluster to ingest historical data to predictor for model training
• (Passive mode) Run command to predict some of historical jobs, and open web browser to view reports for
the prediction accuracy evaluation
• (Active mode) Deploy esub script to LSF, and use the esub to replace user specified mem with predicted one
for new submitted jobs
Browse
r

11. Thank you.
IBM
Systems
ibm.com/systems
|

12. IBM
Systems
Appendix

13. IBM
Systems
Job runtime prediction (Cont’d)
Customer 2:
30k jobs for training model
2k jobs for prediction verification
Customer 3:
20k jobs for training model
2k jobs for prediction verification
Both two customers do not use job-level runtime
limits feature in LSF
