![[CUDA Bandwidth Test] - Starting...
Running on...
Device 0: Quadro M1000M
Quick Mode
Host to Device Bandwidth, 1 Device(s)
PINNED Memory Transfers
Transfer Size (Bytes) Bandwidth(MB/s)
33554432 12152.3
Device to Host Bandwidth, 1 Device(s)
PINNED Memory Transfers
Transfer Size (Bytes) Bandwidth(MB/s)
33554432 12225.6
Device to Device Bandwidth, 1 Device(s)
PINNED Memory Transfers
Transfer Size (Bytes) Bandwidth(MB/s)
33554432 66464.2
Device to device is quick but the
host and device interchange is far
slower
Compare this to direct memory
access…](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-23-320.jpg)
![__global__ void addingKernel(int* array1, int* array2){
array1[threadIdx.x] += array2[threadIdx.x];
}
__global__ : it's a function we can call on the host (CPU), it's available to be called from
everywhere. __device__ and __host__ also exist
How is the data arranged and how can I access it?
Sequentially, a kernel runs on a grid (numBlocks X numThreads) and this is how we can run many
threads that work on different parts of the data
int* is a regular pointer to integers we've copied to the GPU
threadIdx.x: built-in variable inside of kernels an index to our array, remember lots of threads run
on the GPU, this can be our way to access each unique item – if we run a kernel <<<1, 256>>>,
that means one block and 256 threads will run on the GPU each time you call the kernel](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-28-320.jpg)
![#include <cuda.h>
#include <stdio.h>
const int NUM_ELEMENTS = 5;
__global__ void addToMe(int* someInts, int amountToAdd) {
someInts[threadIdx.x] += amountToAdd;
}
// This is in foo.cu → nvcc foo.cu → ./a.out
int main() {
int* myHostInts = (int*) malloc(sizeof(int) * NUM_ELEMENTS);
for (int i = 0; i < NUM_ELEMENTS; i++) {
myHostInts[i] = i;
}
int* myDeviceInts;
const int numBytes = NUM_ELEMENTS * sizeof(int);
cudaMalloc(&myDeviceInts, numBytes);
cudaMemcpy(myDeviceInts, myHostInts, numBytes, cudaMemcpyHostToDevice);
int numBlocks = (NUM_ELEMENTS / 256) + 1;
addToMe<<<numBlocks, 256>>>(myDeviceInts, 5);
cudaMemcpy(myHostInts, myDeviceInts, numBytes,
cudaMemcpyDeviceToHost);
// Tidy up after ourselves as good practice
cudaFree(myDeviceInts);
return EXIT_SUCCESS;
}
No bounds checking! Not required but can lead to problems later
Printing threadIdx.x here will print 0 to 255
Blocks = a group of threads, work out how many we need
I'll use a 2D grid (just lots of blocks/threads) in this presentation
Look at our kernel dimensions
numBlocks will be 1
256 is the number of threads
CUDA code (inside a .cu file)](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-34-320.jpg)
![●
●
●
[Java] We have an integer array on the Java heap: myData – we want to process it somehow using
a GPU
●
[Java] Create a native method (Java/Scala): no body required
●
[JNI] Write .cpp or .c code with a matching signature for your native method (use javah on your built
Java class as a starting point), in this native code, use JNI methods to get a pointer to your data, with
this pointer, we can figure out how much memory we need. Call your method that's in a .cu file that
you're about to create...
●
[CUDA] Allocate space on the GPU (device side) using cudaMalloc
●
[CUDA] Copy myData to your allocated space (myDataOnTheGPU) using cudaMemcpyHostToDevice
●
[CUDA] Process your data on the GPU in a kernel (look for <<< and >>>)
●
[CUDA] Copy the result back (what's now at myDataOnTheGPU replaces myData on the host) using
cudaMemcpyDeviceToHost
●
[JNI] Release the elements (updating your JNI pointer so the data in our JVM heap is now the result)
●
[Java] Interact with your data normally as you're back in the Java world
Calling this from Java (conventionally)...](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-35-320.jpg)
![objdump mysharedlibrary.so -t | grep yourmethodname is very useful for unsatisfied link errors...
[aroberts@geecon withjava]$ objdump lib/devoxx.so -t | grep "addX"
00000000000053c4 g F .text 000000000000005f
_Z28Java_SimpleJava_addXToMyIntsP7JNIEnv_P7_jclassP10_jintArrayi
Name mangling can occur (use “extern C {} blocks” in your .cpp and .cu code)
[aroberts@geecon withjava]$ ./BuildAndRun.sh
Unhandled exception
Type=Segmentation error vmState=0x00000000
Unsafe world now – check your memory accesses - ensure all of your pointers are still valid, printfs
and gdb for debugging, Nsight/cuda-gdb/cuda-memcheck for CUDA specific help
Pitfalls to look out for](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-42-320.jpg)
![printf statements added for looking into that segv...
[aroberts@geecon withjava]$ ./BuildAndRun.sh
getting elements
got em!
launching kernel...
addToMe+0x20 (0x00007F48441B630F [geecon.so+0x530f])
Java_SimpleJava_addXToMyInts+0x5c (0x00007F48441B6440 [geecon.so+0x5440])
(0x00007F4854264F9B [libj9vm28.so+0x8ff9b])
Unhandled exception
^^ Check your memory accesses!
●
Remember to call your kernel with the <<< and >>> syntax (in a .cu file)
●
Remember to use your device pointer variable as the parameter in your kernel (not the host
one) - or you won't be able to modify your data (it'll act on nothing – the kernel will still launch
but your data will remain unchanged)
●
You can add printf statements inside of your kernels (printing threadIdx.x which you're likely
using as an index into an array is a good idea)
●
Yes, you should add bounds checking inside of your kernels
●
Yes, you should check return codes and use cudaError_t](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-43-320.jpg)
![-Xjit:enableGPU=”{default, verbose”}
Can be forced with “{enforce”}
•
Supports CUDA 7.5 currently (API change for NVVM in CUDA 8)
Using three arrays of randomly generated doubles:
output, firstArray, secondArray [size ROWS]
Run this inside a
loop for an easily
reproducible
example – JIT must
be hot to make an
impact
IBM JIT compiler changes](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-47-320.jpg)
![[IBM GPU JIT]: Device Number 0: name=Quadro M1000M, ComputeCapability=5.0
Setting up our arrays, size is 2048x2048
Done setting up!
Starting the GPU enabled lambda, running GPU enabled lambda, parallelism: 1
End time: 42575.864909 msec
Starting the GPU enabled lambda, running GPU enabled lambda, parallelism: 1
End time: 41080.132863 msec
Starting the GPU enabled lambda, running GPU enabled lambda, parallelism: 1
[IBM GPU JIT]: [time.ms=1489774852380]: Launching parallel forEach in
com/ibm/MatMultiExample/MatMulti.runGPULambda()V at line 139 on GPU
[IBM GPU JIT]: [time.ms=1489774853402]: Finished parallel forEach in
com/ibm/MatMultiExample/MatMulti.runGPULambda()V at line 139 on GPU
End time: 1042.93 msec
With no JIT options provided, over 100 iterations (instead of just five) I still achieve a best time of 42 seconds. With more threads (setting it
to 8 or 32, not 1 by modifying the fork join common property parallelism) my best time is 32 seconds – still much slower
Performance results on my laptop](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-48-320.jpg)
![Only doubling integers; could be any use case where we're doing the same
operation to lots of elements at once
Full code listing at the end, Javadocs: search IBM Java 8 API com.ibm.cuda
* Tip: offsets are byte offsets, so you'll want your index in Java * the size of the object!
module = new Loader().loadModule("AdamDoubler.fatbin", device);
kernel = new CudaKernel(module, "Cuda_cuda4j_AdamDoubler_Strider");
stream = new CudaStream(device);
numElements = 100;
myData = new int[numElements];
Util.fillWithInts(myData);
CudaGrid grid = Util.makeGrid(numElements, stream);
buffer1 = new CudaBuffer(device, numElements * Integer.BYTES);
buffer1.copyFrom(myData);
Parameters kernelParams = new Parameters(2).set(0, buffer1).set(1, numElements);
kernel.launch(grid, kernelParams);
buffer1.copyTo(myData);
If our dynamically created grid dimensions are
too big we need to break down the problem
and use the slice* API: doChunkingProblem() Our kernel, compiles into AdamDoubler.fatbin](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-59-320.jpg)
![Problems
1) Data representation of columnar storage (CachedBatch with Array[Byte]) isn't commonly used
2) Compression schemes are specific to CachedBatch, limited to just several data types
3) Building in-memory cache involves a long code path -> virtual method calls, conditional branches
4) Generated whole-stage code -> unnecessary conversion from CachedBatch or ColumnarBatch to UnsafeRow
Solutions
1) Use ColumnarBatch format instead of CachedBatch for the in-memory cache generated by the cache() method.
ColumnarBatch and ColumnVector are commonly used data representations for columnar storage
2) Use a common compression scheme (e.g. lz4) for all of the data types in a ColumnVector
3) Generate code at runtime that is simple and specialized for building a concrete instance of the in-memory cache
4) Generate whole-stage code that directly reads data from columnar storage
(1) and (2) increase code reuse, (3) improves runtime performance of executing the cache() method and (4) improves
performance of user defined DataFrame and Dataset operations](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-69-320.jpg)
![We propose a new columnar format: CachedColumnarBatch, that has a pointer to ColumnarBatch
(used by Parquet reader) that keeps each column as OnHeapUnsafeColumnVector instead of
OnHeapColumnVector.
Not yet using GPUS!
●
[SPARK-13805], merged into 2.0, performance improvement: 1.2x
Get data from ColumnVector directly by avoiding a copy from ColumnVector to UnsafeRow when
a program reads data in parquet format
●
[SPARK-14098] targeted for Spark 2.2, performance improvement: 3.4x
Generate optimized code to build CachedColumnarBatch, get data from a ColumnVector directly
by avoiding a copy from the ColumnVector to UnsafeRow, and use lz4 to compress
ColumnVector when df.cache() or ds.cache is executed
●
[SPARK-15962], merged into 2.1, performance improvement: 1.7x
Remove indirection at offsets field when accessing each element in UnsafeArrayData, reduce
memory footprint of UnsafeArrayData](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-70-320.jpg)
![●
[SPARK-15985], merged into 2.1, performance improvement: 1.3x
Eliminate boxing operations to put a primitive array into GenericArrayData
when a Dataset program with a primitive array is ran
●
[SPARK-16213], merged into 2.2, performance improvement: 16.6x
Eliminate boxing operations to put a primitive array into GenericArrayData
when a DataFrame program with a primitive array is ran
●
[SPARK-17490], merged into 2.1, performance improvement: 2.0x
Eliminate boxing operations to put a primitive array into
GenericArrayData when a DataFrame program with a primitive array is
used](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-71-320.jpg)
![CUDA4J sample, part 1 of 3
import com.ibm.cuda.*;
import com.ibm.cuda.CudaKernel.*;
public class Sample {
private static final boolean PRINT_DATA = false;
private static int numElements;
private static int[] myData;
private static CudaBuffer buffer1;
private static CudaDevice device = new CudaDevice(0);
private static CudaModule module;
private static CudaKernel kernel;
private static CudaStream stream;
public static void main(String[] args) {
try {
module = new Loader().loadModule("AdamDoubler.fatbin", device);
kernel = new CudaKernel(module, "Cuda_cuda4j_AdamDoubler_Strider");
stream = new CudaStream(device);
doSmallProblem();
doMediumProblem();
doChunkingProblem();
} catch (CudaException e) {
e.printStackTrace();
} catch (Exception e) {
e.printStackTrace();
}
}
private final static void doSmallProblem() throws Exception
{
System.out.println("Doing the small sized problem");
numElements = 100;
myData = new int[numElements];
Util.fillWithInts(myData);
CudaGrid grid = Util.makeGrid(numElements, stream);
System.out.println("Kernel grid: <<<" + grid.gridDimX +
", " + grid.blockDimX + ">>>");
buffer1 = new CudaBuffer(device, numElements *
Integer.BYTES);
buffer1.copyFrom(myData);
Parameters kernelParams = new Parameters(2).set(0,
buffer1).set(1, numElements);
kernel.launch(grid, kernelParams);
int[] originalArrayCopy = new int[myData.length];
System.arraycopy(myData, 0, originalArrayCopy, 0,
myData.length);
buffer1.copyTo(myData);
Util.checkArrayResultsDoubler(myData,
originalArrayCopy);
}](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-83-320.jpg)
![private final static void doMediumProblem() throws Exception {
System.out.println("Doing the medium sized problem");
numElements = 5_000_000;
myData = new int[numElements];
Util.fillWithInts(myData);
// This is only when handling more than max blocks * max threads per kernel
// Grid dim is the number of blocks in the grid
// Block dim is the number of threads in a block
// buffer1 is how we'll use our data on the GPU
buffer1 = new CudaBuffer(device, numElements * Integer.BYTES);
// myData is on CPU, transfer it
buffer1.copyFrom(myData);
// Our stream executes the kernel, can launch many streams at once
CudaGrid grid = Util.makeGrid(numElements, stream);
System.out.println("Kernel grid: <<<" + grid.gridDimX + ", " + grid.blockDimX + ">>>");
Parameters kernelParams = new Parameters(2).set(0, buffer1).set(1, numElements);
kernel.launch(grid, kernelParams);
int[] originalArrayCopy = new int[myData.length];
System.arraycopy(myData, 0, originalArrayCopy, 0, myData.length);
buffer1.copyTo(myData);
Util.checkArrayResultsDoubler(myData, originalArrayCopy);
}
CUDA4J sample, part 2 of 3](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-84-320.jpg)
![private final static void doChunkingProblem() throws Exception {
// I know 5m doesn't require chunking on the GPU but this does
System.out.println("Doing the too big to handle in one kernel problem");
numElements = 70_000_000;
myData = new int[numElements];
Util.fillWithInts(myData);
buffer1 = new CudaBuffer(device, numElements * Integer.BYTES);
buffer1.copyFrom(myData);
CudaGrid grid = Util.makeGrid(numElements, stream);
System.out.println("Kernel grid: <<<" + grid.gridDimX + ", " + grid.blockDimX + ">>>");
// Check we can actually launch a kernel with this grid size
try {
Parameters kernelParams = new Parameters(2).set(0, buffer1).set(1, numElements);
kernel.launch(grid, kernelParams);
int[] originalArrayCopy = new int[numElements];
System.arraycopy(myData, 0, originalArrayCopy, 0, numElements);
buffer1.copyTo(myData);
Util.checkArrayResultsDoubler(myData, originalArrayCopy);
} catch (CudaException ce) {
if (ce.getMessage().equals("invalid argument")) {
System.out.println("it was invalid argument, too big!");
int maxThreadsPerBlockX = device.getAttribute(CudaDevice.ATTRIBUTE_MAX_BLOCK_DIM_X);
int maxBlocksPerGridX = device.getAttribute(CudaDevice.ATTRIBUTE_MAX_GRID_DIM_Y);
long maxThreadsPerGrid = maxThreadsPerBlockX * maxBlocksPerGridX;
// 67,107,840 on my Windows box
System.out.println("Max threads per grid: "+ maxThreadsPerGrid);
long numElementsAtOnce = maxThreadsPerGrid;
long elementsDone = 0;
grid=new CudaGrid(maxBlocksPerGridX,maxThreadsPerBlockX,
stream);
System.out.println("Kernel grid: <<<" + grid.gridDimX + ", " +
grid.blockDimX + ">>>");
while (elementsDone < numElements) {
if ( (elementsDone + numElementsAtOnce) > numElements) {
numElementsAtOnce = numElements - elementsDone;
}
long toOffset = numElementsAtOnce + elementsDone;
// It's the byte offset not the element index offset
CudaBuffer slicedSection = buffer1.slice(elementsDone *
Integer.BYTES, toOffset * Integer.BYTES);
Parameters kernelParams = new Parameters(2).set(0,
slicedSection).set(1, numElementsAtOnce);
kernel.launch(grid, kernelParams);
elementsDone += numElementsAtOnce;
}
int[] originalArrayCopy = new int[myData.length];
System.arraycopy(myData, 0, originalArrayCopy, 0,
myData.length);
buffer1.copyTo(myData);
Util.checkArrayResultsDoubler(myData, originalArrayCopy);
} else {
System.out.println(ce.getMessage());
}
}
}](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-85-320.jpg)
![CUDA4J kernel
#include <stdint.h>
#include <stdio.h>
/**
* 2D grid so we can have 1024 threads and many blocks
* Remember 1 grid -> has blocks/threads and one kernel runs on one grid
* In CUDA 6.5 we have cudaOccupancyMaxPotentialBlockSize which helps
*/
extern "C" __global__ void Cuda_cuda4j_AdamDoubler(int* toDouble, int numElements){
int index = blockDim.x * threadIdx.x + threadIdx.y;
if (index < numElements) { // Don't go out of bounds
toDouble[index] *= 2; // Just double it
}
}
extern "C" __global__ void Cuda_cuda4j_AdamDoubler_Strider(int* toDouble, int numElements){
int i = blockIdx.x * blockDim.x + threadIdx.x;
if (i < numElements) { // don't go overboard
toDouble[i] *= 2;
}
}](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-86-320.jpg)
![Utility methods, part 1 of 2package com.ibm.CUDA4JExample;
import com.ibm.cuda.*;
public class Util {
protected final static void fillWithInts(int[] toFill) {
for (int i = 0; i < toFill.length; i++) {
toFill[i] = i;
}
}
protected final static void fillWithDoubles(double[] toFill) {
for (int i = 0; i < toFill.length; i++) {
toFill[i] = i;
}
}
protected final static void printArray(int[] toPrint) {
System.out.println();
for (int i = 0; i < toPrint.length; i++) {
if (i == toPrint.length - 1) {
System.out.print(toPrint[i] + ".");
} else {
System.out.print(toPrint[i] + ", ");
}
}
System.out.println();
}
protected final static CudaGrid makeGrid(int numElements, CudaStream stream) {
int numThreads = 512;
int numBlocks = (numElements + (numThreads - 1)) / numThreads;
return new CudaGrid(numBlocks, numThreads, stream);
}](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-87-320.jpg)
![/*
* Array will have been doubled at this point
*/
Protected final static void checkArrayResultsDoubler(int[] toCheck, int[] originalArray) {
long errorCount = 0;
// Check result, data has been copied back here
if (toCheck.length != originalArray.length) {
System.err.println("Something's gone horribly wrong, different array length");
}
for (int i = 0; i < originalArray.length; i++) {
if (toCheck[i] != (originalArray[i] * 2) ) {
errorCount++;
/*
System.err.println("Got an error, " + originalArray[i] +
" is incorrect: wasn't doubled correctly!" +
" Got " + toCheck[i] + " but should be " + originalArray[i] * 2);
*/
} else {
//System.out.println("Correct, doubled " + originalArray[i] + " and it became " + toCheck[i]);
}
}
System.err.println("Incorrect results: " + errorCount);
}
}
Utility methods, part 2 of 2](https://image.slidesharecdn.com/geecongpueverything-170522101713/85/Java-and-the-GPU-Everything-You-Need-To-Know-88-320.jpg)
Uploaded byAdam Roberts
Java and the GPU - Everything You Need To Know
Here are the main types of GPUs and some key differences: - Consumer/gaming GPUs: These are graphics cards primarily designed for gaming and consumer applications. Examples include Nvidia GeForce and AMD Radeon cards. They have good price/performance but may lack some features of professional GPUs. - Professional/workstation GPUs: Higher-end cards designed for professional applications like CAD, content creation, etc. Examples include Nvidia Quadro and AMD FirePro. Tend to be more expensive than gaming GPUs but have stronger drivers, support, and certifications for professional software. - Cloud/data center GPUs: GPUs designed for high performance computing and machine learning workloads. Have much more
Java and the GPU - Everything You Need To Know
- 1. JAVA AND THEGPU EVERYTHING YOU NEED TO KNOW Adam Roberts

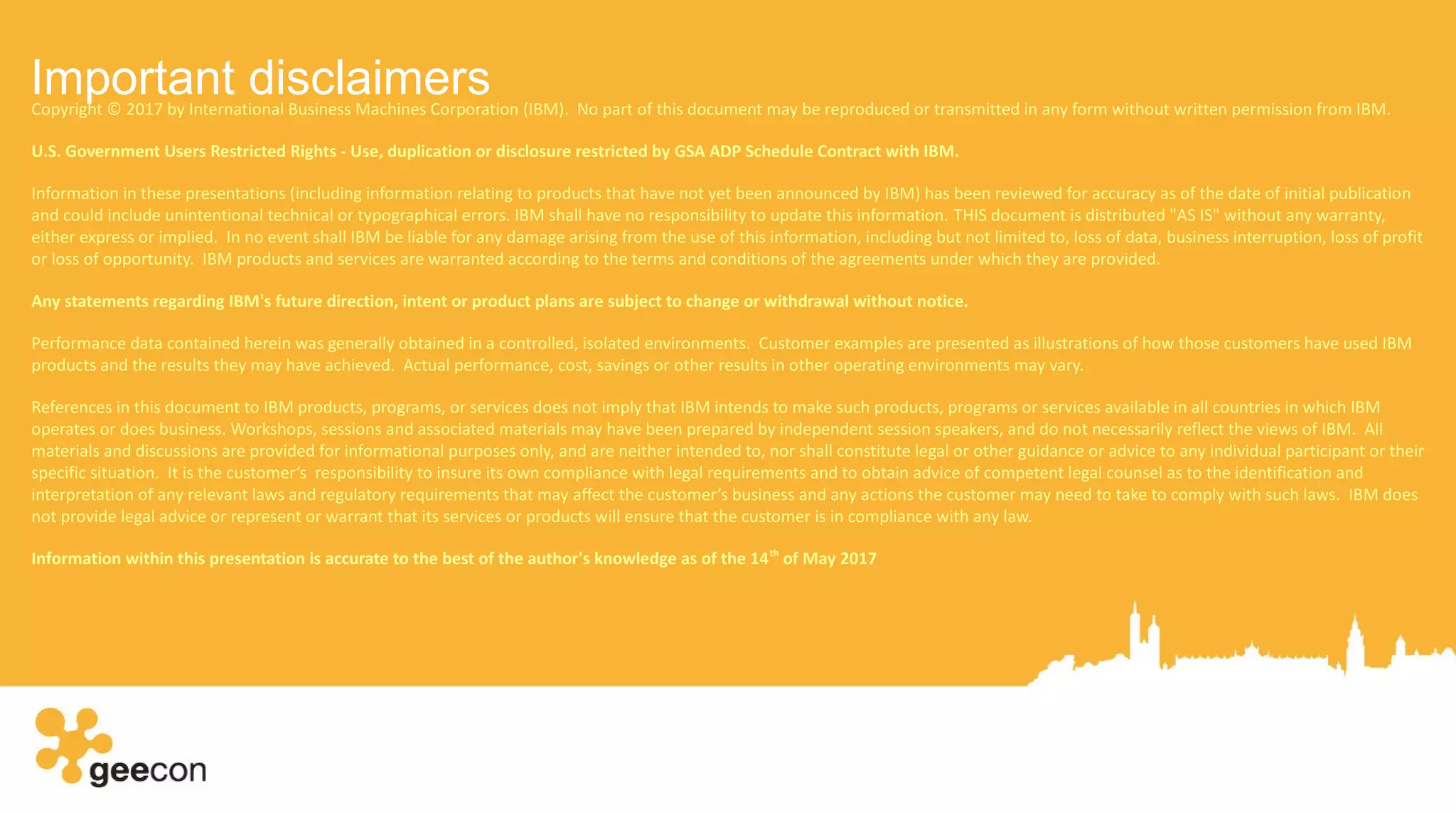

- 2. Important disclaimersCopyright ©2017 by International Business Machines Corporation (IBM). No part of this document may be reproduced or transmitted in any form without written permission from IBM. U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM. Information in these presentations (including information relating to products that have not yet been announced by IBM) has been reviewed for accuracy as of the date of initial publication and could include unintentional technical or typographical errors. IBM shall have no responsibility to update this information. THIS document is distributed "AS IS" without any warranty, either express or implied. In no event shall IBM be liable for any damage arising from the use of this information, including but not limited to, loss of data, business interruption, loss of profit or loss of opportunity. IBM products and services are warranted according to the terms and conditions of the agreements under which they are provided. Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without notice. Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual performance, cost, savings or other results in other operating environments may vary. References in this document to IBM products, programs, or services does not imply that IBM intends to make such products, programs or services available in all countries in which IBM operates or does business. Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not necessarily reflect the views of IBM. All materials and discussions are provided for informational purposes only, and are neither intended to, nor shall constitute legal or other guidance or advice to any individual participant or their specific situation. It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal counsel as to the identification and interpretation of any relevant laws and regulatory requirements that may affect the customer’s business and any actions the customer may need to take to comply with such laws. IBM does not provide legal advice or represent or warrant that its services or products will ensure that the customer is in compliance with any law. Information within this presentation is accurate to the best of the author's knowledge as of the 14th of May 2017
- 3. Information concerning non-IBMproducts was obtained from the suppliers of those products, their published announcements or other publicly available sources. IBM has not tested those products in connection with this publication and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. IBM does not warrant the quality of any third-party products, or the ability of any such third-party products to interoperate with IBM’s products. IBM expressly disclaims all warranties, expressed or implied, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose. The provision of the information contained herein is not intended to, and does not, grant any right or license under any IBM patents, copyrights, trademarks or other intellectual property right. IBM, the IBM logo, ibm.com, Bluemix, Blueworks Live, CICS, Clearcase, DOORS®, Enterprise Document Management System™, Global Business Services ®, Global Technology Services ®, Information on Demand, ILOG, LinuxONE™, Maximo®, MQIntegrator®, MQSeries®, Netcool®, OMEGAMON, OpenPower, PureAnalytics™, PureApplication®, pureCluster™, PureCoverage®, PureData®, PureExperience®, PureFlex®, pureQuery®, pureScale®, PureSystems®, QRadar®, Rational®, Rhapsody®, SoDA, SPSS, StoredIQ, Tivoli®, Trusteer®, urban{code}®, Watson, WebSphere®, Worklight®, X-Force® and System z® Z/OS, are trademarks of International Business Machines Corporation, registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners: oher names mentioned here include AMD, Nvidia, Tensorflow. Aparapi, Jcuda, cuDNN, cuBLAS, Project Sumatra, OpenJDK, CERN, Geant, AlphaGo, Oak Ridge, Titan, Lenovo, Tesla, Netflix, Rice University, Devoxx, DeepLearning4j. A current list of IBM trademarks is available on the Web at "Copyright and trademark information" at: www.ibm.com/legal/copytrade.shtml. Databricks is a registered trademark of Databricks, Inc. Apache Spark, Apache Cassandra, Apache Hadoop, Apache Maven, Spark, Apache, any other Apache project mentioned here and the Apache product logos including the Spark logo are trademarks of The Apache Software Foundation.
- 4. Stick around for... ● Sharingobservations and our progress ● How to get started ● The good and the bad ● Interesting related projects ● Plenty of code to show you ● Tips for avoiding common problems
- 5. 1) No liabilityaccepted for any of the code I'll be sharing today and providing with this presentation at the end – to be used at your own risk! My sample code isn't for production use – I've skimmed on plenty of application hardening techniques (checking error codes, using final, correct visibility modifiers etc) 2) Experiments with lots of threads meaning potentially lots of problems -really- don't run the parallel example trying to use 50,000+ CPU threads coming up – and if we make it to the end, don't run the “kernelception” program either 3) Messing around with graphics drivers on your work laptop isn't a good idea unless you have a good backup in place (my laptop was a headless server for a few days), I changed BIOS settings and made a few mistakes along the way – you have been warned!
- 6. ✗ In-depth look atalternatives: talking about Nvidia's CUDA + IBM's SDK for Java mainly ✗ In-depth debugging and profiling ✗ Real impressive applications – I'll be talking about how to get started to give you ideas: GPUs may be a useful fit for that simple processing task with lots of data ✗ Java basics – assuming you know about Java options, building and running and you're now interested in doing lots of operations at once as fast as possible What I won't be covering today...
- 7.
- 8. How many operationscan I run at once on my laptop with JUST the CPUs in Java?
- 9. ● Stackoverflow post titled“custom thread pool in Java 8 parallel stream” ● http://stackoverflow.com/questions/21163108/custom-thread-pool-in-java-8-par allel-stream ● Involves a parallel().forEach and java.util.concurrent.ForkJoinPool.common.parallelism ● See how many threads I can run with before the JVM crashes
- 10. numThreads = 5 FinishesOK – no problems
- 11. Finishes instantly –no problems numThreads = 50
- 12. Faster, constant output,still no problems, laptop getting noisy now... numThreads = 1,000
- 13.
- 14. ● Laptop preparing totake off from my desk ● No native memory to create new threads ● Unable to terminate the process in my shell - ^C's – they do nothing! ● Mouse stuttering around...can't...click...the x...now curious what happens ● JVM trying to create coredumps, javacores repeatedly: trying to eat up my disk space - no memory to create those anyway ● LibreOffice crashes, lost unsaved work (past experiments needing to be redone) ● Still can't ctrl-c to stop everything ● Can't launch any new processes (no chance of launching system monitor) ● Wanted to get a printscreen – no memory available, rebooted.
- 15. We'll struggle tryingto run thousands of threads at once in one JVM (using a single machine and a single CPU with many cores), but using GPUs can sometimes be of use Use cases for GPUs share typically share these common themes, we want to: ● Achieve results fast ● Execute many threads to quickly process data for my “easily parallelisable” operations ● Handle large amounts of data ● Great for machine learning: quickly compute and store models to use later Reaching out to GPUs for more processing power from Java
- 16. AlphaGo beating aGo champion: 1,202 CPUs, 176 GPUs Titan: 18,688 GPUs, 18,688 CPUs CERN: reported to be using GPUs Oak Ridge, IBM “the world's fastest supercomputers by 2017”: two, $325m Databricks: recent blog post mentions deep learning with GPUs Who's using GPUs already? Only public knowledge provided here, certainly many more than this!
- 17. ● Recent AI vsPoker win (from top500: “bridges-supercomputer” article here: mentions using 64 Nvidia P100 GPUs! ● Recent Amazon cloud offering: GPUs as a service ● Even more recent: Nvidia cloud Nvidia email as part of the accelerated computing newsletter mentions… ● Deep learning to combat asteroids ● Detecting road lanes with deep learning ● Algorithm to identify skin cancer ● Lip reading AI more accurate than humans ● Life-changing wearable for the blind Lots more success stories – what makes a GPU useful? How can you get involved?
- 18. GPUs excel atexecuting many of the same operations at once (Single Instruction Multiple Data programming) We'll program using CUDA or OpenCL – like C and C++ but not quite the same (nuances like <<< and >>> for kernels in CUDA) and we can write JNI code to access data in our Java world using the GPU We'll run code on computers that are shipped with graphics cards, there are free CUDA drivers for x86-64 Windows, Linux, and IBM's Power LE, OpenCL drivers, SDK and source also widely available GPU CPU
- 19. “What types ofGPUs can I get? Does it make a difference?”
- 20. ● “Graphics adapters” youcan plug a monitor into ● 2 to 4 GB~ GDDR5 memory ● < a thousand processing cores ● Clock speed ~ 1250 mhz ● Typical in laptops, desktop gaming computers ● For this presentation, experiments (unless otherwise stated) were performed on my Lenovo p50 laptop (discrete graphics mode set in the BIOS, CUDA 7.5, RHEL 7.3, 32 GB RAM, M1000M Quadro GPU, 8 core Intel(R) Core(TM) i7-6820HQ CPU @ 2.70GHz processor, ext4 filesystem)
- 21. ● HPC cards likethe Tesla series ● GDDR5 memory - typically 8G to 24G ● 1-5 thousand processing cores ● Offering teraflops of performance ● ~500 GB/sec max memory bandwidth* ● Remember you're going to be limited by the PCIe bus if it's between CPU and GPU, for CUDA devices, use deviceQuery, bandwidthTest applications) ● 300W~ thermal design power rating
- 22. “How about bandwidth?I've got to transfer my data to the GPU right?”
- 23. [CUDA Bandwidth Test]- Starting... Running on... Device 0: Quadro M1000M Quick Mode Host to Device Bandwidth, 1 Device(s) PINNED Memory Transfers Transfer Size (Bytes) Bandwidth(MB/s) 33554432 12152.3 Device to Host Bandwidth, 1 Device(s) PINNED Memory Transfers Transfer Size (Bytes) Bandwidth(MB/s) 33554432 12225.6 Device to Device Bandwidth, 1 Device(s) PINNED Memory Transfers Transfer Size (Bytes) Bandwidth(MB/s) 33554432 66464.2 Device to device is quick but the host and device interchange is far slower Compare this to direct memory access…
- 24. Data We can processlots of primitive types at once ● ints, longs, doubles, shorts, floats – perhaps used in... ● Matrix multiplication (dot product for ML?) ● Simple transforms (change our masses of longs by a known offset amount?) ● Find a pattern in the data: count occurrences of a certain string from Wikipedia dumps Operations Keep it simple – without branching and complexity ● Great for arithmetic ops (very fast floating point ops...) Workloads a GPU can excel at
- 25. Data The data weneed isn't “self contained” – we can't send down one whole block of data and get meaningful results as we depend on data elsewhere...lots of copying back and forth will be slow Operations ● Non-arithmetic based – code that touches files, uses the network, manipulates objects...stick to the maths ● Involves new object creation or throwing exceptions ● Using threads for different instructions simultaneously ● try to keep it simple without lots of if/elses Not so good when...
- 26. 1) Declare aregular C style int array in a .cu file 2) Declare a new variable of the same type e.g. int* myDataOnGPU 3) Allocate space on the GPU (device side) using cudaMalloc passing in the address of myDataOnGPU and how many bytes to reserve as a parameter (e.g. cudaMalloc(&myDataOnGPU), 400) 4) Copy myData from the host to your allocated space (myDataOnGPU) using cudaMemcpyHostToDevice 5) Process your data on the GPU in a kernel (we use <<< and >>>) 6) Copy the result back (what's at myDataOnGPU replaces myData on the host) using cudaMemcpyDeviceToHost How can we use a GPU? Basic principles
- 27. “What is akernel?!”
- 28. __global__ void addingKernel(int*array1, int* array2){ array1[threadIdx.x] += array2[threadIdx.x]; } __global__ : it's a function we can call on the host (CPU), it's available to be called from everywhere. __device__ and __host__ also exist How is the data arranged and how can I access it? Sequentially, a kernel runs on a grid (numBlocks X numThreads) and this is how we can run many threads that work on different parts of the data int* is a regular pointer to integers we've copied to the GPU threadIdx.x: built-in variable inside of kernels an index to our array, remember lots of threads run on the GPU, this can be our way to access each unique item – if we run a kernel <<<1, 256>>>, that means one block and 256 threads will run on the GPU each time you call the kernel
- 29. Multiprocessors (also knownas streaming multiprocessors or stream processors): these execute one or more thread blocks CUDA core: they execute the threads themselves Threads on a GPU: many more are available than with CPUs and these are organised into the blocks Kernel: a function we'll run on the GPU How many threads can I really run at once? Multiprocessor count X their limit e.g. 4 * 2048 with 512 CUDA cores for me A Tesla K80m has 26 multiprocessors and 4992 CUDA cores (2496 per GPU), 2048 threads per multiprocessor also. Other threads wait to be executed More stuff to know...
- 30. “How much doI need to know?”
- 31. Kernels must belaunched with grid dimensions specified Grid: logical 3d representation of how threads can be run on a given GPU – a kernel runs on a grid. This grid has potentially many blocks with threads organised “inside” each block (actually get run on the MP) Our GPU functions (kernels) run on one of these grids and the dimensions include how many blocks and threads a kernel should run The nvidia-smi command tells you about your GPU's limits – know these to prevent launch configuration problems A good starting point is to pick 512 for the number of threads and the number of blocks varies depending on your problem size – then launch multiple kernels in a tight loop modifying the offset to operate on different portions of the data
- 32. An example todo that exactly that using Java: int log2BlockDim = 9; int numBlocks = (numElements + 511) >> log2BlockDim; int numThreads = 1 << log2BlockDim; Size Blocks Threads 500 1 512 1,024 2 512 32,000 63 512 64,000 125 512 100,000 196 512 512,000 1000 512 1,024,000 2000 512
- 33. “I need tosee an example...”
- 34. #include <cuda.h> #include <stdio.h> constint NUM_ELEMENTS = 5; __global__ void addToMe(int* someInts, int amountToAdd) { someInts[threadIdx.x] += amountToAdd; } // This is in foo.cu → nvcc foo.cu → ./a.out int main() { int* myHostInts = (int*) malloc(sizeof(int) * NUM_ELEMENTS); for (int i = 0; i < NUM_ELEMENTS; i++) { myHostInts[i] = i; } int* myDeviceInts; const int numBytes = NUM_ELEMENTS * sizeof(int); cudaMalloc(&myDeviceInts, numBytes); cudaMemcpy(myDeviceInts, myHostInts, numBytes, cudaMemcpyHostToDevice); int numBlocks = (NUM_ELEMENTS / 256) + 1; addToMe<<<numBlocks, 256>>>(myDeviceInts, 5); cudaMemcpy(myHostInts, myDeviceInts, numBytes, cudaMemcpyDeviceToHost); // Tidy up after ourselves as good practice cudaFree(myDeviceInts); return EXIT_SUCCESS; } No bounds checking! Not required but can lead to problems later Printing threadIdx.x here will print 0 to 255 Blocks = a group of threads, work out how many we need I'll use a 2D grid (just lots of blocks/threads) in this presentation Look at our kernel dimensions numBlocks will be 1 256 is the number of threads CUDA code (inside a .cu file)
- 35. ● ● ● [Java] We havean integer array on the Java heap: myData – we want to process it somehow using a GPU ● [Java] Create a native method (Java/Scala): no body required ● [JNI] Write .cpp or .c code with a matching signature for your native method (use javah on your built Java class as a starting point), in this native code, use JNI methods to get a pointer to your data, with this pointer, we can figure out how much memory we need. Call your method that's in a .cu file that you're about to create... ● [CUDA] Allocate space on the GPU (device side) using cudaMalloc ● [CUDA] Copy myData to your allocated space (myDataOnTheGPU) using cudaMemcpyHostToDevice ● [CUDA] Process your data on the GPU in a kernel (look for <<< and >>>) ● [CUDA] Copy the result back (what's now at myDataOnTheGPU replaces myData on the host) using cudaMemcpyDeviceToHost ● [JNI] Release the elements (updating your JNI pointer so the data in our JVM heap is now the result) ● [Java] Interact with your data normally as you're back in the Java world Calling this from Java (conventionally)...
- 36. You'd need todo all of this work...
- 37. Java code (noticethe empty native method) (“Geecon.so”)
- 38. You'll need aheader file (javah on .class)
- 39. C++ code (matchingthe method signature)
- 40. CUDA code witha simple kernel
- 41. And after allof that...we can add ten to some ints on the GPU!
- 42. objdump mysharedlibrary.so -t| grep yourmethodname is very useful for unsatisfied link errors... [aroberts@geecon withjava]$ objdump lib/devoxx.so -t | grep "addX" 00000000000053c4 g F .text 000000000000005f _Z28Java_SimpleJava_addXToMyIntsP7JNIEnv_P7_jclassP10_jintArrayi Name mangling can occur (use “extern C {} blocks” in your .cpp and .cu code) [aroberts@geecon withjava]$ ./BuildAndRun.sh Unhandled exception Type=Segmentation error vmState=0x00000000 Unsafe world now – check your memory accesses - ensure all of your pointers are still valid, printfs and gdb for debugging, Nsight/cuda-gdb/cuda-memcheck for CUDA specific help Pitfalls to look out for
- 43. printf statements addedfor looking into that segv... [aroberts@geecon withjava]$ ./BuildAndRun.sh getting elements got em! launching kernel... addToMe+0x20 (0x00007F48441B630F [geecon.so+0x530f]) Java_SimpleJava_addXToMyInts+0x5c (0x00007F48441B6440 [geecon.so+0x5440]) (0x00007F4854264F9B [libj9vm28.so+0x8ff9b]) Unhandled exception ^^ Check your memory accesses! ● Remember to call your kernel with the <<< and >>> syntax (in a .cu file) ● Remember to use your device pointer variable as the parameter in your kernel (not the host one) - or you won't be able to modify your data (it'll act on nothing – the kernel will still launch but your data will remain unchanged) ● You can add printf statements inside of your kernels (printing threadIdx.x which you're likely using as an index into an array is a good idea) ● Yes, you should add bounds checking inside of your kernels ● Yes, you should check return codes and use cudaError_t
- 44. “There must bean easier way”
- 45. Yes – wecan stick to Java as much as possible ● Lots of Java projects we want to use ● Error checking ● Type safety ● Debugging tools (core dumps, javacores, system dumps, GCMV, MAT)... ● Profiling tools (Healthcenter, jprof)... ● JIT compiler and a garbage collector ● Portability (kind of- until you “go native”, mix byte-ordering across machines while using sun.misc.unsafe, use other internal APIs relying on field names, find there's no JRE available – you will need the toolkit to work on the platform Java runs!) The approaches we've taken: making it easier to try GPUs ● Java Class Library changes ● Just-In-Time Compiler changes ● CUDA4J API ● Apache Spark changes (runs in JVMs)
- 46. -Dcom.ibm.gpu.enable/enforce/disable/verbose Ints sorted persecond Java class library changes: Arrays.java (sort)
- 47. -Xjit:enableGPU=”{default, verbose”} Can beforced with “{enforce”} • Supports CUDA 7.5 currently (API change for NVVM in CUDA 8) Using three arrays of randomly generated doubles: output, firstArray, secondArray [size ROWS] Run this inside a loop for an easily reproducible example – JIT must be hot to make an impact IBM JIT compiler changes
- 48. [IBM GPU JIT]:Device Number 0: name=Quadro M1000M, ComputeCapability=5.0 Setting up our arrays, size is 2048x2048 Done setting up! Starting the GPU enabled lambda, running GPU enabled lambda, parallelism: 1 End time: 42575.864909 msec Starting the GPU enabled lambda, running GPU enabled lambda, parallelism: 1 End time: 41080.132863 msec Starting the GPU enabled lambda, running GPU enabled lambda, parallelism: 1 [IBM GPU JIT]: [time.ms=1489774852380]: Launching parallel forEach in com/ibm/MatMultiExample/MatMulti.runGPULambda()V at line 139 on GPU [IBM GPU JIT]: [time.ms=1489774853402]: Finished parallel forEach in com/ibm/MatMultiExample/MatMulti.runGPULambda()V at line 139 on GPU End time: 1042.93 msec With no JIT options provided, over 100 iterations (instead of just five) I still achieve a best time of 42 seconds. With more threads (setting it to 8 or 32, not 1 by modifying the fork join common property parallelism) my best time is 32 seconds – still much slower Performance results on my laptop
- 49. Measured performance improvementwith a GPU using four programs 1-CPU-thread sequential execution 160-CPU-thread parallel execution Experimental environment used IBM Java 8 Service Release 2 for PowerPC Little Endian Two 10-core 8-SMT IBM POWER8 CPUs at 3.69 GHz with 256GB memory (160 hardware threads in total) with one NVIDIA Kepler K40m GPU (2880 CUDA cores in total) at 876 MHz with 12GB global memory (ECC off) Any other benchmarks?
- 51. This shows GPUexecution time speedup amounts compared to what's in blue (1 CPU thread) and yellow (160 CPU threads) The higher the bar, the bigger the speedup!
- 52. bytecodes intermediate representation optimizer CPU GPU code generatorcode generator PTX ISACPU native As the JIT compiles a stream expression we can identify candidates for GPU off-loading ● Data copied to and from the device implicitly ● Java operations mapped to GPU kernel operations ● JIT takes care of GPU data alignment, cache management ● Optimizes data transfer ● Manages multiple devices ● Reuses standard Java idioms, so no new API is required ● Preserves standard Java semantics ● No knowledge of GPU programming model required by the application developer ● Takes care of low level details: GPU devices capabilities, etc. ● Chooses optimal execution mode: CPU, GPU, or SIMD ● Future performance improvements in the JIT do not require application changes! Advantages with this approach
- 53. JVM: Class loading Method resolution Objectcreation and GC Exception handling Java array CPU Redirection to CPU (at compile or runtime) Copy over PCIe GPU copy of Java array • Optimized lambda code executed by multiple threads in a data parallel manner • Exception detection GPU GPU memory isn't an extension of the Java heap Limitations
- 54. The JIT compilerwill check that the lambda expression satisfies the following criteria: ● Only accesses primitive types, and one-dimensional arrays of primitive types ● No access to static scalar variables: only locals, parameters, or instance variables ● No unresolved or native methods ● No creating new heap Objects (new ...), exceptions, (throw …) or instanceof ● Intermediate stream operations like map or filter are not supported Writing a GPU eligible lambda
- 55. • JIT appliesvarious performance heuristics to determine execution mode of the lambda expression (sequential, fork-join, GPU, or SIMD) • Heuristics depend on numerous factors and may change in the future to become more accurate, to deal with new architecture characteristics, etc • Currently, they are relatively conservative • We will work on new heuristics based on customer feedback • To observe if forEach was sent to GPU use –Xjit:enableGPU={verbose} • To override performance heuristics use –Xjit:enableGPU={enforce} • For combining options: -Xjit:enableGPU=”enforce|verbose” will work: the quotes are important lest your bash shell interpret | as a pipe! • Give it a go for yourself keeping the criteria for code to be eligible in mind • We are using NVVM IR Performance heuristics
- 56.
- 57. Production ready andsupported by IBM – used to manipulate GPU devices Compared to Jcuda: no arbitrary and unrestricted use of Pointer(long), feels more like Java instead of C Write your CUDA kernel (yes, the hard part!) and compile it into a fat binary nvcc --fatbin AdamKernel.cu Add your Java code import com.ibm.cuda.*; import com.ibm.cuda.CudaKernel.*; Load your fat binary (module loading code at the end of this presentation) module = new Loader().loadModule("AdamDoubler.fatbin",device); Build and run as you would any other Java application CUDA4J API
- 58. CudaDevice a CUDAcapable GPU device CudaStream a sequence of operations on the GPU CudaBuffer a region of memory on the GPU CudaModule user library of kernels to load into GPU CudaKernel launching a device function CudaFunction a kernel's entry point CudaEvent timing and synchronization CudaException when something goes wrong ● We developed an API that reflects the concepts familiar in CUDA programming ● Makes use of Java exceptions, automatic resource management, etc. ● Handles copying data to/from the GPU, flow of control from Java to GPU and back ● Ability to invoke existing GPU module code from Java applications e.g. Thrust CUDA4J class mapping When you want low level GPU control...
- 59. Only doubling integers;could be any use case where we're doing the same operation to lots of elements at once Full code listing at the end, Javadocs: search IBM Java 8 API com.ibm.cuda * Tip: offsets are byte offsets, so you'll want your index in Java * the size of the object! module = new Loader().loadModule("AdamDoubler.fatbin", device); kernel = new CudaKernel(module, "Cuda_cuda4j_AdamDoubler_Strider"); stream = new CudaStream(device); numElements = 100; myData = new int[numElements]; Util.fillWithInts(myData); CudaGrid grid = Util.makeGrid(numElements, stream); buffer1 = new CudaBuffer(device, numElements * Integer.BYTES); buffer1.copyFrom(myData); Parameters kernelParams = new Parameters(2).set(0, buffer1).set(1, numElements); kernel.launch(grid, kernelParams); buffer1.copyTo(myData); If our dynamically created grid dimensions are too big we need to break down the problem and use the slice* API: doChunkingProblem() Our kernel, compiles into AdamDoubler.fatbin
- 60. Integrating CUDA GPUoffloading support into your existing Java applications without needing to worry about JNI, makefiles, managing GPU memory and writing C++ code (you still need to write your kernel) ● Identify your most commonly used functions as candidates (simple manual profiling or using tools such as Healthcenter for method profiling) ● Tinker with heuristics and benchmark new capabilities ● Be wary of the GPU limitations (e.g device memory amount, max grid size – may need to chunk up your problem) Where would this be useful?
- 61.
- 62. Open source project(the most active for big data) offering distributed... ● Machine learning ● Graph processing ● Core operations (map, reduce, joins) ● SQL syntax with DataFrames/Datasets ● Many input formats supported e.g Parquet, JSON, files stored on HDFS you can parse trivially, CSV with a Databricks package ● Interoperability with Kafka, Hive, many more (see Apache Bahir also) ● Compression codecs and automatic usage, fast serialization with Kryo ● Offers scalability and resiliency ● Lots of Scala – so runs in JVMs (exploits sun.misc.unsafe heavily) ● Python, R, Scala and Java APIs ● Eligible for our Java based optimisations Ask after the talk for more details on Apache Spark Improving Apache Spark
- 63. Alternating Least Squares K-means(unsupervised learning (no labels, cheap)) Classifcation algorithms such as Clustering algorithms such as ● Produce n clusters from data to determine which cluster a new item can be categorised as ● Identify anomalies: transaction fraud, erroneous data Recommendation algorithms such as ● Movie recommendations on Netflix? ● Recommended purchases on Amazon? ● Similar songs with Spotify? ● Recommended videos on YouTube? Logistic regression ● Create model that we can use to predict where to plot the next item in a sequence (above or below our line of best fit) ● Healthcare: predict adverse drug reactions based on known interactions with similar drugs ● Spam filter (binomial classification) ● Naive Bayes Which algorithms might be of use?
- 64. An example: wehave the following .csv file for bands.. <username, band name, band genre (a feature), rating> Adam,ACoolBand1,AGenre,5 Adam,ACoolBand2,AGenre,5 Adam,ACoolBand3,AGenre,5 George,ACoolBand1,AGenre,5 George,ACoolBand2,AGenre,5 George,ACoolBand3,AGenre,5 George,ACoolBand4,AGenre,5 If we were to guess if Adam likes ACoolBand4 as well, the score would be very close to 5 – we can infer it based on already known observations Very much simplified, ALS works by factorizing the rating matrix and minimising the loss on observed ratings (our ratings matrix will be sparse and we want to complete it – see “CuMF: Large-Scale Matrix Factorization on Just One Machine with GPUs. Nvidia GTC 2016 talk” by Wei Tan for an excellent summary Alternating Least Squares
- 65. ● Under the coversoptimisation, set the spark.mllib.ALS.useGPU property ● Full paper: http://arxiv.org/abs/1603.03820 ● Full implementation for raising issues and giving it a try for yourself: https://github.com/IBMSparkGPU, with 1.5 gb of a Netflix dataset: Our implementation is open source and cited above, we used: 2x Intel(R) Xeon(R) CPU E5-2667 v2 @ 3.30GHz, 16 cores in the machine (SMT-2), 256 GB RAM vs 2x Nvidia Tesla K80Ms. Also available for IBM Power LE Our approach for Apache Spark
- 66. Implemented the vanillaC++/Java/CUDA way so this would work with any JDK (tiny amount of C++ code and lots of CUDA for Spark – we only override one function) ● modified the existing ALS (.scala) implementation's computeFactors method ● added code to check if spark.mllib.ALS.useGPU is set ● if set we'll then call our native method written to ue JNI (.cpp) ● our JNI method calls native CUDA (.cu) method ● CUDA kernel → JNI → back to Java heap Bundled with our Spark distribution and the shared library is included Requires the CUDA runtime (libcudart) and a CUDA capable GPU ALS.scala computeFactors CuMFJNIInterface.cpp ALS.cu libGPUALS.so
- 67. We can sendgenerated code to GPUs and alter the code that's generated to conform to certain characteristics... Input: user application using Spark DataFrame or Dataset API (SQL-like syntax, perform queries on data stored in tables) ✔ Spark with Tungsten. Uses UnsafeRow and, sun.misc.unsafe, idea is to bring Spark closer to the hardware than previously, exploit CPU caches, improved memory and CPU efficiency, reduce GC times, avoid Java object overheads – good deep dive here ✔ Spark with Catalyst. Optimiser for Spark SQL APIs, good deep dive here, transforms a query plan (abstraction of a user's program) into an optimised version, generates optimised code with Janino compiler ✔ Spark with our changes: Java and core Spark class optimisations, optimised JIT Pervasive GPU opportunities
- 68. Output: generated codeable to leverage auto-SIMD and GPUs Remember! We want generated code that: ✔ has a counted loop, e.g. one controlled by an automatic induction variable that increases from a lower to an upper bound ✔ accesses data in a linear fashion ✔ has as few branches as possible (simple for the GPU's kernel) ✔ does not have external method calls or contains only calls that can be easily inlined These help a JIT to either use auto-SIMD capabilities or GPUs
- 69. Problems 1) Data representationof columnar storage (CachedBatch with Array[Byte]) isn't commonly used 2) Compression schemes are specific to CachedBatch, limited to just several data types 3) Building in-memory cache involves a long code path -> virtual method calls, conditional branches 4) Generated whole-stage code -> unnecessary conversion from CachedBatch or ColumnarBatch to UnsafeRow Solutions 1) Use ColumnarBatch format instead of CachedBatch for the in-memory cache generated by the cache() method. ColumnarBatch and ColumnVector are commonly used data representations for columnar storage 2) Use a common compression scheme (e.g. lz4) for all of the data types in a ColumnVector 3) Generate code at runtime that is simple and specialized for building a concrete instance of the in-memory cache 4) Generate whole-stage code that directly reads data from columnar storage (1) and (2) increase code reuse, (3) improves runtime performance of executing the cache() method and (4) improves performance of user defined DataFrame and Dataset operations
- 70. We propose anew columnar format: CachedColumnarBatch, that has a pointer to ColumnarBatch (used by Parquet reader) that keeps each column as OnHeapUnsafeColumnVector instead of OnHeapColumnVector. Not yet using GPUS! ● [SPARK-13805], merged into 2.0, performance improvement: 1.2x Get data from ColumnVector directly by avoiding a copy from ColumnVector to UnsafeRow when a program reads data in parquet format ● [SPARK-14098] targeted for Spark 2.2, performance improvement: 3.4x Generate optimized code to build CachedColumnarBatch, get data from a ColumnVector directly by avoiding a copy from the ColumnVector to UnsafeRow, and use lz4 to compress ColumnVector when df.cache() or ds.cache is executed ● [SPARK-15962], merged into 2.1, performance improvement: 1.7x Remove indirection at offsets field when accessing each element in UnsafeArrayData, reduce memory footprint of UnsafeArrayData
- 71. ● [SPARK-15985], merged into2.1, performance improvement: 1.3x Eliminate boxing operations to put a primitive array into GenericArrayData when a Dataset program with a primitive array is ran ● [SPARK-16213], merged into 2.2, performance improvement: 16.6x Eliminate boxing operations to put a primitive array into GenericArrayData when a DataFrame program with a primitive array is ran ● [SPARK-17490], merged into 2.1, performance improvement: 2.0x Eliminate boxing operations to put a primitive array into GenericArrayData when a DataFrame program with a primitive array is used
- 72. “What does itmean for me as a developer?”
- 73. Another way tomake exploiting GPUs easier for those who aren't yet experts on GPU programming ● We know how to build GPU based applications ● We can figure out if a GPU is available ● We can figure out what code to generate ● We can figure out which GPU to send that code to ● All while retaining Java safety features such as exceptions, bounds checking, serviceability, tracing and profiling hooks... Assuming you have the hardware, add an option and watch performance improve: this is ongoing work that can likely be applied to other projects
- 74. We want developersto be aware of these so we can work together ● Restricted by PCIe speed (less so with IBM hardware, Nvlink on Power) ● Writing a decent kernel is hard ● Optimum use of different memory types (global, shared, texture, registers), debugging (lots of seg faults, you're in the CUDA world now!), limited functions you can use in a kernel, maintaining contiguous access where possible ● Not many GPU developers out there relative to other language pros: want developers that know machine learning, know Java, know CUDA, know how to debug and profile ● Watch lots of videos and experiment – breaking things as you go and learning; need to achieve max parallelism, avoid seg faults, good fun ● Big changes to the CUDA SDK itself: this is for CUDA 7.5 and I learned with CUDA 5.5, likely lots of new features I'm not exploiting Challenges for GPU programming
- 75. ● Profling – manyvariables to tweak (and therefore many opportunities for benchmarking fun, I did not touch on shared memory/advanced kernels) ● More pitfalls than Java (unless you're using sun.misc.unsafe or JNI) ● CUDA was initially a problem to set up on my laptop (wanting to keep my desktop, use the Nvidia driver, use the CUDA toolkit AND a projector…) ● Debugging in a massively multithreaded environment...be careful of race conditions ● Ideally developers can focus on the kernel logic and design principles instead of how to write GPU code and how to manage things like scheduling and partitioning strategies
- 76. “What else isout there for me?”
- 77. OpenCL ● Low level frameworksimplifies development for devices such as GPUs, FPGAs, works on AMD cards too, maintained by Khronos Group TensorFlow ● Java, C++, Python APIs, built for machine learning, researchers, data scientists, open source (mainly developed by Google) – features offloading to CUDA devices (requiring the toolkit/driver/cuDNN) SystemML ● IBM open-sourced project (now an Apache incubator), recently committed GPU support (yet to try) – write code in DML, easily scale out once ready
- 78. Jcuda ● Alternative to CUDA4J(no IBM Java requirement) – more like C than Java, plenty of bindings for Nvidia libraries available and open source DeepLearning4j ● The most popular open source deep-learning framework for the JVM – mentions built-in GPU support; anything making GPU exploitation easier is welcome, lots of useful features that makes GPU programming + ML easier Nvidia libraries such as ● cuDNN ● Deep neural network library for CUDA devices ● cuBLAS ● Basic linear algebra subroutines on the GPU ● Thrust ● Precanned algorithms for HPC on CUDA devices (e.g. sorting)
- 79. Aparapi ● Excellent video byAMD Runtimes team on it (very few views on YouTube, highly recommended) ● Java API for the GPU – also Java styled like CUDA4J ● Converts Java code to OpenCL ● Requires overloading the run routine in a kernel class already (like you would for java.lang.Thread) ● jar file and shared libraries with JNI (so no JVM changes) Project Sumatra ● OpenJDK initiative for GPU support as part of the Java SDK ● Excellent video: “Sumatra OpenJDK Project Update” with < 120 views on YouTube! ● Details their approach to optimising forEach and reduce using GPUs ● Not tried this – mentions building Graal and Sumatra to get a “HSA enabled Graal-based JDK”, would be interesting to either collaborate/compare findings, and to look into Wholly Graal (another good video on YouTube about this – again with very few views)
- 80. ● Easy way toget the latest IBM SDK for Java for free (optionally with Apache Spark): want to know about your workloads we can improve the JDK for ● Great if you know CUDA already – but not required ● GPUs don't need to be expensive – but the server ones will be ● Useful for certain operations – not the “be all and end all” that's guaranteed to give you a boost, but why not make use of it if you have it ● Lots of projects out there combining Java and GPUS! We're especially interested in delivering runtime improvements with minimal to no code changes required – partially by improving the IBM J9 VM itself (look out for OpenJ9) http://ibm.biz/spark-kit Takeaways Contact me directly: aroberts@uk.ibm.com
- 81.
- 82. CUDA4J example codebeyond this point
- 83. CUDA4J sample, part1 of 3 import com.ibm.cuda.*; import com.ibm.cuda.CudaKernel.*; public class Sample { private static final boolean PRINT_DATA = false; private static int numElements; private static int[] myData; private static CudaBuffer buffer1; private static CudaDevice device = new CudaDevice(0); private static CudaModule module; private static CudaKernel kernel; private static CudaStream stream; public static void main(String[] args) { try { module = new Loader().loadModule("AdamDoubler.fatbin", device); kernel = new CudaKernel(module, "Cuda_cuda4j_AdamDoubler_Strider"); stream = new CudaStream(device); doSmallProblem(); doMediumProblem(); doChunkingProblem(); } catch (CudaException e) { e.printStackTrace(); } catch (Exception e) { e.printStackTrace(); } } private final static void doSmallProblem() throws Exception { System.out.println("Doing the small sized problem"); numElements = 100; myData = new int[numElements]; Util.fillWithInts(myData); CudaGrid grid = Util.makeGrid(numElements, stream); System.out.println("Kernel grid: <<<" + grid.gridDimX + ", " + grid.blockDimX + ">>>"); buffer1 = new CudaBuffer(device, numElements * Integer.BYTES); buffer1.copyFrom(myData); Parameters kernelParams = new Parameters(2).set(0, buffer1).set(1, numElements); kernel.launch(grid, kernelParams); int[] originalArrayCopy = new int[myData.length]; System.arraycopy(myData, 0, originalArrayCopy, 0, myData.length); buffer1.copyTo(myData); Util.checkArrayResultsDoubler(myData, originalArrayCopy); }
- 84. private final staticvoid doMediumProblem() throws Exception { System.out.println("Doing the medium sized problem"); numElements = 5_000_000; myData = new int[numElements]; Util.fillWithInts(myData); // This is only when handling more than max blocks * max threads per kernel // Grid dim is the number of blocks in the grid // Block dim is the number of threads in a block // buffer1 is how we'll use our data on the GPU buffer1 = new CudaBuffer(device, numElements * Integer.BYTES); // myData is on CPU, transfer it buffer1.copyFrom(myData); // Our stream executes the kernel, can launch many streams at once CudaGrid grid = Util.makeGrid(numElements, stream); System.out.println("Kernel grid: <<<" + grid.gridDimX + ", " + grid.blockDimX + ">>>"); Parameters kernelParams = new Parameters(2).set(0, buffer1).set(1, numElements); kernel.launch(grid, kernelParams); int[] originalArrayCopy = new int[myData.length]; System.arraycopy(myData, 0, originalArrayCopy, 0, myData.length); buffer1.copyTo(myData); Util.checkArrayResultsDoubler(myData, originalArrayCopy); } CUDA4J sample, part 2 of 3
- 85. private final staticvoid doChunkingProblem() throws Exception { // I know 5m doesn't require chunking on the GPU but this does System.out.println("Doing the too big to handle in one kernel problem"); numElements = 70_000_000; myData = new int[numElements]; Util.fillWithInts(myData); buffer1 = new CudaBuffer(device, numElements * Integer.BYTES); buffer1.copyFrom(myData); CudaGrid grid = Util.makeGrid(numElements, stream); System.out.println("Kernel grid: <<<" + grid.gridDimX + ", " + grid.blockDimX + ">>>"); // Check we can actually launch a kernel with this grid size try { Parameters kernelParams = new Parameters(2).set(0, buffer1).set(1, numElements); kernel.launch(grid, kernelParams); int[] originalArrayCopy = new int[numElements]; System.arraycopy(myData, 0, originalArrayCopy, 0, numElements); buffer1.copyTo(myData); Util.checkArrayResultsDoubler(myData, originalArrayCopy); } catch (CudaException ce) { if (ce.getMessage().equals("invalid argument")) { System.out.println("it was invalid argument, too big!"); int maxThreadsPerBlockX = device.getAttribute(CudaDevice.ATTRIBUTE_MAX_BLOCK_DIM_X); int maxBlocksPerGridX = device.getAttribute(CudaDevice.ATTRIBUTE_MAX_GRID_DIM_Y); long maxThreadsPerGrid = maxThreadsPerBlockX * maxBlocksPerGridX; // 67,107,840 on my Windows box System.out.println("Max threads per grid: "+ maxThreadsPerGrid); long numElementsAtOnce = maxThreadsPerGrid; long elementsDone = 0; grid=new CudaGrid(maxBlocksPerGridX,maxThreadsPerBlockX, stream); System.out.println("Kernel grid: <<<" + grid.gridDimX + ", " + grid.blockDimX + ">>>"); while (elementsDone < numElements) { if ( (elementsDone + numElementsAtOnce) > numElements) { numElementsAtOnce = numElements - elementsDone; } long toOffset = numElementsAtOnce + elementsDone; // It's the byte offset not the element index offset CudaBuffer slicedSection = buffer1.slice(elementsDone * Integer.BYTES, toOffset * Integer.BYTES); Parameters kernelParams = new Parameters(2).set(0, slicedSection).set(1, numElementsAtOnce); kernel.launch(grid, kernelParams); elementsDone += numElementsAtOnce; } int[] originalArrayCopy = new int[myData.length]; System.arraycopy(myData, 0, originalArrayCopy, 0, myData.length); buffer1.copyTo(myData); Util.checkArrayResultsDoubler(myData, originalArrayCopy); } else { System.out.println(ce.getMessage()); } } }
- 86. CUDA4J kernel #include <stdint.h> #include<stdio.h> /** * 2D grid so we can have 1024 threads and many blocks * Remember 1 grid -> has blocks/threads and one kernel runs on one grid * In CUDA 6.5 we have cudaOccupancyMaxPotentialBlockSize which helps */ extern "C" __global__ void Cuda_cuda4j_AdamDoubler(int* toDouble, int numElements){ int index = blockDim.x * threadIdx.x + threadIdx.y; if (index < numElements) { // Don't go out of bounds toDouble[index] *= 2; // Just double it } } extern "C" __global__ void Cuda_cuda4j_AdamDoubler_Strider(int* toDouble, int numElements){ int i = blockIdx.x * blockDim.x + threadIdx.x; if (i < numElements) { // don't go overboard toDouble[i] *= 2; } }
- 87. Utility methods, part1 of 2package com.ibm.CUDA4JExample; import com.ibm.cuda.*; public class Util { protected final static void fillWithInts(int[] toFill) { for (int i = 0; i < toFill.length; i++) { toFill[i] = i; } } protected final static void fillWithDoubles(double[] toFill) { for (int i = 0; i < toFill.length; i++) { toFill[i] = i; } } protected final static void printArray(int[] toPrint) { System.out.println(); for (int i = 0; i < toPrint.length; i++) { if (i == toPrint.length - 1) { System.out.print(toPrint[i] + "."); } else { System.out.print(toPrint[i] + ", "); } } System.out.println(); } protected final static CudaGrid makeGrid(int numElements, CudaStream stream) { int numThreads = 512; int numBlocks = (numElements + (numThreads - 1)) / numThreads; return new CudaGrid(numBlocks, numThreads, stream); }
- 88. /* * Array willhave been doubled at this point */ Protected final static void checkArrayResultsDoubler(int[] toCheck, int[] originalArray) { long errorCount = 0; // Check result, data has been copied back here if (toCheck.length != originalArray.length) { System.err.println("Something's gone horribly wrong, different array length"); } for (int i = 0; i < originalArray.length; i++) { if (toCheck[i] != (originalArray[i] * 2) ) { errorCount++; /* System.err.println("Got an error, " + originalArray[i] + " is incorrect: wasn't doubled correctly!" + " Got " + toCheck[i] + " but should be " + originalArray[i] * 2); */ } else { //System.out.println("Correct, doubled " + originalArray[i] + " and it became " + toCheck[i]); } } System.err.println("Incorrect results: " + errorCount); } } Utility methods, part 2 of 2
- 89. CUDA4J module loader packagecom.ibm.CUDA4JExample; import java.io.FileNotFoundException; import java.io.IOException; import java.io.InputStream; import com.ibm.cuda.CudaDevice; import com.ibm.cuda.CudaException; import com.ibm.cuda.CudaModule; public final class Loader { private final CudaModule.Cache moduleCache = new CudaModule.Cache(); final CudaModule loadModule(String moduleName, CudaDevice device) throws CudaException, IOException { CudaModule module = moduleCache.get(device, moduleName); if (module == null) { try (InputStream stream = getClass().getResourceAsStream(moduleName)) { if (stream == null) { throw new FileNotFoundException(moduleName); } module = new CudaModule(device, stream); moduleCache.put(device, moduleName, module); } } return module; } }
