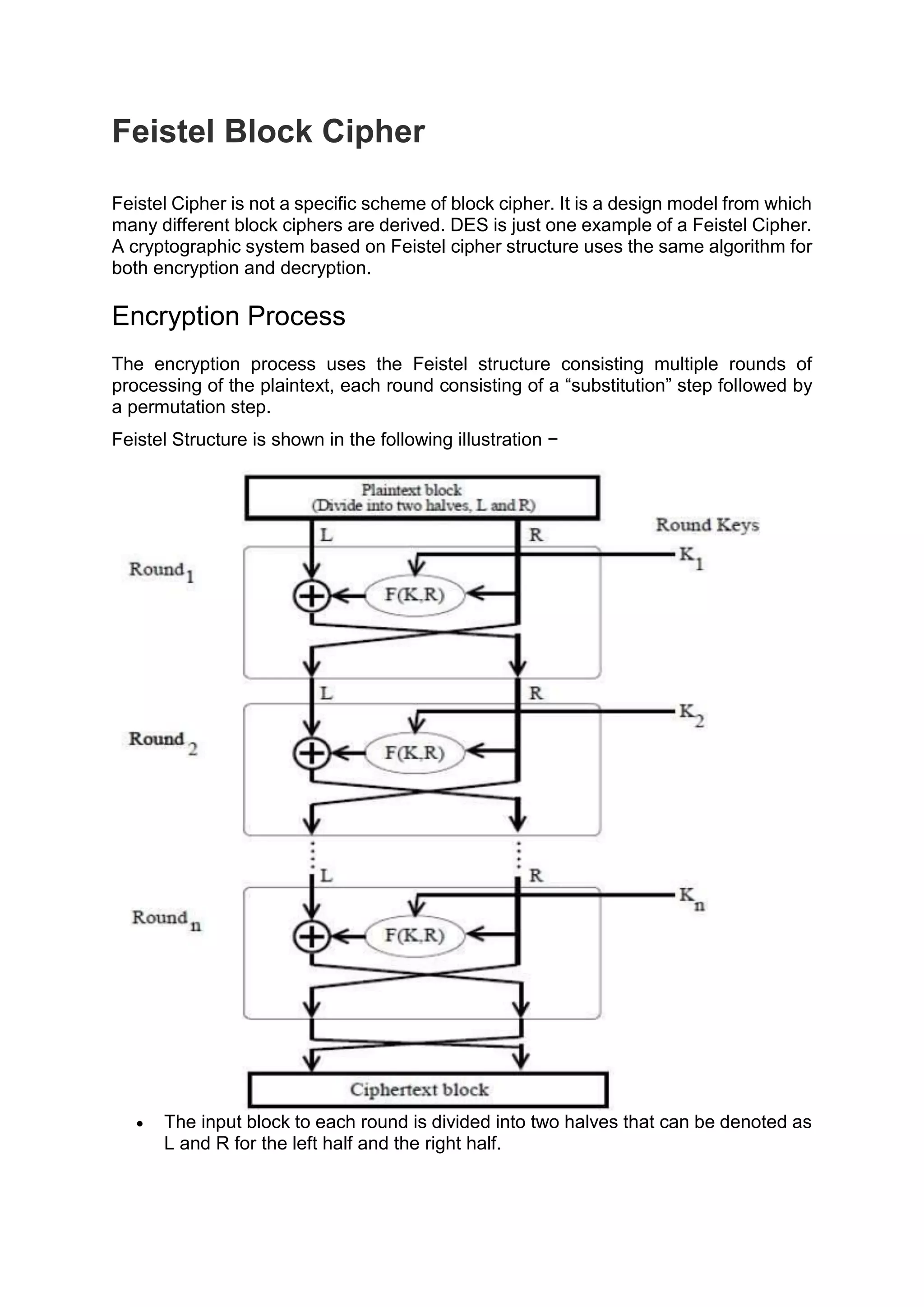

1. Feistel Block Cipher
Feistel Cipher is not a specific scheme of block cipher. It is a design model from which
many different block ciphers are derived. DES is just one example of a Feistel Cipher.
A cryptographic system based on Feistel cipher structure uses the same algorithm for
both encryption and decryption.
Encryption Process
The encryption process uses the Feistel structure consisting multiple rounds of
processing of the plaintext, each round consisting of a “substitution” step followed by
a permutation step.
Feistel Structure is shown in the following illustration −
 The input block to each round is divided into two halves that can be denoted as
L and R for the left half and the right half.

2.  In each round, the right half of the block, R, goes through unchanged. But the
left half, L, goes through an operation that depends on R and the encryption
key. First, we apply an encrypting function ‘f’ that takes two input − the key K
and R. The function produces the output f(R,K). Then, we XOR the output of the
mathematical function with L.
 In real implementation of the Feistel Cipher, such as DES, instead of using the
whole encryption key during each round, a round-dependent key (a subkey) is
derived from the encryption key. This means that each round uses a different
key, although all these subkeys are related to the original key.
 The permutation step at the end of each round swaps the modified L and
unmodified R. Therefore, the L for the next round would be R of the current
round. And R for the next round be the output L of the current round.
 Above substitution and permutation steps form a ‘round’. The number of rounds
are specified by the algorithm design.
 Once the last round is completed then the two sub blocks, ‘R’ and ‘L’ are
concatenated in this order to form the ciphertext block.
The difficult part of designing a Feistel Cipher is selection of round function ‘f’. In order
to be unbreakable scheme, this function needs to have several important properties
that are beyond the scope of our discussion.
Decryption Process
The process of decryption in Feistel cipher is almost similar. Instead of starting with a
block of plaintext, the ciphertext block is fed into the start of the Feistel structure and
then the process thereafter is exactly the same as described in the given illustration.
The process is said to be almost similar and not exactly same. In the case of
decryption, the only difference is that the subkeys used in encryption are used in the
reverse order.
The final swapping of ‘L’ and ‘R’ in last step of the Feistel Cipher is essential. If these
are not swapped then the resulting ciphertext could not be decrypted using the same
algorithm.
Number of Rounds
The number of rounds used in a Feistel Cipher depends on desired security from the
system. More number of rounds provide more secure system. But at the same time,
more rounds mean the inefficient slow encryption and decryption processes. Number
of rounds in the systems thus depend upon efficiency–security tradeoff.
Block Cipher Design Principles
Block ciphers are built in the Feistel cipher structure. Block cipher has a
specific number of rounds and keys for generating ciphertext. For defining
the complexity level of an algorithm few design principles are to be
considered.
These are explained as following below :

3. Number of Rounds –
The number of Rounds is regularly considered in design criteria, it just
reflects the number of rounds to be suitable for an algorithm to make it
more complex, in DES we have 16 rounds ensuring it to be more secure
while in AES we have 10 rounds which makes it more secure.
Design of function F –
The core part of the Feistel Block cipher structure is the Round Function.
The complexity of cryptanalysis can be derived from the Round function
i.e. the increasing level of complexity for the round function would be
greatly contributing to an increase in complexity. To increase the
complexity of the round function, the avalanche effect is also included in
the round function, as the change of a single bit in plain text would
produce a mischievous output due to the presence of avalanche effect.
Key schedule algorithm –
In Feistel Block cipher structure, each round would generate a sub-key for
increasing the complexity of cryptanalysis. The Avalanche effect makes it
more complex in deriving sub-key. Decryption must be done very carefully
to get the actual output as the avalanche effect is present in it.
Triple DES
The speed of exhaustive key searches against DES after 1990 began to
cause discomfort amongst users of DES. However, users did not want to replace DES
as it takes an enormous amount of time and money to change encryption algorithms
that are widely adopted and embedded in large security architectures.
The pragmatic approach was not to abandon the DES completely, but to change the
manner in which DES is used. This led to the modified schemes of Triple DES
(sometimes known as 3DES).
Incidentally, there are two variants of Triple DES known as 3-key Triple DES (3TDES)
and 2-key Triple DES (2TDES).
3-KEY Triple DES
Before using 3TDES, user first generate and distribute a 3TDES key K, which consists
of three different DES keys K1, K2 and K3. This means that the actual 3TDES key has
length 3×56 = 168 bits. The encryption scheme is illustrated as follows −

4. The encryption-decryption process is as follows −
 Encrypt the plaintext blocks using single DES with key K1.
 Now decrypt the output of step 1 using single DES with key K2.
 Finally, encrypt the output of step 2 using single DES with key K3.
 The output of step 3 is the ciphertext.
 Decryption of a ciphertext is a reverse process. User first decrypt using K3, then
encrypt with K2, and finally decrypt with K1.
Due to this design of Triple DES as an encrypt–decrypt–encrypt process, it is possible
to use a 3TDES (hardware) implementation for single DES by setting K1, K2, and K3 to
be the same value. This provides backwards compatibility with DES.
Second variant of Triple DES (2TDES) is identical to 3TDES except that K3is replaced
by K1. In other words, user encrypt plaintext blocks with key K1, then decrypt with key
K2, and finally encrypt with K1 again. Therefore, 2TDES has a key length of 112 bits.
Triple DES systems are significantly more secure than single DES, but these are
clearly a much slower process than encryption using single DES.
International Data Encryption Algorithm (IDEA)
In cryptography, block ciphers are very important in the designing of many
cryptographic algorithms and are widely used to encrypt the bulk of data in
chunks. By chunks, it means that the cipher takes a fixed size of the plaintext
in the encryption process and generates a fixed size ciphertext using a fixed-
length key. An algorithm’s strength is determined by its key length.

5. The Simplified International Data Encryption Algorithm (IDEA) is
a symmetric key block cipher that:
 uses a fixed-length plaintext of 16 bits and
 encrypts them in 4 chunks of 4 bits each
 to produce 16 bits ciphertext.
 The length of the key used is 32 bits.
 The key is also divided into 8 blocks of 4 bits each.
This algorithm involves a series of 4 identical complete rounds and 1 half-
round. Each complete round involves a series of 14 steps that includes
operations like:
 Bitwise XOR
 Addition modulo
 Multiplication modulo +1
After 4 complete rounds, the final “half-round” consists of only the first 4 out
of the 14 steps previously used in the full rounds. To perform these rounds,
each binary notation must be converted to its equivalent decimal notation,
perform the operation and the result obtained should be converted back to
the binary representation for the final result of that particular step.
Key Schedule: 6 subkeys of 4 bits out of the 8 subkeys are used in each
complete round, while 4 are used in the half-round. So, 4.5 rounds require 28
subkeys. The given key, ‘K’, directly gives the first 8 subkeys. By rotating the
main key left by 6 bits between each group of 8, further groups of 8 subkeys
are created, implying less than one rotation per round for the key (3
rotations).

6. Decryption
Decryption works like encryption, but the order of the round keys is inverted, and the subkeys for
the odd rounds are inversed. For instance, the values of subkeys K1–K4 are replaced by the
inverse of K49–K52 for the respective group operation, K5 and K6 of each group should be
replaced by K47 and K48 for decryption.
Weak keys

The very simple key schedule makes IDEA subject to a class of weak keys; some keys
containing a large number of 0 bits produce weak encryption.

These are of little concern in practice, being sufficiently rare that they are unnecessary to
avoid explicitly when generating keys randomly. A simple fix was proposed: XORing each
subkey with a 16-bit constant, such as 0x0DAE.
 Larger classes of weak keys were found in 2002.
 This is still of negligible probability to be a concern to a randomly chosen key, and some
of the problems are fixed by the constant XOR proposed earlier, but the paper is not certain
if all of them are. A more comprehensive redesign of the IDEA key schedule may be
desirable.
Advanced Encryption Standard
The more popular and widely adopted symmetric encryption algorithm likely to be
encountered nowadays is the Advanced Encryption Standard (AES). It is found at least
six time faster than triple DES.
A replacement for DES was needed as its key size was too small. With increasing
computing power, it was considered vulnerable against exhaustive key search attack.
Triple DES was designed to overcome this drawback but it was found slow.
The features of AES are as follows −
 Symmetric key symmetric block cipher
 128-bit data, 128/192/256-bit keys
 Stronger and faster than Triple-DES
 Provide full specification and design details
 Software implementable in C and Java
Operation of AES
AES is an iterative rather than Feistel cipher. It is based on ‘substitution–permutation
network’. It comprises of a series of linked operations, some of which involve replacing
inputs by specific outputs (substitutions) and others involve shuffling bits around
(permutations).
Interestingly, AES performs all its computations on bytes rather than bits. Hence, AES
treats the 128 bits of a plaintext block as 16 bytes. These 16 bytes are arranged in
four columns and four rows for processing as a matrix −

7. Unlike DES, the number of rounds in AES is variable and depends on the length of
the key. AES uses 10 rounds for 128-bit keys, 12 rounds for 192-bit keys and 14
rounds for 256-bit keys. Each of these rounds uses a different 128-bit round key, which
is calculated from the original AES key.
The schematic of AES structure is given in the following illustration −
Encryption Process
Here, we restrict to description of a typical round of AES encryption. Each round
comprise of four sub-processes. The first round process is depicted below −

8. Byte Substitution (SubBytes)
The 16 input bytes are substituted by looking up a fixed table (S-box) given in design.
The result is in a matrix of four rows and four columns.
Shiftrows
Each of the four rows of the matrix is shifted to the left. Any entries that ‘fall off’ are re-
inserted on the right side of row. Shift is carried out as follows −
 First row is not shifted.
 Second row is shifted one (byte) position to the left.
 Third row is shifted two positions to the left.
 Fourth row is shifted three positions to the left.
 The result is a new matrix consisting of the same 16 bytes but shifted with
respect to each other.
MixColumns
Each column of four bytes is now transformed using a special mathematical function.
This function takes as input the four bytes of one column and outputs four completely
new bytes, which replace the original column. The result is another new matrix
consisting of 16 new bytes. It should be noted that this step is not performed in the last
round.
Addroundkey
The 16 bytes of the matrix are now considered as 128 bits and are XORed to the 128
bits of the round key. If this is the last round then the output is the ciphertext.
Otherwise, the resulting 128 bits are interpreted as 16 bytes and we begin another
similar round.
Decryption Process
The process of decryption of an AES ciphertext is similar to the encryption process in
the reverse order. Each round consists of the four processes conducted in the reverse
order −
 Add round key
 Mix columns
 Shift rows
 Byte substitution
Since sub-processes in each round are in reverse manner, unlike for a Feistel Cipher,
the encryption and decryption algorithms needs to be separately implemented,
although they are very closely related.
AES Analysis
In present day cryptography, AES is widely adopted and supported in both hardware
and software. Till date, no practical cryptanalytic attacks against AES has been
discovered. Additionally, AES has built-in flexibility of key length, which allows a

9. degree of ‘future-proofing’ against progress in the ability to perform exhaustive key
searches.
However, just as for DES, the AES security is assured only if it is correctly
implemented and good key management is employed.
Block Cipher modes of Operation
Encryption algorithms are divided into two categories based on the input
type, as a block cipher and stream cipher. Block cipher is an encryption
algorithm that takes a fixed size of input say b bits and produces a ciphertext
of b bits again. If the input is larger than b bits it can be divided further. For
different applications and uses, there are several modes of operations for a
block cipher.
Electronic Code Book (ECB) –
Electronic code book is the easiest block cipher mode of functioning. It is
easier because of direct encryption of each block of input plaintext and
output is in form of blocks of encrypted ciphertext. Generally, if a message is
larger than b bits in size, it can be broken down into a bunch of blocks and
the procedure is repeated.
Procedure of ECB is illustrated below:
Advantages of using ECB –
 Parallel encryption of blocks of bits is possible, thus it is a faster way of
encryption.
 Simple way of the block cipher.

10. Disadvantages of using ECB –
 Prone to cryptanalysis since there is a direct relationship between
plaintext and ciphertext.
Cipher Block Chaining(CBC) –
Cipher block chaining or CBC is an advancement made on ECB since ECB
compromises some security requirements. In CBC, the previous cipher block
is given as input to the next encryption algorithm after XOR with the original
plaintext block. In a nutshell here, a cipher block is produced by encrypting
an XOR output of the previous cipher block and present plaintext block.
The process is illustrated here:
Advantages of CBC –
 CBC works well for input greater than b bits.
 CBC is a good authentication mechanism.
 Better resistive nature towards cryptanalysis than ECB.
Disadvantages of CBC –
 Parallel encryption is not possible since every encryption requires a
previous cipher.

11. Cipher Feedback Mode (CFB) –
In this mode the cipher is given as feedback to the next block of encryption
with some new specifications: first, an initial vector IV is used for first
encryption and output bits are divided as a set of s and b-s bits.The left-hand
side s bits are selected along with plaintext bits to which an XOR operation is
applied. The result is given as input to a shift register having b-s bits to lhs,s
bits to rhs and the process continues. The encryption and decryption process
for the same is shown below, both of them use encryption algorithms.
Advantages of CFB –
 Since, there is some data loss due to the use of shift register, thus it is
difficult for applying cryptanalysis.
Disadvantages of using ECB –
 The drawbacks of CFB are the same as those of CBC mode. Both block
losses and concurrent encryption of several blocks are not supported by
the encryption. Decryption, however, is parallelizable and loss-tolerant.

12. Output Feedback Mode (OFB)–
The output feedback mode follows nearly the same process as the Cipher
Feedback mode except that it sends the encrypted output as feedback
instead of the actual cipher which is XOR output. In this output feedback
mode, all bits of the block are sent instead of sending selected s bits. The
Output Feedback mode of block cipher holds great resistance towards bit
transmission errors. It also decreases the dependency or relationship of the
cipher on the plaintext.
Advantages of OFB –
 In the case of CFB, a single bit error in a block is propagated to all
subsequent blocks. This problem is solved by OFB as it is free from bit
errors in the plaintext block.
Disadvantages of OFB-
 The drawback of OFB is that, because to its operational modes, it is more
susceptible to a message stream modification attack than CFB.

13. Counter Mode (CTR) –
The Counter Mode or CTR is a simple counter-based block cipher
implementation. Every time a counter-initiated value is encrypted and given
as input to XOR with plaintext which results in ciphertext block. The CTR
mode is independent of feedback use and thus can be implemented in
parallel.
Its simple implementation is shown below:
Advantages of Counter –
 Since there is a different counter value for each block, the direct plaintext
and ciphertext relationship is avoided. This means that the same plain
text can map to different ciphertext.
 Parallel execution of encryption is possible as outputs from previous
stages are not chained as in the case of CBC.
Disadvantages of Counter-
 The fact that CTR mode requires a synchronous counter at both the
transmitter and the receiver is a severe drawback. The recovery of
plaintext is erroneous when synchronisation is lost.
