- 1. Cloud-based Modelling Solutions EmpoweringTool Integration István Ráth, CEO IncQuery Labs Ltd
- 2. Topics • Tool IntegrationChallenges in MBSE • IncQuery Solutions • Case study: Tool Integration with A3 by Airbus • DEMO
- 3. Context: Large-scale MBSE AirframersCar Manufacturers System Designers and Integrators Design Tools Analysis / Simulation Tools Certification Authorities Platform Provider Smart & Safe Cyber-Physical Systems

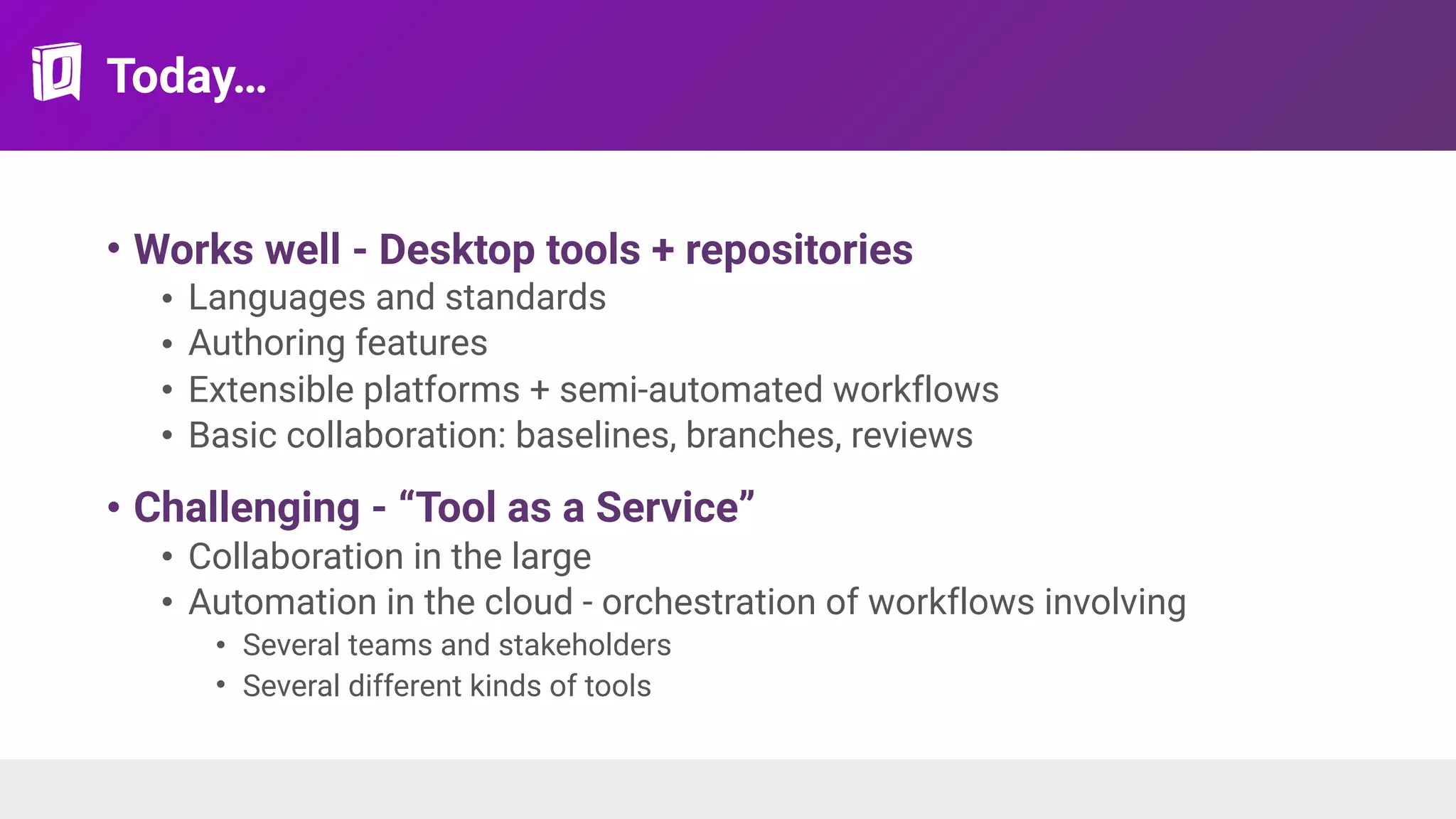

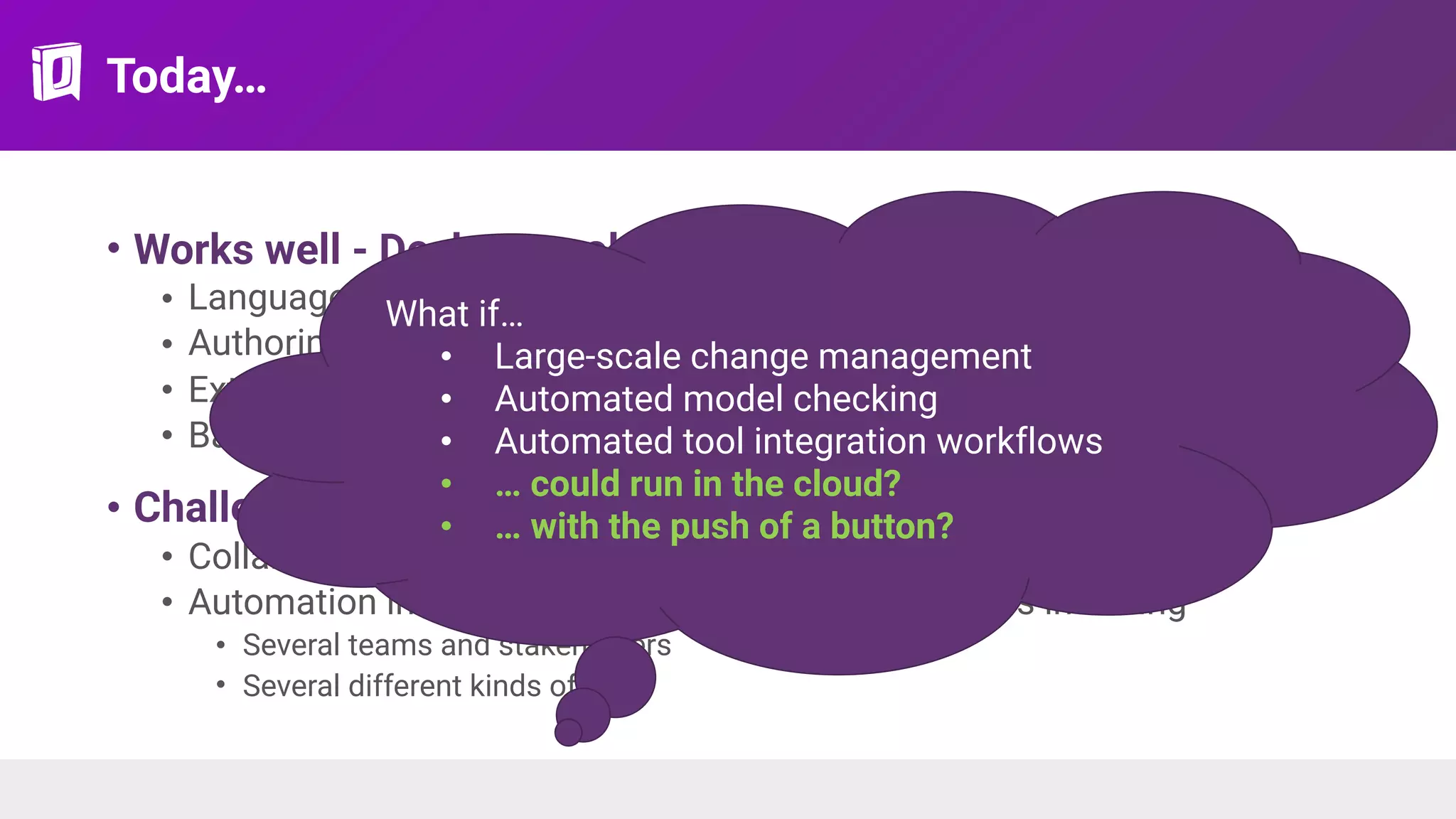

- 4. Today… • Works well- Desktop tools + repositories • Languages and standards • Authoring features • Extensible platforms + semi-automated workflows • Basic collaboration: baselines, branches, reviews • Challenging - “Tool as a Service” • Collaboration in the large • Automation in the cloud - orchestration of workflows involving • Several teams and stakeholders • Several different kinds of tools
- 5. Today… • Works well- Desktop tools + repositories • Languages and standards • Authoring features • Extensible platforms + semi-automated workflows • Basic collaboration: baselines, branches, reviews • Challenging - “Tool as a Service” • Collaboration in the large • Automation in the cloud - orchestration of workflows involving • Several teams and stakeholders • Several different kinds of tools What if… • Large-scale change management • Automated model checking • Automated tool integration workflows • … could run in the cloud? • … with the push of a button?

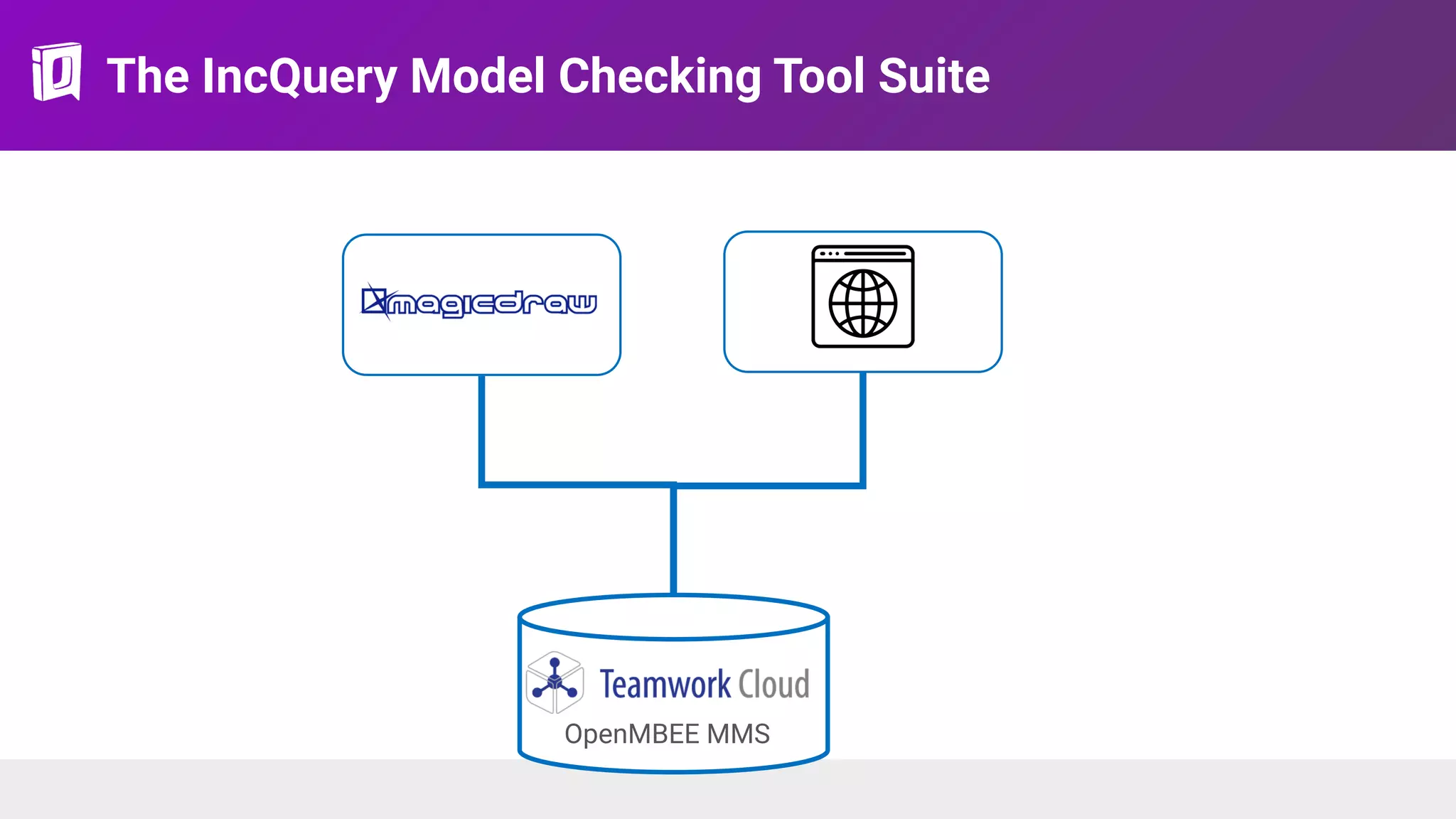

- 6. The IncQuery ModelChecking Tool Suite OpenMBEE MMS

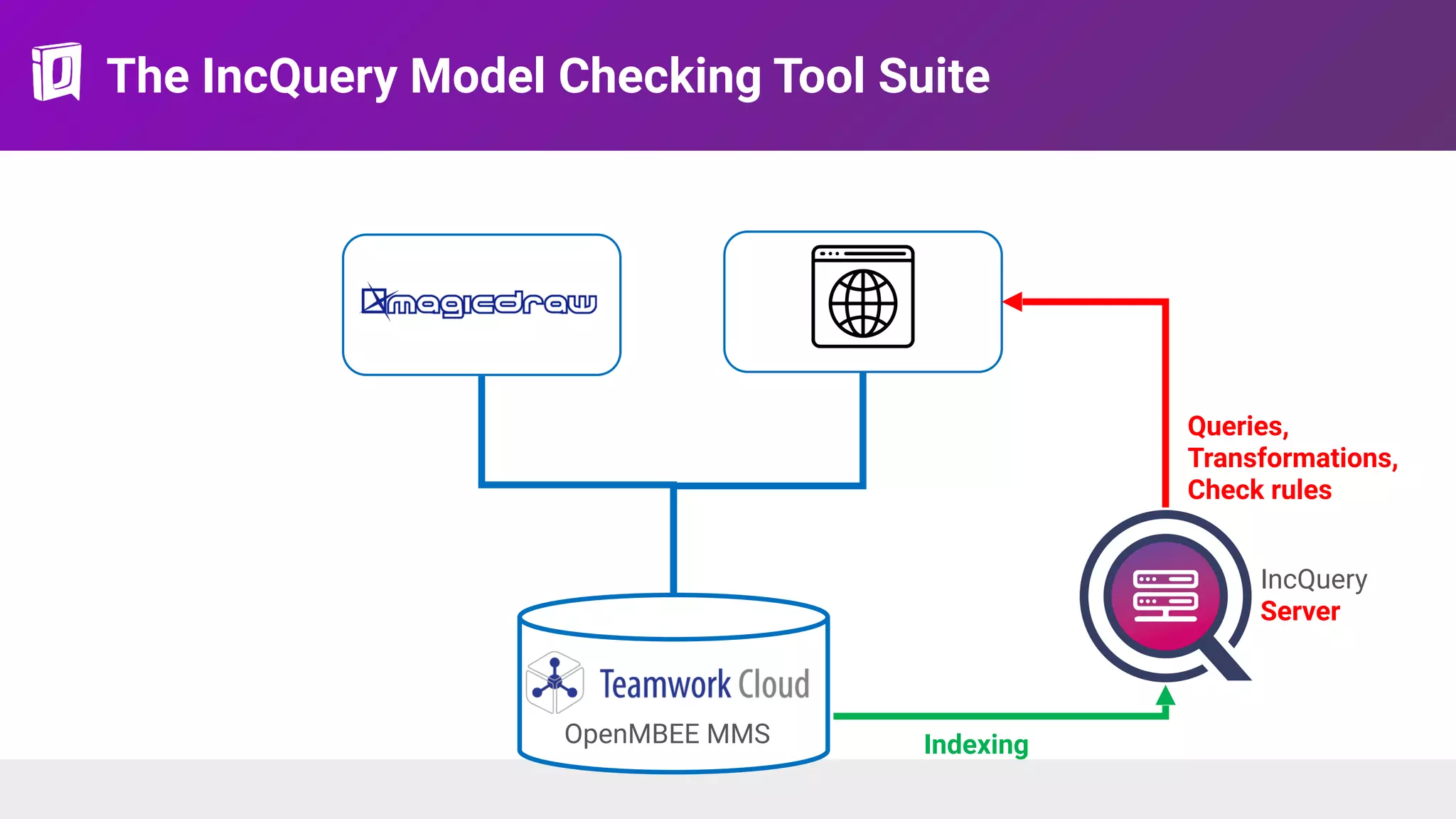

- 7. The IncQuery ModelChecking Tool Suite Indexing Queries, Transformations, Check rules IncQuery Server OpenMBEE MMS

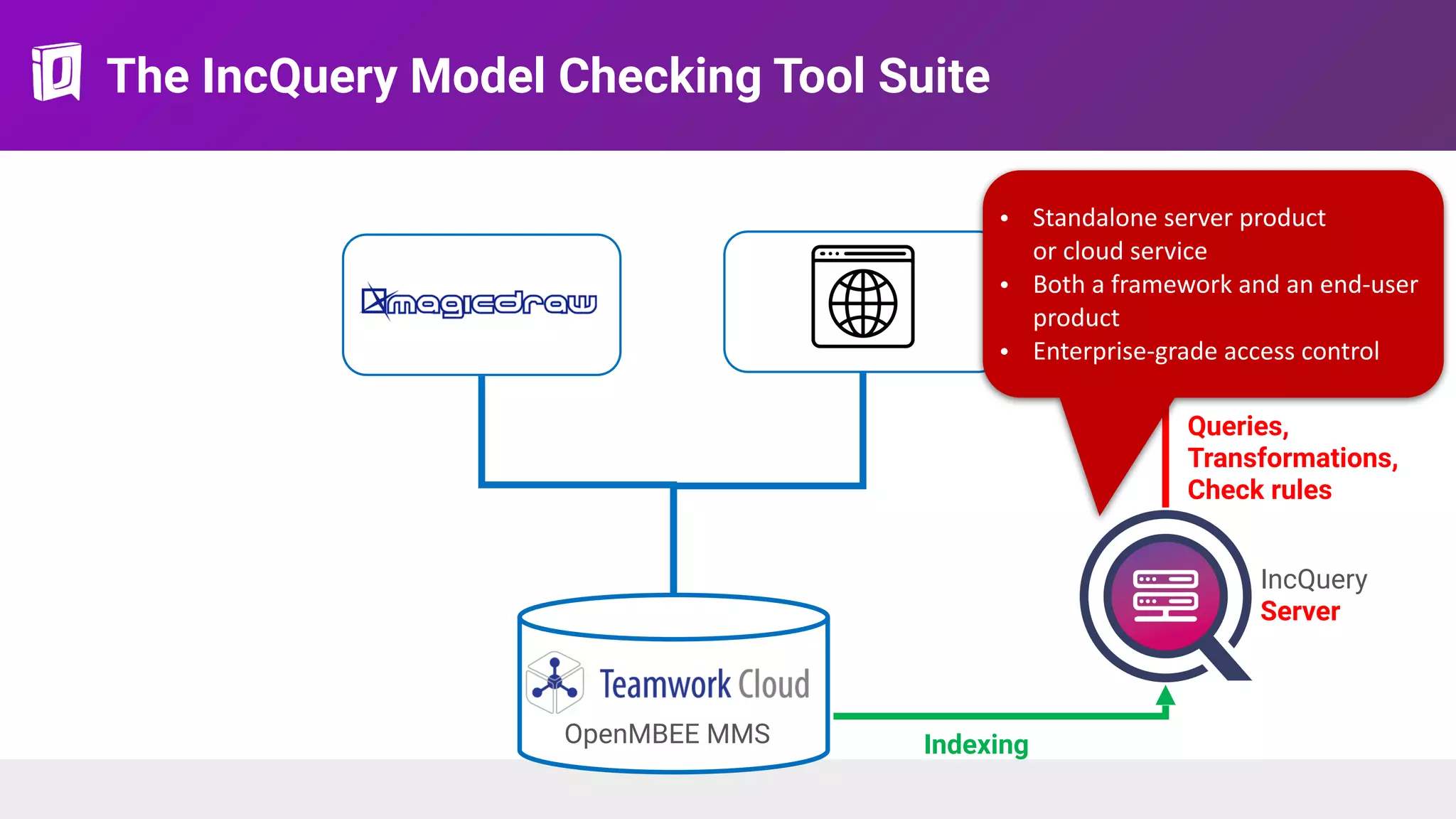

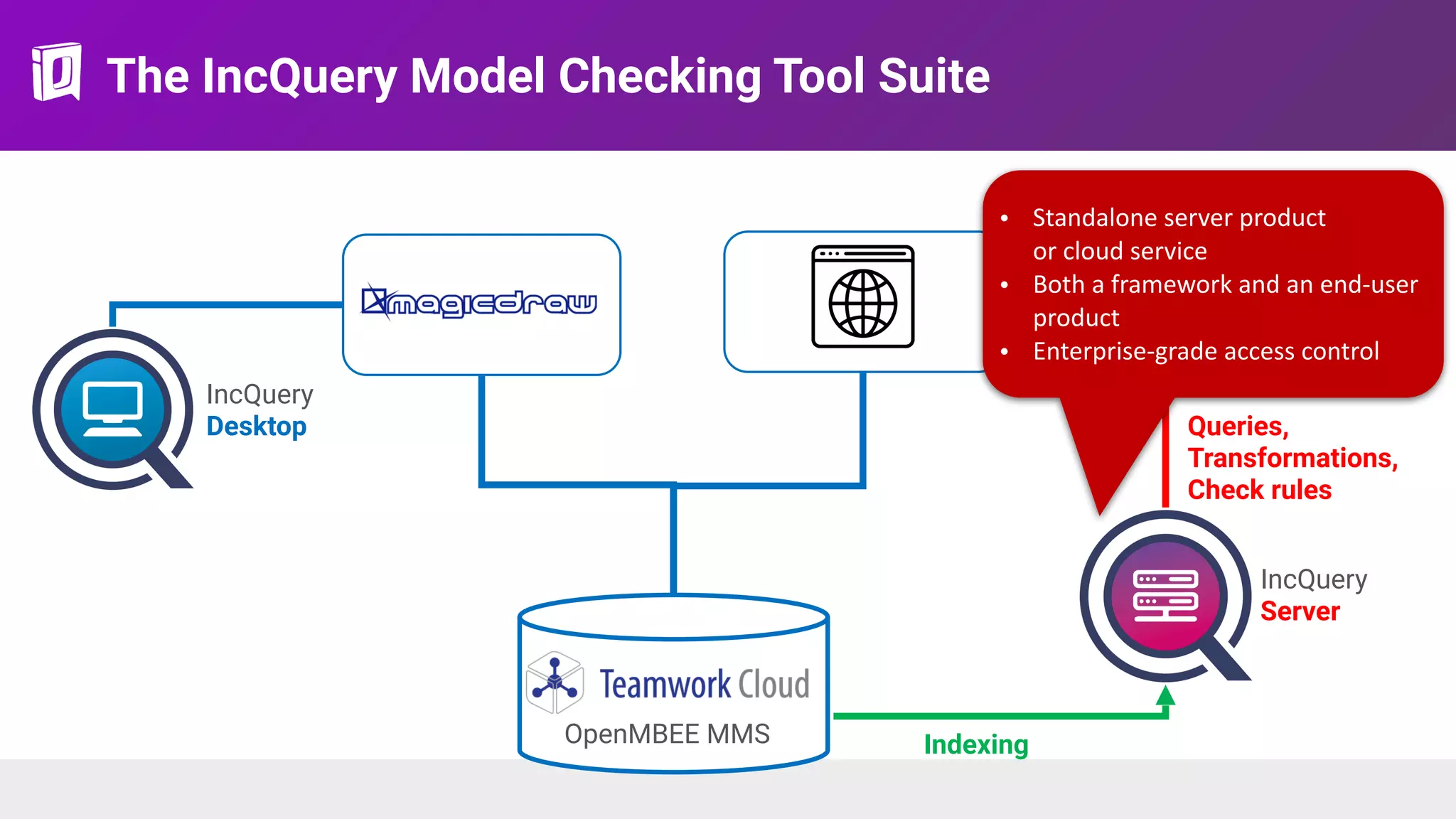

- 8. The IncQuery ModelChecking Tool Suite Indexing Queries, Transformations, Check rules IncQuery Server • Standalone server product or cloud service • Both a framework and an end-user product • Enterprise-grade access control OpenMBEE MMS
- 9. The IncQuery ModelChecking Tool Suite Indexing Queries, Transformations, Check rules IncQuery Server IncQuery Desktop • Standalone server product or cloud service • Both a framework and an end-user product • Enterprise-grade access control OpenMBEE MMS

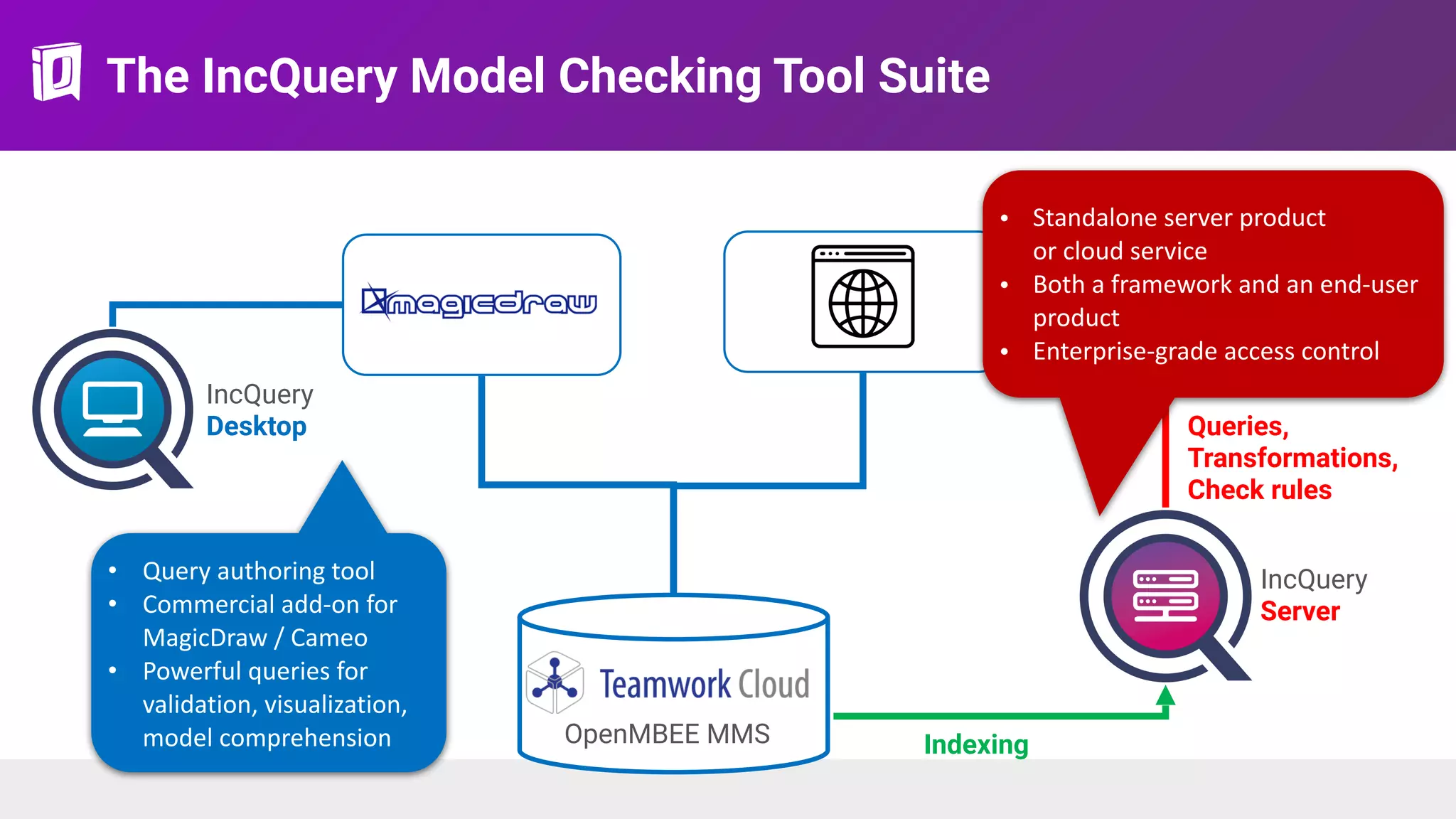

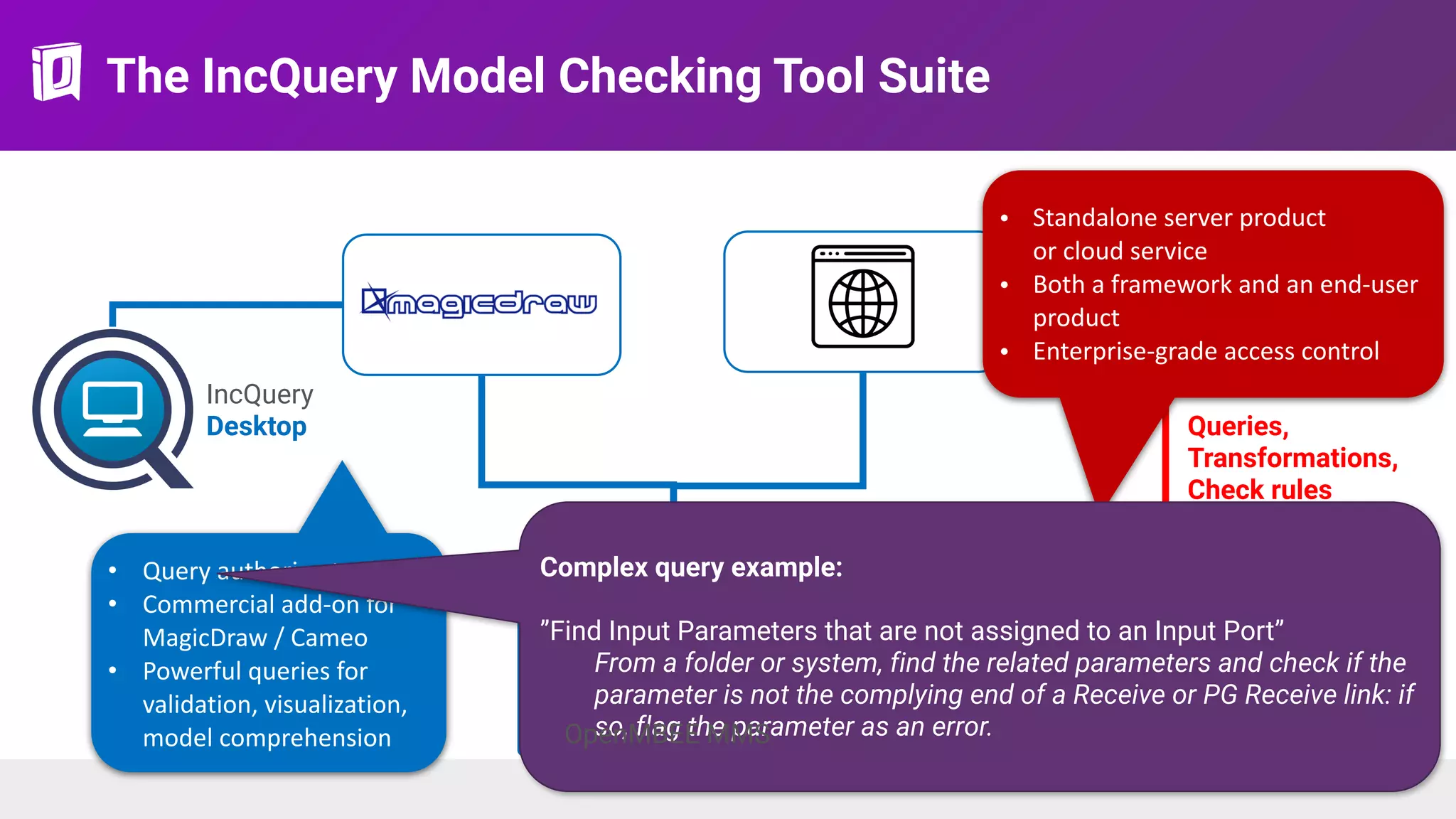

- 10. The IncQuery ModelChecking Tool Suite • Query authoring tool • Commercial add-on for MagicDraw / Cameo • Powerful queries for validation, visualization, model comprehension Indexing Queries, Transformations, Check rules IncQuery Server IncQuery Desktop • Standalone server product or cloud service • Both a framework and an end-user product • Enterprise-grade access control OpenMBEE MMS
- 11. The IncQuery ModelChecking Tool Suite • Query authoring tool • Commercial add-on for MagicDraw / Cameo • Powerful queries for validation, visualization, model comprehension Indexing Queries, Transformations, Check rules IncQuery Server IncQuery Desktop • Standalone server product or cloud service • Both a framework and an end-user product • Enterprise-grade access control Complex query example: ”Find Input Parameters that are not assigned to an Input Port” From a folder or system, find the related parameters and check if the parameter is not the complying end of a Receive or PG Receive link: if so, flag the parameter as an error.OpenMBEE MMS

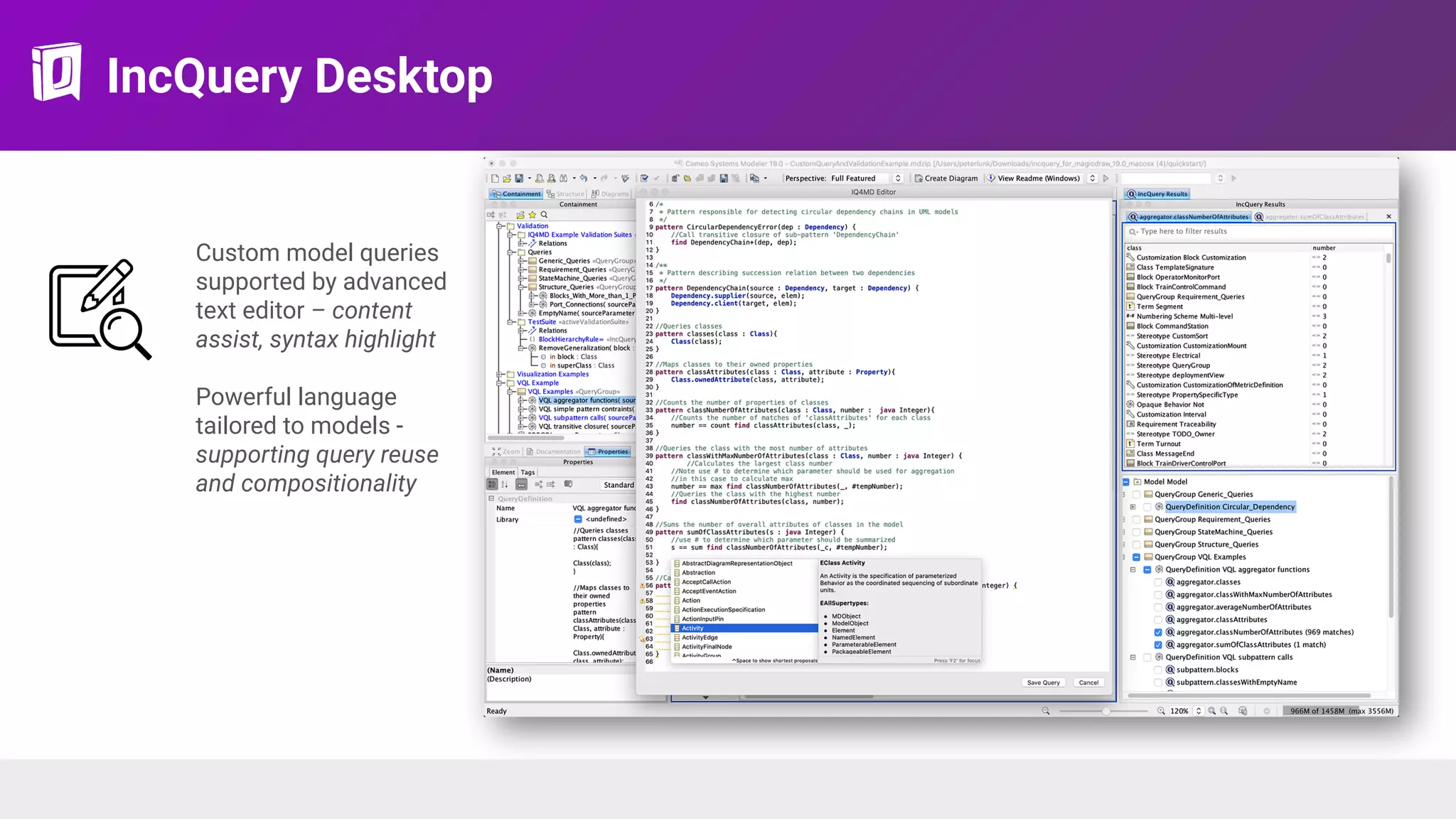

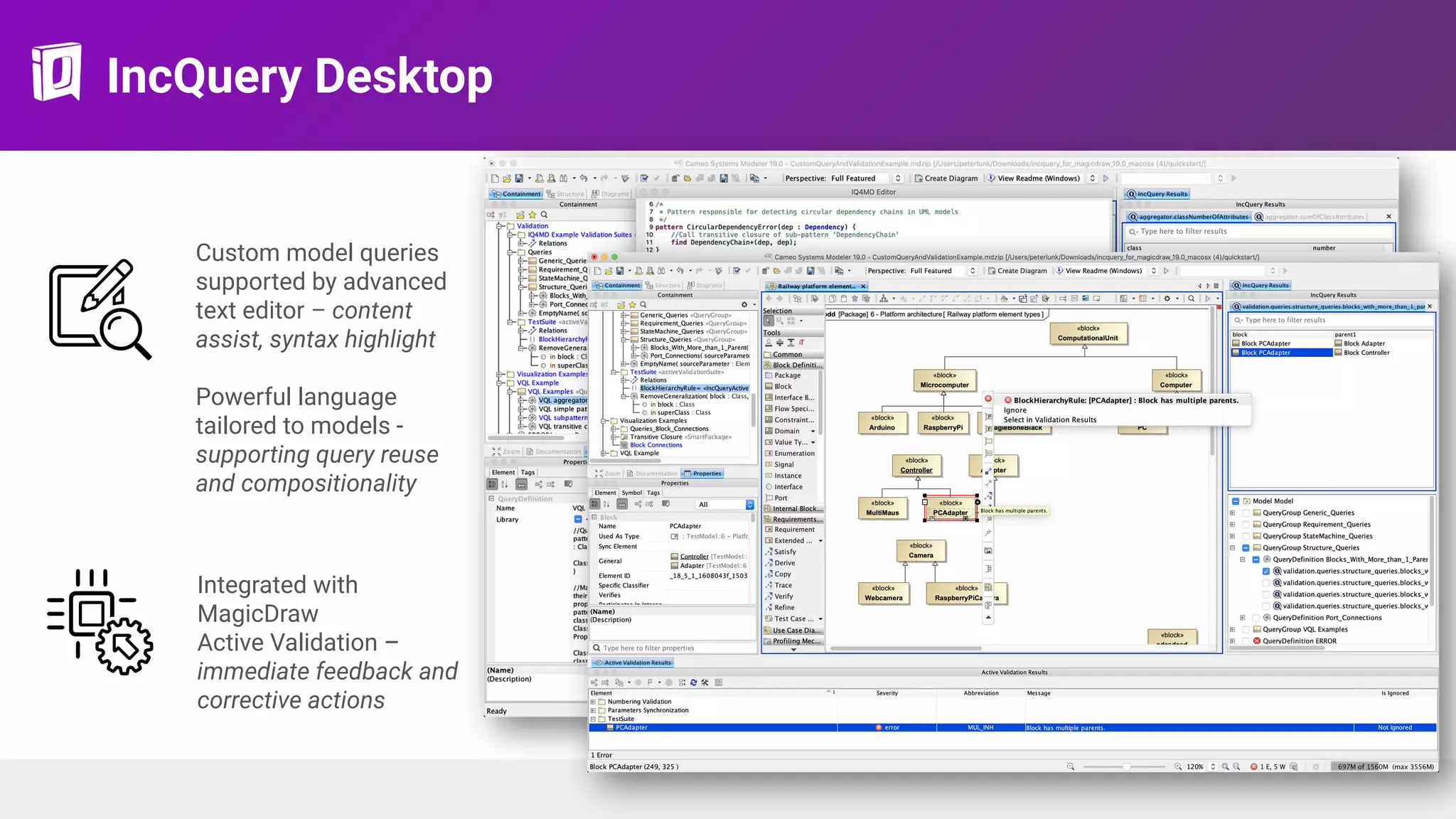

- 12. IncQuery Desktop Custom modelqueries supported by advanced text editor – content assist, syntax highlight Powerful language tailored to models - supporting query reuse and compositionality
- 13. IncQuery Desktop Custom modelqueries supported by advanced text editor – content assist, syntax highlight Powerful language tailored to models - supporting query reuse and compositionality Integrated with MagicDraw Active Validation – immediate feedback and corrective actions

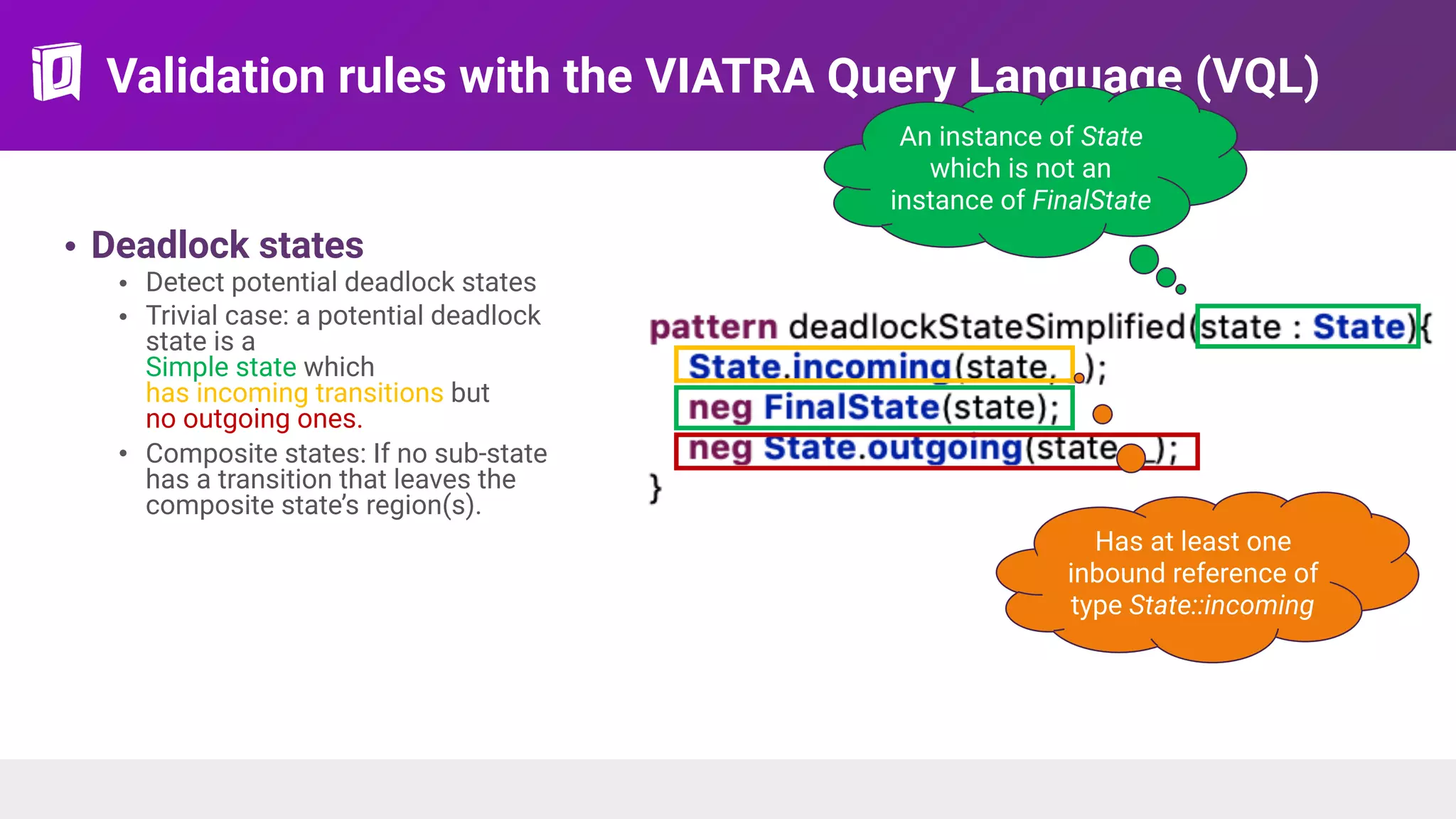

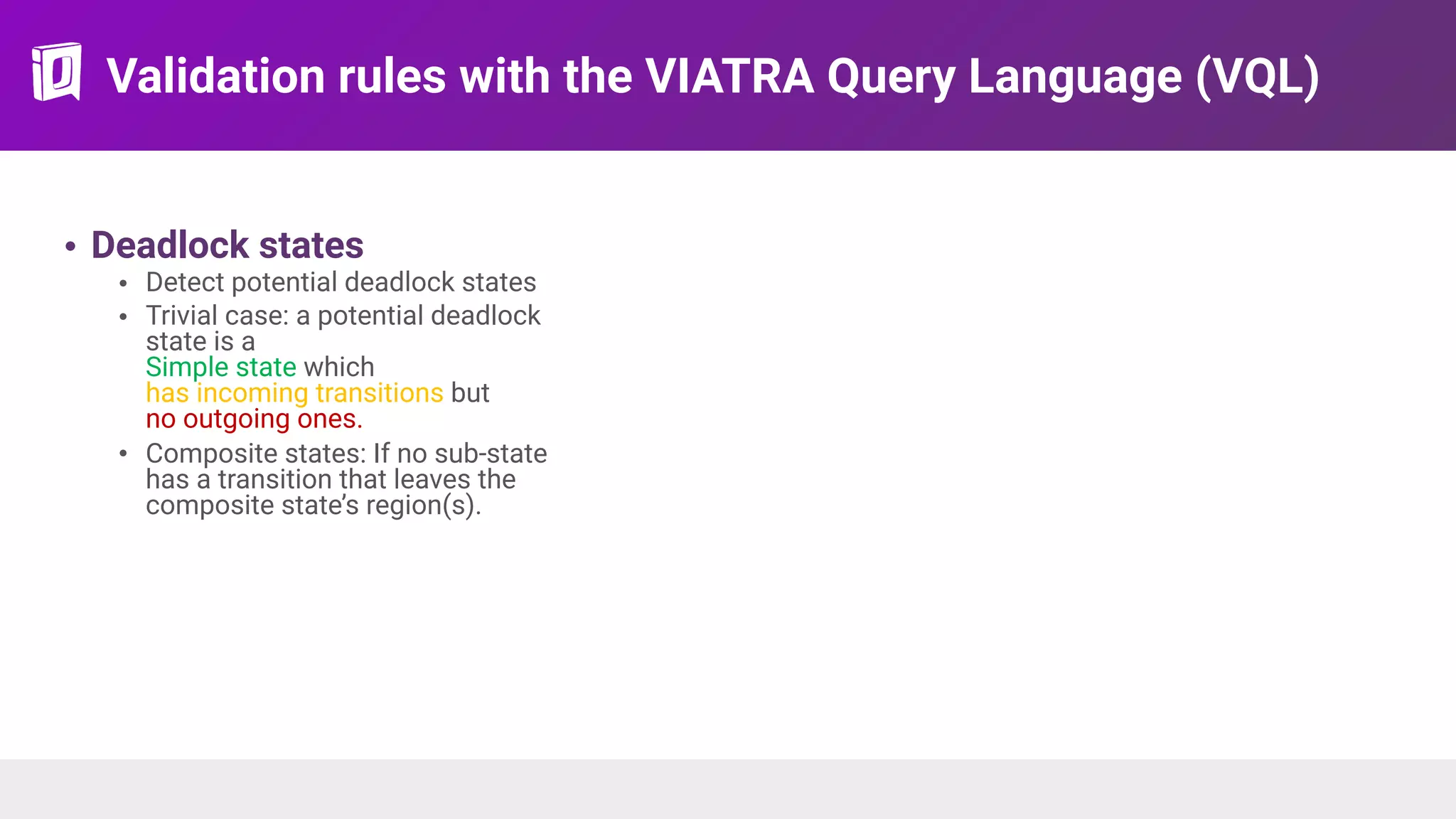

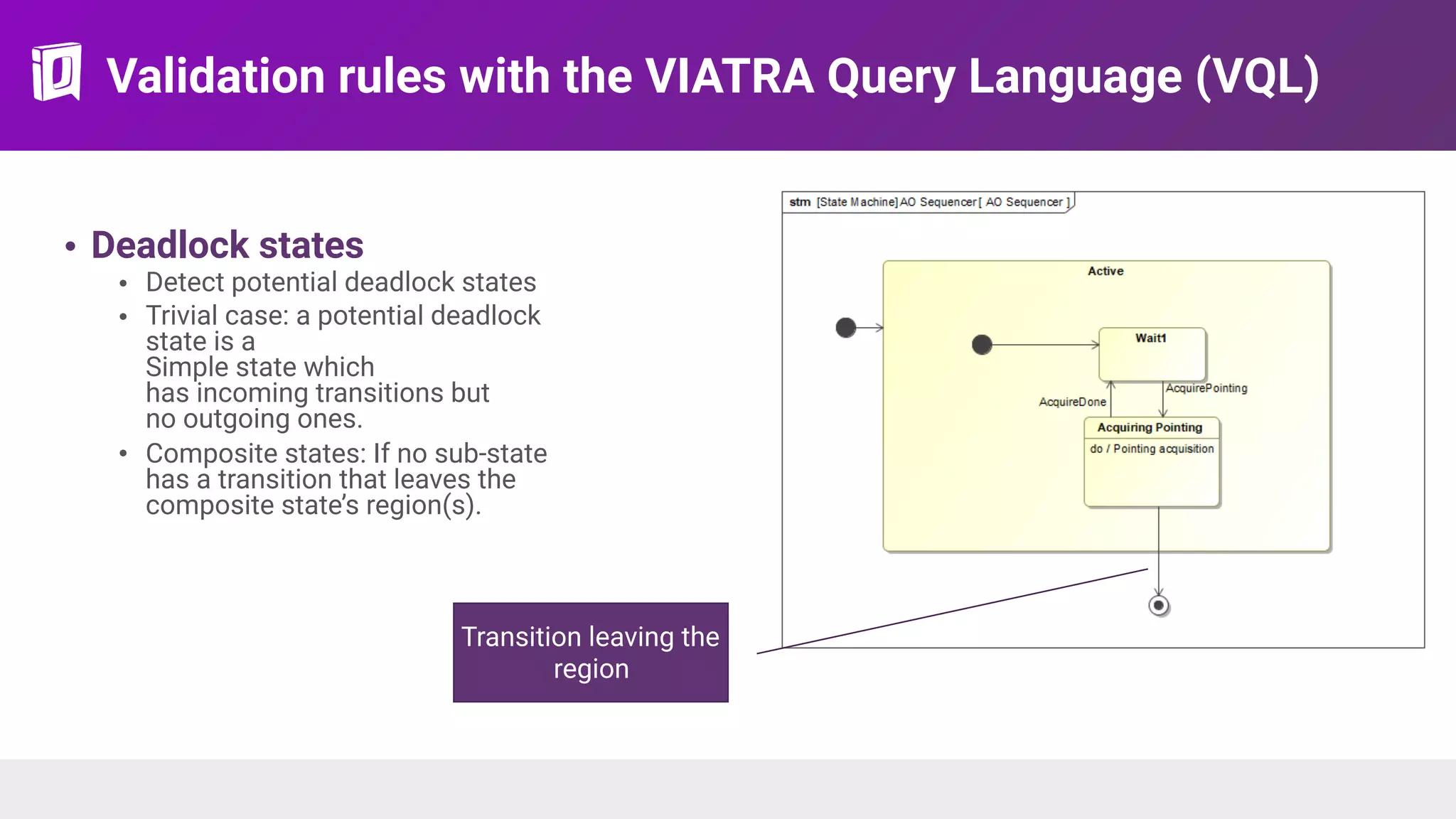

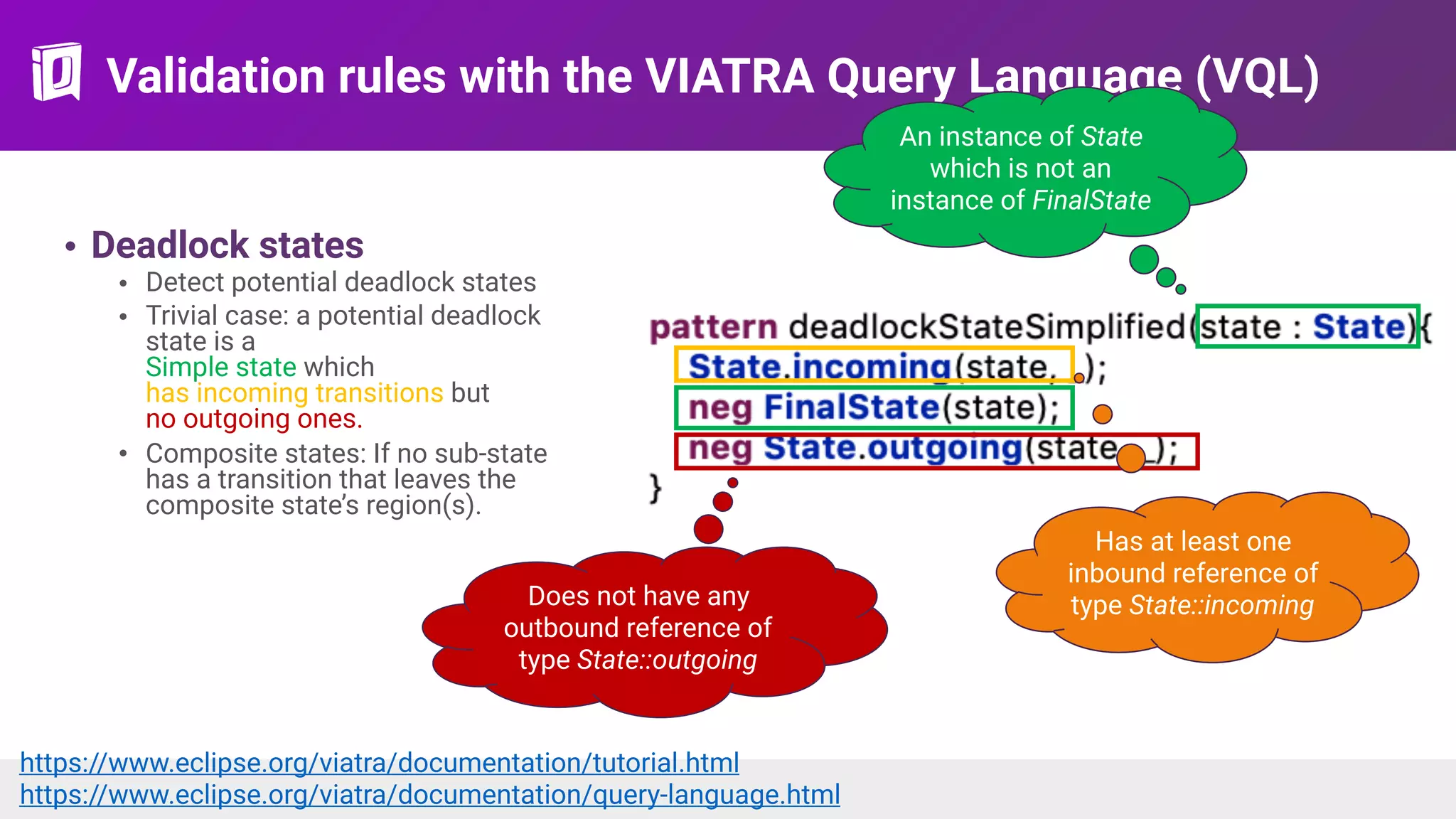

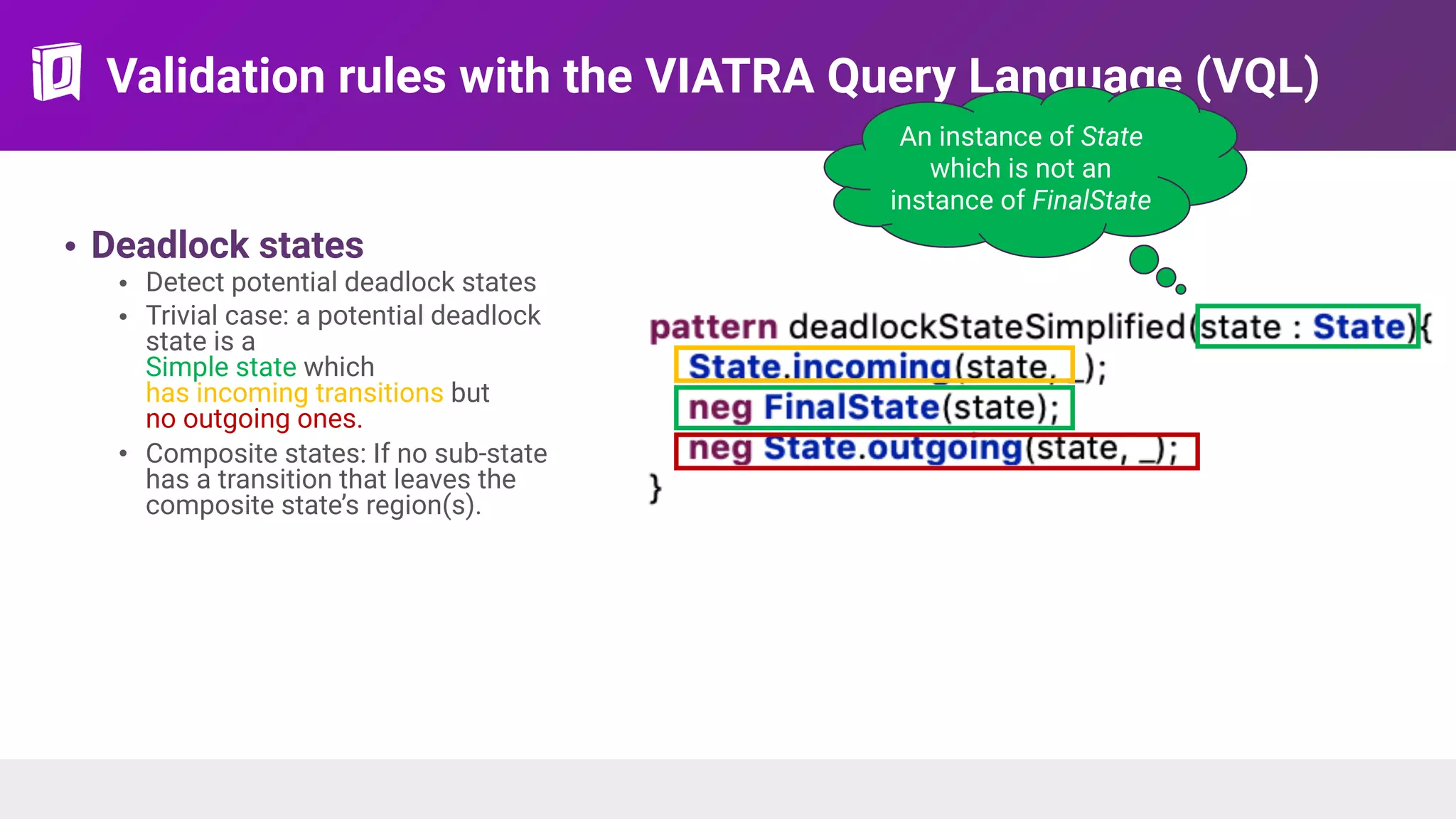

- 14. Validation rules withthe VIATRA Query Language (VQL) • Deadlock states • Detect potential deadlock states • Trivial case: a potential deadlock state is a Simple state which has incoming transitions but no outgoing ones. • Composite states: If no sub-state has a transition that leaves the composite state’s region(s). Transition leaving the region

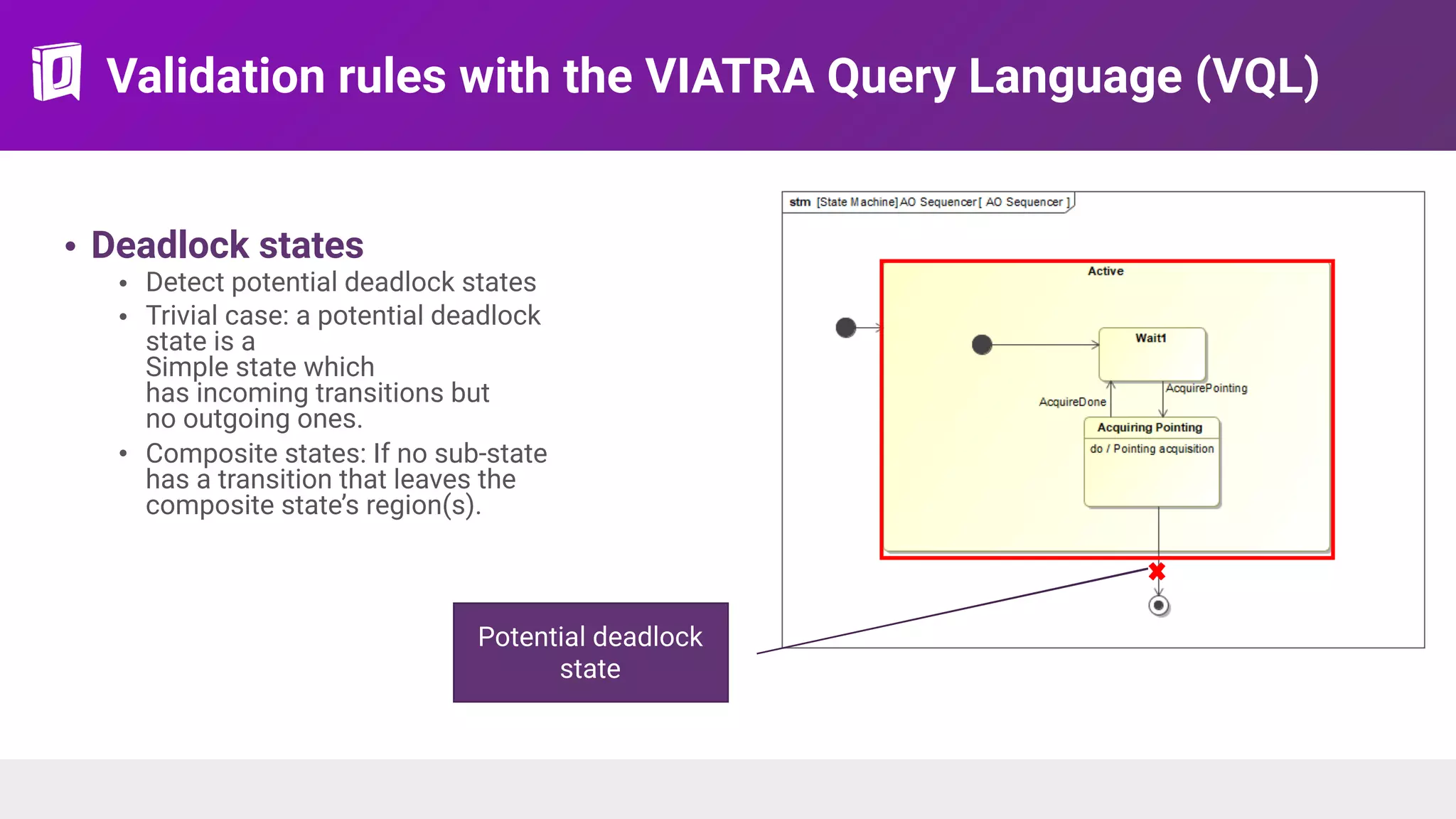

- 15. Validation rules withthe VIATRA Query Language (VQL) • Deadlock states • Detect potential deadlock states • Trivial case: a potential deadlock state is a Simple state which has incoming transitions but no outgoing ones. • Composite states: If no sub-state has a transition that leaves the composite state’s region(s). Transition leaving the region Potential deadlock state

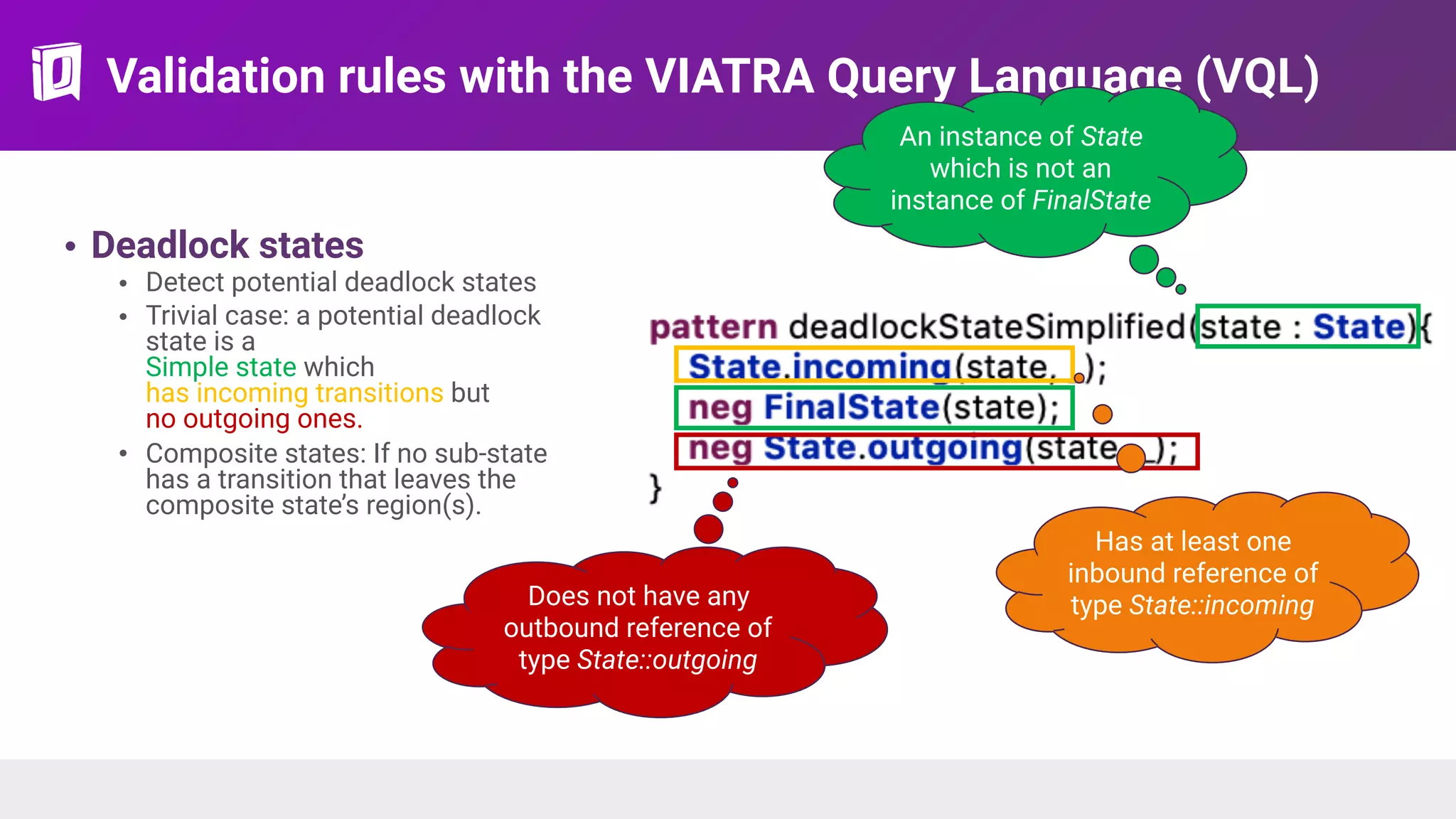

- 16. Validation rules withthe VIATRA Query Language (VQL) • Deadlock states • Detect potential deadlock states • Trivial case: a potential deadlock state is a Simple state which has incoming transitions but no outgoing ones. • Composite states: If no sub-state has a transition that leaves the composite state’s region(s).

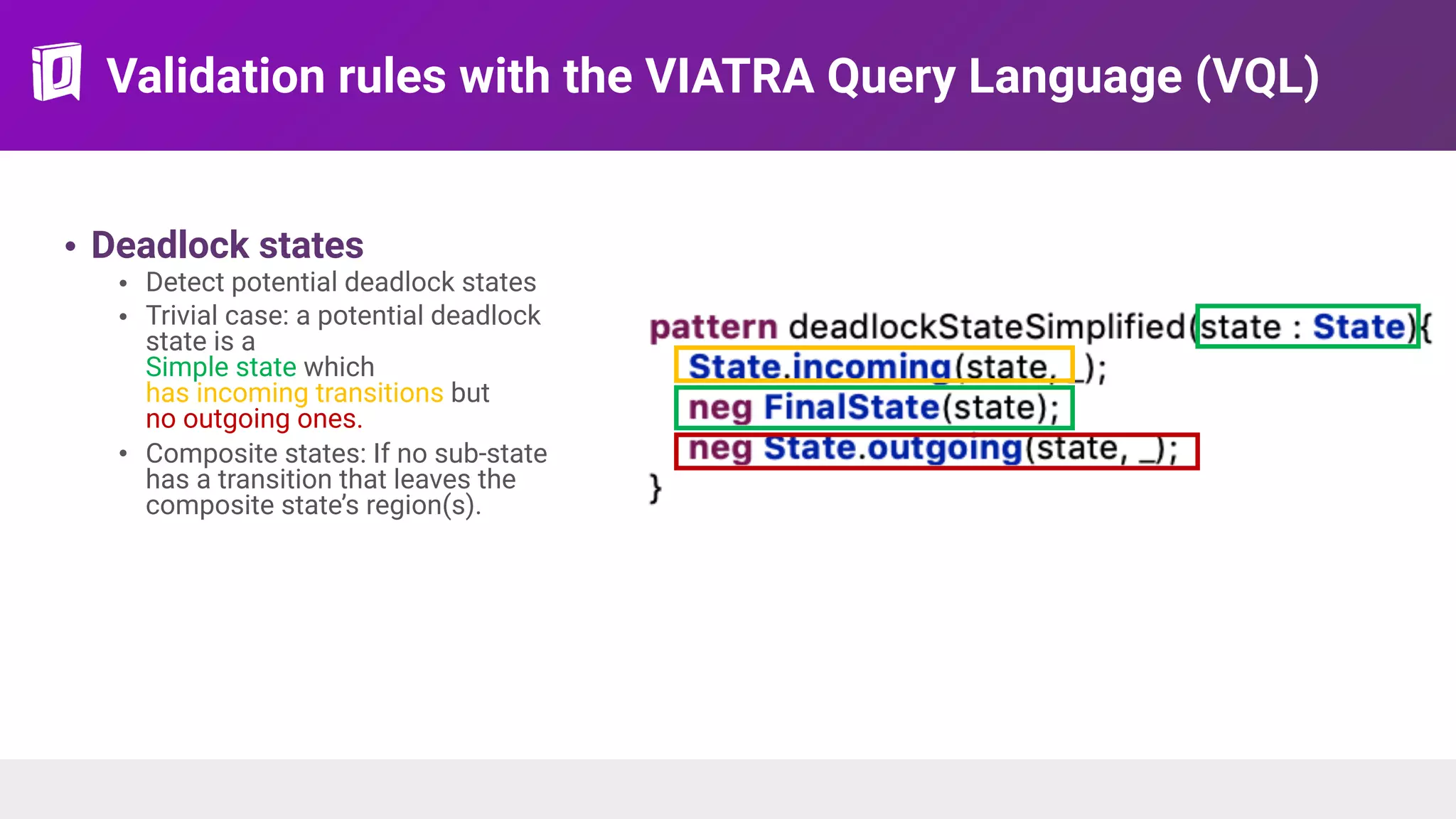

- 17. Validation rules withthe VIATRA Query Language (VQL) • Deadlock states • Detect potential deadlock states • Trivial case: a potential deadlock state is a Simple state which has incoming transitions but no outgoing ones. • Composite states: If no sub-state has a transition that leaves the composite state’s region(s).
- 18. Validation rules withthe VIATRA Query Language (VQL) • Deadlock states • Detect potential deadlock states • Trivial case: a potential deadlock state is a Simple state which has incoming transitions but no outgoing ones. • Composite states: If no sub-state has a transition that leaves the composite state’s region(s). An instance of State which is not an instance of FinalState
- 19. Validation rules withthe VIATRA Query Language (VQL) • Deadlock states • Detect potential deadlock states • Trivial case: a potential deadlock state is a Simple state which has incoming transitions but no outgoing ones. • Composite states: If no sub-state has a transition that leaves the composite state’s region(s). An instance of State which is not an instance of FinalState Has at least one inbound reference of type State::incoming
- 20. Validation rules withthe VIATRA Query Language (VQL) • Deadlock states • Detect potential deadlock states • Trivial case: a potential deadlock state is a Simple state which has incoming transitions but no outgoing ones. • Composite states: If no sub-state has a transition that leaves the composite state’s region(s). An instance of State which is not an instance of FinalState Has at least one inbound reference of type State::incomingDoes not have any outbound reference of type State::outgoing
- 21. Validation rules withthe VIATRA Query Language (VQL) • Deadlock states • Detect potential deadlock states • Trivial case: a potential deadlock state is a Simple state which has incoming transitions but no outgoing ones. • Composite states: If no sub-state has a transition that leaves the composite state’s region(s). An instance of State which is not an instance of FinalState Has at least one inbound reference of type State::incomingDoes not have any outbound reference of type State::outgoing https://www.eclipse.org/viatra/documentation/tutorial.html https://www.eclipse.org/viatra/documentation/query-language.html

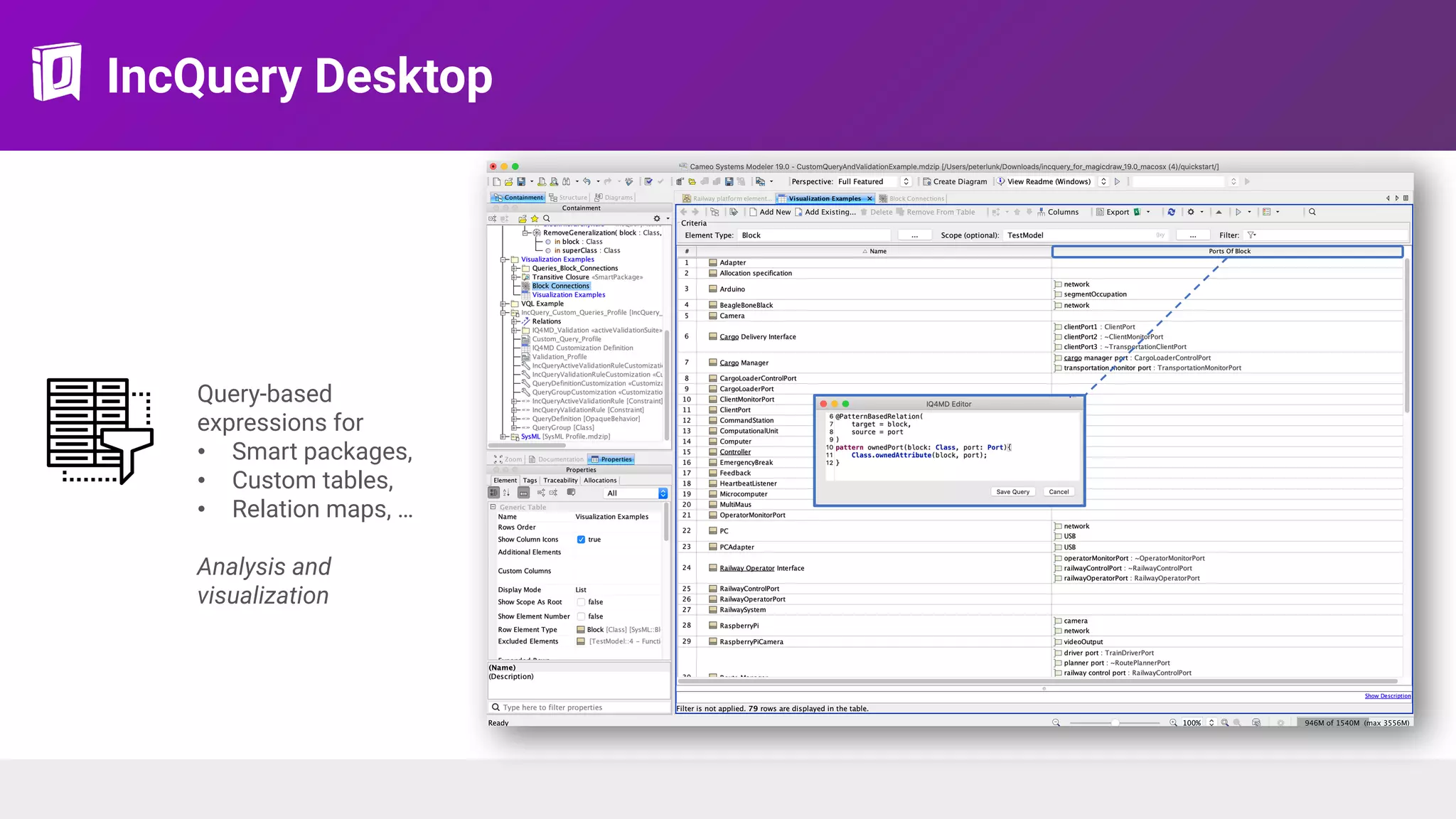

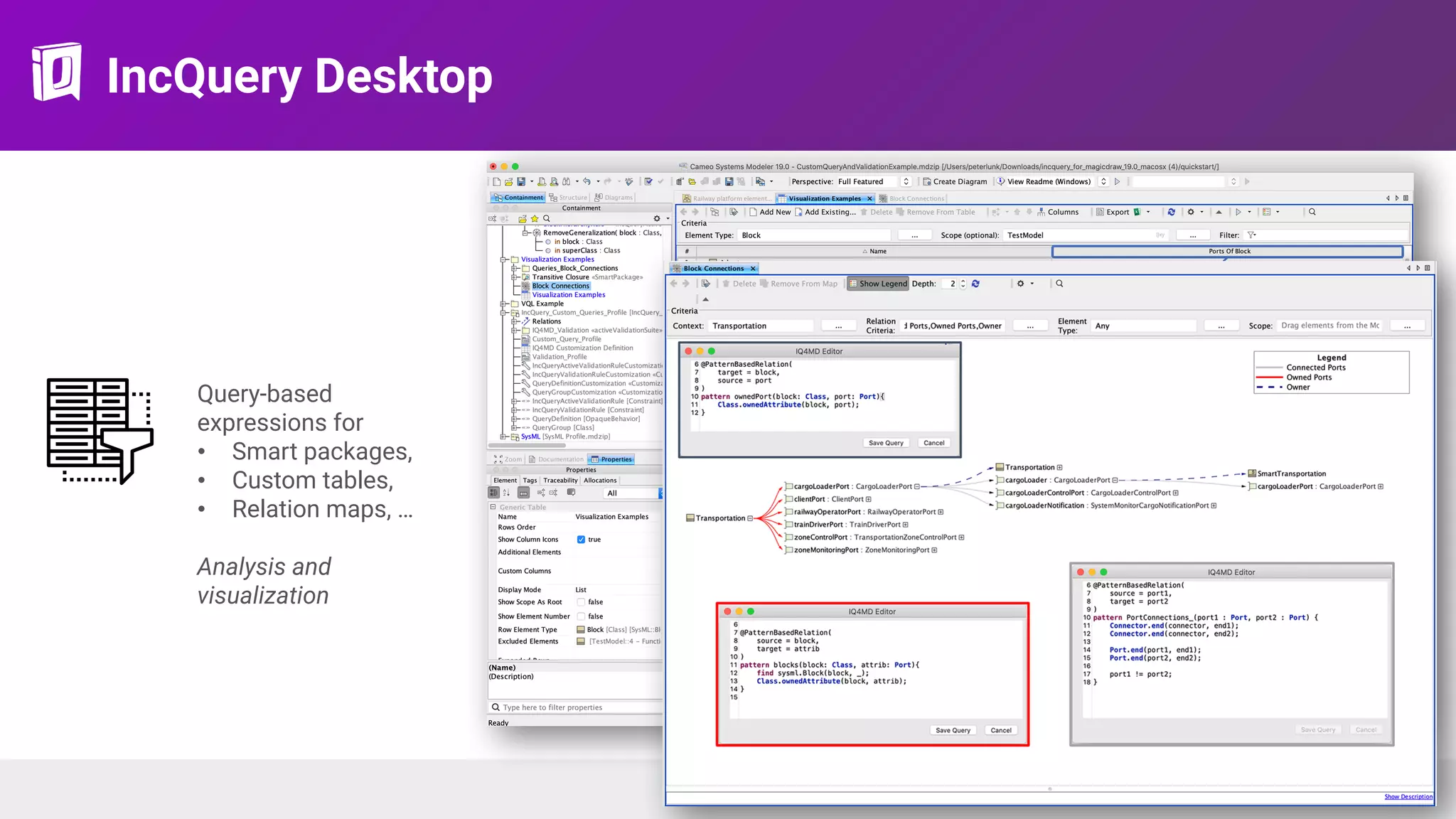

- 22. IncQuery Desktop Query-based expressionsfor • Smart packages, • Custom tables, • Relation maps, … Analysis and visualization
- 23. IncQuery Desktop Query-based expressionsfor • Smart packages, • Custom tables, • Relation maps, … Analysis and visualization

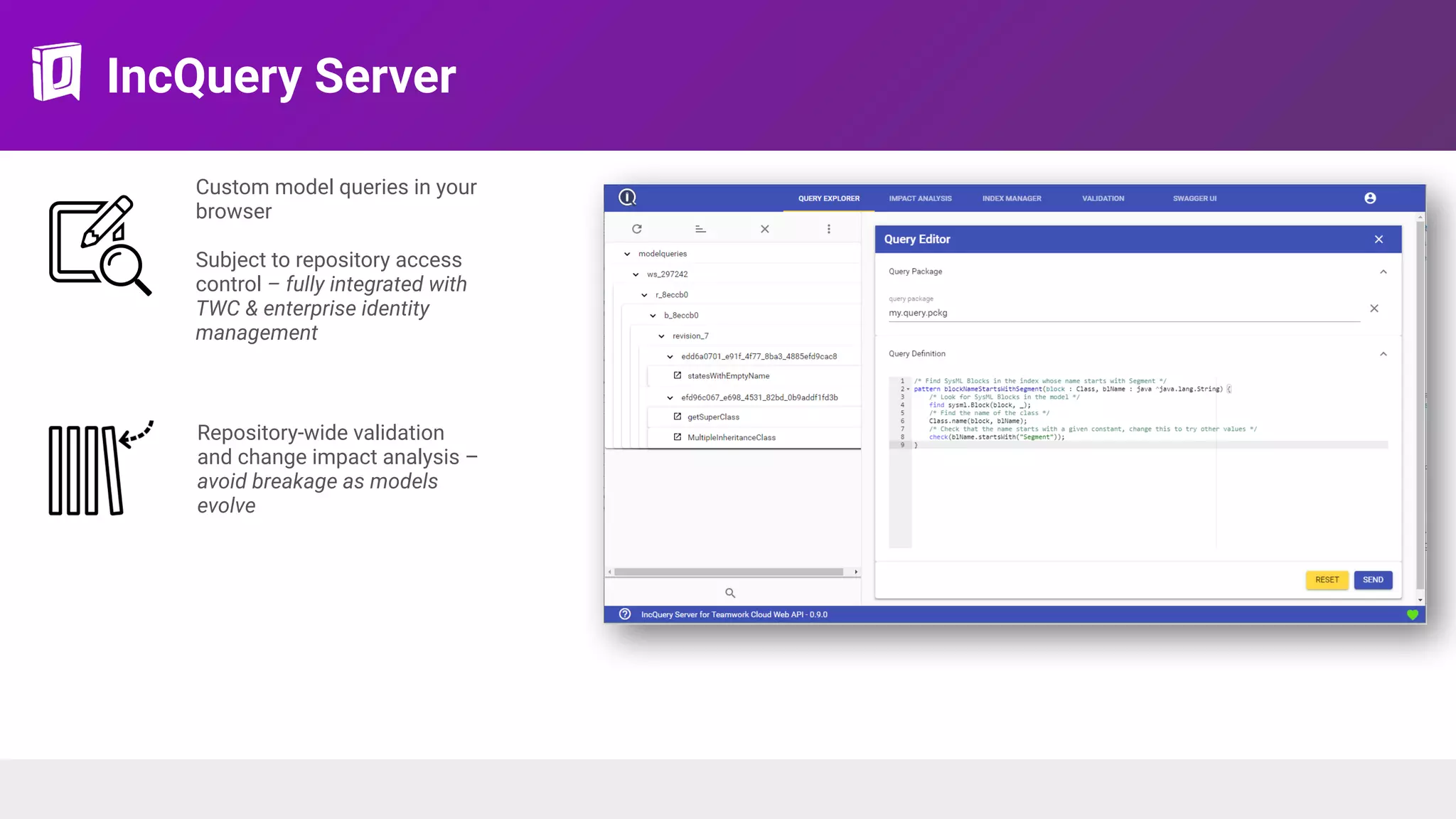

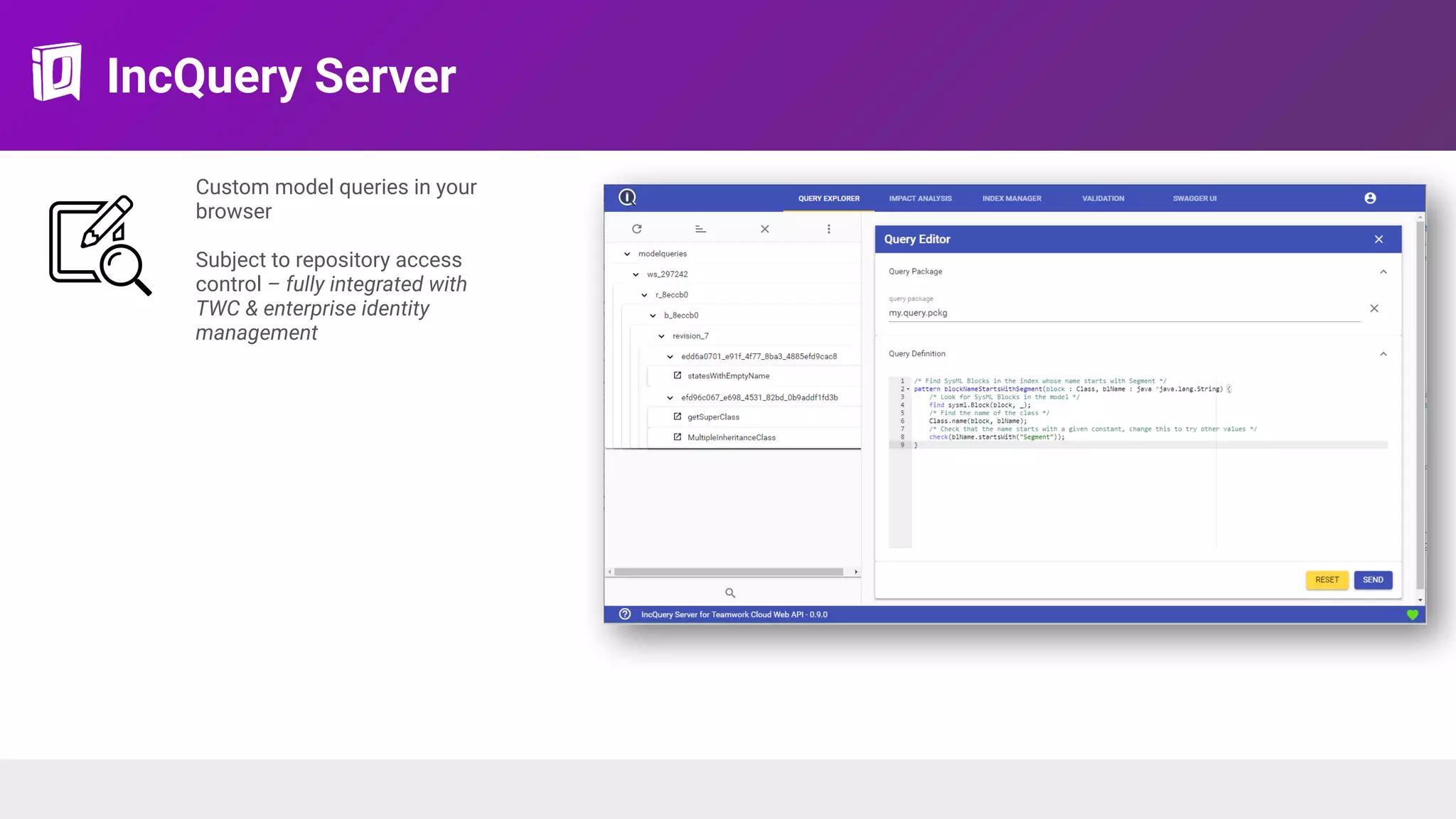

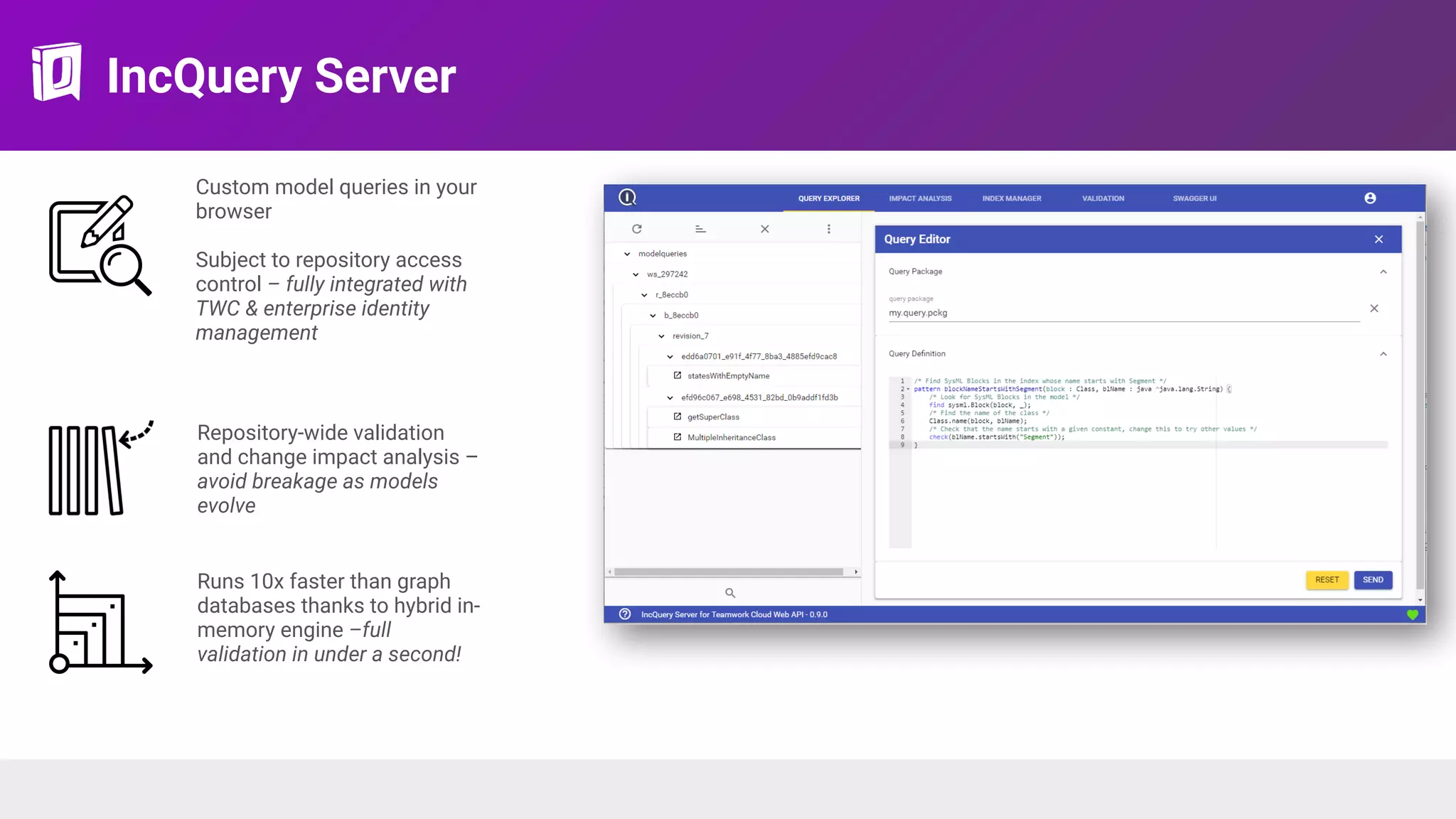

- 24. IncQuery Server Custom modelqueries in your browser Subject to repository access control – fully integrated with TWC & enterprise identity management
- 25. IncQuery Server Custom modelqueries in your browser Subject to repository access control – fully integrated with TWC & enterprise identity management Repository-wide validation and change impact analysis – avoid breakage as models evolve

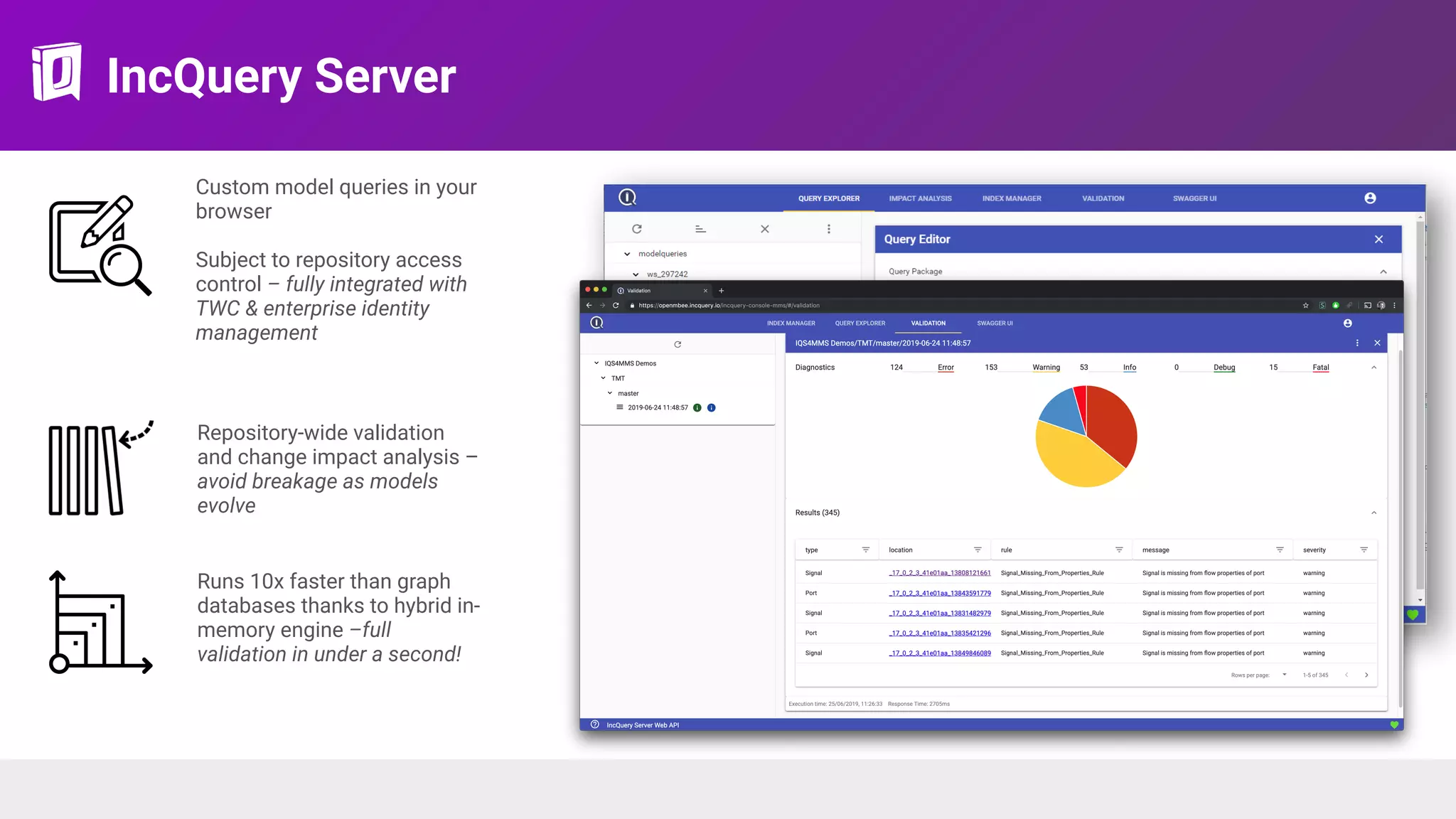

- 26. IncQuery Server Custom modelqueries in your browser Subject to repository access control – fully integrated with TWC & enterprise identity management Runs 10x faster than graph databases thanks to hybrid in- memory engine –full validation in under a second! Repository-wide validation and change impact analysis – avoid breakage as models evolve
- 27. IncQuery Server Custom modelqueries in your browser Subject to repository access control – fully integrated with TWC & enterprise identity management Runs 10x faster than graph databases thanks to hybrid in- memory engine –full validation in under a second! Repository-wide validation and change impact analysis – avoid breakage as models evolve

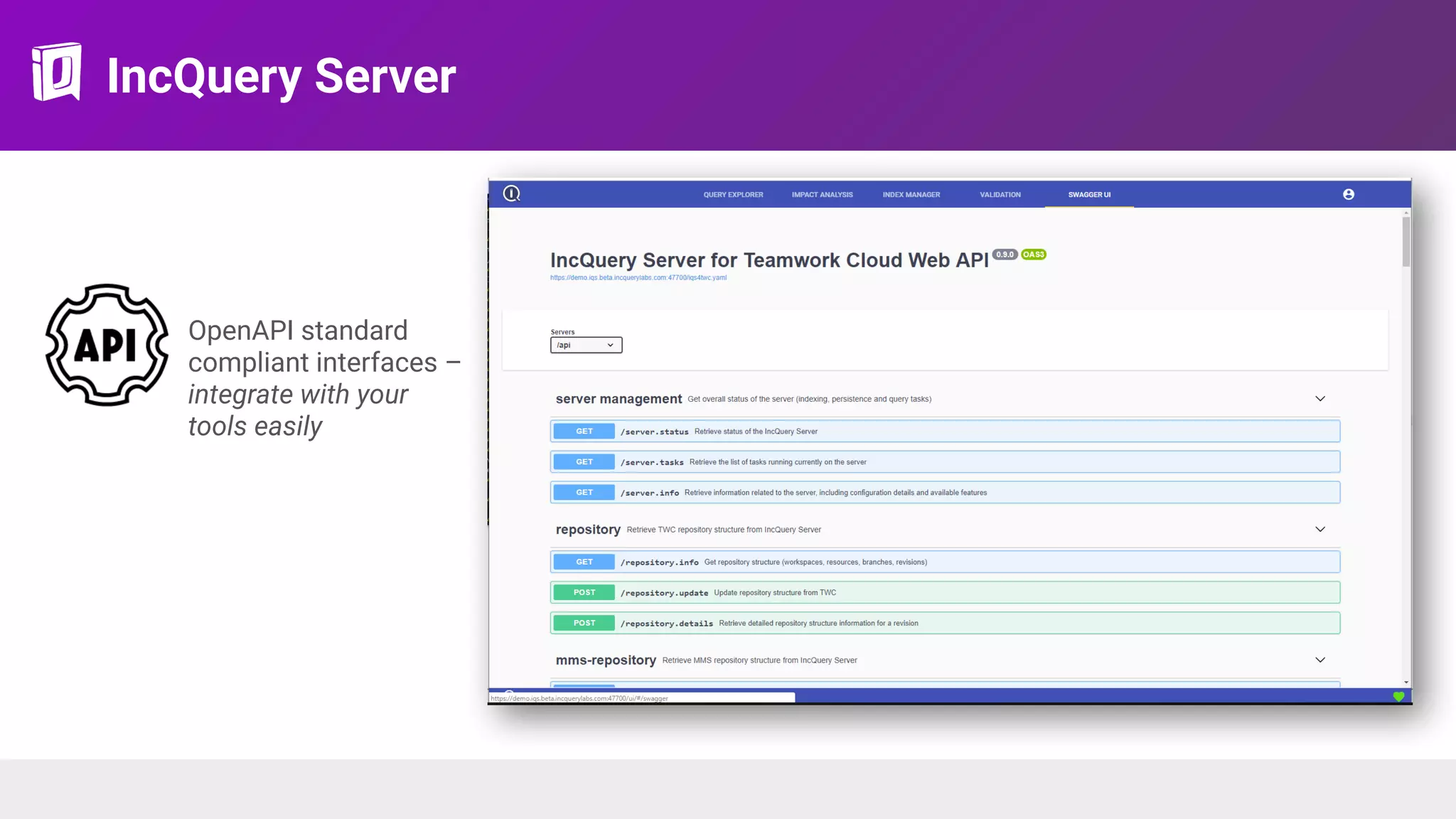

- 28. IncQuery Server OpenAPI standard compliant interfaces – integrate with your tools easily

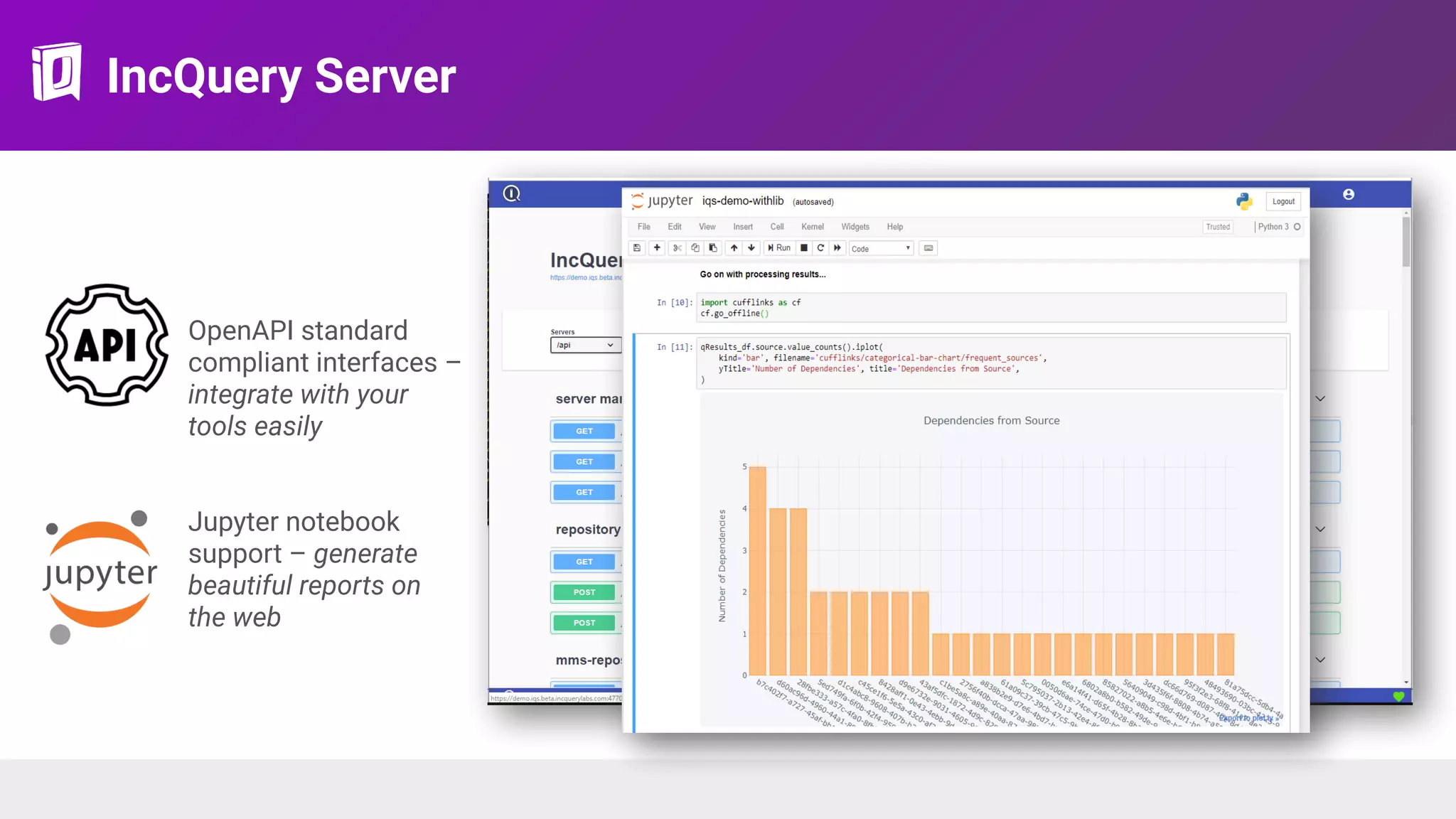

- 29. IncQuery Server OpenAPI standard compliant interfaces – integrate with your tools easily Jupyter notebook support – generate beautiful reports on the web
- 30. Case study: Tool integrationat Airbus • Thousands of applications • Across several verticals • engineering, manufacturing, extended enterprise, customer service, … • ADAM by A^3 (Advanced Digital, Design and Manufacturing) • An integration platform to enable data continuity across all Airbus applications • Conceptual framework addressing 5 layers Data Semantics Models Services Visualization

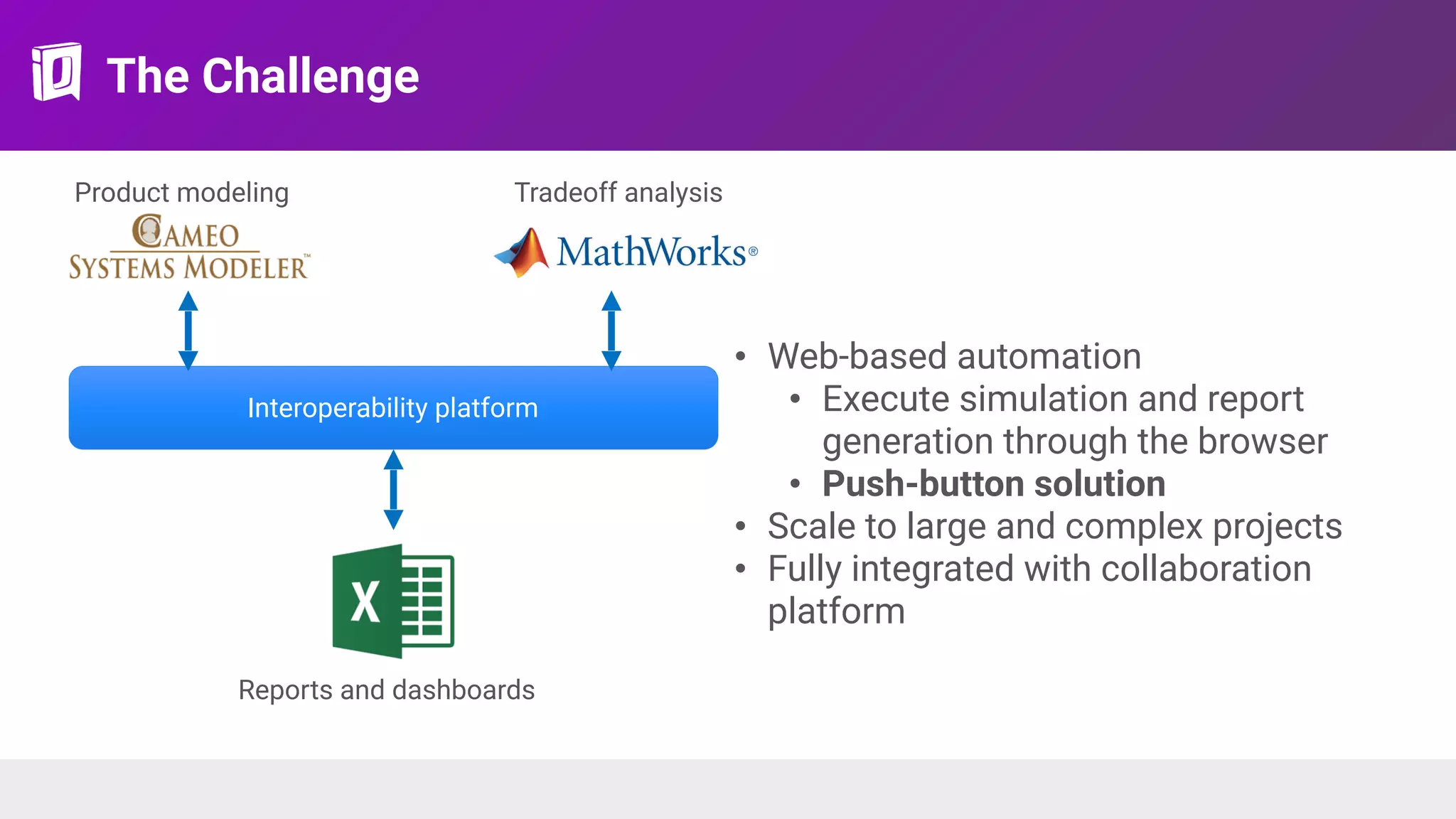

- 31. The Challenge Interoperability platform Productmodeling Reports and dashboards Tradeoff analysis • Web-based automation • Execute simulation and report generation through the browser • Push-button solution • Scale to large and complex projects • Fully integrated with collaboration platform

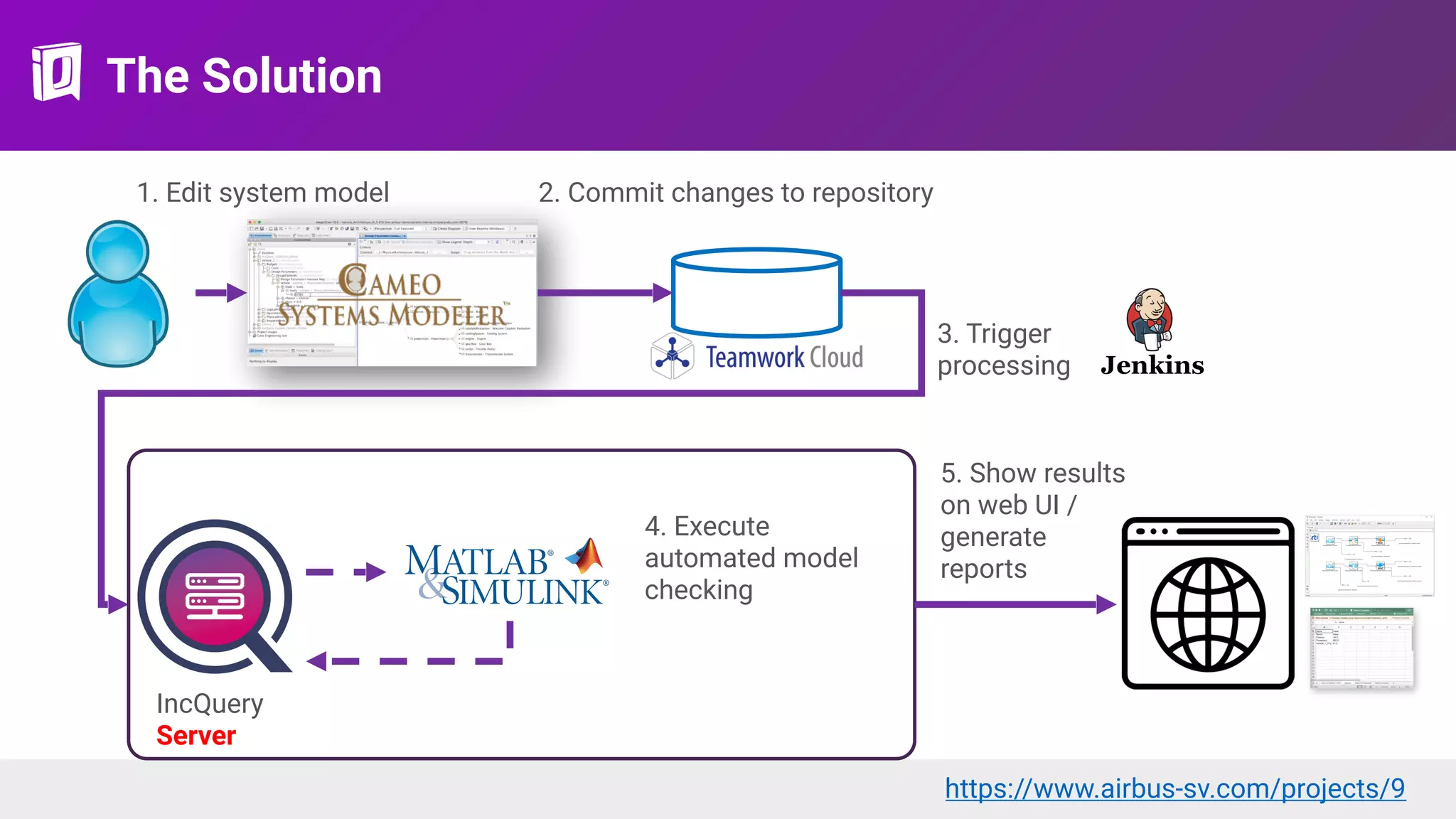

- 32. The Solution 1. Editsystem model 2. Commit changes to repository 3. Trigger processing IncQuery Server 5. Show results on web UI / generate reports 4. Execute automated model checking https://www.airbus-sv.com/projects/9

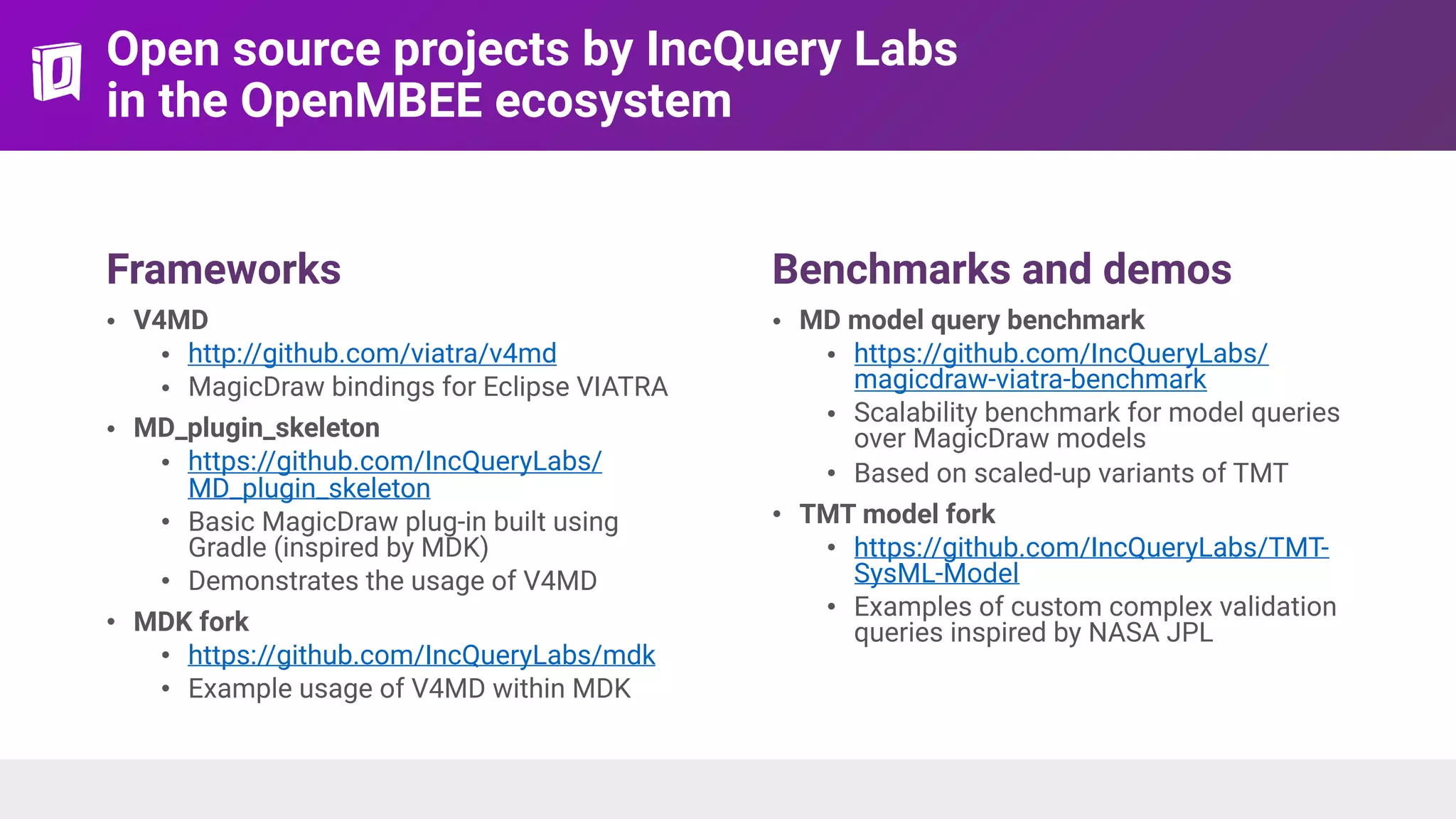

- 33. Open source projectsby IncQuery Labs in the OpenMBEE ecosystem Frameworks • V4MD • http://github.com/viatra/v4md • MagicDraw bindings for Eclipse VIATRA • MD_plugin_skeleton • https://github.com/IncQueryLabs/ MD_plugin_skeleton • Basic MagicDraw plug-in built using Gradle (inspired by MDK) • Demonstrates the usage of V4MD • MDK fork • https://github.com/IncQueryLabs/mdk • Example usage of V4MD within MDK Benchmarks and demos • MD model query benchmark • https://github.com/IncQueryLabs/ magicdraw-viatra-benchmark • Scalability benchmark for model queries over MagicDraw models • Based on scaled-up variants of TMT • TMT model fork • https://github.com/IncQueryLabs/TMT- SysML-Model • Examples of custom complex validation queries inspired by NASA JPL

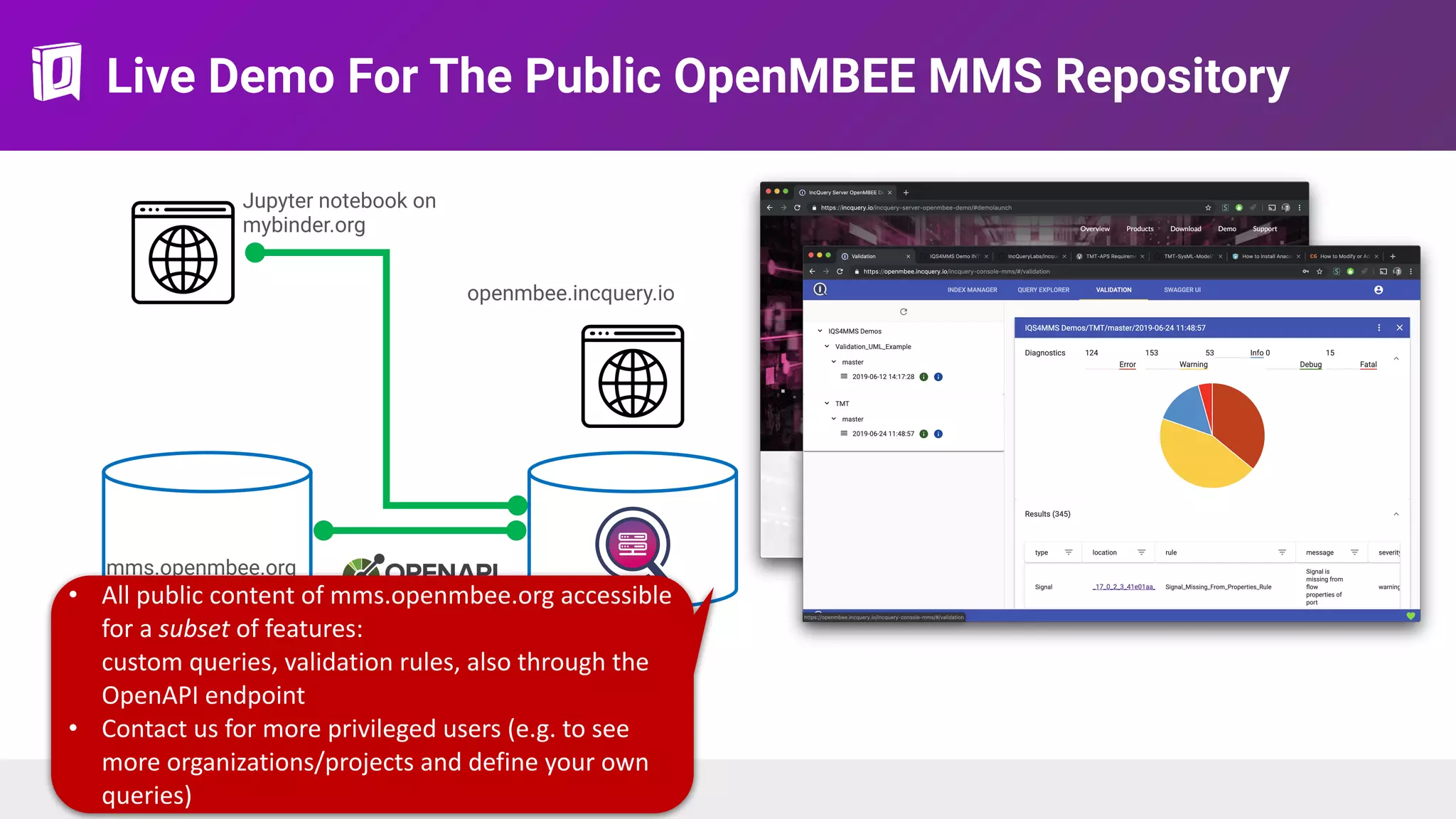

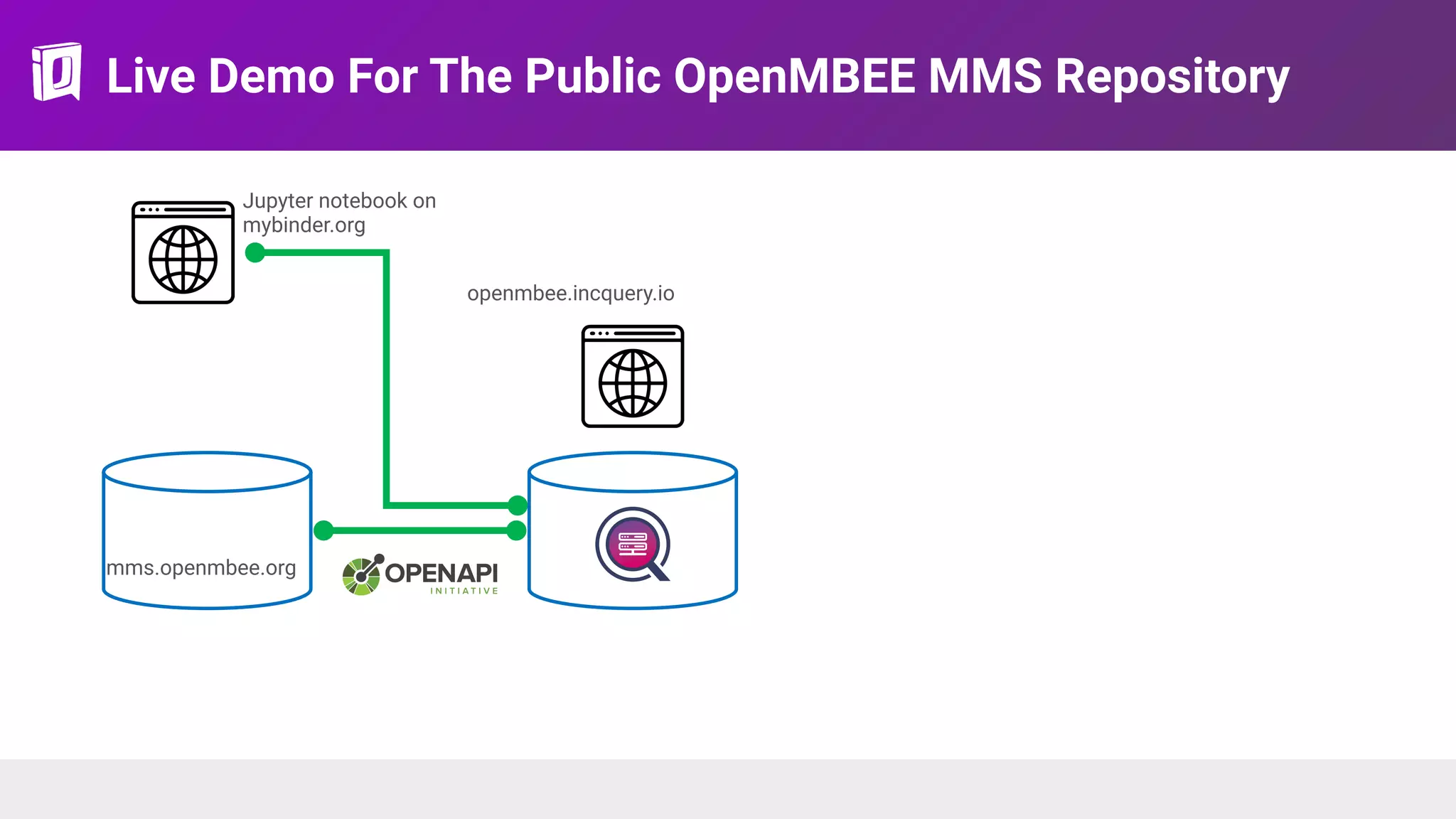

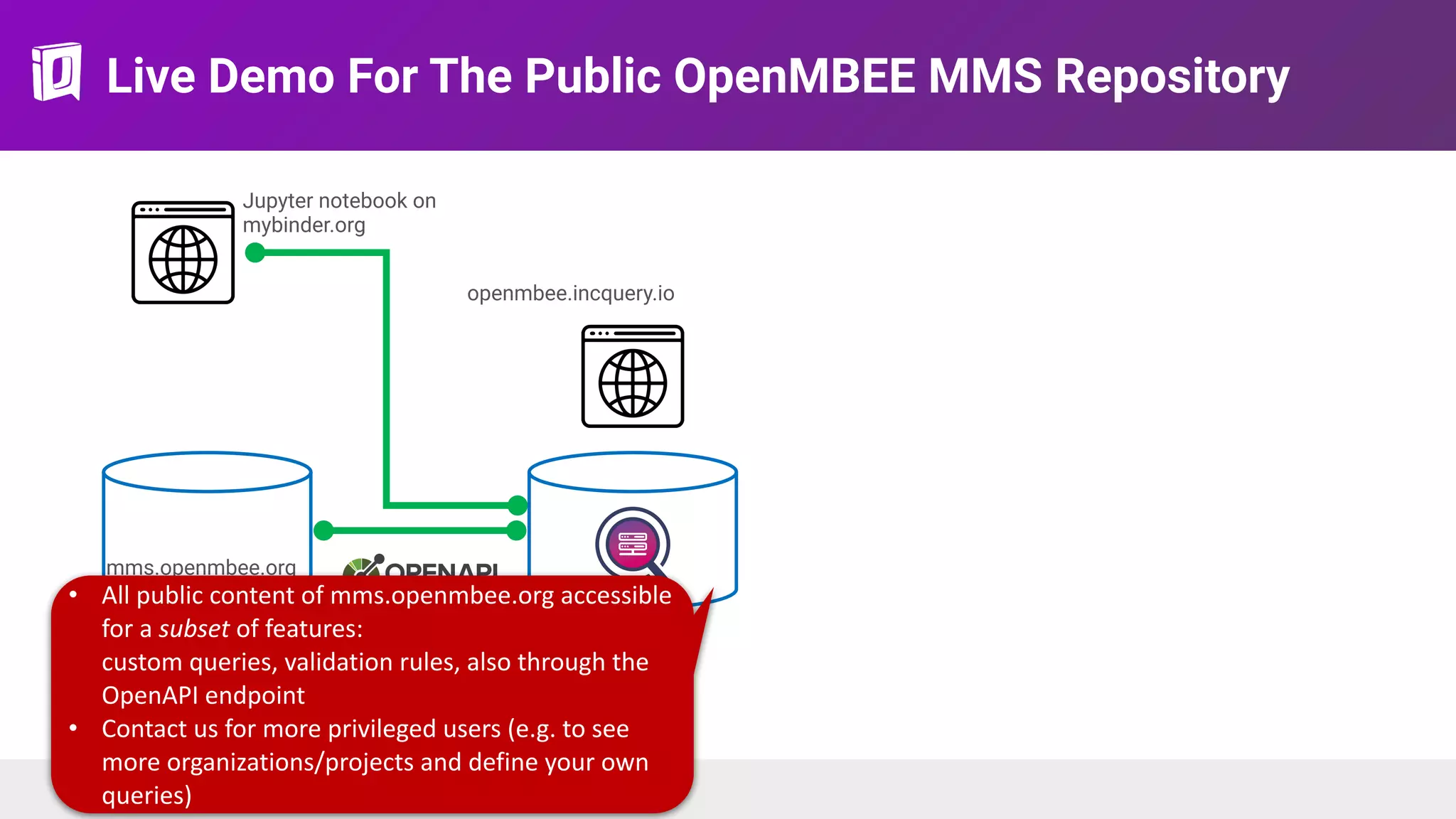

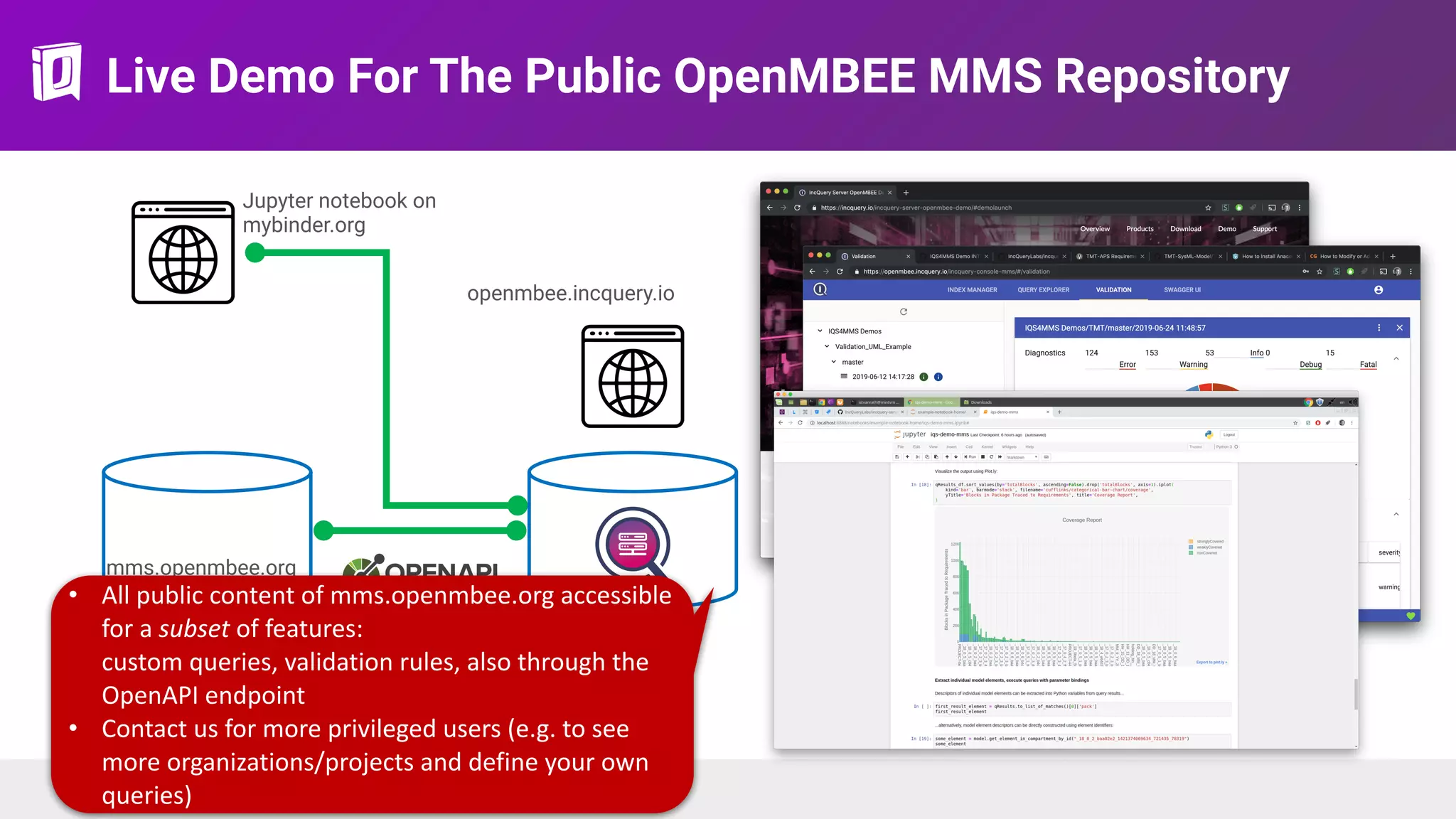

- 34. Live Demo ForThe Public OpenMBEE MMS Repository mms.openmbee.org openmbee.incquery.io Jupyter notebook on mybinder.org

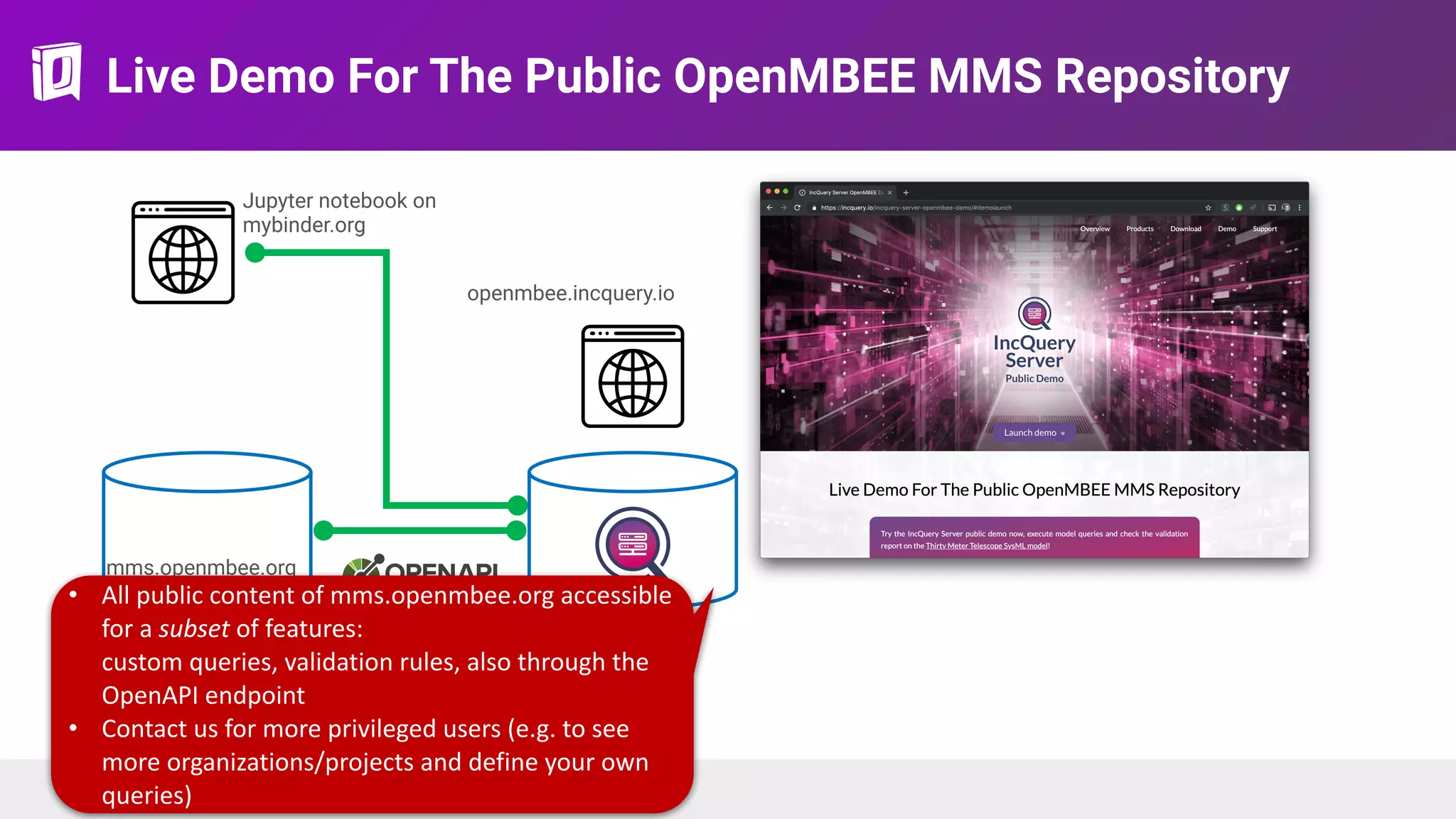

- 35. Live Demo ForThe Public OpenMBEE MMS Repository mms.openmbee.org openmbee.incquery.io Jupyter notebook on mybinder.org • All public content of mms.openmbee.org accessible for a subset of features: custom queries, validation rules, also through the OpenAPI endpoint • Contact us for more privileged users (e.g. to see more organizations/projects and define your own queries)
- 36. Live Demo ForThe Public OpenMBEE MMS Repository mms.openmbee.org openmbee.incquery.io Jupyter notebook on mybinder.org • All public content of mms.openmbee.org accessible for a subset of features: custom queries, validation rules, also through the OpenAPI endpoint • Contact us for more privileged users (e.g. to see more organizations/projects and define your own queries)
- 37. Live Demo ForThe Public OpenMBEE MMS Repository mms.openmbee.org openmbee.incquery.io Jupyter notebook on mybinder.org • All public content of mms.openmbee.org accessible for a subset of features: custom queries, validation rules, also through the OpenAPI endpoint • Contact us for more privileged users (e.g. to see more organizations/projects and define your own queries)
- 38. Live Demo ForThe Public OpenMBEE MMS Repository mms.openmbee.org openmbee.incquery.io Jupyter notebook on mybinder.org • All public content of mms.openmbee.org accessible for a subset of features: custom queries, validation rules, also through the OpenAPI endpoint • Contact us for more privileged users (e.g. to see more organizations/projects and define your own queries)

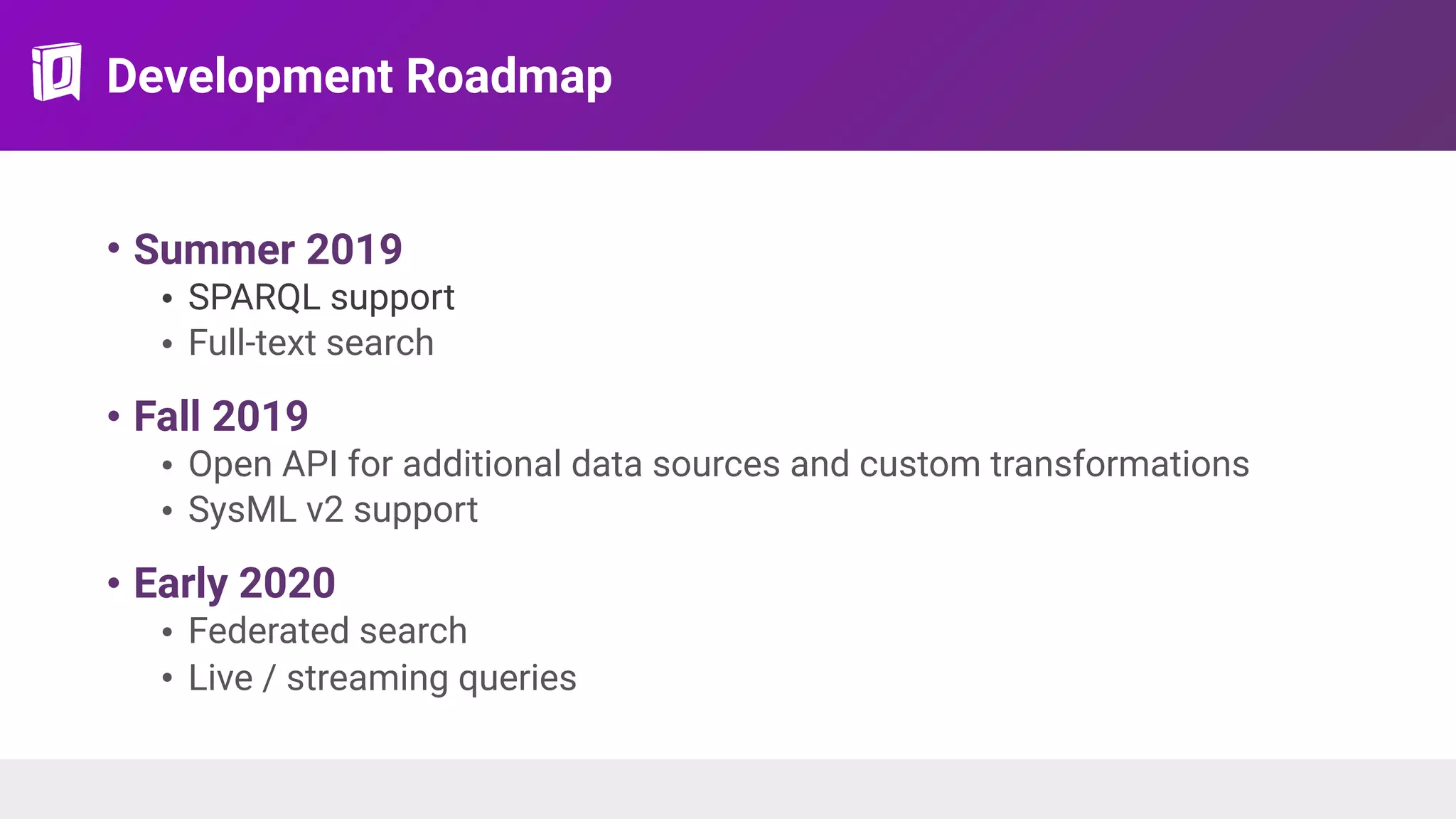

- 39. Development Roadmap • Summer2019 • SPARQL support • Full-text search • Fall 2019 • Open API for additional data sources and custom transformations • SysML v2 support • Early 2020 • Federated search • Live / streaming queries

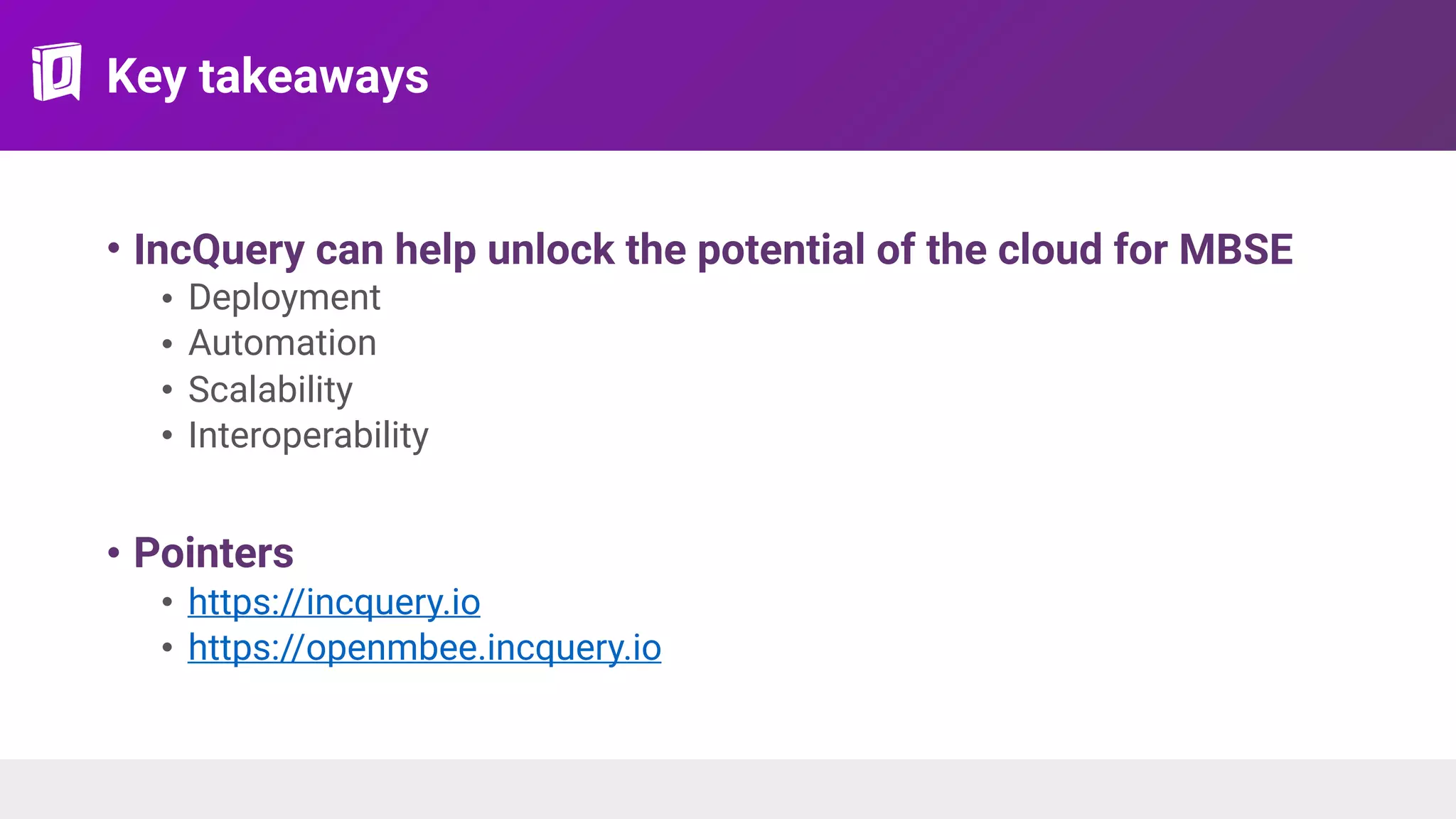

- 40. Key takeaways • IncQuerycan help unlock the potential of the cloud for MBSE • Deployment • Automation • Scalability • Interoperability • Pointers • https://incquery.io • https://openmbee.incquery.io
