VIATRA 2.0 Webinar
Eclipse VIATRA 2.0 presents significant advancements in model transformations and design tools for systems engineering, incorporating features like a reactive query and transformation engine as well as improved performance and memory efficiency. Noteworthy enhancements include a faster VQL compiler, reduced runtime memory usage by up to 80%, and better integration with Java. New capabilities also support complex event processing and design space exploration while maintaining a commitment to backward compatibility with earlier versions.
More Related Content
Similar to VIATRA 2.0 Webinar
![20260201 [FOSDEM] gomodjail - library sandboxing for Go modules.pdf](https://cdn.slidesharecdn.com/ss_thumbnails/20260201fosdemgomodjail-librarysandboxingforgomodules-260201225659-76609ec4-thumbnail.jpg?width=640&height=640&fit=bounds)
![谷歌留痕技术教程[ 𝙩𝙤𝙥 𝟮𝟯𝟯. 𝙘 𝙤𝙢 ]](https://cdn.slidesharecdn.com/ss_thumbnails/top233-260130173900-2eb784f9-thumbnail.jpg?width=640&height=640&fit=bounds)
VIATRA 2.0 Webinar
- 1. What's new inEclipse VIATRA 2.0 Dr. István RÁTH Managing Director IncQuery Labs Ltd.

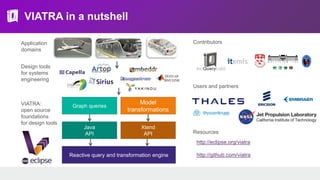

- 2. VIATRA in anutshell Model transformations Application domains Design tools for systems engineering Java API Xtend API Graph queries Reactive query and transformation engine VIATRA: open source foundations for design tools http://eclipse.org/viatra http://github.com/viatra Contributors Users and partners Resources

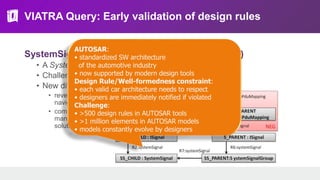

- 3. VIATRA Query: Earlyvalidation of design rules SystemSignalGroup design rule (from AUTOSAR) • A SystemSignal and its group must be in the same IPdu • Challenge: find violations quickly in large models • New difficulties • reverse navigation • complex manual solution AUTOSAR: • standardized SW architecture of the automotive industry • now supported by modern design tools Design Rule/Well-formedness constraint: • each valid car architecture needs to respect • designers are immediately notified if violated Challenge: • >500 design rules in AUTOSAR tools • >1 million elements in AUTOSAR models • models constantly evolve by designers

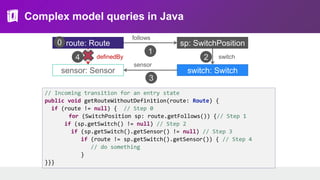

- 4. route: Route sp:SwitchPosition switch: Switchsensor: Sensor follows switch sensor definedBy Complex model queries in Java 1 2 0 3 4 // Incoming transition for an entry state public void getRouteWithoutDefinition(route: Route) { if (route != null) { // Step 0 for (SwitchPosition sp: route.getFollows()) {// Step 1 if (sp.getSwitch() != null) // Step 2 if (sp.getSwitch().getSensor() != null) // Step 3 if (route != sp.getSwitch().getSensor()) { // Step 4 // do something } }}}

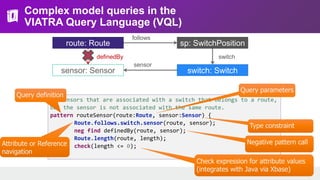

- 5. Complex model queriesin the VIATRA Query Language (VQL) // Sensors that are associated with a switch that belongs to a route, but the sensor is not associated with the same route. pattern routeSensor(route:Route, sensor:Sensor) { Route.follows.switch.sensor(route, sensor); neg find definedBy(route, sensor); Route.length(route, length); check(length <= 0); } Negative pattern call Query definition Query parameters Type constraint Attribute or Reference navigation route: Route sp: SwitchPosition switch: Switchsensor: Sensor follows switch sensor definedBy Check expression for attribute values (integrates with Java via Xbase)

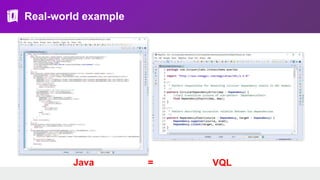

- 6.

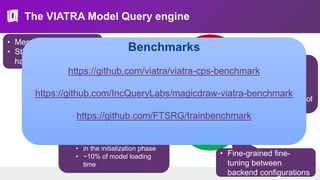

- 7. The VIATRA ModelQuery engine Query back-ends Live Search- based Hybrid • Performance-first • Indexing • in the initialization phase • ~10% of model loading time • Memory efficient • Still much faster than handwritten Java • Blazing fast (<10ms) • Query result change notifications • Requires more memory (+20-70% tool footprint) • Fine-grained fine- tuning between backend configurations Benchmarks https://github.com/viatra/viatra-cps-benchmark https://github.com/IncQueryLabs/magicdraw-viatra-benchmark https://github.com/FTSRG/trainbenchmark
- 8. Model Transformation andCode Generation Source Model Target CodeCode DOM/AST M2M M2T Model-to-Model (M2M) Transformation • SRC: In-memory model (objects) • TRG: In-memory model (objects) Model-to-Text (M2T) Transformation • SRC: In-memory model (objects) • TRG: Textual code (string)
- 9. VIATRA Reactive Transformation Engine Reactive ModelTransformations with VIATRA (“rule engine for MT”) Observed events Controlled events Notifications Messages Model Event What has happened? (external + internal) Condition When to react? (internal) Action What to do? (external+internal)

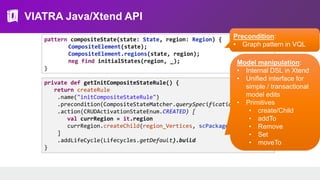

- 10. VIATRA Java/Xtend API patterncompositeState(state: State, region: Region) { CompositeElement(state); CompositeElement.regions(state, region); neg find initialStates(region, _); } private def getInitCompositeStateRule() { return createRule .name("initCompositeStateRule") .precondition(CompositeStateMatcher.querySpecification) .action(CRUDActivationStateEnum.CREATED) [ val currRegion = it.region currRegion.createChild(region_Vertices, scPackage.entry) ] .addLifeCycle(Lifecycles.getDefault).build } Model manipulation: • Internal DSL in Xtend • Unified interface for simple / transactional model edits • Primitives • create/Child • addTo • Remove • Set • moveTo Precondition: • Graph pattern in VQL
- 11. VIATRA Features &Add-ons Tools • Declarative and powerful query language • Integrates with Java using Xbase • Xtext-based Eclipse IDE • Reactive debugger • Maven builder • Test framework with coverage support APIs • Type safe and easy-to-use • Databinding • Derived features with notifications • Model-to-model and model-to- code transformation primitives • Java and Xtend friendly Runtime • Headless with minimal dependencies • Advanced performance optimizations • Various back-ends for different trade- offs • Unique feature: live queries and reactive transformations Add-ons • VIATRA Validation • VIATRA Viewers (view maintenance) • VIATRA-DSE (Design Space Exploration) • VIATRA-CEP (Complex Event Processing)

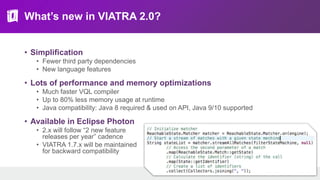

- 12. What’s new inVIATRA 2.0? • Simplification • Fewer third party dependencies • New language features • Lots of performance and memory optimizations • Much faster VQL compiler • Up to 80% less memory usage at runtime • Java compatibility: Java 8 required & used on API, Java 9/10 supported • Available in Eclipse Photon • 2.x will follow “2 new feature releases per year” cadence • VIATRA 1.7.x will be maintained for backward compatibility
- 13. IncQuery – cloud-basedmodeling beyond EMF Scalable Language tailored to models Validation and analytics features Hybrid database technology Tool / Repository Persistent index VIATRA query & xform engine In-memory index Containerized microservices Horizontal scaling in the cloud • MagicDraw & Teamwork Cloud • NoSQL & graph DBs, … 1000x faster than conventional DB technology • OpenAPI / Swagger interfaces • High-performance indexing • Change updates via callbacks Built on V4MD: VIATRA for MagicDraw • Open source ”glue code” (EPL v2) • Demonstrates how to bind EMF-based tech to MagicDraw • Deployable as a MD plug-in built with Gradle • http://github.com/viatra/v4md

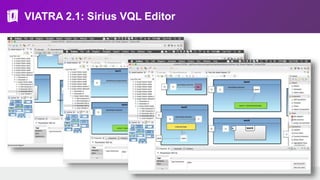

- 14. VIATRA 2.1: SiriusVQL Editor
- 15. Takeaways • VIATRA 2.0is now leaner and faster than ever: https://www.eclipse.org/viatra/documentation/releases.html#!#viatra-20 • Rich documentation and examples to help you get started with queries and transformations: https://www.eclipse.org/viatra/documentation/tutorial.html • Find out more about VIATRA-based commercial tools at https://www.eclipsecon.org/france2018/session/lessons-learned-building-eclipse- based-add-ons-commercial-modeling-tools • Watch out for VIATRA 2.0 in Eclipse Photon today!
- 16.
