Eclipse VIATRA Overview 2017
- The VIATRA framework provides a model query and transformation engine for design tools, with applications in systems engineering. - It features a declarative query language called VQL, Java and Xtend APIs, and a reactive engine for live queries and transformations. - VIATRA helps validate design rules on large models, allowing designers to be immediately notified of violations during architecture design. It can efficiently query models with millions of elements.
More Related Content
![Gits class #22: [ONLINE] Analyze Your User's Activities Using BigQuery and Da...](https://cdn.slidesharecdn.com/ss_thumbnails/gitsclass22-analyzeyourusersactivitiesusingbigqueryandanalyticsdata-200413101204-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Eclipse VIATRA Overview 2017
Eclipse VIATRA Overview 2017
- 1. The Eclipse VIATRAframework Dr. István RÁTH Co-lead @ VIATRA Managing Director @ IncQuery Labs Ltd.

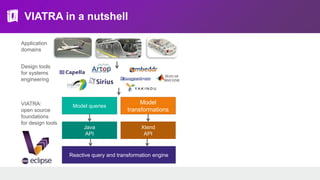

- 2. VIATRA in anutshell Application domains Model transformations Java API Xtend API Model queries Reactive query and transformation engine VIATRA: open source foundations for design tools Design tools for systems engineering
- 3.
- 4. Motivation: Early validationof design rules SystemSignalGroup design rule (from AUTOSAR) • A SystemSignal and its group must be in the same IPdu • Challenge: find violations quickly in large models • New difficulties • reverse navigation • complex manual solution AUTOSAR: • standardized SW architecture of the automotive industry • now supported by modern design tools Design Rule/Well-formedness constraint: • each valid car architecture needs to respect • designers are immediately notified if violated Challenge: • >500 design rules in AUTOSAR tools • >1 million elements in AUTOSAR models • models constantly evolve by designers

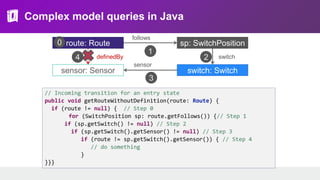

- 5. route: Route sp:SwitchPosition switch: Switchsensor: Sensor follows switch sensor definedBy Complex model queries in Java 1 2 0 3 4 // Incoming transition for an entry state public void getRouteWithoutDefinition(route: Route) { if (route != null) { // Step 0 for (SwitchPosition sp: route.getFollows()) {// Step 1 if (sp.getSwitch() != null) // Step 2 if (sp.getSwitch().getSensor() != null) // Step 3 if (route != sp.getSwitch().getSensor()) { // Step 4 // do something } }}}

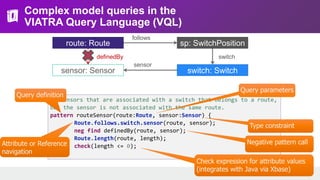

- 6. Complex model queriesin the VIATRA Query Language (VQL) // Sensors that are associated with a switch that belongs to a route, but the sensor is not associated with the same route. pattern routeSensor(route:Route, sensor:Sensor) { Route.follows.switch.sensor(route, sensor); neg find definedBy(route, sensor); Route.length(route, length); check(length <= 0); } Negative pattern call Query definition Query parameters Type constraint Attribute or Reference navigation route: Route sp: SwitchPosition switch: Switchsensor: Sensor follows switch sensor definedBy Check expression for attribute values (integrates with Java via Xbase)
- 7.
- 8. The VIATRA ModelQuery engine Query back-ends Live Search- based Hybrid • Performance-first • Indexing • in the initialization phase • ~10% of model loading time • Memory efficient • Still much faster than handwritten Java • Blazing fast (<10ms) • Query result change notifications • Requires more memory (+20-70% tool footprint) • Fine-grained fine- tuning between backend configurations Benchmarks https://github.com/viatra/viatra-cps-benchmark https://github.com/IncQueryLabs/magicdraw-viatra-benchmark https://github.com/FTSRG/trainbenchmark
- 9.

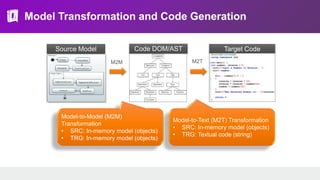

- 10. Model Transformation andCode Generation Source Model Target CodeCode DOM/AST M2M M2T Model-to-Model (M2M) Transformation • SRC: In-memory model (objects) • TRG: In-memory model (objects) Model-to-Text (M2T) Transformation • SRC: In-memory model (objects) • TRG: Textual code (string)

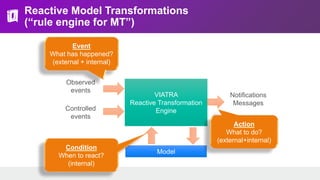

- 11. VIATRA Reactive Transformation Engine Reactive ModelTransformations (“rule engine for MT”) Observed events Controlled events Notifications Messages Model Event What has happened? (external + internal) Condition When to react? (internal) Action What to do? (external+internal)
- 12. VIATRA Java/Xtend API patterncompositeState(state: State, region: Region) { CompositeElement(state); CompositeElement.regions(state, region); neg find initialStates(region, _); } private def getInitCompositeStateRule() { return createRule .name("initCompositeStateRule") .precondition(CompositeStateMatcher.querySpecification) .action(CRUDActivationStateEnum.CREATED) [ val currRegion = it.region currRegion.createChild(region_Vertices, scPackage.entry) ] .addLifeCycle(Lifecycles.getDefault).build } Model manipulation: • Internal DSL in Xtend • Unified interface for simple / transactional model edits • Primitives • create/Child • addTo • Remove • Set • moveTo Precondition: • Graph pattern in VQL

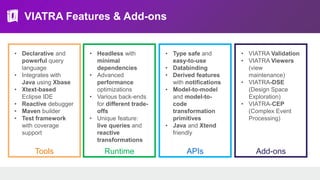

- 13. VIATRA Features &Add-ons Tools • Declarative and powerful query language • Integrates with Java using Xbase • Xtext-based Eclipse IDE • Reactive debugger • Maven builder • Test framework with coverage support APIs • Type safe and easy-to-use • Databinding • Derived features with notifications • Model-to-model and model-to- code transformation primitives • Java and Xtend friendly Runtime • Headless with minimal dependencies • Advanced performance optimizations • Various back-ends for different trade- offs • Unique feature: live queries and reactive transformations Add-ons • VIATRA Validation • VIATRA Viewers (view maintenance) • VIATRA-DSE (Design Space Exploration) • VIATRA-CEP (Complex Event Processing)
- 14.

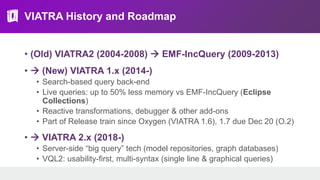

- 15. VIATRA History andRoadmap • (Old) VIATRA2 (2004-2008) EMF-IncQuery (2009-2013) • (New) VIATRA 1.x (2014-) • Search-based query back-end • Live queries: up to 50% less memory vs EMF-IncQuery (Eclipse Collections) • Reactive transformations, debugger & other add-ons • Part of Release train since Oxygen (VIATRA 1.6), 1.7 due Dec 20 (O.2) • VIATRA 2.x (2018-) • Server-side “big query” tech (model repositories, graph databases) • VQL2: usability-first, multi-syntax (single line & graphical queries)

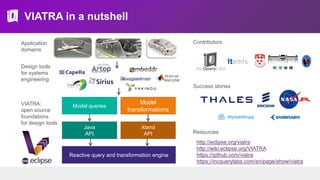

- 16. VIATRA in anutshell Model transformations Application domains Design tools for systems engineering Java API Xtend API Model queries Reactive query and transformation engine VIATRA: open source foundations for design tools Contributors http://eclipse.org/viatra http://wiki.eclipse.org/VIATRA https://github.com/viatra https://incquerylabs.com/en/page/show/viatra Resources Success stories
- 17.
