Simple way explain k-nearest neighbor algorithm with example.

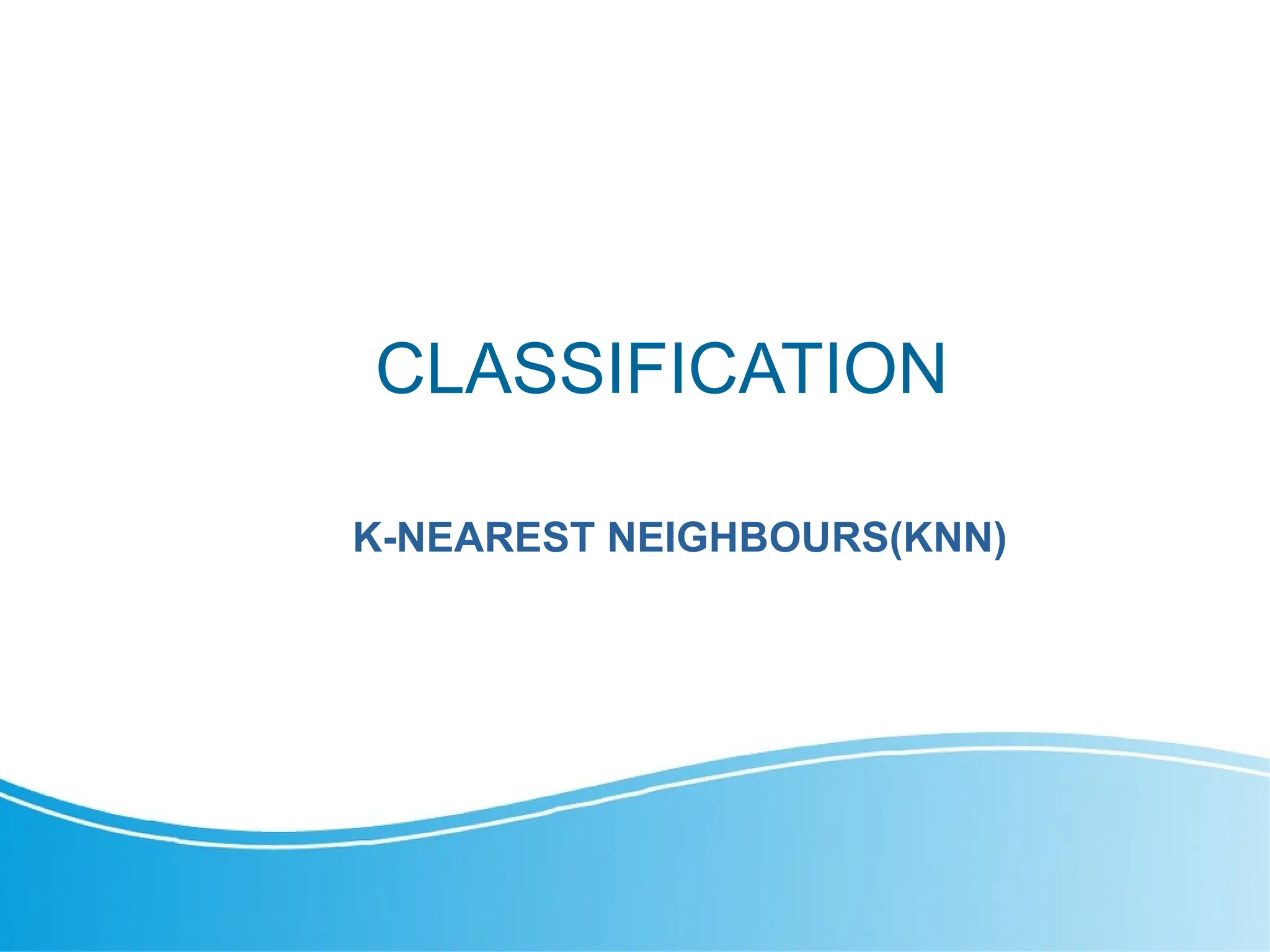

1. CLASSIFICATION
K-NEAREST NEIGHBOURS(KNN)

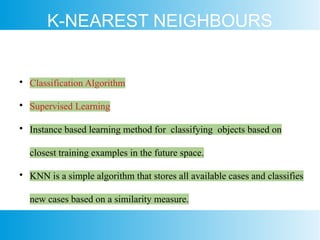

2. K-NEAREST NEIGHBOURS

Classification Algorithm

Supervised Learning

Instance based learning method for classifying objects based on
closest training examples in the future space.

KNN is a simple algorithm that stores all available cases and classifies
new cases based on a similarity measure.

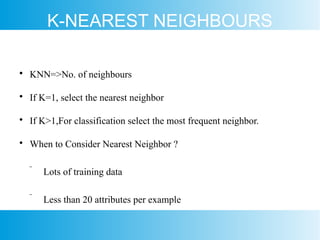

3. K-NEAREST NEIGHBOURS

KNN=>No. of neighbours

If K=1, select the nearest neighbor

If K>1,For classification select the most frequent neighbor.

When to Consider Nearest Neighbor ?
 Lots of training data
 Less than 20 attributes per example

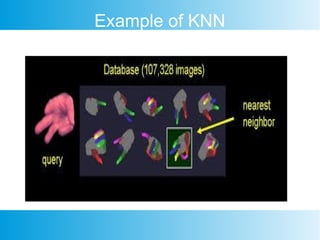

4. Example of KNN

5. Example of KNN

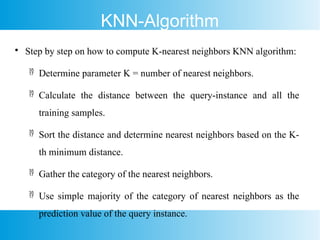

6. KNN-Algorithm

Step by step on how to compute K-nearest neighbors KNN algorithm:
 Determine parameter K = number of nearest neighbors.
 Calculate the distance between the query-instance and all the
training samples.
 Sort the distance and determine nearest neighbors based on the K-
th minimum distance.
 Gather the category of the nearest neighbors.
 Use simple majority of the category of nearest neighbors as the
prediction value of the query instance.

7. Numerical Example of KNN

A student is evaluated by internal examiner & external examiner &
accordingly student results can pass or fail.
Student X1(Rating by
internal
Examiner)
X2(Rating by
external
examiner)
Y
S1 7 7 Pass
S2 7 4 Pass
S3 3 4 Fail
S4 1 4 Fail
S5 3 7 ?

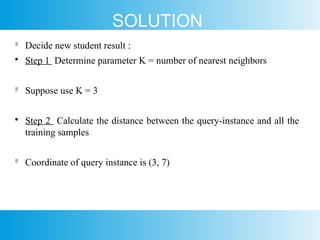

8. SOLUTION

Decide new student result :

Step 1 Determine parameter K = number of nearest neighbors

Suppose use K = 3

Step 2 Calculate the distance between the query-instance and all the
training samples

Coordinate of query instance is (3, 7)

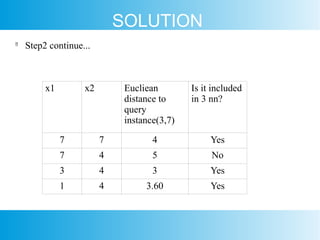

9. SOLUTION

Step2 continue...
x1 x2 Eucliean
distance to
query
instance(3,7)
Is it included
in 3 nn?
7 7 4 Yes
7 4 5 No
3 4 3 Yes
1 4 3.60 Yes

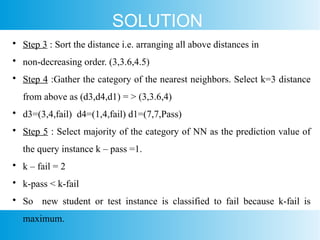

10. SOLUTION

Step 3 : Sort the distance i.e. arranging all above distances in

non-decreasing order. (3,3.6,4.5)

Step 4 :Gather the category of the nearest neighbors. Select k=3 distance
from above as (d3,d4,d1) = > (3,3.6,4)

d3=(3,4,fail) d4=(1,4,fail) d1=(7,7,Pass)

Step 5 : Select majority of the category of NN as the prediction value of
the query instance k – pass =1.

k – fail = 2

k-pass < k-fail

So new student or test instance is classified to fail because k-fail is
maximum.

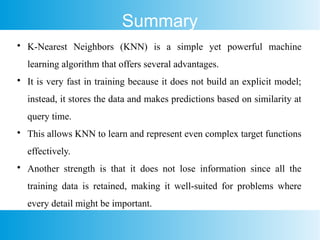

11. Summary

K-Nearest Neighbors (KNN) is a simple yet powerful machine
learning algorithm that offers several advantages.

It is very fast in training because it does not build an explicit model;
instead, it stores the data and makes predictions based on similarity at
query time.

This allows KNN to learn and represent even complex target functions
effectively.

Another strength is that it does not lose information since all the
training data is retained, making it well-suited for problems where
every detail might be important.
