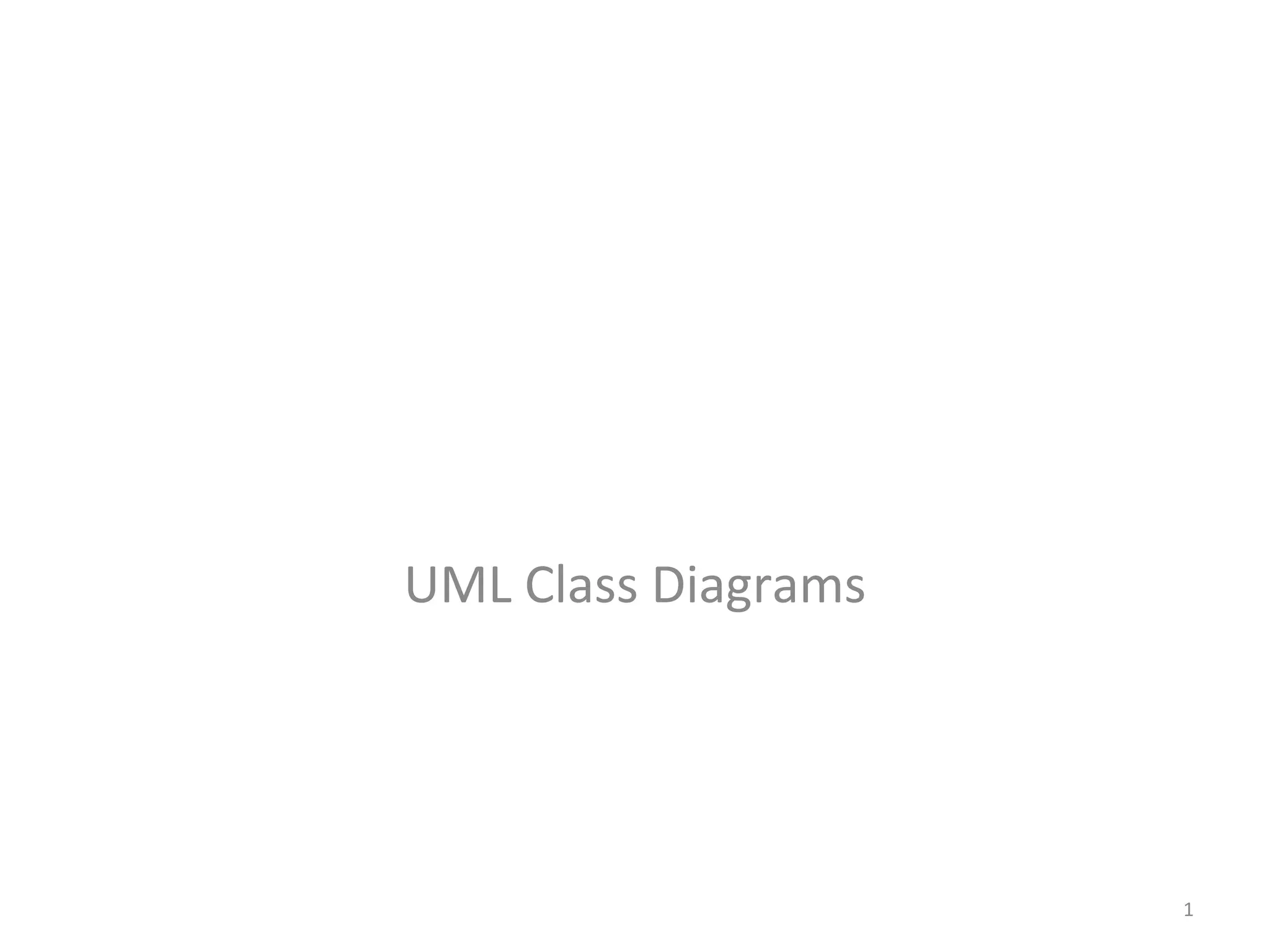

1. UML Class Diagrams
1

2. What They Are
• They illustrate classes, interfaces, and their
associations. They are used for static object
modeling.
2

3. 3

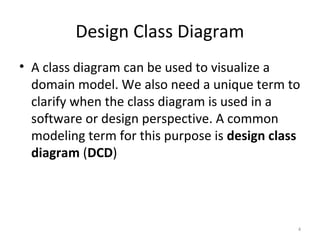

4. Design Class Diagram
• A class diagram can be used to visualize a
domain model. We also need a unique term to
clarify when the class diagram is used in a
software or design perspective. A common
modeling term for this purpose is design class
diagram (DCD)
4

5. Design Class Diagram
5

6. Classifier
• A UML classifier is “a model element that
describes behavioral and structure features”.
Classifiers can also be specialized. They are a
generalization of many of the elements of the
UML, including classes, interfaces, use cases,
and actors. In class diagrams, the two most
common classifiers are regular classes and
interfaces.
6

7. Showing UML Attributes
• Attribute text notation such as: currentSale :
Sale, Association line notation, or both
• <visibility> name : type multiplicity = default
{property string}
• Attributes are assumed private if no visibility
is given
• Arrow shows that the object where the arrow
starts has one object of the object to which it
points.
7

8. UML Attributes
8

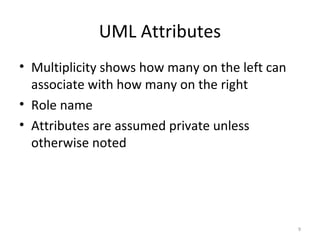

9. UML Attributes
• Multiplicity shows how many on the left can
associate with how many on the right
• Role name
• Attributes are assumed private unless
otherwise noted
9

10. Attribute Text vs. Association Lines
• Use text notation for primitive data types,
even things like Zip codes that may have
components but are not complex
• Use association for everything else.
10

11. Collection Attributes
11

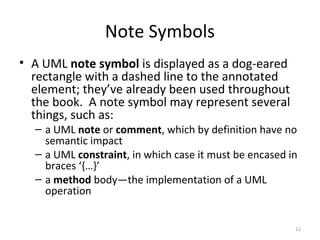

12. Note Symbols
• A UML note symbol is displayed as a dog-eared
rectangle with a dashed line to the annotated
element; they’ve already been used throughout
the book. A note symbol may represent several
things, such as:
– a UML note or comment, which by definition have no
semantic impact
– a UML constraint, in which case it must be encased in
braces ‘{…}’
– a method body—the implementation of a UML
operation
12

13. Operations and Methods
• A method is the implementation of an
operation
13

14. The Create operation
• This is a constructor call
• You can use <<constructor>> to make this
explicit
14

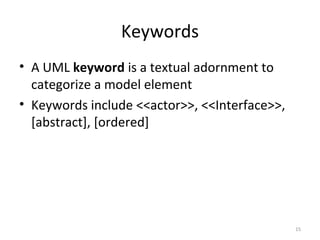

15. Keywords
• A UML keyword is a textual adornment to
categorize a model element
• Keywords include <<actor>>, <<Interface>>,
[abstract], [ordered]
15

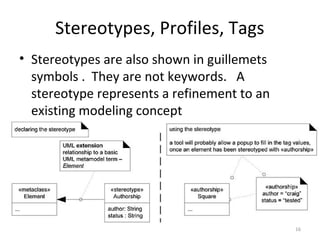

16. Stereotypes, Profiles, Tags
• Stereotypes are also shown in guillemets
symbols . They are not keywords. A
stereotype represents a refinement to an
existing modeling concept
16

17. Properties and Property Strings
• A property is “a named value denoting a
characteristic of an element
• Textual approach is to use the UML property
string {name1=value1, name2=value2} format,
such as {abstract, visibility=public}
17

18. Generalization
• A taxonomic relationship between a more
general classifier and a more specific classifier
• This can imply inheritance, but not at the
conceptual level.
18

19. Dependency
• Similar to association. Indicates that a client
element has knowledge of another supplier element,
and a change in the supplier could affect the client
• (Supplier and client are descriptive terms, not
classes)
• Dependency lines are common on class and package
diagrams
• Use to depict global, parameter variable, local
variable, and static-method dependency
19

20. Types of Dependency
• Having an attribute of supplier type
• Send a message to a supplier
• Receiving a parameter of supplier type
• Supplier is a superclass or interface
• Indicated by a dashed line arrow
20

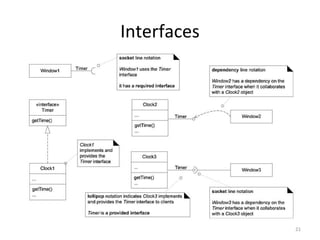

21. Interfaces
21

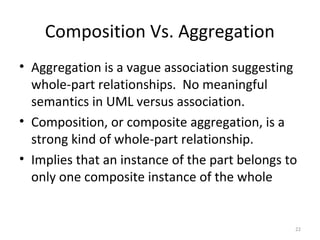

22. Composition Vs. Aggregation
• Aggregation is a vague association suggesting
whole-part relationships. No meaningful
semantics in UML versus association.
• Composition, or composite aggregation, is a
strong kind of whole-part relationship.
• Implies that an instance of the part belongs to
only one composite instance of the whole
22

23. Composition
• For example the Monopoly board consists of
40 squares
• A square can be part of only one board at any
time.
23

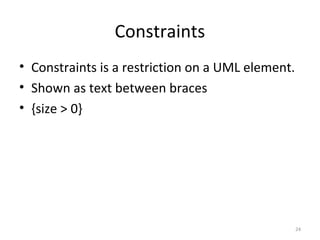

24. Constraints
• Constraints is a restriction on a UML element.
• Shown as text between braces
• {size > 0}
24

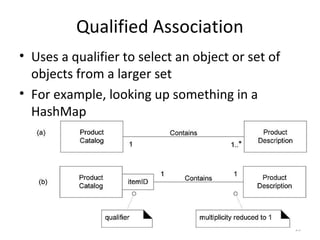

25. Qualified Association
• Uses a qualifier to select an object or set of
objects from a larger set
• For example, looking up something in a
HashMap
25

26. Association Class
• Allows you to treat an association as a class,
such that it can have attributes
26

27. Singleton Class
• Only one instance of a Singleton class (pattern
explained later) is ever instantiated.
• For example, your main class in most
programs is a Singleton, although this may not
be its dominant pattern.
27

28. Template Classes and Interfaces
• These are equivalent to C++ or Java
“generics.”
• That is, you can type a collection class.
28

29. User-Defined Compartments
• In a class diagram you can define your own
compartments:
29
DataAccessObject
Id: int
doX();
Exceptions thrown
DatabaseException
IOExeception
Responsibilities
Serialize and write objects
Read and deserialize objects

30. Active Class
• An active object runs on and controls its own
thread of execution
• In UML, it is shown with double vertical lines
on the left and right of the class box.
30
