—JULIO OLIVEIRA, ABB POWER GRIDS – GRID AUTOMATION, MAY 15TH Cyber security for digital substations: Protection and control systems CLASS 2018 – 3ª Conferência Latino Americana de Segurança em SCADA

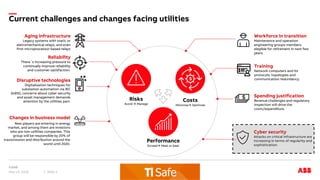

— Current challenges and changes facing utilities May 14, 2018 Slide 2 Aging infrastructure Legacy systems with static or eletromechanical relays, and even first microprocessor based relays Workforce in transition Maintenance and operation engineering groups members elegible for retirement in next few years. Reliability There´s increasing pressure to continually improve reliability and customer satisfaction. Spending justification Revenue challenges and regulatory inspection will drive the costs/expenditure. Cyber security Attacks on critical infrastructure are increasing in terms of regularity and sophistication. Disruptive technologies Digitalization techniques for substation automation via IEC 61850, concerns about cyber security and asset management demands attention by the utilities part. Changes in business model New players are entering in energy market, and among them are investors who are non-utilities companies. This group will be responsible by 20% of transmission and distribution around the world until 2020. Training Network computers and its protocols, topologies and communication redundancy. Costs Minimize→ Optimize Performance Exceed→ Meet or beat Risks Avoid → Manage $

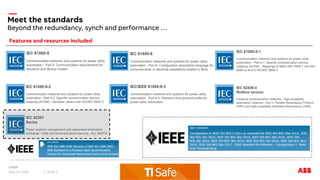

— Beyond the redundancy, synch and performance … Meet the standards May 14, 2018 Slide 3 Features and resources included

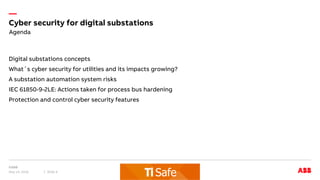

— Digital substations concepts What´s cyber security for utilities and its impacts growing? A substation automation system risks IEC 61850-9-2LE: Actions taken for process bus hardening Protection and control cyber security features May 14, 2018 Slide 4 Cyber security for digital substations Agenda
— Cyber security for digital substations Digital substations concepts
— Intelligent substation HMI SDM600 Data manager How the digitalization is understood by the utilities Digital substation concepts and scenarios May 14, 2018 Slide 6 Station bus Process bus Mobile workforce management CALM Platform SCADA NCC Disturbanc e records Operation Network control center Super PDC PMUs SCADA Level 2 RTU Gateway Level 2 Cyber security Merging units Ability Primary apparatus sensing Control room perimeter Teleprotection over MPLS with FOX615 1 2 3 4 7 x Opportunities to explore with digital substations - Process bus - Cyber security - MPLS/TP teleprotection - PMUs - Asset management - MESH industrial Wifi communication - Primary apparatus sensing “A digitalized substation (no digital substation) doesn´t considers the gray areas!” Asset Management PMU and PDCs WiFi Industrial 6 5
— Cyber security for digital substations What´s cyber security for utilities and its impacts growing?

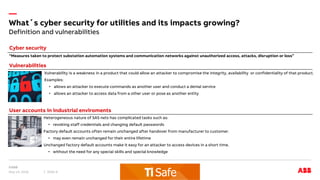

— Definition and vulnerabilities What´s cyber security for utilities and its impacts growing? May 14, 2018 Slide 8 “Measures taken to protect substation automation systems and communication networks against unauthorized access, attacks, disruption or loss” Cyber security Vulnerabilities Vulnerability is a weakness in a product that could allow an attacker to compromise the integrity, availability or confidentiality of that product. Examples: • allows an attacker to execute commands as another user and conduct a denial service • allows an attacker to access data from a other user or pose as another entity Heterogeneous nature of SAS nets has complicated tasks such as: • revoking staff credentials and changing default passwords Factory default accounts often remain unchanged after handover from manufacturer to customer. • may even remain unchanged for their entire lifetime Unchanged factory default accounts make it easy for an attacker to access devices in a short time. • without the need for any special skills and special knowledge User accounts in industrial enviroments

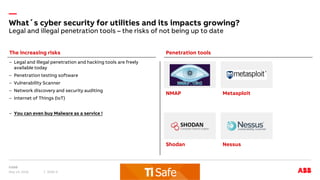

— Legal and illegal penetration tools – the risks of not being up to date What´s cyber security for utilities and its impacts growing? May 14, 2018 Slide 9 – Legal and illegal penetration and hacking tools are freely available today – Penetration testing software – Vulnerability Scanner – Network discovery and security auditing – Internet of Things (IoT) – You can even buy Malware as a service ! The increasing risks Penetration tools NMAP Metasploit Shodan Nessus
— Vulnerabilities in protection and control systems What´s cyber security for utilities and its impacts growing? May 14, 2018 Slide 10 ICS vulnerability – disclosures by year Source: https://scadahacker.com/ Source: 2016 ICS vulnerability trend report By FireEye

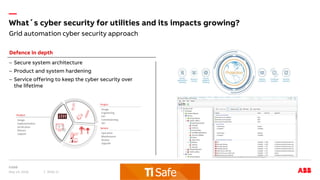

— Grid automation cyber security approach What´s cyber security for utilities and its impacts growing? May 14, 2018 Slide 11 – Secure system architecture – Product and system hardening – Service offering to keep the cyber security over the lifetime Defence in depth
— Cyber security for digital substations A substation automation system risks

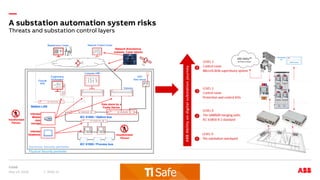

— A substation automation system risks May 14, 2018 Slide 13 Threats and substation control layers

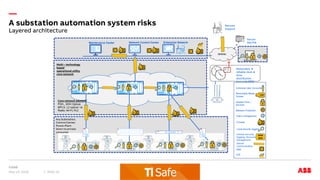

— A substation automation system risks May 14, 2018 Slide 14 Layered architecture Enterprise NetworkNetwork Control CenterMaintenance Center Service PC www. Secure SW/FW Multi – technology based operational utility core network Core network element PDH,, SDH Optical, MPLS, L2 optical / el. Radio; Wi-Fi, PLC Any Substation, Control-Center; Power-Plant down to private consumer DMZ Individual User Accounts Removable Media Access Disable Ports / services Malware Protection Patch management Firewall Secure Communication Local security logging Central security logging /Account Management IDS USB SDM 600 Redundant & reliable clock & time distribution (not only GPS) Remote Support

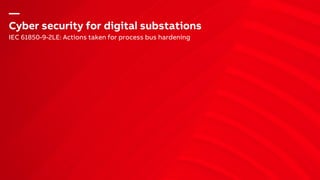

— Cyber security for digital substations IEC 61850-9-2LE: Actions taken for process bus hardening

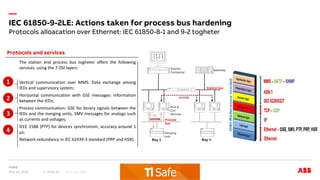

— Protocols alloacation over Ethernet: IEC 61850-8-1 and 9-2 togheter IEC 61850-9-2LE: Actions taken for process bus hardening May 14, 2018 Sources: ABBSlide 16 The station and process bus togheter offers the following services. using the 7 OSI layers: Vertical communication over MMS: Data exchange among IEDs and supervisory system; Horizontal communication with GSE messages: Information between the IEDs; Process communication: GSE for binary signals between the IEDs and the merging units, SMV messages for analogs such as currents and voltages; IEEE 1588 (PTP) for devices synchronism, accuracy around 1 µs; Network redundancy in IEC 62439-3 standard (PRP and HSR). Protocols and services 1 2 3 GOOSE SV, GOOSE Bay 1 Process bus Station bus Merging Unit Prot & Ctrl Devices Station Computer Gateway Bay n SAM600SAM600 4

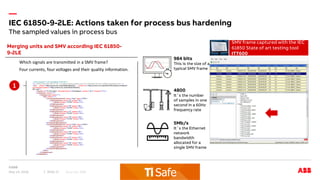

— The sampled values in process bus IEC 61850-9-2LE: Actions taken for process bus hardening May 14, 2018 Sources: ABBSlide 17 Which signals are transmitted in a SMV frame? Four currents, four voltages and their quality information. Merging units and SMV according IEC 61850- 9-2LE 1 984 bits This is the size of a typical SMV frame 4800 It´s the number of samples in one second in a 60Hz frequency rate 5Mb/s It´s the Ethernet network bandwidth allocated for a single SMV frame SMV frame captured with the IEC 61850 State of art testing tool ITT600

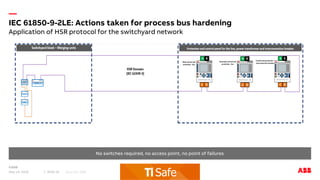

— Application of HSR protocol for the switchyard network IEC 61850-9-2LE: Actions taken for process bus hardening May 14, 2018 Sources: ABBSlide 18 No switches required, no access point, no point of failures
— Cyber security for digital substations Protection and control cyber security features

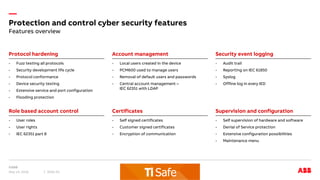

— Protection and control cyber security features May 14, 2018 Slide 20 Protocol hardening Account management Security event logging Role based account control Certificates Supervision and configuration - Fuzz testing all protocols - Security development life cycle - Protocol conformance - Device security testing - Extensive service and port configuration - Flooding protection - Local users created in the device - PCM600 used to manage users - Removal of default users and passwords - Central account management – IEC 62351 with LDAP - Audit trail - Reporting on IEC 61850 - Syslog - Offline log in every IED - User roles - User rights - IEC 62351 part 8 - Self signed certificates - Customer signed certificates - Encryption of communication - Self supervision of hardware and software - Denial of Service protection - Extensive configuration possibilities - Maintenance menu Features overview

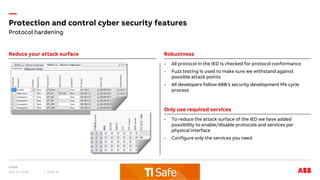

— Reduce your attack surface Robustness Only use required services - All protocol in the IED is checked for protocol conformance - Fuzz testing is used to make sure we withstand against possible attack points - All developers follow ABB’s security development life cycle process May 14, 2018 Slide 21 - To reduce the attack surface of the IED we have added possibility to enable/disable protocols and services per physical interface - Configure only the services you need Protection and control cyber security features Protocol hardening

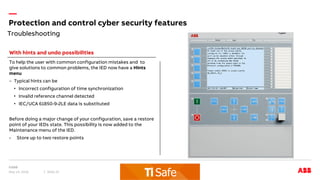

— Troubleshooting Protection and control cyber security features May 14, 2018 Slide 22 To help the user with common configuration mistakes and to give solutions to common problems, the IED now have a Hints menu – Typical hints can be • Incorrect configuration of time synchronization • Invalid reference channel detected • IEC/UCA 61850-9-2LE data is substituted Before doing a major change of your configuration, save a restore point of your IEDs state. This possibility is now added to the Maintenance menu of the IED. - Store up to two restore points With hints and undo possibilities
— Encryption card FOX615 and XMC20 Multiplexers May 14, 2018 Slide 23
— Cyber security for digital substations Cyber security deployment guidelines

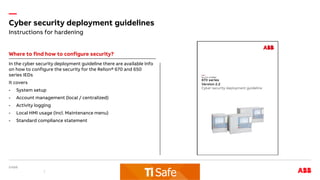

— Cyber security deployment guidelines Where to find how to configure security? In the cyber security deployment guideline there are available info on how to configure the security for the Relion® 670 and 650 series IEDs It covers - System setup - Account management (local / centralized) - Activity logging - Local HMI usage (incl. Maintenance menu) - Standard compliance statement Instructions for hardening
