Cisco IPv6 Deployment Statics
Shishio Tsuchiya
shtsuchi@cisco.com

2. 2
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
• Measurement and Analysis are important for people who
is considering deployment IPv6 in the network.
• What kind of information provide on Cisco IPv6 stat?

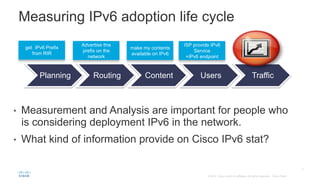

Measuring IPv6 adoption life cycle
Planning
Routing
Content
Users
Traffic
get IPv6 Prefix
from RIR
Advertise this
prefix on the
network
make my contents
available on IPv6
ISP provide IPv6
Service
+IPv6 endpoint

3. 3
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
http://6lab.cisco.com/stats/

4. 4
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
• This web site presents metric of IPv6 adoption in country and global level.
• We used public existing data:Whois DB of RIR,APNC
Lab,Routeview,Alexa,Google,ITU and so on.
• The overall map presents two IPv6 metric:deployment ratio and the relative
deployment index.
• Color indicates relative deployment index of each of countries.
• Overall IPv6 ratio depends on IPv6 Transit AS/contents/user
IPv6 adoption statics

5. 5
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, at a glance
Optionally select a religion

6. 6
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, Asia
more detail

7. 7
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, Eastern Asia

8. 8
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, all

9. 9
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, home
click

10. 10
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public

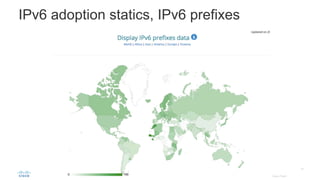

IPv6 adoption statics, IPv6 prefixes

11. 11
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
• When an entity plans to enable IPv6 on its network, the first step is to ask the
RIR for an IPv6 prefix.
• The second step is to make this prefix reachable on the network, which
means make an entry in BGP tables for this prefix: the prefix is then routable.
• If we've seen traffic from one of APNIC labs, Eric Vyncke then we assume
that the prefix is alive.
• Color : Ratio of allocated v6 prefixes that are routable to all allocated v6 prefixes
• Indication : Ratio of allocated v6 prefixes to allocated v4 prefixes
• Ratio of allocated IPv6 prefixes from which traffic has been seen to all allocated v6
prefixes
IPv6 adoption statics, IPv6 prefixes

12. 12
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
• “Allocated” prefix from whois database of RIR
• “Routable” prefix from route-views project
• “Alive” prefix get by Geoff Huston script
IPv6 adoption statics, IPv6 prefixes
http://6lab.cisco.com/stats/data/Internet%20IPv6%20Adoption.pdf

13. 13
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, IPv6 prefixes

14. 14
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, IPv6 prefixes
click

15. 15
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, Transit AS

16. 16
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
• To measure the level of IPv6 readiness of the core of the internet,
one good way is to analyze the BGP routing table and measure the
IPv6 enablement of Transit ASs.
• Color : Weighted ratio of AS that are Transit V6 to AS that are transit V4
(IPv6 Transit AS).
• Indication : Weighted ratio of transit AS V4 that are V6 enabled to transit
AS V4 (IPv6 enabled Transit AS).
• IPv6 Transit AS:an AS that is Transit on both IPv6 and IPv4.
• IPv6 enabled Transit AS:an AS that is transit on IPv4 network and
has an IPv6 prefix
IPv6 adoption statics, Transit AS

17. 17
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public

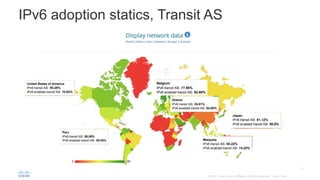

IPv6 adoption statics, Transit AS

18. 18
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, Transit AS
click

19. 19
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, web contents

20. 20
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
• Alexa ranks websites by pageviews and unique users per country.
• AAAA request is made to DNS servers for the exact domain name
and also possible test names such as www6.mydomain.mytld or
ipv6.mydomain.mytld.
• Color : Weighted ratio of IPv6 enabled websites
• Indication : Weighted ratio of IPv6:
• in test : test domain name working in IPv6
• failing : AAAA record exists but webpage not working in IPv6
• other : not IPv6 enabled websites
IPv6 adoption statics, web contents

21. 21
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
• The weight is calculated by the formula.
• ∑((computed weight for rank)*(IPv6 enabled WEB sites)) = % of Web pages
reachable over IPv6
IPv6 adoption statics, web contents
OVH, Google, Cisco
DNS
alexa

22. 22
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, web contents

23. 23
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, web contents
click

24. 24
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public

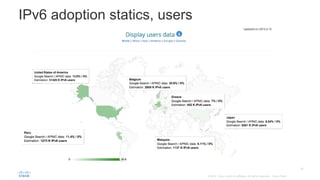

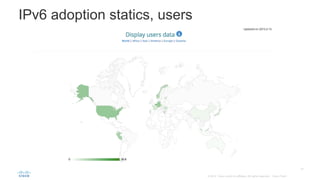

IPv6 adoption statics, users

25. 25
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public

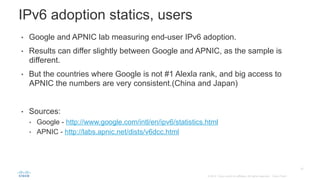

• Google and APNIC lab measuring end-user IPv6 adoption.
• Results can differ slightly between Google and APNIC, as the sample is
different.
• But the countries where Google is not #1 Alexla rank, and big access to
APNIC the numbers are very consistent.(China and Japan)
• Sources:
• Google - http://www.google.com/intl/en/ipv6/statistics.html
• APNIC - http://labs.apnic.net/dists/v6dcc.html
IPv6 adoption statics, users

26. 26
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, users

27. 27
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, users
Size of square=Number of IPv6 users
Color =percentage of overall internet uses

28. 28
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
IPv6 adoption statics, users
left click
right click

29. 29
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
More detail world/country historical data
for world Charts
for Country Charts

30. 30
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
More detail world/country historical data
Type country name

31. 31
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
More detail world/country historical data

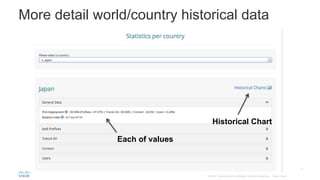

Each of values
Historical Chart

32. 32
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public

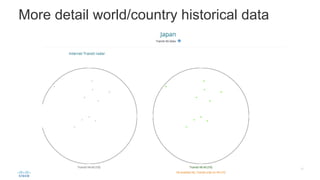

More detail world/country historical data

33. 33
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
More detail world/country historical data

34. 34
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
More detail world/country historical data

35. 35
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
More detail world/country historical data

36. 36
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
More detail world/country historical data

37. 37
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
More detail world/country historical data

38. 38
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
More detail world/country historical data

39. 39
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
More detail world/country historical data
Projection

40. 40
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
6lab.cisco.com
http://6lab.cisco.com/
% of visitor to this site
Twitter account
@cisco6lab
Cisco 6lab IPv6 stats widget

41. 41
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
• IPv6 stats provides IPv6 adaptation of each of
countries, graphically.
• The result data would be hint of ipv6 deployment
plan of future for you.
• for example..
Summary

42. 42
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public

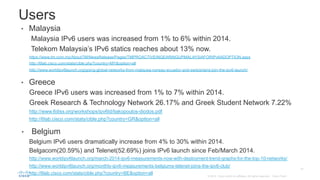

• Malaysia
Malaysia IPv6 users was increased from 1% to 6% within 2014.
Telekom Malaysia’s IPv6 statics reaches about 13% now.
https://www.tm.com.my/AboutTM/NewsRelease/Pages/TMPROACTIVEINGEARINGUPMALAYSIAFORIPv6ADOPTION.aspx
http://6lab.cisco.com/stats/cible.php?country=MY&option=all
http://www.worldipv6launch.org/going-global-networks-from-malaysia-norway-ecuador-and-switzerland-join-the-ipv6-launch/
• Greece
Greece IPv6 users was increased from 1% to 7% within 2014.
Greek Research & Technology Network 26.17% and Greek Student Network 7.22%
http://www.6diss.org/workshops/ipv6td/liakopoulos-diodos.pdf
http://6lab.cisco.com/stats/cible.php?country=GR&option=all
• Belgium
Belgium IPv6 users dramatically increase from 4% to 30% within 2014.
Belgacom(20.59%) and Telenet(52.69%) joins IPv6 launch since Feb/March 2014.
http://www.worldipv6launch.org/march-2014-ipv6-measurements-now-with-deployment-trend-graphs-for-the-top-10-networks/
http://www.worldipv6launch.org/monthly-ipv6-measurements-belgiums-telenet-joins-the-ipv6-club/
http://6lab.cisco.com/stats/cible.php?country=BE&option=all
Users

43. 43
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
• Peru
Peru's IPv6 continuous increased from 2013 to 2014.(4%-11.5%)
IPv6 content site number increase from 33 to 51. Telefonica decided
Peru as 1st country for IPv6 deployment.(11.4%) They also start
provides IPv6 in Czech Republic.(8% user/ 81contents)
http://6lab.cisco.com/stats/cible.php?country=PE&option=all
• Japan
Japan is very high ratio IPv6 prefix and BGP transit AS.
But content keeping around 36-38. Contents deployment
status is bad(24.51%) . As the result, relative index is
4.8L (MY 5.3 SG 4.9)
Content

44. 44
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
Source

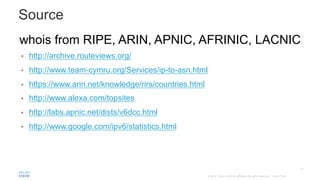

whois from RIPE, ARIN, APNIC, AFRINIC, LACNIC
• http://archive.routeviews.org/
• http://www.team-cymru.org/Services/ip-to-asn.html
• https://www.arin.net/knowledge/rirs/countries.html
• http://www.alexa.com/topsites
• http://labs.apnic.net/dists/v6dcc.html
• http://www.google.com/ipv6/statistics.html

45. 45
© 2014 Cisco and/or its affiliates. All rights reserved. Cisco Public
Reference
• IPv6 Deployment Statistics
• http://6lab.cisco.com/stats/data/IPv6%20Adoption%20Statistics%20user%20guide.pdf
• Alain Fiocco, Hugo Kaczmarek
• Research Internship Report Internet IPv6
Adoption: Methodology, Measurement and Tools
• http://6lab.cisco.com/stats/data/Internet%20IPv6%20Adoption.pdf
• Hugo Kaczmarek
