1. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Hans Donnerborg,
Systems Engineer, Cisco Danmark
DC/V

2. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

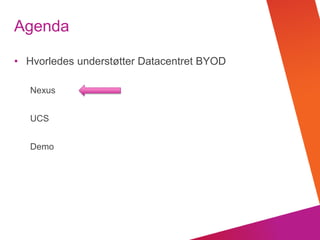

Agenda
Hvorledes understøtter Datacentret BYOD
Nexus
UCS
Demo

3. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Nexus Family
Nexus 1000v/VSG
Nexus 3000
Nexus 5000
Nexus 2000
Nexus 7000

4. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
CONVERGENCE
SCALE
INTELLIGENCE
Scalability & MobilityLISP

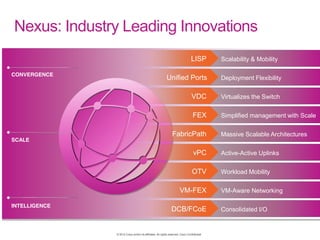

Nexus: Industry Leading Innovations
Deployment FlexibilityUnified Ports
Virtualizes the SwitchVDC
Simplified management with ScaleFEX
Massive Scalable ArchitecturesFabricPath
Active-Active UplinksvPC
Workload MobilityOTV
VM-Aware NetworkingVM-FEX
Consolidated I/ODCB/FCoE

5. Cisco Confidential© 2010 Cisco and/or its affiliates. All rights reserved. 5

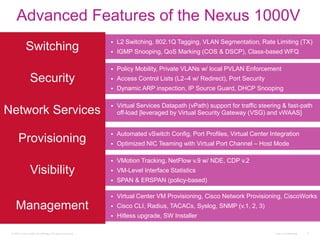

Advanced Features of the Nexus 1000V
Switching
L2 Switching, 802.1Q Tagging, VLAN Segmentation, Rate Limiting (TX)
IGMP Snooping, QoS Marking (COS & DSCP), Class-based WFQ
Security
Policy Mobility, Private VLANs w/ local PVLAN Enforcement
Access Control Lists (L2 4 w/ Redirect), Port Security
Dynamic ARP inspection, IP Source Guard, DHCP Snooping
Provisioning
Automated vSwitch Config, Port Profiles, Virtual Center Integration
Optimized NIC Teaming with Virtual Port Channel Host Mode
Visibility
VMotion Tracking, NetFlow v.9 w/ NDE, CDP v.2
VM-Level Interface Statistics
SPAN & ERSPAN (policy-based)
Management
Virtual Center VM Provisioning, Cisco Network Provisioning, CiscoWorks
Cisco CLI, Radius, TACACs, Syslog, SNMP (v.1, 2, 3)
Hitless upgrade, SW Installer
Network Services
Virtual Services Datapath (vPath) support for traffic steering & fast-path
off-load [leveraged by Virtual Security Gateway (VSG) and vWAAS]

6. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Securing Virtual Desktops (VDI)
1000V Security Features for VDI
Access Control List
Port Security
Private VLAN
DHCP Snooping
Dynamic ARP Inspection
IP Source Guard
Desktop Virtualization Software
WAAS
Nexus
Switch
Desktop OS
ACE
Hypervisor
Virtualized Data Center
ApplicationsDesktop
Applications
Nexus
1000V
Reference Implementation
View, Citrix
1000V & VSG

7. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

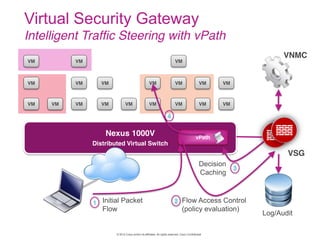

Virtual Security Gateway
Intelligent Traffic Steering with vPath
Nexus 1000V
Distributed Virtual Switch
VM VM VM
VM VM
VM
VM VM VM
VM
VM
VM VM VM
VM VM VMVM
VM
vPath
VNMC
Log/Audit
Initial Packet
Flow
VSG
1 Flow Access Control
(policy evaluation)
2
Decision
Caching
3
4

8. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Securing VDI with Cisco VSG
Persistent virtual
workspace for the doctor
Flexible workspace for
Maintain compliance
while supporting IT
consumerization
Records
Healthcare
Portal
Database
AssistantIT Admin Doctor Guest
Application
HVD Zones
Doctor
iT Admin Network
Virtual Security Gateway (VSG)
Guest
Cisco AnyConnect
ASA
Server Zones

9. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

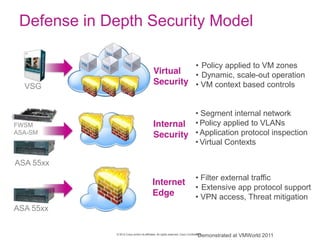

Defense in Depth Security Model
Internet
Edge
Filter external traffic
Extensive app protocol support
VPN access, Threat mitigation
Internal
Security
Segment internal network
Policy applied to VLANs
Application protocol inspection
Virtual Contexts
Virtual
Security
Policy applied to VM zones
Dynamic, scale-out operation
VM context based controls
ASA 55xx
ASA 55xx
FWSM
ASA-SM
VSG
*Demonstrated at VMWorld 2011

10. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

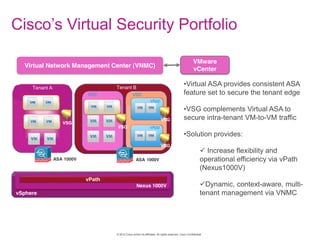

Virtual ASA provides consistent ASA
feature set to secure the tenant edge
VSG complements Virtual ASA to
secure intra-tenant VM-to-VM traffic
Solution provides:
Increase flexibility and
operational efficiency via vPath
(Nexus1000V)
Dynamic, context-aware, multi-
tenant management via VNMC
Tenant BTenant A
VDC
vApp
vApp
vSphere
Nexus 1000V
vPath
VDC
Virtual Network Management Center (VNMC)
VMware
vCenter
VSG
VSG
VSG
VSG
ASA 1000V ASA 1000V

11. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

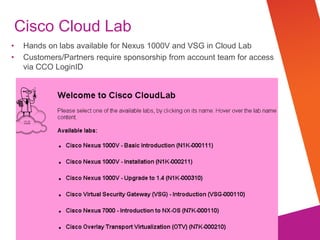

Cisco Cloud Lab
Hands on labs available for Nexus 1000V and VSG in Cloud Lab
Customers/Partners require sponsorship from account team for access
via CCO LoginID

12. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Agenda
Hvorledes understøtter Datacentret BYOD
Nexus
UCS
Demo

13. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Benchmark
VXI/VDI

14. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
UCS 2.0 I/O
Infrastructure for
M3 blades
Lars Bo Iversen,
Systems Engineer, Cisco Danmark

15. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

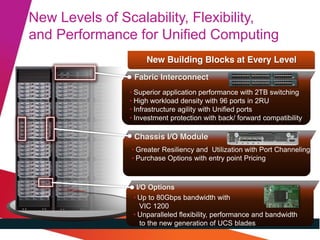

New Levels of Scalability, Flexibility,
and Performance for Unified Computing
New Building Blocks at Every Level
Fabric Interconnect
Superior application performance with 2TB switching
High workload density with 96 ports in 2RU
Infrastructure agility with Unified ports
Investment protection with back/ forward compatibility
Greater Resiliency and Utilization with Port Channeling
Purchase Options with entry point Pricing
Chassis I/O Module
Up to 80Gbps bandwidth with
VIC 1200
Unparalleled flexibility, performance and bandwidth
to the new generation of UCS blades
I/O Options

16. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Cisco UCS 6200 and 2200 with Unified Ports
Cisco UCS 6140/ 6120
Forward compatible
with Second Generation
I/O Modules
At UCS Launch
Typical Deployments
UCS-FI-6248UP
48 Port Fabric Interconnect
Performance for typical deployments
with 1TB switching and 48 ports in
1RU
Infrastructure agility with Unified Ports
Investment protection
High End Deployments
UCS-FI-6296UP
96 Port Fabric Interconnect
High Application performance with 2TB
switching
High workload density 96 ports in 2RU
Infrastructure agility with Unified Ports
Investment protection
Forward compatible
with Second Generation
I/O Modules
Cisco UCS 2104
I/O Module
16 Port I/O Module
UCS-FI-2204XP
80G/ chassis, 20G to the Blade
Entry point pricing
Improved Utilization with Port
Channels
32 Port I/O Module
UCS-IOM-2208XP
160G/ chassis, 40G to the Blade for
bursty traffic
Improved Resiliency
Improved Utilization with Port Channels
NEW
Cisco UCS 6100 and 2100
UCS Fabric
Interconnects
UCS I/O
Modules
Cisco UCS Fabric Infrastructure Portfolio
NEW

17. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

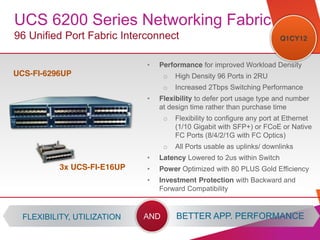

UCS 6200 Series Networking Fabric
96 Unified Port Fabric Interconnect
ANDFLEXIBILITY, UTILIZATION BETTER APP. PERFORMANCE
3x UCS-FI-E16UP
UCS-FI-6296UP
Q1CY12
Performance for improved Workload Density
o High Density 96 Ports in 2RU
o Increased 2Tbps Switching Performance
Flexibility to defer port usage type and number
at design time rather than purchase time
o Flexibility to configure any port at Ethernet
(1/10 Gigabit with SFP+) or FCoE or Native
FC Ports (8/4/2/1G with FC Optics)
o All Ports usable as uplinks/ downlinks
Latency Lowered to 2us within Switch
Power Optimized with 80 PLUS Gold Efficiency
Investment Protection with Backward and
Forward Compatibility

18. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

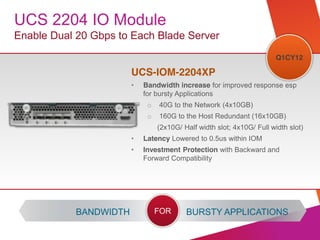

UCS 2204 IO Module
Enable Dual 20 Gbps to Each Blade Server
UCS-IOM-2204XP
Bandwidth increase for improved response esp
for bursty Applications
o 40G to the Network (4x10GB)
o 160G to the Host Redundant (16x10GB)
(2x10G/ Half width slot; 4x10G/ Full width slot)
Latency Lowered to 0.5us within IOM
Investment Protection with Backward and
Forward Compatibility
Q1CY12
BANDWIDTH BURSTY APPLICATIONSFOR

19. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

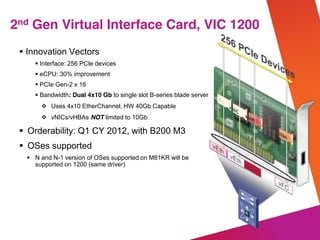

Innovation Vectors
Interface: 256 PCIe devices
eCPU: 30% improvement
PCIe Gen-2 x 16
Bandwidth: Dual 4x10 Gb to single slot B-series blade server
Uses 4x10 EtherChannel, HW 40Gb Capable
vNICs/vHBAs NOT limited to 10Gb
Orderability: Q1 CY 2012, with B200 M3
OSes supported
N and N-1 version of OSes supported on M81KR will be
supported on 1200 (same driver)
2nd Gen Virtual Interface Card, VIC 1200

20. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
February 2012
Cisco UCS M3 servers
based on Intel E5-2600 series (2S EP)

21. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

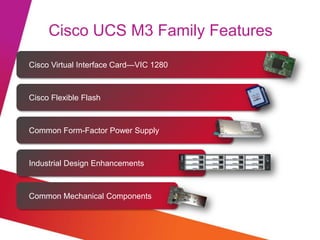

Cisco UCS M3 Family Features
Cisco Virtual Interface Card VIC 1280
Cisco Flexible Flash
Common Form-Factor Power Supply
Industrial Design Enhancements
Common Mechanical Components

22. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

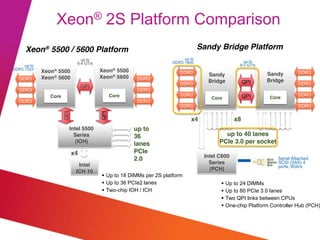

Xeon® 2S Platform Comparison
Sandy Bridge Platform
Up to 24 DIMMs
Up to 80 PCIe 3.0 lanes
Two QPI links between CPUs
One-chip Platform Controller Hub (PCH)
Sandy
Bridge
Core
Sandy
Bridge
Core
DDR3
DDR3
DDR3
DDR3
DDR3
DDR3
DDR3
DDR3
x8x4
QPI
QPI
Xeon® 5500 / 5600 Platform
Xeon® 5500
Xeon® 5600
Core
Xeon® 5500
Xeon® 5600
Core
DDR3
DDR3
DDR3
DDR3
DDR3
DDR3
x4
QPI
Intel C600
Series
(PCH)
Serial Attached
SCSI (SAS) 4
ports, 6Gb/s
up to
DDR3 1333
up to
6.4 GT/s
Intel 5500
Series
(IOH)
Intel
ICH 10
QPI
QPI
up to
36
lanes
PCIe
2.0
up to
DDR3 1600 up to
8.0 GT/s
up to 40 lanes
PCIe 3.0 per socket
Up to 18 DIMMs per 2S platform
Up to 36 PCIe2 lanes
Two-chip IOH / ICH

23. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

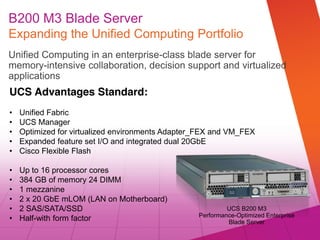

B200 M3 Blade Server
Expanding the Unified Computing Portfolio
Unified Computing in an enterprise-class blade server for
memory-intensive collaboration, decision support and virtualized
applications
UCS B200 M3
Performance-Optimized Enterprise
Blade Server
UCS Advantages Standard:
Unified Fabric
UCS Manager
Optimized for virtualized environments Adapter_FEX and VM_FEX
Expanded feature set I/O and integrated dual 20GbE
Cisco Flexible Flash
Up to 16 processor cores
384 GB of memory 24 DIMM
1 mezzanine
2 x 20 GbE mLOM (LAN on Motherboard)
2 SAS/SATA/SSD
Half-with form factor

24. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

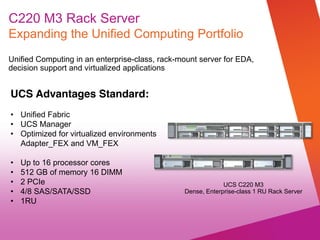

C220 M3 Rack Server
Expanding the Unified Computing Portfolio
Unified Computing in an enterprise-class, rack-mount server for EDA,
decision support and virtualized applications
UCS C220 M3
Dense, Enterprise-class 1 RU Rack Server
UCS Advantages Standard:
Unified Fabric
UCS Manager
Optimized for virtualized environments
Adapter_FEX and VM_FEX
Up to 16 processor cores
512 GB of memory 16 DIMM
2 PCIe
4/8 SAS/SATA/SSD
1RU

25. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
C240 M3 Rack Server
Expanding the Unified Computing Portfolio
Unified Computing in an enterprise-class, rack-mount for
storage-intensive, collaboration, decision support and virtualized
applications
UCS Advantages Standard:
Unified Fabric
UCS Manager
Optimized for virtualized environments
Adapter_FEX and VM_FEX
Up to 16 processor cores
768 GB of memory 24 DIMM
5 PCIe
12/24 SAS/SATA/SSD
2RU

26. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
A major market
transformation in unified
server management
No management barriers
between blades and rack
optimized servers
Extending fabric
computing to rack
optimized servers
Add capacity without
complexity
Cisco UCS
Fabric Interconnect
Unified Management
Administrative Parity for Blades and Rack Servers
Cisco
Fabric Extender
C-Series Rack
Optimized Servers
Unified Management
A Single Unified System
B-Series Blade
Servers

27. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Fabric and IO advancements
Support for M3 servers

28. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
UCS Virtual Interface Card
mLOM Implementation on Servers with 2104
3 4
1 8
2104 IOM (A)
1 2 Fabric Ports
Downstream
Ports
3 4
1
1 2 Fabric Ports
Downstream
Ports
2104 IOM (B)
0
vNIC2 vNIC1 vNIC4 vNIC3
mLOM
HBA 1 HBA 0
eth1 eth0 eth3 eth2
Host
8
Mezz Slot
1
2104: 1 link to mLOM only (10GE)
NO
Port Expander Card

29. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

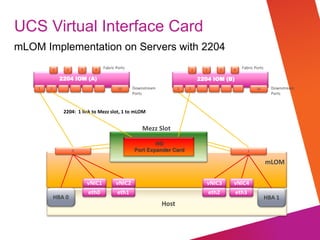

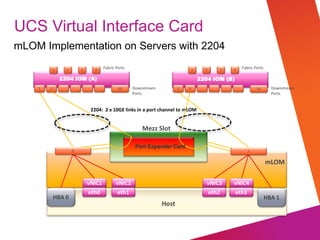

UCS Virtual Interface Card
mLOM Implementation on Servers with 2204
3 4
1 16
2204 IOM (A)
1 2 Fabric Ports
Downstream
Ports
3 4
1
1 2 Fabric Ports
Downstream
Ports
2 2
2204 IOM (B)
0
HBA 1 HBA 0
16
Mezz Slot
1
2204: 1 link to Mezz slot, 1 to mLOM
mLOM
vNIC2 vNIC1 vNIC4 vNIC3
eth1 eth0 eth3 eth2
Host
NO
Port Expander Card

30. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
UCS Virtual Interface Card
mLOM Implementation on Servers with 2204
3 4
1 16
2204 IOM (A)
1 2 Fabric Ports
Downstream
Ports
3 4
1
1 2 Fabric Ports
Downstream
Ports
2 2
2204 IOM (B)
0
vNIC2 vNIC1 vNIC4 vNIC3
HBA 1 HBA 0
eth1 eth0 eth3 eth2
Host
16
Mezz Slot
1
2204: 2 x 10GE links in a port channel to mLOM
mLOM
Port Expander Card

31. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
UCS Virtual Interface Card
mLOM Implementation on Romley Servers with 2208
3 8
1 3 4 32
2208 IOM (A)
1 2 Fabric Ports
Downstream
Ports
3 8
1 3 4
1 2
Fabric Ports
Downstream
Ports
2 2
2208 IOM (B)
0
HBA 1 HBA 0
32
Mezz Slot
1
2208: 2 link to Mezz slot, 2 to mLOM
mLOM
vNIC2 vNIC1 vNIC4 vNIC3
eth1 eth0 eth3 eth2
Host
NO
Port Expander Card

32. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

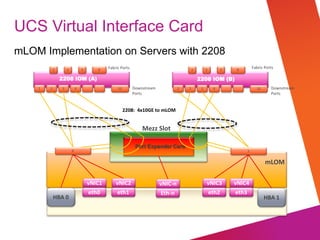

UCS Virtual Interface Card
mLOM Implementation on Servers with 2208
3 8
1 3 4 32
2208 IOM (A)
1 2 Fabric Ports
Downstream
Ports
3 8
1 3 4
1 2
Fabric Ports
Downstream
Ports
2 2
2208 IOM (B)
0
HBA 1 HBA 0
32
Mezz Slot
1
mLOM
vNIC2 vNIC1 vNIC4 vNIC3
eth1 eth0 eth3 eth2
vNIC-­‐n
Eth-­‐n
2208: 4x10GE to mLOM
Port Expander Card

33. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Agenda
Hvorledes understøtter Datacentret BYOD
Nexus
UCS
Demo

34. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

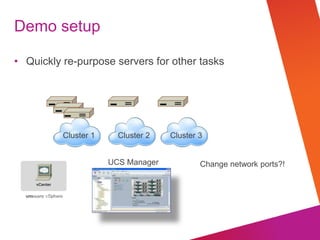

Demo setup
Quickly re-purpose servers for other tasks
Cluster 1 Cluster 2 Cluster 3
vCenter
UCS Manager Change network ports?!

35. © 2012 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Thank you
