The Cisco One Enterprise Cloud Suite provides tools for building a private cloud, including Cisco UCS Director for infrastructure automation and orchestration, Cisco Virtual Application Cloud Segmentation (VACS) for network and security segmentation, Cisco Prime Service Catalog for self-service provisioning, and Cisco UCS Performance Manager for infrastructure monitoring. The suite uses a modular approach to provide a comprehensive and automated private cloud with security, flexibility, and workload portability across private and public clouds via the Cisco Intercloud Fabric.

1. Cisco One
Enterprise Cloud
Suite
Abdelkader YEDDES
Solution Architect

2. Agenda
Introduction
Virtualization
Cloud Model
Cisco One Enterprise Cloud Suite
UCS Director
Prime Service Catalog
VACS
InterCloud

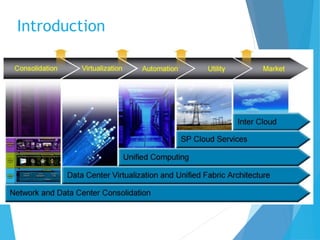

3. Introduction

4. Introduction

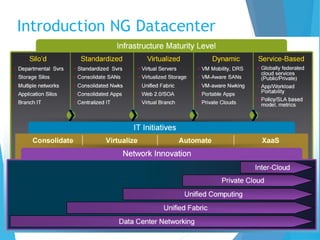

5. Introduction NG Datacenter

6. Introduction

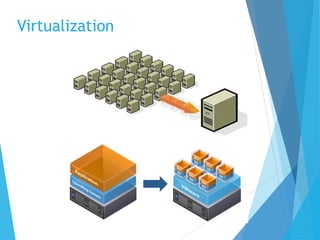

7. Virtualization

8. Virtualization
 Server Virtualization
 Network Virtualization
 Storage Virtualization
 Desktop Virtualization
 Application Virtualization

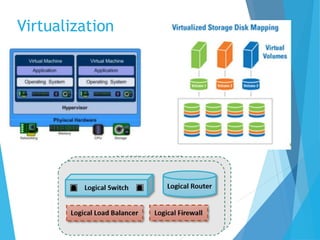

9. Virtualization

10.  Policies
 Management
 Security
 Process

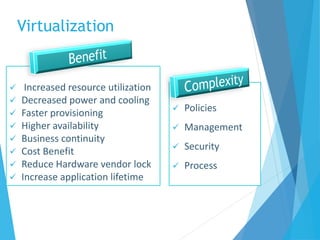

Virtualization
 Increased resource utilization
 Decreased power and cooling
 Faster provisioning
 Higher availability
 Business continuity
 Cost Benefit
 Reduce Hardware vendor lock
 Increase application lifetime

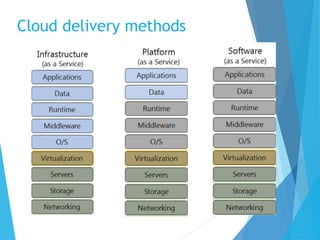

11. Cloud delivery methods

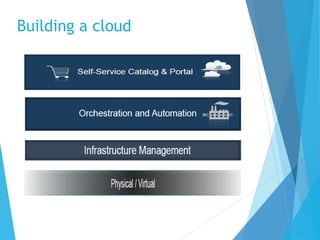

12. Building a cloud

13. Comprehensive
Automation Across
Infrastructure
Self-Service User
Experience
Hybrid-Ready
Private Cloud
Accelerate
Application
Development &
Deployment
UCS Director
Virtual Application
Container Services
Prime Service Catalog Intercloud Fabric for
Business
Stack Designer
Modular Cloud Software Suite available via Cisco ONE
flexible licensing models
Cisco ONE Enterprise Cloud Suite

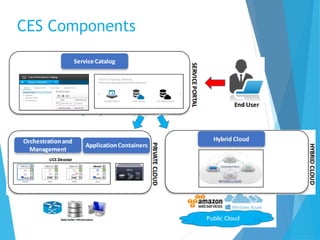

14. CES Components

15. Cisco One Enterprise Cloud Suite
 Cisco UCS Director
 Cisco Virtual Application Cloud Segmentation (VACS)
 Cisco Prime Service Catalog
 Cisco UCS Performance Manager

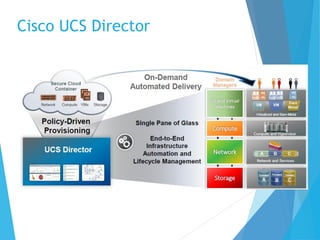

16. Cisco UCS Director

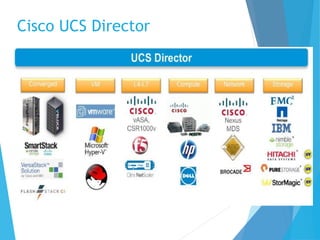

17. Cisco UCS Director

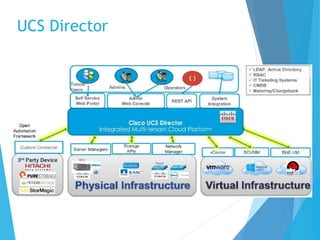

18. UCS Director

19. Infrastructure Automation

20. Orchestrator & Workflow

21. Orchestrator & Workflow

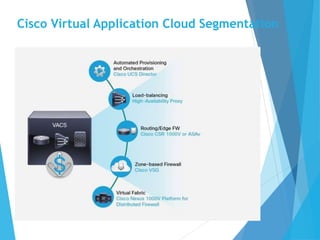

22. Cisco Virtual Application Cloud Segmentation

23. Cisco Virtual Application Cloud Segmentation
VACS includes these components:
 Cisco UCS® Director for automated provisioning and orchestration
 Cisco Nexus® 1000V Switch, a distributed virtual switch for virtualized
switching
 Cisco Virtual Security Gateway (VSG), a distributed firewall for protecting
east-west traffic
 Cisco Prime™ Network Services Controller (NSC)
 Cisco Cloud Services Router (CSR) 1000V for routing, edge firewall, and
protocol inspection and filtering
 Cisco Adaptive Security Virtual Appliance (ASAv) for complete ASA
perimeter firewall capabilities
 Open-source High-Availability Proxy (HAProxy) for server load-balancing
capabilities

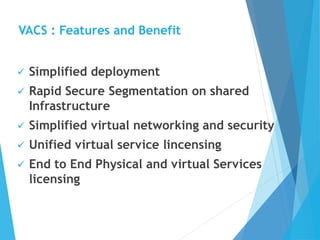

24. VACS : Features and Benefit
 Simplified deployment
 Rapid Secure Segmentation on shared
Infrastructure
 Simplified virtual networking and security
 Unified virtual service lincensing
 End to End Physical and virtual Services
licensing

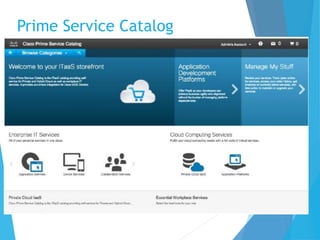

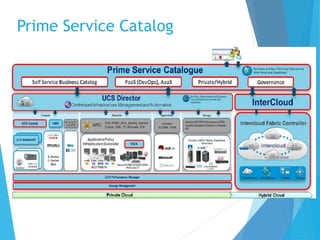

25. Prime Service Catalog

26. Prime Service Catalog

27. Prime Service Catalog

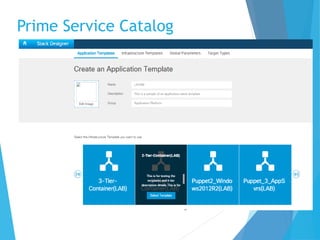

28. Prime Service Catalog

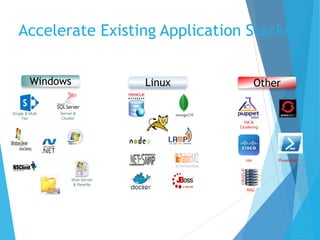

29. Accelerate Existing Application Stacks
Windows Linux Other
Single & Multi
Tier
Server &
Cluster
Web Server
& Rewrite
RAC
HA &
Clustering
HA Powershell

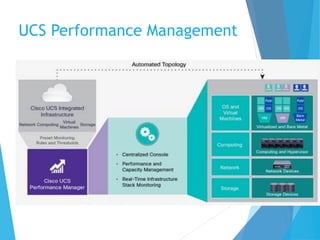

30. UCS Performance Management

31. Prime Service Catalog

32. UCS Performance Management

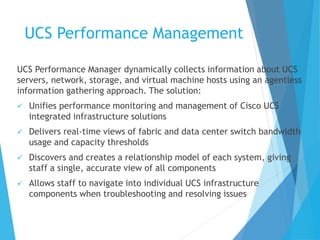

UCS Performance Manager dynamically collects information about UCS
servers, network, storage, and virtual machine hosts using an agentless
information gathering approach. The solution:
 Unifies performance monitoring and management of Cisco UCS
integrated infrastructure solutions
 Delivers real-time views of fabric and data center switch bandwidth
usage and capacity thresholds
 Discovers and creates a relationship model of each system, giving
staff a single, accurate view of all components
 Allows staff to navigate into individual UCS infrastructure
components when troubleshooting and resolving issues

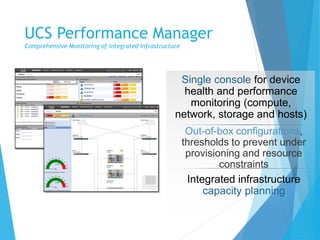

33. UCS Performance Manager
Comprehensive Monitoring of Integrated Infrastructure
Out-of-box configurations,
thresholds to prevent under
provisioning and resource
constraints
Integrated infrastructure
capacity planning
Single console for device
health and performance
monitoring (compute,
network, storage and hosts)

34. Expanding Cloud
Provider Ecosystem
…
Cisco
Intercloud Fabric

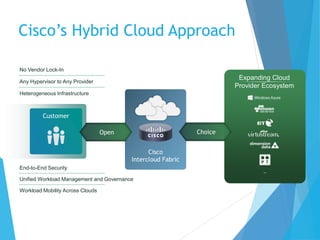

Cisco’s Hybrid Cloud Approach
Customer
Open
No Vendor Lock-In
Any Hypervisor to Any Provider
Heterogeneous Infrastructure
End-to-End Security
Unified Workload Management and Governance
Workload Mobility Across Clouds
Choice

35. Expanding Cloud
Provider Ecosystem
…
Cisco
Intercloud Fabric
Cisco’s Hybrid Cloud Approach
Customer
Open
No Vendor Lock-In
Any Hypervisor to Any Provider
Heterogeneous Infrastructure
End-to-End Security
Unified Workload Management and Governance
Workload Mobility Across Clouds
Choice

36. Questions
