The document provides details of SQL projects and stored procedures developed by Chris McGlothen including: 1. Projects for a bank, library, and online movie rental company including ER diagrams and stored procedures for transactions, reports, and security. 2. Stored procedures use try/catch blocks and handle errors, dynamic SQL, and pass back data to callers. 3. Projects include backup and recovery plans with log shipping and security roles, stored procedures instead of dynamic SQL, and principle of least privilege.

1. .SQL Portfolio Name: Chris McGlothen Email: [email_address] Phone: (702) 839-9568

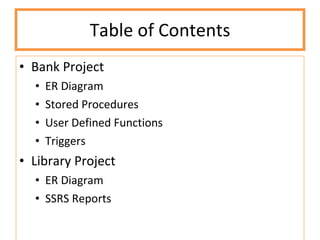

2. Table of Contents Bank Project ER Diagram Stored Procedures User Defined Functions Triggers Library Project ER Diagram SSRS Reports

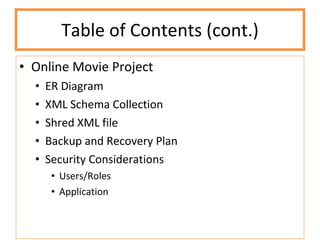

3. Table of Contents (cont.) Online Movie Project ER Diagram XML Schema Collection Shred XML file Backup and Recovery Plan Security Considerations Users/Roles Application

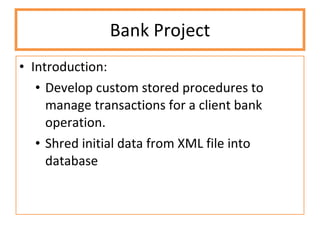

4. Bank Project Introduction: Develop custom stored procedures to manage transactions for a client bank operation. Shred initial data from XML file into database

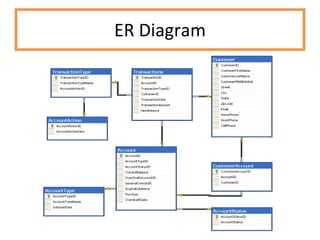

5. ER Diagram

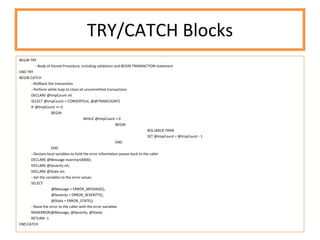

6. TRY/CATCH Blocks BEGIN TRY --Body of Stored Procedure, including validation and BEGIN TRANSACTION statement END TRY BEGIN CATCH --Rollback the transaction --Perform while loop to close all uncommitted transactions DECLARE @tmpCount int SELECT @tmpCount = CONVERT(int, @@TRANCOUNT) IF @tmpCount >= 0 BEGIN WHILE @tmpCount > 0 BEGIN ROLLBACK TRAN SET @tmpCount = @tmpCount - 1 END END --Declare local variables to hold the error information passes back to the caller DECLARE @Message nvarchar(4000); DECLARE @Severity int; DECLARE @State int; --Set the variables to the error values SELECT @Message = ERROR_MESSAGE(), @Severity = ERROR_SEVERITY(), @State = ERROR_STATE(); --Raise the error to the caller with the error variables RAISERROR(@Message, @Severity, @State) RETURN -1 END CATCH

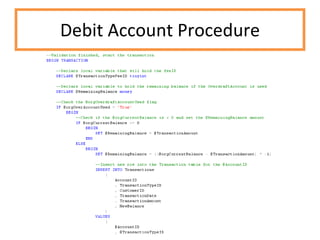

7. Debit Account Procedure

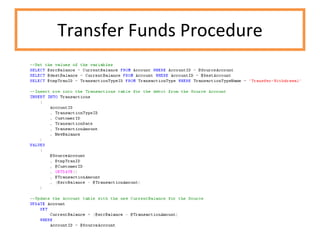

8. Transfer Funds Procedure

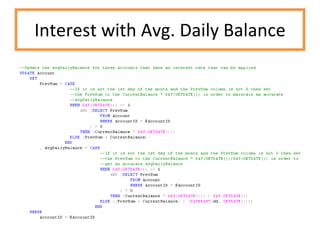

9. Interest with Avg. Daily Balance

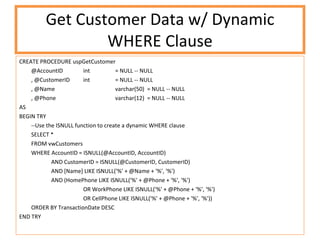

10. Get Customer Data w/ Dynamic WHERE Clause CREATE PROCEDURE uspGetCustomer @AccountID int = NULL -- NULL , @CustomerID int = NULL -- NULL , @Name varchar(50) = NULL -- NULL , @Phone varchar(12) = NULL -- NULL AS BEGIN TRY --Use the ISNULL function to create a dynamic WHERE clause SELECT * FROM vwCustomers WHERE AccountID = ISNULL(@AccountID, AccountID) AND CustomerID = ISNULL(@CustomerID, CustomerID) AND [Name] LIKE ISNULL('%' + @Name + '%', '%') AND (HomePhone LIKE ISNULL('%' + @Phone + '%', '%') OR WorkPhone LIKE ISNULL('%' + @Phone + '%', '%') OR CellPhone LIKE ISNULL('%' + @Phone + '%', '%')) ORDER BY TransactionDate DESC END TRY

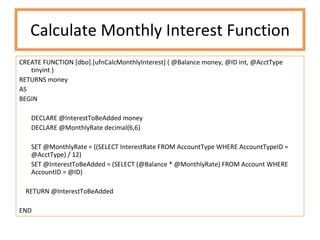

11. Calculate Monthly Interest Function CREATE FUNCTION [dbo].[ufnCalcMonthlyInterest] ( @Balance money, @ID int, @AcctType tinyint ) RETURNS money AS BEGIN DECLARE @InterestToBeAdded money DECLARE @MonthlyRate decimal(6,6) SET @MonthlyRate = ((SELECT InterestRate FROM AccountType WHERE AccountTypeID = @AcctType) / 12) SET @InterestToBeAdded = (SELECT (@Balance * @MonthlyRate) FROM Account WHERE AccountID = @ID) RETURN @InterestToBeAdded END

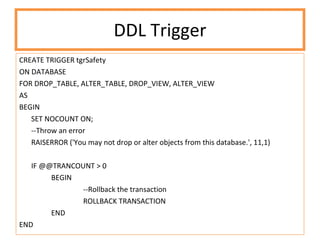

12. DDL Trigger CREATE TRIGGER tgrSafety ON DATABASE FOR DROP_TABLE, ALTER_TABLE, DROP_VIEW, ALTER_VIEW AS BEGIN SET NOCOUNT ON; --Throw an error RAISERROR ('You may not drop or alter objects from this database.', 11,1) IF @@TRANCOUNT > 0 BEGIN --Rollback the transaction ROLLBACK TRANSACTION END END

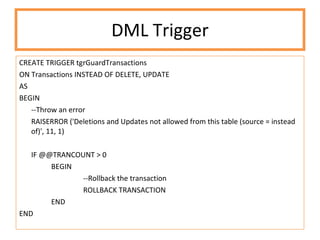

13. DML Trigger CREATE TRIGGER tgrGuardTransactions ON Transactions INSTEAD OF DELETE, UPDATE AS BEGIN --Throw an error RAISERROR ('Deletions and Updates not allowed from this table (source = instead of)', 11, 1) IF @@TRANCOUNT > 0 BEGIN --Rollback the transaction ROLLBACK TRANSACTION END END

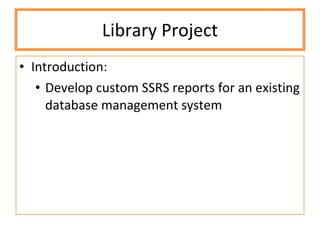

14. Library Project Introduction: Develop custom SSRS reports for an existing database management system

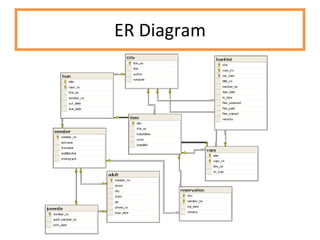

15. ER Diagram

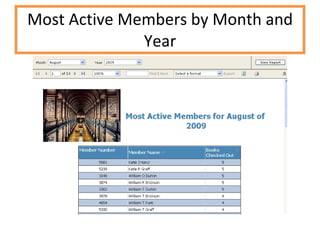

16. Most Active Members by Month and Year

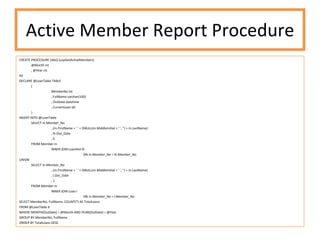

17. Active Member Report Procedure CREATE PROCEDURE [dbo].[uspGetActiveMembers] @Month int , @Year int AS DECLARE @LoanTable TABLE ( MemberNo int , FullName varchar(100) , OutDate datetime , CurrentLoan bit ) INSERT INTO @LoanTable SELECT m.Member_No , (m.FirstName + ' ' + ISNULL(m.MiddleInitial + ' ', '') + m.LastName) , lh.Out_Date , 0 FROM Member m INNER JOIN LoanHist lh ON m.Member_No = lh.Member_No UNION SELECT m.Member_No , (m.FirstName + ' ' + ISNULL(m.MiddleInitial + ' ', '') + m.LastName) , l.Out_Date , 1 FROM Member m INNER JOIN Loan l ON m.Member_No = l.Member_No SELECT MemberNo, FullName, COUNT(*) AS TotalLoans FROM @LoanTable lt WHERE MONTH(OutDate) = @Month AND YEAR(OutDate) = @Year GROUP BY MemberNo, FullName ORDER BY TotalLoans DESC

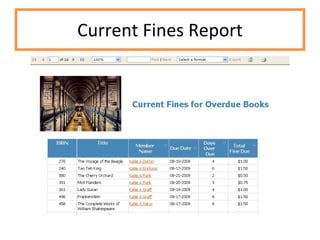

18. Current Fines Report

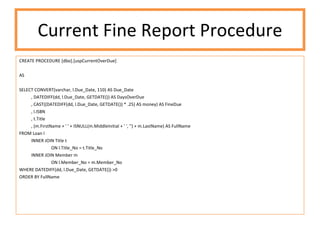

19. Current Fine Report Procedure CREATE PROCEDURE [dbo].[uspCurrentOverDue] AS SELECT CONVERT(varchar, l.Due_Date, 110) AS Due_Date , DATEDIFF(dd, l.Due_Date, GETDATE()) AS DaysOverDue , CAST((DATEDIFF(dd, l.Due_Date, GETDATE()) * .25) AS money) AS FineDue , l.ISBN , t.Title , (m.FirstName + ' ' + ISNULL(m.MiddleInitial + ' ', '') + m.LastName) AS FullName FROM Loan l INNER JOIN Title t ON l.Title_No = t.Title_No INNER JOIN Member m ON l.Member_No = m.Member_No WHERE DATEDIFF(dd, l.Due_Date, GETDATE()) >0 ORDER BY FullName

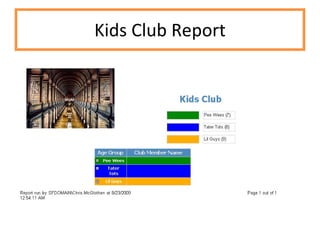

20. Kids Club Report

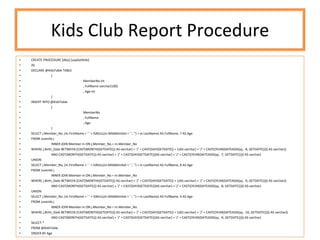

21. Kids Club Report Procedure CREATE PROCEDURE [dbo].[uspGetKids] AS DECLARE @KidsTable TABLE ( MemberNo int , FullName varchar(100) , Age int ) INSERT INTO @KidsTable ( MemberNo , FullName , Age ) SELECT j.Member_No, (m.FirstName + ' ' + ISNULL(m.MiddleInitial + ' ', '') + m.LastName) AS FullName, 7 AS Age FROM Juvenile j INNER JOIN Member m ON j.Member_No = m.Member_No WHERE j.Birth_Date BETWEEN (CAST(MONTH(GETDATE()) AS varchar) + '/' + CAST(DAY(GETDATE() + 1)AS varchar) + '/' + CAST((YEAR(DATEADD(yy, -8, GETDATE()))) AS varchar)) AND CAST(MONTH(GETDATE()) AS varchar) + '/' + CAST(DAY(GETDATE())AS varchar) + '/' + CAST((YEAR(DATEADD(yy, -7, GETDATE()))) AS varchar) UNION SELECT j.Member_No, (m.FirstName + ' ' + ISNULL(m.MiddleInitial + ' ', '') + m.LastName) AS FullName, 8 AS Age FROM Juvenile j INNER JOIN Member m ON j.Member_No = m.Member_No WHERE j.Birth_Date BETWEEN (CAST(MONTH(GETDATE()) AS varchar) + '/' + CAST(DAY(GETDATE() + 1)AS varchar) + '/' + CAST((YEAR(DATEADD(yy, -9, GETDATE()))) AS varchar)) AND CAST(MONTH(GETDATE()) AS varchar) + '/' + CAST(DAY(GETDATE())AS varchar) + '/' + CAST((YEAR(DATEADD(yy, -8, GETDATE()))) AS varchar) UNION SELECT j.Member_No, (m.FirstName + ' ' + ISNULL(m.MiddleInitial + ' ', '') + m.LastName) AS FullName, 9 AS Age FROM Juvenile j INNER JOIN Member m ON j.Member_No = m.Member_No WHERE j.Birth_Date BETWEEN (CAST(MONTH(GETDATE()) AS varchar) + '/' + CAST(DAY(GETDATE() + 1)AS varchar) + '/' + CAST((YEAR(DATEADD(yy, -10, GETDATE()))) AS varchar)) AND CAST(MONTH(GETDATE()) AS varchar) + '/' + CAST(DAY(GETDATE())AS varchar) + '/' + CAST((YEAR(DATEADD(yy, -9, GETDATE()))) AS varchar) SELECT * FROM @KidsTable ORDER BY Age

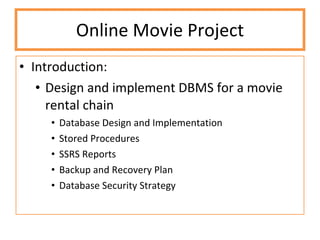

22. Online Movie Project Introduction: Design and implement DBMS for a movie rental chain Database Design and Implementation Stored Procedures SSRS Reports Backup and Recovery Plan Database Security Strategy

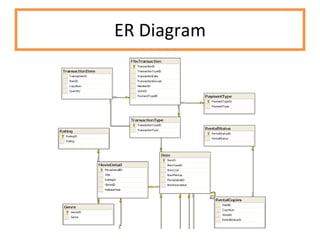

23. ER Diagram

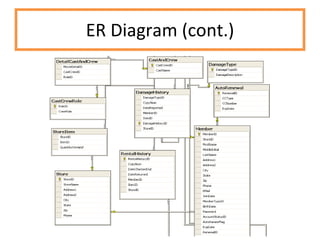

24. ER Diagram (cont.)

25. ER Diagram (cont.)

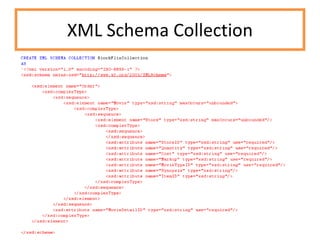

26. XML Schema Collection

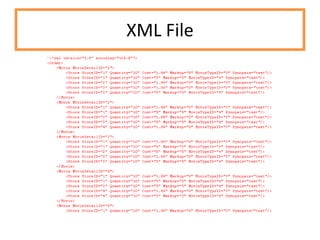

27. XML File

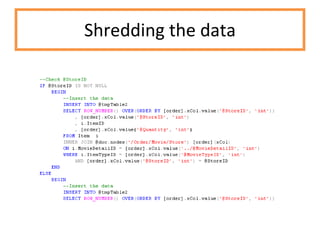

28. Shredding the data

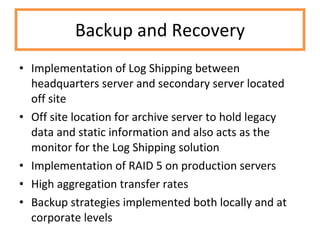

29. Backup and Recovery Implementation of Log Shipping between headquarters server and secondary server located off site Off site location for archive server to hold legacy data and static information and also acts as the monitor for the Log Shipping solution Implementation of RAID 5 on production servers High aggregation transfer rates Backup strategies implemented both locally and at corporate levels

30. Backup and Recovery (cont.)

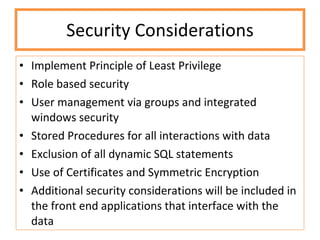

31. Security Considerations Implement Principle of Least Privilege Role based security User management via groups and integrated windows security Stored Procedures for all interactions with data Exclusion of all dynamic SQL statements Use of Certificates and Symmetric Encryption Additional security considerations will be included in the front end applications that interface with the data
