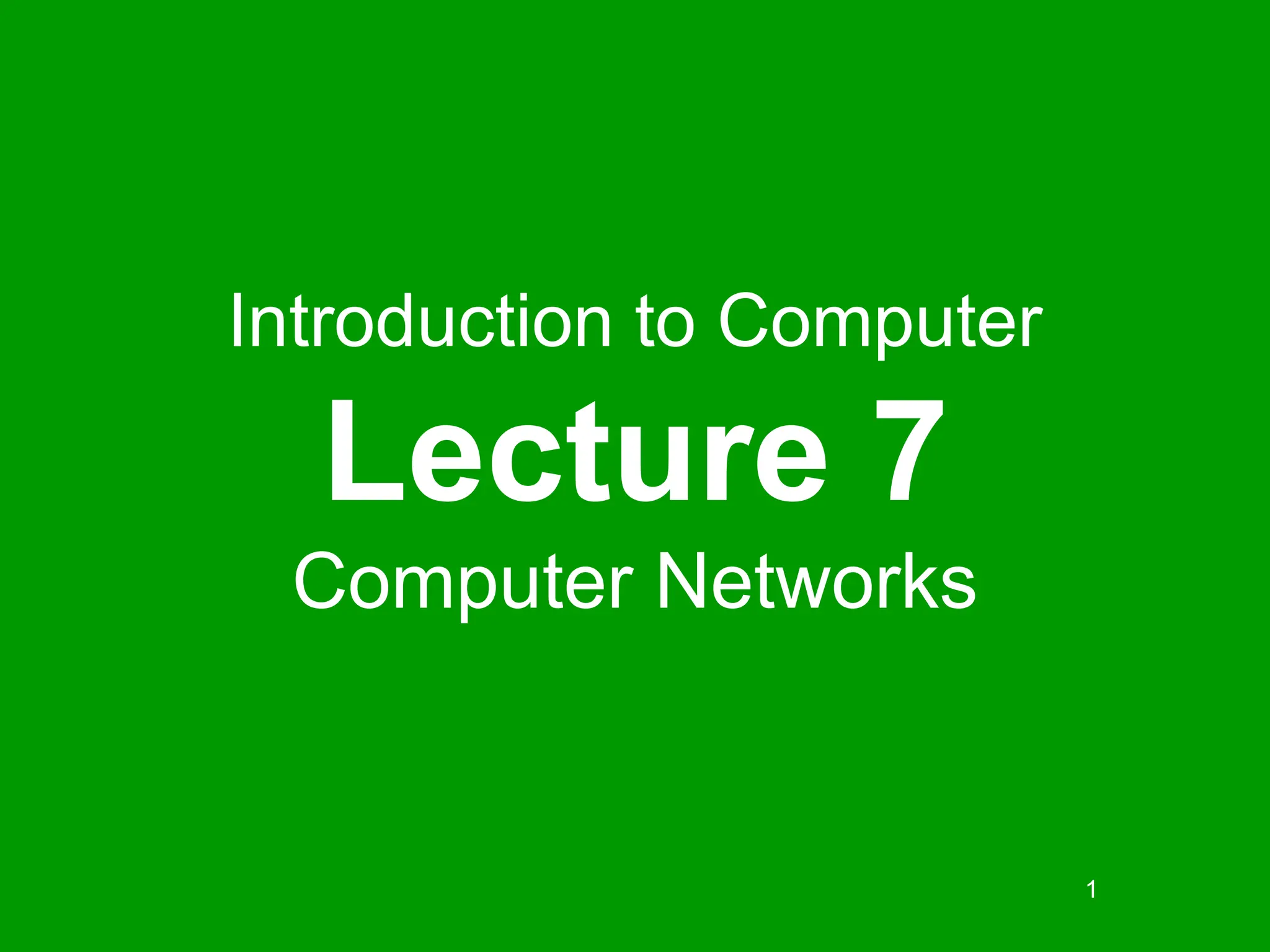

Introduction to Computer
Lecture 7
Computer Networks

2. 2

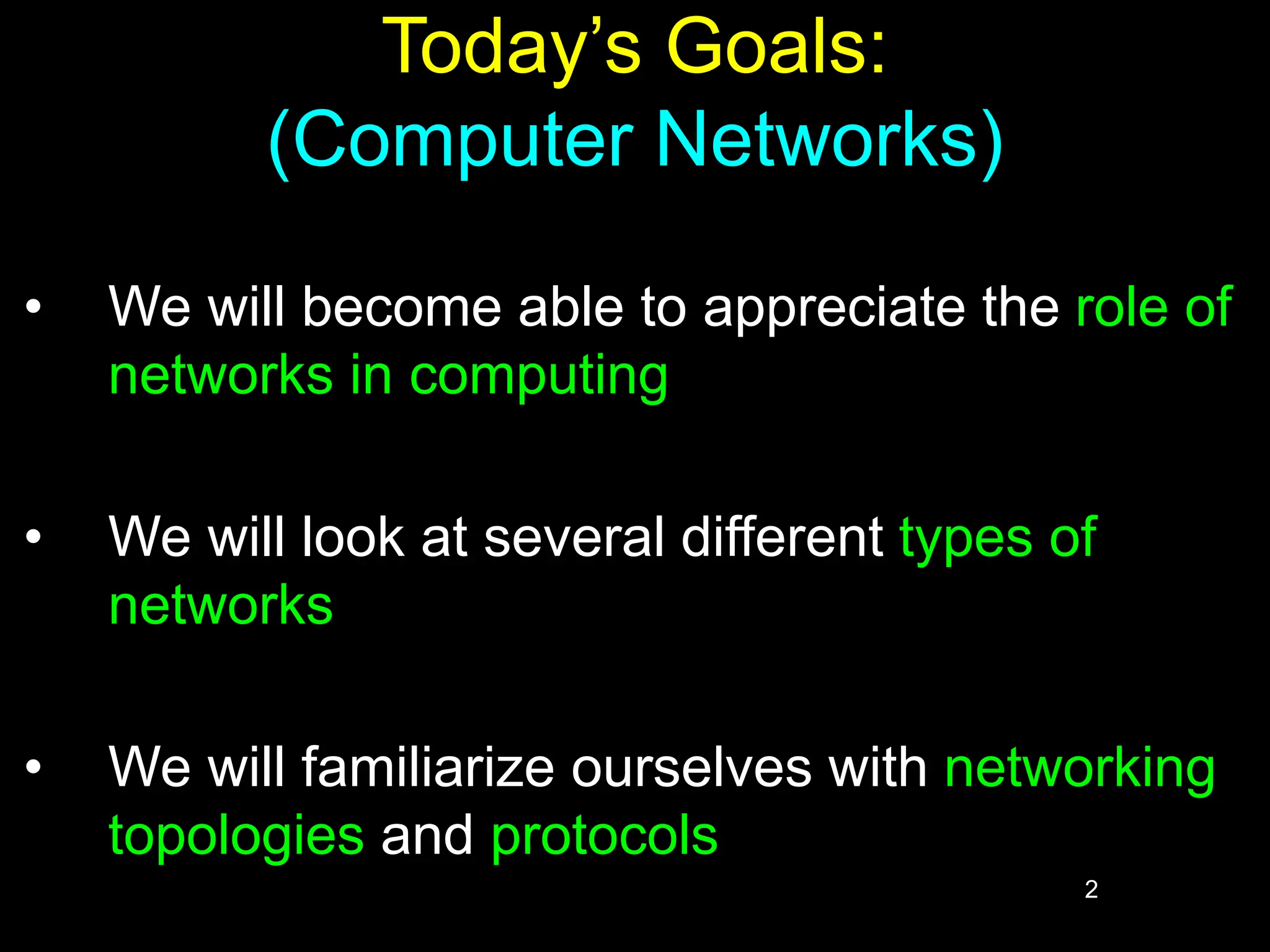

Today’s Goals:
(Computer Networks)
• We will become able to appreciate the role of
networks in computing
• We will look at several different types of
networks
• We will familiarize ourselves with networking
topologies and protocols

3. 3
All of you have used
computer networks.
What is a
computer network?

4. 4
Computer Network
Multiple computers that are
connected together to share
information and other resources

5. 5
Examples of Computer Network Usage
• I can send an eMail message to a remote
computer using the SMTP protocol
• I can browse documents residing on a remote
computer using the HTTP protocol
• I can download or upload files to a remote
computer using the FTP protocol
• I can run a program on a remote computer
using the TELNET protocol

6. 6
Computer
C
Computer
D
Computer
E
Computer
A
Computer
B
Hub
Example of
a Computer
Network

7. 7
Components of Conventional Computer Networks
1. Computers
2. Network Interface Cards (NIC)
– I/O device that plugs into the computer
– Enables it to communicate over a network
3. Hub
– The network traffic controller

8. 8
Components of Conventional Computer Networks
4. Cables
– Are either electrical or optical
– Not required at all for wireless networks
5. Protocol
– Rules governing communications over the
network
In computing, a protocol or communication protocol is a set of rules in which
computers communicate with each other. The protocol says what part of the
conversation comes at which time. It also says how to end the communication. ...
Simple Mail Transfer Protocol (SMTP), is used for transferring e-mail between
computers.

9. 9
How Does a Conventional Network Work?
1. Suppose computer A wants to send a
message to D
2. Computer A sends the message to its NIC
3. The NIC translates the message into electrical
pulses suitable for the computer network in
use & transmits it to the hub through the cable

10. 10
How Does a Conventional Network Work?
4. The hub receives them and forwards them to
all computers connected to the it
5. The NICs of all computers connected to the
hub receive the forwarded electrical pulses
6. The NIC of computer D decides that the
message is for it, & translates the pulses back
to a form suitable for the computer

11. 11
Hub (1)
• A device that is used to connect several
computers to form a network
• A hub has several ports. The number generally
is 8, 12, 16, 24, 32, or 48

12. 12
Hub (2)
• Each computer in a network is connected to
one of those ports through a cable
• A computer wanting to send a message to one
of the others in the network sends a message
to the hub, which, in turn, broadcasts the
message to all others connected to it

13. 13
Packet (1)
• The smallest unit of data transmitted over a
computer network
• A message to be transferred over the network is
broken up into small packets by the sending
computer
• Each packet contains the following info:
– Sender's address
– Destination address
– Data
– Error-recovery info

14. 14
Packet (2)
• All packets travel independently
• When all packets are received by the
destination computer, it reassembles them to
form the original message

15. 15
Types of Computer Networks
according to the network access policy
• Private
• Public

16. 16
Private Networks (1)
• Organizations having many computers usually
connect them in the form of private networks
• Access to these network is restricted to
authorized computers only

17. 17
Private Networks (2)
• This allows computers from within the
organization to exchange info, but keeps the
info private and protected from outsiders
• All equipment on a private network is generally
for the exclusive use of that organization

18. 18
Public Networks
• All networks that are not private, are … public
• Example: Internet
• Communication equipment used in these
networks is generally being used by users
belonging to several (possibly thousands of)
organizations as well as those belonging to no
organization

19. 19
VPN: Virtual Private Network (1)
• From the user’s point-of-view, a VPN looks like
a secure, private network
• VPNs use public telecom infrastructure,
maintaining privacy through security procedures

20. 20
VPN: Virtual Private Network (2)
• VPNs provide secure network connections for
distance computers without using dedicated,
private channels to supply the connection
• Key benefit of VPNs over conventional PNs:
Lower cost

21. 21
Types of Computer Networks
according to the distance between nodes
• LAN: Local Area Network)
• WAN: Wide Area Network)

22. 22
LAN
• A network of computers located in the same
building or a handful of nearby buildings
• Examples:
– Computer network at your Organization
– Computer network of a University campus

23. 23
WAN
• A network in which computers are separated by
great distances, typically across cities or even
continents
• May consist of several interconnected LANs
• Example:
– The network connecting the ATM of a bank located
in various cities
– Internet

24. 24
Connecting LANs to other Networks
Special-purpose devices are used to link
LANs to other networks
They may belong to one of the following
categories:
– Routers
– Bridges
– Gateways
– Modems

25. 25
Router
• A special-purpose device that directs data traffic
when several paths are available
• A router examines the destination info in each
arriving packet and then routes it through the
most efficient path available
• The router either delivers the packet to the
destination computer across a local network or
forwards the packet to another router that is
closer to the final destination

26. 26
Bridge
• Used to form a connection between two
separate, but similar networks
• In a way, it creates an extended LAN by
passing information between two or more LANs

27. 27
Gateway
• A special-purpose device that connects and
translates between networks that use different
communications protocols
• LAN’s may use a gateway (or router) to connect
to the Internet

28. 28
Modem (1)
• I/O device used for connecting two
computers over telephone lines
• modem = modulator + demodulator

29. 29
Modem (2)
• Modulator converts computer messages to
electrical pulses that are suitable for
transmission over the telephone lines
• Demodulator converts electrical pulses
received over telephone lines into messages
that are comprehensible for computers

30. 30
Network Topologies
• The pattern in which computers are connected
to form a network
• Popular patterns:
– Point-to-point
– Star
– Bus
– Ring
• Networks are also formed by combining 2 or
more of these 4 basic patterns

31. 31
P2P
Computer
A
Computer
B

32. 32
P2P
• Inexpensive
• Limited connectivity
• Quite often used for connecting two LANs to
form a WAN

33. 33
Star
Computer
A
Computer
D
Computer
C
Computer
B
Server

34. 34
Star (1)
• A computer sends the address of the intended
receiver and the data to the server
• The server then sends the message to the
intended receiver
• This topology allows multiple messages to be
sent simultaneously

35. 35
Star (2)
• Costly, because it uses an additional computer
to direct the data
• Costly, because each node is individually wired
to the hub
• If the server goes down, so does the network
• If any of the nodes goes down, the rest of the
network is not affected

36. 36
Bus
Computer
A
Computer
C
Computer
D
Computer
B
Bus: A high
speed cable

37. 37
Bus (1)
• No server is required
• One computer sends data to another by
broadcasting the address of the receiver and
the data over the bus
• All the computers in the network look at the
address simultaneously, and the intended
recipient accepts the data

38. 38
Bus (2)
• A bus network, unlike ring or star networks,
allows data to be sent directly from one
computer to another
• However, only one computer at a time can
transmit data. The others must wait to until the
bus gets idle
• If any of the nodes goes down, the rest of the
network is not affected

39. 39
Ring
Computer
A
Computer
D
Computer
C
Computer
B

40. 40
Ring (1)
• No server is required
• A computer sends the message to its neighbor.
The neighbor examines the message to
determine if it is the intended recipient
• If the data are not intended for that particular
neighbor, it passes the message to the next
computer in the ring

41. 41
Ring (2)
• This process is repeated until the data arrive at
their intended recipient
• This topology allows multiple messages to be
carried, simultaneously
• Data transmission is slow since each message
is checked by each computer

42. 42
Ring (3)
• New nodes are difficult to add
• Messages propagate in one direction only
• The network fails if a single node fails

43. 43
Combination
Computer
B
Computer
A
Computer
C
Hub
Computer
E
Computer
D
Computer
F
Hub

44. 44
Networking Protocols
• Networks use protocols, or rules, to exchange
info through shared channels
• Protocols prevent collisions of packets caused
by simultaneous transmission between two or
more computers
• Several protocols are available for various
types of networks. Here we discuss two that
are popular for LANs: Ethernet; Token Ring

45. 45
Ethernet Protocol
• A computer using this protocol checks if a
shared connection is in use before transmitting
a message
• If not, the computer transmits data
• Two computers may sense an idle connection
and may send packets simultaneously. To
account for such situations, transmitting
computers continue to monitor the connection
and re-transmit if a packet collision occurs

46. 46
Token Ring Protocol
• This protocol passes a special message called
a token through the network
• A computer that receives the token is given
permission to send a packet of information
• If the computer has no packet to send, it passes
the token to the next computer

47. 47
Computer Networks
=
Computers
+
Communications

48. 48
Types of Communication Channels
1. Wire
2. Wireless
A key characteristic of these channels is bandwidth

49. 49
Bandwidth
• Capacity of a communication channel for
carrying data
• Measured in bits/s (bps), kb/s, Mb/s, Gb/s, Tb/s
• Optical fiber channels have the highest (1 Tb/s)
• Telephone lines the lowest (56 kb/s)

50. 50
Types of Communication Channels
Wire
–Copper
• Twisted-pair
• Coaxial cable
–Optical fiber
Wireless
–Line-of-sight
• Microwave
• Optical
–Non-line-of-sight
• Satellite
• Radio
• Cellular

51. 51
Wireless (Radio) LANs Are Becoming Popular
Key benefits:
– Set-up time
– Set-up cost
– Maintenance cost
– Cost Key challenges:
– Security & privacy
– Quality of service
– Cost

52. 52
Network Security (1)
• Keeping an eye on the security of private
networks (e.g. LANs) is relatively easy
• However, their connections to other networks
(e.g. the Internet) pose a security risk because
the one has no control over users on those
networks

53. 53
Network Security (2)
• Applications transferred from the Internet to the
LAN may contain computer viruses
• External, unauthorized users may gain access
to sensitive data
• A special type of gateway - a firewall – can
keep external users from accessing resources
on the LAN while letting LAN users access the
external info

54. 54
Firewall
• A system that guards a private network,
enforcing an access/deny policy to all traffic
going to and coming from the Internet
• It keeps an eye on all the packets that go in and
out of the private network and blocks them or
allows them to continue to their destination
according to the policy

55. 55
Private
Network
Internet
Firewall

56. 56
Firewall Policy: Example
One can configure a firewall to allow only
eMail to enter the private network, thus
shielding it from any malicious attacks
except for those via eMail

57. 57
In Today’s Lecture
• We looked at the role of networks in
computing
• We looked at several different types of
networks
• We familiarized ourselves with networking
topologies and protocols

58. 58
Next Lecture:
Introduction to the Internet
• To become able to appreciate the role of the
Internet in today’s computing
• To become familiar with the history and
evolution of the Internet
