Chap 4
Marine sediments originate from various sources including weathering of continents, volcanic eruptions, biological activity, and chemical processes. Sediment classification is based on grain size and composition. Coarser sediments indicate higher energy depositional environments while finer sediments like silts and clays indicate lower energy. Biogenic sediments are composed of marine microfossil remains while authigenic sediments form from chemical precipitation in seawater. The majority of sediments accumulate on continental margins with the thickest deposits along coastlines that receive river and glacial inputs and thinner deposits in the deep ocean basins.
Chap 4
- 1.
- 10. • Sediment Defined: •unconsolidated organic and inorganic particles that accumulate on the ocean floor • originate from numerous sources – weathering and erosion of the continents – volcanic eruptions – biological activity – chemical processes within the oceanic crust and seawater – impacts of extra- terrestrial objects • classified by size according to the Wentworth scale

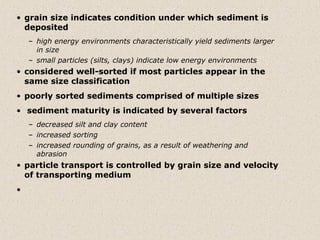

- 11. • grain sizeindicates condition under which sediment is deposited – high energy environments characteristically yield sediments larger in size – small particles (silts, clays) indicate low energy environments • considered well-sorted if most particles appear in the same size classification • poorly sorted sediments comprised of multiple sizes • sediment maturity is indicated by several factors – decreased silt and clay content – increased sorting – increased rounding of grains, as a result of weathering and abrasion • particle transport is controlled by grain size and velocity of transporting medium •

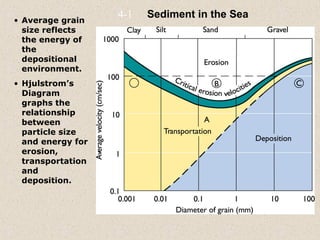

- 12. 4-1 Sediment in the Sea • Average grain size reflects the energy of the depositional environment. • Hjulstrom’s Diagram graphs the relationship between particle size and energy for erosion, transportation and deposition.

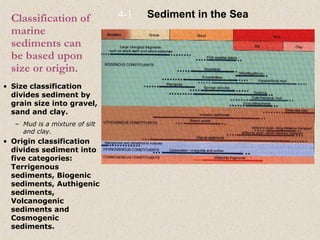

- 14. Classification of 4-1 Sediment in the Sea marine sediments can be based upon size or origin. • Size classification divides sediment by grain size into gravel, sand and clay. – Mud is a mixture of silt and clay. • Origin classification divides sediment into five categories: Terrigenous sediments, Biogenic sediments, Authigenic sediments, Volcanogenic sediments and Cosmogenic sediments.

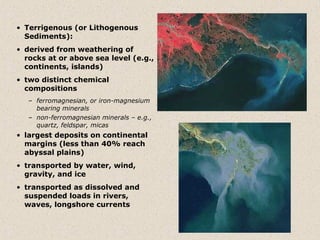

- 15. • Terrigenous (orLithogenous Sediments): • derived from weathering of rocks at or above sea level (e.g., continents, islands) • two distinct chemical compositions – ferromagnesian, or iron-magnesium bearing minerals – non-ferromagnesian minerals – e.g., quartz, feldspar, micas • largest deposits on continental margins (less than 40% reach abyssal plains) • transported by water, wind, gravity, and ice • transported as dissolved and suspended loads in rivers, waves, longshore currents
- 16. • (LANDSAT images adapted from Geospace Images catalog). • sediment delivered to the open-ocean by wind activity as particulate matter (dust) • primary dust source is deserts in Asia and North Africa • comprise much of the fine-grained deposits in remote open-ocean areas (red clays) • volcanic eruptions contribute ash to the atmosphere which settles within the oceans
- 17. • sediment also transported to the open-ocean by gravity- driven turbidity currents • dense 'slurries' of suspended sediment moved as turbulent underflows • typically initiated by storm activity or earthquakes – first identified during 1929 Grand Banks earthquake – seismic activity triggered turbidity current which severed telegraph lines • initial flow often confined to submarine canyons of the continental shelf and slope • form deep-sea fans where the mouth of the canyon opens onto the continental rise
- 18. 20 m s-1near Grand Banks

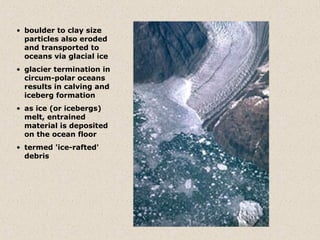

- 19. • boulder toclay size particles also eroded and transported to oceans via glacial ice • glacier termination in circum-polar oceans results in calving and iceberg formation • as ice (or icebergs) melt, entrained material is deposited on the ocean floor • termed 'ice-rafted' debris

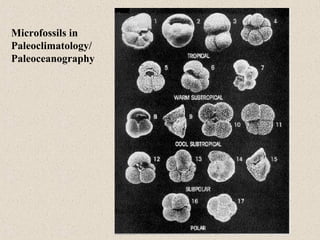

- 21. • Biogenous Sediments: •composed primarily of marine microfossil remains • shells of one-celled plants and animals, skeletal fragments • median grain size typically less than 0.005 mm (i.e., silt or clay size particles) • characterized as CaCO3 (calcium carbonate) or SiO2 (silica) dominated systems • sediment with biogenic component less than 30% termed calcareous, siliceous clay • calcareous or siliceous 'oozes' if biogenic component greater than 30%

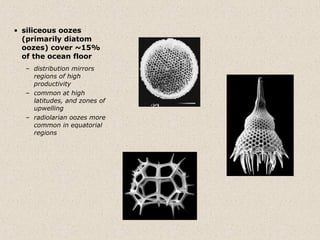

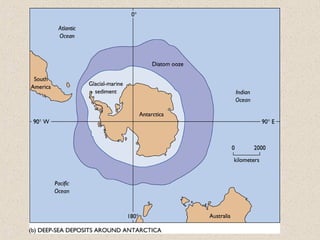

- 23. • siliceous oozes (primarily diatom oozes) cover ~15% of the ocean floor – distribution mirrors regions of high productivity – common at high latitudes, and zones of upwelling – radiolarian oozes more common in equatorial regions

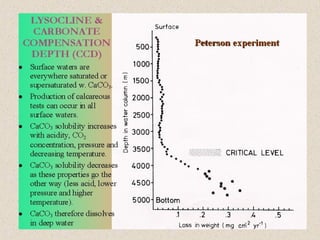

- 24. • calcareous oozes (foraminifera, coccolithophores) cover ~50% of the ocean floor – distribution controlled largely by dissolution processes – cold, deep waters are undersaturated with respect to CaCO3 – deep water is slightly acidic as a result of elevated CO2 concentrations – solubility of CaCO3 also increases in colder water and at greater pressures – CaCO3 therefore readily dissolved at depth • level below which no CaCO3 is preserved is the 'carbonate compensation depth' • typically occurs at a depth of 3000 to 4000 m •
- 25.

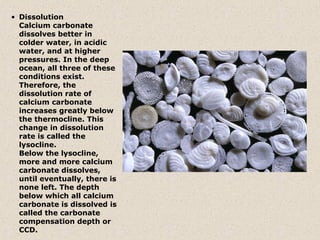

- 26. • Dissolution Calcium carbonate dissolves better in colder water, in acidic water, and at higher pressures. In the deep ocean, all three of these conditions exist. Therefore, the dissolution rate of calcium carbonate increases greatly below the thermocline. This change in dissolution rate is called the lysocline. Below the lysocline, more and more calcium carbonate dissolves, until eventually, there is none left. The depth below which all calcium carbonate is dissolved is called the carbonate compensation depth or CCD.
- 28. • Hydrogenous (orAuthigenic) Sediments: • produced by chemical processes in seawater • essentially solid chemical precipitates of several common forms • non-biogenous carbonates – form in surface waters supersaturated with calcium carbonate – common forms include short aragonite crystals and oolites • phosphorites – phosphate crusts (containing greater than 30% P2O5) occurring as nodules – formed as large quantities of organic phosphorous settle to the ocean floor – unoxidized material is transformed to phosphorite deposits – found on continental shelf and upper slope in regions of high productivity
- 29. • manganese nodules – surficial deposits of manganese, iron, copper, cobalt, and nickel – accumulate only in areas of low sedimentation rate (e.g., the Pacific) – develop extremely slowly (1 to 10 mm/million years) •

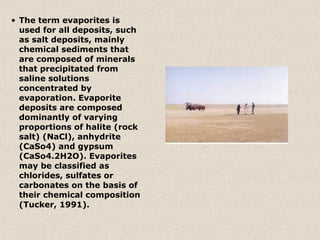

- 31. • The termevaporites is used for all deposits, such as salt deposits, mainly chemical sediments that are composed of minerals that precipitated from saline solutions concentrated by evaporation. Evaporite deposits are composed dominantly of varying proportions of halite (rock salt) (NaCl), anhydrite (CaSo4) and gypsum (CaSo4.2H2O). Evaporites may be classified as chlorides, sulfates or carbonates on the basis of their chemical composition (Tucker, 1991).

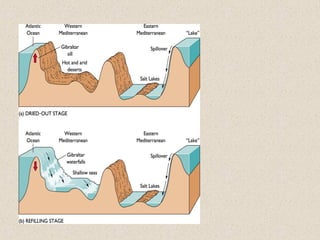

- 32. evaporites ('salt' deposits') occur in regions of enhanced evaporation (e.g., marginal seas) evaporative process removes water and leaves a salty brine e.g., Mediterranean 'Salinity Crisis' between 5 and 6 million years
- 33. • Cosmogenous Sediments: • sediments derived from extraterrestrial materials • includes micrometeorites and tektites • tektites result from collisions with extraterrestrial materials – fragments of earth's crust melt and spray outward from impact crater – crustal material re- melts as it falls back through the atmosphere – forms 'glassy' tektites
- 34. • Distribution ofMarine Sediments: • sediments thickest along continental margins, thin at mid-ocean ridges • coastlines – dominated by river-borne and wave reworked terrigenous sediments – shelf and slope characterized by turbidites and authigenic carbonate deposits – glacial deposits and ice-rafted debris common at high latitudes – high input of terrigenous sediments 'dilutes' biogenous components • deep-sea (pelagic) basins – abyssal clays (wind blown deposits) common – lower quantities of biogenic material • distribution of biogenous sediments dependent upon three primary factors – production in surface waters – dissolution in deep waters – dilution by other sediments types
- 35. • high productivityin zones of upwelling and Nearshore sediments, turbidites:Up to nutrient-rich high km/my (kilometers/million years) latitude waters Hemipelagic deposits: Tens to hundreds • calcareous oozes more common in warmer or of m/myDrift deposits40-400 m/my shallower water Mid-latitude eolian deposits: 3 to 10 • siliceous oozes more m/my common in colder or deeper water Ice rafted material: 10+ m/my • terrigenous Carbonate oozes: Up to 50 m/my sedimentation rates Siliceous oozes: Up to 10 m/my range from ~1 mm to 10's cm/1000 years Hydrothermal deposits: (off ridge • biogenous axes)About 0.5 m/my sedimentation rates Hydrogenous sediments: Rarely exceed typically ~1 cm/1000 years 0.2 m/my Ferromanganese nodules: 0.0002 to 0.005 m/my (0.2 to 5 mm/my)
- 38. Shelf sedimentation is 4-2 Sedimentation in the Ocean strongly controlled by tides, waves and currents, but their influence decreases with depth. • Shoreline turbulence prevents small particles from settling and transports them seaward where they are deposited in deeper water. • Particle size decreases seaward for recent sediments. • Past fluctuations of sea level has stranded coarse sediment (relict sediment) across the shelf including most areas where only fine sediments are deposited today.

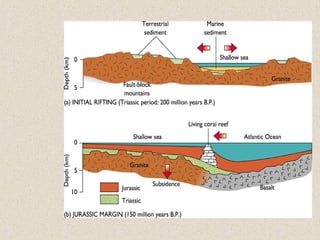

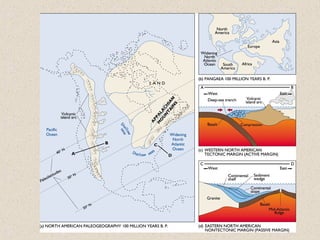

- 40. 4-2 Sedimentation in the Ocean Geologic controls of continental shelf sedimentation must be considered in terms of a time frame. • For a time frame up to 1000 years, waves, currents and tides control sedimentation. • For a time frame up to 1,000,000 years, sea level lowered by glaciation controlled sedimentation and caused rivers to deposit their sediments at the shelf edge and onto the upper continental slope. • For a time frame up to 100,000,000 years, plate tectonics has determined the type of margin that developed and controlled sedimentation.

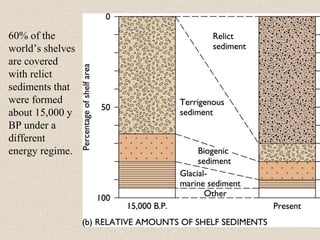

- 41. 60% of the world’sshelves are covered with relict sediments that were formed about 15,000 y BP under a different energy regime.

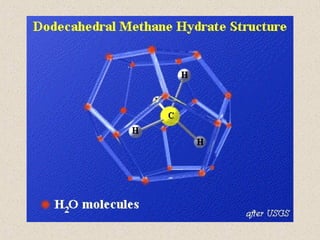

- 63. • Gas MethaneHydrates (Clathrates) • Hydrates store immense amounts of methane, with major implications for energy resources and climate, but the natural controls on hydrates and their impacts on the environment are very poorly understood • The worldwide amounts of carbon bound in gas hydrates is conservatively estimated to total twice the amount of carbon to be found in all known fossil fuels on Earth (USGS). • Methane bound in hydrates amounts to approximately 3,000 times the volume of methane in the atmosphere.
