This document discusses workflow and automation in EnergyCAP. It provides examples of simple and complex workflows involving bill entry, auditing, approval, export, and other processes. It demonstrates settings, importing bills, auditing bills after import, considerations for chargeback bills, exporting to accounting, handling errors, and aspects of the workflow that can be automated.
4. A More Complex Workflow
Data
Entry
Audit &
Approve
Charge-
back Bills
Audit &
Approve
Export &
Reformat
Accruals
Payment
Info from
AP
Bills
Submeter
Bills
Readings
Submeter
Percentage
Calculated
Chargeback
Bills
AP
GL
Both?
Which
Method?
Reversals
Payment
Status
Check
Number

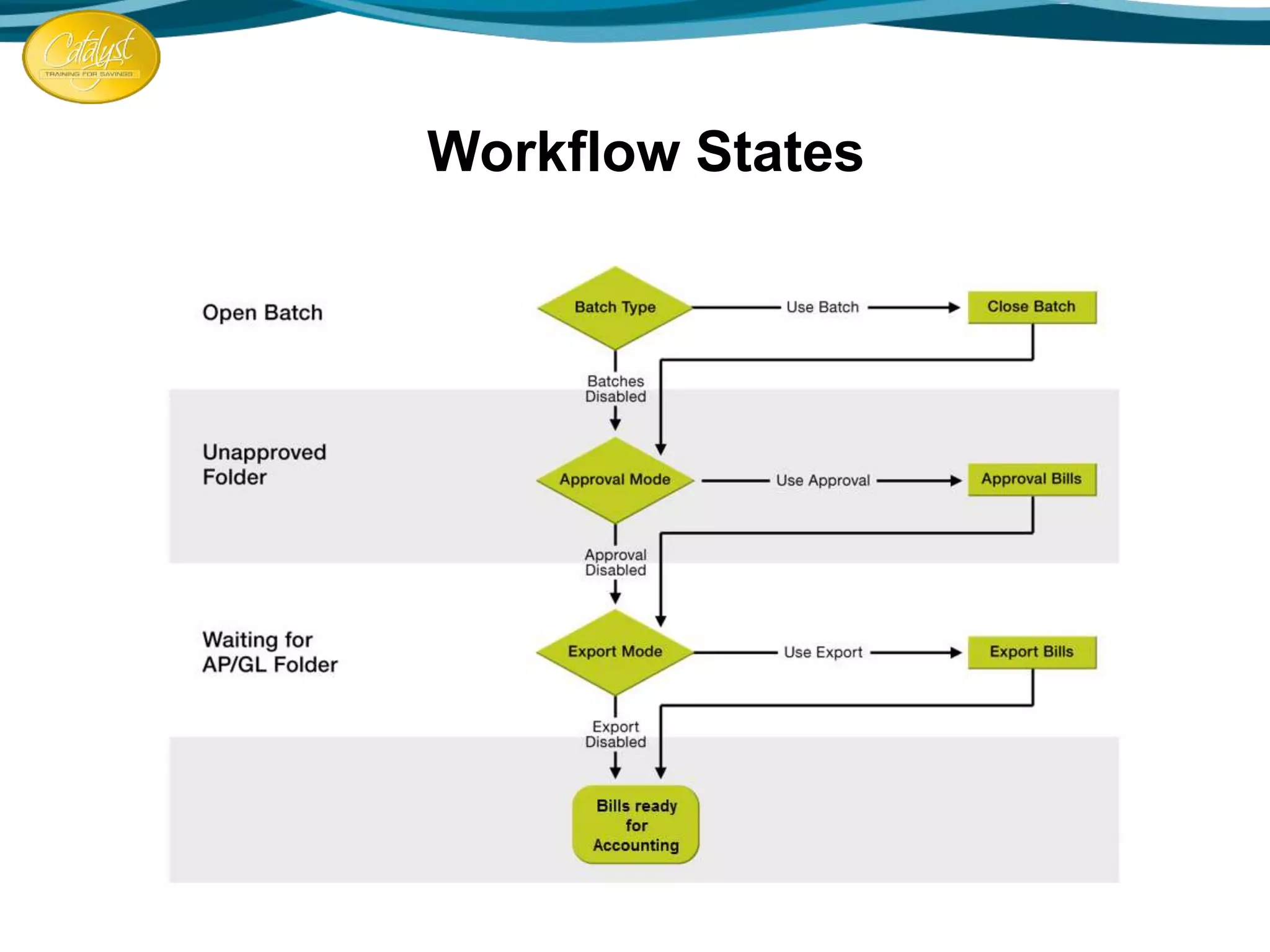

5. Workflow Settings Demo
Use batches
Execute Quick Audits
Enable Bill Approval
Which Bill Headers should I use? Which should be required?
Enable Bill Export
Upon Approval
Upon Batch Close and Approval
6. Importing Bills Demo
Demonstrate how to import bills and verify totals
Explain what a MAINT batch is and when should you use it
Demonstrate the options for managing bill import kickouts
Single record
Export the kickout records to a file that can be edited
and imported
Bill Image URL available to assist you
7. Workflow After Import Demo
Workflow folders in Bill Processing
Close your batch
Audit the bills
Review the bill messages before approving the bills
Hold any outliers for further review
VOID any duplicate bills as well as any past bills you’re
getting a correction for
Bills are ready for export!
10. Export to AP Demo
Choose whether or not to mark as exported
Place the exported file in the folder where your
Accounting Interface is located (typically there is a
folder named ‘Input’)
Workflow Administration to generate the INI file for
recent interfaces
11. When You Encounter Errors Demo
The reformatter or accounting interface may reject bills
for one reason or another
Create a Bill List for ‘Bills exported today’ to facilitate the
un-export action
Un-export bills (all or selectively) that need to be
corrected and re-sent through the reformatter or
accounting interface
Fix the bill issues
Export from ECO again
12. Automation Advantage
There are several aspects of workflow that can be
automated
As part of export, you can rollback bills that fail at
the reformatter
We can rollback the entire set of bills or just the
ones that failed
This is the same functionality offered in the ECO
application, but automated!
13. What Can Be Automated
Bill Import–via Bill CAPture or the Bill Import API
Bill Audits–via Bill CAPture or the Bill Import API
Chargeback Processor–via API
Bill Export–via API
Accounting Interface Reformatter–via Windows
OS script
Payment Info from Accounting System–via
Windows OS script
Welcome to the session on Workflow and Automation. Let’s start off with a quick poll …
How many of you are using some form of automation as part of your implementation?
Did any of you come into this session with a burning question on your mind?
Discuss and show in app
Import file: Session 2 - Bill Import Example.xlsx
Import file for kickouts demo: Session 2 - Bill Import Example with kickouts.xlsx
** DO NOT DELETE THE BILLS YOU IMPORT **
Note the one bill is really high on Cost per day – looks like the cost line is off … error in keying
Spend a little time on the question of workflow related to corrected bills. Ask them if they have any challenges related to workflow and corrected bills. What is the situation? What do they do to handle it? Reinforce the ideal is to end up with a single non-void bill for each service period.
Order of Operation – some distributions have all the steps combined and that’s that. But other workflows depend on distributions being run in a certain order because the results of one step are used in a following step.
Bills from Submeter Readings – Make sure you have all your meter readings and if the unit cost is coming from a vendor bill, make sure you have the most recent bill for the period you’re calcualting.
Use this button when you need it … but understand the impact to your workflow. You may not really be “rolled back” to the step you want to be on. This is why you really need to document your workflow – including what to do when an Oops occurs at each step.
Can you think of a reason you would NOT want to mark a bill as exported? Consider if the export and reformat are done manually.
Not as big of an issue now – in ECO you can unexport with ease
For those of you who have AP reformatters, here is how you can test if ECO AP Export will work for you
In Admin, download the ini file there and look for the billexp.ini in your reformatter’s directory (rename then copy new one)
Check settings for your reformatter to see if it references a profile name – update accordingly.
Export file and run reformatter – success?
What workflow challenges are you facing today?
What bill lists have you created that help you through your workflow?
What best practices (such as documenting workflow) have you implemented?
