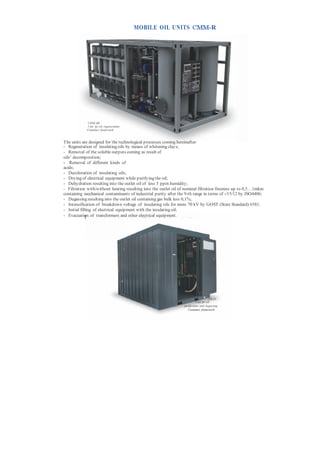

MOBILE OIL UNITS СММ-R

СММ-6R
Unit for oil regeneration
Container framework

The units are designed for the technological processes coming hereinafter:
- Regeneration of insulating oils by means of whitening clays;
- Removal of the soluble outputs coming as result of
oils’ decomposition;
- Removal of different kinds of
acids;
- Decoloration of insulating oils;
- Drying of electrical equipment while purifying the oil;
- Dehydration resulting into the outlet oil of less 5 ppm humidity;
- Filtration with/without heating resulting into the outlet oil of nominal filtration fineness up to 0,5…1mkm
containing mechanical contaminants of industrial purity after the 9-th range in terms of -/15/12 by ISO4406;
- Degassing resulting into the outlet oil containing gas bulk less 0,1%;
- Intensification of breakdown voltage of insulating oils for more 70 kV by GOST (State Standard) 6581;
- Initial filling of electrical equipment with the insulating oil;
- Evacuation of transformers andторов electrical equipment.
рование трансформа other и другой эле ктроаппаратуры.

СМ М- 6 R
Unit for oil
purification and degassing
Container framework

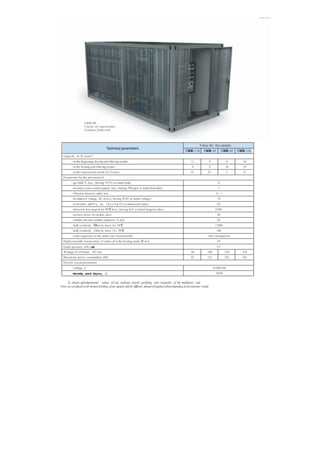

СММ-6R
Unit for oil regeneration
Container framework

Value for the sample
Technical parameters
СММ-2,2R СММ-4R СММ-6R СММ-12R
3
Capacity , m /h, more*
- in the degassing, dry ing and filtering modes 2,2 4 6 10
- in the heating and filtering m odes 4 6 10 14
- in the regeneration m ode (8-12 runs) 0,5 0,8 1,2 2,0
P aram eters for the processed oil:
- gas bulk %, less, (having 10,5% as initial bulk) 0,1
- m oisture m ass content (ppm), less, ( having 200 ppm as initial hum idity) 5
- filtration fineness, mkm , less 0,5...1
- breakdown voltage, kV, m ore,( having 30 kV as initial voltage) 70
- acid value, mgКО N /g, less, ( h a v i n g 0,2 as initial acid value) 0,03
- dielectric loss tangent for 90°С,less, ( having 0,01 as initial tangent value) 0,005
- surface stress, Dy ne/сm, more 40
- soluble and non-soluble sedim ent, %, less 0,03
- bulk resistivity , Оhm /m, more, for 20°С 17000
- bulk resistivity , Ohm /m, more, f o r 90°С 500
- color respective of the initial one: brown/turbid Yello w /transparent
Highest possible tem perature of outlet oil in the heating mode,°С, less 85
Outlet pressure, m P a,mr
oe 0,15
W attage of oil heater, kWt, less 50 100 210 210
Maxim um power consumption, kW t 65 125 245 245
Electric circuit parameters:
- voltage, В 3x400/240
-alternating current frequency, Hz 50/60

To obtain aforementioned values oil can undergo several purifying runs respective of the muddiness rate
*Units are produced in all variants of kitting, of any capacity and for different amount of ingoing sorbent depending on the customer’s needs

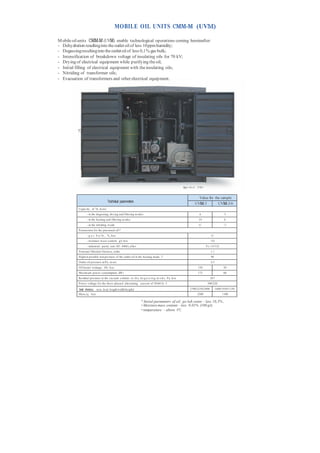

MOBILE OIL UNITS СММ-М (UVМ)

M obile oil units СММ-М (UVМ) enable technological operations coming hereinafter:
- Dehydration resulting into the outlet oil of less 10 ppm humidity;
- Degassing resulting into the outlet oil of less 0,1 % gas bulk;
- Intensification of breakdown voltage of insulating oils for 70 kV;
- Drying of electrical equipment while purifying the oil;
- Initial filling of electrical equipment with the insulating oils;
- Nitriding of transformer oils;
- Evacuation of transformers and other electrical equipment.

Single- blo ck UVМ-3

Technical parameters UVМ-3 UVМ-3/6
Capacity , m 3 /h, m ore:
- in the degassing, dry ing and filtering m odes 6 3
- in the heating and filtering m odes 14 6
- in the nitriding m ode 4,5 1,5
P aram eters for the processed oil:*
- g a s b u l k , %, less 0,1
- m oisture m ass content, g/t,, less 10,0
- industrial purity rate (ISO 4406), after 9 (-/15/12)
Nom inal filtration fineness, m km 3...5
Highest possible tem perature of the outlet oil in the heating mode, °С 90
Outlet oil pressure, m P a, m ore 0,15
Oil heater wattage, kWt, less 150 50
Maxim um power consumption, kW t 175 60
Residual pressure in the vacuum column i n t h e d e g a s s i n g m o d e, P a, less 267
P ower voltage for the three-phased alternating current of 50/60 Hz, V 380/220

Overall dimensions, m m , less( length/width/height) 2700/2250/2400 1600/1930/1150
Mass, kg, less 3200 1100

* Initial parameters of oil: gas bulk content – less 10,5% ,
• Moisture mass content – less 0,01% (100 g/t)
• temperature – above 0°С.

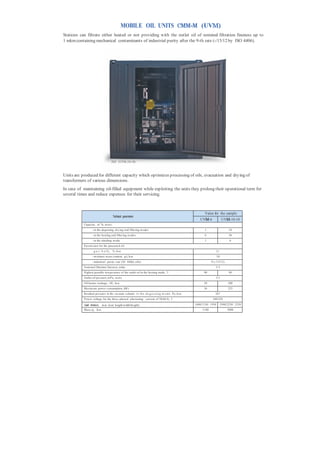

MOBILE OIL UNITS СММ-М (UVМ)
Stations can filtrate either heated or not providing with the outlet oil of nominal filtration fineness up to
1 mkm containing mechanical contaminants of industrial purity after the 9-th rate (-/15/12 by ISO 4406).

СМ М (UVM-10-10)

Units are produced for different capacity which optimizes processing of oils, evacuation and drying of
transformers of various dimensions.
In case of maintaining oil-filled equipment while exploiting the units they prolong their operational term for
several times and reduce expenses for their servicing.

UVМ-6 UVМ-10-10
- in the degassing, dry ing and filtering m odes 1 10
- in the heating and filtering m odes 6 30
- in the nitriding m ode 1 6
P aram eters for the processed oil:
- g a s b u l k , %, less 0,1
- industrial purity rate (ISO 4406), after 9 (-/15/12)
Nom inal filtration fineness, m km 3-5
Highest possible tem perature of the outlet oil in the heating mode, °С 90 90

Overall dimensions, m m , less( length/width/height) 1600/1150/ 1930 3500/2250/ 2350

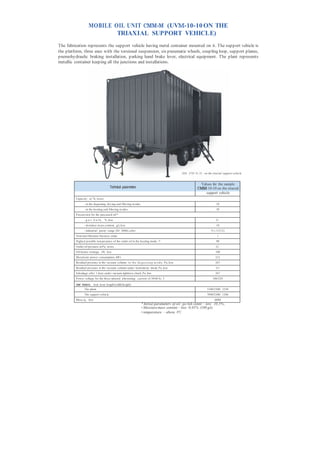

MOBILE OIL UNIT СММ-М (UVМ-10-10 ON THE
TRIAXIAL SUPPORT VEHICLE)
The fabrication represents the support vehicle having metal container mounted on it. The support vehicle is
the platform, three axes with the torsional suspension, six pneumatic wheels, coupling loop, support planes,
pnemohydraulic braking installation, parking hand brake lever, electrical equipment. The plant represents
metallic container keeping all the junctions and installations.

СМ М (UVМ - 10- 1 0) on the triaxial support vehicle

Values for the sample
Technical parameters СММ-10-10 on the triaxial
support vehicle
- in the degassing, dry ing and filtering m odes 10
- in the heating and filtering m odes 30
- g a s b u l k , %, less 0,1
- m oisture m ass content, g/t,, less 10
- industrial purity range (ISO 4406), after 9 (-/15/12)
Nom inal filtration fineness, m km 1
Oil heater wattage, kWt, less 180
Maxim um power consumption, kW t 212
Residual pressure in the vacuum column under herm eticity check, P a, less 26,7
Inleakage after 1 hour under vacuum tightness check, P a, less 267

Overall dimensions, m m , less( length/width/height)
The plant 5100/2300/ 2250
The support vehicle 7090/2300/ 1280
Mass, kg, less 6000
* Initial parameters of oil: gas bulk content – less 10,5% ,
• Moisture mass content – less 0,01% (100 g/t)
• temperature – above 0°С.

MOBILE OIL UNITS СММ-М (UVМ-
10М) MULTIBLOCKS
The equipment can contain the blocks coming hereinafter:
- oil block BМ;
- vacuum block BV;
- vacuum freezing-out block.
Oil block BМ
The present block is designed for heating prior to the oil processing in the vacuum column followed by
filtration in the transformer oil filtering block. The present block’s framework is container.

Oil block BМ

Technical parameters Value for the BМ block
- in the degassing, dry ing and filtering m odes 3,6
- in the heating and filtering m odes 10
- in the nitriding m ode 3
- g a s b u l k , %, less 0,1
Nom inal filtration fineness, m km 3-5

Overall dimensions, m m , less( length/width/height) 2350/2150/ 2250
Mass, kg, less 3000

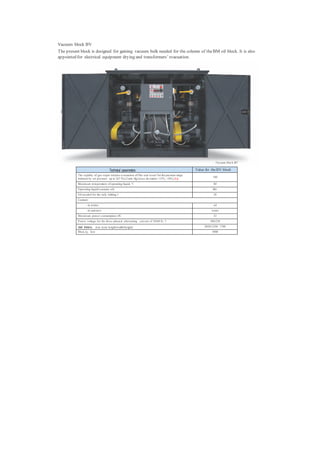

Vacuum block BV
The present block is designed for gaining vacuum bulk needed for the column of the BM oil block. It is also
appointed for electrical equipment drying and transformers’ evacuation.

Vacuum block BV

Technical parameters Value for the BV block
The rapidity of gas-vapor mixture evacuation off the seal vessel for the pressure range
180
initiated by air pressure up to 267 P a (2 mm Hg) (m ax deviation +15%; -10%),h/p
Maxim um tem perature of operating liquid, °С 80
Operating liquid (vacuum oil) ВМ-1
Oil needed for the only fettling, l 28
Coolant::
- in winter oil
- in sum m er water
Maxim um power consumption, kWt 32

Mass, kg, less 3000

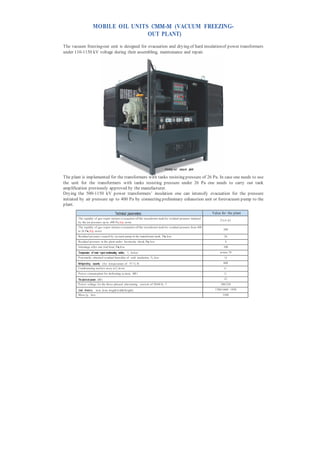

MOBILE OIL UNITS СММ-М (VACUUM FREEZING-
OUT PLANT)
The vacuum freezing-out unit is designed for evacuation and drying of hard insulation of power transformers
under 110-1150 kV voltage during their assembling, maintenance and repair.

Freezing- ou t vacuu m plant

The plant is implemented for the transformers with tanks resisting pressure of 26 Pa. In case one needs to use
the unit for the transformers with tanks resisting pressure under 26 Pa one needs to carry out tank
amplification previously approved by the manufacturer.
Drying the 500-1150 kV power transformers’ insulation one can intensify evacuation for the pressure
initiated by air pressure up to 400 Pa by connecting preliminary exhaustion unit or forevacuum pump to the
plant.

Technical parameters Value for the plant
The rapidity of gas-vapor mixture evacuation off the transformer tank for residual pressure initiated
27x3=81
by the air pressure up to 400 P a, h/p, m ore
The rapidity of gas-vapor mixture evacuation off the transformer tank for residual pressure from 400
500
to 26 P а, h/p, m ore
Residual pressure caused by vacuum pump in the transformer tank, P а, less 26
Residual pressure in the plant under hermecity check, P а, less 4
Inleakage after one trial hour, P а, less 100
Temperature of water vapor condensating surface, °С, below m inus 70
P otentially obtained residual hum idity of sold insulation, %, less 1,0

Refrigeratin g capacity (for tem perature of 75 °С), Wt 600
Condensating surface area, m 2, m ore 6,1
P ower consum ption for defrosting sy stem, kW t 2,1

The plant set power, kW t 21

Mass, kg, less 3500

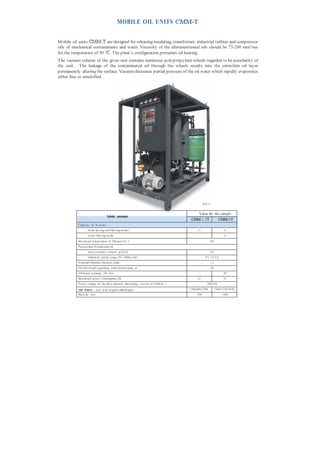

MOBILE OIL UNITS СММ-Т

M obile oil units СММ-Т are designed for releasing insulating, transformer, industrial turbine and compressor
oils of mechanical contaminants and water. Viscosity of the aforementioned oils should be 73-280 mm²/sec
for the temperature of 50 °С. The plant’s configuration presumes oil heating.
The vacuum column of the given unit contains numerous polypropylene wheels regarded to be peculiarity of
the unit. The leakage of the contaminated oil through the wheels results into the extra-thin oil layer
permanently altering the surface. Vacuum decreases partial pressure of the oil water which rapidly evaporates
either free or emulsified.

СМ М- 4 Т

СММ-1,2Т СММ-4Т
- in the dry ing and filtering m odes 1,2 4
- in the filtering m ode - 4
Maxim um tem perature of filtrated oil, °С 60
P aram eters of processed oil:
- m ass m oisture content, g/t, less* 10,0
Oil inlet height regarding outlet branch pipe, m 20
Oil heater wattage, kWt, less - 30
Maxim um power consumption, kWt 4,2 35

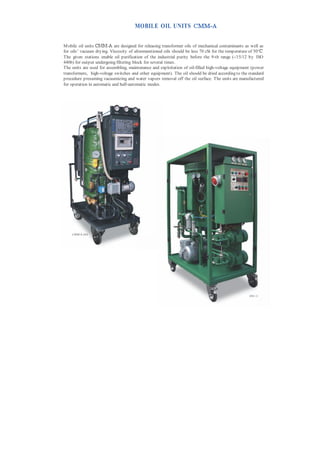

MOBILE OIL UNITS СММ-А

M obile oil units СММ-А are designed for releasing transformer oils of mechanical contaminants as well as
for oils’ vacuum drying. Viscosity of aforementioned oils should be less 70 cSt for the temperature of 50°С.
The given stations enable oil purification of the industrial purity before the 9-th range (-/15/12 by ISO
4406) for output undergoing filtering block for several times.
The units are used for assembling, maintenance and exploitation of oil-filled high-voltage equipment (power
transformers, high-voltage switches and other equipment). The oil should be dried according to the standard
procedure presuming vacuumizing and water vapors removal off the oil surface. The units are manufactured
for operation in automatic and half-automatic modes.

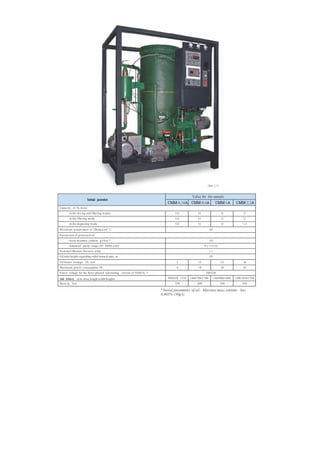

СММ-0,16А

СМ М - 1А

СМ М - 2,2 А

СММ-0,16А СММ-0,6А СММ-1А СММ-2,2А
- in the dry ing and filtering m odes 0,16 0,6 1,0 2,2
- in the filtering m ode 0,16 0,6 1,0 2,2
- in the degassing m ode 0,16 0,6 1,0 1-1,5
Maxim um tem perature of filtrated oil, °С 60
- m ass m oisture content, g/t, less * 10,0
Oil heater wattage, kWt, less 5 15 25,5 36
Maxim um power consumption, kWt 6 18 30 42

Overall dimensions, m m , less( length/width/height) 980/650/ 1550 1400/700/1700 1360/800/1800 1500/1050/1700
Mass, kg, less 230 400 540 850

* Initial parameters of oil:: Moisture mass content – less –
0,005% (50g/t)

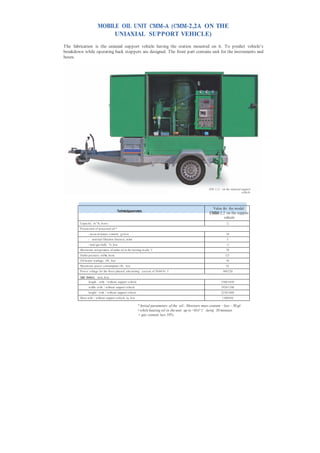

MOBILE OIL UNIT СММ-А (СММ-2,2А ON THE
UNIAXIAL SUPPORT VEHICLE)
The fabrication is the uniaxial support vehicle having the station mounted on it. To predict vehicle’s
breakdown while operating back stoppers are designed. The front part contains unit for the instruments and
hoses.

СМ М - 2,2 А on the uniaxial support
vehicle

Value for the model
Technicalparameters СММ-2,2 on the support
vehicle
Capacity , m 3 /h, m ore: 2,2
P aram eters of processed oil:*
- m ass m oisture content, g/t, less 10
- nom inal filtration fineness, m km 5
- total gas bulk, %, less 1,5
Maxim um tem perature of outlet oil in the heating m ode, °С 70
Outlet pressure, m P а, m ore 0,25
Maxim um power consumption, kWt, less 42

Overall dimensions, m m , less:
length - with / without support vehicle 3580/1650
width- with / without support vehicle 1920/1100
height - with / without support vehicle 2230/1680
Mass with / without support vehicle, kg, less 1100/850

* Initial parameters of the oil:: Moisture mass content – less – 50 g/t
• while heating oil in the unit up to +60±5° С during 30 minutes
• gas content less 10% .

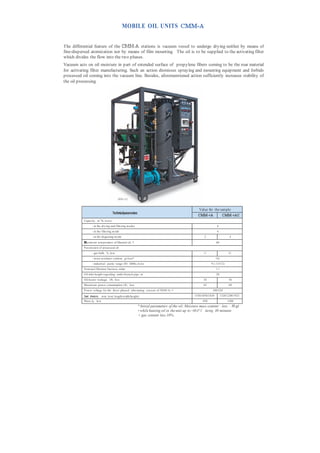

MOBILE OIL UNITS СММ-А

The differential feature of the СММ-А stations is vacuum vessel to undergo drying neither by means of
fine-dispersed atomization nor by means of film mounting. The oil is to be supplied to the activating filter
which divides the flow into the two phases.
Vacuum acts on oil moisture in part of extended surface of propylene fibers coming to be the roar material
for activating filter manufacturing. Such an action dismisses spraying and mounting equipment and forbids
processed oil coming into the vacuum line. Besides, aforementioned action sufficiently increases stability of
the oil processing.

СМ М- 4 А С

Technicalparameters
СММ-4А СММ-4АС
- in the dry ing and filtering m odes 4
- in the filtering m ode 4
- in the degassing m ode 2 4
Мaxim um tem perature of filtrated oil, °С 60
- gas bulk, %, less 1,5 0,1
- m ass m oisture content, g/t, less* 10,0
- industrial purity range (ISO 4406), m ore 9 (-/15/12)
Maxim um power consumption, kWt, less 63 69

* Initial parameters of the oil: Moisture mass content – less – 50 g/t
• while heating oil in the unit up to +60±5° С during 30 minutes
• gas content less 10% .

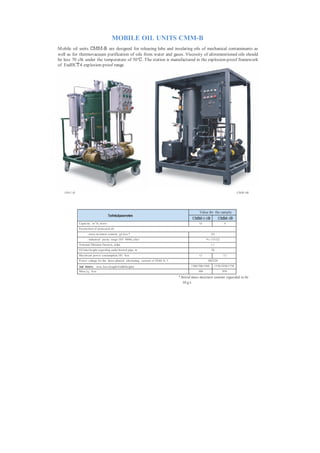

MOBILE OIL UNITS CMM-B
M obile oil units СММ-В are designed for releasing lube and insulating oils of mechanical contaminants as
well as for thermovacuum purification of oils from water and gases. Viscosity of aforementioned oils should
be less 70 cSt under the temperature of 50°С. The station is manufactured in the explosion-proof framework
of ExdIICТ4 explosion-proof range.

СМ М- 0 ,6В СММ-4В

Technicalparameters
СММ-0,6В СММ-4В
Capacity , m 3 /h, m ore: 0,6 4
- m ass m oisture content, g/t, less * 10,0
- industrial purity range (ISOI 4406), after 9 (-/15/12)
Maxim um power consumption, kWt, less 4,5 13,5

Overall dimensions, m m , less (length/width/height) 1300/700/1560 1550/1050/1750

* Initial mass moisture content regarded to be
50 g/t.

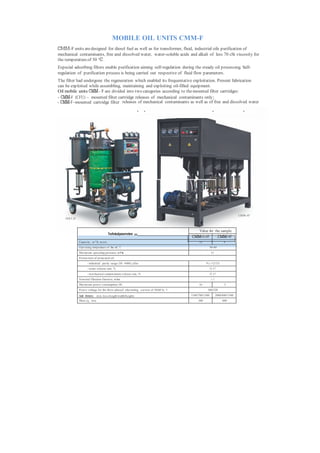

MOBILE OIL UNITS CMM-F
СММ-F units are designed for diesel fuel as well as for transformer, fluid, industrial oils purification of
mechanical contaminants, free and dissolved water, water-soluble acids and alkali of less 70 cSt viscosity for
the temperature of 50 °С .
Especial adsorbing filters enable purification aiming self-regulation during the steady oil processing. Self-
regulation of purification process is being carried out respective of fluid flow parameters.
The filter had undergone the regeneration which enabled its frequentative exploitation. Present fabrication
can be exploited while assembling, maintaining and exploiting oil-filled equipment.
Oil mobile units СММ – F are divided into two categories according to the mounted filter cartridges:
- СММ-F (CFU) – mounted filter cartridge releases of mechanical contaminants only;
- СММ-F–mounted cartridge filter releases of mechanical contaminants as well as of free and dissolved water
рбера для очистки от механических примесей и адсорбции

СММ-4F
СМ М- 0 ,6F

Значение for the sample
Value для
Technicalparameters рактеристики
СММ-0,6F СММ-4F
модели
Capacity , m 3 /h, m ore: 0,6 4
Operating temperature of the oil, °С 30-60
Maxim um operating pressure, m P а 0,3
- water release rate, % 93...9 7
- m echanical contam inants release rate, % 92...9 7
Maxim um power consumption, kWt 16 3

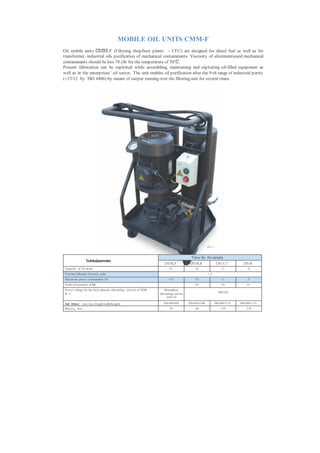

MOBILE OIL UNITS CMM-F
Oil mobile units СММ-F (Filtering shopfloor plants – CFU) are designed for diesel fuel as well as for
transformer, industrial oils purification of mechanical contaminants. Viscosity of aforementioned mechanical
contaminants should be less 70 cSt for the temperature of 50°С.
Present fabrication can be exploited while assembling, maintaining and exploiting oil-filled equipment as
well as in the enterprises’ oil sector. The unit enables oil purification after the 9-th range of industrial purity
(-/15/12 by ISO 4406) by means of output running over the filtering unit for several times.

CFU- 4

Technicalparameters
CFU-0,5 CFU-0,8 CFU-1,7 CFU-4
Capacity , m 3 /h, m ore: 0,5 0,8 1,7 4
Maxim um power consumption, kWt 0,18 0,75 1,1 3
Outlet oil pressure, m P а - 0,25 0,25 0,3
P ower voltage for the three-phased alternating current of 50/60 Monophase
380/220
Hz, V alternating current
220/110

Overall dimensions, m m , less (length/width/height) 520/560/950 550/430/1100 580/560/1115 580/560/1115
Mass, kg, less 45 60 110 110

MOBILE OIL UNITS CMM-F(BF)
The СММ-F unit (block of filtration-BF) is designed for diesel fuel as well as for transformer,
industrial oils purification of mechanical contaminants. Viscosity of aforementioned contaminants should be
less 70 cSt for the temperature of 50°С.
The unit enables oil purification after the 9-th range of industrial purity (-/15/12 by ISO 4406) by means of
output running over the filtering unit for several times. Present fabrication is the stationery unit containing no
pumps which it can be accommodated with if previously approved by the manufacturer.

Block of filtration – BF

Technicalparameters Value for the sample BF-10
Transm ission capacity , m 3/h, m ore 10
Operating temperature of the oil, °С 30-60
Maxim um operating pressure, m P а,less 0,6
- m echanical contam inants release rate, % 92...9 7

Overall dimensions, m m , less (length/width/height) 780/680/ 1080
Mass, kg 200

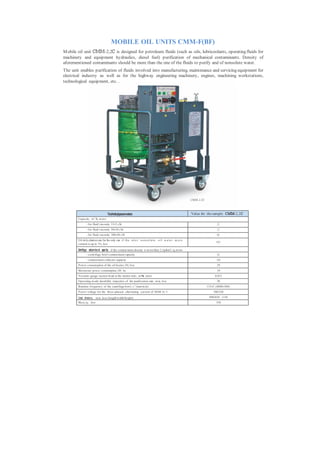

MOBILE OIL UNITS CMM-F(BF)
M obile oil unit СММ-2,2С is designed for petroleum fluids (such as oils, lubricoolants, operating fluids for
machinery and equipment hydraulics, diesel fuel) purification of mechanical contaminants. Density of
aforementioned contaminants should be more than the one of the fluids to purify and of nonsolute water.
The unit enables purification of fluids involved into manufacturing, maintenance and servicing equipment for
electrical industry as well as for the highway engineering machinery, engines, machining workstations,
technological equipment, etc. .

СММ-2,2С

Technicalparameters Value for the sample СММ-2,2С
- for fluid viscosity 15±5 cSt 2,2
Oil dehy dration rate for the only run i f t h e i n l e t n o n s o l u t e o i l w a t e r m a s s
0,05
content is up to 1%, less

Centrifuge contam ina nt capac ity if the contam inant density is m ore than 2,5g/сm3, kg, m ore
- centrifuge bowl contam inant capacity 2,0
- contam inant collector capacity 10,0
P ower consum ption of the oil heater, kWt, less 29
Maxim um power consumption, kWt, less 34
Vacuum -gauge suction head at the station inlet , m Pа, more 0,015
Operating m ode durability respective of the purification rate, m in, less 30
-1
Rotation frequency of the centrifuge bowl, s (turn/m in) 133±5 (8000±300)

Mass, kg, less 350

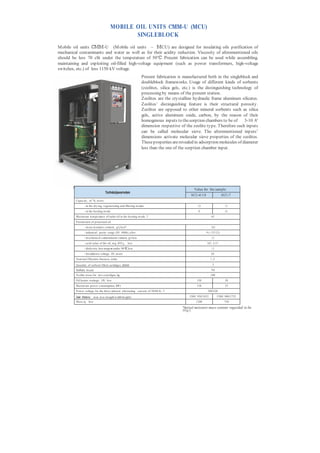

MOBILE OIL UNITS СММ-U (МCU)
SINGLEBLOCK
M obile oil units СММ-U (M obile oil units – МCU) are designed for insulating oils purification of
mechanical contaminants and water as well as for their acidity reduction. Viscosity of aforementioned oils
should be less 70 cSt under the temperature of 50°С. Present fabrication can be used while assembling,
maintaining and exploiting oil-filled high-voltage equipment (such as power transformers, high-voltage
switches, etc.) of less 1150 kV voltage.
Present fabrication is manufactured both in the singleblock and
doubleblock frameworks. Usage of different kinds of sorbents
(zeolites, silica gels, etc.) is the distinguishing technology of
processing by means of the present station.
Zeolites are the crystalline hydraulic frame aluminum silicates.
Zeolites’ distinguishing feature is their structural porosity.
Zeolites are opposed to other mineral sorbents such as silica
gels, active aluminum oxide, carbon, by the reason of their
homogenous inputs to the sorption chambers to be of 3-10 A0
dimension respective of the zeolite type. Therefore such inputs
can be called molecular sieve. The aforementioned inputs’
dimensions activate molecular sieve properties of the zeolites.
These properties are revealed in adsorption molecules of diameter
less than the one of the sorption chamber input.
МЦУ- 7

Technicalparameters
МCU-4/1 0 МCU-7
- in the dry ing, regenerating and filtering m odes 3,8 1,5
- in the heating m ode 8 3,6
- m ass m oisture content, g/t,, less* 10,0
- m echanical contaminants content, g/t, less 2,5
- acid value of the oil, m g , КОN/g,, less 0,02...0 ,0 5
- dielectric loss tangent under 90°С,less 1,5
- breakdown voltage, kV, m ore 65

Quantity of sorbent-filled cartridges, pieces 2
Sorbent, brand NaA
Zeolite m ass for two cartridges, kg 100

Overall dimensions, m m , less (length/width/height) 1500/ 950/1835 1500/ 900/1735

*Initial moisture mass content regarded to be
50 g/t.

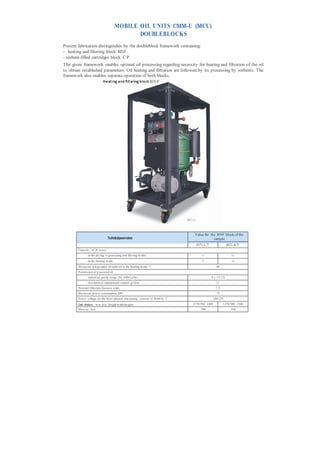

MOBILE OIL UNITS СММ-U (МCU)
DOUBLEBLOCKS
Present fabrication distinguishes by the doubleblock framework containing:
- heating and filtering block BNF;
- sorbent-filled cartridges block C P .
The given framework enables optimal oil processing regarding necessity for heating and filtration of the oil
to obtain established parameters. Oil heating and filtration are followed by its processing by sorbents. The
framework also enables separate operation of both blocks.
Heating and filtering block BN F

МCU- 4,3

Value for the BNF block of the
Technicalparameters sample
МCU-1,7 МCU-4,3
3
Capacity , m /h, m ore:
- in the dry ing, regenerating and filtering m odes 1,7 4,3
- in the heating m ode 1,7 4,3
- m echanical contaminants content, g/t, less 2,5

Overall dimensions, m m , less (length/width/height) 1270/700/ 1400 1270/700/ 1500

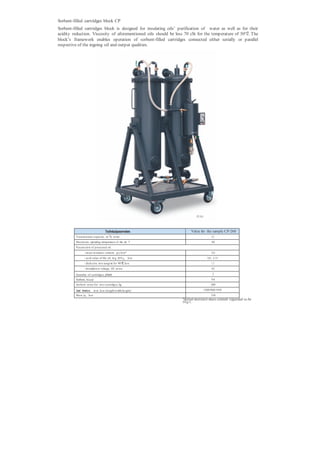

Sorbent-filled cartridges block CP
Sorbent-filled cartridges block is designed for insulating oils’ purification of water as well as for their
acidity reduction. Viscosity of aforementioned oils should be less 70 cSt for the temperature of 50°С. The
block’s framework enables operation of sorbent-filled cartridges connected either serially or parallel
respective of the ingoing oil and output qualities.

CP-26 0

Technicalparameters Value for the sample CP-260
3
Transm ission capacity , m /h, m ore 4,5
Maxim um operating temperature of the oil, °С 40
- acid value of the oil, m g , КОN/g,, less 0,02...0 ,0 5
- dielectric loss tangent for 90°С,less 1,5
- breakdown voltage, kV, m ore 65

Quantity of cartridges, pieces 2
Sorbent, brand NaА
Sorbent m ass for two cartridges, kg 200

Overall dimensions, m m , less (length/width/height) 1200/900/1950
Mass, kg, less 330
*Initial moisture mass content regarded to be
50 g/t.

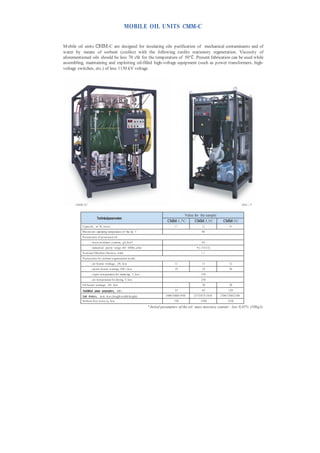

MOBILE OIL UNITS СММ-C

M obile oil units СММ-C are designed for insulating oils purification of mechanical contaminants and of
water by means of sorbent (zeolite) with the following zeolite stationery regeneration. Viscosity of
aforementioned oils should be less 70 cSt for the temperature of 50°С. Present fabrication can be used while
assembling, maintaining and exploiting oil-filled high-voltage equipment (such as power transformers, high-
voltage switches, etc.) of less 1150 kV voltage.

СММ-5С СМ М- 1 ,7C

Technicalparameters
СММ-1,7 C СММ-3,5 C СММ-5 C
Capacity , m 3 /h, m ore: 1.7 3,5 5,0
Maxim um operating temperature of the oil, °С 40
P aram eters for sorbent regeneration m ode:
- air heater wattage, kWt, less 7,5 11 12
- steam heater wattage, kW t , less 19 25 30
- vapor tem perature for steam ing, °С, less 150
- air tem perature for drying, °С, less 250
Oil heater wattage, kWt, less - 30 70

Established power consumptio n, kW t 35 62 120

Overall dimensions, m m , less (length/width/height) 1000/1000/1950 2575/875/1830 2700/1500/2100
Sorbent free m ass, kg, less 750 1500 1550

* Initial parameters of the oil: mass moisture content – less 0,01% (100 g/t)

MOBILE OIL UNIT СММ-R (UVR)

M obile oil units are categorized respective of the oil regeneration process:
- mobile oil unit СММ-R (UVR) – for oil regeneration by means of whitening argils with the following
filtration;
- mobile oil unit СММ-R (URМ) – for oil regeneration by means of whitening argils with the following
filtration;
- mobile oil unit СММ-R – for oil regeneration by means of whitening argils with the following sorbent
reactivation.
M obile oil unit СММ-R (UVR)
M obile oil unit СММ-R (UVR) is designed for vacuum regeneration (refinement) of operating oils having
viscosity of 70 cSt for the temperature of 50°С. The unit also reduces acid value as well as the dielectric loss
tangent related to the standardized values of operating oils. M oreover, it clarifies the oil by means of
whitening clay.

Vacuu m regenerati o n plant UVR

Technical parameters UVR-0,1 UVR-1,0
Regeneration capacity, m 3/h, more: 0,03 -0,05 0,07-0,1
Regenerating powder waste % per oil amount 5-25
Regenerating powder m ass needed for total regeneration unit , kg 25-30 80-100
Total power of the heaters, kWt, less 1,6 3,3
Маxim um power consumption, kWt 4,5 6
Nom inal filtration fineness, m km
- for input filter 5
- for output filter 5

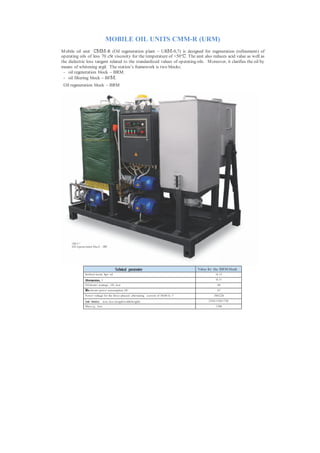

MOBILE OIL UNITS CMM-R (URM)
M obile oil unit СММ-R (Oil regeneration plant – URМ-0,7) is designed for regeneration (refinement) of
operating oils of less 70 cSt viscosity for the temperature of +50°С. The unit also reduces acid value as well as
the dielectric loss tangent related to the standardized values of operating oils. M oreover, it clarifies the oil by
means of whitening argil. The station’s framework is two blocks:
- oil regeneration block – BRM ;
- oil filtering block – BFМ.
Oil regeneration block – BRM

URМ- 0,7
Oil regeneration block – BRM

Technical parameters Value for the BRM block
Sorbent waste, kg/t oil 40...5 0

Oiltemperature, °С 90...9 5
Маxim um power consumption, kWt 67

Mass, kg, less 1200

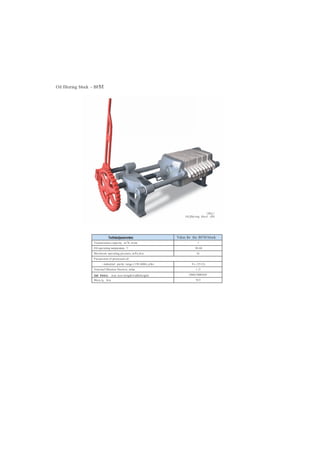

Oil filtering block – BFМ

URM-0,7
Oil filtering block – BFM

Technicalparameters Value for the BFM block
3
Transm ission capacity , m /h, m ore 1
Oil operating temperature, °С 30-60
Maxim um operating pressure, m P a,less 0,6
- industrial purity range (150 4406), after 9 (-/15/12)

Mass, kg, less 915

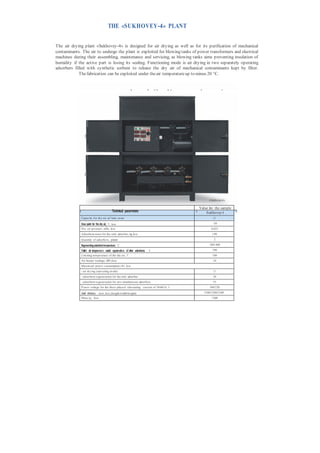

THE «SUKHOVEY-4» PLANT

The air drying plant «Sukhovey-4» is designed for air drying as well as for its purification of mechanical
contaminants. The air to undergo the plant is exploited for blowing tanks of power transformers and electrical
machines during their assembling, maintenance and servicing, as blowing tanks aims preventing insulation of
humidity if the active part is losing its sealing. Functioning mode is air drying in two separately operating
adsorbers filled with synthetic sorbent to release the dry air of mechanical contaminants kept by filter.
The fabrication can be exploited under the air temperature up to minus 20 °C.

ри температуре окружающего воздуха до минус 20°С.

«Sukhovey-4»

Technical parameters Sukhovey-4
Capacity for dry air, m3 /min, m ore 2,5

Dew point for the dry air, °С, less -50
Dry air pressure, mPa, less 0,025
Adsorbent m ass for the only adsorber, kg, less 190
Quantity of adsorbers, pieces 2

Regeneratingadsorbenttemperature, °С 380-400

Outlet air temperature under regeneration of other adsorbents, °С 390
Lim iting tem perature of the dry air, °С 100
Air heater wattage, kW t, less 24
Maxim um power consumption, kWt, less
- air dry ing (operating m ode) 5,5
- adsorbent regeneration for the only adsorber 30
- adsorbent regeneration for two simultaneous adsorbers 55

Mass, kg, less 1300

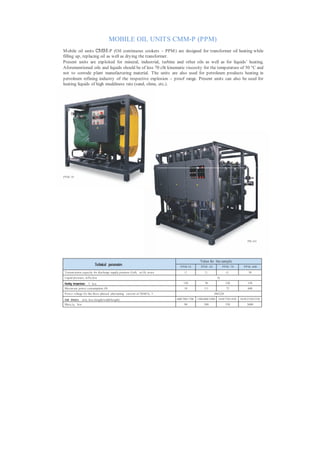

MOBILE OIL UNITS CMM-P (PPM)
M obile oil units СММ-P (Oil continuous cookers – PPM ) are designed for transformer oil heating while
filling up, replacing oil as well as drying the transformer.
Present units are exploited for mineral, industrial, turbine and other oils as well as for liquids’ heating.
Aforementioned oils and liquids should be of less 70 cSt kinematic viscosity for the temperature of 50 °C and
not to corrode plant manufacturing material. The units are also used for petroleum products heating in
petroleum refining industry of the respective explosion – proof range. Present units can also be used for
heating liquids of high muddiness rate (sand, slime, etc.).

PPM-70

PPM - 60 0

Technical parameters P P M-18 P P M -50 P P M -70 P P M -600
Transm ission capacity for discharge supply pressure 0,2mPa, m 3/h, m ore 1,5 3,2 4,5 30
Liquid pressure, m P a,less 0,6

Heating temperature, °С, less 120 70 120 150
Maxim um power consumption, kWt 18 55,5 72 600

Overall dimensions, m m , less (length/width/height) 600/700/1700 1200/800/1900 1650/750/1450 2650/2350/2250
Mass, kg, less 90 300 350 3600

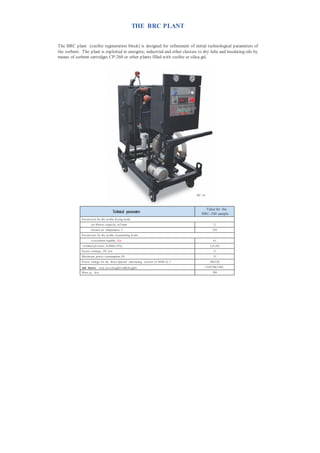

THE BRC PLANT

The BRC plant (zeolite regeneration block) is designed for refinement of initial technological parameters of
the sorbent. The plant is exploited in energetic, industrial and other clusters to dry lube and insulating oils by
means of sorbent cartridges CP-260 or other plants filled with zeolite or silica gel.

BRC- 1 00

Value for the
Technical parameters BRC-100 sample
P aram eters for the zeolite drying mode:
- air blower capacity, m 3/min 2,3
- heated air temperature, °С 250
P aram eters for the zeolite vacuumizing m ode:
- evacuation rapidity , h/p 6,6
- residual pressure, m illibar (P a) 2,0 (200)
Heater wattage, kWt, less 11

Mass, kg, less 200

THE BRPS PLANT
The BRPC plant (sorbent regeneration and preparation block) is designed for absorbent (moisture) removal off
the sorbent by means of thermal desorption enabled by especial electric heaters.
Block’s framework necessitates direct connection to the vessel resulting into dismissing of mechanical mixing
and sprinkling of the sorbent as aforementioned actions cause sorbent destruction. The block enables optimal
rapidity of temperature increase as well as the regular temperature field while regenerating the sorbent.
мого адсорбера.

BRPS

Значение для
Value for the
Technical parameters BRPS sample
Bulk of sorbent processed after only run, dm 3, m ore 130
Sorbent regeneration durability , h 6-18
P aram eters for the sorbent drying mode:
- air blower capacity, m 3/m in 2,3
- heated air temperature, °С 150-250
P aram eters for the sorbent vacuum izing m ode:
- evacuation rapidity , h/p 6,6
- residual pressure, m illibar (P a) 2,0 (200)
Maxim um m oisture content for the sorbent, % 0,4

Mass, kg, less 250

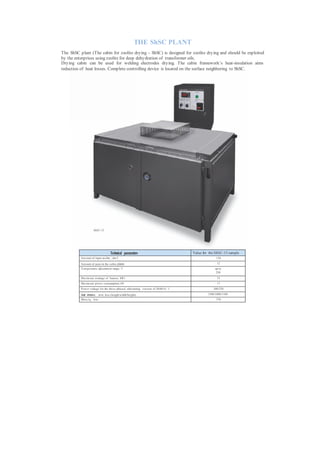

THE ShSC PLANT
The ShSC plant (The cabin for zeolite drying – ShSC) is designed for zeolite drying and should be exploited
by the enterprises using zeolite for deep dehydration of transformer oils.
Drying cabin can be used for welding electrodes drying. The cabin framework’s heat-insulation aims
reduction of heat losses. Complete controlling device is located on the surface neighboring to ShSC.

ShSC-15

Technical parameters Value for the ShSC-15 sample
Am ount of input zeolite , dm 3 130

Am ount of pans in the cabin, pieces 12
Tem perature adj ustment range, °С up to
250
Maxim um wattage of heaters, kW t 15

Mass, kg, less 370

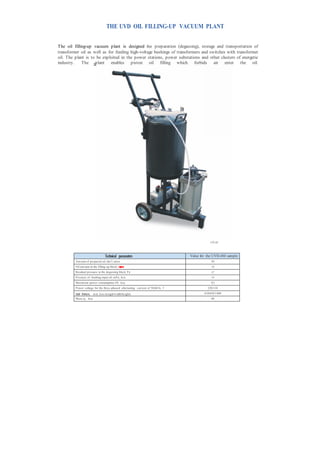

THE UVD OIL FILLING-UP VACUUM PLANT

The oil filling-up vacuum plant is designed for preparation (degassing), storage and transportation of
transformer oil as well as for feeding high-voltage bushings of transformers and switches with transformer
oil. The plant is to be exploited in the power stations, power substations and other clusters of energetic
industry. The шневую заливку масла, при которой предотвращается п опадание воз
plant enables piston oil filling which forbids air enter the oil.

UVD-4M

Technical parameters Value for the UVD-4M sample
Am ount of prepared oil, dm 3, more 30
Oil am ount in the filling-up block, цмл 4,0
Residual pressure in the degassing block, P a 6,7
P ressure of bushing input oil, m P a, less 0,4
Maxim um power consumption, kWt less 0,3

Mass, kg, less 80

THE UR SPRAYING PLANT
The UR spraying plant is designed for spraying oils and other safe liquids onto the moulds’ surfaces while
casting concrete fabrications and carrying out other related operations.
Present plant can be used for the small enterprises involved into producing concrete as well as for the large
ones owing processing lines for construction materials manufacture.

UR-0,8

Technical parameters Value for the UR-0,8 sample
P um p capacity, m 3/h, m ore 0,8
Operating oil pressure, mPa 0,5
P ressure of em ergency valve if acts, m P a 0,6
Bulk of oil vessel, l 30
Oil hose length, m , m ore 15
Connecting cable length, m , m ore 10
Viscosity of used oil, cSt 10-30
Spray ing distance, m 3
Splash area, m 2 0,5
Maxim um power consumption, kWt less 0,75

Oil free plant m ass,kgг, less 70

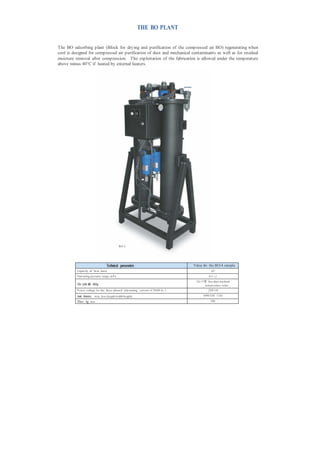

THE BO PLANT

The BO adsorbing plant (Block for drying and purification of the compressed air BO) regenerating when
cool is designed for compressed air purification of dust and mechanical contaminants as well as for residual
moisture removal after compression. The exploitation of the fabrication is allowed under the temperature
above minus 40°C if heated by external heaters.

BO-4

Technical parameters Value for the BO-4 sample
Capacity , m 3 /m in, more 0,07
Operating pressure range, m P a 0,3 -1,2
10-15°С less than am bient
Dew point after drying tem perature value


Mass, kg, less 280

Catalogue new translation

More Related Content

What's hot

Viewers also liked

Similar to Catalogue new translation

More from EUROPAGES

Recently uploaded

Catalogue new translation
