Case Study with Answers.com on Scaling with Memcached and MySQL
- 1. Answers to theScaling Challenge: A Case Study with Answers.com on Scaling with Memcached and MySQLPresenters: Dan Marriott, Director - Production Operations, Answers.com Joaquín Ruiz, EVP Products, Gear6
- 2. Answers to theScaling Challenge:A Case Study With Answers.com on Scaling With Memcached and MySQLApril 14, 2010Dan MarriottDirector - Production Operationsdanm@answers.com

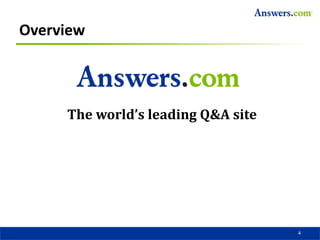

- 3. OverviewThe world’s leadingQ&A site3

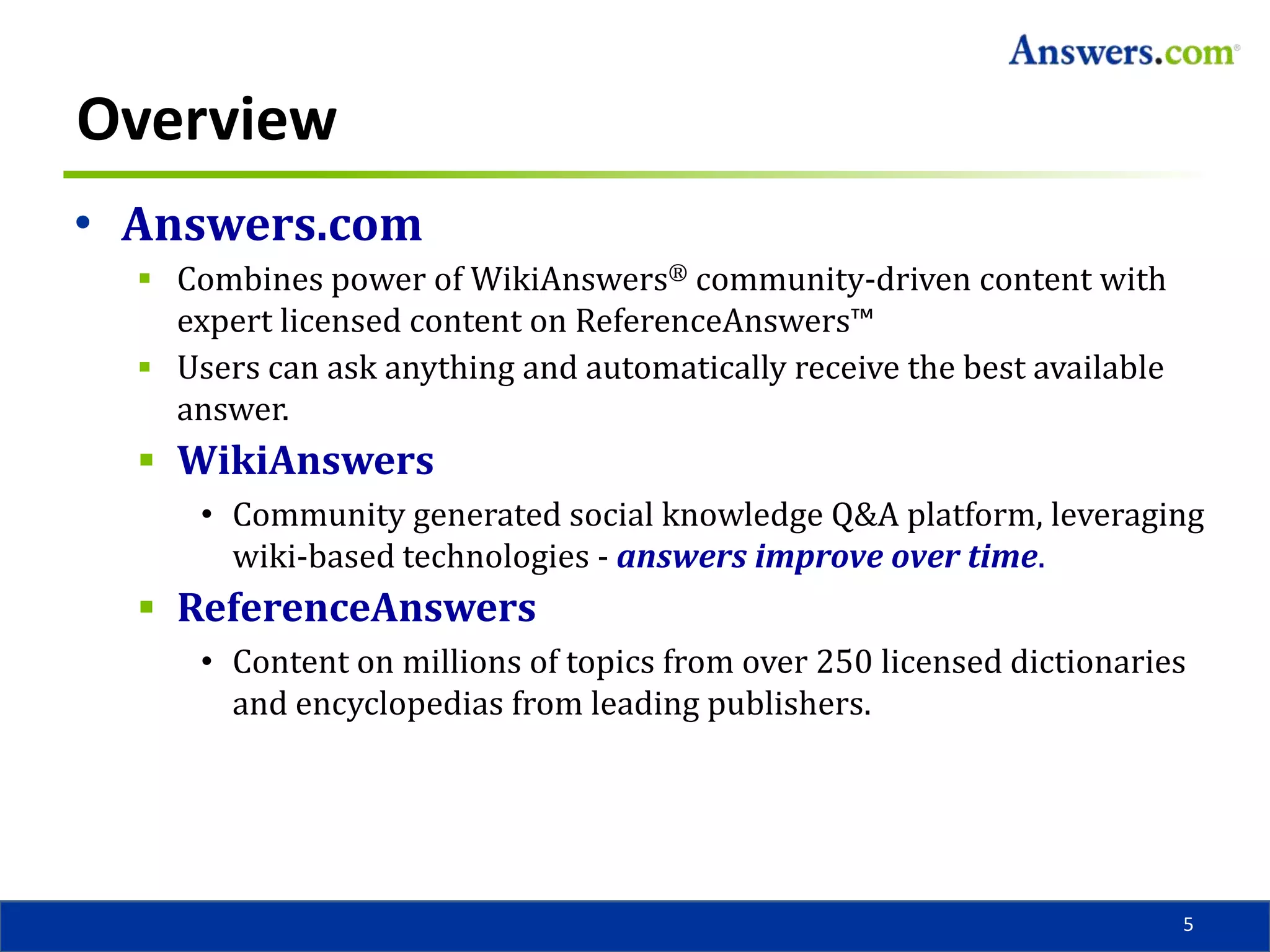

- 4. OverviewAnswers.comCombines power ofWikiAnswers® community-driven content with expert licensed content on ReferenceAnswers™
- 5. Users can askanything and automatically receive the best available answer.

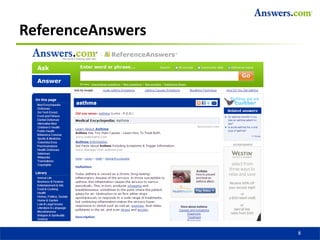

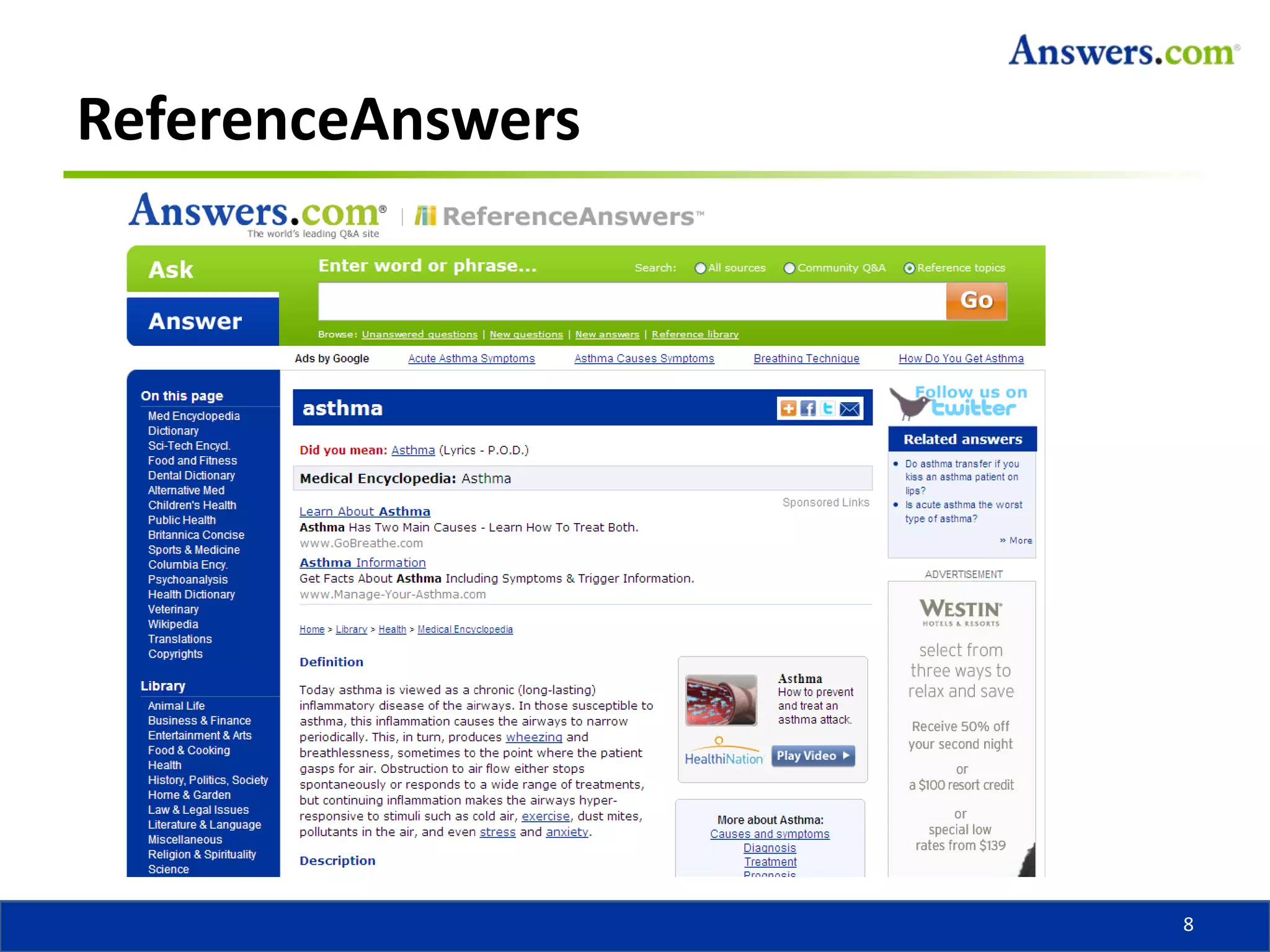

- 6. WikiAnswersCommunity generated socialknowledge Q&A platform, leveraging wiki-based technologies - answers improve over time.ReferenceAnswers Content on millions of topics from over 250 licensed dictionaries and encyclopedias from leading publishers.4

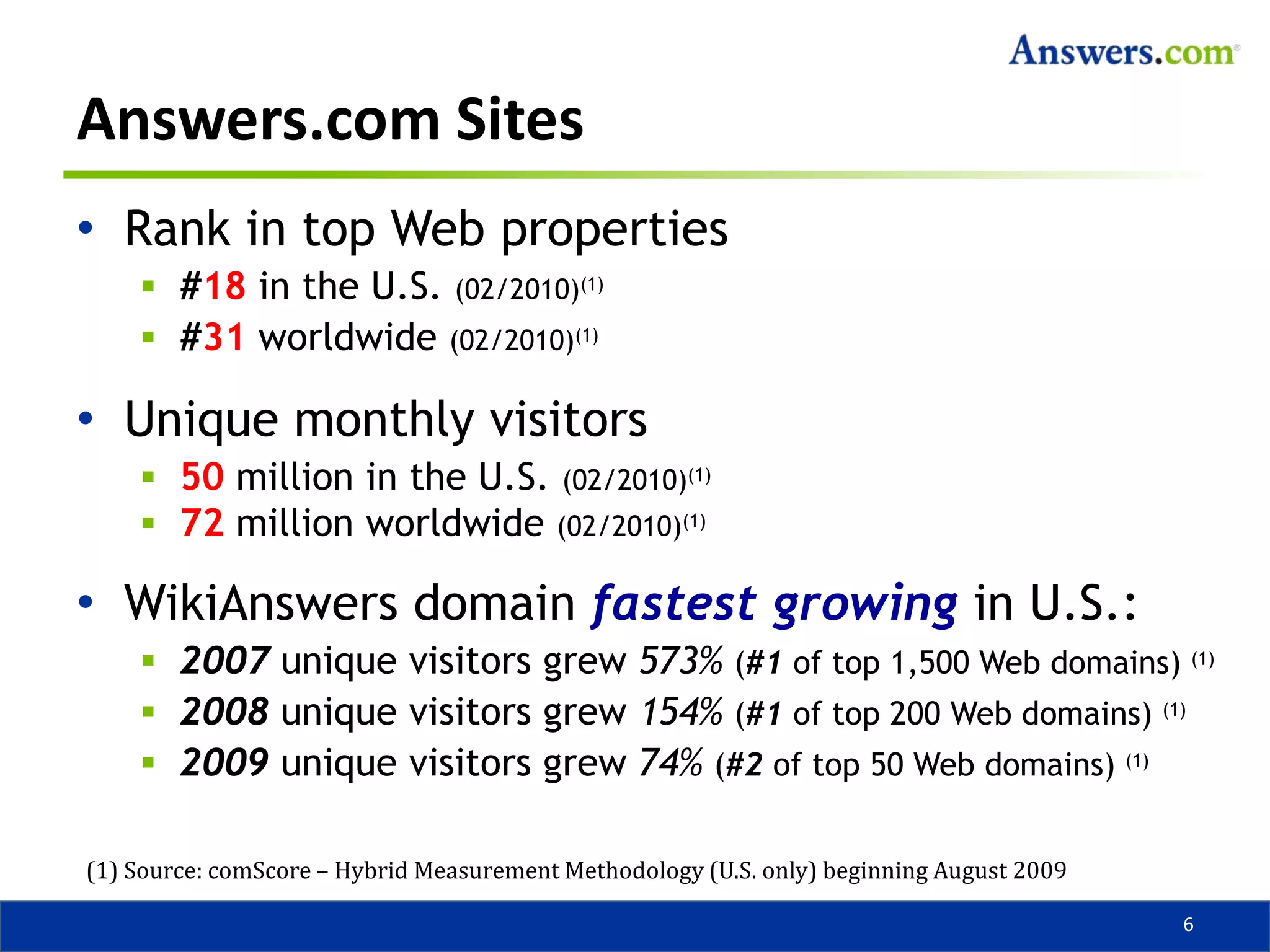

- 7. Answers.com SitesRank intop Web properties#18in the U.S. (02/2010)(1)
- 8. #31worldwide (02/2010)(1)Unique monthlyvisitors50 million in the U.S. (02/2010)(1)
- 9. 72 million worldwide(02/2010)(1)WikiAnswers domain fastest growing in U.S.:2007 unique visitors grew 573%(#1 of top 1,500 Web domains) (1)
- 10. 2008 unique visitorsgrew 154%(#1 of top 200 Web domains) (1)
- 11. 2009 unique visitorsgrew 74% (#2 of top 50 Web domains) (1)5(1) Source: comScore – Hybrid Measurement Methodology (U.S. only) beginning August 2009

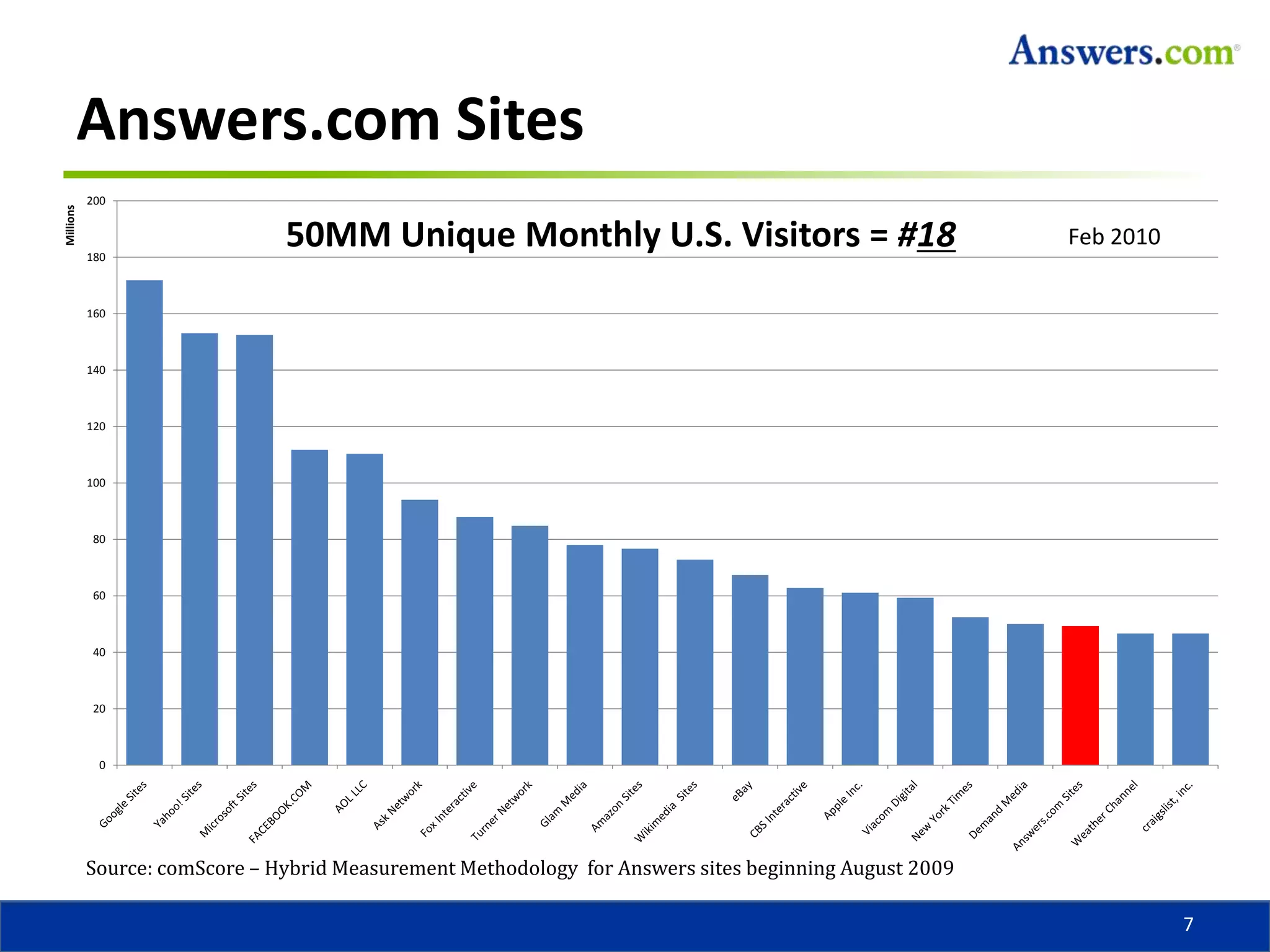

- 12. Answers.com Sites650MM UniqueMonthly U.S. Visitors = #18Feb 2010Source: comScore – Hybrid Measurement Methodology for Answers sites beginning August 2009
- 13.

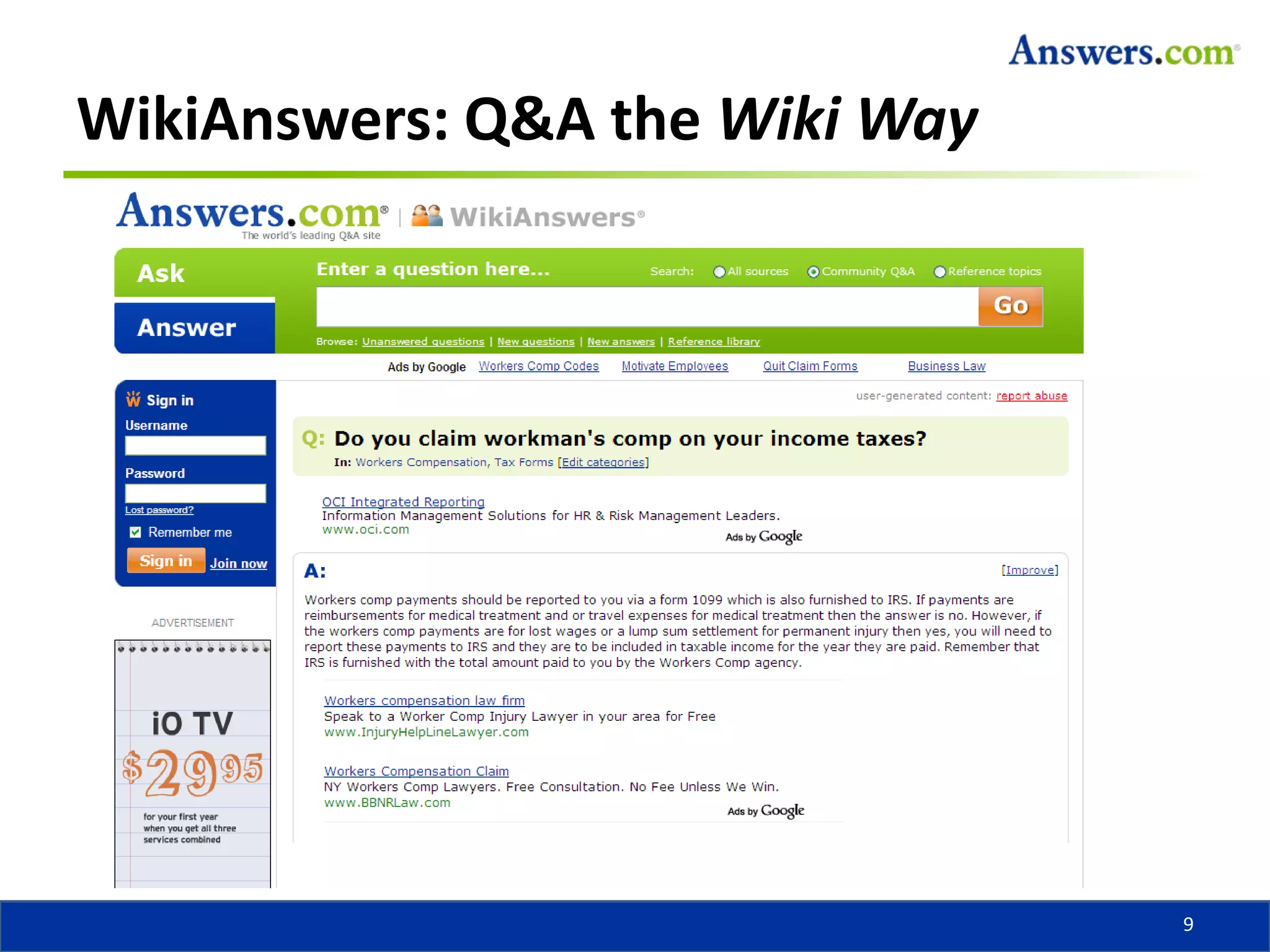

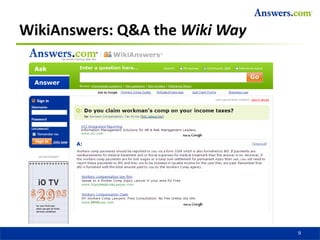

- 14. WikiAnswers: Q&A theWiki Way8

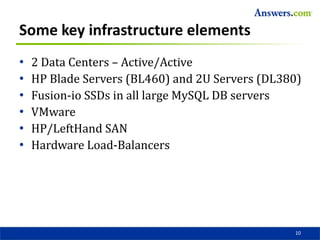

- 15. Some key infrastructureelements2 Data Centers – Active/ActiveHP Blade Servers (BL460) and 2U Servers (DL380)Fusion-io SSDs in all large MySQL DB serversVMwareHP/LeftHand SANHardware Load-Balancers9

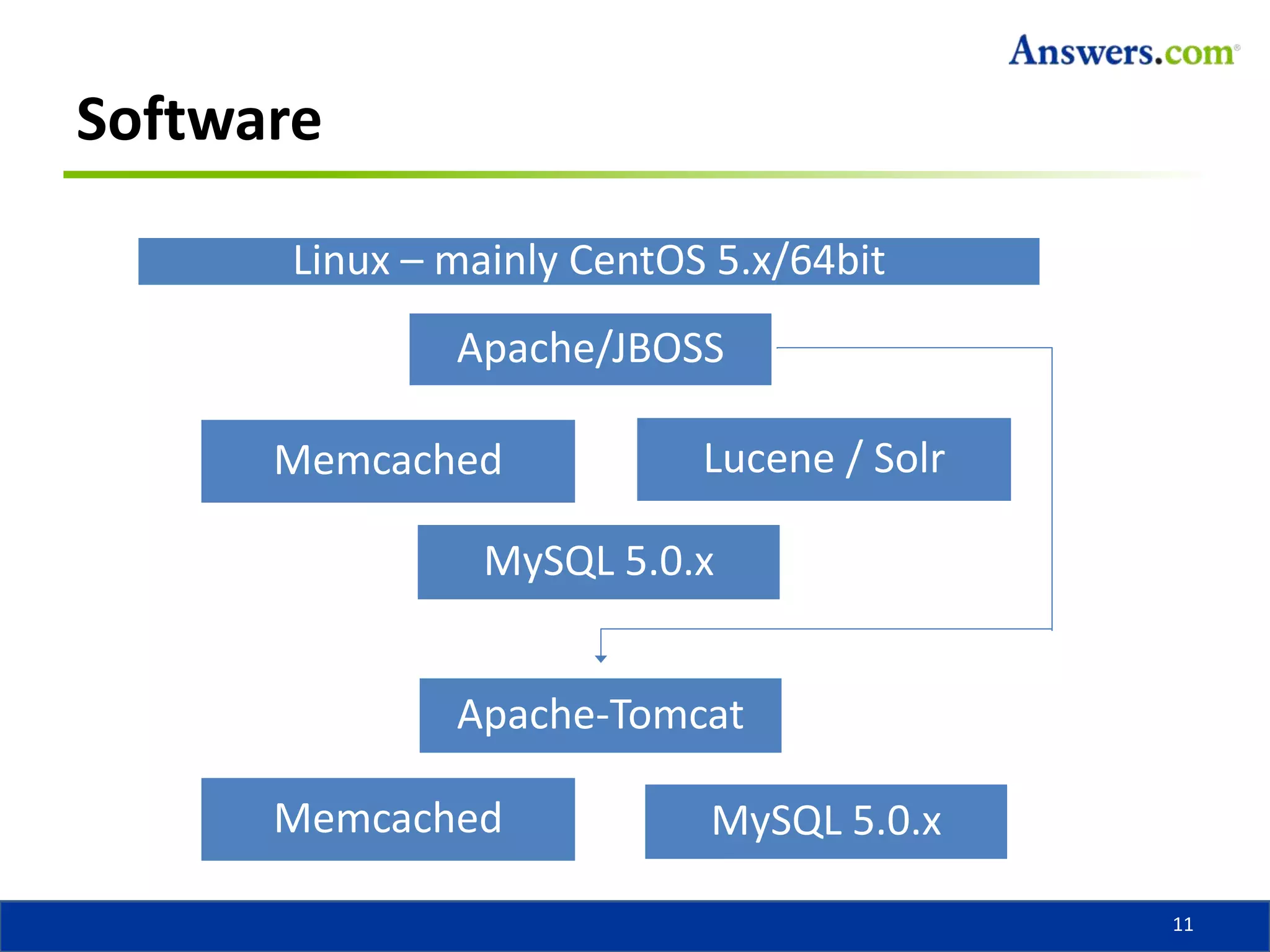

- 16. Software10Linux – mainlyCentOS 5.x/64bitApache/JBOSSLucene / SolrMemcachedMySQL 5.0.xApache-TomcatMemcachedMySQL 5.0.x

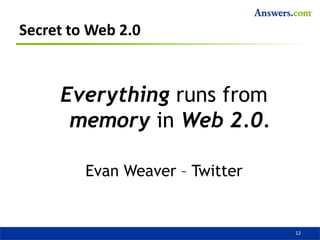

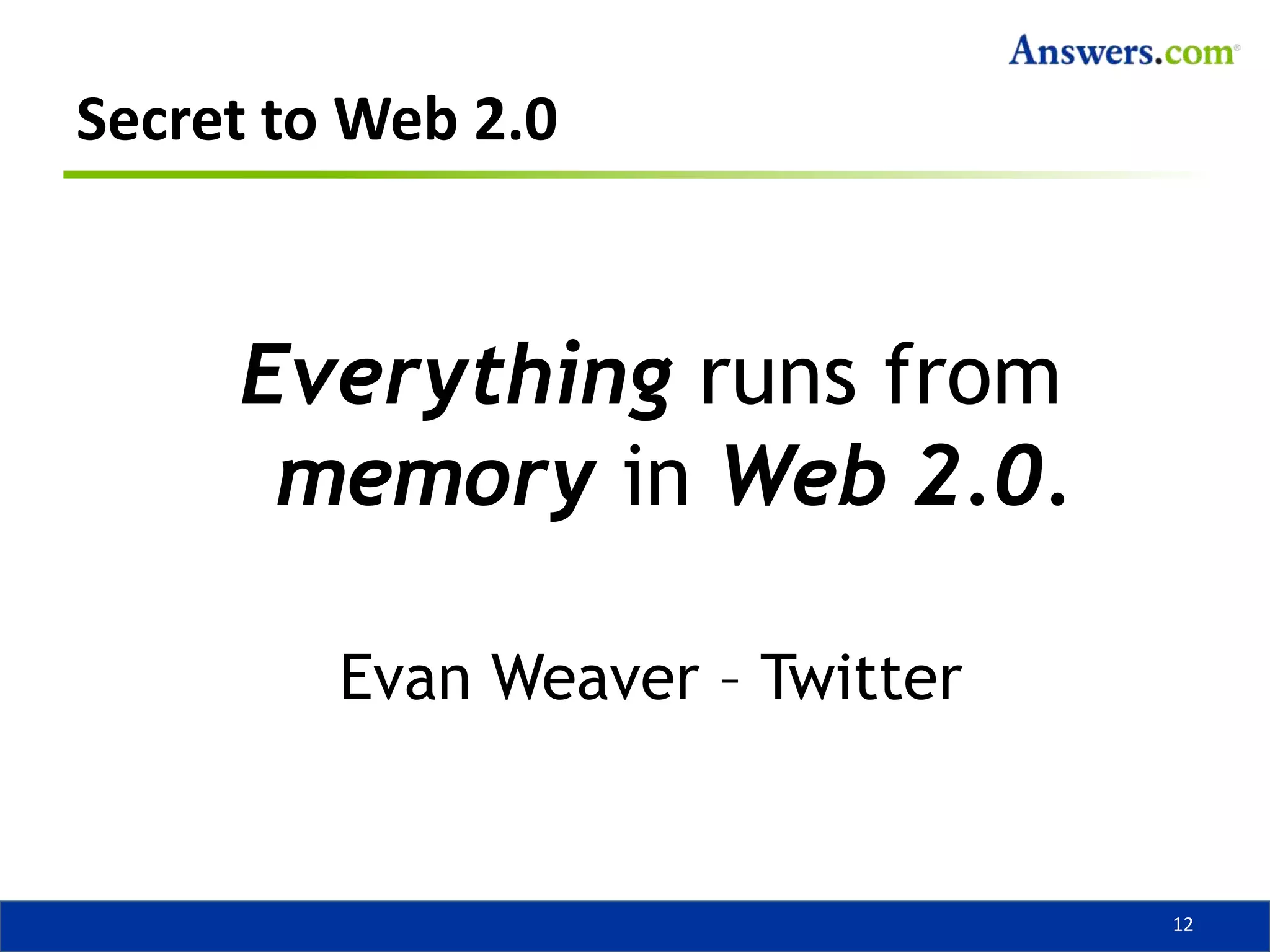

- 17. Secret to Web2.0Everything runs from memory in Web 2.0.Evan Weaver – Twitter11

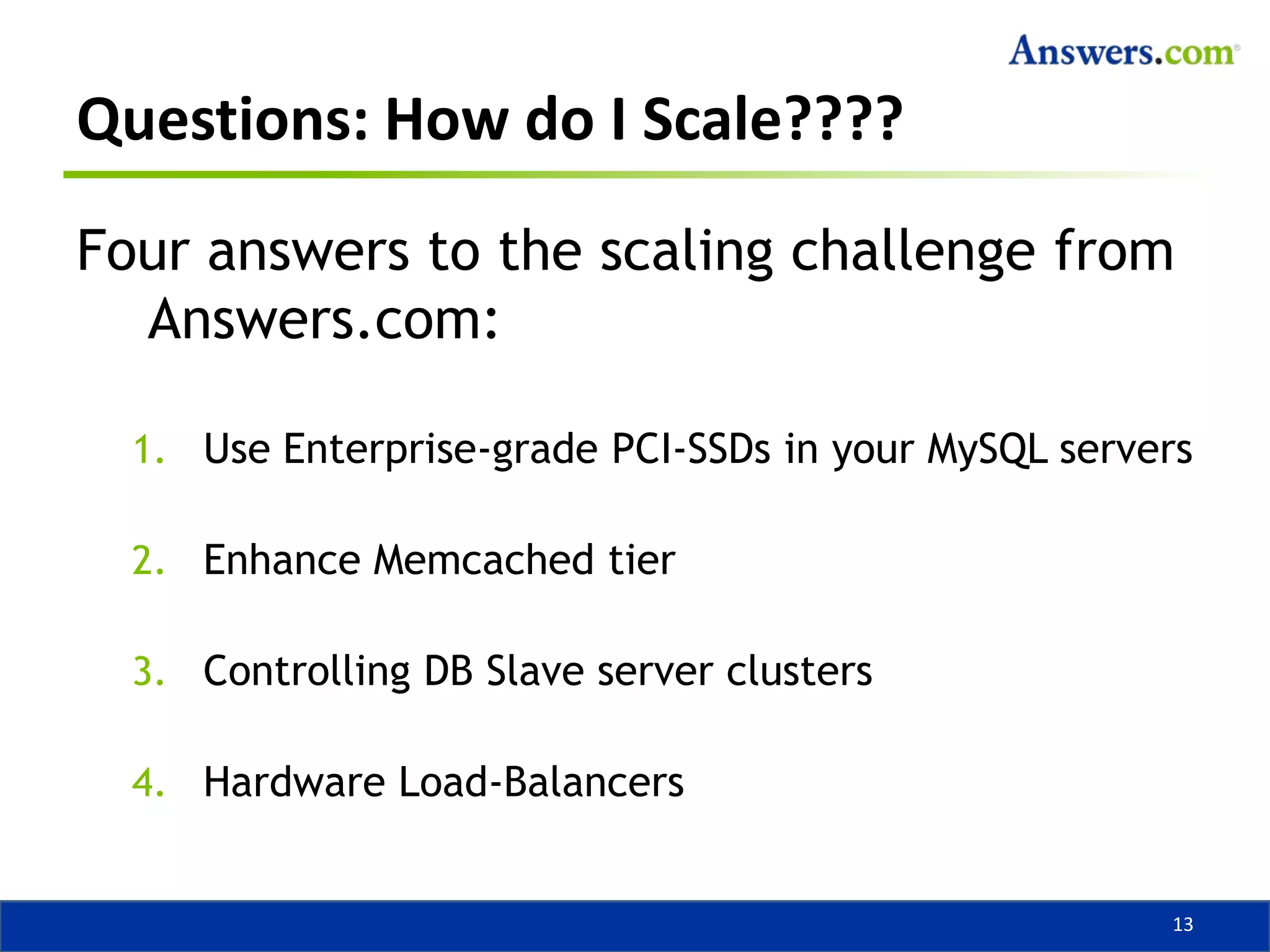

- 18. Questions: How doI Scale????Four answers to the scaling challenge from Answers.com:Use Enterprise-grade PCI-SSDs in your MySQL serversEnhance Memcached tierControlling DB Slave server clustersHardware Load-Balancers12

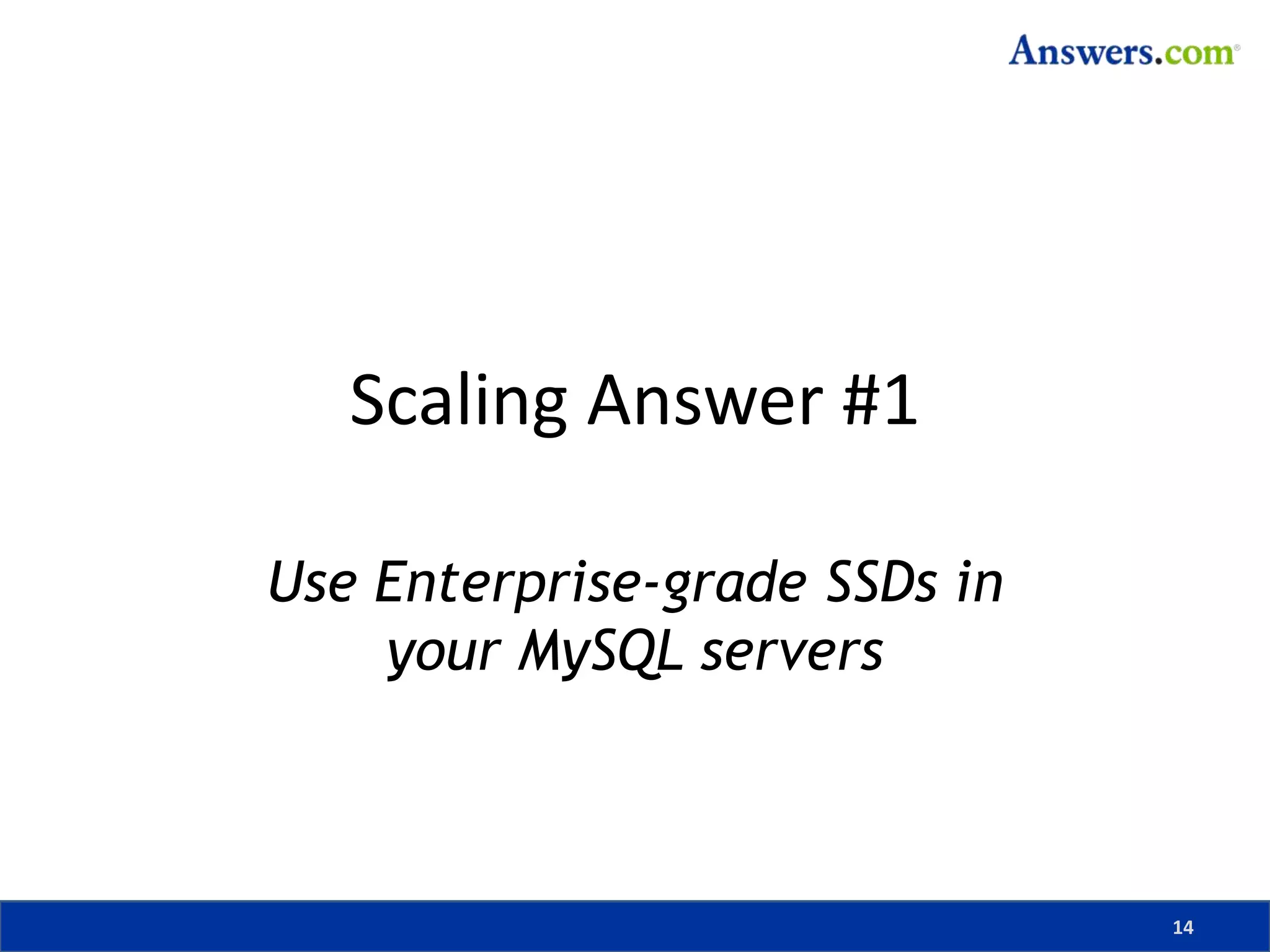

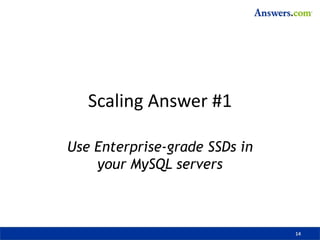

- 19. Scaling Answer #1UseEnterprise-grade SSDs in your MySQL servers13

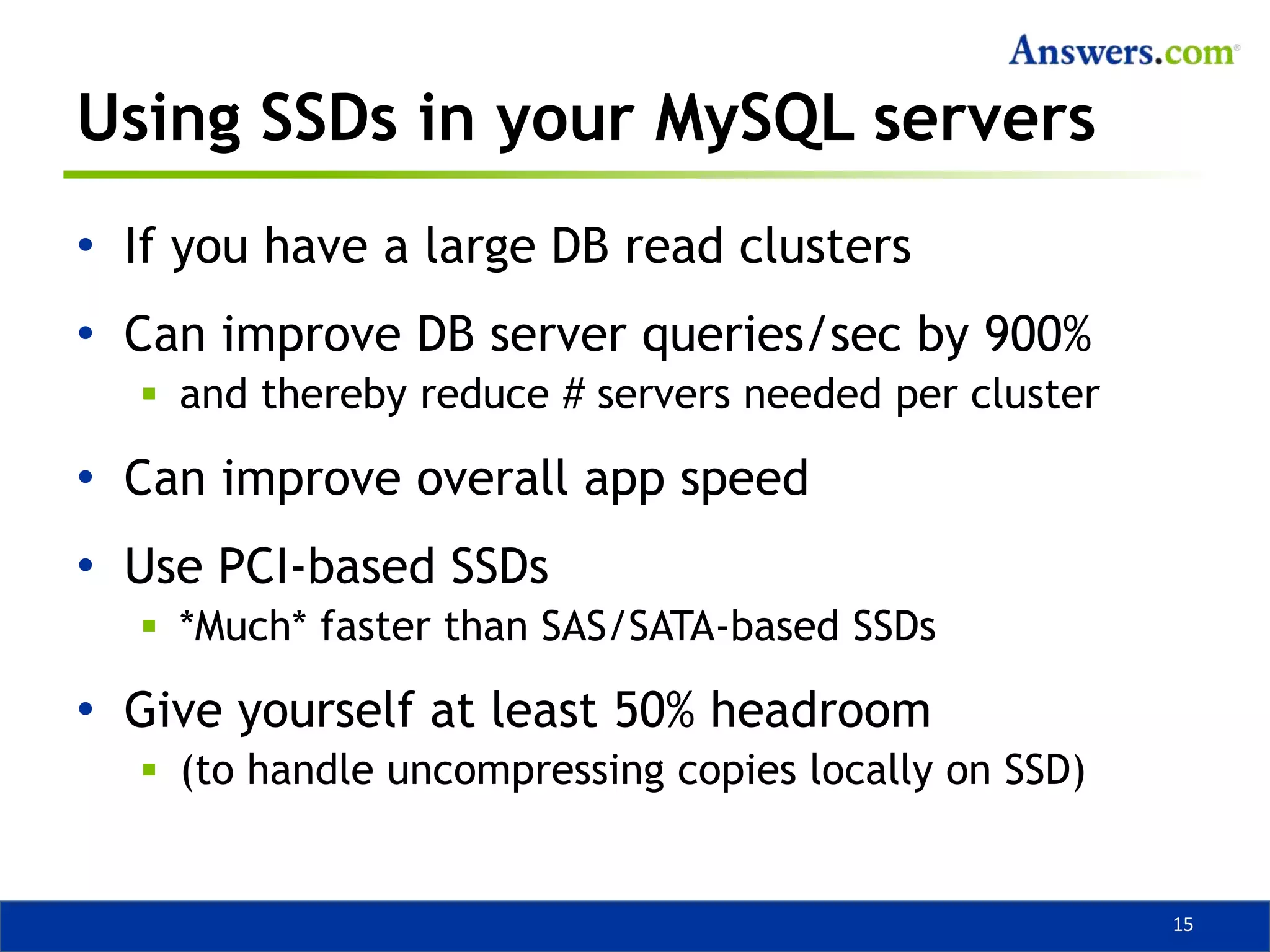

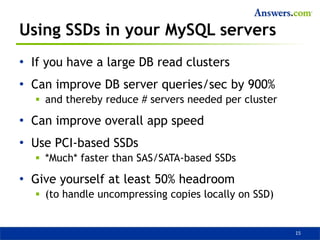

- 20. Using SSDs inyour MySQL serversIf you have a large DB read clustersCan improve DB server queries/sec by 900%and thereby reduce # servers needed per clusterCan improve overall app speedUse PCI-based SSDs*Much* faster than SAS/SATA-based SSDsGive yourself at least 50% headroom (to handle uncompressing copies locally on SSD)14

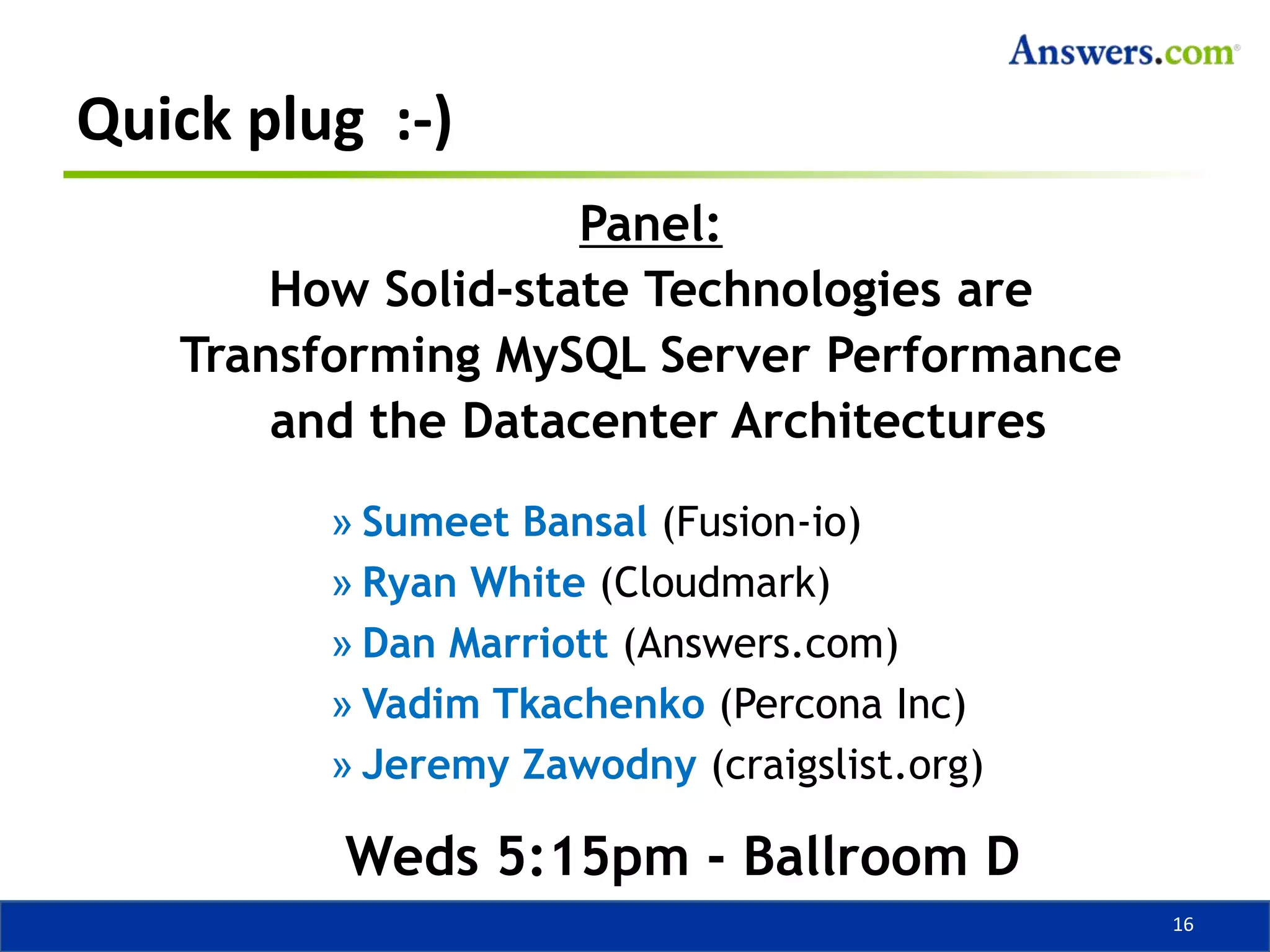

- 21. Quick plug :-)Panel:How Solid-state Technologies are Transforming MySQL Server Performance and the Datacenter ArchitecturesSumeet Bansal (Fusion-io)Ryan White (Cloudmark)Dan Marriott (Answers.com)Vadim Tkachenko (Percona Inc)Jeremy Zawodny (craigslist.org) Weds 5:15pm - Ballroom D15

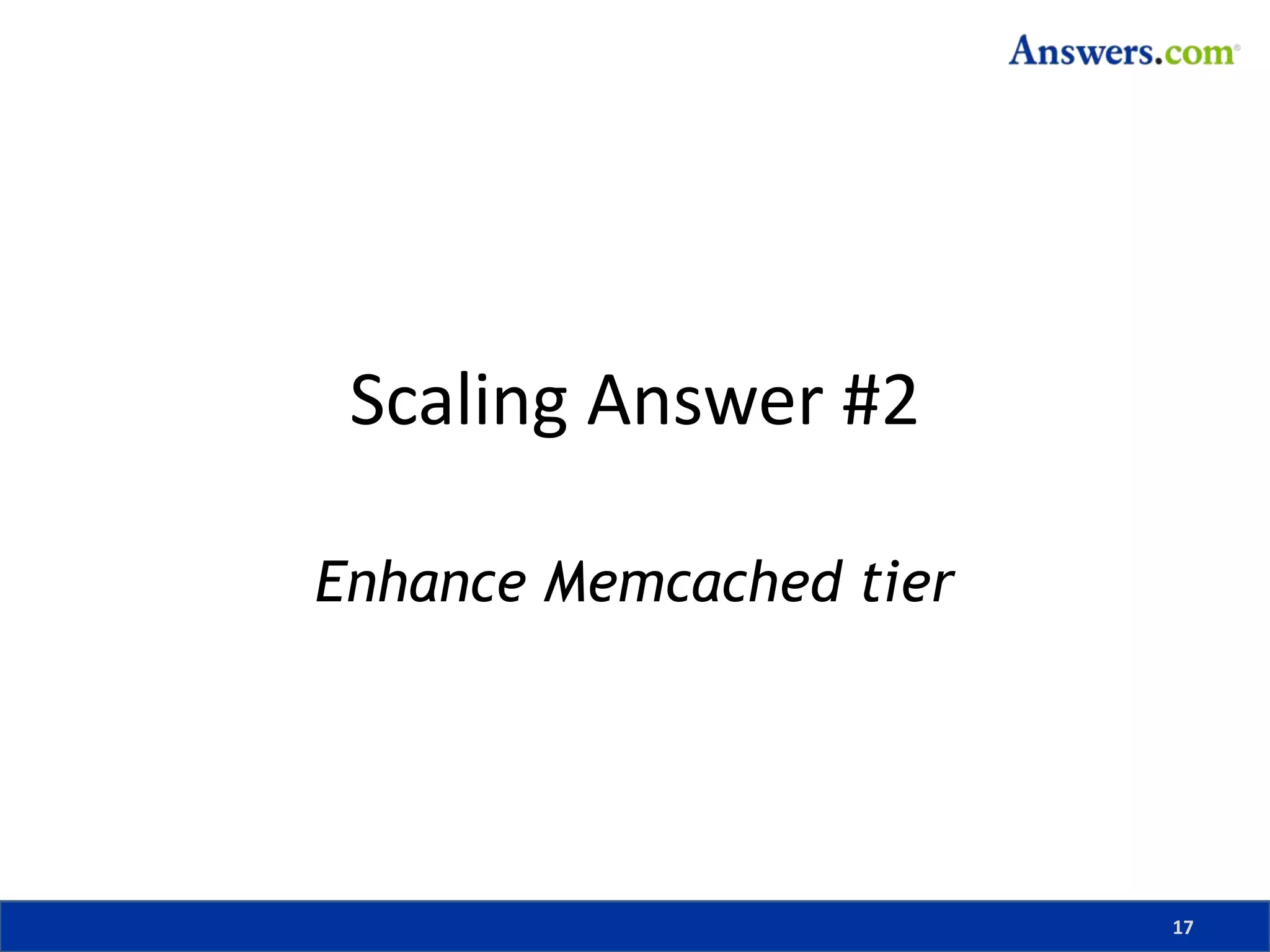

- 22. Scaling Answer #2EnhanceMemcached tier16

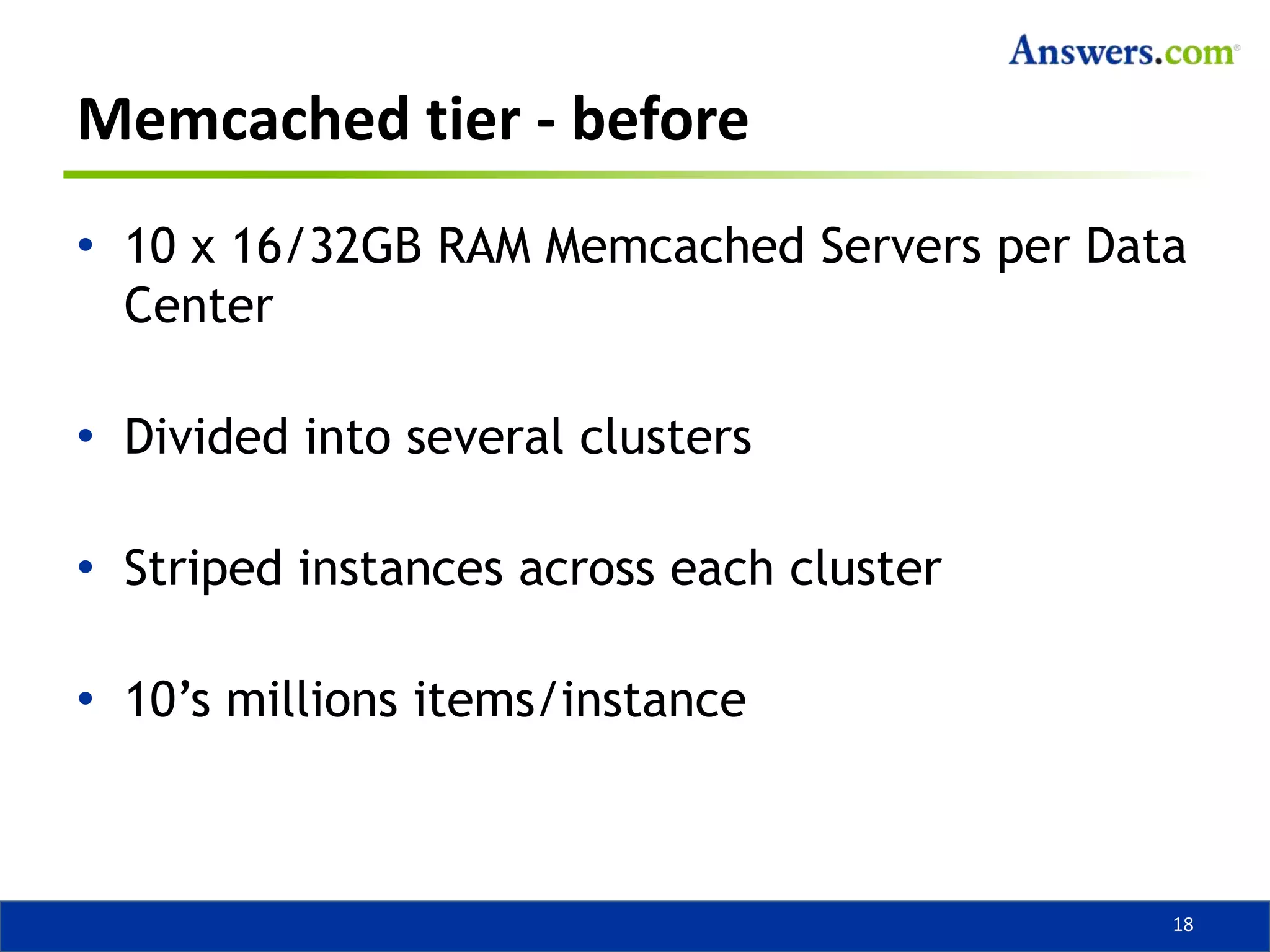

- 23. Memcached tier -before10 x 16/32GB RAM Memcached Servers per Data CenterDivided into several clustersStriped instances across each cluster10’s millions items/instance17

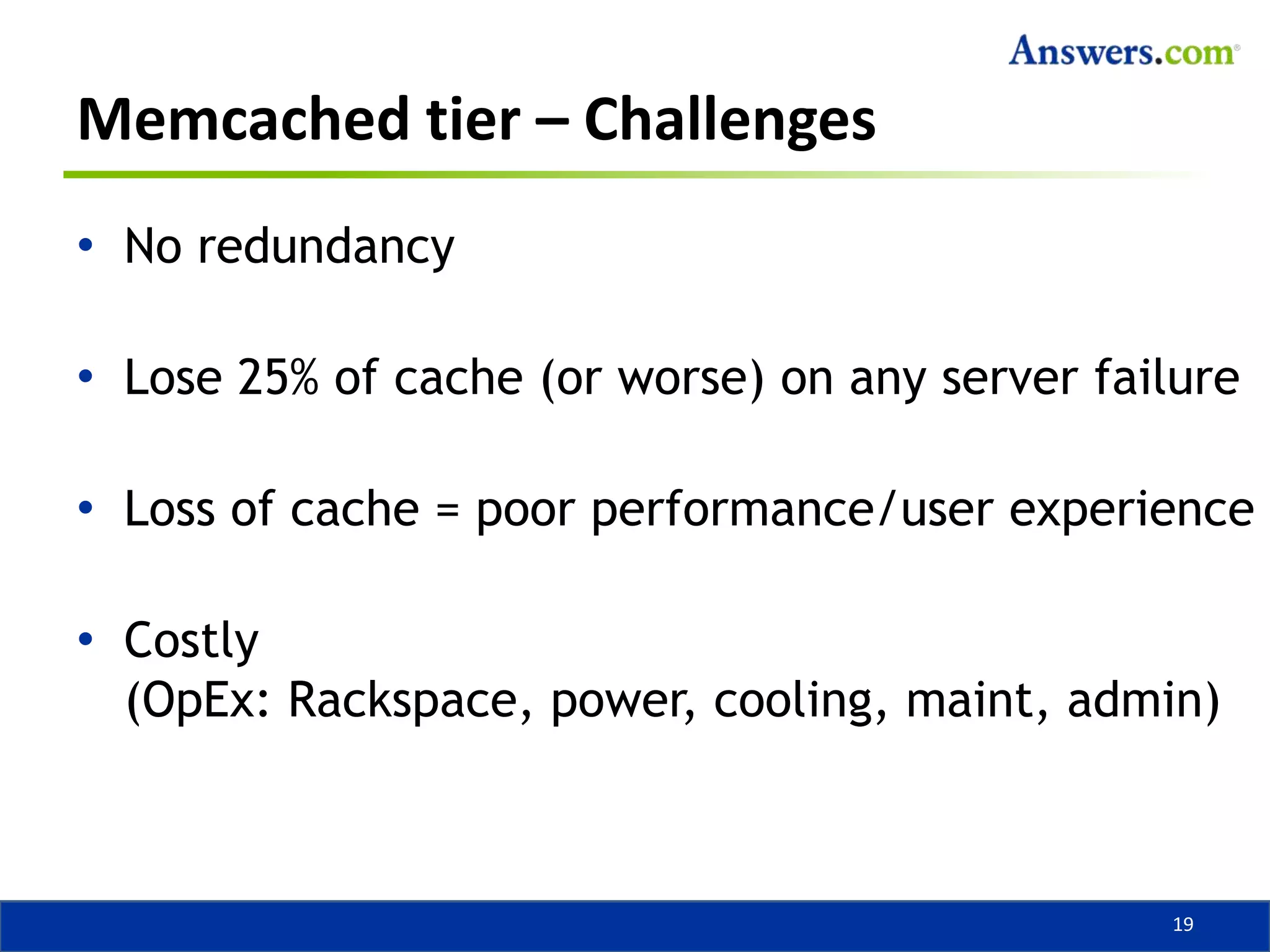

- 24. Memcached tier –ChallengesNo redundancy Lose 25% of cache (or worse) on any server failureLoss of cache = poor performance/user experienceCostly (OpEx: Rackspace, power, cooling, maint, admin)18

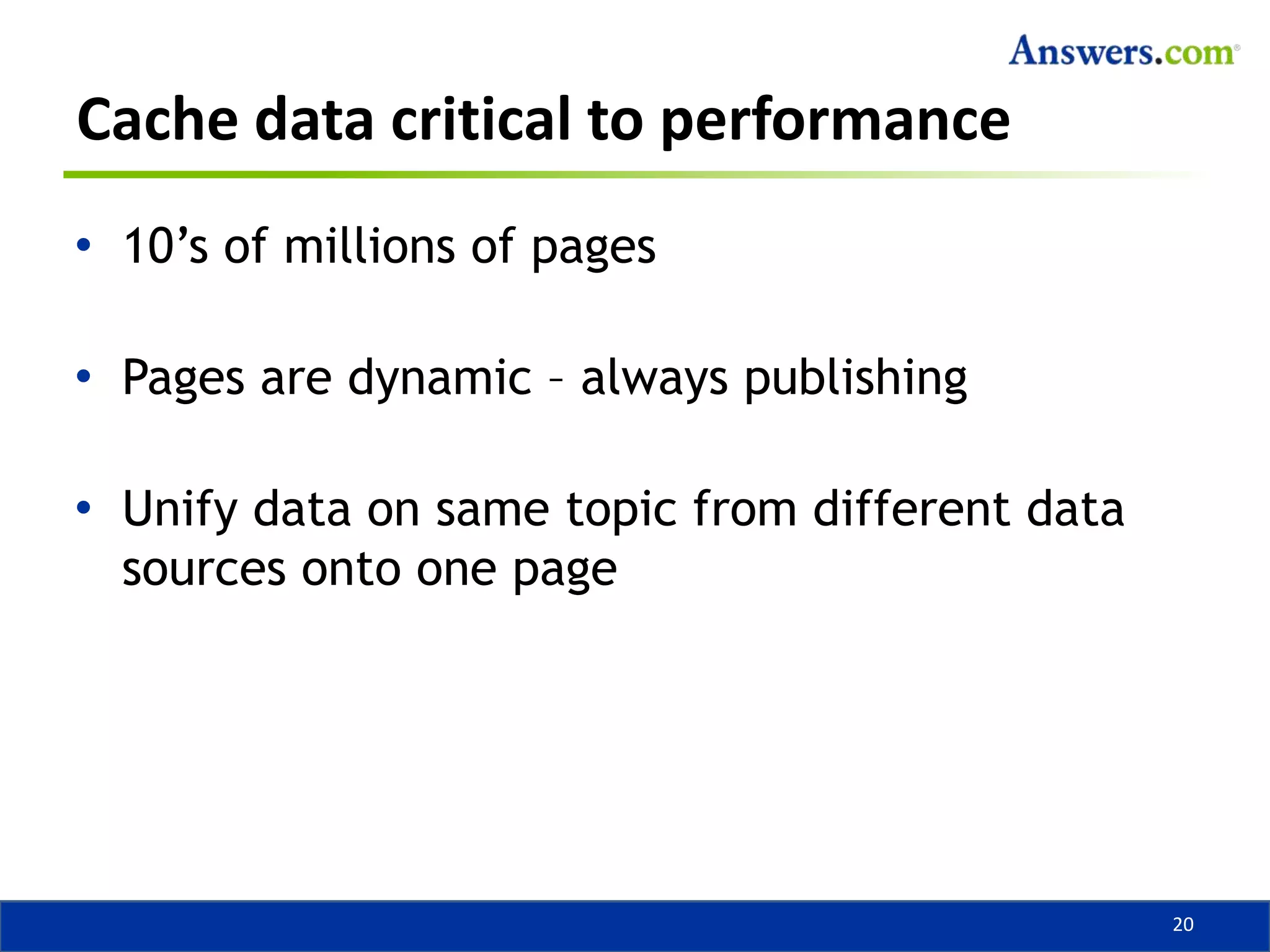

- 25. Cache data criticalto performance10’s of millions of pagesPages are dynamic – always publishingUnify data on same topic from different data sources onto one page19

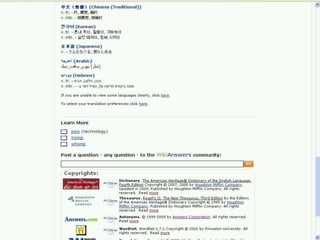

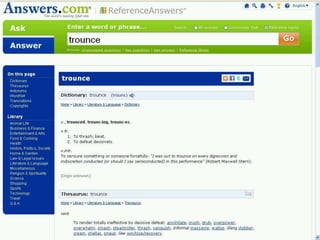

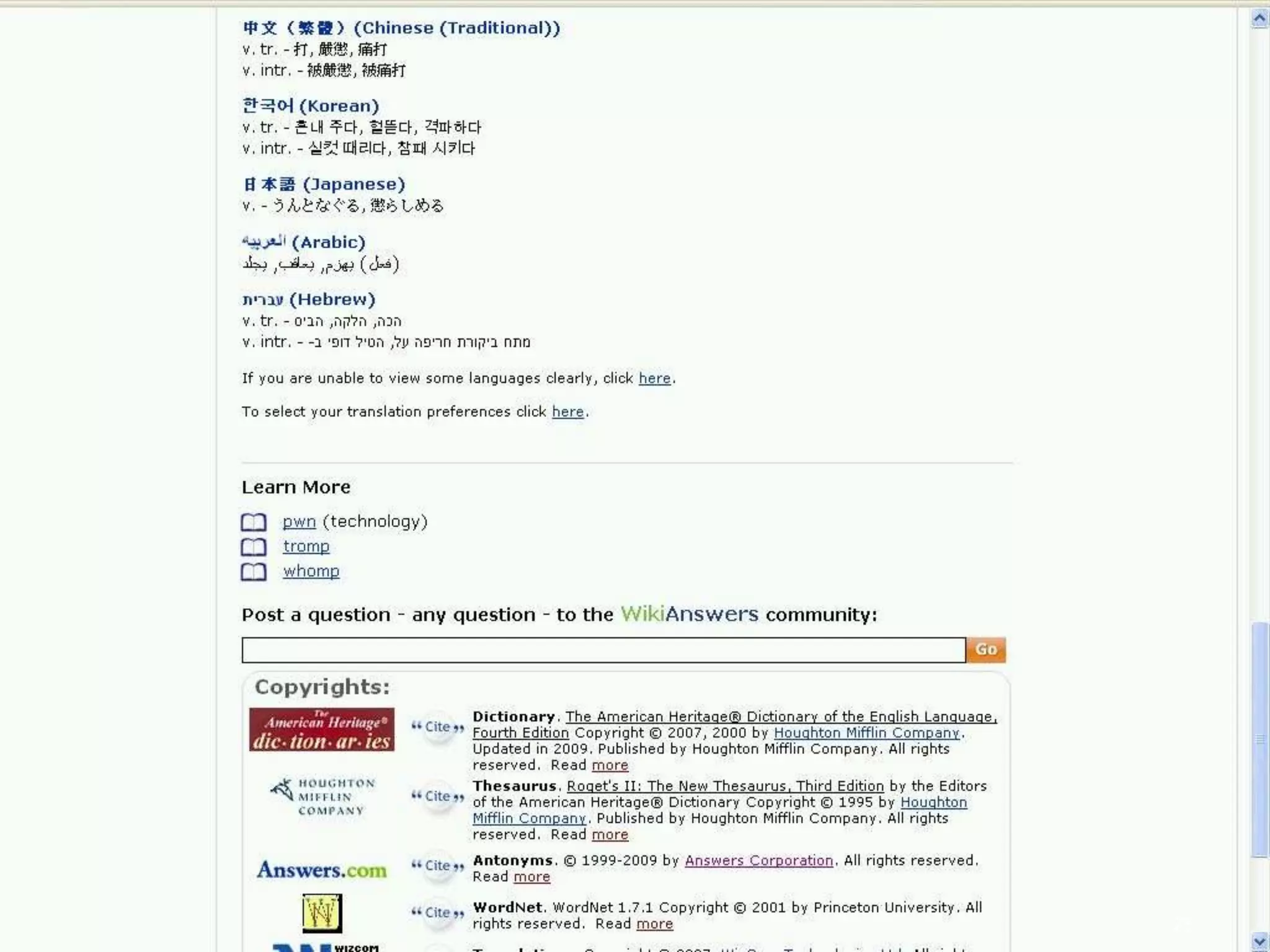

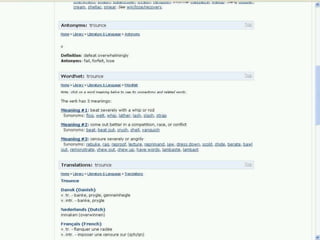

- 26. Multiple entries/page[Illustrate mult.data entries/page]20
- 27.
- 28.

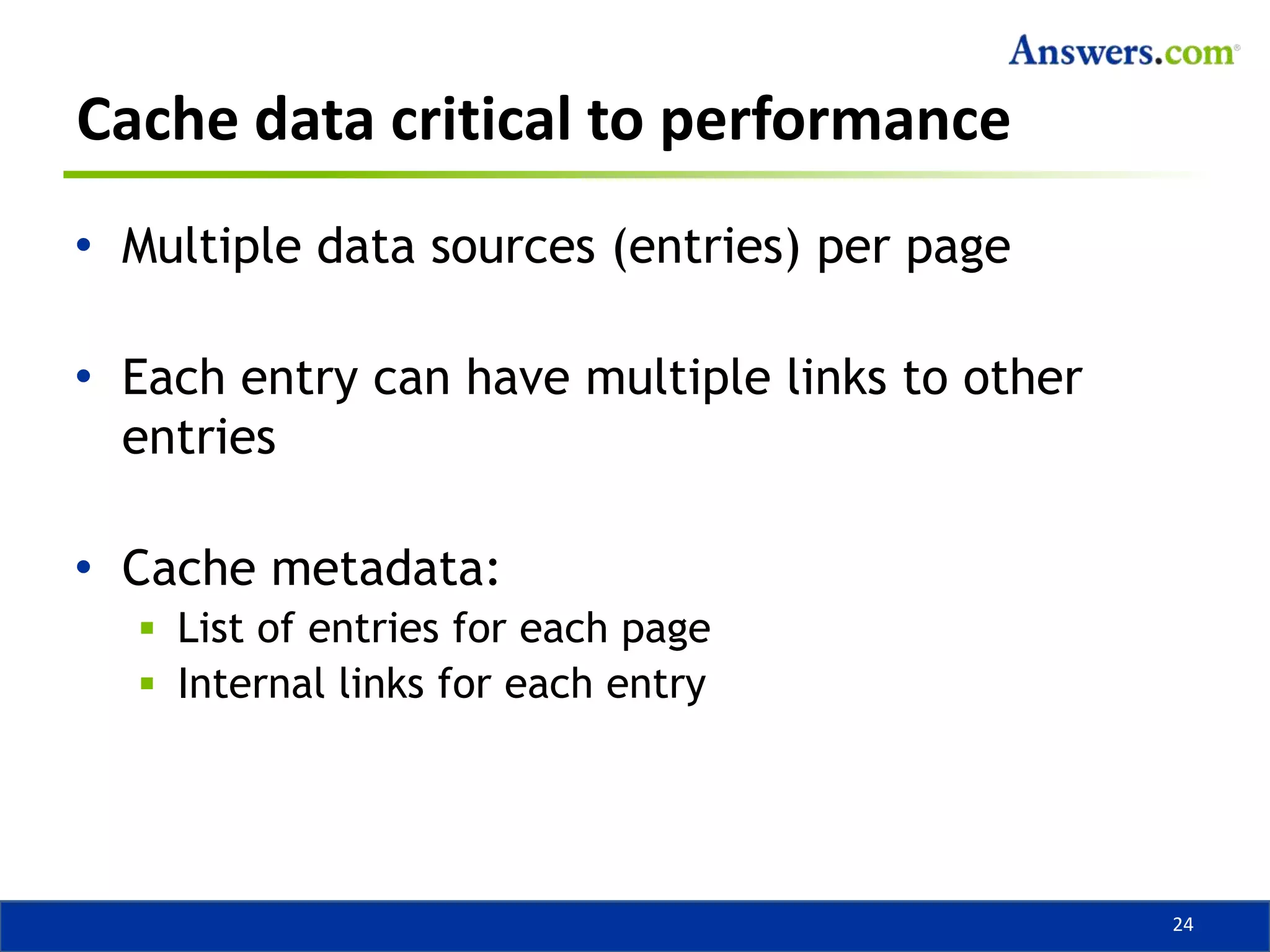

- 29. Cache data criticalto performanceMultiple data sources (entries) per pageEach entry can have multiple links to other entriesCache metadata:List of entries for each page
- 30. Internal links foreach entry23

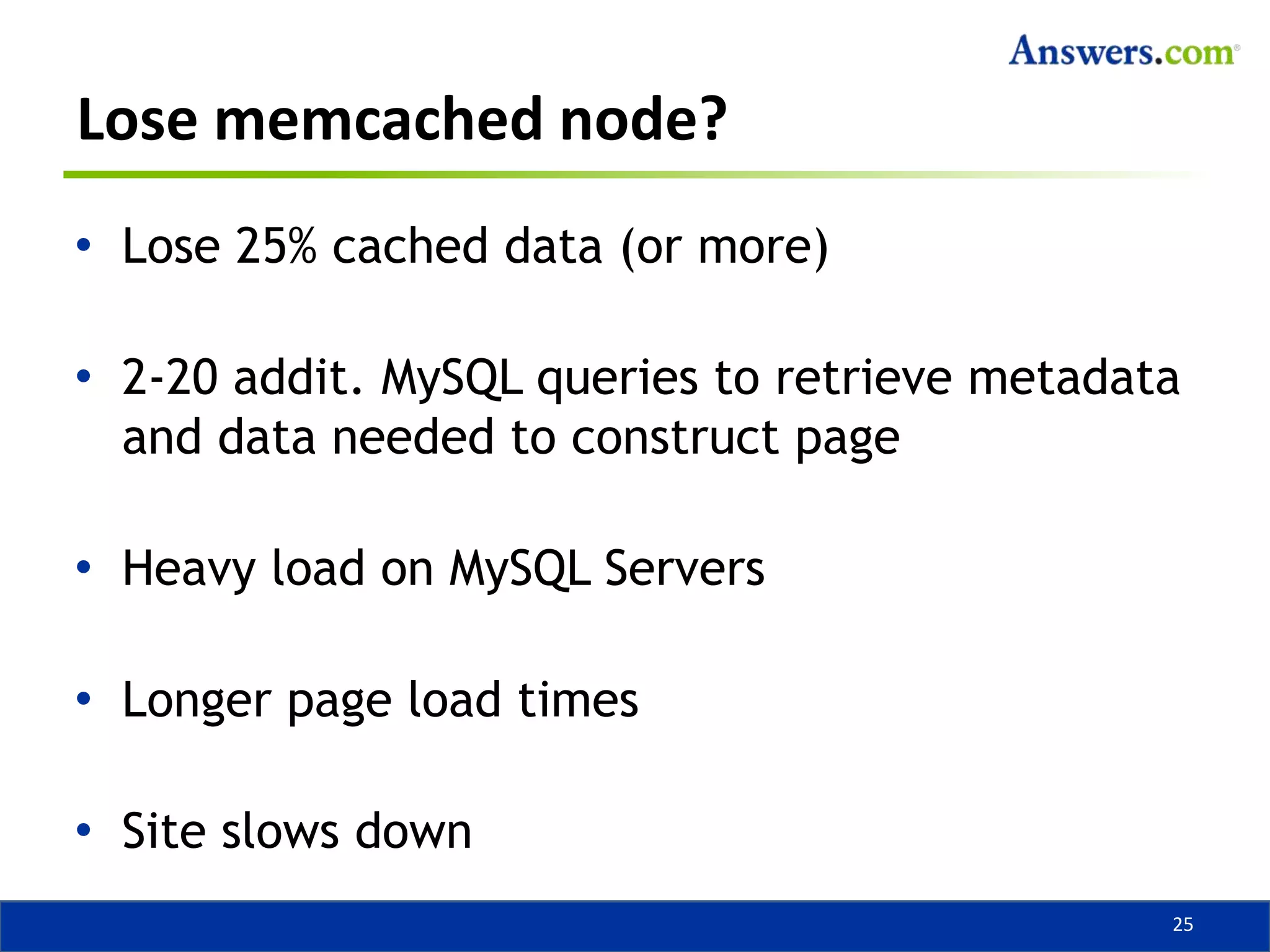

- 31. Lose memcached node?Lose25% cached data (or more)2-20 addit. MySQL queries to retrieve metadata and data needed to construct pageHeavy load on MySQL ServersLonger page load timesSite slows down24

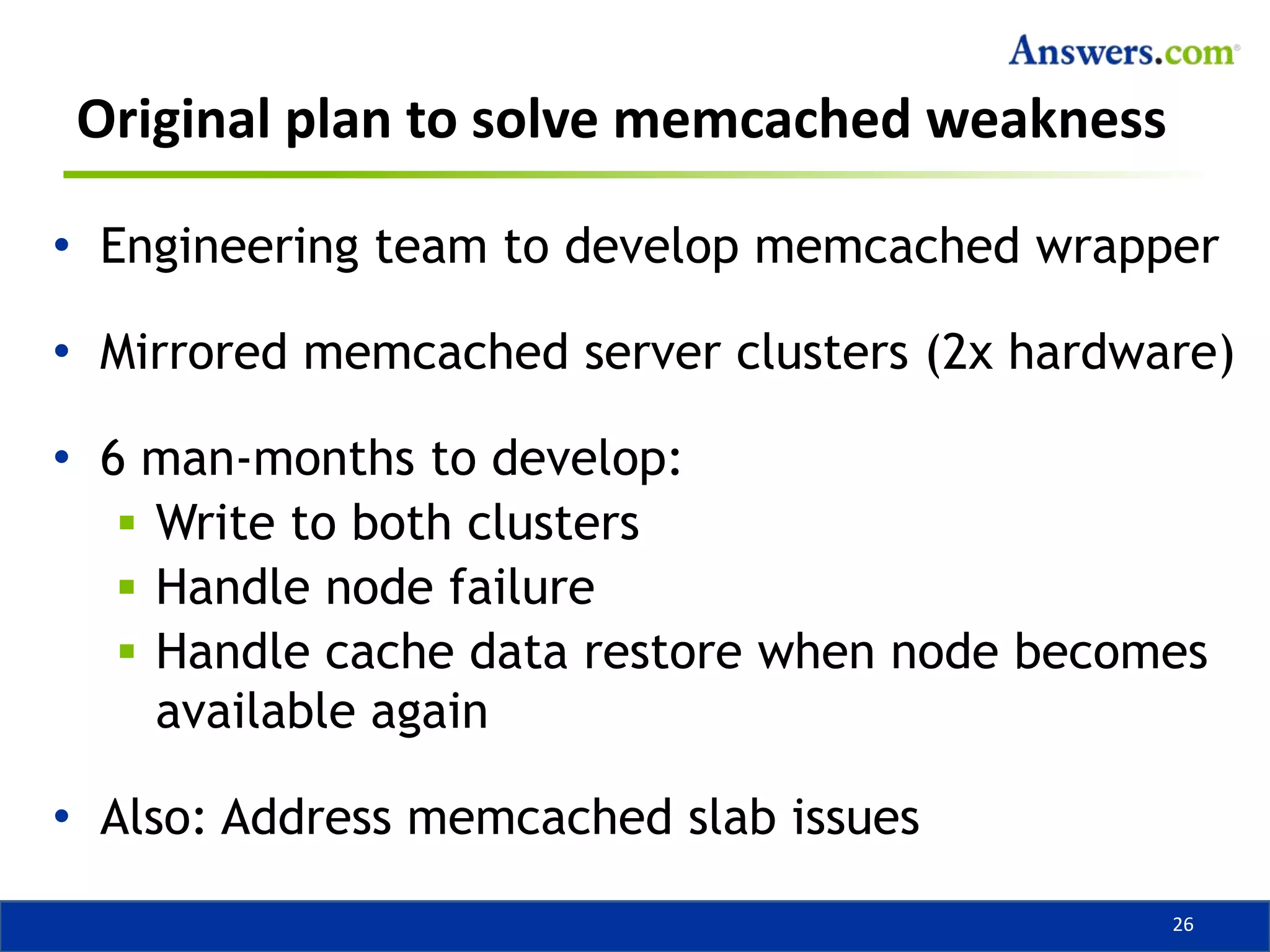

- 32. Original plan tosolve memcached weaknessEngineering team to develop memcached wrapperMirrored memcached server clusters (2x hardware)6 man-months to develop:Write to both clusters
- 33.
- 34. Handle cache datarestore when node becomes available againAlso: Address memcached slab issues25

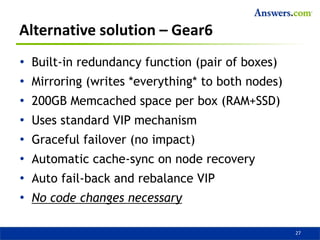

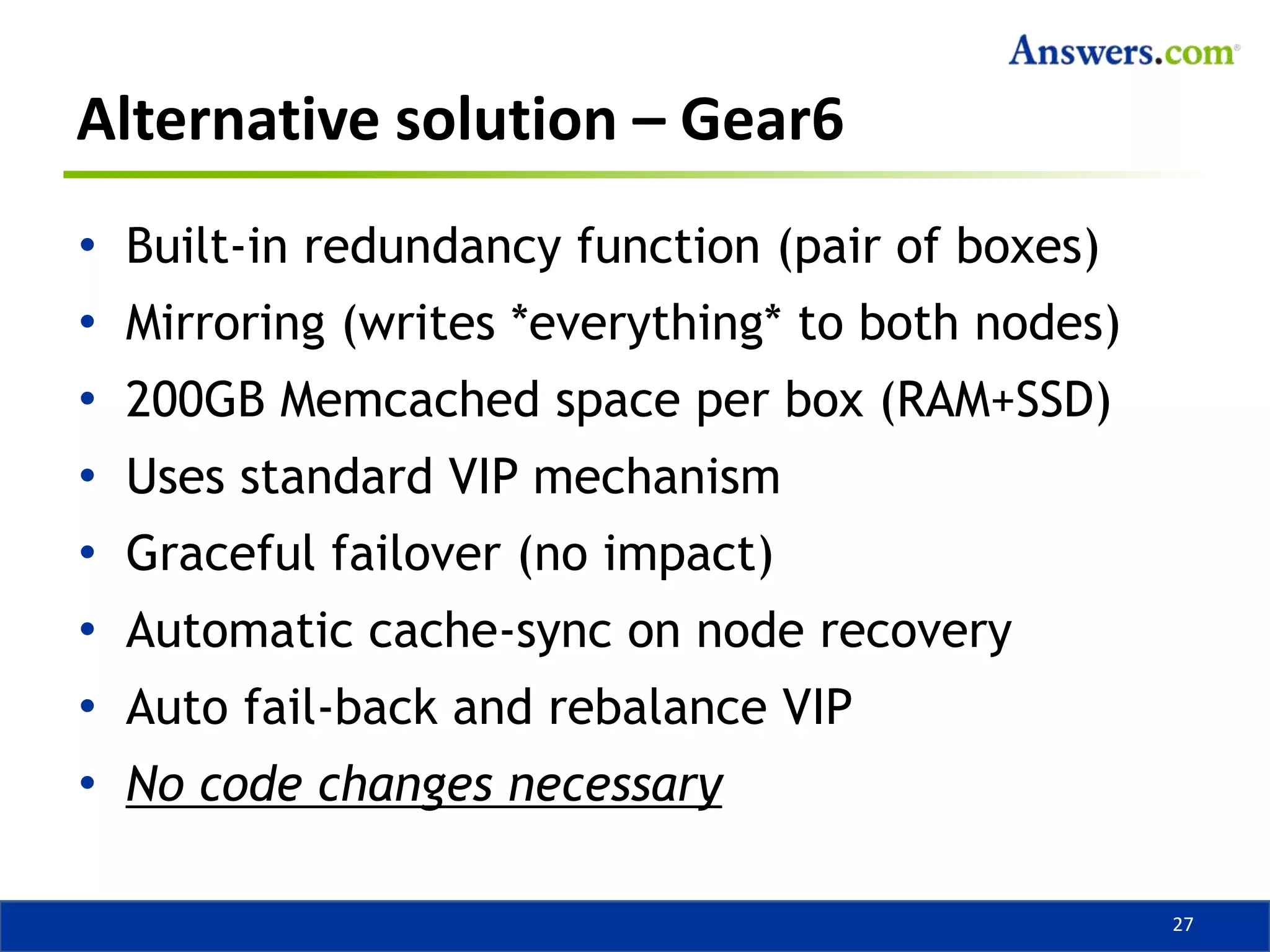

- 35. Alternative solution –Gear6Built-in redundancy function (pair of boxes)Mirroring (writes *everything* to both nodes)200GB Memcached space per box (RAM+SSD)Uses standard VIP mechanismGraceful failover (no impact)Automatic cache-sync on node recoveryAuto fail-back and rebalance VIPNo code changes necessary26

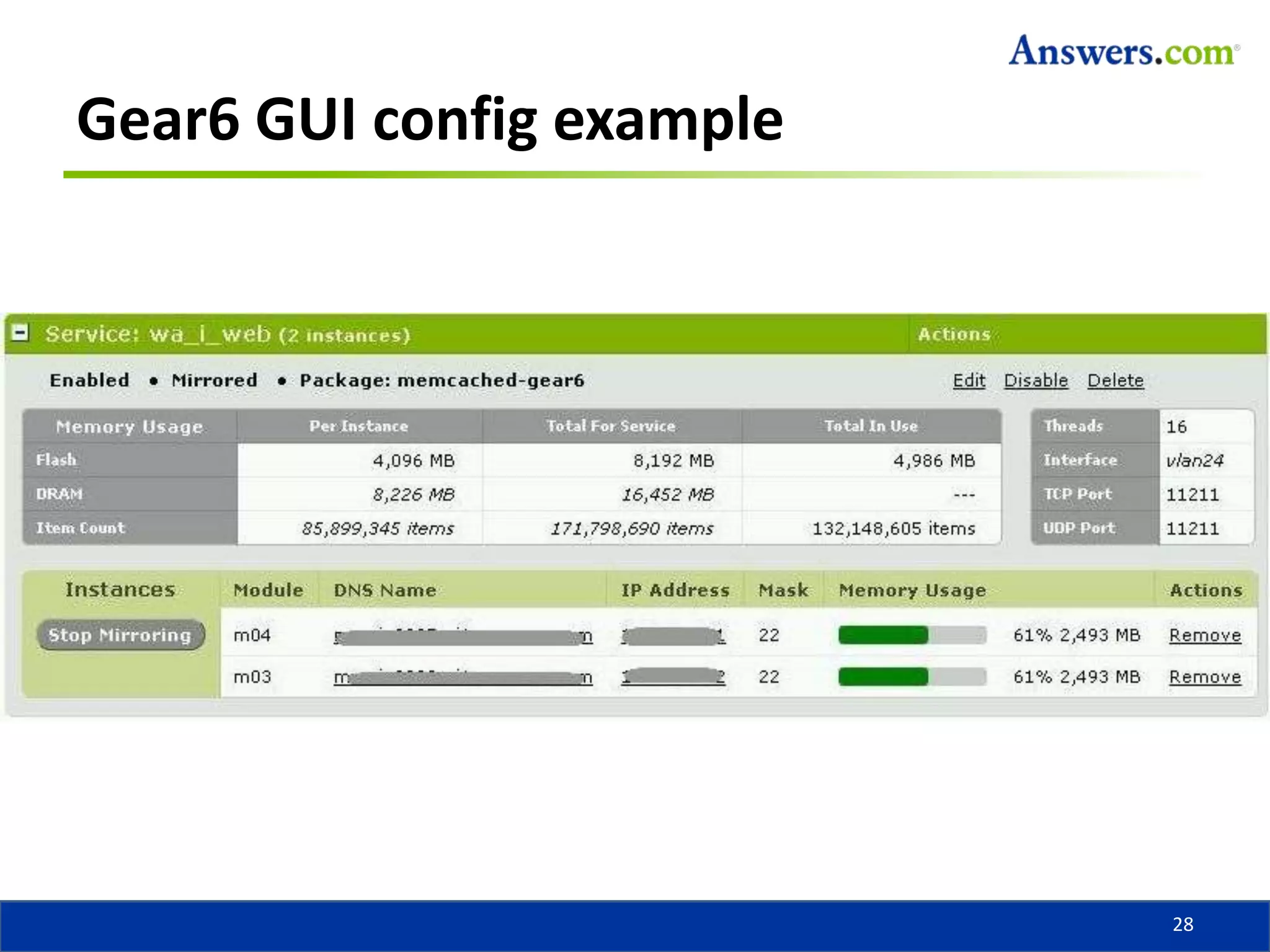

- 36. Gear6 GUI configexample27

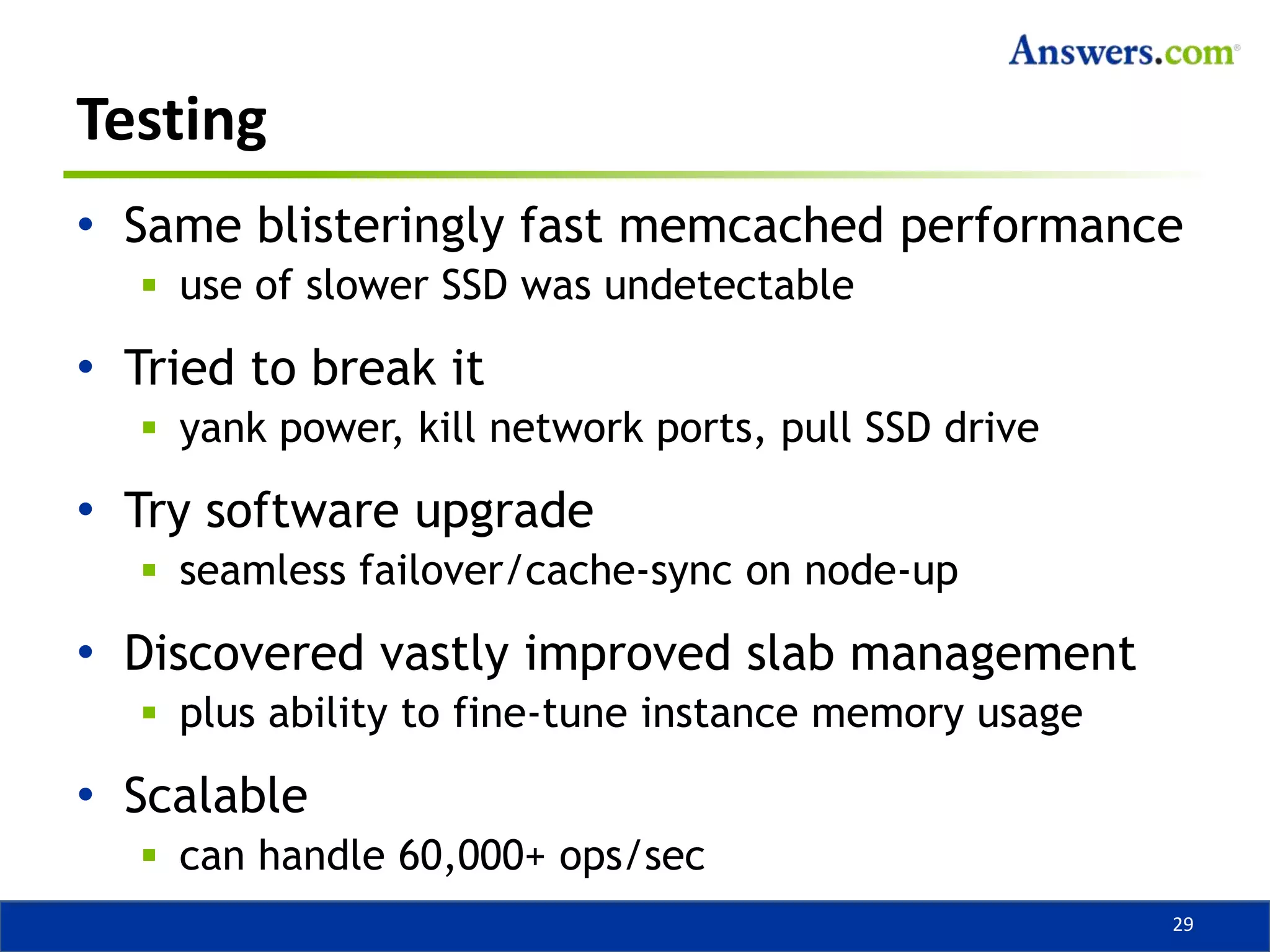

- 37. TestingSame blisteringly fastmemcached performance use of slower SSD was undetectableTried to break ityank power, kill network ports, pull SSD driveTry software upgradeseamless failover/cache-sync on node-upDiscovered vastly improved slab managementplus ability to fine-tune instance memory usageScalablecan handle 60,000+ ops/sec28

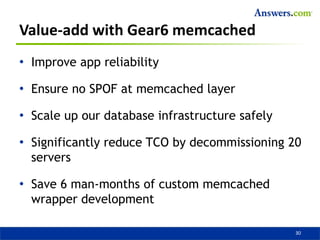

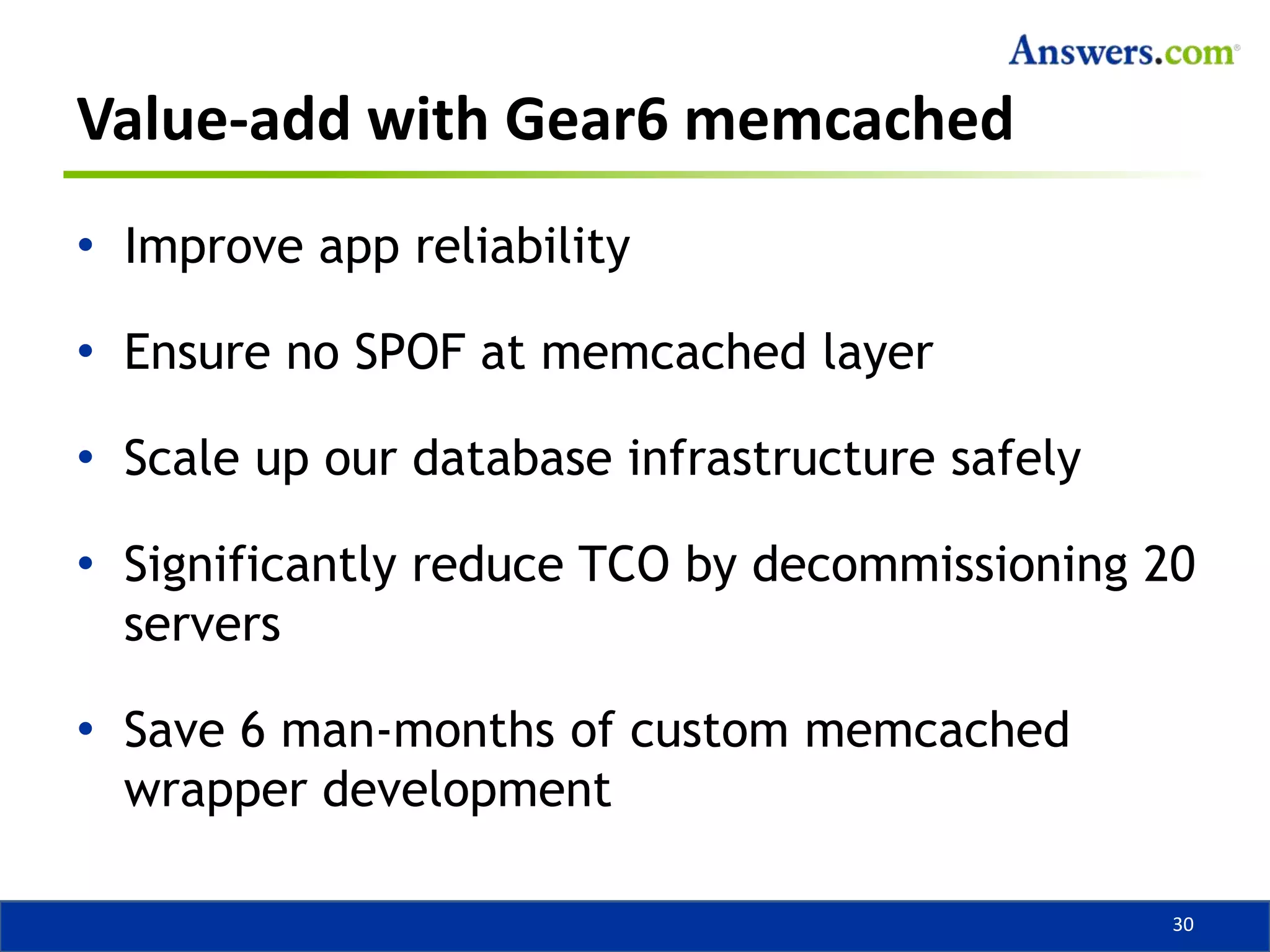

- 38. Value-add with Gear6memcachedImprove app reliabilityEnsure no SPOF at memcached layerScale up our database infrastructure safelySignificantly reduce TCO by decommissioning 20 serversSave 6 man-months of custom memcached wrapper development29

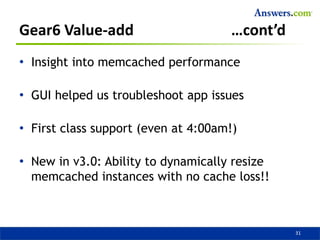

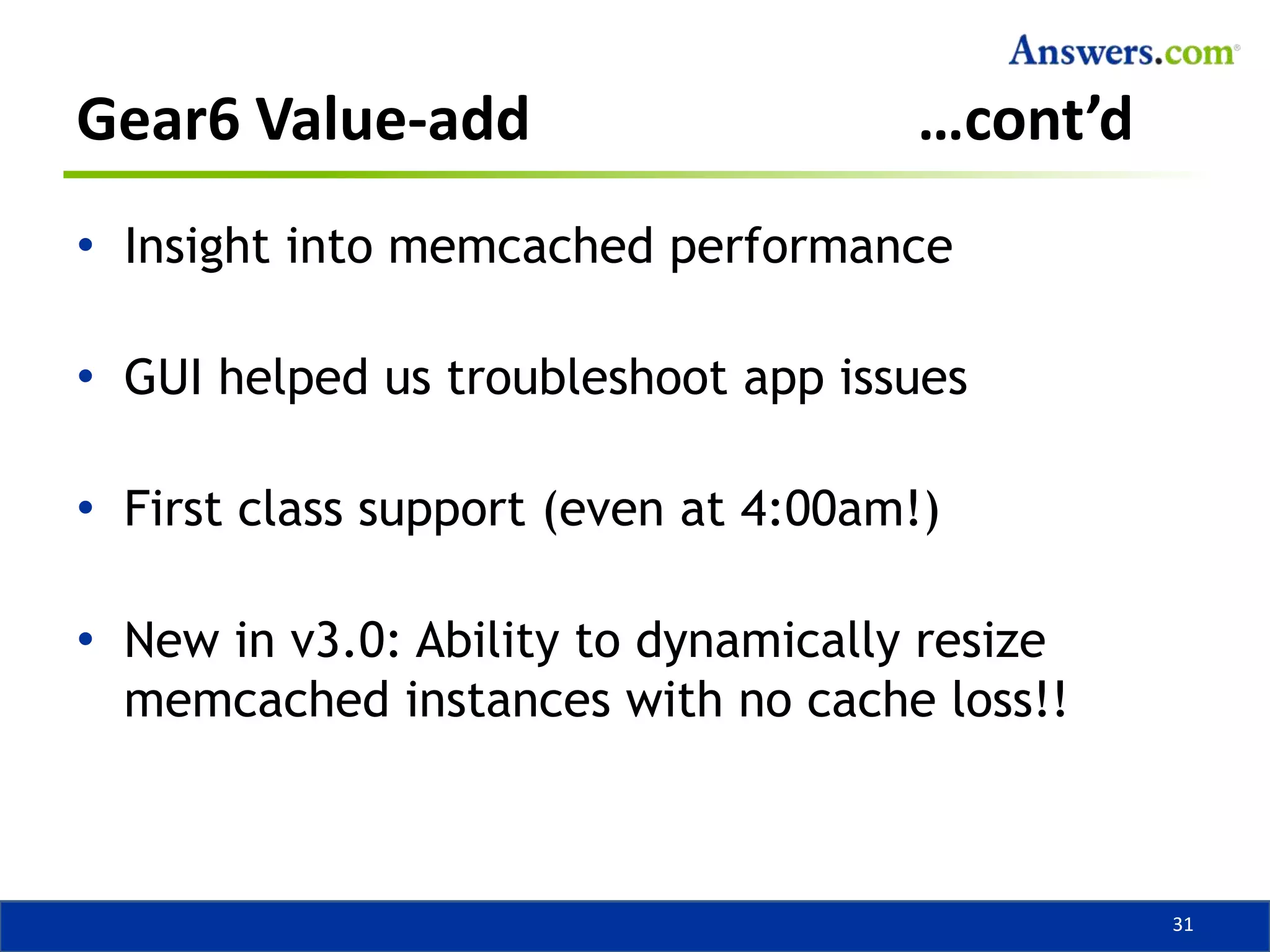

- 39. Gear6 Value-add …cont’dInsight into memcached performanceGUI helped us troubleshoot app issuesFirst class support (even at 4:00am!)New in v3.0: Ability to dynamically resize memcached instances with no cache loss!!30

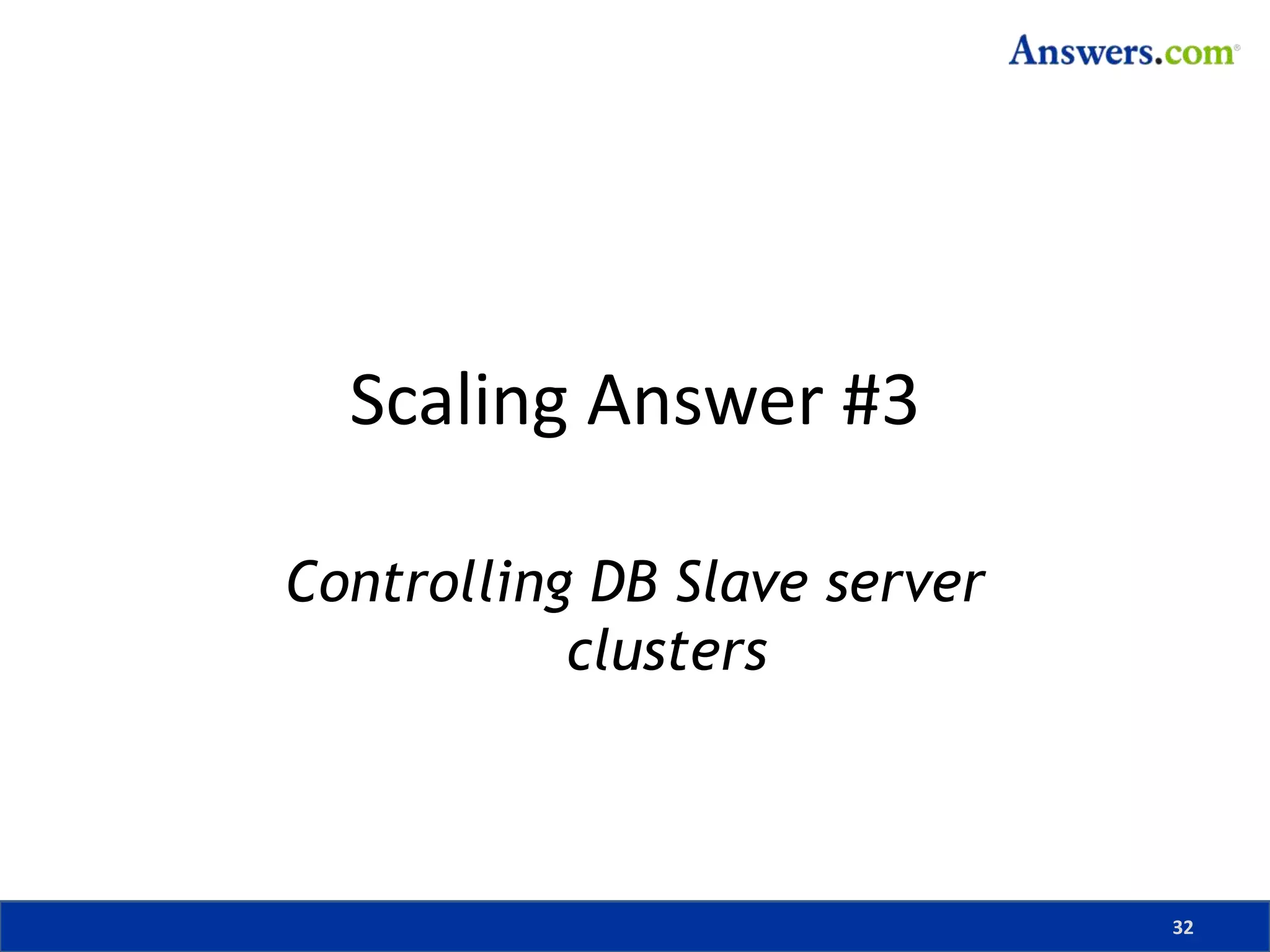

- 40. Scaling Answer #3ControllingDB Slave server clusters31

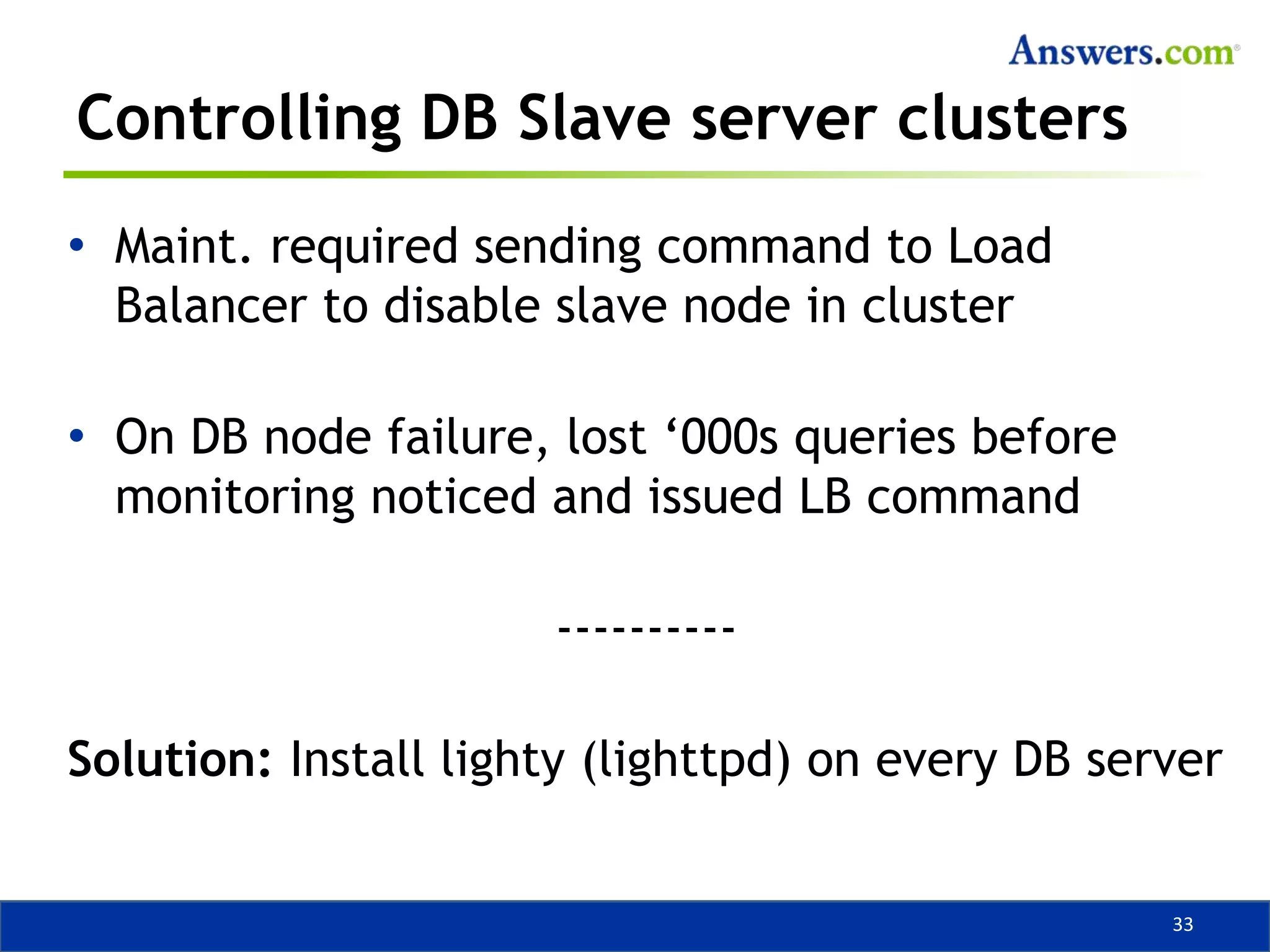

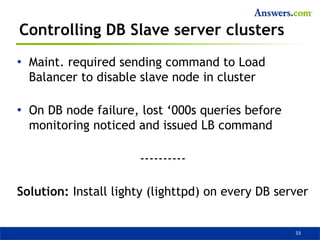

- 41. Controlling DB Slaveserver clustersMaint. required sending command to Load Balancer to disable slave node in clusterOn DB node failure, lost ‘000s queries before monitoring noticed and issued LB command----------Solution: Install lighty (lighttpd) on every DB server32

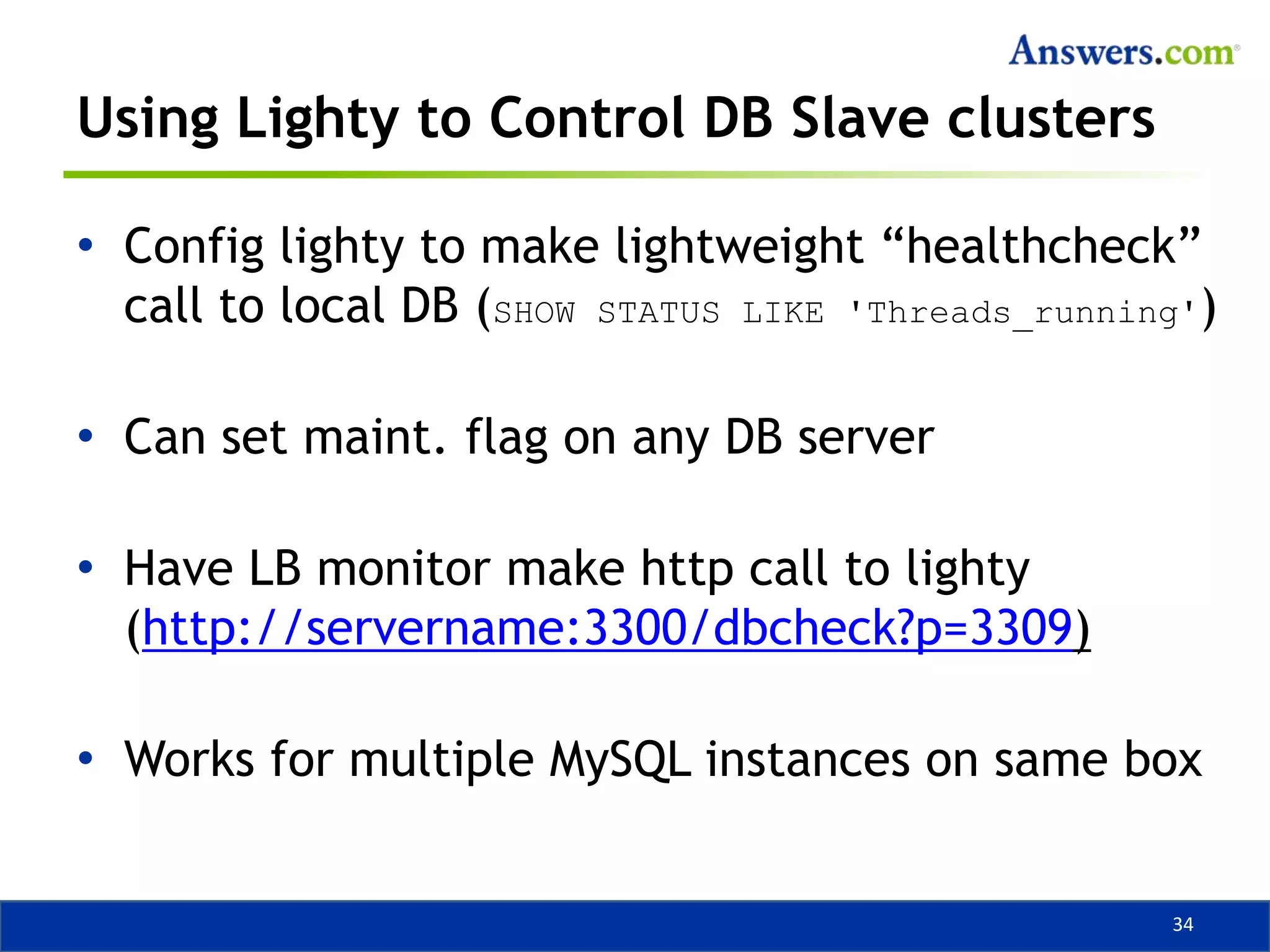

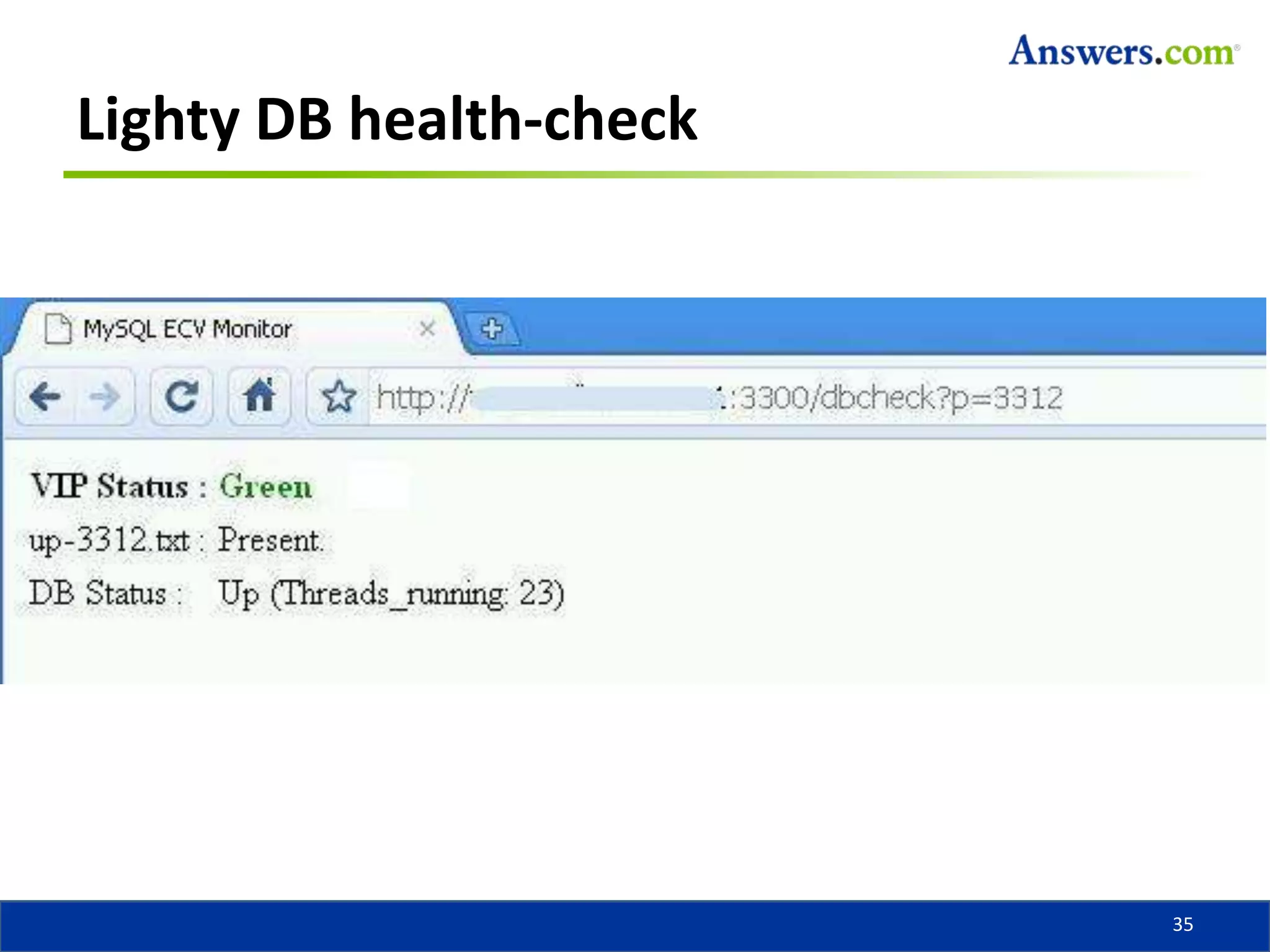

- 42. Using Lighty toControl DB Slave clustersConfig lighty to make lightweight “healthcheck” call to local DB (SHOW STATUS LIKE 'Threads_running')Can set maint. flag on any DB serverHave LB monitor make http call to lighty (http://servername:3300/dbcheck?p=3309)Works for multiple MySQL instances on same box33
- 43.

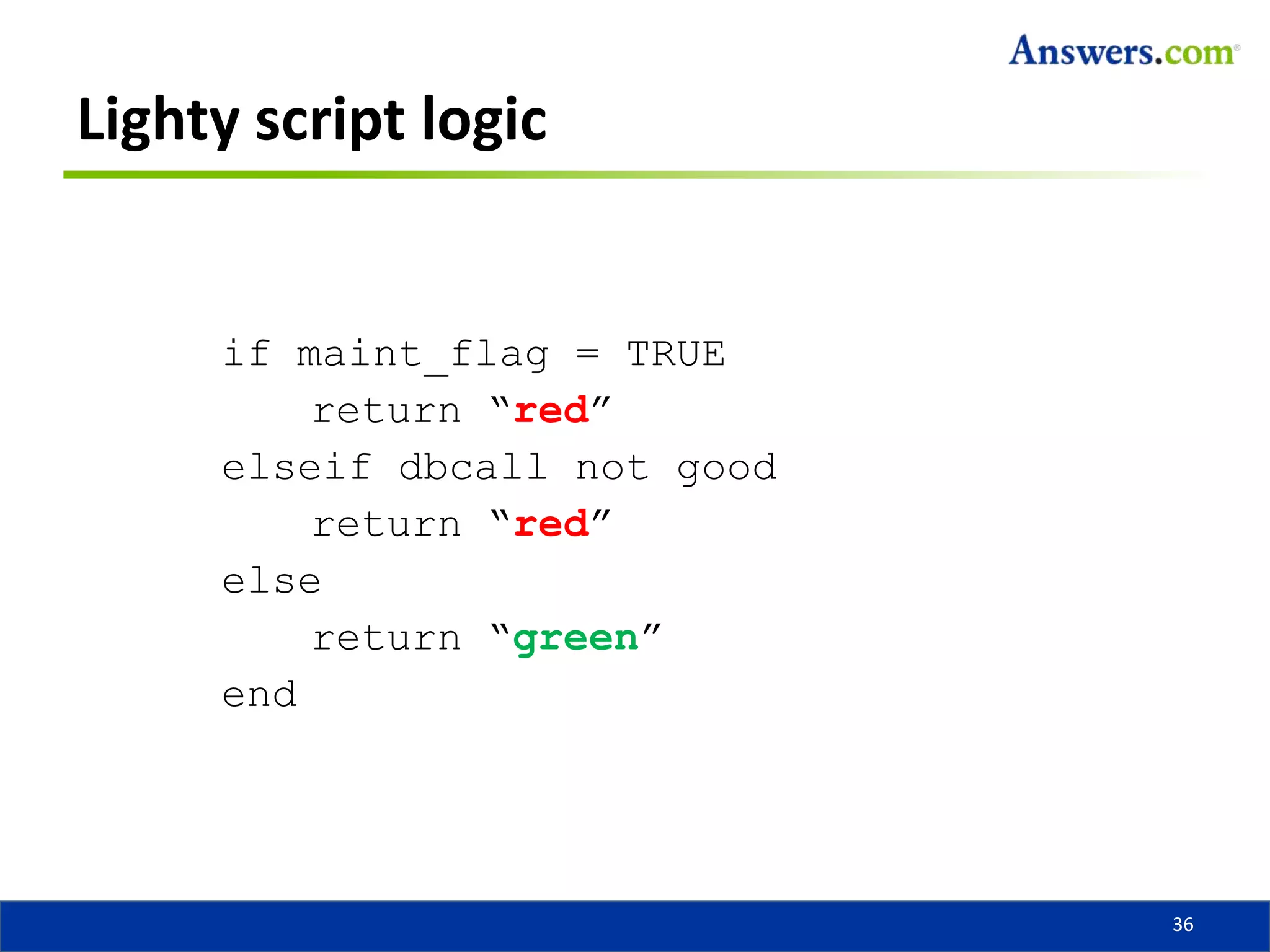

- 44. Lighty script logicifmaint_flag = TRUE return “red”elseif dbcall not good return “red”else return “green”end35

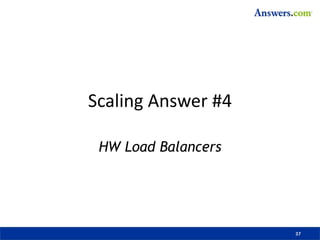

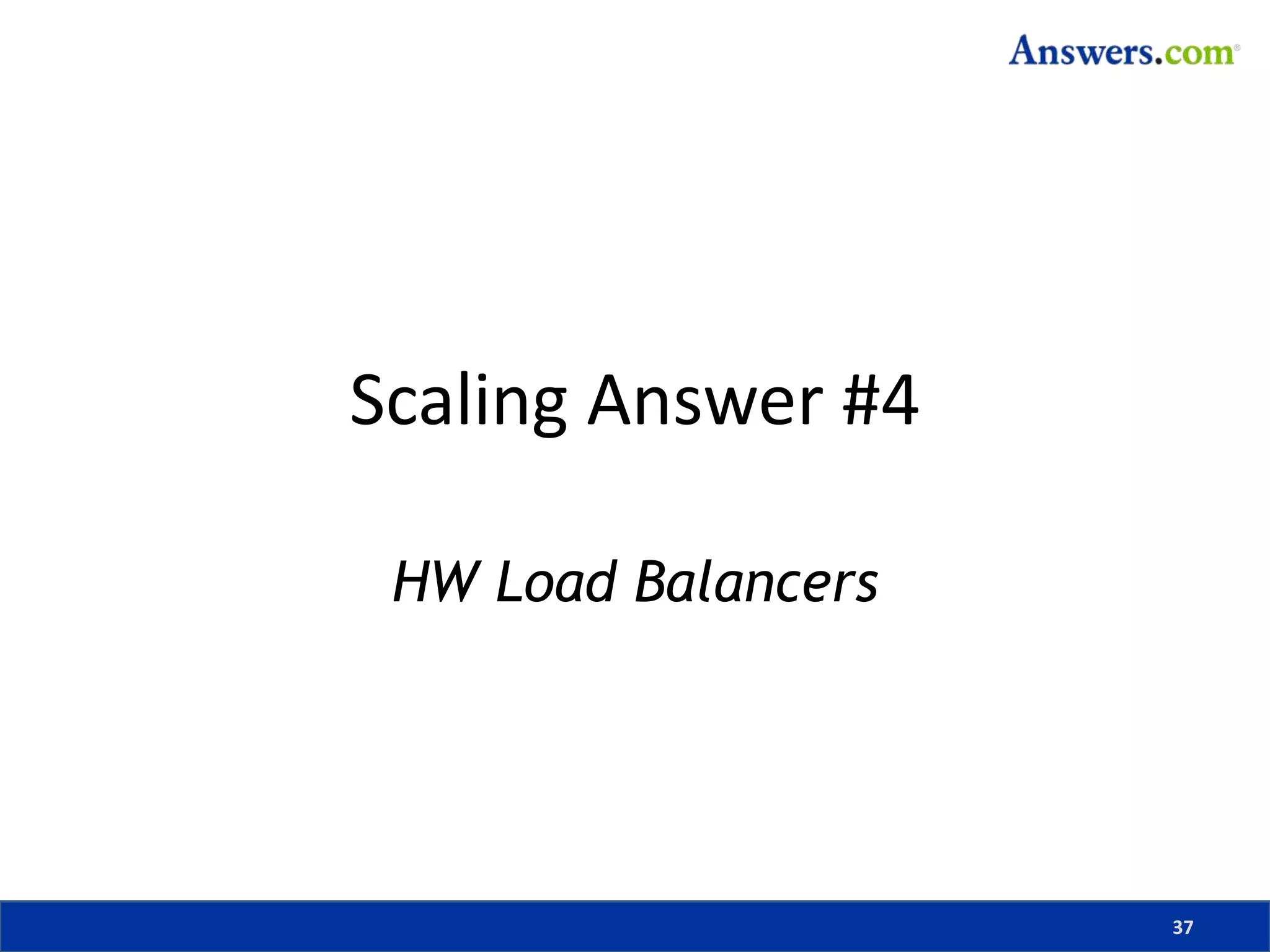

- 45. Scaling Answer #4HWLoad Balancers36

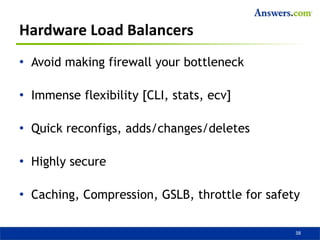

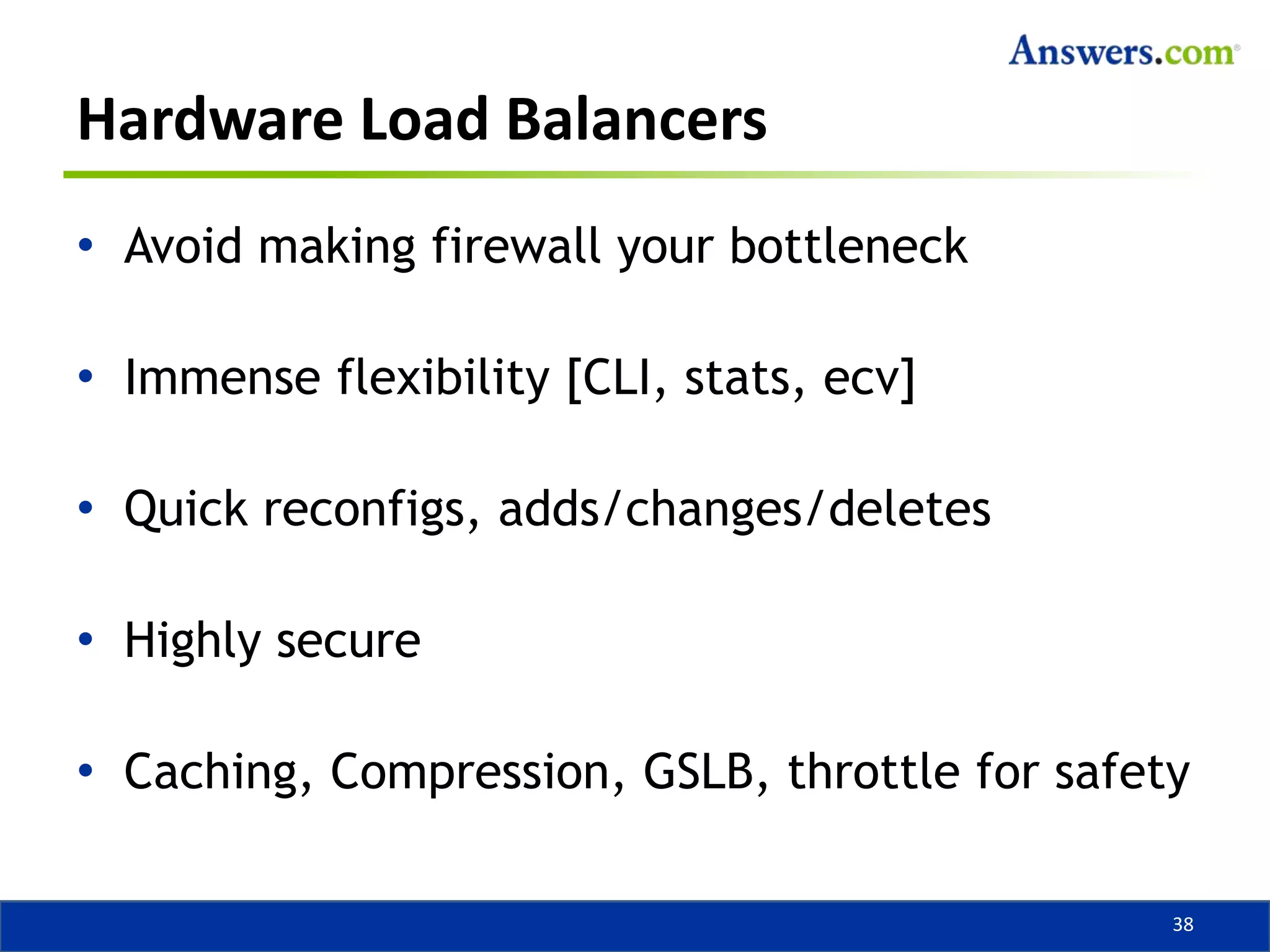

- 46. Hardware Load BalancersAvoidmaking firewall your bottleneckImmense flexibility [CLI, stats, ecv]Quick reconfigs, adds/changes/deletesHighly secureCaching, Compression, GSLB, throttle for safety37
- 47. Which Hardware LoadBalancers?Citrix & F5Leaders of the pack (Garter Magic Quadrant)
- 48.
- 49.
- 50.
- 51.
- 52.
- 53.
- 54. Cost-effective (certainly forinternal load-balancing)38
- 55.
- 56. Gear6: Perspectives onthe scaling challenge
Editor's Notes

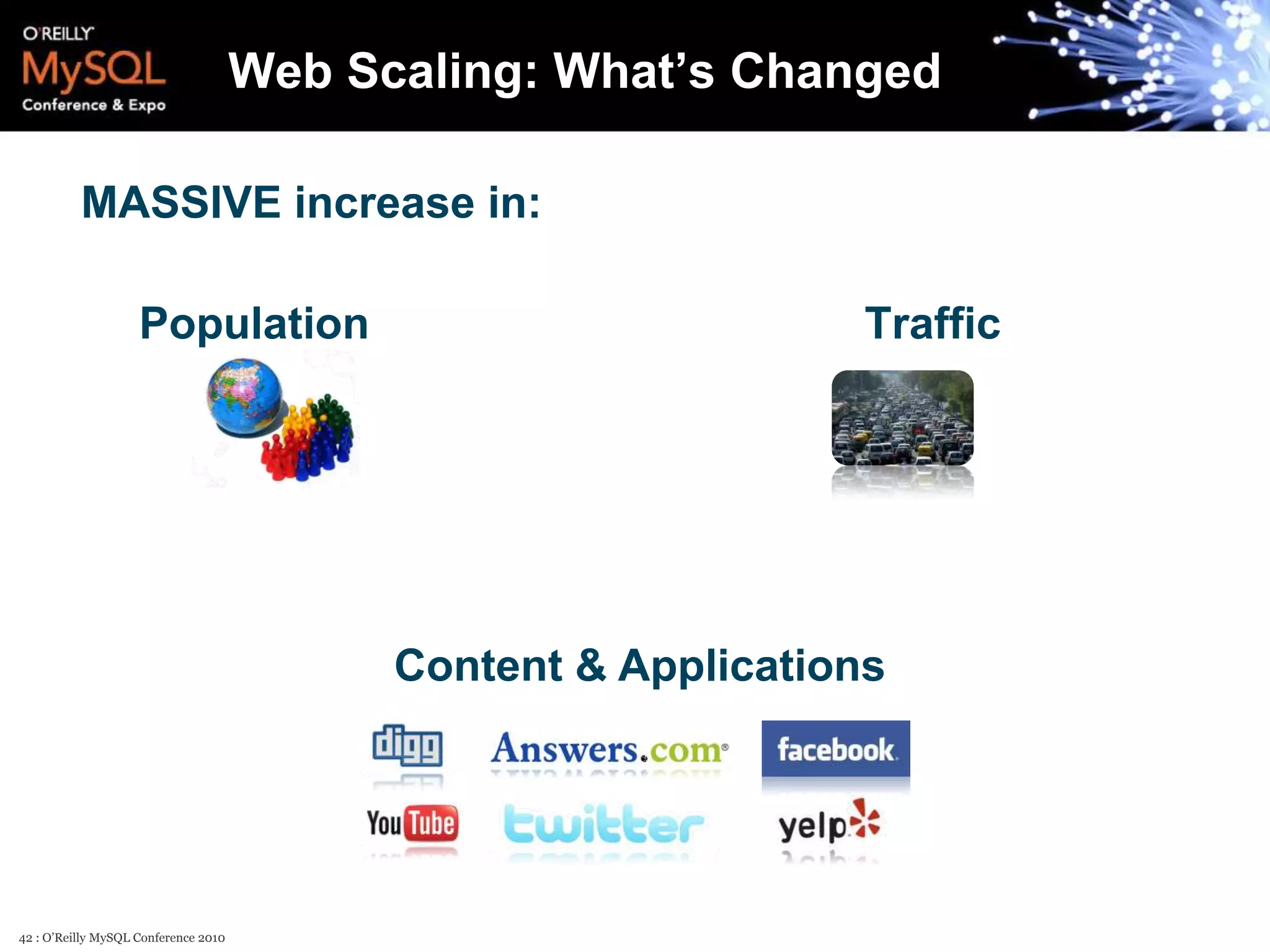

- #43 These three are interrelated Content is Dynamic and PersonalTake a step back…Many more people and not just in the USATraffic (cisco petabyte data): measuring in petabytes per monthApplications: Dynamic and personalized
- #44 A lot of this population is coming into US-based social networking, gaming, media sites… distance means latency issue.Proliferation of broadband drove users to the net.USA #33 in broadband (>2Mbps); #16 in average speed. Miniwatts data shows the shift to Europe and Asia in particular.World internet usage is only NOW @ 1.6b now (24% according to 50x15 site)NOW MOBILE is adding rapidly to this population explosion.Akamai state of the internet report for q1 2009 gives very insightful information of current data trends.
- #45 Consumer is driving the traffic growth (3x of business)>40% CAGR growth (4x in 4 years)

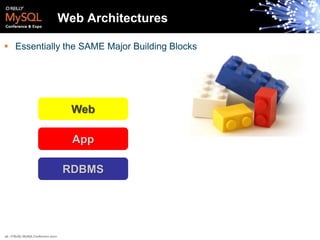

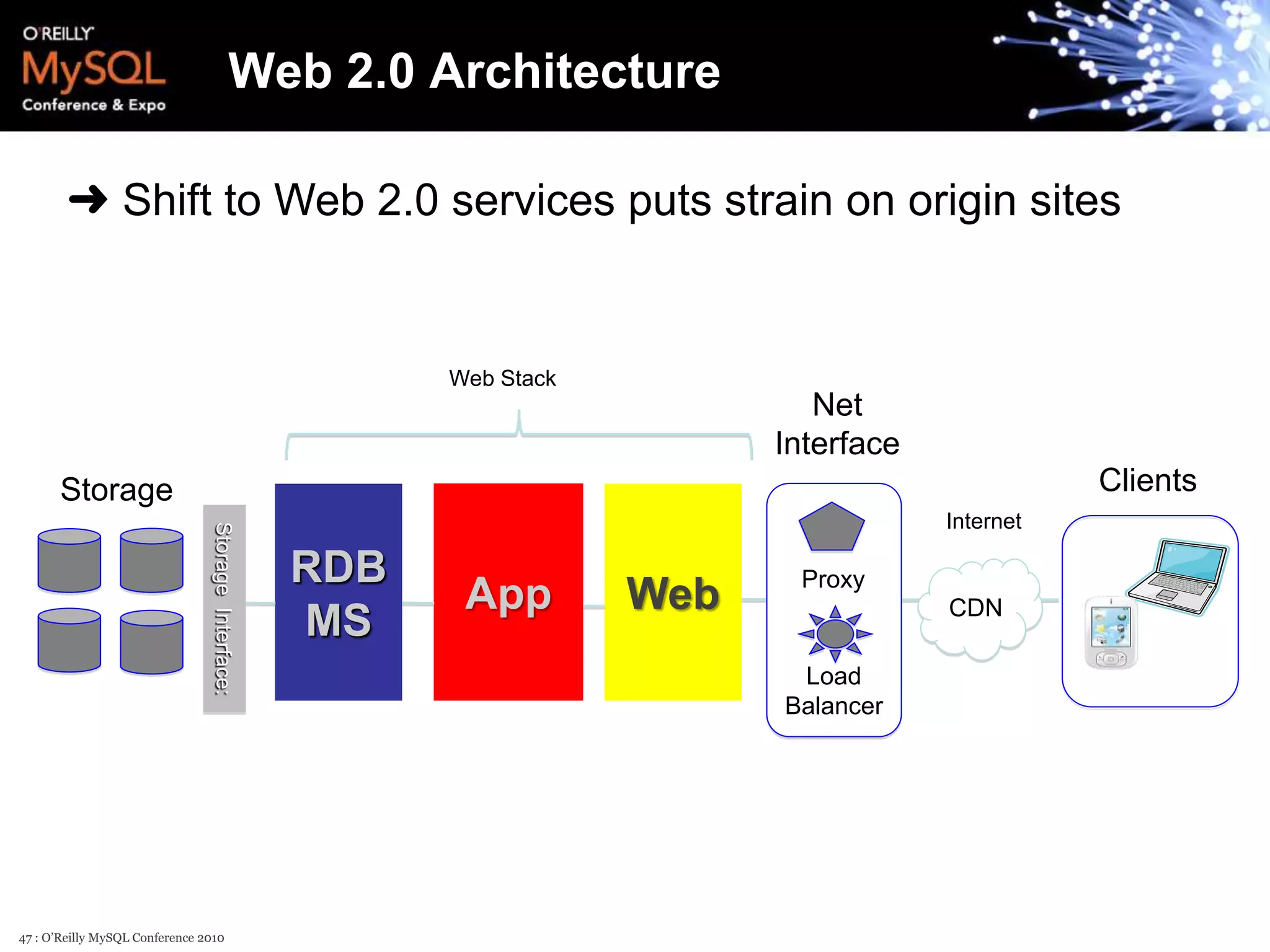

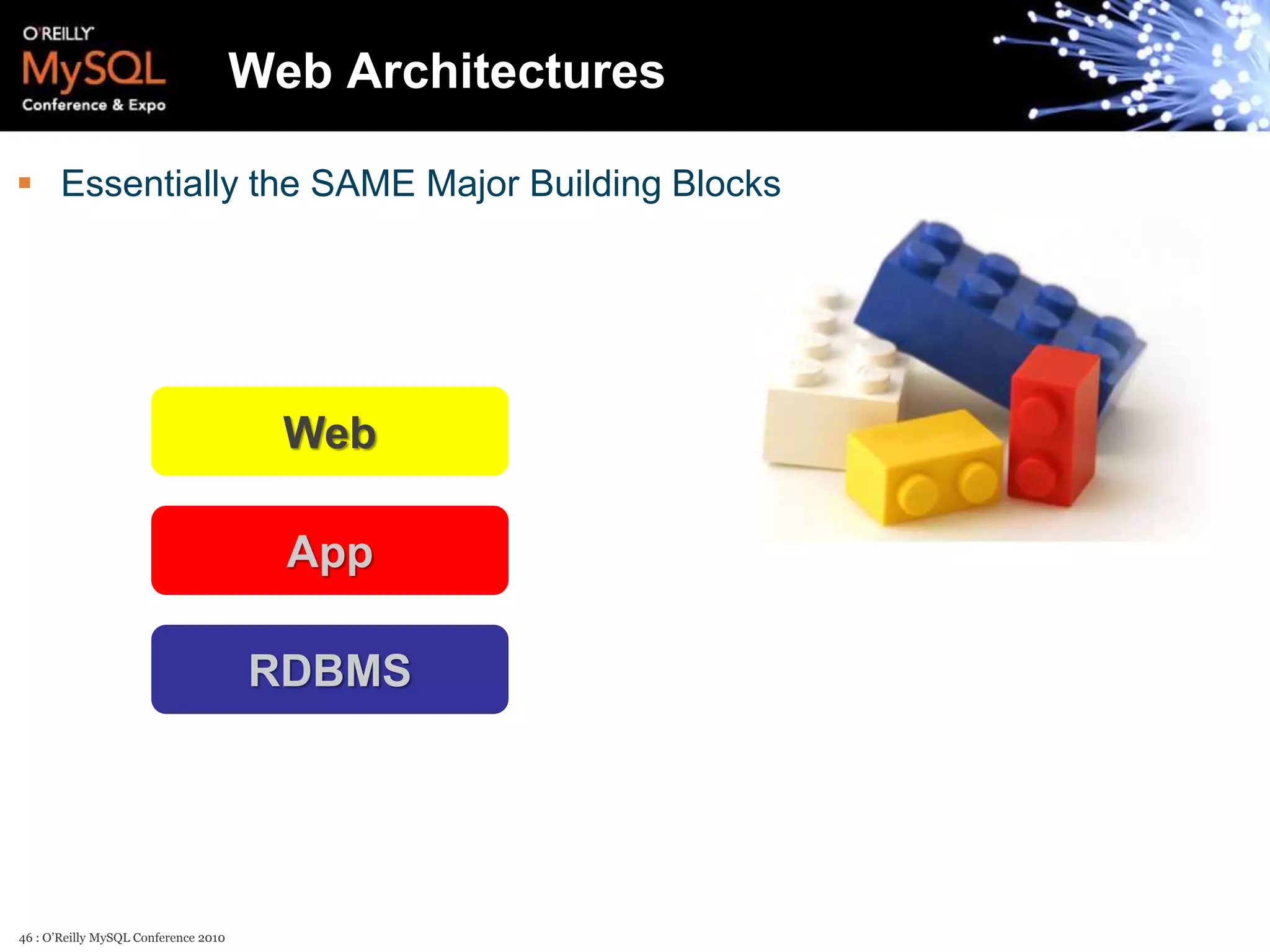

- #47 How do sites make the same software stack go faster

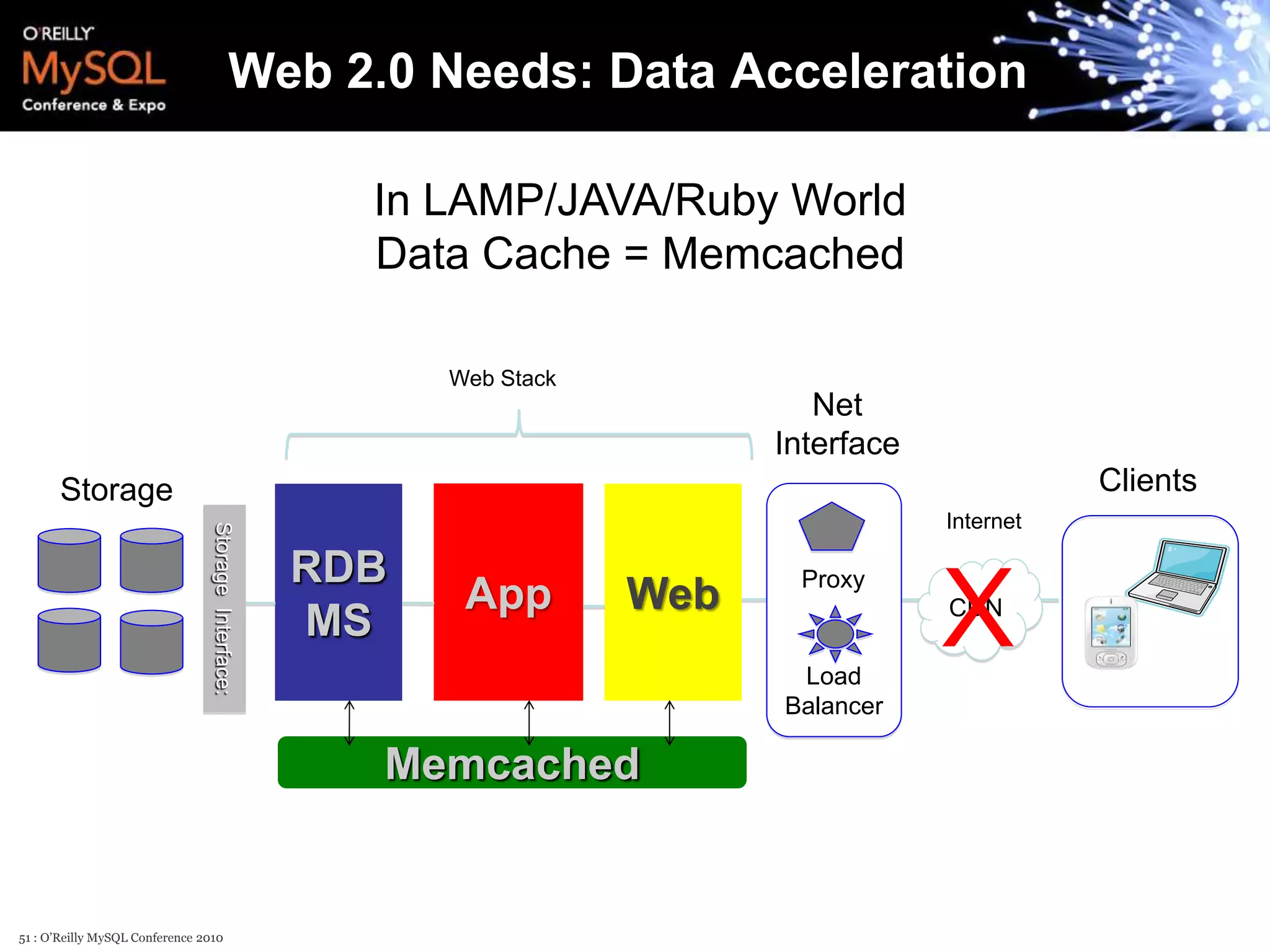

- #48 Why we are here again:Scalable stack framework for LAMP and Java had/have to emerge in order to accelerate stack and provide distribution services
- #49 Why we are here again:Scalable stack framework for LAMP and Java had/have to emerge in order to accelerate stack and provide distribution services

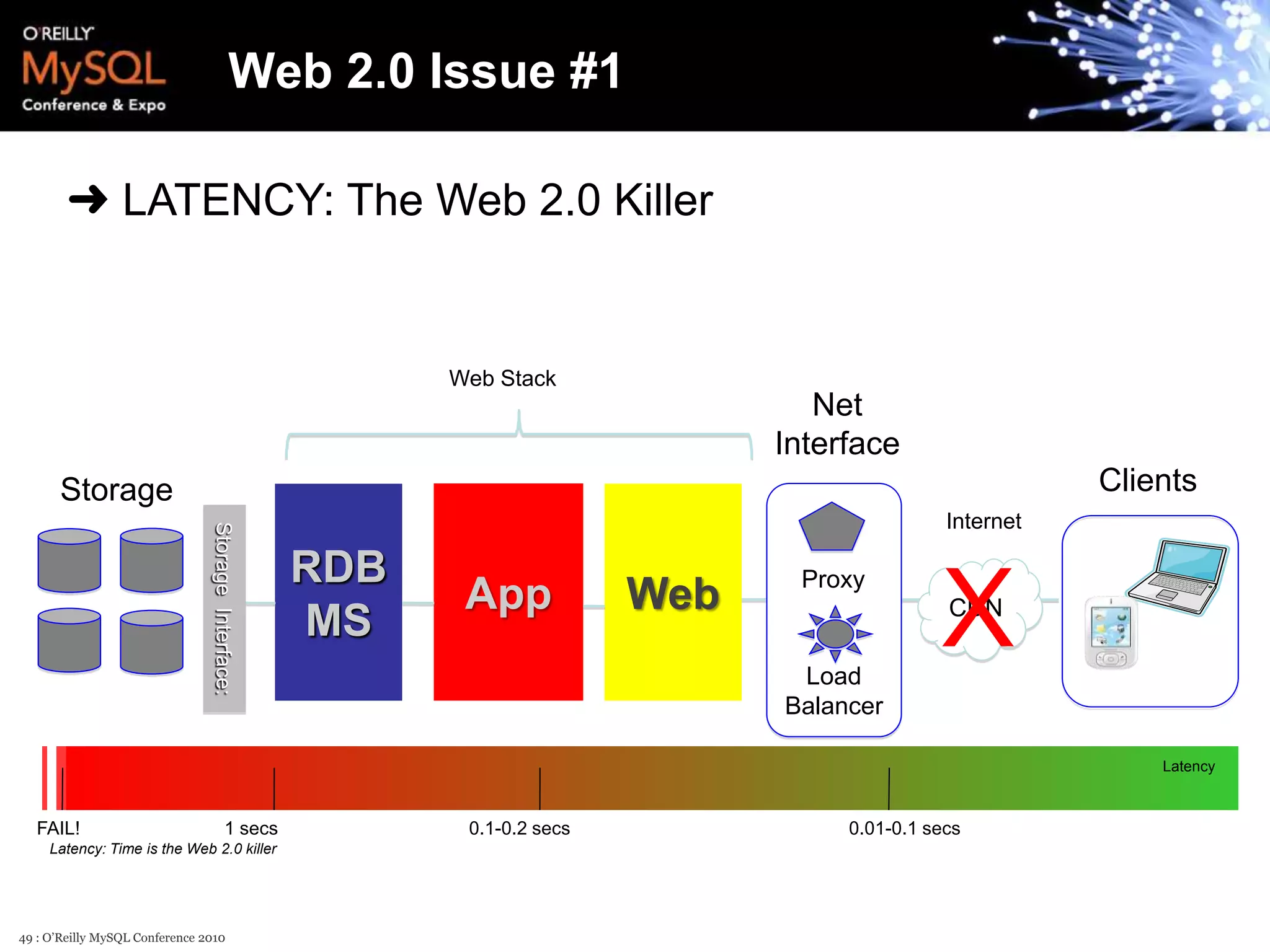

- #50 100ms latency introduced by traversing internet to origin site Typically +0.1 secs means 2-4% DROP in revenue
- #51 100ms latency introduced by traversing internet to origin site Typically +0.1 secs means 2-4% DROP in revenue

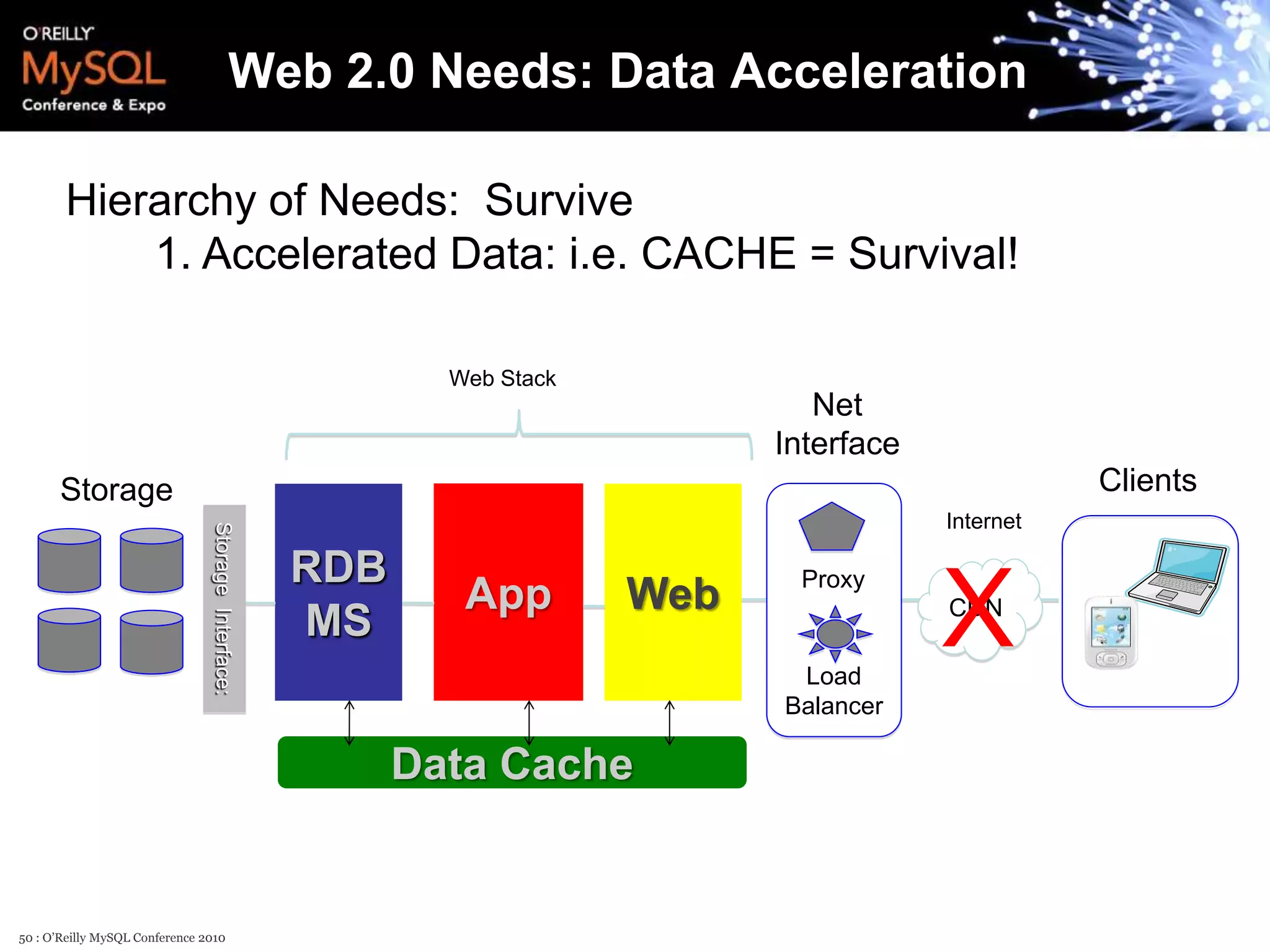

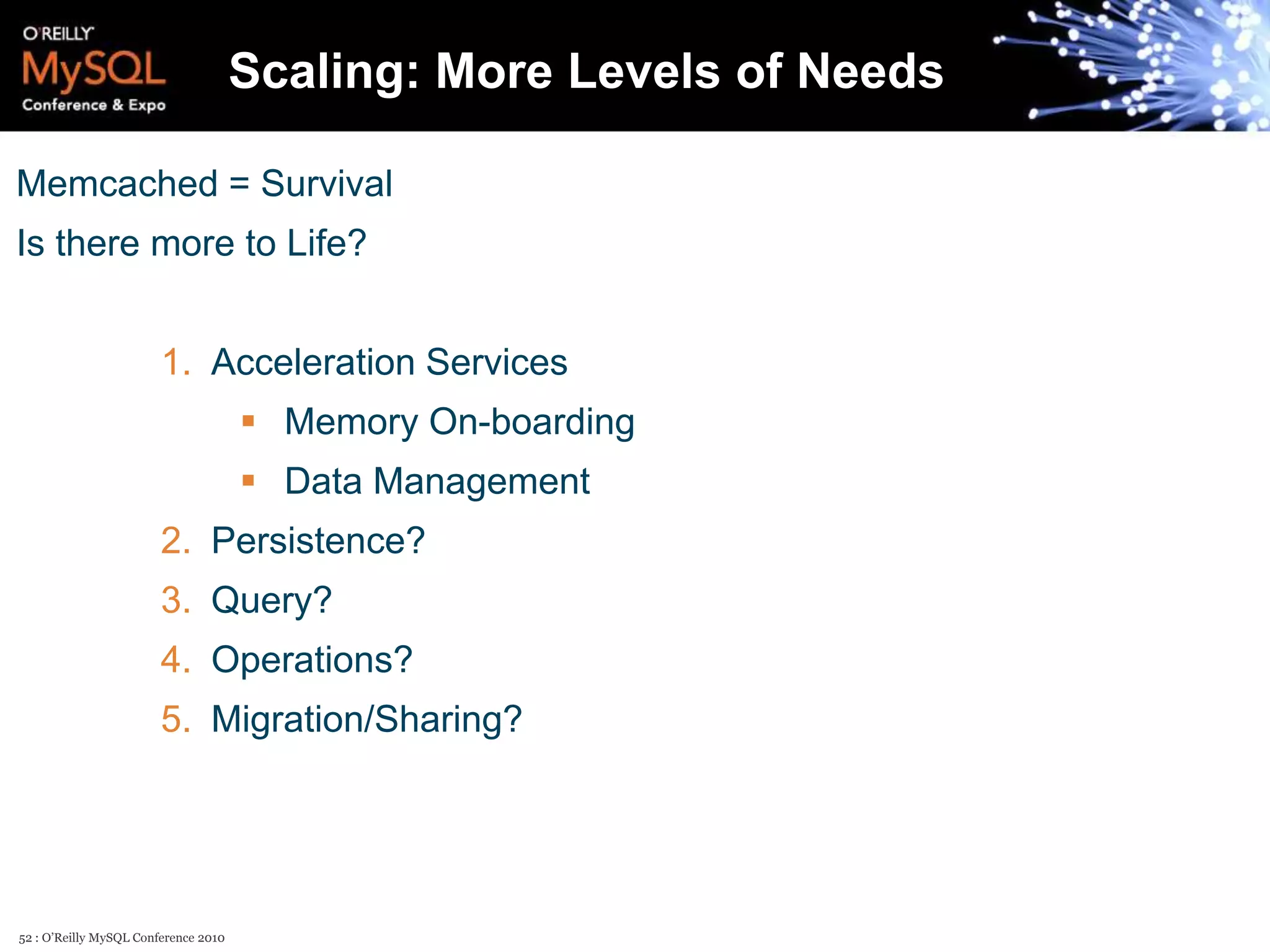

- #53 Maslow's Hierarchy Of Needs

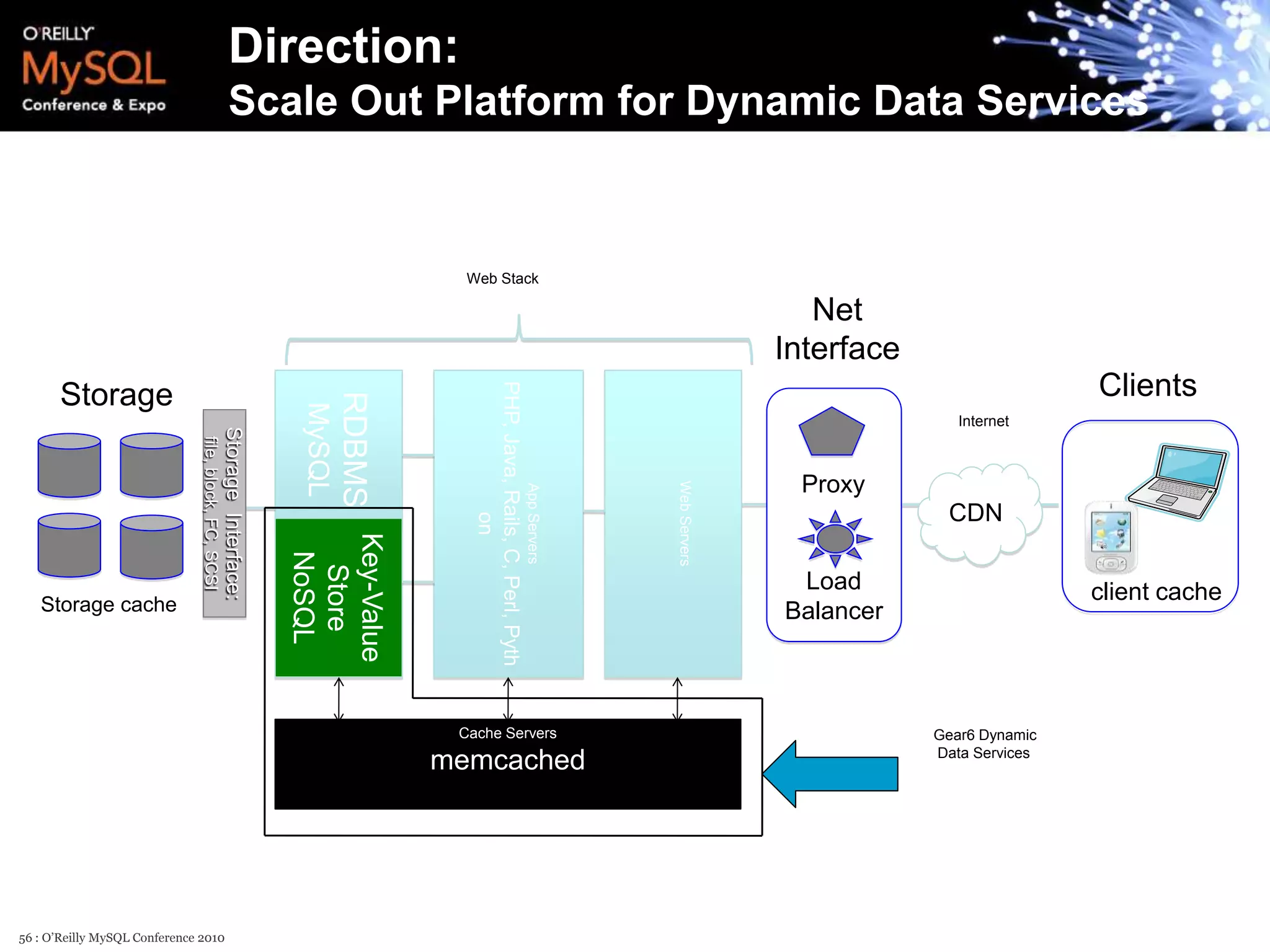

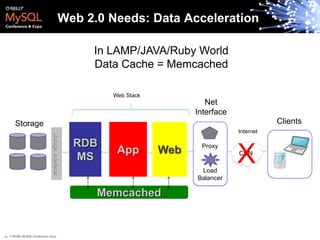

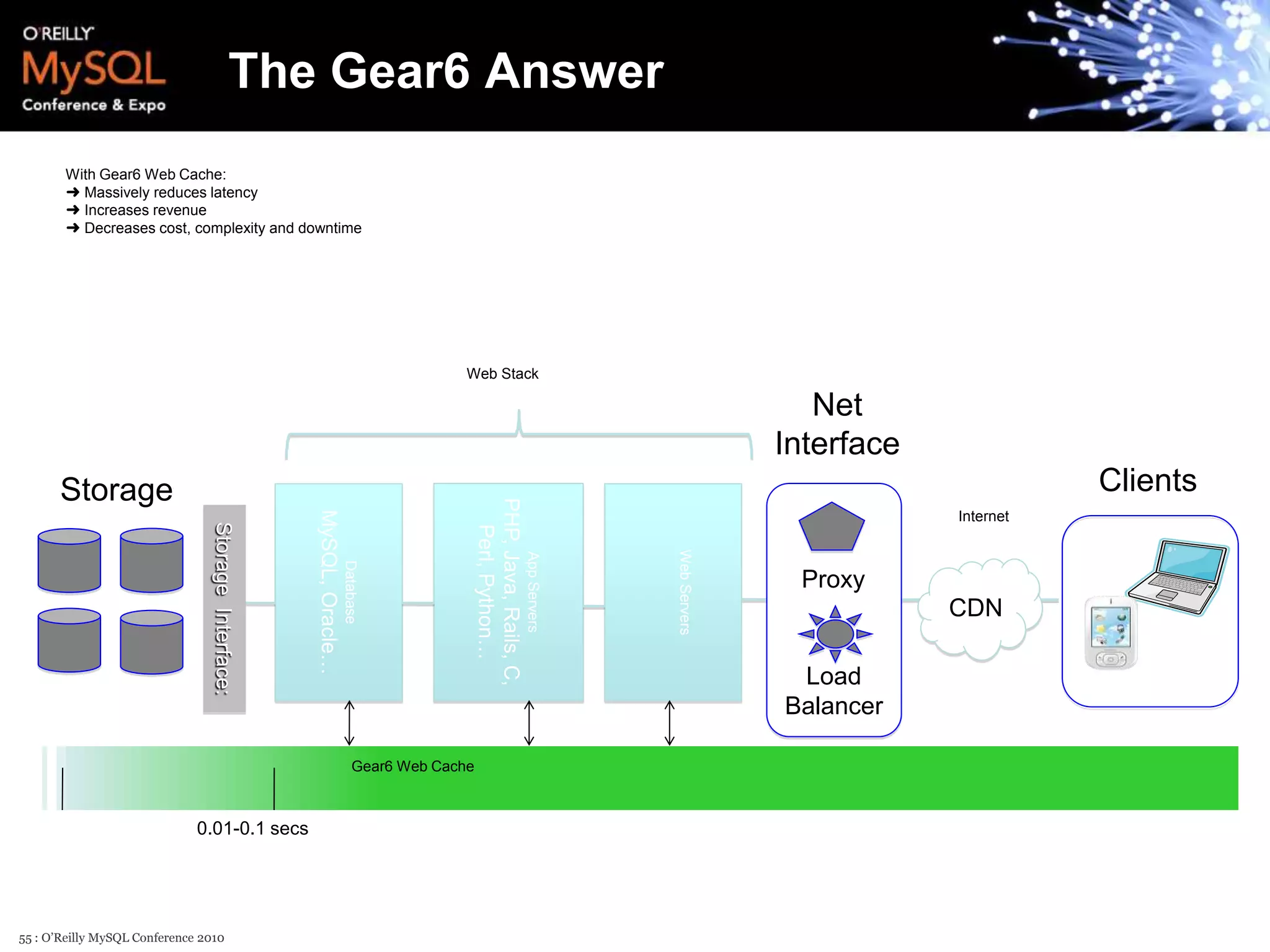

- #56 Increases revenue via being able to economically scale and support more members, services and transactionsScalable stack framework delivered as a network service addressable by all stack componentsOnramp information into Memory ASAPMemcached has emerged as de facto protocol to load information into memory BUT a lot more is neededMemcached ++ Focused on caching functions Advance network-based distributed services Non relational functions
- #57 Web 2.0 driving user & traffic growth Key Apps: Entertainment, Communication, Social Networking Key Drivers: Mobile, Broadband, International, ConsumerMobile applications – 3G+ is 22% by 2010 (Mobile goes hi speed)Consumer Internet Traffic 2006–2012 This category encompasses any IP traffic that crosses the Internet and is not confined to a single service provider’s network. Peer-to-peer (P2P) traffic, still the largest share of Internet traffic today, will decrease as a percentage of overall Internet traffic. Internet video streaming and downloads are beginning to take a larger share of bandwidth, and will grow to nearly 50 percent of all consumer Internet traffic in 2012.

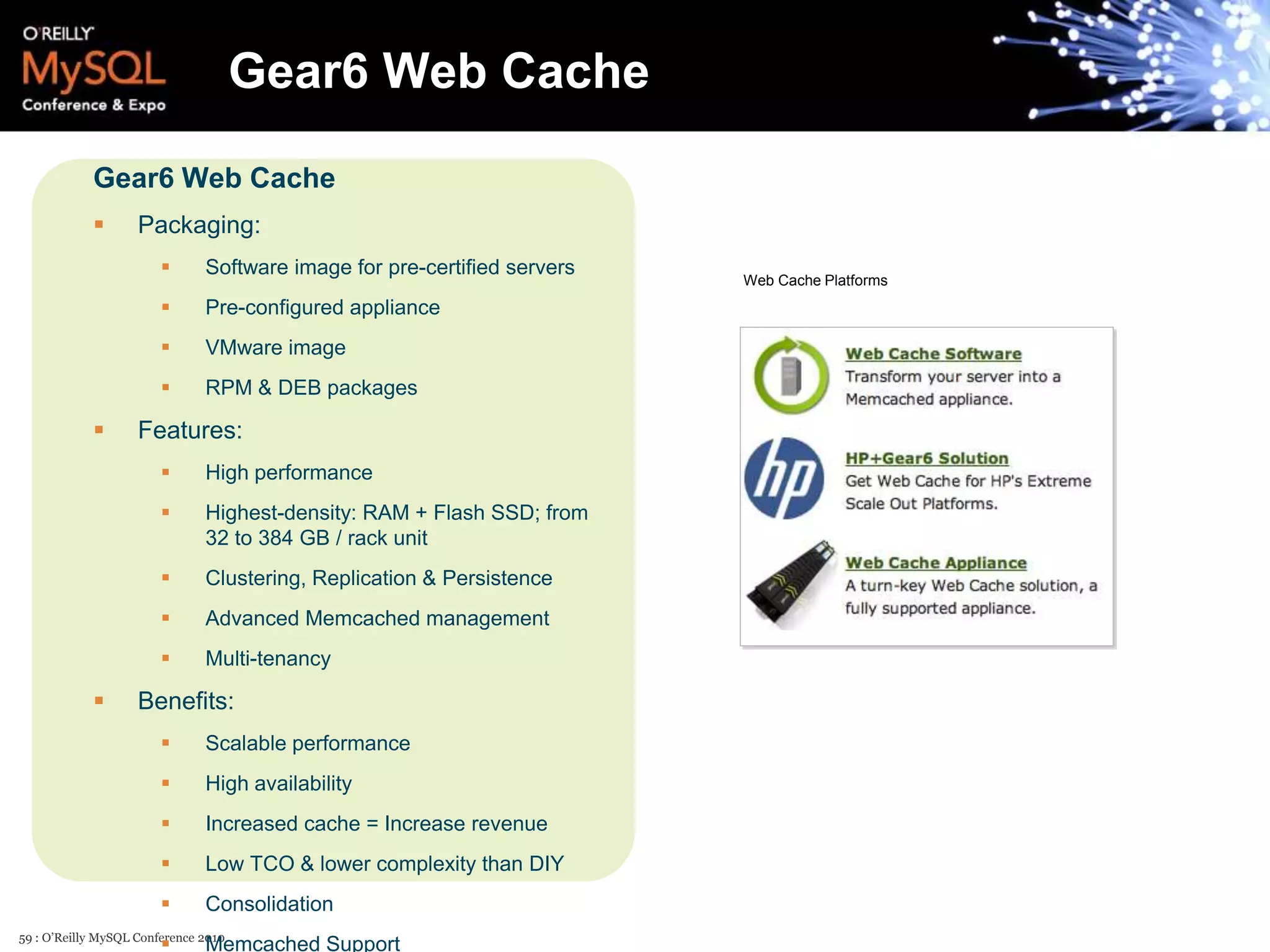

- #60 We talked about “Universal Distro” and EC2 beforeGear6 Web Cache Software requirements:Certified on HP, Dell, Rackable…Requires dedicated serverRedundant GE ports or 10 GE ports64-bit (x86 64) server with 32GB or more of RAMIDE/SATA HD with 80GB+Option: 2.5” SATA drive bays for Flash SSDs - Intel X25-E or SamsungGear6 Web Cache delivers:High availability and consistent scalable high performance50k-200k Memcached ops per sec32-300+GB Memcached space per rack unitFault toleranceComplete cache control and visibility of resourcesCost effective mechanism of scaling database and application tiers
- #61 We talked about “Universal Distro” and EC2 beforeGear6 Web Cache Software requirements:Certified on HP, Dell, Rackable…Requires dedicated serverRedundant GE ports or 10 GE ports64-bit (x86 64) server with 32GB or more of RAMIDE/SATA HD with 80GB+Option: 2.5” SATA drive bays for Flash SSDs - Intel X25-E or SamsungGear6 Web Cache delivers:High availability and consistent scalable high performance50k-200k Memcached ops per sec32-300+GB Memcached space per rack unitFault toleranceComplete cache control and visibility of resourcesCost effective mechanism of scaling database and application tiers
